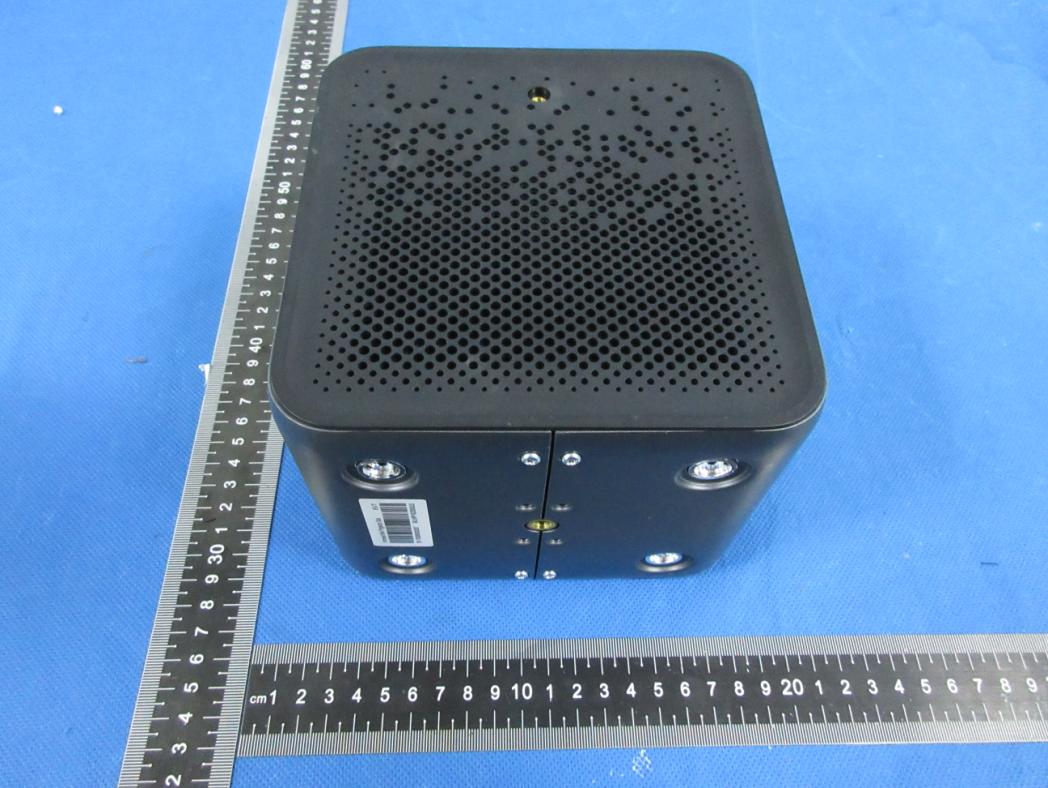

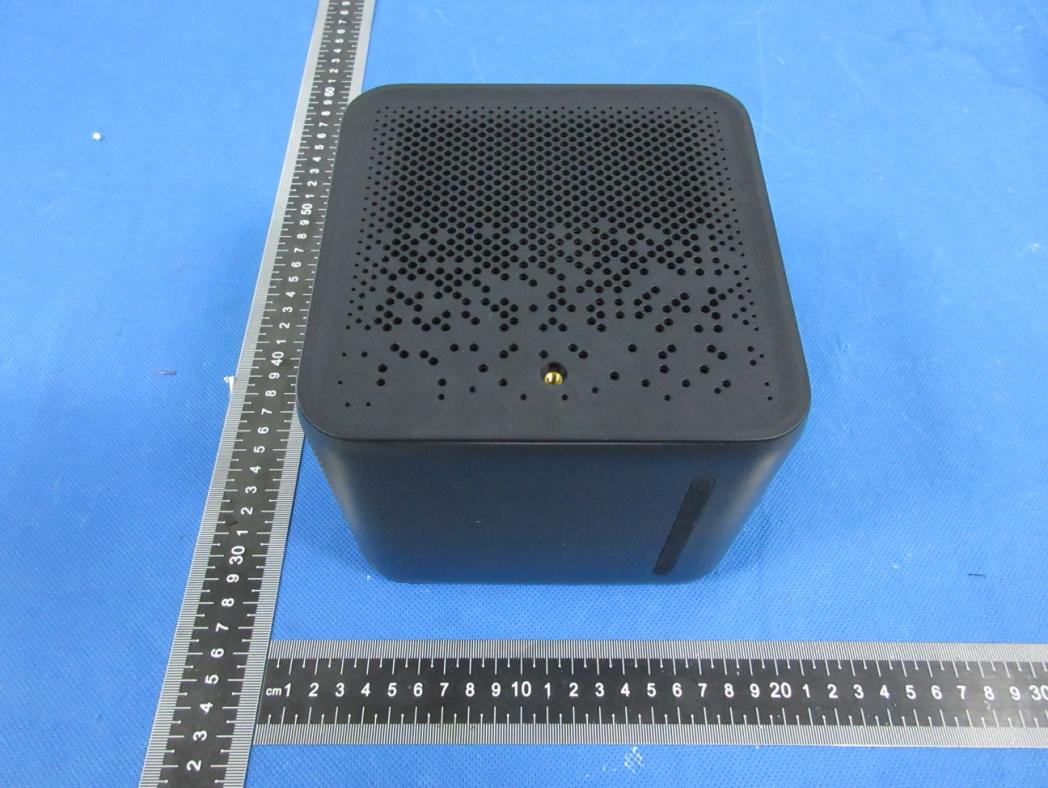

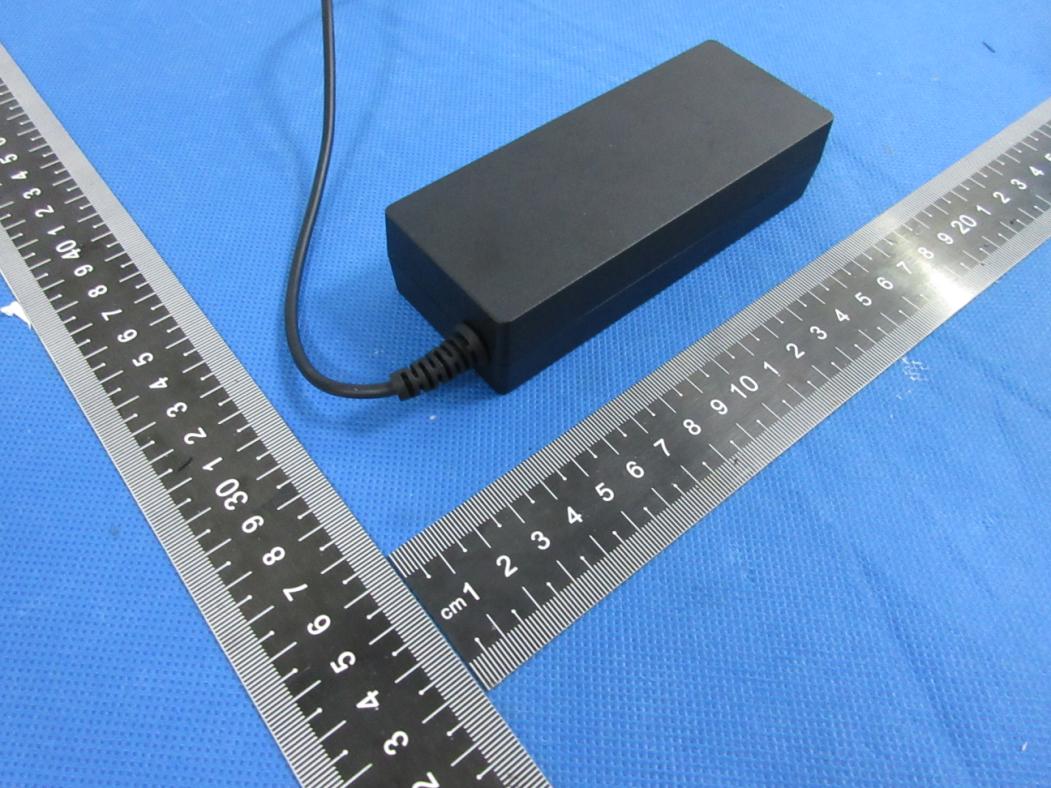

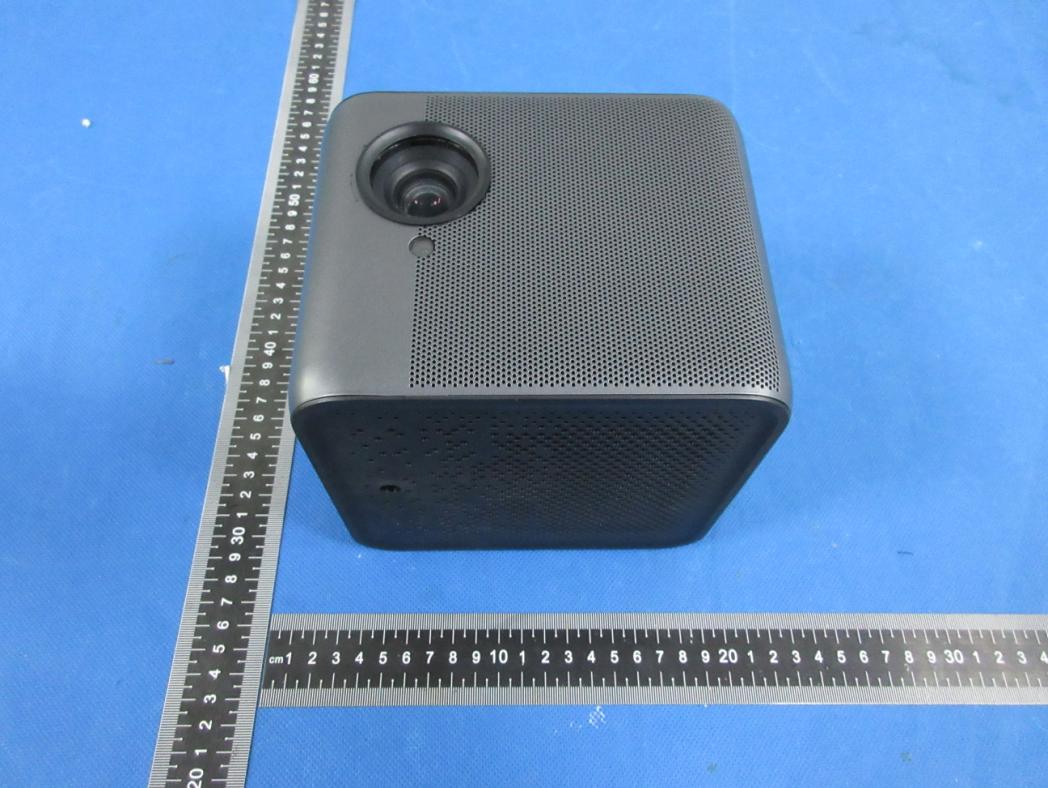

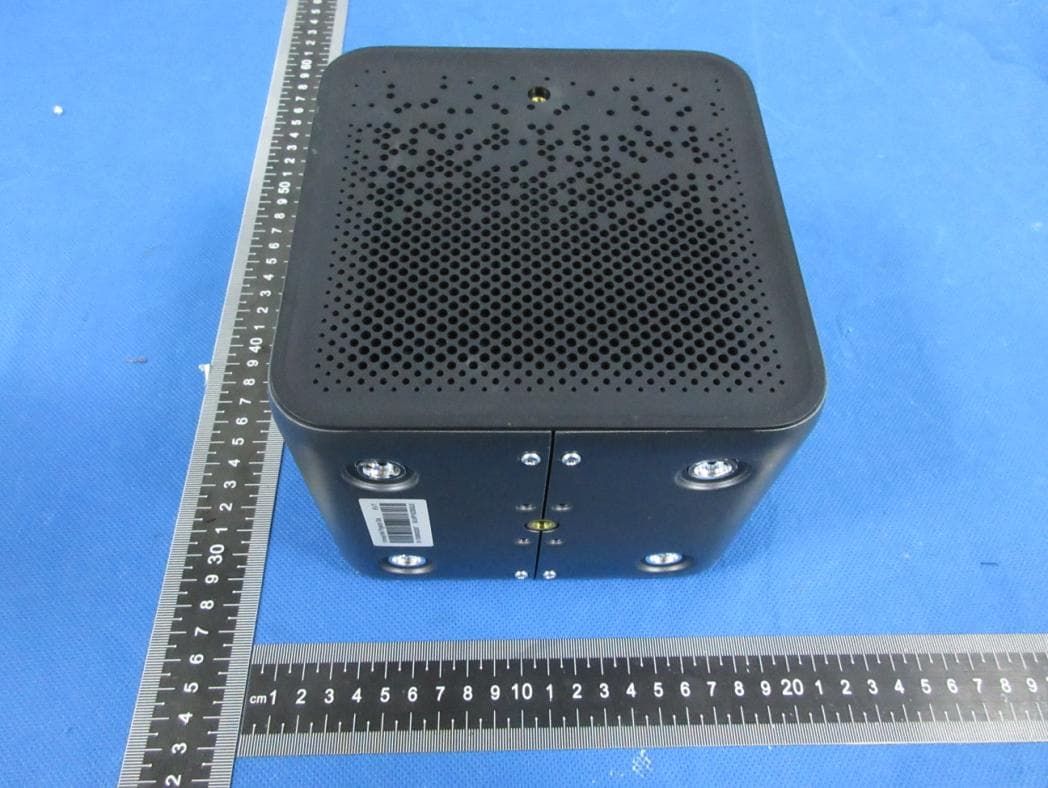

S19121200901 Model: M055FGN N20190309V1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S19121200901 Model: M055FGN N20190309V1 Photo 3 Photo 4 S19121200901 Model: M055FGN N20190309V1 Photo 5 Photo 6 S19121200901 Model: M055FGN N20190309V1 Photo 7 Photo 8 S19121200901 Model: M055FGN N20190309V1 Photo 9 Photo 10

S19121200901 Model: M055FGN N20190309V1 ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 S19121200901 Model: M055FGN N20190309V1 Photo 3 Photo 4 S19121200901 Model: M055FGN N20190309V1 Photo 5 Photo 6 S19121200901 Model: M055FGN N20190309V1 Photo 7 Photo 8 S19121200901 Model: M055FGN N20190309V1 Photo 9 Photo 10 S19121200901 Model: M055FGN N20190309V1 Photo 11 Photo 12 S19121200901 Model: M055FGN N20190309V1 Photo 13 Photo 14 S19121200901 Model: M055FGN N20190309V1 Photo 15 Photo 16 S19121200901 Model: M055FGN N20190309V1 Photo 17 Photo 18 S19121200901 Model: M055FGN N20190309V1 Photo 19 Photo 20 BT Ant S19121200901 Model: M055FGN N20190309V1 Photo 21 Photo 22 WIFI Ant 1 WIFI Ant2

Page 1 of 19 Report No.: S19121200901005 Report Revision 1.0 FCC Maximum Permissible RF Exposure (MPE) Estimation Report In accordance with the requirements of FCC 47 CFR Part 2(2.1091), ANSI/IEEE C95.1-1992 and KDB 447498 D01 Product Name： Formovie Mini Projector Dice Trademark： FORMOVIE Model Name： M055FGN Serial Model： M055*******(*=0-9,A-Z,- or blank, indicates for different market purposes) Report No.： S19121200901005 FCC ID： 2AO2D-M055FGN Prepared for Fengmi（Beijing）Technology Co., Ltd 301,3F,Building 3,No.10,Barracks South Street,RenheTown,ShunyiDistrict,Beijing,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Page 2 of 19 Report No.: S19121200901005 Report Revision 1.0 TEST RESULT CERTIFICATION Applicant’s name ................. : Fengmi（Beijing）Technology Co., Ltd Address ................................. : 301,3F,Building 3,No.10,Barracks South Street,RenheTown,ShunyiDistrict,Beijing,China Manufacturer's Name .......... : Fengmi（Beijing）Technology Co., Ltd Address ................................. : 301,3F,Building 3,No.10,Barracks South Street,RenheTown,ShunyiDistrict,Beijing,China Product description Product name ........................ : Formovie Mini Projector Dice Trademark ........................... : FORMOVIE Model and/or type reference : M055FGN Serial Model .......................... : M055*******(*=0-9,A-Z,- or blank, indicates for different market purposes) Standards ............................. : FCC 47 CFR Part 1(1.1310) FCC 47 CFR Part 2(2.1091) ANSI/IEEE C95.1-1992 KDB 447498 D01 This device described above has been tested by Shenzhen NTEK. Testing has shown that this device is capable of compliance with MPE specified in FCC 47 CFR Part 2(2.1091) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : 12 Dec. 2019 ~ 03 Jan, 2020 Date of Issue .......................................... : 03 Jan, 2020 Test Result .............................................. : Pass Prepared By (Test Engineer) : ( Allen Liu ) Approved By (Lab Manager) : (Sam Chen) Page 3 of 19 Report No.: S19121200901005 Report Revision 1.0 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release 03 Jan, 2020 Allen Liu Page 4 of 19 Report No.: S19121200901005 Report Revision 1.0 TABLE OF CONTENTS 1 General Information ............................................................................................................................... 5 1.1 RF Exposure Requirements ..................................................................................................... 5 1.1.1 RF Exposure Limits ........................................................................................................... 5 1.1.2 Additional Description ........................................................................................................ 6 1.2 EUT Description ....................................................................................................................... 7 1.3 Test specification(s) .................................................................................................................. 8 1.4 Ambient Condition .................................................................................................................... 8 2 RF Output Power ................................................................................................................................... 9 2.1 BT&WIFI Output Power ............................................................................................................ 9 3 RF Exposure Evaluation ...................................................................................................................... 14 3.1 Operation in BT(EDR+BR) FOR SISO MODE ........................................................................ 14 3.2 Operation in BT(BLE) FOR SISO MODE ................................................................................ 14 3.3 Operation in WLAN 2.4G FOR SISO MODE .......................................................................... 14 3.4 Operation in WLAN 5.2G FOR SISO MODE .......................................................................... 14 3.5 Operation in WLAN 5.3G FOR SISO MODE .......................................................................... 14 3.6 Operation in WLAN 5.6G FOR SISO MODE .......................................................................... 15 3.7 Operation in WLAN 5.8G FOR SISO MODE .......................................................................... 15 4 Exposure calculations for multiple sources .......................................................................................... 15 4.1 Estimation for WLAN MIMO 2.4G ........................................................................................... 17 4.2 Estimation for WLAN MIMO 5.2G ........................................................................................... 17 4.3 Estimation for WLAN MIMO 5.3G ........................................................................................... 17 4.4 Estimation for WLAN MIMO 5.6G ........................................................................................... 17 4.5 Estimation for WLAN MIMO 5.8G ........................................................................................... 17 4.6 Estimation for W…

Text truncated - open the document above for the full version.

Report No.: S19121200901004 Version.1.2 Page 1 of 448 FCC RADIO TEST REPORT FCC ID: 2AO2D-M055FGN Product: Formovie Mini Projector Dice Trade Mark: FORMOVIE Model No.: M055FGN Family Model: M055*******(*=0-9,A-Z,- or blank, indicates for different market purposes) Report No.: S19121200901004 Issue Date: 06 Jan. 2020 Prepared for Fengmi（Beijing）Technology Co., Ltd 301,3F,Building 3,No.10,Barracks South Street,RenheTown,ShunyiDistrict,Beijing,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S19121200901004 Version.1.2 Page 2 of 448 TEST RESULT CERTIFICATION Applicant’s name ................. : Fengmi（Beijing）Technology Co., Ltd Address ................................. : 301,3F,Building 3,No.10,Barracks South Street,RenheTown,ShunyiDistrict,Beijing,China Manufacturer's Name .......... : Fengmi（Beijing）Technology Co., Ltd Address ................................. : 301,3F,Building 3,No.10,Barracks South Street,RenheTown,ShunyiDistrict,Beijing,China Product description Product name............................ : Formovie Mini Projector Dice Model and/or type reference : M055FGN Family Model ............................. : M055*******(*=0-9,A-Z,- or blank, indicates for different market purposes) Standards ............................. : FCC Part15.407 Test procedure ............................... : ANSI C63.10-2013 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 FCC KDB 662911 D02 MIMO With Cross Polarized Antenna V01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements/ the Industry Canada requirements.. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 12 Dec. 2019 ~ 03 Jan, 2020 Date of Issue .......................................... : 06 Jan, 2020 Test Result.............................................. : Pass Testing Engineer : (Allen Liu) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) Report No.: S19121200901004 Version.1.2 Page 3 of 448 Table of Contents Page 1. SUMMARY OF TEST RESULTS 7 1.1 FACILITIES AND ACCREDITATIONS 8 1.2 MEASUREMENT UNCERTAINTY 8 1 . GENERAL INFORMATION 9 1.1 GENERAL DESCRIPTION OF EUT 9 1.2 DESCRIPTION OF TEST MODES 11 1.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 1.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 13 1.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 14 2 . EMC EMISSION TEST 16 2.1 CONDUCTED EMISSION MEASUREMENT 16 2.1.1 APPLICABLE STANDARD 16 2.1.2 CONFORMANCE LIMIT 16 2.1.3 TEST CONFIGURATION 16 2.1.4 TEST PROCEDURE 16 2.2 RADIATED EMISSION MEASUREMENT 25 2.2.1 APPLICABLE STANDARD 25 2.2.2 CONFORMANCE LIMIT 25 2.2.3 MEASURING INSTRUMENTS 25 2.2.4 TEST CONFIGURATION 26 2.2.5 TEST PROCEDURE 27 2.2.6 TEST RESULTS (9KHZ – 30 MHZ) 28 2.2.7 TEST RESULTS (30MHZ – 1GHZ) 29 2.2.8 TEST RESULTS (1GHZ-18GHZ) 37 2.2.9 SPURIOUS EMISSION IN BANDEGE TEST RESULTS 43 2.2.10 TEST RESULTS (18GHZ-40GHZ) 67 3 . POWER SPECTRAL DENSITY TEST 75 3.1 APPLIED PROCEDURES / LIMIT 75 3.2 TEST PROCEDURE 76 3.3 DEVIATION FROM STANDARD 76 3.4 TEST SETUP 76 3.5 EUT OPERATION CONDITIONS 76 3.6 TEST RESULTS 77 4 . 26DB & 99% EMISSION BANDWIDTH 78 4.1 APPLIED PROCEDURES / LIMIT 78 Report No.: S19121200901004 Version.1.2 Page 4 of 448 Table of Contents Page 4.2 TEST PROCEDURE 78 4.3 EUT OPERATION CONDITIONS 79 4.4 TEST RESULTS 79 5 . MINIMUM 6 DB BANDWIDTH 80 5.1 APPLIED PROCEDURES / LIMIT 80 5.2 TEST PROCEDURE 80 5.3 DEVIATION FROM STANDARD 80 5.4 TEST SETUP 80 5.5 EUT OPERATION CONDITIONS 80 5.6 TEST RESULTS 81 6 . MAXIMUM CONDUCTED OUTPUT POWER 82 6.1 PPLIED PROCEDURES / LIMIT 82 6.2 TEST RESULTS 84 7 . OUT OF BAND EMISSIONS 85 7.1 APPLICABLE STANDARD 85 7.2 TEST PROCEDURE 85 7.3 DEVIATION FROM STANDARD 85 7.4 TEST SETUP 85 7.5 EUT OPERATION CONDITIONS 86 7.6 TEST RESULTS 87 8. FREQUENCY STABILITY MEASUREMENT 88 8.1 LIMIT 88 8.2 TEST PROCEDURES 88 8.3 TEST SETUP LAYOUT 88 8.4 EUT OPERATION DURING TEST 88 8.5 TEST RESULTS 89 9. DYNAMIC FREQUENCY SELECTION(DFS) 101 9.1 APPLICABILITY OF DFS REQUIREMENTS 101 9.2 INTERFERENCE THRESHOLD VALUES, MASTER OR CLIENT INCORPORATING IN-SERVICE MONITORING 101 9.3 DFS RESPONSE REQUIREMENT VALUES 102 9.4 SHORT PULSE RADAR TEST WAVEFORMS 102 9.5 CALIBRATION SETUP AND DFS TEST RESULTS 103 9.6 CONDUCTED CALIBRATION SETUP 103 9.7 RADAR WAVEFORM CALIBRATION RESULT 104 9.8 IN-SERVICE MONITORING: CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD 105 Report No.: S19121200901004 Version.1.2 Page 5 of 448 Table of Contents Page 9.9 RESULT OF CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD FOR CLIENT BEACON TEST 106 10. ANTENNA REQUIREMENT 107 10.1 STANDARD REQUIREMENT 107 10.2 EUT ANTENNA 107 11. TEST RESULTS 108 11.1 DUTY CYCLE 108 11.2 MAXIMUM CONDUCTED OUTPUT POWER 171 11.3 OCCUPIED CHANNEL BANDWIDTH 175 11.4 -6DB EMISSION BANDWIDTH 297 11.5 MAXIMUM POWER SPECTRAL DENSITY LEVEL 312 11.6 CONDUCTED RF SPURIOUS EMISSION 376 11.7 DFS 439 Report No.: S19121200901004 Version.1.2 Page 6 of 448 Revision History Report No. Version Description Issued Date S19121200901004 Rev.01 Initial issue of report 06 Jan, 2020 Report No.: S19121200901004 Version.1.2 Page 7 of 448 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Rema…

Text truncated - open the document above for the full version.

Report No.: S19121200901004 Version.1.2 Page 141 of 448 Duty Cycle NVNT 802.11a 5600MHz Ant 2 Duty Cycle NVNT 802.11a 5700MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 142 of 448 Duty Cycle NVNT 802.11ac20 5500MHz Ant 1 Duty Cycle NVNT 802.11ac20 5600MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 143 of 448 Duty Cycle NVNT 802.11ac20 5700MHz Ant 1 Duty Cycle NVNT 802.11ac20 5500MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 144 of 448 Duty Cycle NVNT 802.11ac20 5600MHz Ant 2 Duty Cycle NVNT 802.11ac20 5700MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 145 of 448 Duty Cycle NVNT 802.11ac40 5510MHz Ant 1 Duty Cycle NVNT 802.11ac40 5590MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 146 of 448 Duty Cycle NVNT 802.11ac40 5670MHz Ant 1 Duty Cycle NVNT 802.11ac40 5510MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 147 of 448 Duty Cycle NVNT 802.11ac40 5590MHz Ant 2 Duty Cycle NVNT 802.11ac40 5670MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 148 of 448 Duty Cycle NVNT 802.11ac80 5530MHz Ant 1 Duty Cycle NVNT 802.11ac80 5610MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 149 of 448 Duty Cycle NVNT 802.11ac80 5530MHz Ant 2 Duty Cycle NVNT 802.11ac80 5610MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 150 of 448 Duty Cycle NVNT 802.11n(HT20) 5500MHz Ant 1 Duty Cycle NVNT 802.11n(HT20) 5600MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 151 of 448 Duty Cycle NVNT 802.11n(HT20) 5700MHz Ant 1 Duty Cycle NVNT 802.11n(HT20) 5500MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 152 of 448 Duty Cycle NVNT 802.11n(HT20) 5600MHz Ant 2 Duty Cycle NVNT 802.11n(HT20) 5700MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 153 of 448 Duty Cycle NVNT 802.11n(HT40) 5510MHz Ant 1 Duty Cycle NVNT 802.11n(HT40) 5590MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 154 of 448 Duty Cycle NVNT 802.11n(HT40) 5670MHz Ant 1 Duty Cycle NVNT 802.11n(HT40) 5510MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 155 of 448 Duty Cycle NVNT 802.11n(HT40) 5590MHz Ant 2 Duty Cycle NVNT 802.11n(HT40) 5670MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 156 of 448 5.8G: Antenna Condition Mode Frequency (MHz) Duty Cycle (%) Ant 1 NVNT 802.11a 5745 100 Ant 1 NVNT 802.11a 5785 100 Ant 1 NVNT 802.11a 5825 100 Ant 2 NVNT 802.11a 5745 100 Ant 2 NVNT 802.11a 5785 100 Ant 2 NVNT 802.11a 5825 100 Ant 1 NVNT 802.11ac20 5745 100 Ant 1 NVNT 802.11ac20 5785 100 Ant 1 NVNT 802.11ac20 5825 100 Ant 2 NVNT 802.11ac20 5745 100 Ant 2 NVNT 802.11ac20 5785 100 Ant 2 NVNT 802.11ac20 5825 100 Ant 1 NVNT 802.11ac40 5755 100 Ant 1 NVNT 802.11ac40 5795 100 Ant 2 NVNT 802.11ac40 5755 100 Ant 2 NVNT 802.11ac40 5795 100 Ant 1 NVNT 802.11ac80 5775 100 Ant 2 NVNT 802.11ac80 5775 100 Ant 1 NVNT 802.11n(HT20) 5745 100 Ant 1 NVNT 802.11n(HT20) 5785 100 Ant 1 NVNT 802.11n(HT20) 5825 100 Ant 2 NVNT 802.11n(HT20) 5745 100 Ant 2 NVNT 802.11n(HT20) 5785 100 Ant 2 NVNT 802.11n(HT20) 5825 100 Ant 1 NVNT 802.11n(HT40) 5755 100 Ant 1 NVNT 802.11n(HT40) 5795 100 Ant 2 NVNT 802.11n(HT40) 5755 100 Ant 2 NVNT 802.11n(HT40) 5795 100 Duty Cycle NVNT 802.11a 5745MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 157 of 448 Duty Cycle NVNT 802.11a 5785MHz Ant 1 Duty Cycle NVNT 802.11a 5825MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 158 of 448 Duty Cycle NVNT 802.11a 5745MHz Ant 2 Duty Cycle NVNT 802.11a 5785MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 159 of 448 Duty Cycle NVNT 802.11a 5825MHz Ant 2 Duty Cycle NVNT 802.11ac20 5745MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 160 of 448 Duty Cycle NVNT 802.11ac20 5785MHz Ant 1 Duty Cycle NVNT 802.11ac20 5825MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 161 of 448 Duty Cycle NVNT 802.11ac20 5745MHz Ant 2 Duty Cycle NVNT 802.11ac20 5785MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 162 of 448 Duty Cycle NVNT 802.11ac20 5825MHz Ant 2 Duty Cycle NVNT 802.11ac40 5755MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 163 of 448 Duty Cycle NVNT 802.11ac40 5795MHz Ant 1 Duty Cycle NVNT 802.11ac40 5755MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 164 of 448 Duty Cycle NVNT 802.11ac40 5795MHz Ant 2 Duty Cycle NVNT 802.11ac80 5775MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 165 of 448 Duty Cycle NVNT 802.11ac80 5775MHz Ant 2 Duty Cycle NVNT 802.11n(HT20) 5745MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 166 of 448 Duty Cycle NVNT 802.11n(HT20) 5785MHz Ant 1 Duty Cycle NVNT 802.11n(HT20) 5825MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 167 of 448 Duty Cycle NVNT 802.11n(HT20) 5745MHz Ant 2 Duty Cycle NVNT 802.11n(HT20) 5785MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 168 of 448 Duty Cycle NVNT 802.11n(HT20) 5825MHz Ant 2 Duty Cycle NVNT 802.11n(HT40) 5755MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 169 of 448 Duty Cycle NVNT 802.11n(HT40) 5795MHz Ant 1 Duty Cycle NVNT 802.11n(HT40) 5755MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 170 of 448 Duty Cycle NVNT 802.11n(HT40) 5795MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 171 of 448 11.2 MAXIMUM CONDUCTED OUTPUT POWER 5.2G: Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Total Power (dBm) Limit (dBm) Verdict NVNT 802.11a 5180 Ant 1 12.17 - 24 Pass NVNT 802.11a 5200 Ant 1 12.66 - 24 Pass NVNT 802.11a 5240 Ant 1 11.92 - 24 Pass NVNT 802.11a 5180 Ant 2 11.68 - 24 Pass NVNT 802.11a 5200 Ant 2 12.15 - 24 Pass NVNT 802.11a 5240 Ant 2 12.35 - 24 Pass NVNT 802.11ac20 5180 Ant 1 13.55 15.49 21.29 Pass NVNT 802.11ac20 5180 Ant 2 11.05 NVNT 802.11ac20 5200 Ant 1 12.1 14.88 21.29 Pass NVNT 802.11ac20 5200 Ant 2 11.62 NVNT 802.11ac20 5240 Ant 1 12.75 15.21 21.29 Pass NVNT 802.11ac20 5240 Ant 2 11.57 NVNT 802.11ac40 5190 Ant 1 8.45 11.46 21.29 Pass NVNT 802.11ac40 5190 Ant 2 8.44 NVNT 802.11ac40 5230 Ant 1 8.25 11.01 21.29 Pass NVNT 802.11ac40 5230 Ant 2 7.74 NVNT 802.11ac80 5210 Ant 1 10.47 13.02 21.29 Pass NVNT 802.11ac80 5210 Ant 2 9.49 NVNT 802.11n(HT20) 5180 Ant 1 1…

Text truncated - open the document above for the full version.

Report No.: S19121200901004 Version.1.2 Page 185 of 448 OBW NVNT 802.11ac20 5180MHz Ant 2 -26 dB BW NVNT 802.11ac20 5180MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 186 of 448 OBW NVNT 802.11ac20 5200MHz Ant 2 -26 dB BW NVNT 802.11ac20 5200MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 187 of 448 OBW NVNT 802.11ac20 5240MHz Ant 2 -26 dB BW NVNT 802.11ac20 5240MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 188 of 448 OBW NVNT 802.11ac40 5190MHz Ant 1 -26 dB BW NVNT 802.11ac40 5190MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 189 of 448 OBW NVNT 802.11ac40 5230MHz Ant 1 -26 dB BW NVNT 802.11ac40 5230MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 190 of 448 OBW NVNT 802.11ac40 5190MHz Ant 2 -26 dB BW NVNT 802.11ac40 5190MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 191 of 448 OBW NVNT 802.11ac40 5230MHz Ant 2 -26 dB BW NVNT 802.11ac40 5230MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 192 of 448 OBW NVNT 802.11ac80 5210MHz Ant 1 -26 dB BW NVNT 802.11ac80 5210MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 193 of 448 OBW NVNT 802.11ac80 5210MHz Ant 2 -26 dB BW NVNT 802.11ac80 5210MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 194 of 448 OBW NVNT 802.11n(HT20) 5180MHz Ant 1 -26 dB BW NVNT 802.11n(HT20) 5180MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 195 of 448 OBW NVNT 802.11n(HT20) 5200MHz Ant 1 -26 dB BW NVNT 802.11n(HT20) 5200MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 196 of 448 OBW NVNT 802.11n(HT20) 5240MHz Ant 1 -26 dB BW NVNT 802.11n(HT20) 5240MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 197 of 448 OBW NVNT 802.11n(HT20) 5180MHz Ant 2 -26 dB BW NVNT 802.11n(HT20) 5180MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 198 of 448 OBW NVNT 802.11n(HT20) 5200MHz Ant 2 -26 dB BW NVNT 802.11n(HT20) 5200MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 199 of 448 OBW NVNT 802.11n(HT20) 5240MHz Ant 2 -26 dB BW NVNT 802.11n(HT20) 5240MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 200 of 448 OBW NVNT 802.11n(HT40) 5190MHz Ant 1 -26 dB BW NVNT 802.11n(HT40) 5190MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 201 of 448 OBW NVNT 802.11n(HT40) 5230MHz Ant 1 -26 dB BW NVNT 802.11n(HT40) 5230MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 202 of 448 OBW NVNT 802.11n(HT40) 5190MHz Ant 2 -26 dB BW NVNT 802.11n(HT40) 5190MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 203 of 448 OBW NVNT 802.11n(HT40) 5230MHz Ant 2 -26 dB BW NVNT 802.11n(HT40) 5230MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 204 of 448 5.3G: Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) -26 dB Bandwidth (MHz) Verdict NVNT 802.11a 5260 Ant 1 16.7623 21.54 Pass NVNT 802.11a 5280 Ant 1 17.0943 21.428 Pass NVNT 802.11a 5320 Ant 1 17.0303 21.704 Pass NVNT 802.11a 5260 Ant 2 17.1583 21.772 Pass NVNT 802.11a 5280 Ant 2 17.1183 21.776 Pass NVNT 802.11a 5320 Ant 2 17.2703 21.448 Pass NVNT 802.11ac20 5260 Ant 1 17.901 21.5249 Pass NVNT 802.11ac20 5280 Ant 1 17.9782 21.608 Pass NVNT 802.11ac20 5320 Ant 1 17.9302 21.436 Pass NVNT 802.11ac20 5260 Ant 2 18.1171 21.1847 Pass NVNT 802.11ac20 5280 Ant 2 18.1622 21.596 Pass NVNT 802.11ac20 5320 Ant 2 17.7822 21.532 Pass NVNT 802.11ac40 5270 Ant 1 36.4044 40.376 Pass NVNT 802.11ac40 5310 Ant 1 36.4284 40.504 Pass NVNT 802.11ac40 5270 Ant 2 36.4204 39.976 Pass NVNT 802.11ac40 5310 Ant 2 36.4124 40.032 Pass NVNT 802.11ac80 5290 Ant 1 76.0564 82.144 Pass NVNT 802.11ac80 5290 Ant 2 75.5604 81.424 Pass NVNT 802.11n(HT20) 5260 Ant 1 18.0742 21.576 Pass NVNT 802.11n(HT20) 5280 Ant 1 17.8102 21.352 Pass NVNT 802.11n(HT20) 5320 Ant 1 18.3182 21.7 Pass NVNT 802.11n(HT20) 5260 Ant 2 18.2782 21.6 Pass NVNT 802.11n(HT20) 5280 Ant 2 18.1142 21.648 Pass NVNT 802.11n(HT20) 5320 Ant 2 18.0942 21.792 Pass NVNT 802.11n(HT40) 5270 Ant 1 36.3884 40.52 Pass NVNT 802.11n(HT40) 5310 Ant 1 36.4364 40.28 Pass NVNT 802.11n(HT40) 5270 Ant 2 36.4364 40.312 Pass NVNT 802.11n(HT40) 5310 Ant 2 36.4204 40.424 Pass Report No.: S19121200901004 Version.1.2 Page 205 of 448 OBW NVNT 802.11a 5260MHz Ant 1 -26 dB BW NVNT 802.11a 5260MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 206 of 448 OBW NVNT 802.11a 5280MHz Ant 1 -26 dB BW NVNT 802.11a 5280MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 207 of 448 OBW NVNT 802.11a 5320MHz Ant 1 -26 dB BW NVNT 802.11a 5320MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 208 of 448 OBW NVNT 802.11a 5260MHz Ant 2 -26 dB BW NVNT 802.11a 5260MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 209 of 448 OBW NVNT 802.11a 5280MHz Ant 2 -26 dB BW NVNT 802.11a 5280MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 210 of 448 OBW NVNT 802.11a 5320MHz Ant 2 -26 dB BW NVNT 802.11a 5320MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 211 of 448 OBW NVNT 802.11ac20 5260MHz Ant 1 -26 dB BW NVNT 802.11ac20 5260MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 212 of 448 OBW NVNT 802.11ac20 5280MHz Ant 1 -26 dB BW NVNT 802.11ac20 5280MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 213 of 448 OBW NVNT 802.11ac20 5320MHz Ant 1 -26 dB BW NVNT 802.11ac20 5320MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 214 of 448 OBW NVNT 802.11ac20 5260MHz Ant 2 -26 dB BW NVNT 802.11ac20 5260MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 215 of 448 OBW NVNT 802.11ac20 5280MHz Ant 2 -26 dB BW NVNT 802.11ac20 5280MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 216 of 448 OBW NVNT 802.11ac20 5320MHz Ant 2 -26 dB BW NVNT 802.11ac20 5320MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 217 of 448 OBW NVNT 802.11ac40 5270MHz Ant 1 -26 dB BW NVNT 802.11ac40 5270MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 218 of 448 OBW NVNT 802.11ac40 5310MHz Ant 1 -26 dB BW NVNT 802.11ac40 5310MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 219 of 448 OBW NVNT 802.11ac40 5270MHz Ant 2 -26 dB BW NVNT 802.11ac40 5270MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 220 of 448 OBW NVNT 802.11ac40 5310MHz Ant …

Text truncated - open the document above for the full version.

Report No.: S19121200901004 Version.1.2 Page 229 of 448 OBW NVNT 802.11n(HT40) 5270MHz Ant 1 -26 dB BW NVNT 802.11n(HT40) 5270MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 230 of 448 OBW NVNT 802.11n(HT40) 5310MHz Ant 1 -26 dB BW NVNT 802.11n(HT40) 5310MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 231 of 448 OBW NVNT 802.11n(HT40) 5270MHz Ant 2 -26 dB BW NVNT 802.11n(HT40) 5270MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 232 of 448 OBW NVNT 802.11n(HT40) 5310MHz Ant 2 -26 dB BW NVNT 802.11n(HT40) 5310MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 233 of 448 5.6G: Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) -26 dB Bandwidth (MHz) Verdict NVNT 802.11a 5500 Ant 1 16.7663 21.196 Pass NVNT 802.11a 5600 Ant 1 16.8703 21.264 Pass NVNT 802.11a 5700 Ant 1 17.1343 21.832 Pass NVNT 802.11a 5500 Ant 2 16.9903 21.58 Pass NVNT 802.11a 5600 Ant 2 17.0023 21.536 Pass NVNT 802.11a 5700 Ant 2 17.1303 21.68 Pass NVNT 802.11ac20 5500 Ant 1 18.0262 21.48 Pass NVNT 802.11ac20 5600 Ant 1 17.8862 21.332 Pass NVNT 802.11ac20 5700 Ant 1 17.7062 20.972 Pass NVNT 802.11ac20 5500 Ant 2 17.9982 21.588 Pass NVNT 802.11ac20 5600 Ant 2 17.8222 21.28 Pass NVNT 802.11ac20 5700 Ant 2 17.9862 21.22 Pass NVNT 802.11ac40 5510 Ant 1 36.2924 40.224 Pass NVNT 802.11ac40 5590 Ant 1 36.4764 39.816 Pass NVNT 802.11ac40 5670 Ant 1 36.5083 40.36 Pass NVNT 802.11ac40 5510 Ant 2 36.2924 40.48 Pass NVNT 802.11ac40 5590 Ant 2 36.5163 40.184 Pass NVNT 802.11ac40 5670 Ant 2 36.5483 40.208 Pass NVNT 802.11ac80 5530 Ant 1 76.0884 82.112 Pass NVNT 802.11ac80 5610 Ant 1 75.5444 81.056 Pass NVNT 802.11ac80 5530 Ant 2 75.7844 81.44 Pass NVNT 802.11ac80 5610 Ant 2 75.5444 80.864 Pass NVNT 802.11n(HT20) 5500 Ant 1 17.8382 21.536 Pass NVNT 802.11n(HT20) 5600 Ant 1 18.0462 21.572 Pass NVNT 802.11n(HT20) 5700 Ant 1 18.0622 21.392 Pass NVNT 802.11n(HT20) 5500 Ant 2 18.1662 21.604 Pass NVNT 802.11n(HT20) 5600 Ant 2 18.2262 21.912 Pass NVNT 802.11n(HT20) 5700 Ant 2 18.0302 21.652 Pass NVNT 802.11n(HT40) 5510 Ant 1 36.2604 39.912 Pass NVNT 802.11n(HT40) 5590 Ant 1 36.4604 40.344 Pass NVNT 802.11n(HT40) 5670 Ant 1 36.5003 40.744 Pass NVNT 802.11n(HT40) 5510 Ant 2 36.3084 40.176 Pass NVNT 802.11n(HT40) 5590 Ant 2 36.4924 40.768 Pass NVNT 802.11n(HT40) 5670 Ant 2 36.5323 56.152 Pass Report No.: S19121200901004 Version.1.2 Page 234 of 448 OBW NVNT 802.11a 5500MHz Ant 1 -26 dB BW NVNT 802.11a 5500MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 235 of 448 OBW NVNT 802.11a 5600MHz Ant 1 -26 dB BW NVNT 802.11a 5600MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 236 of 448 OBW NVNT 802.11a 5700MHz Ant 1 -26 dB BW NVNT 802.11a 5700MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 237 of 448 OBW NVNT 802.11a 5500MHz Ant 2 -26 dB BW NVNT 802.11a 5500MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 238 of 448 OBW NVNT 802.11a 5600MHz Ant 2 -26 dB BW NVNT 802.11a 5600MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 239 of 448 OBW NVNT 802.11a 5700MHz Ant 2 -26 dB BW NVNT 802.11a 5700MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 240 of 448 OBW NVNT 802.11ac20 5500MHz Ant 1 -26 dB BW NVNT 802.11ac20 5500MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 241 of 448 OBW NVNT 802.11ac20 5600MHz Ant 1 -26 dB BW NVNT 802.11ac20 5600MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 242 of 448 OBW NVNT 802.11ac20 5700MHz Ant 1 -26 dB BW NVNT 802.11ac20 5700MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 243 of 448 OBW NVNT 802.11ac20 5500MHz Ant 2 -26 dB BW NVNT 802.11ac20 5500MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 244 of 448 OBW NVNT 802.11ac20 5600MHz Ant 2 -26 dB BW NVNT 802.11ac20 5600MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 245 of 448 OBW NVNT 802.11ac20 5700MHz Ant 2 -26 dB BW NVNT 802.11ac20 5700MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 246 of 448 OBW NVNT 802.11ac40 5510MHz Ant 1 -26 dB BW NVNT 802.11ac40 5510MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 247 of 448 OBW NVNT 802.11ac40 5590MHz Ant 1 -26 dB BW NVNT 802.11ac40 5590MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 248 of 448 OBW NVNT 802.11ac40 5670MHz Ant 1 -26 dB BW NVNT 802.11ac40 5670MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 249 of 448 OBW NVNT 802.11ac40 5510MHz Ant 2 -26 dB BW NVNT 802.11ac40 5510MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 250 of 448 OBW NVNT 802.11ac40 5590MHz Ant 2 -26 dB BW NVNT 802.11ac40 5590MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 251 of 448 OBW NVNT 802.11ac40 5670MHz Ant 2 -26 dB BW NVNT 802.11ac40 5670MHz Ant 2 Report No.: S19121200901004 Version.1.2 Page 252 of 448 OBW NVNT 802.11ac80 5530MHz Ant 1 -26 dB BW NVNT 802.11ac80 5530MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 253 of 448 OBW NVNT 802.11ac80 5610MHz Ant 1 -26 dB BW NVNT 802.11ac80 5610MHz Ant 1 Report No.: S19121200901004 Version.1.2 Page 254 of 448 OBW NVNT 802.11ac80 5530MHz Ant 2 -26 dB BW NVNT 802.11ac80 5530MHz Ant 2 Report No.: …
