2AO3C-M1BTV2AM&FM Radio

OWNER’S MANUAL AM/FM RADIO 2 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. WARNING – To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 2 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. WARNING – To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 3 Figure A 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This product has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the product on and off, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antennas. • Increase the separation between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 16. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static changes. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See figure A. Consult the dealer or an experienced radio/TV technician for help. received, including interference that may cause undesired operation. (1) This device may not cause harmful interference, and (2) this device must accept any interference This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 3 Figure A 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This product has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a p…

Text truncated - open the document above for the full version.

Tivoli Audio, Inc. 218 Newbury Street Boston, MA 02116, USA Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AO3C-M1BTV2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: 1. Block Diagram 2. Schematics 3. Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Date: June 29, 2020 Name: Sam Herec Position: Technical Product Manager Tivoli Audio, Inc.

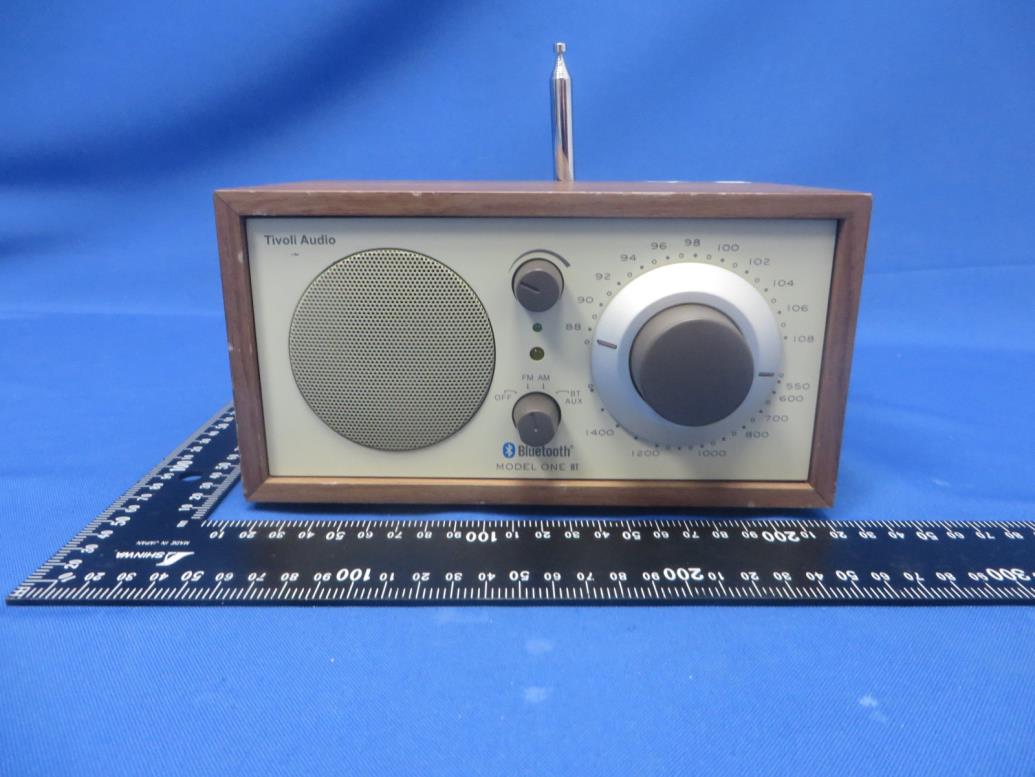

Report No.: 2003RSU037-UE 1 of 4 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2003RSU037-UE 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2003RSU037-UE 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2003RSU037-UE 4 of 4 (7) EUT Photo (8) EUT Photo

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HANSONG(NANJING) TECHNOLOGY CO.,LTD. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF HANSONG(NANJING) TECHNOLOGY CO.,LTD.IS PROHIBITED REVISIONS NAME&DATEECR NOCHANGE DETAILREV SHEET 1 OF 1A3 SIZEREV C1:1 SCALE (Max) D=3L/1000 DWG NO 3RD ANGLE PROJECTION VIEW NO Finish PART NAME DATEAPPROVALS HANSONG(NANJING) TECHNOLOGY CO.,LTD NO.HS/QR-RD-26 Material CAD generared drawing Don't manually update PART LIST COMMENT QTY REQD NOMENCLATURE OR DESCRIPTION PART OR IDENTIFYING NO. ITEM MP PP VC CONFIRMSTAGE A B C D 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 A B C D Drawn by ME MODEL NAME: Tivoli M1BT Checked by Team leader Checked by Group leader Approved by Compliance/ ME Manager Una.chi Ivan.ding Ziv.zhang Certification label( Clover.ding 70mm 92mm Font: Swiss 721 SWA Roman Font size: 7.5pt : mm : 1. 2. 3. 4. Notice: 1.Size70x92mm 2.MaterialPET(White),back glue 3.PrintingWhite character on black background with matte film 4.Paste positionOn the bottom of the cabinet1 The specific paste position is shown in the right figure Paste position diagram 85-1-103601-2 HS40-1036-B12V1-SL01 2020-06-01 2020-06-01 2020-06-01 2020-06-01 Clover&20200325 Clover&20200601 B C

Report No.: 2003RSU037-UE 1 of 7 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2003RSU037-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2003RSU037-UE 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2003RSU037-UE 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2003RSU037-UE 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2003RSU037-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2003RSU037-UE 7 of 7 (13) EUT Photo (14) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2003RSU037-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 06-29-2020 Page Number: 1 of 6 RF Exposure Evaluation Declaration FCC ID: 2AO3C-M1BTV2 APPLICANT: Tivoli Audio,Inc. Application Type: Certification Product Name: AM&FM Radio Model No.: Model One BT Brand Name: Tivoli Audio FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) Test Procedure(s): KDB 447498 D01v06 Reviewed By: ( Jame Yuan ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2003RSU037-U2 Page Number: 2 of 6 Revision History Report No. Version Description Issue Date Note 2003RSU037-U2 Rev. 01 Initial Report 06-29-2020 Valid Report No.: 2003RSU037-U2 Page Number: 3 of 6 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Product Specification Subjective Note: For other features of this EUT, test report will be issued separately. Product Name: AM&FM Radio Model No.: Model One BT Brand Name: Tivoli Audio Radio Specification: AM / FM / Bluetooth Bluetooth Version: V5.0 (Single mode for BR/EDR) Components Adapter: P/N: DYS818-120150-19C25 MODEL: DYS818-120150W-K INPUT: 100-240V ~ 50/60Hz 0.5A MAX OUTPUT: 12.0V1.5A Operating Frequency: 2402~2480MHz Channel Number: 79 Type of modulation: GFSK, π/4-DQPSK, 8DPSK Data Rate: 1Mbps (GFSK), 2Mbps (π/4-DQPSK), 3Mbps (8DPSK) Antenna Type: Internal PCB antenna Antenna Gain: 1.89dBi Tune-up Power: 3.00dBm Report No.: 2003RSU037-U2 Page Number: 4 of 6 2. RF Exposure Evaluation 2.1. Limits SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in Note 1 must be applied to determine SAR test exclusion. MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: Report No.: 2003RSU037-U2 Page Number: 5 of 6 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation ⚫ The result is rounded to one decimal place for comparison ⚫ 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Report No.: 2003RSU037-U2 Page Number: 6 of 6 2.2. Test Result of RF Exposure Evaluation Product AM&FM Radio Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Maximum Tune-up Power SAR Test Exclusion Threshold (mW) (dBm) (mW) Bluetooth 2402 ~ 2480 3.00 2.00 10 Note: Per FCC KDB 447498 D01v06, the SAR exclusion threshold for distances<50mm is defined by the following equation: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 ( 2.00mW 5 ) * √ 2.402 = 0.62 < 3.00 Based on the maximum conducted power of Bluetooth and the antenna to use separation distance, Bluetooth SAR was not required; Note: When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 2003RSU037-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 06-29-2020 Page Number: 1 of 99 FCC ID: 2AO3C-M1BTV2 APPLICANT: Tivoli Audio,Inc. Application Type: Certification Product Name: AM&FM Radio Model No.: Model One BT Brand Name: Tivoli Audio FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013 Test Date: March 16 ~ June 09, 2020 MEASUREMENT REPORT FCC PART 15.247 Bluetooth Reviewed By: ( Jame Yuan ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2003RSU037-U1 Page Number: 2 of 99 Revision History Report No. Version Description Issue Date Note 2003RSU037-U1 Rev. 01 Initial Report 06-29-2020 Valid Report No.: 2003RSU037-U1 Page Number: 3 of 99 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Product Specification Subjective to this Report ............................................................. 8 2.3. Operation Frequency / Channel List ............................................................................. 9 2.4. Pseudorandom Frequency Hopping Sequence ........................................................... 10 2.5. Duty Cycle ................................................................................................................... 11 2.6. Test Software ............................................................................................................. 12 2.7. EMI Suppression Device(s) / Modifications ................................................................. 12 2.8. Labeling Requirements ............................................................................................... 12 3. DESCRIPTION of TEST ........................................................................................................ 13 3.1. Evaluation Procedure ................................................................................................. 13 3.2. AC Line Conducted Emissions ................................................................................... 13 3.3. Radiated Emissions .................................................................................................... 14 4. ANTENNA REQUIREMENTS ................................................................................................ 15 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 16 6. MEASUREMENT UNCERTAINTY ......................................................................................... 18 7. TEST RESULT ...................................................................................................................... 19 7.1. Summary .................................................................................................................... 19 7.2. 20dB Bandwidth Measurement ................................................................................... 20 7.2.1. Test Limit ................................................................................................................ 20 7.2.2. Test Procedure Used .............................................................................................. 20 7.2.3. Test Setting ............................................................................................................. 20 7.2.4. Test Setup ............................................................................................................... 20 7.2.5. Test Result .............................................................................................................. 21 7.3. Output Power Measurement ....................................................................................... 25 7.3.1. Test Limit ................................................................................................................ 25 7.3.2. Test Procedure Used .............................................................................................. 25 7.3.3. Test Setting ............................................................................................................. 25 7.3.4. Test Setup ............................................................................................................... 25 7.3.5. Test Result .............................................................................................................. 26 Report No.: 2003RSU037-U1 Page Number: 4 of 99 7.4. Carrier Frequency Separation Measurement .............................................................. 30 7.4.1. Test Limit ................................................................................................................ 30 7.4.2. Test Procedure Used .............................................................................................. 30 7.4.3. Test Setting .........................................…

Text truncated - open the document above for the full version.

Report No.: 2003RSU037-U1 Page Number: 46 of 99 Operation Frequency Range of 20dB Bandwidth within Hopping Mode DH5 - Channel 00 (2402MHz) DH5 - Channel 78 (2480MHz) 2DH5 - Channel 00 (2402MHz) 2DH5 - Channel 78 (2480MHz) 3DH5 - Channel 00 (2402MHz) 3DH5 - Channel 78 (2480MHz) Report No.: 2003RSU037-U1 Page Number: 47 of 99 7.8. Conducted Spurious Emissions Measurement 7.8.1.Test Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. 7.8.2.Test Procedure Used ANSI C63.10-2013 - Section 7.8.8 7.8.3.Test Setting 1. Span = Wide enough to capture the peak level of the in-band emission and all spurious emissions (e.g., harmonics) from the lowest frequency generated in the EUT up through the 10th harmonic. Typically, several plots are required to cover this entire span. 2. RBW = 100kHz 3. VBW = 300kHz 4. Detector = Peak 5. Sweep time = Auto couple 6. Trace mode = Max hold 7. Trace was allowed to stabilize 8. Set the marker on the peak of any spurious emission recorded. The level displayed must comply with the limit specified in this section. Report No.: 2003RSU037-U1 Page Number: 48 of 99 7.8.4.Test Setup Report No.: 2003RSU037-U1 Page Number: 49 of 99 7.8.5.Test Result Product AM&FM Radio Temperature 25°C Test Engineer Dandy Li Relative Humidity 52% Test Site TR3 Test Date 2020/04/08 Test Mode Channel No. Frequency (MHz) Limit (MHz) Result DH5 00 2402 20dBc Pass DH5 39 2441 20dBc Pass DH5 78 2480 20dBc Pass 2DH5 00 2402 20dBc Pass 2DH5 39 2441 20dBc Pass 2DH5 78 2480 20dBc Pass 3DH5 00 2402 20dBc Pass 3DH5 39 2441 20dBc Pass 3DH5 78 2480 20dBc Pass Report No.: 2003RSU037-U1 Page Number: 50 of 99 DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 2003RSU037-U1 Page Number: 51 of 99 2DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 2003RSU037-U1 Page Number: 52 of 99 3DH5 Conducted Spurious Emissions Channel 00 (2402MHz) Channel 39 (2441MHz) Channel 78 (2480MHz) Report No.: 2003RSU037-U1 Page Number: 53 of 99 7.9. Radiated Spurious Emission Measurement 7.9.1.Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15.209 Limits Frequency (MHz) Field Strength (μV/m) Measured Distance (m) 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.9.2.Test Procedure Used ANSI C63.10 - Section 6.3 (General Requirements) ANSI C63.10 - Section 6.4 (Standard test method below 30MHz) ANSI C63.10 - Section 6.5 (Standard test method above 30MHz to 1GHz) ANSI C63.10 - Section 6.6 (Standard test method above 1GHz) 7.9.3.Test Setting Table 1 - RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000 MHz 1 MHz Report No.: 2003RSU037-U1 Page Number: 54 of 99 Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = As specified in Table 1 4. Detector = CISPR quasi-peak 5. Sweep time = Auto couple 6. Trace was allowed to stabilize Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = Peak 5. Sweep time = Auto couple 6. Trace mode = Max hold 7. Trace was allowed to stabilize Average Measurements above 1GHz (Method VB) 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW; If the EUT is configured to transmit with duty cycle ≥ 98%, set VBW = 10Hz If the EUT duty cycle is < 98%, set VBW ≥ 1/T. T is the minimum transmission duration 4. Detector = Peak 5. Sweep time = Auto 6. Trace mode = Max hold 7. Trace was allowed to stabilize Report No.: 2003RSU037-U1 Page Number: 55 of 99 7.9.4.Test Setup Below 1GHz Test Setup: Above 1GHz Test Setup: Report No.: 2003RSU037-U1 Page Number: 56 of 99 7.9.5.Test Result Product AM&FM Radio Temperature 25°C Test Engineer Dandy Li Relative Humidity 56% Test Site AC1 Test Date 2020/05/16 Test Mode DH5 Test Channel 00 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 4323.5 37.5 4.5 42.0 74.0 -32.0 Peak Horizontal 4799.5 46.4 5.9 52.3 74.0 -21.7 Peak Horizontal * 5989.5 43.1 7.0 50.1 74.0 -23.9 Peak Horizontal * 7205.0 42.8 10.5 53.3 74.0 -20.7 Peak Horizontal 4026.0 37.7 3.6 41.3 74.0 -32.7 Peak Vertical 4799.5 45.5 5.9 51.4 74.0 -22.6 Peak Vertical * 6015.0 37.8 7.0 44.8 74.0 -29.2 Peak Vertical * 7205.0 44.4 10.5 54.9 74.0 -19.1 Peak Vertical Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamental emission level (93.0dBμV/m) or 15.209 which is higher. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2003RSU037-U1 Page Number: 57 of 99 Product AM&FM Radio Temperature 25°C Test Engineer Dandy Li Relative Humidity 56% Test Site AC1 Test Date 2020/05/16 Test Mode DH5 Test Channel 3…

Text truncated - open the document above for the full version.

Report No.: 2003RSU037-UT 1 of 2 FCC Part 15C Test Setup Photograph Description: Front View of Conducted Emission Test Setup for Power Port Description: Back View of Conducted Emission Test Setup for Power Port Report No.: 2003RSU037-UT 2 of 2 Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz
