2AO44-B01Bluetooth Asset Tracking

Compology LLC
Bluetooth Asset Tracking - FCC ID 2AO44-B01 - Compology LLC
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 20, 2020
Application Purpose
Original Equipment
Date of Application
Feb 18, 2020
Equipment Note
Bluetooth Asset Tracking
Frequency Range
2402.00000000 - 2480.00000000
Company
Compology LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

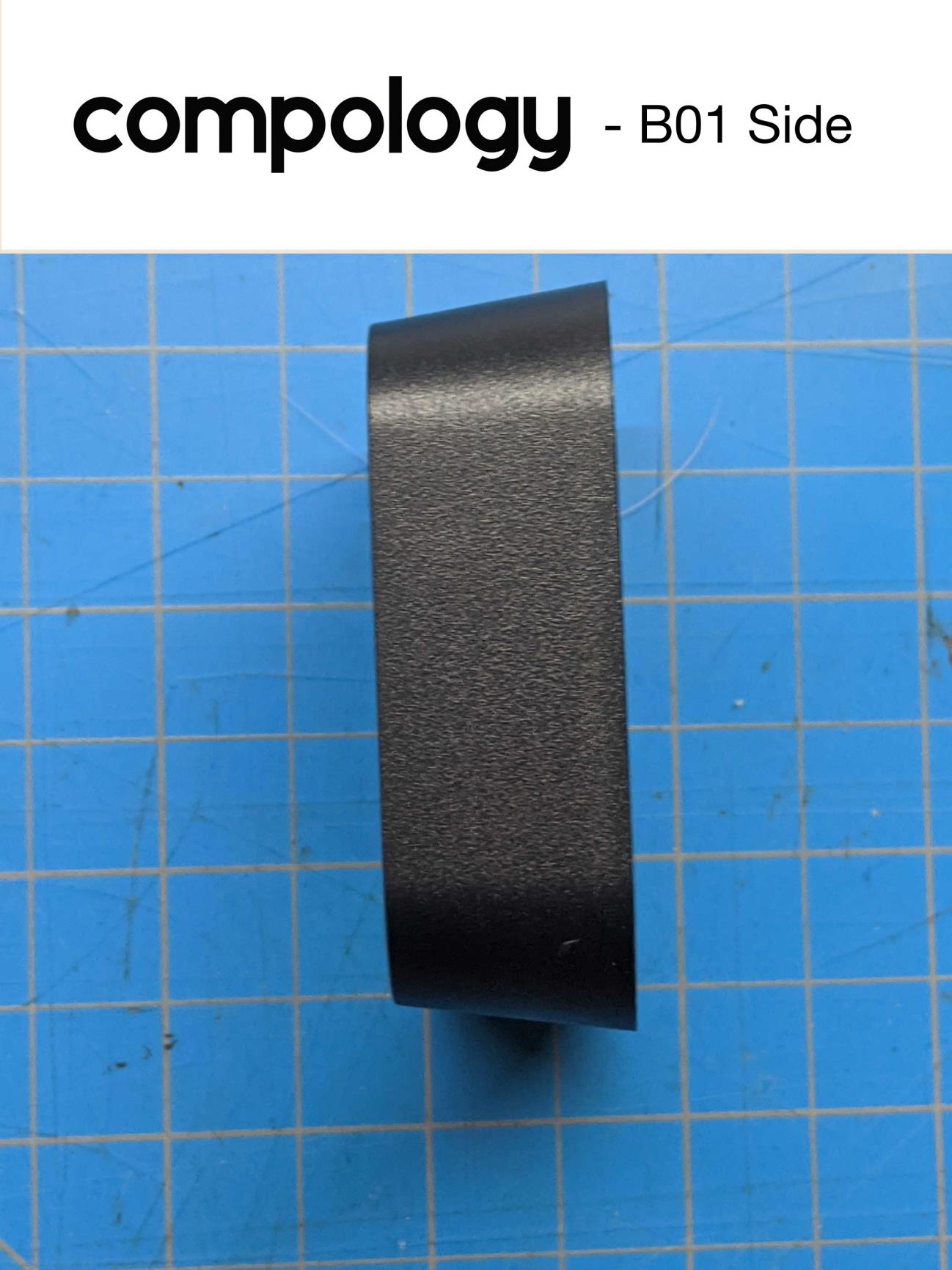

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Bluetooth Asset Tracking Beacon Installation & Setup Guide Tools you’ll need: ●Android Smartphone running Android 6 or newer and is equipped with Bluetooth, GPS, and a camera. ●Compology Technician Android Application ○You will need to download the Compology Technician app on to your android device by visit the Google Play store and searching “Compology Technician” or going directly to https://play.google.com/store/apps/details?id=com.compology.maintenance ●Cordless drill (recommended: Power rating of at least 12V) ●3/16” drill bit ●Riveter (rated to be able to pop 3/16 stainless steel rivets) ●Recommended: Safety gloves and protective eyewear Beacon placement: Each beacon should be installed on the exterior of the container, on the hoist end. To best protect the beacon, we suggest placing the beacon 1.Near the support beams OR 2.Next to or behind ladder railings Attaching the beacon: Once you've identified the location to install the beacon, then: 1.Hold the beacon in place 2.Use the rivet holes as markers and drill one hole into the container using your cordless drill and 3/16 drill bit 3.While still holding the beacon in place, use your riveter to pop the first rivet into the same rivet hole which you just drilled a hole. 4.The Beacon should now hold in place on its own 5.Adjust the beacon to desired placement, then use the second rivet hole to drill your second hole 6.Use your riveter to pop the first rivet into the second hole. Digitally Create Container: Once the beacon is securely attached to the container: 1.Make sure your Android smartphone has granted the Compology Technician app permission to access the camera and location services 2.Log in to the Compology Technician App on your android device with the same user credentials (email + password) you created for the Compology web app. 3.Open the Menu 4.Select “New Beacon Install” 5.Enter Container details 6.When prompted, scan the QR Code on the Beacon that was installed 7.Click “Activate Beacon” The container and beacon are now paired, visible in Compology’s asset tracking web app, and can be detected by the Compology Beacon Finder app (that should already be downloaded and running on your truck android tablets and phones). Disclaimer: NOTICE​: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1.this device may not cause harmful interference, and 2.this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1. l'appareil ne doit pas produire de brouillage, et 2.l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. NOTICE​: Changes or modifications made to this equipment not expressly approved by Compology may void the FCC authorization to operate this equipment. As in FCC / ISED RSS-102 standards, to comply with FCC RF exposure requirements for mobile transmitting devices, this device shall be installed to provide a separation distance of 20cm (~8 inches) or more from all persons And the transmitters on this device do not transmit simultaneously.

Attestation Statements

Subject: Revision of Board Tested is equivalent to final Product Date 02/18/2020 FCC ID: 2AO44-B01 IC ID: 23661-B01 To Whom It May Concern: We, Compology Inc. declare that the Revision of Hardware tested is the same as that of the final production product. There is a mistake on the PCBA silkscreen. It reads R04 when it should ideally be R05 Signature Name: Benjamin Chehebar Title: Co-founder & CPO Company Name: Compology Inc. Address: 1045 Bryant St., Suite 101, San Francisco, CA 94103

Cover Letter(s)

  A@AN=HKIIQJE?=PEKJOKIIEOOEKJ MQELIAJPQPDKNEV=PEKJEREOEKJ ¿¾À=GH=J@EHHOK=@ KHQI>E=‡½¼»¿Ã  =PA‰»¼š½¼š½»½»   Q>FA?P‰AMQAOPBKNDKNPANIKJBE@AJPE=HEPU  ‹ ‰½¿¿‹»¼  KDKI P=UKJ?ANJ‰ J=??KN@=J?ASEPD§»Š¿À @¡=J@§»Š¿ÀÄKB ¿Â‡KILKHKCU J?ŠDANA>UNAMQAOPO ODKNPPANI?KJBE@AJPE=HEPUBKN@K?QIAJPOBEHA@QJ@ANPDABKHHKSEJCATDE>EPPULAO‰ ¼ŠTPANJ=HDKPKCN=LDO ½Š JPANJ=HDKPKCN=LDO ¾ŠOANš JOPNQ?PEKJ=JQ=H ¿ŠAOPAP‹QLDKPKCN=LDO QJPEHPDALNK@Q?PSEHH>ALQ>HE?HU=JJKQJ?A@Š DKNPPANI?KJBE@AJPE=HEPUNAHA=OA@=PAšLANEK@‰¼Ã»@=UOBNKICN=JPEOOQA@=PA DAOAEPAIO?KJP=EJ@AP=EHA@OUOPAI=J@AMQELIAJP@AO?NELPEKJ=J@NAH=PA@EJBKNI=PEKJ=>KQP PDALNK@Q?PSDE?DKILKHKCU‡ J?Š?KJOE@ANOPK>ALNKLNEAP=NU‡?KJBE@AJPE=H=J@=?QOPKI @AOECJSDE?DKPDANSEOASKQH@JKP>ANAHA=OA@PKPDACAJAN=HLQ>HE?ŠEJ?APDEO@AOECJEO=>=OEO BNKISDE?DBQPQNAPA?DJKHKCE?=HLNK@Q?POSEHHARKHRA‡KILKHKCU‡ J?Š=HOKBAAHOPD=PPDEO EJBKNI=PEKJSKQH@>AKB>AJABEPPKEPO?KILAPEPKNO‡=J@PD=PPDA@EO?HKOQNAKBPDAEJBKNI=PEKJEJ PDAOAATDE>EPOSKQH@CERAKQN?KILAPEPKNO=JQJB=EN=@R=JP=CAEJPDAI=NGAPŠ A=NAEJBKNIA@=J@=S=NAKBKQNK>HEC=PEKJPD=PSAD=RAPKEJBKNIPDAEJRKHRA@EJSNEPPAJ =J@EJ@QAPEIAEBSAEJPAJ@PKI=NGAPPDALNK@Q?PLNEKNPKPDA=>KRAOLA?EBEA@?KJBE@AJPE=HEPU NAHA=OA@=PAOKPD=PPDAODKNPPANI?KJBE@AJPE=HEPU?H=OOEBE?=PEKJ?=J>ANAOAPLNEKNPKLNK@Q?P H=QJ?DŠ A=NA=S=NAPD=PATDE>EPPULAO?KRANHAPPANO‡=PPAOP=PEKJO‡H=>AH@K?QIAJP‡PAOPNALKNPO‡  ATLKOQNAEJBKNI=PEKJ =J@NALKNPO¡‡?=JJKP>ANAMQAOPA@PK>A?H=OOEBEA@?KJBE@AJPE=H =J@=NAPDQOOQ>FA?PPKLQ>HE?=PEKJ‡=OSEHH>A@K?QIAJPOKB=HHKPDANATDE>EPOPULAOBKNSDE?DSA D=RAJKPNAMQAOPA@=?KJBE@AJPE=HEPU?H=OOEBE?=PEKJŠ  AOPAC=N@O‡  ­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­ ECJ=PQNA  =IA‰AJF=IEJDADA>=N EPHA‰DEABNK@Q?PBBE?AN KIL=JU=IA‰KILKHKCU @@NAOO‰¼»¿ÀNU=JPPNAAP‡QEPA¼»¼‡=J N=J?EO?K‡Ä¿¼»¾

Cover Letter(s)

  A@AN=HKIIQJE?=PEKJOKIIEOOEKJ MQELIAJPQPDKNEV=PEKJEREOEKJ ¿¾À=GH=J@EHHOK=@ KHQI>E=‡½¼»¿Ã  =PA‰»¼š½¼š½» Q>FA?P‰AMQAOPBKNANI=JAJPKJBE@AJPE=HEPU   ‰½¿¿‹»¼  KDKI P=UKJ?ANJ‰  J=??KN@=J?ASEPD§»Š¿À @¡=J@§»Š¿ÀÄKB ¿Â‡=J@½ÁĽ»‡KILKHKCU J?ŠDANA>UNAMQAOPO LANI=JAJP?KJBE@AJPE=HEPUBKN@K?QIAJPOBEHA@QJ@ANPDABKHHKSEJCATDE>EPPULAO‰ ¼ŠHK?GE=CN=I ½Š?DAI=PE?E=CN=I ¾Š=NPEOP ¿ŠLAN=PEKJ=HAO?NELPEKJ DAOAEPAIO?KJP=EJ@AP=EHA@OUOPAI=J@AMQELIAJP@AO?NELPEKJ=J@NAH=PA@EJBKNI=PEKJ=>KQPPDALNK@Q?P SDE?DKILKHKCU J?Š?KJOE@ANOPK>ALNKLNEAP=NU‡?KJBE@AJPE=H=J@=?QOPKI@AOECJSDE?DKPDANSEOASKQH@ JKP>ANAHA=OA@PKPDACAJAN=HLQ>HE?ŠEJ?APDEO@AOECJEO=>=OEOBNKISDE?DBQPQNAPA?DJKHKCE?=HLNK@Q?POSEHH ARKHRA‡KILKHKCU J?Š=HOKBAAHOPD=PPDEOEJBKNI=PEKJSKQH@>AKB>AJABEPPKEPO?KILAPEPKNO‡=J@PD=PPDA @EO?HKOQNAKBPDAEJBKNI=PEKJEJPDAOAATDE>EPOSKQH@CERAKQN?KILAPEPKNO=JQJB=EN=@R=JP=CAEJPDAI=NGAPŠ  A=NA=S=NAPD=PATDE>EPPULAO?KRANHAPPANO‡=PPAOP=PEKJO‡H=>AH@K?QIAJP‡PAOPNALKNPO‡  ATLKOQNAEJBKNI=PEKJ =J@NALKNPO¡‡?=JJKP>ANAMQAOPA@PK>A?H=OOEBEA@?KJBE@AJPE=H=J@=NAPDQO OQ>FA?PPKLQ>HE?=PEKJ‡=OSEHH>A@K?QIAJPOKB=HHKPDANATDE>EPOPULAOBKNSDE?DSAD=RAJKPNAMQAOPA@= ?KJBE@AJPE=HEPU?H=OOEBE?=PEKJŠ  AOPAC=N@O‡     ­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­ ECJ=PQNA  =IA‰AJF=IEJDADA>=N EPHA‰K‹BKQJ@ANx KIL=JU=IA‰KILKHKCU J?Š @@NAOO‰¼»¿ÀNU=JPPЇQEPA¼»¼‡=J N=J?EO?K‡Ä¿¼»¾

External Photos

Photos External

ID Label/Location Info

Label Drawing and Photo Rendering Below is an image of the B01 device label. It is laser etched into the back plastic housing and spans 25mm x 25mm. Figure 1. Image showing B01 label

Internal Photos

Photos Internal

RF Exposure Info

Radio Frequency Exposure Evaluation Report FOR: Compology, Inc. Model Name: Oscar B01 Product Description: Bluetooth tracking devices FCC ID: 2AO44-B01 IC ID: 23661-B01 Per: CFR Part Part1 (1.1307 &1.1310), Part 2 (2.1091), FCC KDB 447498 D01 General RF Exposure Guidance v06 ISED RSS-102 Issue 5 Report number: EMC_COMPO-015-20001_FCC_ISED_MPE DATE: 2020-02-18 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.0 2015-10-27 © Copyright by CETECOM Page 2 of 7 1 Assessment This RF Exposure evaluation report provides evidence for compliance of the below identified device with the RF Exposure limits for mobile devices as defined in FCC CFR Part 1 (1.1307 &1.1310), Part 2 (2.1091) and IC standard RSS-102 issue 5 under worst case conditions (measured or rated RF output power, antenna gain, distance towards human body, multiple transmitter information as presented by the applicant). In addition, maximum antenna gain or minimum distance towards the human body is calculated respectively, where relevant. The device meets the limits as stipulated by the above given FCC and IC rule parts based on available specifications for worst case conditions at 20cm distance to the body. Company Description Model # Compology, Inc. Bluetooth tracking device Oscar B01 Report reviewed by: TCB Evaluator 2020-02-18 Compliance Cindy Li (Lab Manager) Date Section Name Signature Responsible for the Report: 2020-02-18 Compliance Issa Ghanma (EMC Engineer) Date Section Name Signature Page 3 of 7 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Street Address: 411 Dixon Landing Road City/Zip Code Milpitas, CA 95035 Country USA Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Lab Manager: Cindy Li Responsible Project Leader: Trina Noor 2.2 Identification of the Client / Manufacturer Client’s Name: Compology, Inc. Street Address: 1045 Bryant Street, Suite 101 City/Zip Code San Francisco, CA 94103 Country USA Identification of the Manufacturer Manufacturer’s Name: AQS Street Address: 401 Kato Terrace City/Zip Code Fremont, CA 94539 Country USA Page 4 of 7 3 Equipment under Assessment Model No: Oscar B01 HW Version : Rev_B SW Version : Fluffy-B009 Hardware Version Identification Number (HVIN): Oscar B01 Product Marketing Name (PMN): Oscar B01 Regulatory Band:  BT-LE:  Nominal band: 2400 MHz – 2483.5 MHz;  Center to center: 2402 MHz (ch 0) – 2480 MHz (ch 39), 40 channels Integrated Module Info:  BT-LE:  Module name: INP2045 Module  FCC/IC ID: 2AVAL-INP2045/25715-INP2045 Antenna Type:  BT-LE:  Antenna peak gain: 2.63 dBi Maximum Conducted Output Power:  BT-LE: 5.53 mW Power Supply/ Rated Operating Voltage Range: VBattery: Vmin: 2.8 VDC/ Vnom: 3.67 VDC / Vmax: 3.9 VDC Operating Temperature Range: -40 ºC to +85 ºC Sample Revision: Prototype Unit; Production Unit; Pre-Production Page 5 of 7 4 RF Exposure Limits and FCC and IC Basic Rules For the specific described radio apparatus the following basic limits and rules apply for both, FCC and IC where not indicated differently. 4.1 Power Density Limits acc. to FCC 1.1310(e) / RSS-102 i5, cl. 4: FCC Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100000 1.0 30 IC 300 – 6000 0.02619 x f (MHz) 0.6834 6 4.2 Routine Environmental Evaluation Categorical Exclusion Limits acc. to FCC 2.1091(c) / RSS-102, cl. 2.5 (rounded to 1 decimal point): FCC operating frequency < 1.5GHz: excluded if ERP < 1.5W / 31.8dBm (EIRP: 33.9 dBm); operating frequency > 1.5GHz: excluded if ERP < 3.0W / 34.8dBm (EIRP: 36.9 dBm); IC 300MHz < = operating frequency < 6 GHz: excluded if EIRP < 0.0131 x f (MHz) 0.6834 W 4.3 RF Exposure Estimation (MPE Estimation) Having available the source based average output power and peak antenna gain or the ERP/EIRP of the specified device and for a known minimum distance of its radiating structures from the body of persons according to its use cases (at least 20cm) the power density at that distance can be estimated by the following formula for plane-wave equivalent conditions (far-field conditions), when ground reflection is neglected. 2 4R PG S   where: S = power density (mW/cm 2 or W/m 2 ) P = power input to the antenna (mW or W) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm or m) Page 6 of 7 5 Evaluations 5.1 Analysis of RF Exposure for simultaneous transmission  Evaluations are based on worst case power density limits for Canada.  Calculations are made for 20cm.  Evaluations are based on Pmax and tune-up tolerance from document “B01_8_Output Power Tune-up Information.pdf” provided by customer. Radio freq [MHz] Max Conducted power [W] Gain [dBi] Gain [lin] EIRP [W] IC Limit [W/m2] FCC LImit [W/m2] Actual [W/m2] How much of limit is used up BT-LE 2400 0.01585 2.63 1.83 0.029 5.348 10.000 0.05772 1.08% Note1:The calculation is based on the distance of 20cm 5.2 Conclusion: The equipment is passing RF exposure requirements for 20cm distance. Page 7 of 7 6 Revision History Date Report Name Changes to report Report prepared by 2020-02-18 EMC_COMPO-015-20001_FCC_ISED_MPE Initial Release Issa Ghanma <<< The End >>>

Test Report

A2LAAccredited ICrecognized# 3462B-1 CETECOMInc. 411DixonLandingRoadMilpitas,CA95035U.S.A. Phone:+1(408)5866200  Fax:+1(408)5866299  E-mail:[email protected]  http://www.cetecom.com CETECOMInc.isaDelawareCorporationwithCorporationnumber:2905571 ©CopyrightbyCETECOM FCC/ISEDTestReport FOR: Compology,Inc. ModelName: OscarB01 ProductDescription: Bluetoothtrackingdevices FCCID:2AO44-B01 ICID:23661-B01 AppliedRulesandStandards: 47CFRPart15.247(DTS) RSS-247Issue2(DTS)&RSS-GenIssue5 REPORT#:EMC_COMPO-015-20001_15.247_BT_DTS DATE:2020-1-22 TestReport#:EMC_COMPO-015-20001_15.247_BT_DTS FCCID:2AO44-B01 DateofReport2020-01-22 ICID:23661-B01 TABLEOFCONTENTS 1ASSESSMENT ........................................................................................................................................................................ 3 2ADMINISTRATIVEDATA ...................................................................................................................................................... 4 2.1IDENTIFICATIONOFTHETESTINGLABORATORYISSUINGTHEEMCTESTREPORT .......................................................... 4 2.2IDENTIFICATIONOFTHECLIENT .......................................................................................................................................... 4 2.3IDENTIFICATIONOFTHEMANUFACTURER .......................................................................................................................... 4 3EQUIPMENTUNDERTEST(EUT) ..................................................................................................................................... 5 3.1EUTSPECIFICATIONS ........................................................................................................................................................ 5 3.2EUTSAMPLEDETAILS ........................................................................................................................................................ 6 3.3ACCESSORYEQUIPMENT(AE)DETAILS ............................................................................................................................. 6 3.4TESTSAMPLECONFIGURATION ......................................................................................................................................... 6 3.5JUSTIFICATIONFORWORSTCASEMODEOFOPERATION ................................................................................................ 7 4SUBJECTOFINVESTIGATION .......................................................................................................................................... 8 5MEASUREMENTRESULTSSUMMARY .......................................................................................................................... 8 6MEASUREMENTUNCERTAINTY ...................................................................................................................................... 9 6.1ENVIRONMENTALCONDITIONSDURINGTESTING: .............................................................................................................. 9 6.2DATESOFTESTING: ........................................................................................................................................................... 9 7MEASUREMENTPROCEDURES .................................................................................................................................... 10 7.1RADIATEDMEASUREMENT ............................................................................................................................................... 10 7.2RFCONDUCTEDMEASUREMENTPROCEDURE ............................................................................................................... 12 8TESTRESULTDATA .......................................................................................................................................................... 13 8.1MAXIMUMPEAKCONDUCTEDOUTPUTPOWER .............................................................................................................. 13 8.2POWERSPECTRALDENSITY ............................................................................................................................................ 17 8.3DUTYCYCLE ..................................................................................................................................................................... 21 8.4BANDEDGECOMPLIANCE ............................................................................................................................................... 22 8.5EMISSIONBANDWIDTH6DBAND99%OCCUPIEDBANDWIDTH ................................................................................... 27 8.6RADIATEDTRANSMITTERSPURIOUSEMISSIONSANDRESTRICTEDBANDS ................................................................... 34 9TESTSETUPPHOTOS ....................................................................................................................................................... 44 10TESTEQUIPMENTANDANCILLARIESUSEDFORTESTING .............................................................................. 44 11REVISIONHISTORY ......................................................................................................................................................... 45 TestReport#:EMC_COMPO-015-20001_15.247_BT_DTS FCCID:2AO44-B01 DateofReport2020-01-22 ICID:23661-B01 1Assessment ThefollowingdevicewasevaluatedagainsttheapplicablecriteriaspecifiedinFCCrulesParts15.247ofTitle47of theCodeofFederalRegulationsandtherelevantISEDCanadastandardRSS-247. Nodeviationswereascertained. CompanyDescriptionModel# Compology,Inc.BluetoothtrackingdeviceOscarB01 ResponsibleforTestingLaboratory: 2020-1-22Compliance CindyLi (EMCLabManager) DateSectionNameSignature ResponsiblefortheReport: 2020-1-22Compliance IssaGhanma (EMCEngineer) DateSectionNameSignature ThetestresultsofthistestreportrelateexclusivelytothetestitemspecifiedinSection3. CETECOMInc.USAdoesnotassum…

Text truncated - open the document above for the full version.

Test Setup Photos

CETECOMInc. 411DixonLandingRoadMilpitas,CA95035U.S.A. Phone:+1(408)5866200  Fax:+1(408)5866299  E-mail:[email protected]  http://www.cetecom.com CETECOMInc.isaDelawareCorporationwithCorporationnumber:2905571 FCC/ISEDTestSetupPhotos FOR: Compology,Inc. ModelName: OscarB01 ProductDescription: Bluetoothtrackingdevices FCCID:2AO44-B01 ICID:23661-B01 AdditiontoReport#:EMC_COMPO-015-20001_FCC_15.247_BT_DTS DATE:01/30/2020 Page 2 of 8 EUTPhotos Page 3 of 8 ConductedMeasurements Page 4 of 8 RadiatedMeasurements 9KHzto30MHz Page 5 of 8 30MHzto1GHz Page 6 of 8 1GHzto3GHz Page 7 of 8 3GHzto18GHz Page 8 of 8 18GHzto26GHz

Contact Information

Applicant

Ben Andrew Chehebar(Co-founder)
[email protected]9145848103Fax: 9145848103

Test Firm

CETECOM Inc.Meinolf Glunz
[email protected]408-586-6301

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz6.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is peak conducted. Use with an antenna of gain equivalent to or less than that specified in the report filing.
