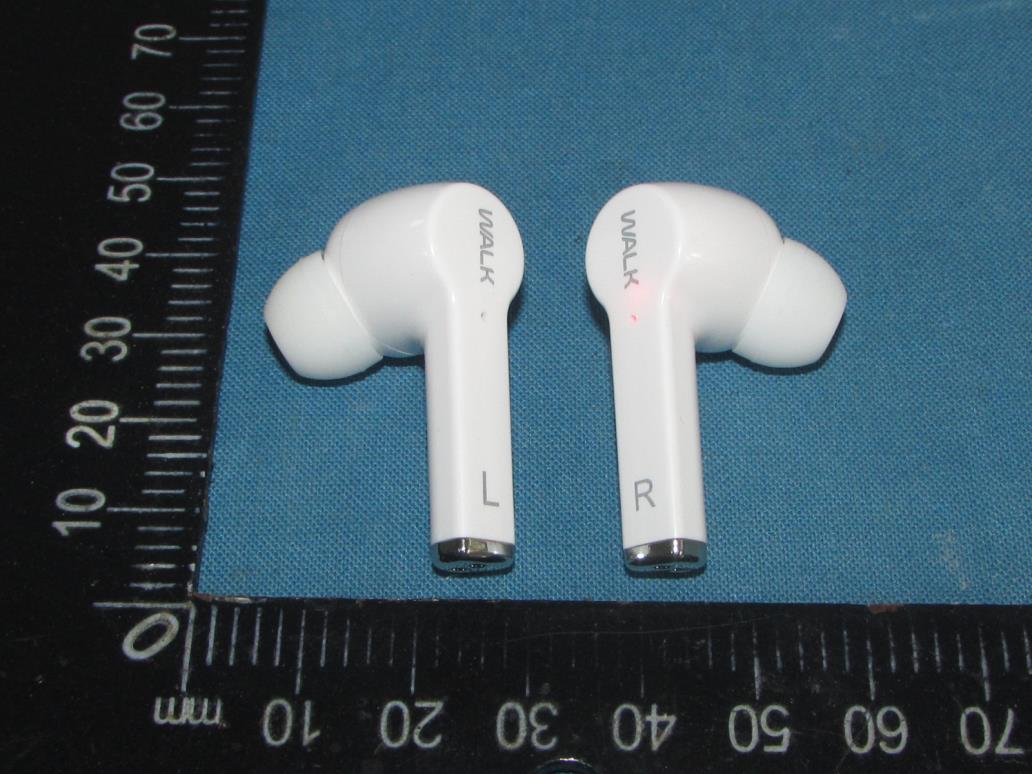

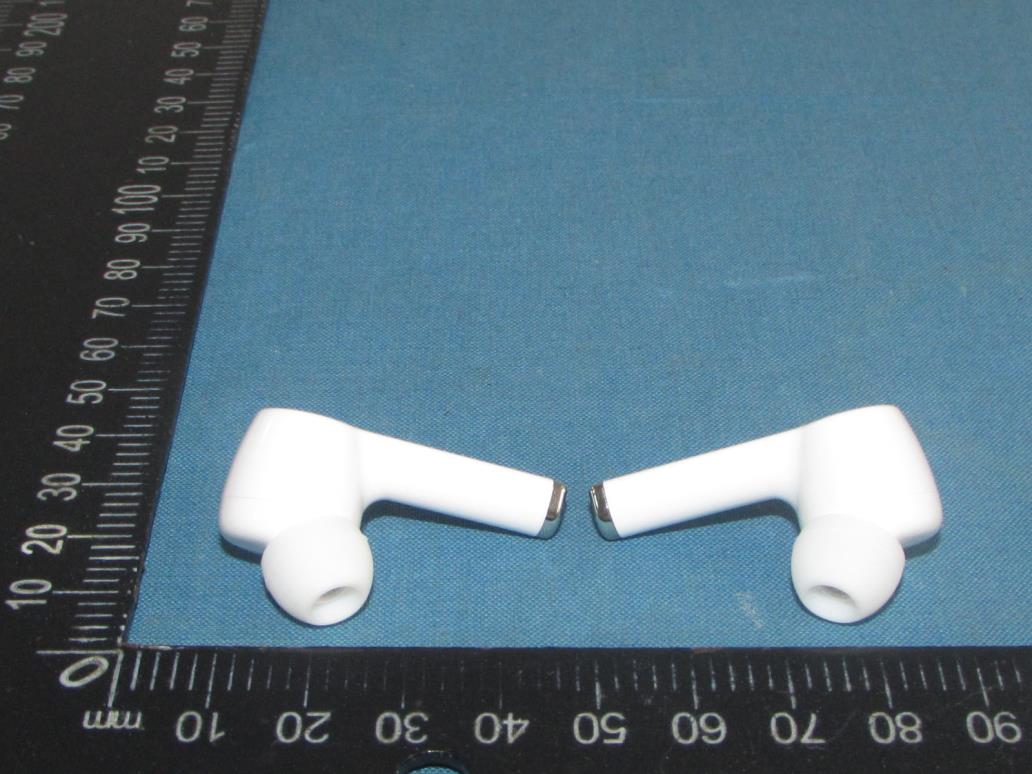

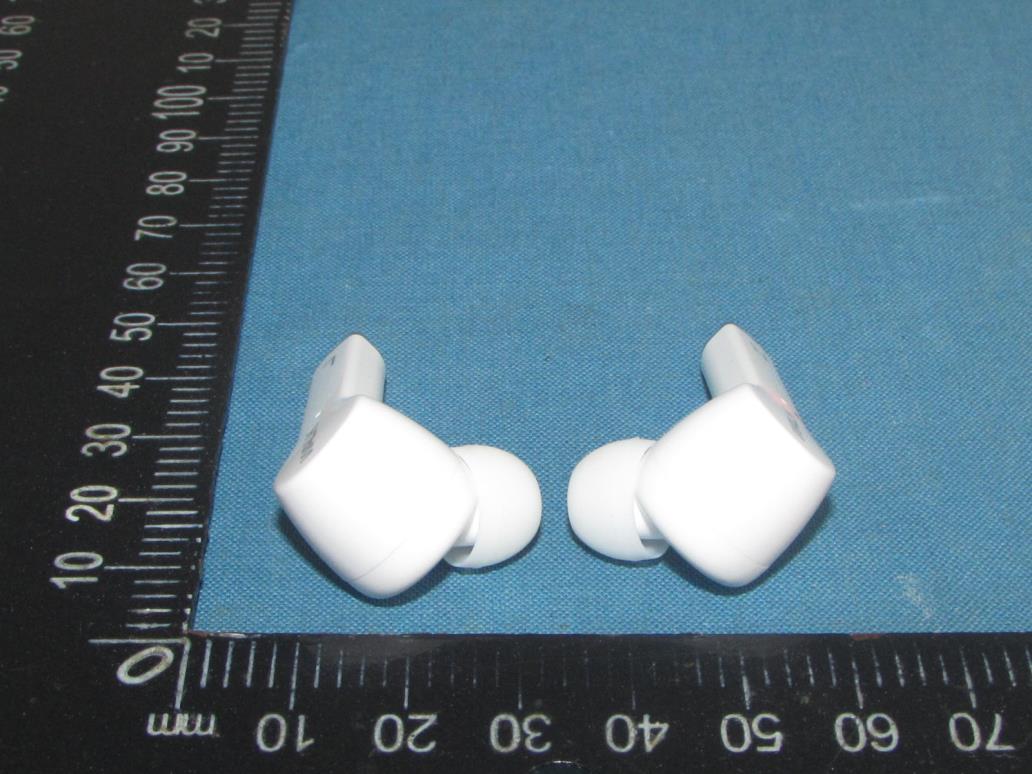

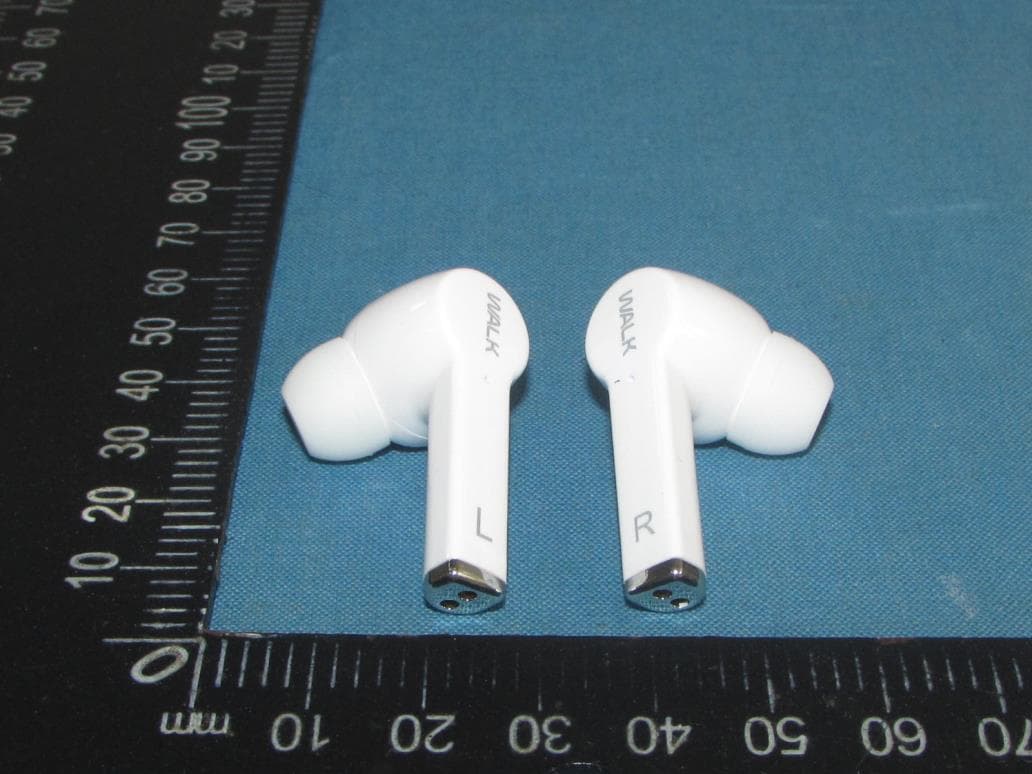

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Fig.10

Label Location: FCC ID: 2AO47-W401

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 -2.7 39 2441 -3.13 78 2480 -4.22 π/4-DQPSK 00 2402 -1.92 39 2441 -2.44 78 2480 -3.58 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -3.5 -4.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.5 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 -2.0 0.50 1.12 3 2441 -2.5 0.00 1.00 3 2480 -3.5 -1.00 1.00 3 π/4-DQPSK 2402 -1.0 1.50 1.41 3 2441 -1.5 1.00 1.26 3 2480 -3.0 -0.50 1.00 3 The antenna gain of the EUT for BT is 2.5dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

SMD
CERAMIC
ANTENNA
Data
Sheet 3.2x1.6mm [EIA1206] C A -2450-31-C Data
Sheet SMD CERAMIC ANTENNA 形状 和 尺 寸(单 位: mm ) S h a p es A n d D im e n s i o n s D im e n s i o n s i n mm ■ 重 量 轻 ， 结 构 紧 凑 Li g h t w e i g h t , c o m p ac t ■ 宽 带 大 ， 低 成 本 Wi de ba n d wi d t h , l ow cos t ■ 高 增 益 内 置 天 线 B u il t- i n a n t e nn a w i t h hi gh g a in 特 征 F eatu r e 应 用 A pp li cat i o n ■ 蓝 牙 技 术 Bl ue t oo t h 2.4 G Hz 频 段 IEEE 80 2.11 g / b ■ 齐格比系统 Zi g bee s y s t e m s ■ 其 它 e t c ... TECHNOLOGY 3.1 1.55 0.4 0.4 0.55 编 码 P a r t Nu m b e r in g Sy ste m Size Material Frequency Type Data
Sheet SMD CERAMIC ANTENNA TECHNOLOGY 电 气 特 性 El ect ri cal C h a r a ct e ri st i c s p e r l in e ( TA = 2 5 °C ) 2350~2550 MHz 2.63 dB i 72.30 % 50 极 化 Polarization 频 带 Frequency Band * 增 益 Peak Gain 参 数 Parameter 阻 抗 * 效 率 E fficiency Impendance 规 格 Specification 单 位 Units W 线极化 CA - 2450 - 31 - C 评价板 Evaluation Board Data
Sheet SMD CERAMIC ANTENNA TECHNOLOGY & Gain Pattern&Efficiency Data
Sheet SMD CERAMIC ANTENNA TECHNOLOGY FREQUENCY CHARACTERISTICS Data
Sheet SMD CERAMIC ANTENNA TECHNOLOGY 推荐回流剖面 RECOMMENDED REFLOW PROFILE °C °C °C Data
Sheet SMD CERAMIC ANTENNA TECHNOLOGY 胶带尺寸 TAPE DIMEN SIONS F ea t u r e S p ec ifi ca t i o n s T o l e r a n ces W 8 . 00±0 . 3 0 P4. 00 .1 0 E1.7 5 .1 0 F 3 . 50 .1 0 P2 2. 00 .1 0 D1. 50 + 0 .1 0 - 0 . 00 P o 4. 00 .1 0 1 0 P o 4 0 . 00 .2 0 ±0 ±0 ±0 ±0 ±0 ±0 包装形式 Packaging Style REEL DIMENSIONS 数量Quantity:5000pieces per 7 reel Data
Sheet SMD CERAMIC ANTENNA TECHNOLOGY

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 1 of 34 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: TWS earbuds Trade Mark: N/A Test Model: W401W FCC ID: 2AO47-W401 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.894 2401.538 2402.432 --- --- 2441 0.894 2440.538 2441.432 --- --- 2480 0.921 2479.541 2480.462 --- --- 2DH5 Ant1 2402 1.278 2401.346 2402.624 --- --- 2441 1.290 2440.343 2441.633 --- --- 2480 1.308 2479.340 2480.648 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 2 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 3 of 34 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 4 of 34 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.85107 2401.5672 2402.4183 --- --- 2441 0.85715 2440.5645 2441.4216 --- --- 2480 0.86052 2479.5625 2480.4230 --- --- 2DH5 Ant1 2402 1.1882 2401.4027 2402.5909 --- --- 2441 1.1760 2440.4068 2441.5828 --- --- 2480 1.1806 2479.4051 2480.5857 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 5 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 6 of 34 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 7 of 34 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 -2.7 ≤30 PASS 2441 -3.13 ≤30 PASS 2480 -4.22 ≤30 PASS 2DH5 Ant1 2402 -1.92 ≤20.97 PASS 2441 -2.44 ≤20.97 PASS 2480 -3.58 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 8 of 34 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 9 of 34 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 10 of 34 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.998 ≥0.921 PASS 2DH5 Ant1 Hop 0.88 ≥0.872 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 11 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 12 of 34 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.885 130 0.375 ≤0.4 PASS 2DH5 Ant1 Hop 2.891 130 0.376 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 13 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 14 of 34 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 15 of 34 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 16 of 34 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 17 of 34 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -3.25 -45.43 ≤-23.25 PASS High 2480 -5.09 -48.26 ≤-25.09 PASS Low Hop_2402 -4.29 -50.68 ≤-24.29 PASS High Hop_2480 -5.10 -48.99 ≤-25.1 PASS 2DH5 Ant1 Low 2402 -3.11 -46.48 ≤-23.11 PASS High 2480 -4.83 -48.89 ≤-24.83 PASS Low Hop_2402 -4.55 -50.45 ≤-24.55 PASS High Hop_2480 -6.20 -49.59 ≤-26.2 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 18 of 34 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 19 of 34 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 20 of 34 2DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 21 of 34 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -3.92 -3.92 --- PASS 30~1000 -3.92 -62 ≤-23.92 PASS 1000~26500 -3.92 -32.27 ≤-23.92 PASS 2441 Reference -4.33 -4.33 --- PASS 30~1000 -4.33 -61.57 ≤-24.33 PASS 1000~26500 -4.33 -31.78 ≤-24.33 PASS 2480 Reference -5.65 -5.65 --- PASS 30~1000 -5.65 -63.08 ≤-25.65 PASS 1000~26500 -5.65 -33.3 ≤-25.65 PASS 2DH5 Ant1 2402 Reference -3.49 -3.49 --- PASS 30~1000 -3.49 -63.01 ≤-23.49 PASS 1000~26500 -3.49 -32.17 ≤-23.49 PASS 2441 Reference -7.00 -7.00 --- PASS 30~1000 -7.00 -62.32 ≤-27 PASS 1000~26500 -7.00 -31.88 ≤-27 PASS 2480 Reference -9.62 -9.62 --- PASS 30~1000 -9.62 -63.28 ≤-29.62 PASS 1000~26500 -9.62 -33.29 ≤-29.62 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 22 of 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AO47-W401 Report No.: TZ230604431-E Page 23 of 34 DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing …
