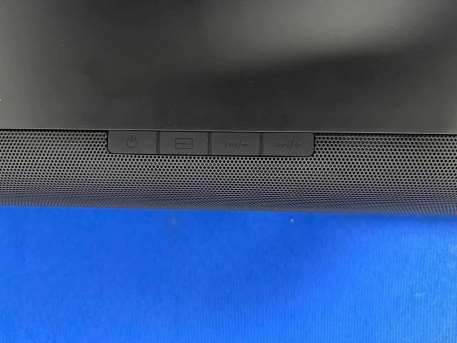

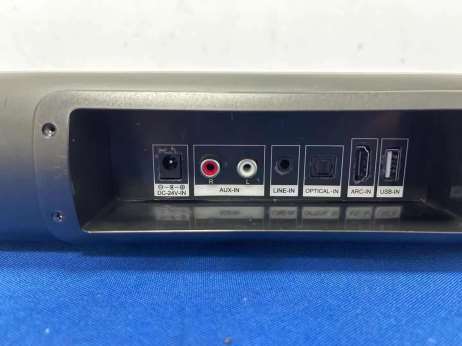

G S - S B 60 5.1 D E T A C H A B L E S O U N D B A R Instructions Guide Contents Controls And Functions ---------------------------------------1-8 What’s In The Box? -------------------------------------------- 9 Support ----------------------------------------------------------- 10 Instructions Guide --------------------------------------------- 11-18 Using the AUX IN Cable ------------------------------------11 Using the HDMI (ARC) Input ------------------------------12 Using the Optical Input ------------------------------------13 Using the MP3 Link Connection (Line In) --------------14 Connecting to the Mains Supply ------------------------ 15 Using the Bluetooth Operation ---------------------------16 Using the USB Operation -----------------------------------17 Troubleshooting -------------------------------------------------18 Specifications ----------------------------------------------------19 Quick System Installation Guide ----------------------------20-21 Safety Information ----------------------------------------------22 Controls And Functions Side View/Control Buttons 1. Power On/Off3. Volume-/Previous 2. Source4. Volume+/Next Back View 5. DC Power Input 6. AUX-In Input 7. Line-In Input 9.ARC Input 10.USB Input 8. Optical Input 1 Controls And Functions Remote Control 2 Controls And Functions Remote Control 1.Soundbar Power On/Off Short press the button to turn on/off 2.Saterliter Power On/Off Short press the button to turn on Long press the button to turn on 3.S.VOL (Volume + for Wireless Surround) Press to increase the volume for wireless surrounds 4.CEN.VOL (Volume + for Center Tone) Press to increase the volume for center tone 5.F.VOL (Volume + for Front Tone) Press to increase the volume for front tone 6.SUB .VOL (Volume + for Subwoofer) Press to increase the volume for subwoofer 7.F.VOL (Volume - for Front Tone) Press to decrease the volume for front tone 8.S UB.VOL (Volume - for Subwoofer) Press to decrease the volume for subwoofer 9.S.VOL (Volume - for Wireless Surround) Press to decrease the volume for wireless surrounds 10.CEN.VOL (Volume - for Center Tone) Press to decrease the volume for center tone 3 Controls And Functions Remote Control 11.Bass Increase Press to increase the bass 12.Treble Increase Press to increase the treble 13.Master.VOL(Master Volume+ for the Whole Kit) Press to increase the volume for the whole kit 14.Back Step (Previous) Use in AUX In, Line In or Bluetooth mode to go back a track 15. Forward Step (Next) Use in AUX In, Line In or Bluetooth mode to go forward a track 16. Master .VOL (Master Volume- for the Whole Kit) Press to decrease the volume for the whole kit 17. Play / Pause Press to play and pause 18. Bass Decrease Press to decrease the bass 19.Treble Decrease Press to decrease the treble 20. HDMI (ARC) Mode Press the button to enter HDMI (ARC) mode 21.Bluetooth Mode Press the button to enter Bluetooth mode 4 Controls And Functions Remote Control 22.Line In Mode Press the button to enter Line In mode 23.Optical Mode Press the button to enter optical mode 24.USB Mode Press the button to enter USB mode 25.LED Mode Press the button to enter power off screen 26.AUX In Mode Press the button to enter AUX In mode 27.Mute Mode Press the button to enter mute mode 28.Pairing Mode Press the button to enter pairing bluetooth 29.Music Mode Press the button to enter music mode 30.Movie Mode Press the button to enter movie mode 31.News Mode Press the button to enter news mode 5 Controls And Functions Using the Remote Control The remote control sensor at the front of the soundbar is sensitive to the remote control’s commands up to a maximum of 8 metres away and within a maximum arc of 30 degrees. Please note that the operating distance may vary depending on the brightness of theroom. Soundbar Hook Schematic 6 Controls And Functions Subwoofer 5.25 Inch Wireless Subwoofer 1. Power Switch 2. DC Adapter Input 7 Controls And Functions Wireless Surround Speaker 2 pieces Wireless Surround Speaker Detachable Surround Speaker from main Soundbar to be Standing Speaker, power supported by DC 3.7V / 4000mA built-in battery. Power of Surround Speaker is supporting charged by main soundbar directly, it can also be charged with a DC 5V power supply after disassembly. The battery has an overcharge protection function. 8 When connecting the surround speakers to the main soundbar, please pay attention to distinguish the left and right surround speaker. Please make sure the left surround speaker is connected to the left side of the main soundbar, and the right surround spaker is connected to the right side of the main soundbar. What’s In The Box? Box Contents 1.GS-SB60 Soundbar 2.Remote Control 3.Power Adapter x 4 4.AUX IN Cable 5.3.5mm to 3.5mm Line In Cable 6.User Manual 2. Remote 3. Power Adapter 6. User Manual Control 4. AUX IN Cable 5. 3.5mm to 3.5mm Line In Cable 9. Aluminium Pedestal 9 10. Side cover accessories 1.GS-SB60 Soundbar 7.Surroundx2 8. Subwoofer x 1 7. Surround 8. Subwoofer 9. Aluminium Pedestal 10. Side cover accessories Support Support Thank you for your purchasing the GS-SB60 Soundbar. Please follow the guidance of the user manual to set up your new purchase and begin enjoying its features. 10 AUX Instructions Guide Using the AUX IN Cable Use the AUX Stereo Audio Cable (included) to connect theTV’s stereo AUX (L/R) audio output socket. Connect the audio output cable of the soundbar via the‘AUX’ input sockets of the unit. Press the POWER button on the soundbar or POWER button directly on the remote control (Rem.1)to switch on the unit. ThenpressMODEon the remote control (Rem.26)or press the Mode button on the unit to scroll to the AUX INfunction. Turn on your television Troubleshooting:If you are not receiving a picture or encounteringinterference,pleaseensurethatthe AUXcableis being connected to‘output’AUX port on yourTV set.This will ensure that the sound is being exported correctly. If your TV does not have ‘output’ AUX port, please use an altern…

Text truncated - open the document above for the full version.

Shenzhen Gosinggo Electronics Co., Ltd. Company: Shenzhen Gosinggo Electronics Co., Ltd. Address: R302, Bldg B, Tianrun Smart Innovation Industrial Park, No.23, Jiuwei 1st Rd, Hangcheng Str, Baoan District, Shenzhen City, China Product Name: Soundbar Model Number(s): GS-SB60 GS-SB54, GS-SB55, GS-SB56, GS-SB57, GS-SB71 Product Description: Soundbar We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021/07/19 Name: Carefree Han Title: Manager Company: Shenzhen Gosinggo Electronics Co., Ltd.

Shenzhen Gosinggo Electronics Co., Ltd. Date: 2021-07-19 To: Federal Communications Commission FCC ID: 2AOCR-GS-SB60 To Whom It May Concern: This letter is to ascertain that Shenzhen Efercro Electronic Technology Co., Ltd MODEL No.: GS-SB60 GS-SB54, GS-SB55, GS-SB56, GS-SB57, GS-SB71 Has been the units used for conducting FCC compliance testing, the SDoC part will be tested by Shenzhen BCTC Testing Co., Ltd. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ： Carefree Han Contact information / address: Shenzhen Gosinggo Electronics Co., Ltd.

Shenzhen Gosinggo Electronics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/07/19 Subject; Request for Confidentiality FCC ID: 2AOCR-GS-SB60 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram software security requirement Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Carefree Han Title: Manager

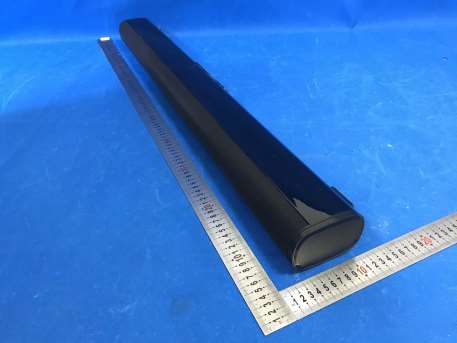

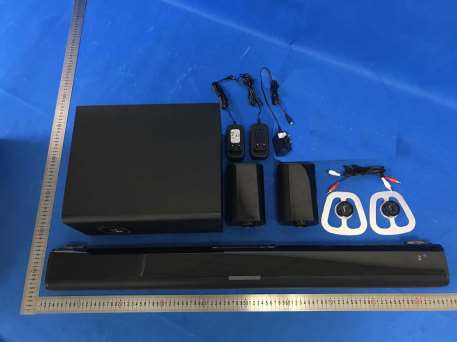

External Photos

Size:40*20mm FCC ID: 2AOCR-GS-SB60 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos BT+BLE Antenna 905M Antenna 915M Antenna 925M Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2AOCR-GS-SB60 RF EXPOSURE EVALUATION 1. Introduction According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b), a device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 cm separation requirement. The limits to be used for MPE evaluation are specified in §1.1310. All unlicensed personal communications service (PCS) devices and unlicensed NII devices shall be subject to the limits for general population/uncontrolled exposure. 2.RF Radiation Exposure Limits According to 47 CFR §1.1310, the criteria listed in below table shall be used to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093. Notes: 1. f = frequency in MHz 2. Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided they are made aware of the potential for exposure. 3. General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Shenzhen BCTC Testing Co., Ltd. 3.MPE Assessment Method Calculations can be made to predict RF field strength and power density levels around typical RF sources. For example, in the case of a single radiating antenna, a prediction for power density in the far-field of the antenna can be made by use of the general Equations below. This equation is generally accurate in the far-field of an antenna but will over-predict power density in the near field, where they could be used for making a "worst case" or conservative prediction. Where S = Power Density, unit in mW/cm2 P = Power input to the antenna, unit in mW G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna, unit in cm EIRP = Effective isotropically radiated power 4. MPE Calculation for Standalone Operations Operation Frequency: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: 0dBi R=20cm mW=10^(dBm/10) =3.1416 BT Modulation Channel Freq. (MHz) Conduct ed power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) 2402-5.49-5±1-4.000.401.000.000081 2441-6.12-6±1-5.000.321.000.000061 2480-7.24-7±1-6.000.251.000.000051 2402-4.83-5±1-4.000.401.000.000081 2441-5.58-5±1-4.000.401.000.000081 2480-6.67-6±1-5.000.321.000.000061 2402-4.61-5±1-4.000.401.000.000081 2441-5.24-5±1-4.000.401.000.000081 2480-6.45-6±15.003.161.000.000631 GFSK Pi/4DQPSK 8DPSK Shenzhen BCTC Testing Co., Ltd. BLE Modulation Channel Freq. (MHz) Conduct ed power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) 2402 -5.08 -5±1 4.00 2.51 1.00 0.00050 1 2440 -5.81 -6±1 5.00 3.16 1.00 0.00063 1 2480 -7.03 -7±1 6.00 3.98 1.00 0.00079 1 2402 -5.19 5±1 4.00 2.51 1.00 0.00050 1 2440 -5.93 -6±1 5.00 3.16 1.00 0.00063 1 2480 -7.23 -7±1 6.00 3.98 1.00 0.00079 1 GFSK(1Mbp s) GFSK(2Mbp s) Conclusion: For the max result : 0.00079≤ 1.0, compliance with FCC's RF Exposure. Summary: Since the ERP (effective radiated power) operated at < 1.5 GHz is less than 1.5 watts and > 1.5 GHz is less than 3 watts, the routine environmental evaluation is not required, and the MPE result calculated for this device complies with the MPE limit as specified in 47 CFR §1.1310.

No.：BCTC/RF-EMC-005 Page: 1 of 50 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2105000778-2E Applicant: Shenzhen Gosinggo Electronics Co., Ltd. Product Name: Soundbar Model/Type Ref.: GS-SB60 Tested Date: 2021-06-01 to 2021-07-14 Issued Date: 2021-07-14 Report No.: BCTC2105000778-2E No.：BCTC/RF-EMC-005 Page: 2 of 50 Edition：A.3 FCC ID: 2AOCR-GS-SB60 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Soundbar Trademark: N/A Model/Type Ref.: GS-SB60 GS-SB54, GS-SB55, GS-SB56, GS-SB57, GS-SB71 Prepared For: Shenzhen Gosinggo Electronics Co., Ltd. Address: R302, Bldg B, Tianrun Smart Innovation Industrial Park, No.23, Jiuwei 1st Rd, Hangcheng Str, Baoan District, Shenzhen City, China Manufacturer: Shenzhen Gosinggo Electronics Co., Ltd. Address: R302, Bldg B, Tianrun Smart Innovation Industrial Park, No.23, Jiuwei 1st Rd, Hangcheng Str, Baoan District, Shenzhen City, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-05-27 Sample tested Date: 2021-06-01 to 2021-07-14 Issue Date: 2021-07-14 Report No.: BCTC2105000778-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Sam zeng/Project Handler Zero Zhou/Reviewer Report No.: BCTC2105000778-2E No.：BCTC/RF-EMC-005 Page: 3 of 50 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 3. MEASUREMENT UNCERTAINTY ....................................... 7 4. PRODUCT INFORMATION AND TEST SETUP............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 4.6 Table of parameters of text software setting ............................... 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................ 13 6.1 Block Diagram Of Test Setup ............................................ 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 EUT operating Conditions ............................................... 14 6.5 Test Result ........................................................... 15 7. RADIATED EMISSIONS .............................................. 17 7.1 Block Diagram Of Test Setup ............................................ 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 19 7.4 EUT operating Conditions ............................................... 21 7.5 Test Result ........................................................... 22 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .................................................. 26 8.1 Block Diagram Of Test Setup ............................................ 26 8.2 Limit ................................................................. 26 8.3 Test procedure ........................................................ 27 8.4 EUT operating Conditions ............................................... 27 8.5 Test Result ........................................................... 28 9. POWER SPECTRAL DENSITY TEST ................................... 29 9.1 Block Diagram Of Test Setup ............................................ 29 9.2 Limit ................................................................. 29 9.3 Test procedure ........................................................ 29 9.4 EUT operating Conditions ............................................... 29 9.5 Test Result ........................................................... 30 10. BANDWIDTH TEST .................................................. 34 10.1 Block Diagram Of Test Setup .......................................... 34 10.2 Limit ................................................................ 34 Report No.: BCTC2105000778-2E No.：BCTC/RF-EMC-005 Page: 4 of 50 Edition：A.3 10.3 Test procedure ....................................................... 34 10.4 EUT operating Conditions ............................................. 34 10.5 Test Result .......................................................... 35 11. PEAK OUTPUT POWER TEST ........................................ 39 11.1 Block Diagram Of Test Setup .......................................... 39 11.2 Limit ................................................................ 39 11.3 Test procedure ....................................................... 39 11.4 EUT operating Conditions ............................................. 39 11.5 Test Result .......................................................... 40 12. 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE ................... 41 12.1 Block Diagram Of Test Setup .......................................... 41 12.2 Limit ................................................................ 41 12.3 T…
