2AOFK-QBALLPLUSPEEQ Ball

Quick Setup Guide Windscreen On the back, you’ll find ports for power, and lines in/out. On the front of the Receiver, you’ll find: Receiver Qball Controls Once the Windscreen is off, you’ll see: Grab, twist, and pull the screen to reveal the Qball Controls. Power Button & Status Indicator Volume - / + Microphone Charging Port Mode Button See next pages for more info. Mute Indicator Mute Button Power Button Status Indicator A F B G C H D I E How to Setup Before you Begin... Just a few quick steps, and you’ll be Qballin’ in no time! It’s important to charge your Qball fully before the fun starts. Here’s how to do it! Quiet Toss Qball knows when to be quiet. The Qball is a smart microphone that knows when it is being tossed and automatically mutes itself to avoid any unwanted noise. Hush Mode Qball knows when to stay quiet. Done using the Qball for a bit? Simply flip the Qball uspside down onto the Windscreen and it will automatically mute istelf. Auto Sleep Save battery life for more fun times ahead. To save battery life the Qball automatically goes into standby mode if no movement is sensed for 15 minutes. To wake it back up just give it a shake. Auto Off Forget to turn off the Qball? No problem. After two hours of inactivity, the Qball will automatically turn itself off. So, if you forget to manually power off— no worries. Odds are, there’s more fun to be had on that charge. Toggle on or off by quickly pressing the mode button. Toggle on or off by pressing the mode button for two seconds. Toggle on or off by quickly pressing the mode button. Toggle on or off by pressing the mode button for two seconds. Qball’s Awesome Features 1. Access Qball Controls STEP 2 : Twist counter-clockwise 1/8 th of a turn, and pull it out to reveal the Microphone and Controls. STEP 1 : Firmly grasp the windscreen (as indicated by the orange dots). Then... 2. Charge before first use Plug the Qball into the charging port using the included MicroUSB cable. Charge until the Red charging LED turns Green before first use. STEP 1.1 : Plug the Receiver into the wall with the provided MicroUSB power cable, and it will turn on automatically. STEP 1.2 : Connect one end of the provided Audio Cable into the OUT port on the back of the Receiver. STEP 1.3 : Connect the other end of the Audio Cable into the AUX IN port on your speaker. STEP 1’S OBJECTIVE : Setup the Receiver—which is how Qball “talks” to your speakers. *For instructions on when to use the LINE IN port, check out buyqball.com/setup. * 123 Step 1 of 2 STEP 2’S OBJECTIVE : Power on the Qball, Pair, then Play! STEP 2.1 : Once your Qball is charged, turn it on by pressing the power button. STEP 2.2 : The LED indicator light ar ound the power button will change from fl ashing Blue to solid Blue, indicating a connection has been made. STEP 2.3 : You can then adjust the volume using the and buttons. Replace the Windscreen, and you’re all set! Step 2 of 2 Need Extra Help With Setup? Don’t worry one bit— we’re here to help! If you don’t see instructions for your unique tech setup, visit us online at www.buyqball.com/setup. Here, you can access our Knowledge Base or contact Support. We’re here for you, ev ery step of the way! Are you a Teacher? Join us in our www.buyqball.com/teacherslounge Online Teachers Lounge! The Teachers Lounge is a magical place, where you’ll find the world’s funnest teachers and oodles of awesome ways to use Qball in the classroom. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. &tĂƌŶŝŶŐ^ƚĂƚĞŵĞŶƚŚĂŶŐĞƐŽƌŵŽĚŝĨŝĐĂƚŝŽŶƐŶŽƚĞdžƉƌĞƐƐůLJĂƉƉƌŽǀĞĚďLJƚŚĞƉĂƌƚLJƌĞƐƉŽŶƐŝďůĞĨŽƌĐŽŵƉůŝĂŶĐĞĐŽƵůĚǀŽŝĚƚŚĞƵƐĞƌ͛ƐĂƵƚŚŽƌŝƚLJƚŽŽƉĞƌĂƚĞƚŚĞĞƋƵŝƉŵĞŶƚ͘dŚŝƐĞƋƵŝƉŵĞŶƚŚĂƐďĞĞŶƚĞƐƚĞĚ ĂŶĚĨŽƵŶĚƚŽĐŽŵƉůLJǁŝƚŚƚŚĞůŝŵŝƚƐĨŽƌĂůĂƐƐĚŝŐŝƚĂůĚĞǀŝĐĞ͕ƉƵƌƐƵĂŶƚƚŽWĂƌƚϭρŽĨƚŚĞ&ZƵůĞƐ͘dŚĞƐĞůŝŵŝƚƐĂƌĞĚĞƐŝŐŶĞĚƚŽƉƌŽǀŝĚĞƌĞĂƐŽŶĂďůĞƉƌŽƚĞĐƚŝŽŶĂŐĂŝŶƐƚŚĂƌŵĨƵů ŝŶƚĞƌĨĞƌĞŶĐĞŝŶĂƌĞƐŝĚĞŶƚŝĂůŝŶƐƚĂůůĂƚŝŽŶ͘dŚŝƐĞƋƵŝƉŵĞŶƚŐĞŶĞƌĂƚĞƐƵƐĞƐĂŶĚĐĂŶƌĂĚŝĂƚĞƌĂĚŝŽĨƌĞƋƵĞŶĐLJĞŶĞƌŐLJĂŶĚ͕ŝĨŶŽƚŝŶƐƚĂůůĞĚĂŶĚƵƐĞĚŝŶĂĐĐŽƌĚĂŶĐĞǁŝƚŚƚŚĞŝŶƐƚƌƵĐƚŝŽŶƐ͕ ŵĂLJĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽĐŽŵŵƵŶŝĐĂƚŝŽŶƐ͘,ŽǁĞǀĞƌ͕ƚŚĞƌĞŝƐŶŽŐƵĂƌĂŶƚĞĞƚŚĂƚŝŶƚĞƌĨĞƌĞŶĐĞǁŝůůŶŽƚŽĐĐƵƌŝŶĂƉĂƌƚŝĐƵůĂƌŝŶƐƚĂůůĂƚŝŽŶ͘/ĨƚŚŝƐĞƋƵŝƉŵĞŶƚĚŽĞƐĐĂƵƐĞ ŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞƚŽƌĂĚŝŽŽƌƚĞůĞǀŝƐŝŽŶƌĞĐĞƉƚŝŽŶ͕ǁŚŝĐŚĐĂŶďĞĚĞƚĞƌŵŝŶĞĚďLJƚƵƌŶŝŶŐƚŚĞĞƋƵŝƉŵĞŶƚŽĨĨĂŶĚŽŶ͕ƚŚĞƵƐĞƌŝƐĞŶĐŽƵƌĂŐĞĚƚŽƚƌLJƚŽĐŽƌƌĞĐƚƚŚĞŝŶƚĞƌĨĞƌĞŶĐĞďLJŽŶĞ ŽƌŵŽƌĞŽĨƚŚĞĨŽůůŽǁŝŶŐŵĞĂƐƵƌĞƐ͗ ϋϋZĞŽƌŝĞŶƚŽƌƌĞůŽĐĂƚĞƚŚĞƌĞĐĞŝǀŝŶŐĂŶƚĞŶŶĂ͘ ϋϋ/ ŶĐƌĞĂƐĞƚŚĞƐĞƉĂƌĂƚŝŽŶďĞƚǁĞĞŶƚŚĞĞƋƵŝƉŵĞŶƚĂŶĚƌĞĐĞŝǀĞƌ͘ ϋϋŽŶŶĞĐƚƚŚĞĞƋƵŝƉŵĞŶƚŝŶƚŽĂŶŽƵƚůĞƚŽŶĂĐŝƌĐƵŝƚĚŝĨĨĞƌĞŶƚĨƌŽŵƚŚĂƚƚŽǁŚŝĐŚƚŚĞƌĞĐĞŝǀĞƌŝƐĐŽŶŶĞĐƚĞĚ͘ ϋϋŽŶƐƵůƚƚŚĞĚĞĂůĞƌŽƌĂŶĞdžƉĞƌŝĞŶĐĞĚƌĂĚŝŽͬdsƚĞĐŚŶŝĐŝĂŶĨŽƌŚĞůƉ͘ dŚŝƐĚĞǀŝĐĞĐŽŵƉůŝĞƐǁŝƚŚƉĂƌƚϭρŽĨƚŚĞ&ZƵůĞƐ͘KƉĞƌĂƚŝŽŶŝƐƐƵďũĞĐƚƚŽƚŚĞĨŽůůŽǁŝŶŐƚǁŽĐŽŶĚŝƚŝŽŶƐ͗;ϭͿdŚŝƐĚĞǀŝĐĞŵĂLJŶŽƚĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞ͕ĂŶĚ;ϮͿƚŚŝƐĚĞǀŝĐĞ ŵƵƐƚĂĐĐĞƉƚĂŶLJŝŶƚĞƌĨĞƌĞŶĐĞƌĞĐĞŝǀĞĚ͕ŝŶĐůƵĚŝŶŐŝŶƚĞƌĨĞƌĞŶĐĞƚŚĂƚŵĂLJĐĂƵƐĞƵŶĚĞƐŝƌĞĚŽƉĞƌĂƚŝŽŶ͘

PEEQ Technologies,INC Agent Authorization Company: PEEQ Technologies,INC Address: 6336 Whitted Rd, Fuquay-Varina, NC 27526, U.S.A Product Name: PEEQ Ball Model Number(s): Qball Plus Product Description: PEEQ Ball We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 15, 2021 Name: Shane Cox Title: CEO Company: PEEQ Technologies,INC

PEEQ Technologies,INC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 15, 2021 Subject; Request for Confidentiality FCC ID: 2AOFK-QBALLPLUS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shane Cox Title: CEO

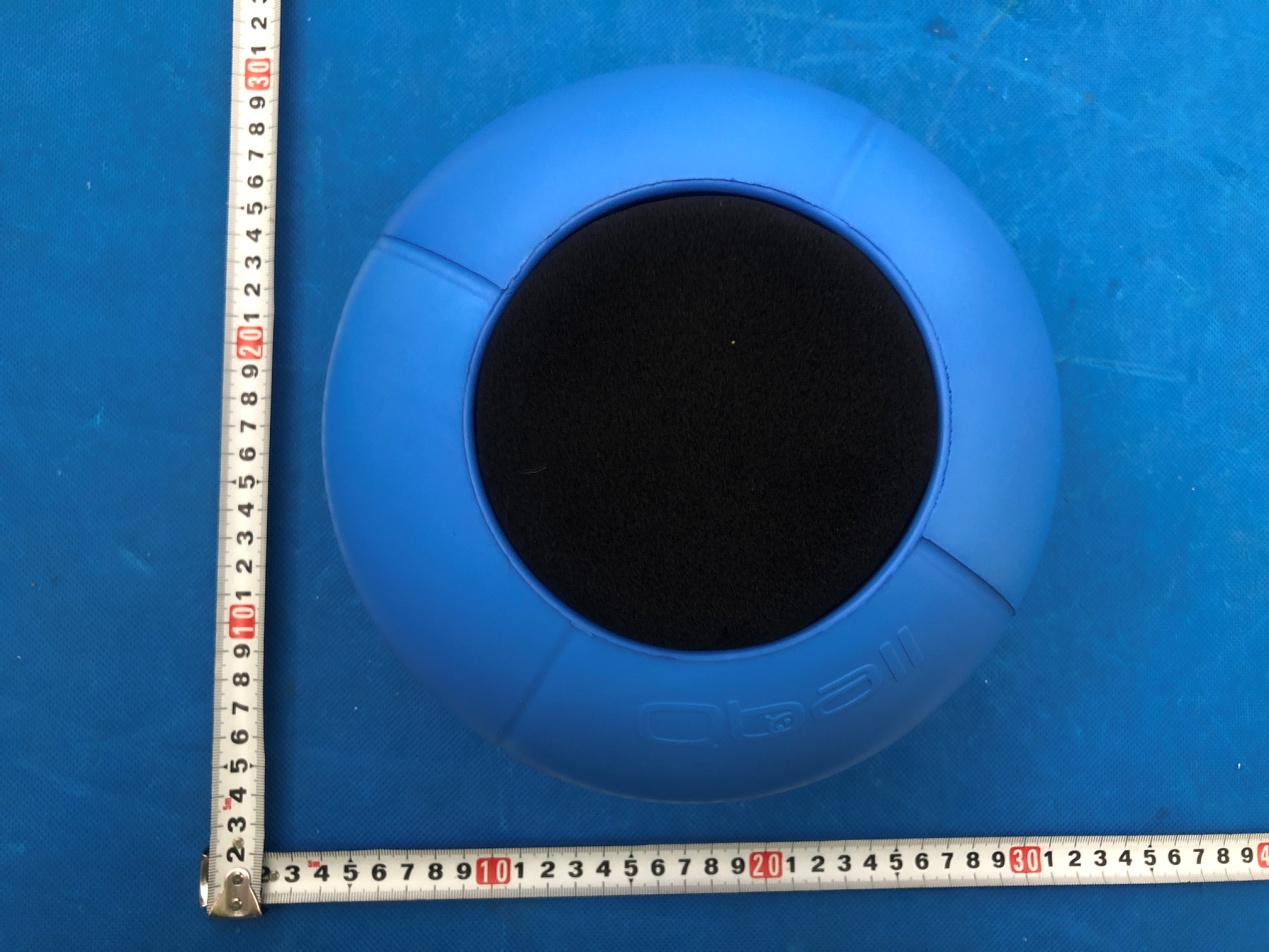

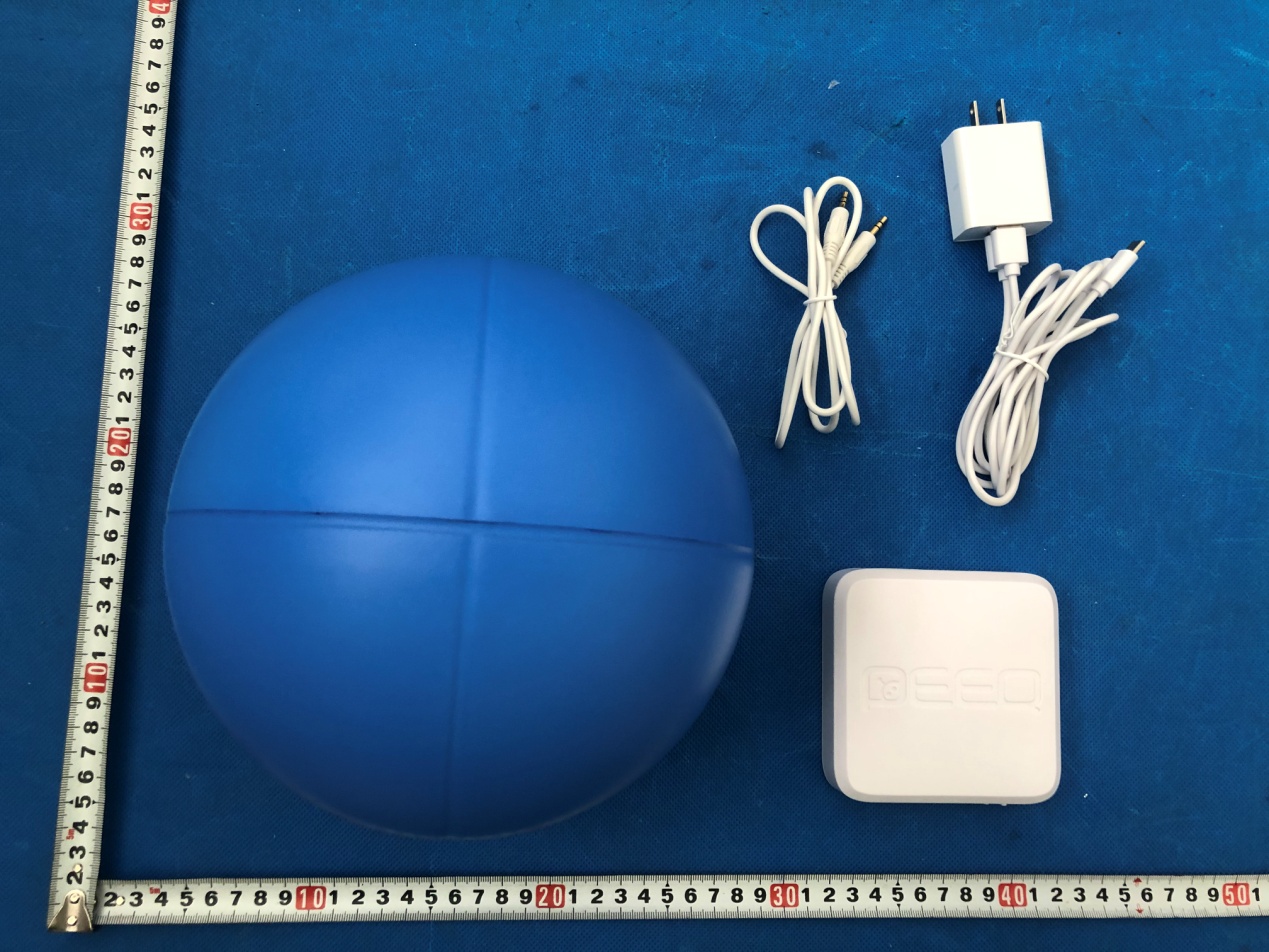

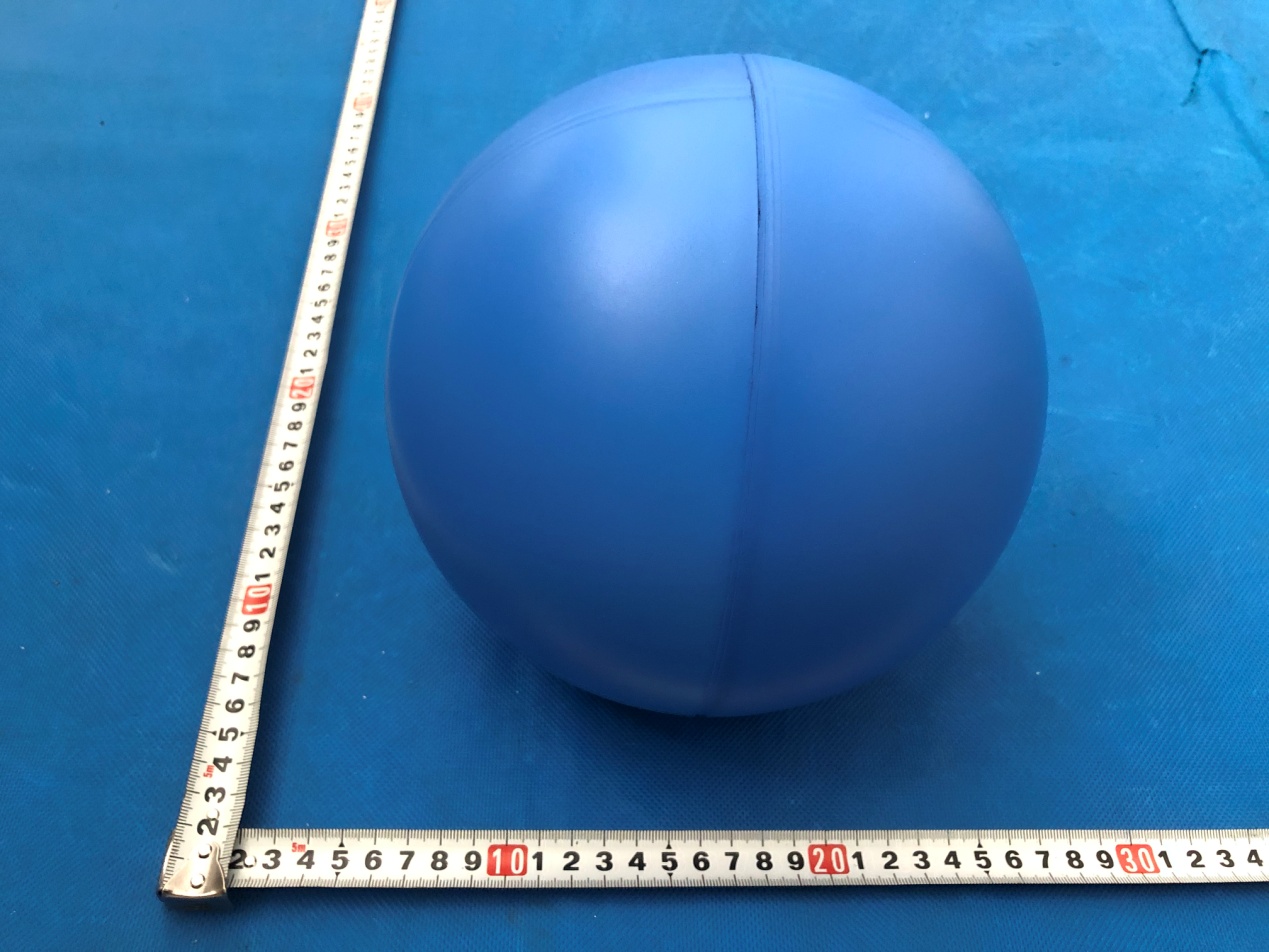

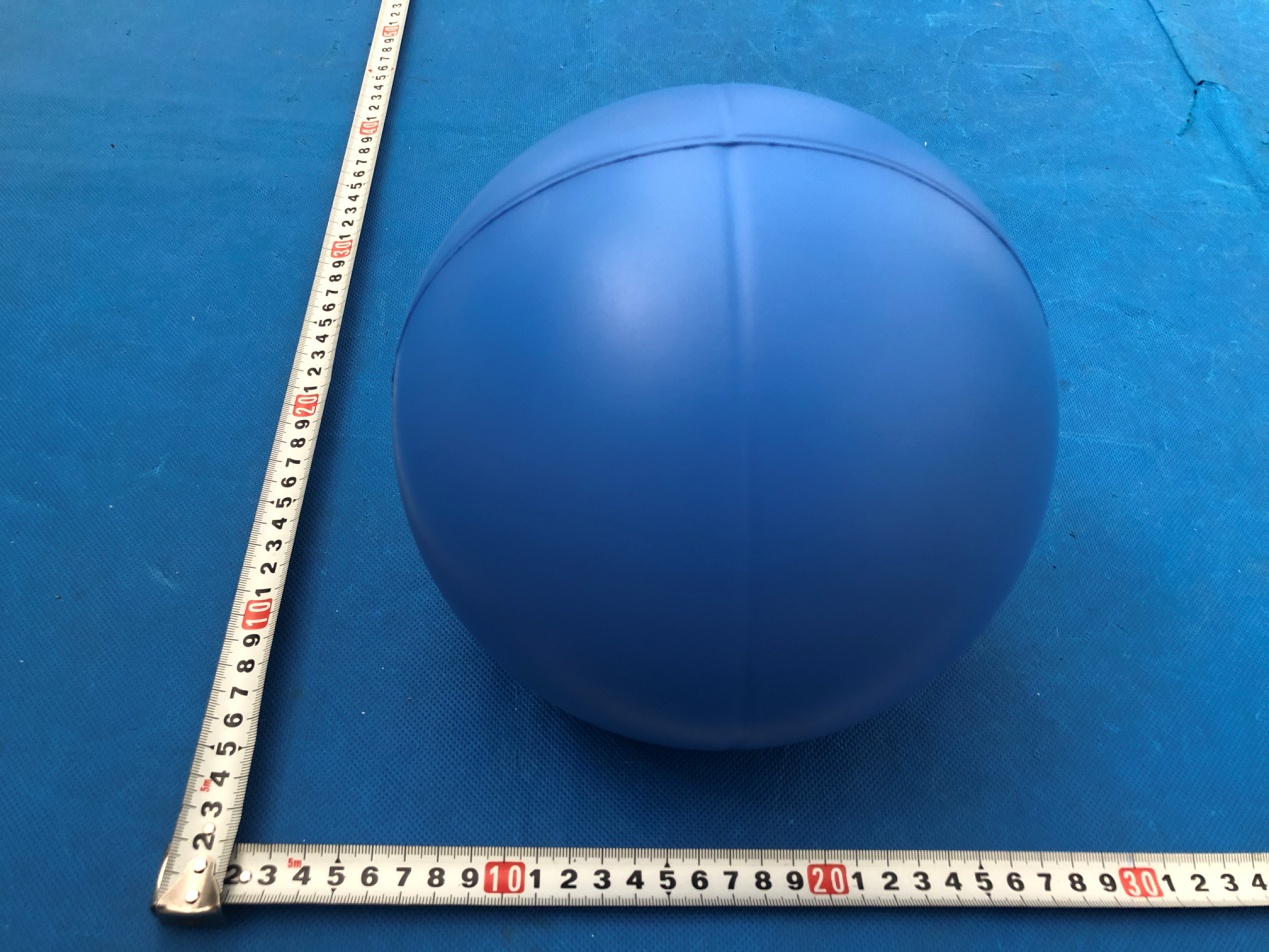

Annex A External Photos Model: HK2103180762-E Page 1 of 3 Model: HK2103180762-E Page 2 of 3 Model: HK2103180762-E Page 3 of 3

FCC ID LABEL: Label Location FCC ID: 2AOFK-QBALLPLUS

Annex B Internal Photo Model: HK2103180762-E Page 1 of 4 Model: HK2103180762-E Page 2 of 4 Antenna Model: HK2103180762-E Page 3 of 4 Model: HK2103180762-E Page 4 of 4

Page 1 of 28 Report No.: HK2103180762-E FCC TEST REPORT Test report On Behalf of PEEQ Technologies,INC For PEEQ Ball Model No.: Qball Plus FCC ID: 2AOFK-QBALLPLUS Prepared for : PEEQ Technologies,INC 6336 Whitted Rd, Fuquay-Varina, NC 27526, U.S.A Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen, China Date of Test: Mar. 18, 2021 ~ Apr. 07, 2021 Date of Report: Apr. 07, 2021 Report Number: HK2103180762-E Page 2 of 28 Report No.: HK2103180762-E TEST RESULT CERTIFICATION Applicant’s name ................. : PEEQ Technologies,INC Address ................................. : 6336 Whitted Rd, Fuquay-Varina, NC 27526, U.S.A Manufacture's Name ............ : PEEQ Technologies,INC Address ................................. : 6336 Whitted Rd, Fuquay-Varina, NC 27526, U.S.A Product description Trade Mark: Qball Product name ........................... : PEEQ Ball Model and/or type reference : Qball Plus Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Mar. 18, 2021 ~ Apr. 07, 2021 Date of Issue ........................................... : Apr. 07, 2021 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou ) Page 3 of 28 Report No.: HK2103180762-E Table of Contents Page 1 . Test Summary 5 1.1 . Test Procedures And Results 5 1.2 . Test Facility 5 1.3 . Measurement Uncertainty 5 2 . General Information 6 2.1 . General Description Of EUT 6 2.2 . Operation of EUT during testing 7 2.3 . Description Of Test Setup 8 2.4 . Measurement Instruments List 9 3 . Conducted Emissions Test 10 3.1. Conducted Power Line Emission Limit 10 3.2. Test Setup 10 3.3. Test Procedure 10 3.4. Test Result 11 4. Radiated Emission Test 13 4.1. Radiation Limit 13 4.2. Test Setup 13 4.3. Test Procedure 14 4.4. Test Result 14 5. Band Edge 20 5.1. Limits 20 5.2. Test Procedure 20 5.3. Test Result 21 6. Occupied Bandwidth Measurement 23 6.1. Test Setup 23 6.2. Test Procedure 23 6.3. Measurement Equipment Used 23 6.4. Test Result 23 7. Antenna Requirement 25 8. Photograph Of Test 26 9. Photos Of The EUT 28 Page 4 of 28 Report No.: HK2103180762-E ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release Apr. 07, 2021 Jason Zhou Page 5 of 28 Report No.: HK2103180762-E 1. Test Summary 1.1. Test Procedures And Results DESCRIPTION OF TEST SECTION NUMBERRESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.249(a) /15.209 COMPLIANT BAND EDGE 15.249(d)/15.205 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT 1.2. Test Facility Te s t F i r m ： Shenzhen HUAK Testing Technology Co., Ltd. Address ： 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen, China 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 4.26dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 6 of 28 Report No.: HK2103180762-E 2. General Information 2.1. General Description Of EUT Equipment PEEQ Ball Model Name Qball Plus Serial Model N/A Model Difference N/A FCC ID 2AOFK-QBALLPLUS Antenna Type PCB Antenna Antenna Gain 0dBi Operation frequency 2403-2478MHz Number of Channels 26CH Modulation Type GFSK Power Source DC 3.7V from battery or DC 5V 2A from Adapter with AC100-240V 50/60Hz, 0.6A Power Rating DC 3.7V from battery or DC 5V 2A from Adapter with AC100-240V 50/60Hz, 0.6A Page 7 of 28 Report No.: HK2103180762-E 2.1.1. Carrier Frequency of Channels Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2403 10 2430 19 2457 2 2406 11 2433 20 2460 3 2409 12 2436 21 2463 4 2412 13 2439 22 2466 5 2415 14 2442 23 2469 6 2418 15 2445 24 2472 7 2421 16 2448 25 2475 8 2424 17 2451 26 2478 9 2427 18 2454 2.2. Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2403MHz Middle Channel: 2439MHz High Channel: 2478MHz Page 8 of 28 Report No.: HK2103180762-E 2.3. Description of Test Setup Operation of EUT during conducted and radiation below 1GHz testing: AC Plug Operation of EUT during radiation above 1GHz testing: Adapter information Model: GA-0502000 Input: 100-240V, 50/60Hz, 0.6A Output: 5VDC, 2A The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position. Adapter EUT EUT Page 9 of 28 Report No.: HK2103180762-E 2.4. Measurement Instruments List Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. L.I.S.N. Artificial Mains Network R&S ENV216 HKE-002 Jun. 18, 2020 1 Year 2. Receiver …

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
