2AOKB-A3126Bluetooth Wireless Speaker

Quick Start Guide Soundcore Select Pro 3 OVERVIEW 45 9 8 Bass button Volume up button Bluetooth button 1 2 Power button Strobe light button 6 7 Volume down button Multi-function button 3 4 USB-A port for charging out USB-C port for charging in 8 9 5 6 2 13 4 5 6 7 ON 2s OFF >2s OFF ON 1 x1 Select Pro 2 Select Pro CHARGINGPOWERING ON/OFFPAIRING PAIRING CONNECTED APP 2 FAQ ? SUPPORT1 Google Play and the Google Play logo are trademarks of Google Inc. Apple and the Apple logo are trademarks of Apple Inc. Soundcore Soundcore 1.8ft For FAQs and more information, please visit : soundcore.com/support @soundcoreaudio@soundcoreaudio@SoundcoreAudio Model: A3126 51005002556 V01 7 89 12 10 11 ON/OFF x1 x1 x2 x3 x1 2s Voice Assistant 2s USB Customer Service Zákaznický servis | Kundeservice | Kundenservice | Atención al Cliente | Asiakaspalvelu | Service Client | Servizio ai Clienti | Klantenservice | Kundeservice | Obsługa klienta | Serviço de Apoio ao Cliente | Обслуживание клиентов | Kundservice | Müşteri Hizmetleri | | 고객 서비스 | | | خدمة العملاء | שירות לקוחות חודשים18 محدودة | אחריות מוגבלת למשך ً شھرا18ضمانة 18-month limited warranty 18měsíční omezená záruka | 18 måneders begrenset garanti | 18 Monate beschränkte Herstellergarantie | Garantía limitada de 18 meses | 18 kuukauden rajoitettu takuu | Garantie limitée de 18 mois | Garanzia limitata 18 mesi | 18 maanden beperkte garantie | 18-måneders begrænset garanti | 18-miesięczna ograniczona gwarancja | 18 meses de garantia limitada | Ограниченная гарантия на 18 месяцев | 18 månaders begränsad garanti | 18 aylık sınırlı Garanti | 通常保証18ヶ月 (延長あり) | 18개월 제한 보증 | 18个月质 保期 | 18個月有限保固 | الدعم الفني مدى الحیاة | תמיכה טכנית לכל החיים Lifetime technical support Doživotní technická podpora | Teknisk støtte i apparatets levetid | Lebenslanger technischer Support | Asistencia técnica de por vida | Elinikäinen tekninen tuki | Support technique à vie | Supporto tecnico a vita | Levenslang technisch support | Teknisk support under produktets samlede levetid | Dożywotnie wsparcie techniczne | Suporte técnico ao longo da vida útil do produto | Техническая поддержка на весь срок эксплуатации | Teknisk support under hela livslängden | Ömür Boyu Teknik Destek Hizmeti | | 평생 기술 지원 | 终身客服支持 | 永久技術支援 | ON x1 OFF >2s PARTYCAST CONTROLS CHARGING STROBE LIGHT 2s PAIRING CONNECTED PAIRING CONNECTED إلى الحقوق القانونیة التي یشتریھا العملاء لھذا المنتج. ً عد الضمان الخاص بنا إضافة ُ ی האחריות שלנו נוספת לזכויות החוקיות שיש ללקוחות הקונים מוצר זה. Our warranty is additional to the legal rights consumers have buying this product. Naše záruka je dodatečná k zákonným právům zákazníků, kteří si zakoupili tento výrobek. Vores garanti er ekstra ud over forbrugerens juridiske rettigheder ved at købe dette produkt. Unsere Garantie gilt zusätzlich zu den gesetzlichen Ansprüchen, die Verbrauchern beim Erwerb dieses Produkts zustehen. Nuestra garantía es adicional a los derechos legales de los consumidores asociados a la compra este producto. Takuumme on lisäys niihin laillisiin oikeuksiin, jotka kuluttajilla on ostaessaan tämän tuotteen. Notre garantie s'ajoute aux droits légaux que les consommateurs disposent à l'achat de ce produit. La nostra garanzia si aggiunge ai diritti giuridici di cui dispongono i consumatori che scelgono di acquistare questo prodotto. Onze garantie is een aanvulling op de wettelijke rechten die consumenten hebben wanneer ze dit product hebben aangeschaft. Garantien vår er i tilegg ril de juridiske rettighetene som forbrukerne har når de kjøper dette produktet. Nasza gwarancja stanowi uzupełnienie praw ustawowych przysługujących klientom nabywającym ten produkt. Nossa garantia é adicional aos direitos legais que os consumidores têm ao adquirir este produto. Наша гарантия предоставляется в дополнение к юридическим правам, которые есть у потребителей, приобретающих этот продукт. Vår garanti är ett tillägg till de lagliga rättigheter som konsumenter har som köpt den här produkten. Garantimiz, tüketicilerin bu ürünü satın alarak sahip oldukları yasal haklara ek olarak verilmektedir. 당사의 보증은 소비자가 본 제품 구매로 얻은 법적 권리에 추가됩니다. 我们的保修是对购买本产品的消费者所享受合法权利的补充。 我們的保固為消費者購買本產品所獲得的法定權利提供額外權利。 +44 (0) 1604 936200 (UK) Mon-Fri 6:00 - 11:00 (GMT) +49 (0) 69 9579 7960 (DE) Mon-Fri 6:00 - 11:00 03 4455 7823 (日本) 月 - 金 9:00 - 17:00 +86 400 0550 036 (中国) 周一至周五 9:00 - 17:30 +82-2-6464-7088 (한국) 월~금 9:00 - 17:30 +971 42463266 (Middle East & Africa) Sun-Thu 9:00 - 17:30 (GMT+4) +971 8000320817 (UAE) Sun-Thu 9:00 - 17:30 (GMT+4) +966 8008500030 (KSA) Sun-Thu 8:00 - 16:30 (GMT+3) +965 22069086 (Kuwait) Sun-Thu 8:00 - 16:30 (GMT+3) +20 8000000826 (Egypt) Sun-Thu 7:00 - 15:30 (GMT+2) [email protected] [email protected] (For Middle East and Africa Only) [email protected] (日本) Input: 5V2.1A Output: 5V1A Charging time: 4-6 hours Playtime (varies by volume level and playback content): Up to 24 hours Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong ANKER TECHNOLOGY (UK) LTD Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom Anker Innovations Deutschland GmbH Georg-Muche-Strasse 3-5, 80807 Munich, Germany Model: A3126 51005002557 V01 © Anker Innovations Limited. All rights reserved. Soundcore and the Soundcore logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. EN 01 Important Safety Information 1. Please read this user manual carefully and save it for future reference. 2. Do not place naked flame sources, such as lighted candles, on or near the product. 3. Clean only with a dry cloth. 4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 5. Do not install near any heat sources, such as radiators,heat registers,stoves,or other apparatus. 6. Protect the power supply or cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 7…

Text truncated - open the document above for the full version.

Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Long/Short-term Confidentiality Request Federal Communications Commission Date: Dec. 04, 2020 445 12 th Street SW Washington, DC 20554 FCC ID: 2AOKB-A3126 To Whom it may concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentilality) withheld from the public disclosure for an initial period of 180 days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. If you have any questions, please feel free to contact me. Yours sincerely, Signatory Contact person: Louis Qi Title: General Manager

Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Agent Authorization Company: Anker Innovations Limited Address: Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Product Name: Wireless Speaker Model Number(s): A3126 Product Description: Bluetooth Wireless Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec. 04, 2020 Name: Louis Qi Title: General Manager Company: Anker Innovations Limited

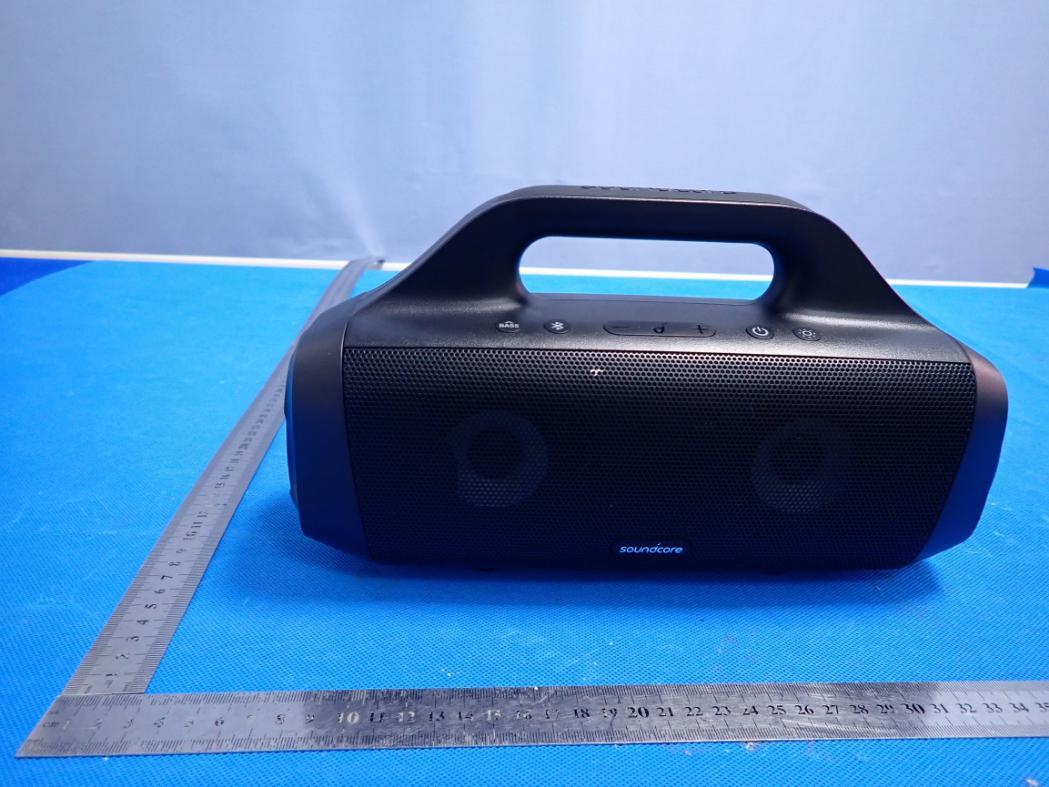

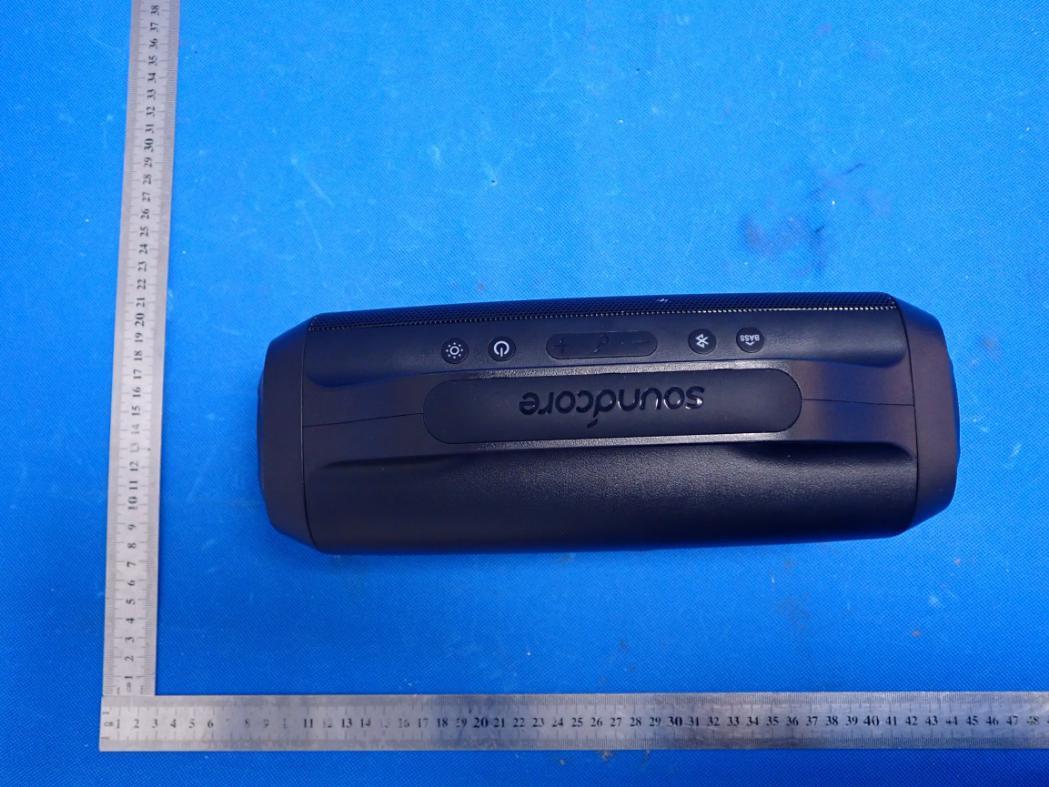

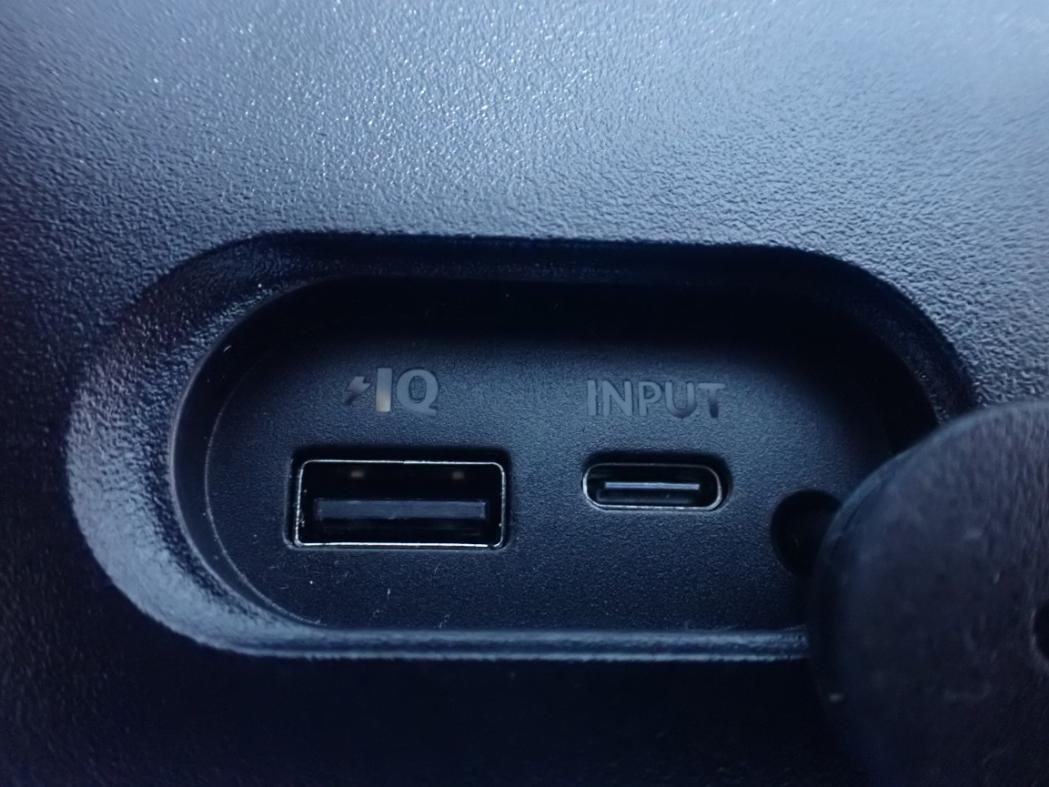

External Photos ALL VIEW-1 OF EUT EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT EXTERNAL VIEW-7 OF EUT

60mm*30mm

Internal Photos INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT BT Antenna

Inquiry on 11/26/2020 : Inquiry: DearFCC ThisisaaportableBluetoothspeakerthatneedtotestSAR.Theworkingfrequencyis 2402-248MHz.Peakpower:12dBm,DutyCycle?77%,AntennaGain:4.53dBi.Pleaserefer theattachmentformoredetails.Couldyouhelpustosuggestatestprocedurekindly? ---ReplyfromCustomeron11/26/2020--- DearFCC ThisisaaportableBluetoothspeakerthatneedtotestSAR.Theworkingfrequencyis 2402-2480MHz.Peakpower:12dBm,DutyCycle77%,AntennaGain:4.53dBi.Pleaserefer theattachmentformoredetails.Couldyouhelpustosuggestatestprocedurekindly? FCC response on 11/26/2020 Inthephoto,particularlythetoprightone,isthatcableamodificationinordertoenable aBluetoothtestmode? ---ReplyfromCustomeron11/26/2020--- DearFCC: Pleaseseeattachfile. Thanks! FCC response on 11/27/2020 Concerning the cable, though it is preferable to test devices completely free of physical modification, sometimes slight modifications are necessary to create a test mode. Use caution when measuring in the area as to not affect the SAR measurements. Measurements should be made on all sides of the device where the Bluetooth antenna is located 2.5 cm or closer. Test separation distance from the flat bottom phantom should be ≤ 5 mm to support compliance. Looking at your page 2 of attachment Antenna Position Relative EUT, is the Bluetooth antenna closest to the top? (Underneath the handle?) ---ReplyfromCustomeron11/29/2020--- DearFCC: 隐藏信息2020-12-2606:40 [email protected] 发给[email protected] 发件人: 收件人: 时间: 大小: [email protected]<[email protected]> [email protected]<[email protected]> 2020年12月26日(周六)06:40 8KB Response to Inquiry to FCC (Tracking Number 978421) Yes,theBluetoothantennaisclosesttothetopandislocatedbelowthehandle. ---ReplyfromCustomeron12/04/2020--- DearFCC Isthereanyreply? FCC response on 12/04/2020 For this particular case, we would recommend to physically remove the handle and test at 0 mm separation from the flat bottom phantom. The handle creates a physical obstruction, but since it is plastic and contains no electronics, so its removal should not have an impact on measured SAR values. ---ReplyfromCustomeron12/23/2020--- DearFCC ThemanufacturerhaschangedthepositionoftheBluetoothantenna.TheBluetooth antennaislocatedinsidethehandleratherthanunderit.Pleaseseeattachfile. Couldyousuggestanewtestprogramforus? FCC response on 12/25/2020 Youcouldtryoneofthreeapproaches. 1)Carefullyremovethehandleastonotbreaktheantennaorantennacable.Placethe radiounderneaththeflatbottomphantomwiththehandleflatagainstthephantom (antennasidefacing). 2)Carefullyremovethehandleandremovetheantennafromthehandle.Usecautionto notbreaktheantennaorconnectingcable.Placetheantennaagainstthebottomofthe flatbottomphantom.(Thisapproachismostconservative.) 3)Carefullyremovethehandleandremovetheantennafromthehandle.Facethe antennaagainstthebottomofthephantom.Youcanuseaspacingbetweenthe antennaandthephantomwhichwouldrepresentthespacingthatwouldhavebeen providedbythehandle. Takegoodpicturesofthetestsetupandgooddocumentation. Attachment Details: photo photoandantennaposition Donotreplytothismessage.PleaseselecttheReplytoanInquiryResponselinkfromtheOETInquiry Systemtoaddanyadditionalinformationpertainingtothisinquiry.

Page 1 of 36 SAR Test Report Report No.: AGC01110201143FH01 FCC ID : 2AOKB-A3126 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Speaker BRAND NAME : Soundcore MODEL NAME : A3126 APPLICANT : Anker Innovations Limited DATE OF ISSUE : Dec. 28,2020 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. Report No.: AGC01110201143FH01 Page 2 of 36 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 28,2020 Valid Initial Release Report No.: AGC01110201143FH01 Page 3 of 36 Test Report Certification Applicant Name Anker Innovations Limited Applicant Address Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Manufacturer Name Anker Innovations Limited Manufacturer Address Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Factory Name GANZHOU DEHUIDA TECHNOLOGY CO., LTD Factory Address Dehuida Science and Technology Park, Huoyanshan Road, Anyuan District, Ganzhou City, Jiangxi Province. P.R China. Product Designation Wireless Speaker Brand Name Soundcore Model Name A3126 EUT Voltage DC7.2V by battery Applicable Standard IEEE Std. 1528:2013; FCC 47 CFR Part 2§2.1093:2013; IEEE Std C95.1 ™-2005; IEC 62209-1: 2016; Test Date Dec. 25,2020 Report Template AGCRT-US-Bluetooth/SAR (2018-01-01) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Thea Huang (Project Engineer) Dec. 25,2020 Reviewed By Angela Li (Reviewer) Dec. 28,2020 Approved By Forrest Lei (Authorized Officer) Dec. 28,2020 Report No.: AGC01110201143FH01 Page 4 of 36 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ......................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................... 6 2.1. EUT DESCRIPTION......................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ........................................................................................................................ 7 3.1. THE SATIMO SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS .................. 7 3.2. COMOSAR E-FIELD PROBE .......................................................................................................................... 8 3.3. ROBOT .......................................................................................................................................................... 8 3.4. VIDEO POSITIONING SYSTEM .......................................................................................................................... 9 3.5. DEVICE HOLDER ............................................................................................................................................ 9 3.6. SAM TWIN PHANTOM ................................................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE .............................................................................................................. 11 4.1. SPECIFIC ABSORPTION RATE (SAR) .............................................................................................................. 11 4.2. SAR MEASUREMENT PROCEDURE ................................................................................................................ 12 4.3. RF EXPOSURE CONDITIONS ......................................................................................................................... 14 5. TISSUE SIMULATING LIQUID ......................................................................................................................... 15 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID..................................................................................... 15 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................................... 15 5.3. TISSUE CALIBRATION RESULT ....................................................................................................................... 16 6. SAR SYSTEM CHECK PROCEDURE ........................................................................................................... 17 6.1. SAR SYSTEM CHECK PROCEDURES ............................................................................................................. 17 6.2. SAR SYSTEM CHECK ................................................................................................................................... 18 7. EUT TEST POSITION ..................................................................................................................................... 20 7.1. BODY WORN POSITION ................................................................................................................................ 20 8. SAR EXPOSURE LIMITS ............................................................................................................................... 21 9. TEST FACILITY .............................................................................................................................................. 22 10. TEST EQUIPMENT LIST .............................................................................................................................. 23 11. MEASUREMENT UNCERTAINTY ................................................................................................................ 24 12. CONDUCTED POWER MEASUREMENT ..................................................................................................... 27 13. TEST RESULTS ...................................................…

Text truncated - open the document above for the full version.

CALIBRATION DATA PROBE CALIBRATION DATA DIPOLE CALIBRATION DATA

Impedance Plot for SN 46/11 DIP 2G450-189; 2450Head Calibrated impedance：49.8Ω+3.3jΩ；Measurement impedance: 51.9Ω-4.5jΩ (within 5Ω) Calibrated return loss：-29.54dB；Measurement return loss: -29.55dB(within 20%)

Page 1 of 64 FCC Test Report Report No.: AGC01110201143FE03 FCC ID : 2AOKB-A3126 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Speaker BRAND NAME : Soundcore MODEL NAME : A3126 APPLICANT : Anker Innovations Limited DATE OF ISSUE : Dec. 30, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01110201143FE03 Page 2 of 64 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 30, 2020 Valid Initial Release Report No.: AGC01110201143FE03 Page 3 of 64 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 14 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 14 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 14 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 15 8. 20DB BANDWIDTH ........................................................................................................................................ 21 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 21 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 21 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 22 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 28 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 28 Report No.: AGC01110201143FE03 Page 4 of 64 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 28 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 28 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 28 10. RADIATED EMISSION ................................................................................................................................. 41 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 41 10.2. TEST SETUP ......................................................................................................................................... 43 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 44 10.4. TEST RESULT........................................................................................................................................ 44 11. NUMBER OF HOPPING FREQUENCY ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC01110201143FE03 Page 41 of 64 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emission, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC01110201143FE03 Page 42 of 64 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC01110201143FE03 Page 43 of 64 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC01110201143FE03 Page 44 of 64 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC01110201143FE03 Page 45 of 64 RADIATED EMISSION BELOW 1GHz EUT Wireless Speaker Model Name A3126 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal RESULT: PASS Report No.: AGC01110201143FE03 Page 46 of 64 EUT Wireless Speaker Model Name A3126 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been pre-tested. The mode 7 is the worst case and recorded in the report. Report No.: AGC01110201143FE03 Page 47 of 64 RADIATED EMISSION ABOVE 1GHz EUT Wireless…
