2AOKB-A3911LTSoundcore Liberty Neo

12 3 45 ON OFF ? FAQ For FAQs and more information, please visit www.soundcore.com/ support Choose the EarTips and jackets that fit your ears best. Take the earbuds out of the charging case to power on. Place the earbuds into the charging case to power off. DE: FAQs und weitere Informationen unter www.soundcore.com/support ES: Para acceder a las preguntas frecuentes y obtener más información, visite www. soundcore.com/support FR: Pour la section FAQ et d'autres informations, rendez-vous sur www.soundcore.com/ support. IT: Per consultare le domande frequenti e ottenere ulteriori informazioni, visita il sito web www.soundcore.com/support JP: よくある質問や詳細については、https://www.ankerjapan.com/ をご参照ください。 KO: FAQ 및 자세한 내용은 www.soundcore.com/support 를 방문하십시오 .. CN: 如需查看 FAQ 及更多信息，请访问 www.soundcore.com/support TW: 如需查看 FAQ 及詳細資訊，請造訪 www.soundcore.com/support PT: Para perguntas frequentes e mais informações, acesse www.soundcore.com/support TR: Sık sorulan sorular ve daha fazla bilgi için lütfen www.soundcore.com/support adresini ziyaret edin. . www.soundcore.com/supportرجى زيارة الموقع ُ للحصول على الأسئلة المتداولة والمزيد من المعلومات، ي :AR www.soundcore.com/supportלעיון בשאלות נפוצות ולקבלת מידע נוסף, בקר באתר :HE DE: Nehmen Sie die Ohrhörer zum Einschalten aus der Ladehülle. Legen Sie die Ohrhörer zum Ausschalten in die Ladehülle. ES: Para encender los auriculares, extráigalos del estuche de carga. Para apagar los auriculares, colóquelos en el estuche de carga. FR: Sortez les écouteurs de l’étui de chargement pour les allumer. Placez les écouteurs dans l'étui de chargement pour les éteindre. IT: Estrarre gli auricolari dalla custodia di ricarica per accenderli. Collocare gli auricolari nella custodia di ricarica per spegnerli. JP: 電源をオンにするには、充電ケースから両方のイヤホンを取り出します。 充電ケースにイヤホンを戻すと、自動的に電源がオフになります。 KO: 전원을 켜려면 충전 케이스에서 이어버드를 꺼냅니다 . 전원을 끄려면 이어버드를 충전 케이스에 넣습니다 . CN: 从充电盒中取出耳机以开机。将耳机放入充电盒中以关机。 TW: 從充電盒中取出耳機以啟動電源。將耳機裝入充電盒以關閉電源。 PT: Tire os fones de ouvido da capa carregadora para ligar. Coloque os fones de ouvido na capa carregadora para desligar. TR: Kulaklıkları açmak için şarj kutusundan çıkarın. Kulaklıkları kapatmak için şarj kutusuna yerleştirin. أخرج سماعات الأذن من حافظة الشحن لتشغيلها. :AR أخرج سماعات الأذن من حافظة الشحن لإيقاف تشغيلها. הוצא את האוזניות מנרתיק הטעינה כדי להדליק אותן. :HE הכנס את האוזניות לנרתיק הטעינה כדי לכבות אותן. SUPPORT WEARING Fully dry off the earbuds before charging. Remove the protective film on the earbuds before first use. DE: Trocknen Sie die Ohrhörer vor dem Aufladen vollständig ab. Vor der ersten Verwendung die Schutzfolie von den Ohrhörern entfernen. ES: Seque los auriculares completamente antes de cargarlos. Retire la película protectora de los auriculares antes del primer uso. FR: Séchez complètement les écouteurs avant de les recharger. Retirez le film de protection des écouteurs avant la première utilisation. IT: Asciugare completamente gli auricolari prima di caricarli. Rimuovere la pellicola protettiva sugli auricolari prima del primo utilizzo. JP: イヤホンに水や汗が付着している場合は、完全に乾かしてから充電してください。 イヤホンの使用前に保護フィルムをはがしてください。 KO: 충전 전에 이어버드를 충분히 말려 주세요 . 최초 사용 전에 이어버드의 보호 필름을 제거하십시오 . CN: 确保耳机在充电前完全干燥。 首次使用前，请先揭掉耳机上的保护膜。 TW: 在充電之前，請先將耳機完全擦乾。 初次使用之前，請先取下耳機上的保護膜。 PT: Seque totalmente os fones de ouvido antes de carregá-los. Remova a película de proteção nos fones de ouvido antes de usar. TR: Şarj etmeden önce kulaklıkları iyici kurulayın. İlk defa kullanırken kulaklıkların koruyucu filmini çıkarın. ا قبل الشحن. ً الأذن تمام ّ قم بتجفيف سماعاتي :AR الأذن قبل الاستخدام للمرة الأولى. ّ قم بإزالة الطبقة الواقية من على سماعتي יבשו לחלוטין את האוזניות לפני ההטענה. :HE לפני השימוש הראשון, הסר את הפלסטיק המגן על האוזניות. CHARGING POWERING ON/OFF Steady white Steady red Flashing white Flashing red DE: Leuchtet weiß Leuchtet rot Blinkt weiß Blinkt rot ES: Blanco fijo Rojo fijo Parpadeo en blanco Rojo intermitente FR: Blanc fixe Rouge fixe Blanc clignotant Rouge clignotant I T: Bianco fisso Rosso fisso Bianco lampeggiante Rosso lampeggiante JP: 白色の点灯 赤色の点灯 白色で点滅 赤色で点滅 KO: 흰색으로 유지됨 빨간색 유지 흰색으로 깜박임 빨간색으로 점멸 CN: 白灯常亮 红灯常亮 白灯闪烁 红灯闪烁 TW: 穩定亮起白燈 穩定亮起紅燈 閃爍白燈 閃爍紅燈 PT: Branco fixo Vermelho fixo Branco intermitente Luz vermelha piscante TR: Sabit yanan beyaz Sabit yanan kırmızı Yanıp sönen beyaz Yanıp sönen kırmızı أبيض ثابت :AR أحمر ثابت أبيض وامض أحمر وامض לבן מלא :HE אדום מלא לבן מהבהב אדום מהבהב LED LIGHT GUIDE DE: Einfach die passenden Ohrstücke und Überzüge für die Ohren verwenden. ES: Seleccione los adaptadores para el oído y las fundas que mejor se ajusten a sus oídos. FR: Choisissez les coussinets et les revêtements qui s'adaptent le mieux à vos oreilles. I T: Scegliere i copriauricolari e i rivestimenti che assicurano la tenuta migliore in base alle proprie esigenze. JP: 耳に最もフィットするイヤーチップとイヤーウィングを選択してください。 KO: 사용자의 귀에 가장 잘 맞는 이어팁과 재킷을 선택하십시오 . CN: 选择最适合您耳朵的耳帽和耳机套。 TW: 選擇最適合您耳朵的耳塞套和耳機套。 PT: Escolha EarTips e capas que melhor se ajustem aos seus ouvidos. TR: Kulaklarınıza en uygun Kulaklık Uçlarını ve kaplamaları seçin. لأذنيك. ً ي الأذن والخطافات الأكثر ملاءمة َ اختر أغطية سماعت :AR ואת הכיסויים הכי מתאימים לאוזניים שלך.EarTipsבחר את ה- :HE ON OFF 1” ON OFF < 30% 30% - 70% 100% 2 1 < 30% 30% - 70% > 70% 100% 1 34 2 678 RESET You might need to reset the earbuds if you experience any connectivity problems or function issues. Place the earbuds into the charging case and make sure they are being charged. Press and hold the button on both earbuds for 8 seconds until the LED indicators on earbuds flash red for 3 times. BUTTON CONTROLS Take the earbuds out of the charging case. Find “Soundcore Liberty Neo” in the Bluetooth list on your device. DE: Nehmen Sie die Ohrhörer aus der Ladehülle. Klicken Sie in der Bluetooth-Liste auf Ihrem Gerät auf „Soundcore Liberty Neo“. ES: Extraiga los auriculares del estuche de carga. Haga clic en “Soundcore Liberty Neo” en la lista de Bluetooth del dispositivo. FR: Sortez les écouteurs de l’étui de chargement. Cliquez sur «Soundcore Liberty Neo» dans la liste …

Text truncated - open the document above for the full version.

Model: A3911, A3911LT, A3911RT 51005002258 V01 3 ENEN 4 Important Safety Information • Avoid dropping. • Do not disassemble. • The charging case should not be submerged in water or be exposed to dripping or splashing. • Avoid extreme temperatures. • The product should not be exposed to excessive heat such as sunshine, fire or the like. • Use original or certified cables. • Clean with a dry, soft lint-free cloth. Do not use any corrosive cleaner or oil. • Do not use the product outdoors during thunderstorms. • Keep out of reach of children. Small parts included may be a choking hazard. Hearing Safety • To avoid hearing damage, do not listen for extended periods at high volume. • Do not turn the volume so high that you’re unable to hear your surroundings. • Do not use earphones while driving. • You should use caution or temporarily discontinue use in potentially hazardous situations. Notice This product complies with the radio interference requirements of the European Community. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. 5 ENEN 6 This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help. Left Earbud, A3911LT FCC ID: 2AOKB-A3911LT IC: 23451-A3911LT : 204-B00066 Right Earbud, A3911RT FCC ID: 2AOKB-A3911RT IC: 23451-A3911RT : 204-B00067 The following importer is the responsible party Company Name: Fantasia Trading LLC Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764 Telephone: +1 (800) 988 7973 RF Warning Statement The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. IC NOTICE TO CANADIAN USERS This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement. CAN ICES-3(B) / NMB-3(B) Declaration of Conformity Hereby, Anker Innovations Limited declares that the product type A3911&A3911LT&A3911RT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.soundcore.com Maximum output power: 5dBm Frequency band: 2.4G band(2.402GHz-2.480GHz) Anker Innovations Limited CS 87 EN Trademark The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Anker Innovations Limited is under license. Other trademarks and trade names are those of their respective owners. * Additional Legal Rights for Consumers For consumers, who are covered by consumer protection laws or regulations in their country of purchase or, if different, their country of residence, the benefits conferred by Soundcore's Limited Warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations, including but not limited to these additional rights. For FAQs and more information, please visit https://www.soundcore.com/. Bezpečnostní pokyny • Dávejte pozor, abyste zařízení neupustili na zem. • Zařízení nerozebírejte. • Nabíjecí pouzdro neponořujte do vody ani jen nevystavujte kapkám vody. • Vyhýbejte se extrémním teplotám. • Nevystavujte baterii nadměrnému teplu, např. slunečnímu svitu, ohni apod. • Nepoužívejte zařízení venku během bouřek. • Používejte originální nebo certifikované kabely. • K čištění nepoužívejte korozivní čisticí prostředky ani benzín. • Udržujte mimo dosah dět…

Text truncated - open the document above for the full version.

Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong [May 12, 2020] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Anker Innovations Limited FCC ID: 2AOKB-A3911LT To Whom It May Concern: We, Anker Innovations Limited hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AOKB-A3911LT) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-05-12). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] [Louis Qi] [General Manager]

AnkerInnovationsLimited Room1318-19,HollywoodPlaza,610NathanRoad,Mongkok,Kowloon,Hongkong Long/Short-termConfidentialityRequest FederalCommunicationsCommissionDate:May12,2020 44512 th StreetSW Washington,DC20554 FCCID:2AOKB-A3911LT ToWhomitmayconcerns, Pursuanttosections0.457(d)and0.459ofCFR47andtoavoidprematurereleaseof sensitiveinformationpriortomarketingorreleaseoftheproducttothepublic,wehereby requestslong-termconfidentialtreatmentofinformationaccompanyingthisapplicationas outlinedbelow: SchematicsPartsList BlockDiagramTune-UpInfo OperationalDescription Inadditionweherebyrequestthefollowingexhibitscontainedinthisapplicationtobe temporarily(short-termconfidentilality)withheldfromthepublicdisclosure foraninitialperiodof180daysuntil:notapplicable ExternalPhotosTestSetupPhotos InternalPhotosUsersManual Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesemattersmightbeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. Theapplicantunderstandsthatpursuanttorule0.457(d),disclosureofthisapplicationand allaccompanyingdocumentationwillnotbemadebeforethedateoftheGRANTforthis application. Ifyouhaveanyquestions,pleasefeelfreetocontactme. Yourssincerely, Signatory Contactperson:LouisQi Title:GeneralManager

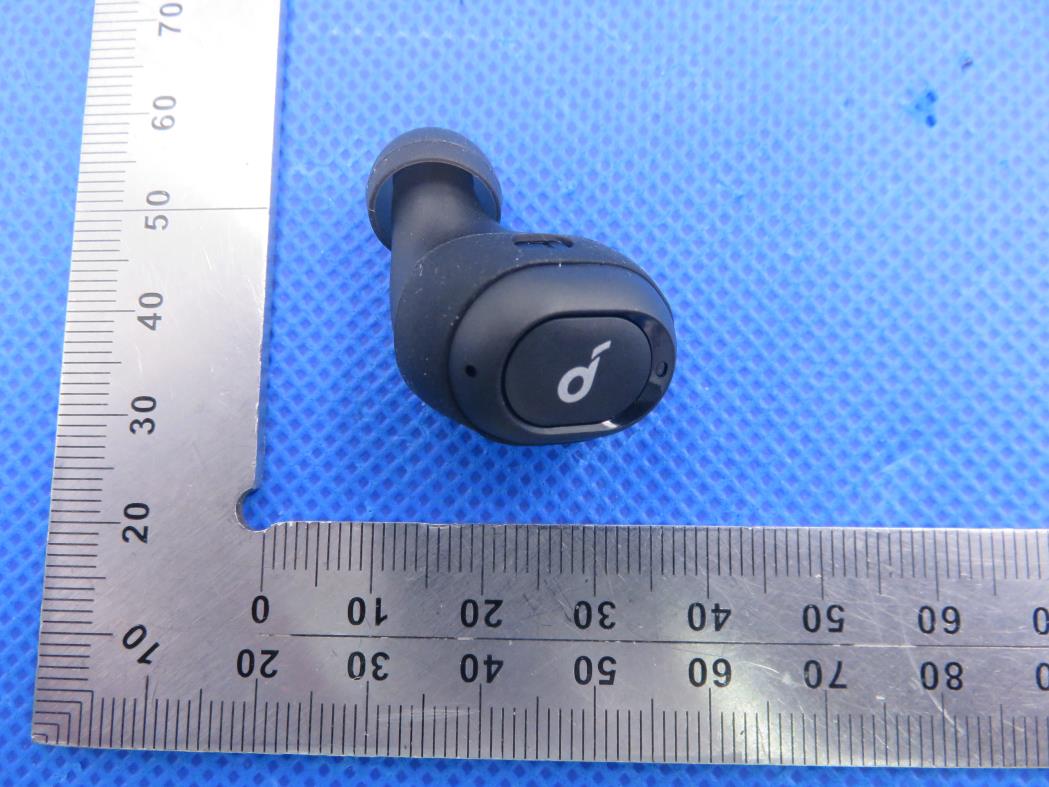

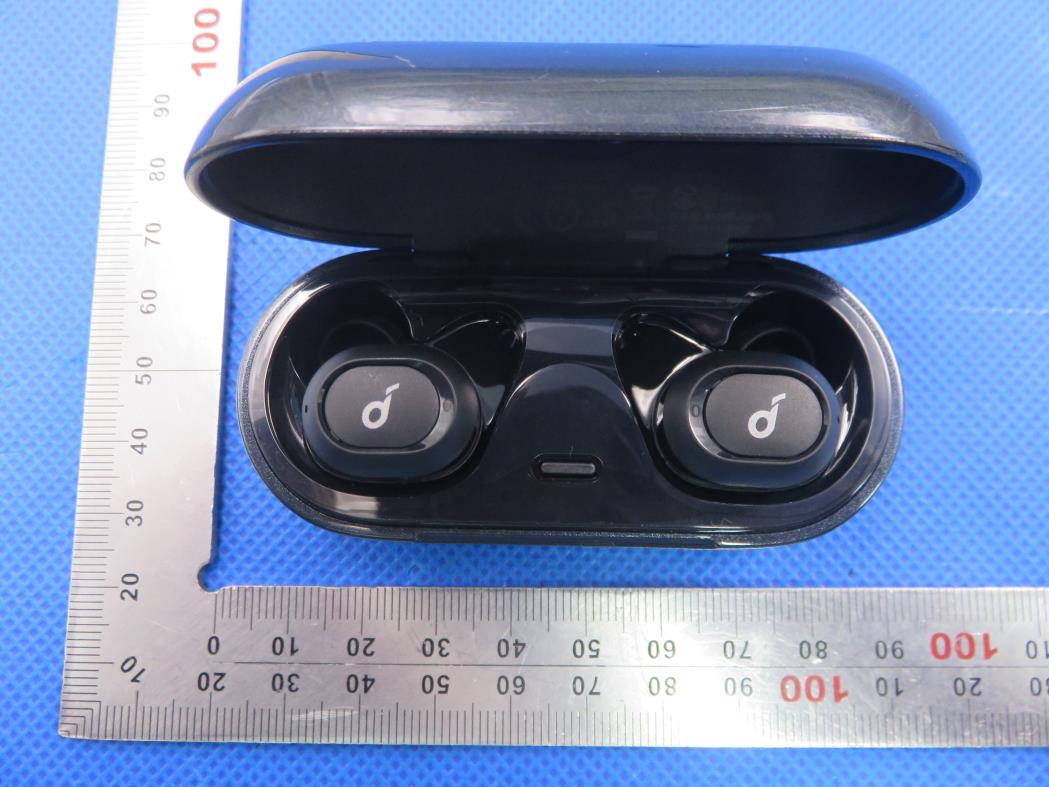

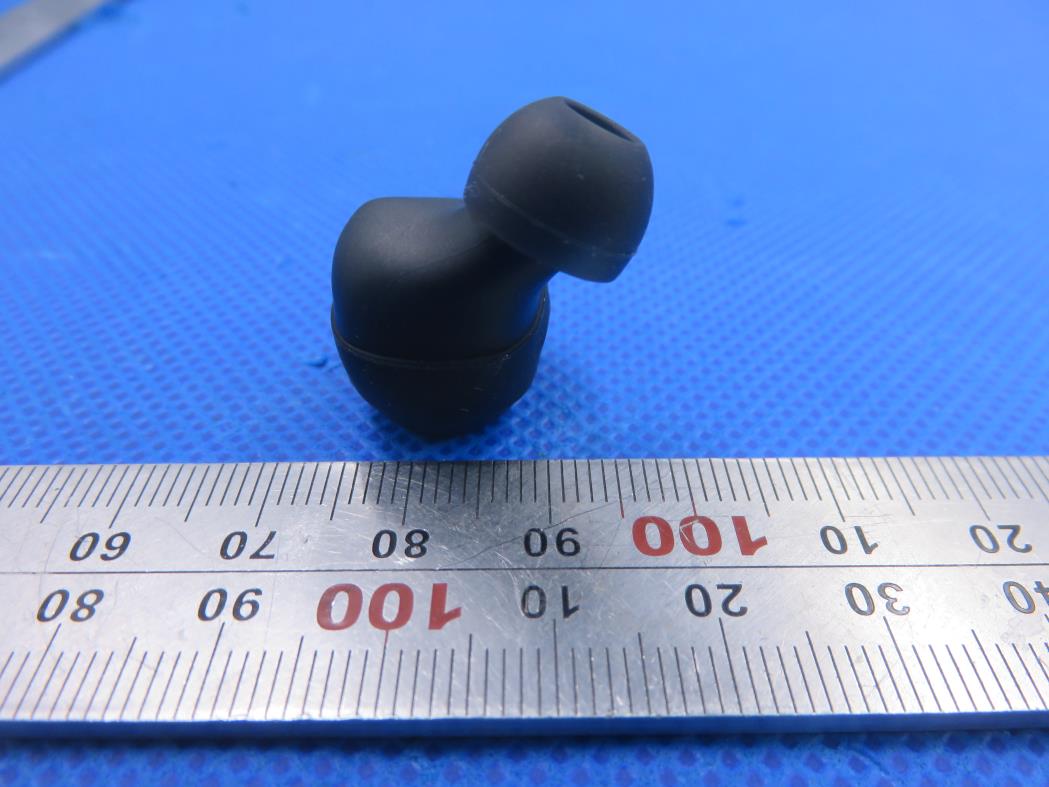

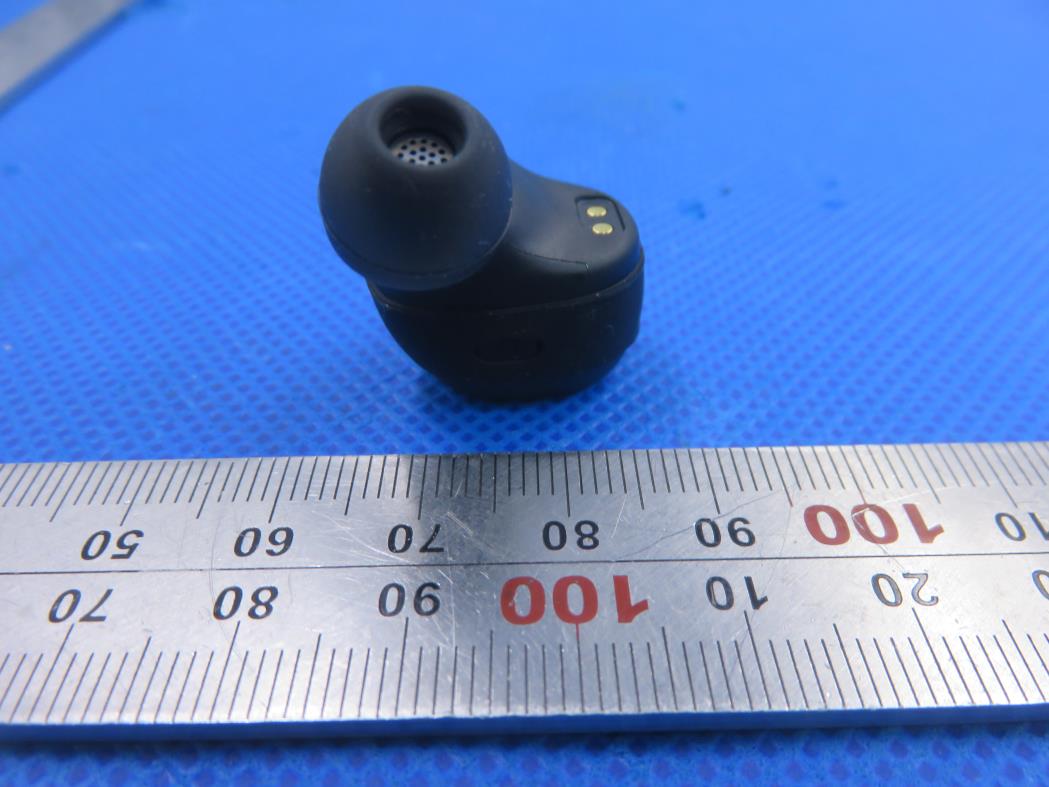

External Photos Test Model: A3911LT TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (port)

Internal Photos Test Model: A3911LT OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 ANTENNA BT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Soundcore Liberty Neo Model Name A3911LT FCC ID 2AOKB-A3911LT 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =3.407dBm=2.19mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.19mW/5mm) .[√2.480(GHz)]= 0.25<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 58 FCC Test Report Report No.: AGC01110200343FE03 FCC ID : 2AOKB-A3911LT APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Soundcore Liberty Neo BRAND NAME : Soundcore MODEL NAME : A3911LT APPLICANT : Anker Innovations Limited DATE OF ISSUE : Apr. 26, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01110200343FE03 Page 2 of 58 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 26, 2020 Valid Initial Release Report No.: AGC01110200343FE03 Page 3 of 58 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .............................................................................................................. 5 2. GENERAL INFORMATION .......................................................................................................................... 6 2.1. PRODUCT DESCRIPTION .................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ........................................................................................................... 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................. 8 2.7. TEST METHODOLOGY ......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ..................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ............................................................................................................... 9 4. DESCRIPTION OF TEST MODES ............................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................. 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .......................................................................................... 11 5.3. SUMMARY OF TEST RESULTS .......................................................................................................... 11 6. TEST FACILITY ......................................................................................................................................... 12 7. PEAK OUTPUT POWER ........................................................................................................................... 13 7.1. MEASUREMENT PROCEDURE.......................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 13 7.3. LIMITS AND MEASUREMENT RESULT .............................................................................................. 14 8. 20DB BANDWIDTH ................................................................................................................................... 18 8.1. MEASUREMENT PROCEDURE.......................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................ 20 9. CONDUCTED SPURIOUS EMISSION ....................................................................................................... 25 9.1. MEASUREMENT PROCEDURE.......................................................................................................... 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 27 9.3. MEASUREMENT EQUIPMENT USED ................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT .............................................................................................. 27 Report No.: AGC01110200343FE03 Page 4 of 58 10. RADIATED EMISSION ............................................................................................................................. 35 10.1. MEASUREMENT PROCEDURE ........................................................................................................ 37 10.2. TEST SETUP ..................................................................................................................................... 39 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................ 40 10.4. TEST RESULT ................................................................................................................................... 40 11. NUMBER OF HOPPING FREQUENCY .................................................................................................... 50 11.1. MEASUREMENT PROCEDURE .........................................................…

Text truncated - open the document above for the full version.

AGC01110200343AP01 Page 1 of 11 Test model Photographs Report No.: AGC01110200343AP01 PRODUCT DESIGNATION : Soundcore Liberty Neo BRAND NAME : Soundcore MODEL NAME : A3911LT APPLICANT : Anker Innovations Limited DATE OF ISSUE : Apr. 26, 2020 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. AGC01110200343AP01 Page 2 of 11 APPENDIX A: PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ AGC01110200343AP01 Page 3 of 11 CONDUCTED TEST SETUP AGC01110200343AP01 Page 4 of 11 APPENDIX B: PHOTOGRAPHS OF EUT TOTAL VIEW OF EUT TOP VIEW OF EUT AGC01110200343AP01 Page 5 of 11 BOTTOM VIEW OF EUT FRONT VIEW OF EUT AGC01110200343AP01 Page 6 of 11 BACK VIEW OF EUT LEFT VIEW OF EUT AGC01110200343AP01 Page 7 of 11 RIGHT VIEW OF EUT VIEW OF EUT (port) AGC01110200343AP01 Page 8 of 11 OPEN VIEW OF EUT VIEW OF BATTERY AGC01110200343AP01 Page 9 of 11 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 AGC01110200343AP01 Page 10 of 11 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 AGC01110200343AP01 Page 11 of 11 INTERNAL VIEW OF EUT-5 ANTENNA ----END OF REPORT---- BT Antenna

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
