2AOKB-A3926RBluetooth Wireless Headphone

123456 SUPPORTWEARING LED LIGHT GUIDE POWERING ON/OFF Choose the EarTips and EarWings that fit your ears best. For FAQs, detailed user manual and more information, please visit www.soundcore.com/support DE: Für FAQs, ein detailliertes Benutzerhandbuch und weitere Informationen besuchen Sie bitte www.soundcore.com/support ES: Para acceder a las preguntas frecuentes, el Manual del usuario detallado y más información, visite www.soundcore.com/support FR: Pour les FAQ, le manuel d'utilisation détaillé et plus d'informations, veuillez consulter la page www.soundcore.com/support IT: Per domande frequenti, manuale utente dettagliato e ulteriori informazioni, visitare il sito www.soundcore.com/support PT: Para perguntas frequentes, manual do usuário detalhado e mais informações, acesse www.soundcore.com/support TR: Sık sorulan sorular, ayrıntılı kullanıcı kılavuzu ve daha fazla bilgi için lütfen www. soundcore.com/support adresini ziyaret edin JP: 詳細な取扱説明書はwww.ankerjapan.comでダウンロードできます。 KO: 자주 묻는 질문을 보려면 www.soundcore.com/support를 방문해서 자세한 사 용 설명서 및 추 가 정보를 살펴보세요. 简中: 有关常见问题解答、详细的用户手册和更多信息，请访问 www.soundcore.com/support 繁中:如需查看 FAQ、詳細的使用者手冊及詳細資訊，請造訪 www.soundcore.com/support زيارة رجى ُ ي المعلومات، من والمزيد ل، ّ فص ُ الم المستخدم ودليل المتكررة، الأسئلة على للحصول :AR www.soundcore.com/support www.soundcore.com/support לאתר היכנסו ,נוסף ולמידע מפורטות שימוש הוראות ,נפוצות לשאלות :HE DE: Wählen Sie die Ohrhörer und Ohrflügel, die am besten zu Ihren Ohren passen. ES: Seleccione los adaptadores para el oído y los soportes que mejor se ajusten a sus oídos. FR: Choisissez les embouts et les ailerons correspondant le mieux à vos oreilles. IT: Scegliere gli auricolari e i copriauricolari che assicurano la tenuta migliore. PT: Escolha as pontas dos fones de ouvido e modelos para ouvido que melhor se adaptem à sua orelha. TR: Kulaklarınıza en uygun kulaklık uçlarını ve kanatlarını seçin. JP: 耳に最もフィットするイヤーチップとイヤーウィングを選択してください。 KO: 귀에 가장 잘 맞는 이어 팁과 이어 윙을 선택합니다 . 简中: 选择耳帽和耳翼，调整到佩戴最舒适处。 繁中: 選擇最適合您耳朵的耳塞套。 .لأذنيك ً ملاءمة الأكثر وجناحيهما الأذن ي َ سماعت ّ رأسي اختر :AR .ביותר הטובה במידה לאוזניך המתאימים האוזניים כיסויי ואת לאוזניים הנכנסים הקצוות את בחר :HE Steady white Steady red Flashing white Flashing red DE: Leuchtet weiß Leuchtet rot Blinkt weiß Blinkt rot ES: Blanco fijo Rojo fijo Parpadeo en blanco Rojo intermitente FR: Blanc fixe Rouge fixe Blanc clignotant Rouge clignotant IT: Bianco fisso Rosso fisso Bianco lampeggiante Rosso lampeggiante PT: Branco fixo Vermelho fixo Branco intermitente Luz vermelha piscante TR: Sabit yanan beyaz Sabit yanan kırmızı Yanıp sönen beyaz Yanıp sönen kırmızı JP: 白色の点灯 赤色の点灯 白色で点滅 赤色で点滅 KO: 흰색으로 유지됨 빨간색 유지 흰색으로 깜박임 빨간색으로 점멸 简中: 白灯常亮 红灯常亮 白灯闪烁 红灯闪烁 繁中: 穩定亮起白燈 穩定亮起紅燈 閃爍白燈 閃爍紅燈 ثابت أبيض :AR ثابت أحمر وامض أبيض وامض أحمر מלא לבן :HE מלא אדום מהבהב לבן מהבהב אדום Fully dry off the earbuds and the USB-C charging port before charging. Use a certified USB-C charging cable to prevent any damage. For wireless charging, position the charging case at the center of your wireless charger. DE: Trocknen Sie die Ohrhörer und den USB-Ladeanschluss vor dem Aufladen vollständig ab. Verwenden Sie ein zertifiziertes USB-C-Ladekabel, um Schäden zu vermeiden. Zum drahtlosen Aufladen positionieren Sie die Ladehülle in der Mitte Ihres drahtlosen Ladegeräts. ES: Seque completamente los auriculares y el puerto de carga USB-C antes de la carga. Utilice un cable de carga USB-C certificado para evitar daños. Para la carga inalámbrica, coloque el estuche de carga en el centro del cargador inalámbrico. FR: Séchez entièrement les écouteurs et le port de charge USB-C avant le chargement. Utilisez un câble de charge USB-C certifié pour éviter tout dommage. Pour le chargement sans fil, positionnez le boîtier de chargement au centre de votre chargeur sans fil. IT: Asciugare completamente gli auricolari e la porta USB-C prima della ricarica. Utilizzare un cavo di ricarica USB-C certificato per evitare eventuali danni. Per la ricarica wireless, posizionare la custodia di ricarica al centro del caricabatterie wireless. PT: Seque totalmente os fones de ouvido e a porta de carga USB-C antes de carregar. Use um cabo de carga USB-C certificado para evitar danos. Para carga sem fio, posicione o estojo carregador no centro do seu carregador sem fio. TR: Şarj etmeden önce kulaklıkları ve USB C şarj bağlantı noktasını tamamen kurulayın. Hasarların önüne geçmek için sertifikalı bir USB C şarj kablosu kullanın. Kablosuz şarj için şarj kutusunu kablosuz şarj cihazınızın ortasına yerleştirin. JP: イヤホンと USB ポートに水や汗が付着している場合は、完全に乾かしてから充電してください。 損傷を防ぐため、付属の USB-C ケーブルを使用してください。 ワイヤレス充電を行うには、ワイヤレス充電器の中央に充電ケースを置きます ( ワイヤレス充電器 は別売り )。 KO: 충전하기 전에 이어버드와 USB-C 충전 포트를 완전히 말리세요 . 기기 손상을 방지하기 위해 인증된 USB-C 충전 케이블을 사용하세요 . 무선 충전 시 , 무선 충전기 중앙에 충전 케이스를 위치시킵니다 . 简中：充电前请确保耳机和 USB-C 充电端口完全干燥。 使用经认证的 USB-C 充电线，避免损伤设备。 进行无线充电时，请将充电盒置于无线充电器的中心。 繁中：充電之前，請先將耳機和 USB-C 充電連接埠完全擦乾。 使用認證的 USB-C 充電線以防止任何損害。 將充電盒置於無線充電器的中央，以無線充電。 .الشحن قبل ا ً تمام C النوع من USB الشحن ومنفذ الأذن سماعات بتجفيف قم :AR .تلف أي حدوث لمنع معتمد C النوع من USB شحن كابل استخدم .بك الخاص اللاسلكي الشاحن منتصف في الشحن حافظة ضع اللاسلكي، للشحن .הטעינה לפני USB-C מסוג הטעינה יציאת ואת האוזניות את לגמרי יבש :HE .נזק למנוע כדי USB-C מסוג מאושר טעינה בכבל השתמש .שלך האלחוטי המטען במרכז הטעינה מארז מרכז את מקם ,אלחוטית טעינה בשביל CHARGING Take the earbuds out of the charging case to power on. Place the earbuds into the charging case to power off. DE: Nehmen Sie die Ohrhörer zum Einschalten aus der Ladehülle. Legen Sie die Ohrhörer zum Ausschalten in die Ladehülle. ES: Para encender los auriculares, extráigalos del estuche de carga. Para apagar los auriculares, colóquelos en el estuche de carga. FR: Sortez les écouteurs de l’étui de chargement pour les allumer. Placez les écouteurs dans l'étui de chargement pour les éteindre. IT: Estrarre gli auricolari dalla custodia di ricarica per accenderli. Collocare gli auricolari nella custodia di ricarica per spegnerli. PT: Tire os …

Text truncated - open the document above for the full version.

AnkerInnovationsLimited Room1318-19,HollywoodPlaza,610NathanRoad,Mongkok,Kowloon,Hongkong Long/Short-termConfidentialityRequest FederalCommunicationsCommissionDate:Apr.27,2021 44512 th StreetSW Washington,DC20554 FCCID:2AOKB-A3926R ToWhomitmayconcerns, Pursuanttosections0.457(d)and0.459ofCFR47andtoavoidprematurereleaseof sensitiveinformationpriortomarketingorreleaseoftheproducttothepublic,wehereby requestslong-termconfidentialtreatmentofinformationaccompanyingthisapplicationas outlinedbelow: SchematicsPartsList BlockDiagramTune-UpInfo OperationalDescription Inadditionweherebyrequestthefollowingexhibitscontainedinthisapplicationtobe temporarily(short-termconfidentilality)withheldfromthepublicdisclosure foraninitialperiodof180daysuntil:notapplicable ExternalPhotosTestSetupPhotos InternalPhotosUsersManual Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesemattersmightbeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. Theapplicantunderstandsthatpursuanttorule0.457(d),disclosureofthisapplicationand allaccompanyingdocumentationwillnotbemadebeforethedateoftheGRANTforthis application. Ifyouhaveanyquestions,pleasefeelfreetocontactme. Yourssincerely, Signatory Contactperson:LouisQi Title:GeneralManager

Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Agent Authorization Company: Anker Innovations Limited Address: Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Product Name: Wireless Headphone Model Number(s): A3926R Product Description: Bluetooth Wireless Headphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 27, 2021 Name: Louis Qi Title: General Manager Company: Anker Innovations Limited

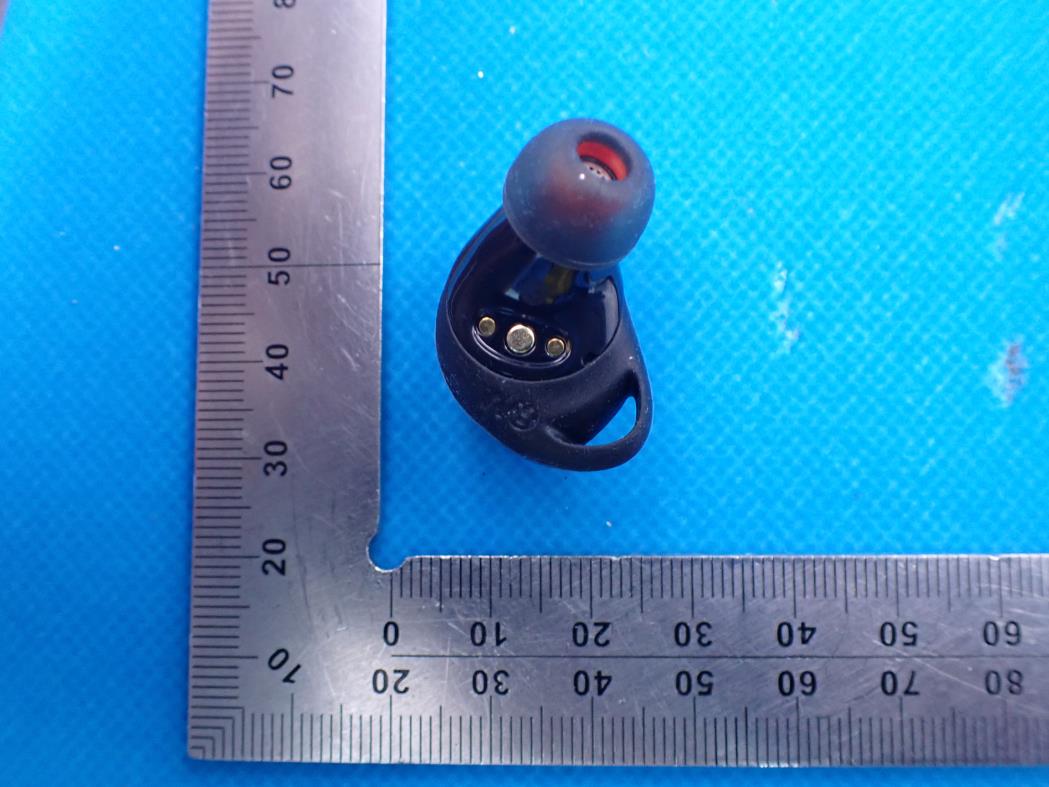

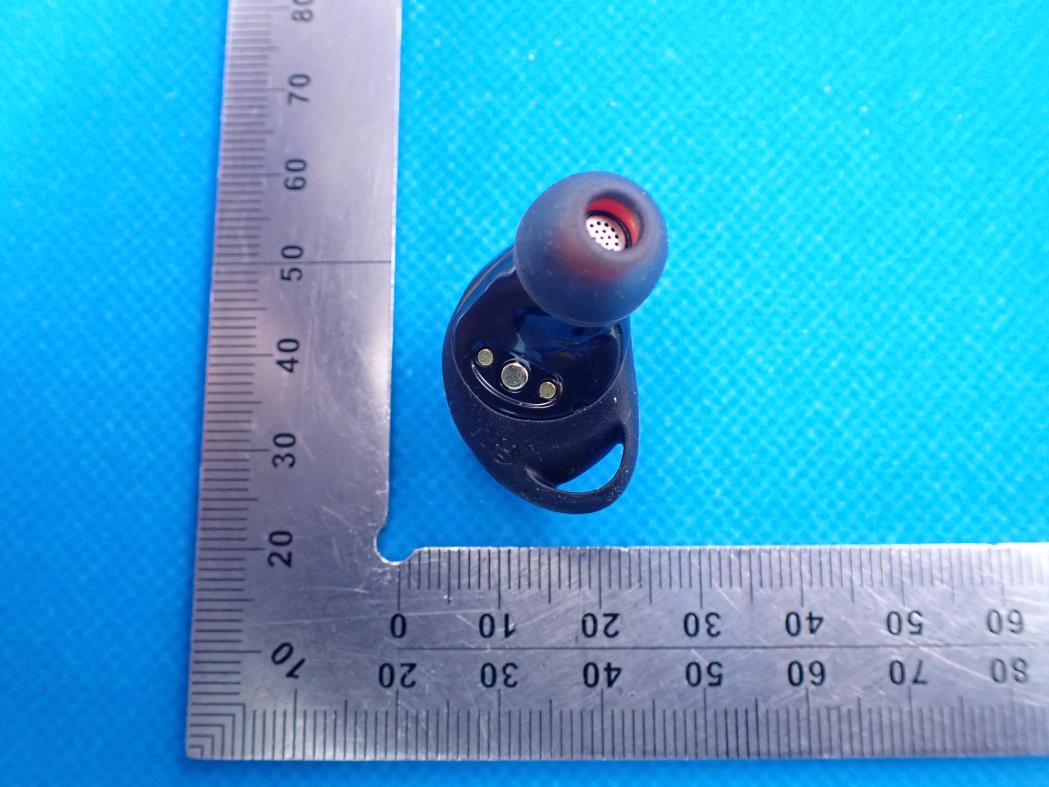

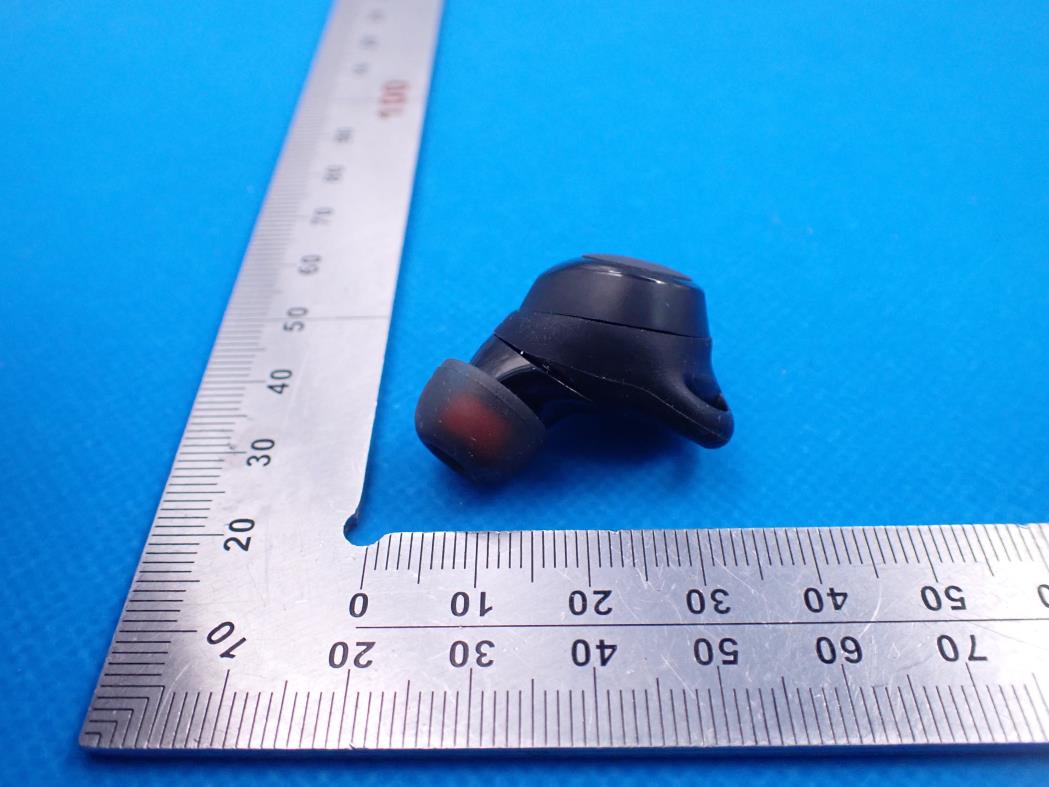

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna INTERNAL VIEW OF EUT-5

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Wireless Headphone Model Name A3926R FCC ID 2AOKB-A3926R 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =3.890dBm=2.45mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.45mW /5mm) .[√2.480GHz)]=0.77<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE: P t =4.266dBm=2.67mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.67mW /5mm) .[√2.480GHz)]=0.84<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 41 FCC Test Report Report No.: AGC01110210434FE02 FCC ID : 2AOKB-A3926R APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Headphone BRAND NAME : Soundcore MODEL NAME : A3926R APPLICANT : Anker Innovations Limited DATE OF ISSUE : Apr. 26, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01110210434FE02 Page 2 of 41 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 26, 2021 Valid Initial Release Report No.: AGC01110210434FE02 Page 3 of 41 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. 6 DB BANDWIDTH ......................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 17 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 17 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 25 Report No.: AGC01110210434FE02 Page 4 of 41 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 25 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 25 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 25 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 25 11. RADIATED EMISSION ................................................................................................................................. 27 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 27 11.2. TEST SETUP .......................................................................................................................................... 28 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
