2AOKB-A3993LWireless Headphone

Model: A3983,A3983L,A3983R 51005003165 V1 EN 01 Important Safety Information • Avoid dropping. • Do not disassemble. • Do not submerge in water. • Avoid extreme temperatures. • The product shall not be exposed to excessive heat such as sunshine, fire or the like. • Use original or certified cables. • Clean with a dry, soft lint-free cloth. Do not use any corrosive cleaner or oil. • Do not use the product outdoors during thunderstorms. • Keep out of reach of children. Small parts included may be a choking hazard. • Temporarily stop using this product if you feel irritation or discomfort. Hearing Safety • To avoid hearing damage, do not listen for extended periods at high volume. • Do not turn the volume so high that you’re unable to hear your surroundings. • Do not use earphones while driving. • You should use caution or temporarily discontinue use in potentially hazardous situations. Notice This product complies with the radio interference requirements of the European Community. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. 02 ENEN 03 Declaration of Conformity Hereby, Anker Innovations Limited declares that the product type A3983,A3983L,A3983R is in compliance with Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address: https://uk.soundcore.com Maximum output power: 8.5dBm Frequency band: 2.4G band (2.402GHz-2.480GHz) The following importer is the responsible party (contract for EU and UK matters) Anker Technology (UK) Ltd Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom Anker Innovations Deutschland GmbH Georg-Muche-Strasse 3, 80807 Munich, Germany This product complies with the radio interference requirements of the United Kingdom Declaration of Conformity Hereby, Anker Innovations Limited declares that the product type A3983,A3983L,A3983R is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: https://www.soundcore.com This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Highor low extreme temperatures that a battery can be subjected to during use, storage or transportation: during use max. 40°C storage:-20~45°C transportation: 5~35°C 04 ENEN 05 (4) Consult the dealer or an experienced radio / TV technician for help. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Left Earbud, A3983L FCC ID: 2AOKB-A3993L IC: 23451-A3993L 210-171380 Right Earbud, A3983R FCC ID: 2AOKB-A3993R IC: 23451-A3993R 210-171389 The following importer is the responsible party Company Name: Fantasia Trading LLC Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764 Telephone: +1 (800) 988 7973 IC NOTICE TO CANADIAN USERS This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement. This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209. This equipment should be installed and operated with minimum distance 0 mm between the radiator and your body. This device and its antenna(s) must not be co-located or operating in conjunction with a…

Text truncated - open the document above for the full version.

12345678 SUPPORTWEARINGCHARGING POWERING ON/OFF FAQ For FAQs, detailed user manual and more information, please visit www.soundcore.com/support PAIRING 2 1 M S L 2 1 ON 1 OFF 2 2 Soundcore Life Note 3i Soundcore Life Note 3i PAIRING CONNECTED 1 APPFIRMWARE UPGRADE AMBIENT SOUND CONTROLS TWS L/R L/R L/R L/R R L R L Normal/ANC ×2 ×1 ×2 ×1 ×1×2 2s 2s Choose the EarTips that fit your ears best. For FAQs, detailed user manual and more information, please visit www.soundcore.com/support Fully dry off the USB charging port before charging. Use a certified USB-C charging cable to prevent any damage. DE: Trocknen Sie die Ohrhörer und den USB-Ladeanschluss vor dem Aufladen vollständig ab. Bitte ein zertifiziertes USB-C-Ladekabel verwenden, um Schäden zu vermeiden. ES: Seque completamente los auriculares y el puerto de carga USB-C antes de la carga. Utilice un cable de carga USB-C certificado para evitar daños. FR: Séchez entièrement les écouteurs et le port de charge USB-C avant le chargement. Utilisez un câble de charge USB-C certifié pour éviter tout dommage. IT: Asciugare completamente gli auricolari e la porta USB-C prima della ricarica. Utilizzare un cavo di ricarica USB-C certificato per evitare eventuali danni. Per la ricarica wireless, posizionare la custodia di ricarica al centro del caricabatterie wireless. JP: イヤホンと USB ポートに水や汗が付着している場合は、完全に乾かしてから充電してく ださい。 損傷を防ぐため、付属の USB-C ケーブルを使用してください。 KO: 충전하기 전에 이어버드와 USB-C 충전 포트를 완전히 말리세요 . 기기 손상을 방지하기 위해 인증된 USB-C 충전 케이블을 사용하세요 . 简中：充电前请确保耳机和 USB-C 充电端口完全干燥。 使用经认证的 USB-C 充电线，避免损伤设备。 繁中：充電之前，請先將耳機和 USB-C 充電連接埠完全擦乾。 使用認證的 USB-C 充電線以防止任何損害。 PT: Seque totalmente os fones de ouvido e a porta de carga USB-C antes de carregar. Use um cabo de carga USB-C certificado para evitar danos. TR: Şarj etmeden önce kulaklıkları ve USB C şarj bağlantı noktasını tamamen kurulayın. Hasarların önüne geçmek için sertifikalı bir USB C şarj kablosu kullanın. .الشحن قبل ا ً تمام C النوع من USB الشحن ومنفذ الأذن سماعات بتجفيف قم :AR .تلف أي حدوث لمنع معتمد C النوع من USB شحن كابل استخدم .הטעינה לפני USB-C מסוג הטעינה יציאת ואת האוזניות את לגמרי יבש :HE .נזק למנוע כדי USB-C מסוג מאושר טעינה בכבל השתמש Open the charging case, the earbuds will automatically power on. To power off, place the earbuds in the charging case and close it. DE: Die bequemsten Ohrhörer mit der besten Passform für die Ohren wählen. ES: Seleccione los adaptadores para el oído que mejor se ajusten a sus oídos. FR: Choisissez les embouts qui s'adaptent le mieux à vos oreilles. IT: Scegliere i copriauricolari che assicurano la tenuta migliore. JP: 耳のサイズに合うイヤーチップを選択します。 KO: 귀에 가장 잘 맞는 이어 팁을 선택합니다 . 简中：选择耳帽，调整到佩戴最舒适处。 繁中：選擇最適合您耳朵的耳塞套。 PT: Escolha as pontas dos fones de ouvido que melhor se adaptem à sua orelha. TR: Kulaklarınıza en uygun kulaklık uçlarını seçin. لأذنيك. ً ي الأذن وغطاءيهما الأكثر ملاءمة َ : اختر سماعتAR : בחר את ראשי האוזניות המתאימים לאוזניים שלך בצורה הטובה ביותר.HE Open the charging case, the earbuds will automatically enter Bluetooth pairing mode. Select “Soundcore Life Note 3i” on your device’s Bluetooth list to connect. DE: Die Ladehülle öffnen, die Ohrhörer beginnen automatisch mit dem Bluetooth- Kopplungsmodus. „Soundcore Life Note 3i“ in der Bluetooth-Liste des Geräts wählen, um eine Verbindung herzustellen. ES: Abra el estuche de carga; los auriculares activarán el modo de emparejamiento Bluetooth automáticamente. Para establecer conexión, seleccione “Soundcore Life Note 3i” en la lista de Bluetooth del dispositivo. FR: Ouvrez le boîtier de chargement. Les écouteurs activent automatiquement le mode Couplage Bluetooth. Sélectionnez « Soundcore Life Note 3i » dans la liste Bluetooth de votre appareil pour vous connecter. IT: Aprire la custodia di ricarica e gli auricolari entreranno automaticamente nella modalità di associazione Bluetooth. Selezionare “Soundcore Life Note 3i” nell’elenco dei dispositivi Bluetooth per procedere con il collegamento. JP: 充電ケースを開くと、両方のイヤホンが自動的にBluetoothペアリングモードになります。 ご使用の機器の Bluetooth 接続画面で「 Soundcore Life Note 3i 」を選択して接続してく ださい。 KO: 충전 케이스를 열면 이어버드의 Bluetooth 페이링 모드가 시작됩니다 . 기기 Bluetooth 목록의 “ Soundcore Life Note 3i ”를 선택해서 연결합니다 . 简中：打开充电盒，耳机将自动进入蓝牙配对模式。从您设备的蓝牙列表中选择“ Soundcore Life Note 3i ”并连接。 繁中：打開充電盒，耳機將會自動進入藍牙配對模式。在裝置的藍牙清單中選擇要連線的 「 Soundcore Life Note 3i 」。 PT: Abra o estojo carregador e os fones de ouvido entrarão automaticamente no modo de emparelhamento Bluetooth. Selecione "Soundcore Life Note 3i" na lista de Bluetooth do seu dispositivo para se conectar. TR: Şarj kutusunu açın, kulaklıklar otomatik olarak Bluetooth eşleştirme moduna girecektir. Bağlamak için cihazınızın Bluetooth listesinde "Soundcore Life Note 3i" seçimini yapın. ا وستدخل في وضع الإقران بالبلوتوث. ً افتح حافظة الشحن وستعمل سماعات الأذن تلقائي :AR " في قائمة البلوتوث بجهازك للاتصال.Soundcore Life Note 3iد " ِّ حد .Bluetoothפתח את נרתיק הטעינה, והאוזניות יוכנסו אוטומטית למצב שיוך :HE כדי לחבר.Soundcore Life Note 3i, בחר את Bluetooth ברשימת התקני ה- Download the Soundcore App to customize the user interface (e.g. adjust volume, control playback, activate Siri), adjust EQ, switch ANC modes, update firmware, and explore more. DE: Laden Sie die Soundcore App herunter, um die Benutzeroberfläche anzupassen (die Lautstärke zu regulieren, die Wiedergabe zu steuern, den Sprachassistenten zu aktivieren), den Equalizer einzustellen, die ANC-Modi umzuschalten, die Firmware zu aktualisieren und weitere Funktionen zu entdecken. ES: Descargue la aplicación Soundcore para personalizar la interfaz de usuario (ajustar el volumen, controlar la reproducción, activar el asistente de voz), ajustar EQ, alternar entre los modos de ANC, actualizar el firmware y e×plorar otras funciones. FR: Téléchargez l'application Soundcore pour personnaliser l'interface utilisateur (régler le volume, contrôler la lecture, activer l'assistant vocal), régler l'égaliseur audio, activer/ désactiver les modes ANC, mettre à jour le microprogramme et e×plorer bien d'autres options. IT: Scaricare l’app Soundcore per per…

Text truncated - open the document above for the full version.

Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Agent Authorization Company: Anker Innovations Limited Address: Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Product Name: Wireless Headphone Model Number(s): A3983L, A3993L Product Description: Wireless Headphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 12, 2021 Name: Louis Qi Title: General Manager Company: Anker Innovations Limited

Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Nov. 12, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AOKB-A3993L Models: A3983L, A3993L To Whom It May Concern: We, The Anker Innovations Limited, hereby declare that the model : A3993L is identical with the model : A3983L, except the model name. Except for the different above, no other modification is performed. Sincerely, Anker Innovations Limited Signature: [Louis Qi, General Manager]

AnkerInnovationsLimited Room1318-19,HollywoodPlaza,610NathanRoad,Mongkok,Kowloon,Hongkong Long/Short-termConfidentialityRequest FederalCommunicationsCommissionDate:Nov.12,2021 44512 th StreetSW Washington,DC20554 FCCID:2AOKB-A3993L ToWhomitmayconcerns, Pursuanttosections0.457(d)and0.459ofCFR47andtoavoidprematurereleaseof sensitiveinformationpriortomarketingorreleaseoftheproducttothepublic,wehereby requestslong-termconfidentialtreatmentofinformationaccompanyingthisapplicationas outlinedbelow: SchematicsPartsList BlockDiagramTune-UpInfo OperationalDescription Inadditionweherebyrequestthefollowingexhibitscontainedinthisapplicationtobe temporarily(short-termconfidentilality)withheldfromthepublicdisclosure foraninitialperiodof180daysuntil:notapplicable ExternalPhotosTestSetupPhotos InternalPhotosUsersManual Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesemattersmightbeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. Theapplicantunderstandsthatpursuanttorule0.457(d),disclosureofthisapplicationand allaccompanyingdocumentationwillnotbemadebeforethedateoftheGRANTforthis application. Ifyouhaveanyquestions,pleasefeelfreetocontactme. Yourssincerely, Signatory Contactperson:LouisQi Title:GeneralManager

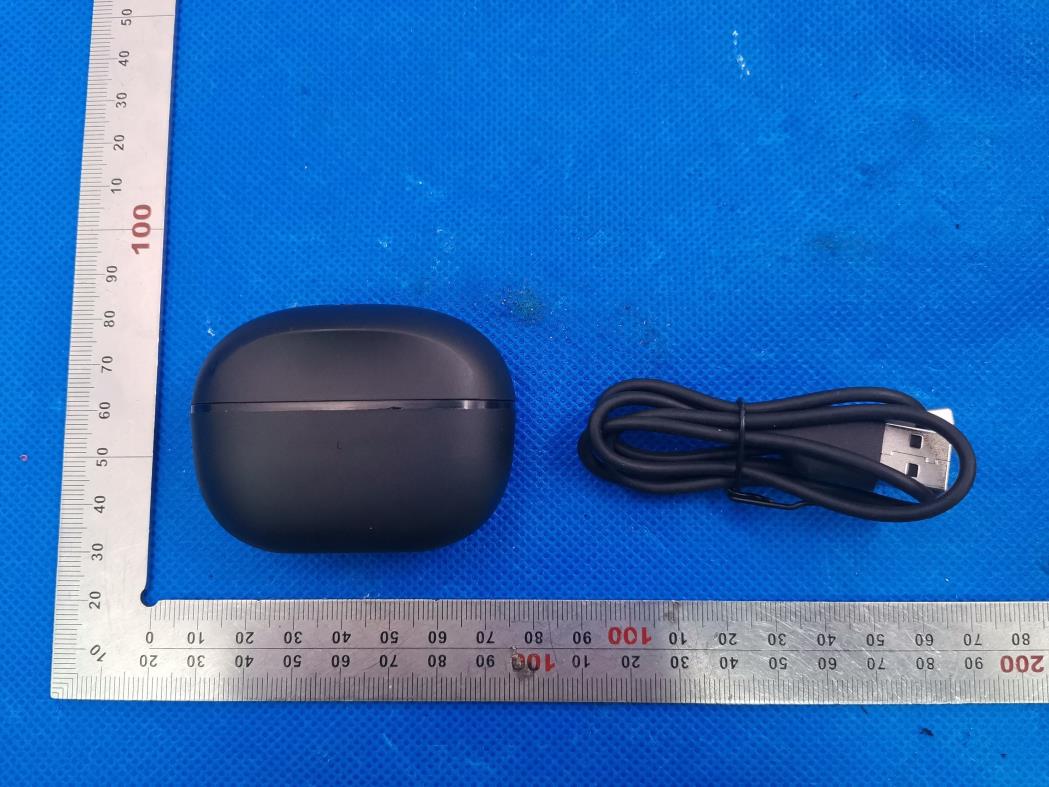

Report No.: AGC01110211014AP02 Page 1 of 4 EXTERNAL PHOTOS ALL VIEW OF EUT TOP VIEW OF EUT Report No.: AGC01110211014AP02 Page 2 of 4 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC01110211014AP02 Page 3 of 4 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC01110211014AP02 Page 4 of 4 RIGHT VIEW OF EUT ****************************************End of Report****************************************

Report No.: AGC01110211014FE03 Page 37 of 75 Test_Graph_EDR_ANT1_2441_3Mbps_Lower Band Emissions Test_Graph_EDR_ANT1_2441_3Mbps_Higher Band Emissions Report No.: AGC01110211014FE03 Page 38 of 75 Test_Graph_EDR_ANT1_2480_3Mbps_Reference Level Test_Graph_EDR_ANT1_2480_3Mbps_Lower Band Emissions Report No.: AGC01110211014FE03 Page 39 of 75 Test_Graph_EDR_ANT1_2480_3Mbps_Higher Band Emissions Report No.: AGC01110211014FE03 Page 40 of 75 Test Graphs of Band Edge Emissions in Non-Restricted Frequency Bands Test_Graph_BR_ANT1_2402_1Mbps_Lower Band Edge Emissions Test_Graph_BR_ANT1_2480_1Mbps_Higher Band Edge Emissions Report No.: AGC01110211014FE03 Page 41 of 75 Test_Graph_BR_HOP_ANT1_NA_1Mbps_Lower Band Edge Emissions Test_Graph_BR_HOP_ANT1_NA_1Mbps_Higher Band Edge Emissions Report No.: AGC01110211014FE03 Page 42 of 75 Test_Graph_EDR_ANT1_2402_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_2Mbps_Higher Band Edge Emissions Report No.: AGC01110211014FE03 Page 43 of 75 Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Higher Band Edge Emissions Report No.: AGC01110211014FE03 Page 44 of 75 Test_Graph_EDR_ANT1_2402_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_3Mbps_Higher Band Edge Emissions Report No.: AGC01110211014FE03 Page 45 of 75 Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Higher Band Edge Emissions Report No.: AGC01110211014FE03 Page 46 of 75 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emission, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC01110211014FE03 Page 47 of 75 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC01110211014FE03 Page 48 of 75 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC01110211014FE03 Page 49 of 75 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT Radiated emission below 30MHz The amplitude of spurious emissions from 9kHz to 30MHz whic…

Text truncated - open the document above for the full version.

Report No.: AGC01110211014FE03 Page 69 of 75 Test Graphs of Dwell Time Test_Graph_BR_HOP_ANT1_NA_1Mbps_2402_Number of Busrt Test_Graph_BR_HOP_ANT1_NA_1Mbps_2402_Time per Burst Report No.: AGC01110211014FE03 Page 70 of 75 Test_Graph_BR_HOP_ANT1_NA_1Mbps_2441_Number of Busrt Test_Graph_BR_HOP_ANT1_NA_1Mbps_2441_Time per Burst Report No.: AGC01110211014FE03 Page 71 of 75 Test_Graph_BR_HOP_ANT1_NA_1Mbps_2480_Number of Busrt Test_Graph_BR_HOP_ANT1_NA_1Mbps_2480_Time per Burst Report No.: AGC01110211014FE03 Page 72 of 75 13. FREQUENCY SEPARATION 13.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Wide enough to capture the peaks of two adjacent channels. 2. RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. 3. Video (or average) bandwidth (VBW) ≥ RBW. 4. Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. 13.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 6.2 13.3. MEASUREMENT EQUIPMENT USED The same as described in section 6.3 13.4. LIMITS AND MEASUREMENT RESULT Test Data of Frequency Separation Test Mode Channel Separation (MHz) Limits Pass or Fail GFSK Hopping 1.001 >= 2/3 -20dB BW Pass Test Graphs of Number of Hopping Frequency Test_Graph_BR_HOP_ANT1_NA_1Mbps_Hopping Separation Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC01110211014FE03 Page 73 of 75 14. LINE CONDUCTED EMISSION TEST 14.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P. (dBμV) Average (dBμV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5MHz~30MHz 60 50 Note: 1. The lower limit shall apply at the transition frequency. 2. The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz. 14.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST EUT & Support Units Report No.: AGC01110211014FE03 Page 74 of 75 14.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per ANSI C63.10 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2. Support equipment, if needed, was placed as per ANSI C63.10. 3. All I/O cables were positioned to simulate typical actual usage as per ANSI C63.10. 4. All support equipment received AC120V/60Hz power from a LISN, if any. 5. The EUT received DC 5V power from adapter which received AC120V/60Hz power from a LISN. 6. The test program was started. Emissions were measured on each current carrying line of the EUT using a spectrum Analyzer / Receiver connected to the LISN powering the EUT. The LISN has two monitoring points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were taken: one with Line 1 connected to Analyzer / Receiver and Line 2 connected to a 50 ohm load; the second scan had Line 1 connected to a 50 ohm load and Line 2 connected to the Analyzer / Receiver. 7. Analyzer / Receiver scanned from 150 kHz to 30MHz for emissions in each of the test modes. 8. During the above scans, the emissions were maximized by cable manipulation. 9. The test mode(s) were scanned during the preliminary test. Then, the EUT configuration and cable configuration of the above highest emission level were recorded for reference of final testing. 14.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. EUT and support equipment was set up on the test bench as per step 2 of the preliminary test. 2. A scan was taken on both power lines, Line 1 and Line 2, recording at least the six highest emissions. Emission frequency and amplitude were recorded into a computer in which correction factors were used to calculate the emission level and compare reading to the applicable limit. If EUT emission level was less – 2dB to the A.V. limit in Peak mode, then the emission signal was re-checked using Q.P and Average detector. 3. The test data of the worst case condition(s) was reported on the Summary Data page. 14.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST N/A Note: The BT function cannot transmit when charging. Report No.: AGC01110211014FE03 Page 75 of 75 APPENDIX A: PHOTOGRAPHS OF TEST SETUP Refer to the Report No.: AGC01110211014AP01 APPENDIX B: PHOTOGRAPHS OF EUT Refer to the Report No.: AGC01110211014AP02 ----END OF REPORT---- ConditionsofIssuanceofTestReports 1.AllsamplesandgoodsareacceptedbytheAttestationofGlobalCompliance(Shenzhen)Co.,Ltd(the “Company”)solelyfortestingandreportinginaccordancewiththefollowingtermsandconditions.Thecompany providesitsservicesonthebasisthatsuchtermsandconditionsconstituteexpressagreementbetweenthe companyandanyperson,firmorcompanyrequestingitsservices(the“Clients”). 2.AnyreportissuedbyCompanyasaresultofthisapplicationfortestingservices(the“Report”)shallbeissued inconfidencetotheClientsandtheReportwillbestrictlytreatedassuchbytheCompany.Itmaynotbe reproducedeitherinitsentiretyorinpartanditmaynotbeusedforadvertisingorotherunauthorizedpurposes withoutthewrittenconsentoftheCompany.TheClientstowhomtheReportisissuedmay,however,showor sendit,oracertifiedcopythereofpreparedbytheCompanytoitscustomer,supplierorotherpersonsdirectly concerned.TheCompanywillnot,withouttheconsentoftheClients,enterintoanydiscussionorcorrespondence withanythirdpartyconcerningthecontentsoftheReport,unlessrequiredbytherelevantgovernmental authorities,lawsorcourtorders. 3.TheCompanyshallnotbecalledorbeliabletobecalledtogiveevidenceortestimonyontheReportinacourt oflawwith…

Text truncated - open the document above for the full version.

Report No.: AGC01110211014AP01 Page 1 of 2 TEST SETUP PHOTOS RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC01110211014AP01 Page 2 of 2 RF CONDUCTED TEST SETUP ****************************************End of Report*************************************
