2AOKB-A8377Anker 675 USB-C Docking Station (12-in-1,Monitor Stand, Wireless)

Product Number:A8377 51005003686 V01 SERIES 6 Anker 675 USB-C Docking Station (12-in-1, Monitor Stand, Wireless) USER MANUAL EN 01 01English 06Deutsch 09Español 12Français 15Italiano 19Português 21 P усскийусский 24Türkçe 27 日本語 29 한국어 31 简体中文 33 繁体中文 35 ةيِبَرَعل 37 ית ִ בר ִ ע At a Glance 1 2 3 4 5 9 111210 6 SD Micro SD 8 7 EN 03 02 EN ItemDescription 1. USB-C Upstream Port • Connect to your laptop using the included cable. • Provide charging for your laptop at up to 100W. 2. DC-IN Port Plug one end of the included power adapter into the DC-IN port and the other into a power outlet. 3. 2× USB-A 3.2 Gen 2 Port • 10 Gbps data transfer and 4.5W charging. • Connect to USB devices, including USB keyboards, mice, or printers. 4. Ethernet PortConnect to a router or modem at 1 Gbps. 5. HDMI Port Supports up to 4K@60Hz output to a single display. 6. Wireless Charging Pad • Qi-Certified • Provides 10W charging for Samsung Galaxy, 7.5W for iPhone, and 5W for other phones or wireless earbuds (including AirPods). 7. Wireless Charging Indicator • Solid blue: Charging a phone wirelessly. • Flashing blue: Mental or abnormal objects detected. 8. 2× USB-C 3.2 Gen 2 Port • 10 Gbps data transfer. • Support a total of 45W with Power Delivery 3.0 to charge your phone or tablet. 9. USB-A 3.2 Gen 2 Port • 10 Gbps data transfer. • Supports 7.5W with BC 1.2 to charge smaller devices like smartwatches and headphones. 10. SD / microSD Card Slot • UHS-I, 104 MB/s • The SD 3.0 card slot lets you insert an SD 3.0 card to copy files to and from your device. 11. Audio In / Out Connect to earphones or other devices with a 3.5 mm AUX connector. 12. LED Indicator and Power ButtonTurns white when powered on. Specifications Data Transfer Speed10 Gbps Supported SystemsWindows 10/11, macOS 10.14 and above, Chrome OS Wireless Charging Pad The Maximum Output Power10W Radiated H-Field-14.93dBuv/A@10M Frequency Range111-205kHz Data Communication137.9kHZ Important Safety Instructions 1) Avoid dropping. 2) Do not disassemble. 3) Do not expose to liquids. 4) For the safest and fastest charge, use original or certified cables. 5) This product is suitable for temperate climates only. 6) The maximum ambient temperature when using this product must not exceed 95°F / 35°C. 7) Open flame sources, such as candles, must not be placed near this product. 8) Only use a dry cloth or brush to clean this product. • You cannot charge your device wirelessly in these scenarios: • using a case with a magnetic/iron plate; • using a case with a grip or stand; • using an ultra-thick (> 5 mm) protective phone case. • Do not place any foreign objects between your device and the wireless charger’s surface, including metal pads, magnetic cards, door keys, coins, NFC cards, or other metal objects, as they could potentially demagnetize the wireless charger, affect the charging speed, or cause overheating. • Wireless charging products make charging more convenient than wired chargers, but confined by current wireless technology, their charging speed is slower than that of wired chargers. • High temperatures will reduce charging speed and restrict power. It is recommended that you charge your device in environments with temperatures below 35°C/ 95°F . FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: EN 05 04 EN 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator & your body. The following importer is the responsible party: Company Name: Fantasia Trading LLC Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764 Telephone: 1-800-988-7973 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator & your body. Declaration of Conformity Hereby, Anker Innovations Limited declares that the product type A8377 is in compliance with Directives 2014/53/EU & 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.anker.com This device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. All essential radio test suites have been carried out. The device complies with RF specifications when the device is used at 20 cm from your body. GB Declaration of Co…

Text truncated - open the document above for the full version.

Use the included USB-C cable 1 2 Anker 675 USB-C Docking Station (12-in-1, Monitor Stand, Wireless) Product Number: A8377 51005003704 V01 For FAQs and more information, please visit: anker .com/support @Anker Deutschland @Anker Japan @Anker @AnkerOcial @Anker_JP @anker_ocial @anker_jp 6 SERIES QUICK START GUIDE Getting Started Managing Cables Coil cables underneath the stand. 3 Overview SD micro SD

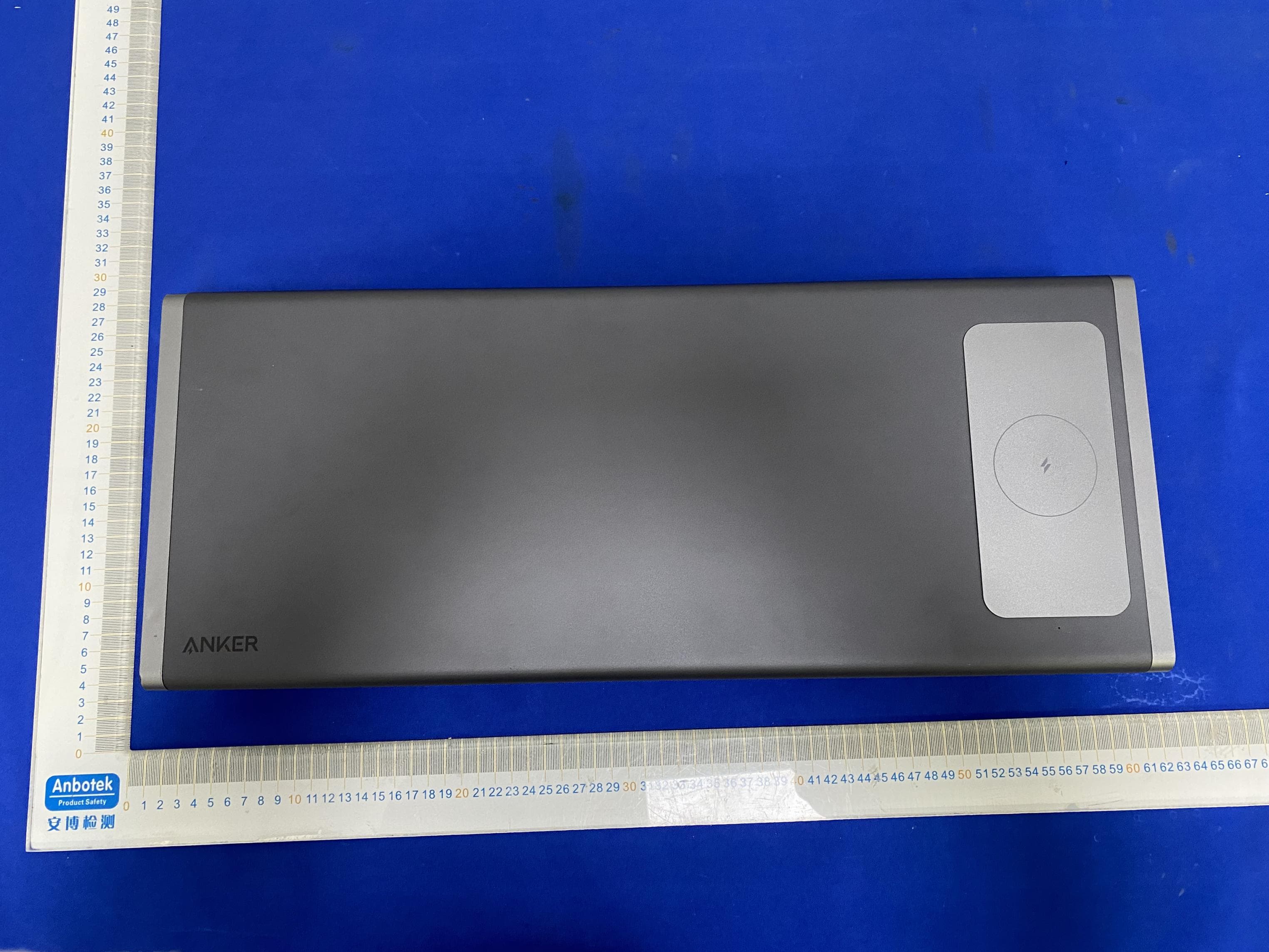

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

LabelLocationOnEUT Label ProductName:Anker675USB-CDockingStation(12-in-1, MonitorStand,Wireless) ModelNo.:A8377 FCCID:2AOKB-A8377 ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2) Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Code:AB-RF-05-b InternalPhotograph Code:AB-RF-05-b ANT Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

version01 AnkerInnovationsLimited DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:A8377 FCCID:2AOKB-A8377 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:0.03.13.00.0009 Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:111-205KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:AnkerInnovationsLimited Address:Room1318-19,HollywoodPlaza,610NathanRoad,Mongkok,Kowloon, HongKong City:Kowloon ZIP/Postalcode:/ Country:HongKong Place:KowloonDate:1/3/2023 Signature:

ReportNo.:18220WC20275802FCCID:2AOKB-A8377Page1of10 Code:AB-RF-05-b FCCTestReport ClientName:AnkerInnovationsLimited ClientAddress: Room1318-19,HollywoodPlaza,610Nathan Road,Mongkok,Kowloon,HongKong ProductName: Anker675USB-CDockingStation(12-in-1, MonitorStand,Wireless) ReportDate:Jan.03,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20275802FCCID:2AOKB-A8377Page2of10 Code:AB-RF-05-b Contents 1.GeneralInformation...........................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest................................................................................................6 1.4.TestEquipmentList.................................................................................................................................6 1.5.MeasurementUncertainty.....................................................................................................................6 1.6.DescriptionofTestFacility.....................................................................................................................6 2.MeasurementandResult..................................................................................................................................7 2.1.Requirements...........................................................................................................................................7 2.2.TestSetup.................................................................................................................................................8 2.3.TestProcedure.........................................................................................................................................8 2.4.TestResult................................................................................................................................................8 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................10 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................10 APPENDIXIII--INTERNALPHOTOGRAPH..................................................................................................10 ReportNo.:18220WC20275802FCCID:2AOKB-A8377Page3of10 Code:AB-RF-05-b TESTREPORT Applicant:AnkerInnovationsLimited Manufacturer:AnkerInnovationsLimited ProductName:Anker675USB-CDockingStation(12-in-1,MonitorStand,Wireless) ModelNo.:A8377 TradeMark:ANKER Rating(s): Input:20V9A USB-C1output:5V3A,9V3A,15V3A,20V4.8A USB-C2output:5V3A,9V3A,15V3A,20V2.25A USB-C3output:5V3A,9V3A,15V3A,20V2.25A USB-C2+USB-C3output:20V2.25A USB-A1output:5V0.9A USB-A2output:5V1.5A USB-A3output:5V0.9A USB-A1+USB-A2+USB-A3output:5V3.0A Wirelessoutput:5V1A(5W),5V1.5A(7.5W),9V0.83A(7.5W),9V 1.1A(10W) TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Nov.23,2022 DateofTest Nov.23~Dec.14,2022 PreparedBy (NianxiuChen) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC20275802FCCID:2AOKB-A8377Page4of10 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.Jan.03,2023 ReportNo.:18220WC20275802FCCID:2AOKB-A8377Page5of10 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:AnkerInnovationsLimited Address: Room1318-19,HollywoodPlaza,610NathanRoad,Mongkok,Kowloon, HongKong Manufacturer:AnkerInnovationsLimited Address: Room1318-19,HollywoodPlaza,610NathanRoad,Mongkok,Kowloon, HongKong 1.2.DescriptionofDevice(EUT) ProductName:Anker675USB-CDockingStation(12-in-1,MonitorStand,Wireless) ModelNo.:A8377 TradeMark:ANKER TestPowerSupply:AC120V,60Hzforadapter TestSampleNo.:1-2-1(NormalSample),1-2-2(EngineeringSample) Adapter: Model:HKA18020090-6C Input:100-240V~60/50Hz,2.5A Output:20.0V9.0A,180.0W RFSpecification OperationFrequency:111-205KHz ModulationType:FSK AntennaType:InductiveloopcoilAntenna AntennaGain(Peak):0dBi(Providedbycustomer) Remark:1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser’sManual. ReportNo.:18220WC20275802FCCID:2AOKB-A8377Page6of10 Code:AB-RF-05-b 1.3.AuxiliaryEquipmentUsedDuringTest DescriptionRating(s) WirelesschargingloadManufacturer:ShenzhenOujuTechnologyCo.,Ltd. M/N:CD2577 Power:5W/7.5W/10W/15W 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1 Electricand Magneticfield Analyzer NARDAEHP-200A180ZX10202Oct.17,20221Year 1.5.MeasurementUncertainty MagneticFieldReading(A/m): +/-0.04282(A/m) ElectricFieldReading(V/m): +/-0.03679(V/m) 1.6.DescriptionofTestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: FCC-RegistrationNo.:184111 ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththe(FCC)FederalCommunicationsCommission.Theacceptanceletter fromtheFCCismaintainedinourfiles.RegistrationNo.184111. ISED-RegistrationNo.:8058A Shenzh…

Text truncated - open the document above for the full version.

ReportNo.:18220WC20275801FCCID:2AOKB-A8377Page1of21 Code:AB-RF-05-b FCCTestReport ClientName:AnkerInnovationsLimited ClientAddress: Room1318-19,HollywoodPlaza,610Nathan Road,Mongkok,Kowloon,HongKong ProductName: Anker675USB-CDockingStation(12-in-1, MonitorStand,Wireless) ReportDate:Jan.03,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20275801FCCID:2AOKB-A8377Page2of21 Code:AB-RF-05-b Contents 1.GeneralInformation...........................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest................................................................................................6 1.4.DescriptionofTestModes.....................................................................................................................6 1.5.DescriptionOfTestSetup......................................................................................................................7 1.6.TestEquipmentList.................................................................................................................................8 1.7.MeasurementUncertainty.....................................................................................................................9 1.8.DescriptionofTestFacility.....................................................................................................................9 2.SummaryofTestResults................................................................................................................................10 3.ConductedEmissionTest................................................................................................................................11 3.1.TestStandardandLimit.......................................................................................................................11 3.2.TestSetup...............................................................................................................................................11 3.3.TestProcedure.......................................................................................................................................11 3.4.TestData.................................................................................................................................................11 4.RadiationSpuriousEmission.........................................................................................................................14 4.1.TestStandardandLimit.......................................................................................................................14 4.2.TestSetup...............................................................................................................................................14 4.3.TestProcedure.......................................................................................................................................15 4.4.TestData.................................................................................................................................................15 5.AntennaRequirement......................................................................................................................................20 5.1.TestStandardandRequirement.........................................................................................................20 5.2.AntennaConnectedConstruction......................................................................................................20 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................21 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................21 APPENDIXIII--INTERNALPHOTOGRAPH..................................................................................................21 ReportNo.:18220WC20275801FCCID:2AOKB-A8377Page3of21 Code:AB-RF-05-b TESTREPORT Applicant:AnkerInnovationsLimited Manufacturer:AnkerInnovationsLimited ProductName:Anker675USB-CDockingStation(12-in-1,MonitorStand,Wireless) ModelNo.:A8377 TradeMark:ANKER Rating(s): Input:20V9A USB-C1output:5V3A,9V3A,15V3A,20V4.8A USB-C2output:5V3A,9V3A,15V3A,20V2.25A USB-C3output:5V3A,9V3A,15V3A,20V2.25A USB-C2+USB-C3output:20V2.25A USB-A1output:5V0.9A USB-A2output:5V1.5A USB-A3output:5V0.9A USB-A1+USB-A2+USB-A3output:5V3.0A Wirelessoutput:5V1A(5W),5V1.5A(7.5W),9V0.83A(7.5W),9V 1.1A(10W) TestStandard(s): FCCPart15SubpartC,Paragraph15.209 TestMethod(s): ANSIC63.10:2020 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart15SubpartCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceiptNov.23,2022 DateofTestNov.23~Dec.14,2022 PreparedBy (NianxiuChen) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC20275801FCCID:2AOKB-A8377Page4of21 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.Jan.03,2023 ReportNo.:18220WC20275801FCCID:2AOKB-A8377Page5of21 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:AnkerInnovationsLimited Address: Room1318-19,HollywoodPlaza,610Nat…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b

Code:AB-RF-05-b TestSetupPhotograph Code:AB-RF-05-b Code:AB-RF-05-b
