2AOKB-T81A0S120 Solar Wall Light Cam

0102030405060708 • If it isn't possible to completely avoid the solar panel being blocked by obstacles, try to allow as much exposure to sunlight as possible. • Pay attention to battery management via the app to make sure your device receives enough power to continue operating. If your Solar Wall Light Cam does not receive enough power to continue operating, it can be charged manually, or an additional solar panel (with USB-C extension cable) can be connected and placed in a location with sufficient sunlight to stay powered. CHARGING THE CAMERA Charging cable and AC adapter are not included. SETTING UP 1. Download and install the eufy Security app, and sign up for an account. 2. Follow the on-screen instructions to add your Solar Wall Light Cam. MOUNTING Select a Location The camera can be mounted on a wall or similar surface. Select a location where the solar panel will not be blocked by obstacles such as a roof or leaves. WHAT’S INCLUDED UP QUICK START GUIDE S120 Solar Wall Light Cam AT A GLANCE ① ③ ② ④ SYNC ⑤ ⑥ ⑦ Ensure Tight Seal ① Solar Panel ⑤ USB-C Charging Port ② Camera ⑥ SYNC Button ③ LED Indicator ⑦ Speaker ④ Microphone Location Height We recommend mounting 2 m - 2.5 m (6.6 ft - 8.2 ft) above ground level. To maximize solar panel efficiency and the camera field of view, select a location where the camera receives plenty of sunlight. Mount the Camera 1. Mark the mounting points on the wall or surface where drilling will be required, using the mounting bracket as a template. 2. Drill holes in the wall or surface, then insert the expansion anchors into the holes. This step applies if mounting onto hard surfaces such as brick or concrete. For soft surfaces such as wood, skip this step. Quick Start GuideUSB-C Extension Cable Camera Fixing Screw S120 Solar Wall Light Cam Model: T81A0 Mounting BracketMounting Screws 6.6-8.2 ft (2 - 2.5 m) UP Camera Field of View Motion Detection Zone SYNC Ensure Tight Seal 09101112131415 3. Screw the mounting bracket onto the wall. 4. Slot the camera onto the mounting bracket and make sure it is attached securely. 5. Insert and tighten the camera fixing screw at the bottom of the camera. Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners. 51005003795 V01 SAFETY • Do not use the product in an environment where the temperature is too high or too low. Never expose the product to wet environments. • The suitable temperature for devices and accessories is -20°C to 50°C (Charging temperature is 0°C to 40°C). • It is recommended to supply the device in an environment with a temperature that ranges from 5°C to 25°C. • Unless specifically indicated that it is safe to do so in the user guide or instruction manual, do not use this device in an environment that exceeds the recommended low or high temperature. • Unless specifically indicated that it is safe to do so in the user guide or instruction manual, avoid exposing your device to direct sunshine or excessively wet environments. • When supplying power, place the device in an environment that has a normal room temperature and good ventilation. • The light source contained in this luminaire should only be replaced by the manufacturer, its service agent or a similarly qualified person. SÉCURITÉ • N’utilisez pas le produit dans un environnement où la température est trop élevée ou trop basse. N'exposez jamais l’appareil à un ou à un environnement humide. • La température appropriée pour le produit et les accessoires est comprise entre -20 °C et 50°C(la température de charge est de 0 °C à 40 °C). • Il est recommandé d’alimenter l’appareil dans un environnement dont la température est comprise entre 5 °C et 25 °C. • À moins qu’il ne soit spécifiquement indiqué dans le guide de l’utilisateur ou le manuel d’instructions que cela est sans danger, n’utilisez pas cet appareil dans un environnement qui dépasse les températures basses ou élevées recommandées. • Sauf indication contraire dans le guide de l’utilisateur ou le manuel d’instructions, évitez d’exposer votre appareil aux rayons directs du soleil ou à des environnements excessivement humides. • Lors de l’alimentation électrique, placez l’appareil dans un environnement ayant une température ambiante normale et une bonne ventilation. • La source lumineuse contenue dans ce luminaire ne doit être remplacée que par le fabricant, son agent de service ou une personne également qualifiée. CAUTION! THERE IS A RISK OF EXPLOSION IF AN INCORRECT BATTERY TYPE IS USED. DISPOSE OF USED BATTERIES ACCORDING TO THEIR INSTRUCTIONS. ATTENTION! IL EXISTE UN RISQUE D’EXPLOSION EN CAS D’UTILISATION D’UN TYPE DE PILE INCORRECT. ÉLIMINEZ LES PILES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS. Warning: – Replacing a battery with an incorrect type may bypass safeguards and create danger; – Disposal of a battery in a fire or other source of significant heat, or by crushing, or cutting, may result in an explosion as well as leakage of flammable liquids and gases; – Leaving a battery in an extremely hot environment may result in an explosion as well as leakage of flammable liquids and gases; – A battery subjected to extremely low air pressure may result in an explosion as well as leakage of flammable liquids and gases. Attention: -Le remplacement d’une batterie par un type incorrect peut contourner les protections et créer un danger ; -L’élimination d’une pile dans un feu ou une autre source de chaleur importante, ou par écrasement ou découpage, peut entraîner une explosion ainsi qu’une fuite de liquides et de gaz inflammables ; -Le fait de laisser une batterie dans un environnement extrêmement chaud peut entraîner une explosion ainsi qu’une fuite de liquides et de gaz inflammables ; -Une batterie soumise à une pression d’air extrêmement faible peut provoquer une explosion ainsi qu’une fuite de liquides et…

Text truncated - open the document above for the full version.

CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 2023-05-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID:2AOKB-T81A0 Anker Innovations Limited (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Anker Innovations Limited (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: Louis Qi Title: Manager Company Name& Address: Anker Innovations Limited & Room 1318-19, Hollywood Plaza 610 Nathan Road, Mongkok Kowloon Hong Kong

U.S. AGENT LETTER OF ATTESTATION Date: 2023-05-23 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID:2AOKB-T81A0 Anker Innovations Limited (“the Applicant”) certifies that, as of the date of the filing of the application, Fantasia Trading LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Anker Innovations Limited (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Fantasia Trading LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Fantasia Trading LLC Address: 5350 Ontario Mills Pkwy, STE 100, Ontario, CA 91764 FRN: 0033423005 Tel.: +1 (800)988 7973 Email: [email protected] Signed by (printed name): Louis Qi Signature: Applicant: Anker Innovations Limited Address: Room 1318-19, Hollywood Plaza 610 Nathan Road, Mongkok Kowloon Hong Kong FRN: 0027073105 Tel: +86-755-86544807 Email: [email protected] Signed by (printed name): Louis Qi Signature:

QA-FR-170-B Anker Innovations Limited Add: Room 1318-19, Hollywood Plaza 610 Nathan Road, Mongkok Kowloon Hong Kong Tel: +86-755-86544807 Email: [email protected] FCC Authorization Date: 2023-05-23 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Anker Innovations Limited, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Louis Qi Title: Manager

QA-FR-171-A Anker Innovations Limited Add: Room 1318-19, Hollywood Plaza 610 Nathan Road, Mongkok Kowloon Hong Kong Tel: +86-755-86544807 Email: [email protected] FCC Confidential Authorization Date: 2023-05-23 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2AOKB-T81A0 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Anker Innovations Limited) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Louis Qi Title: Manager

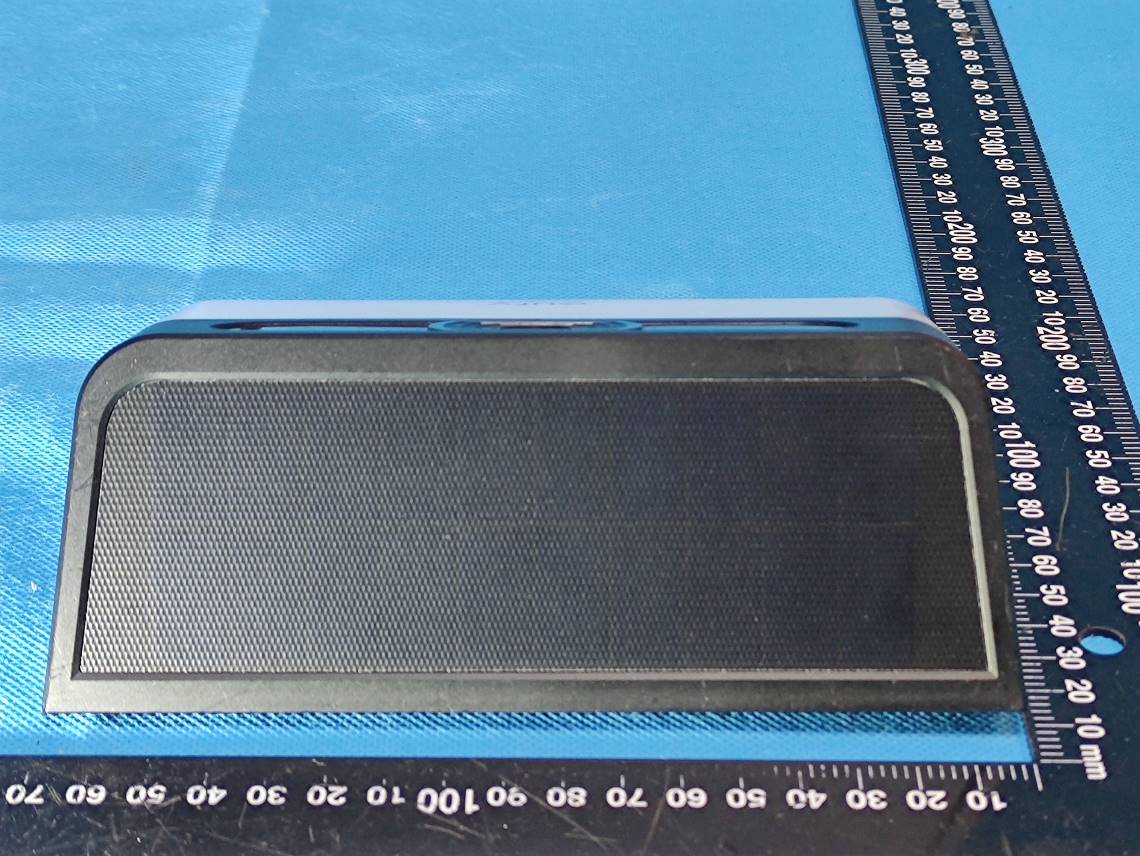

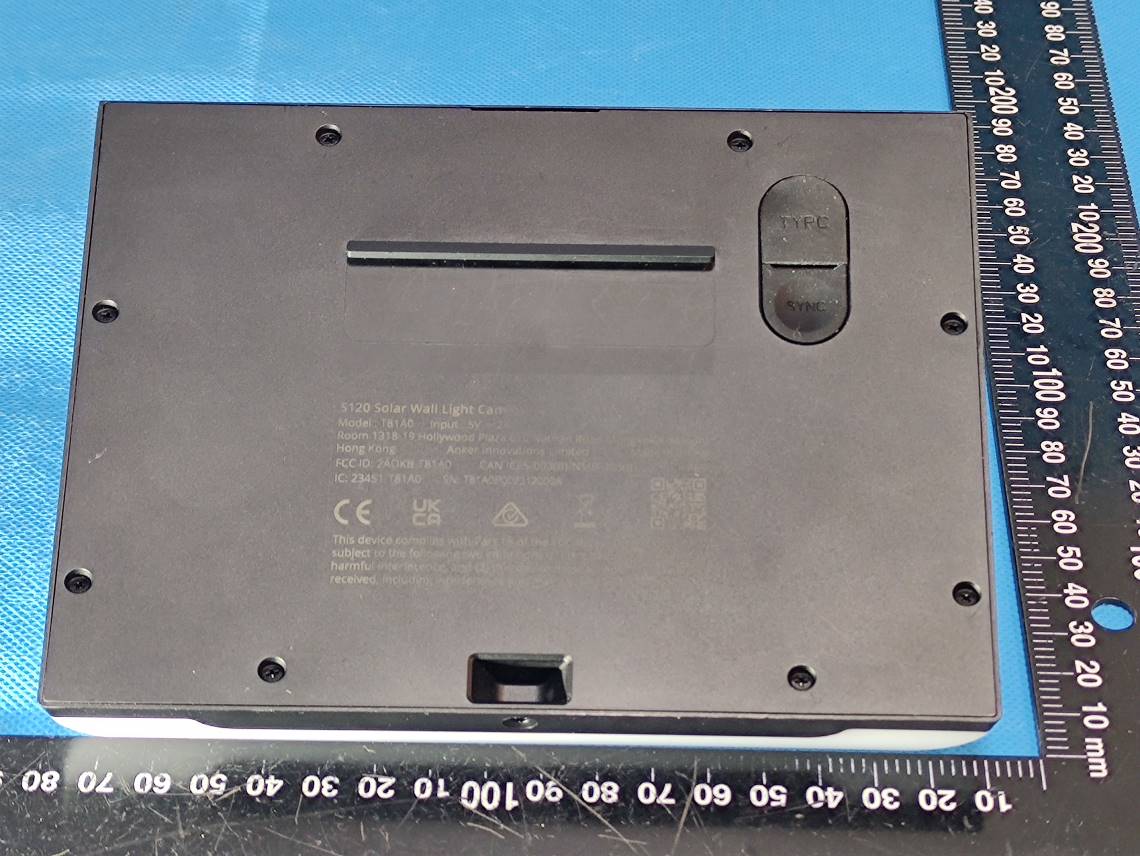

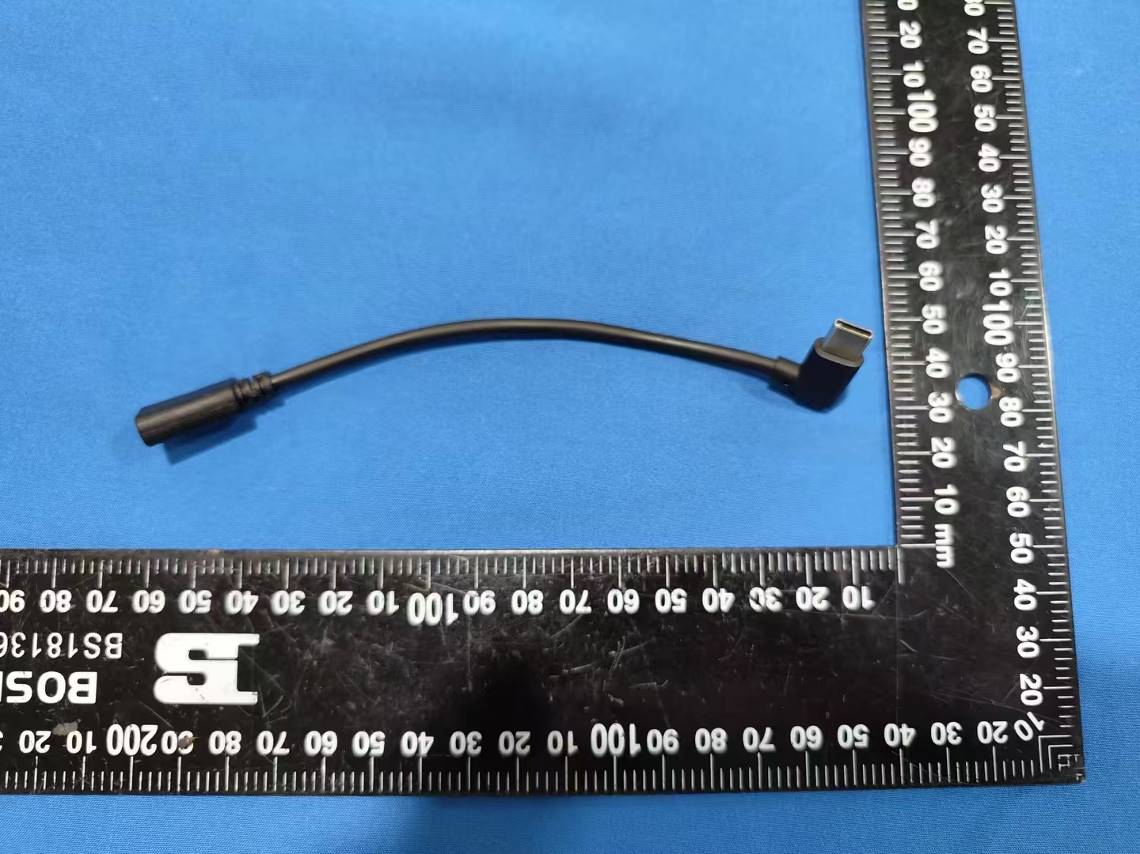

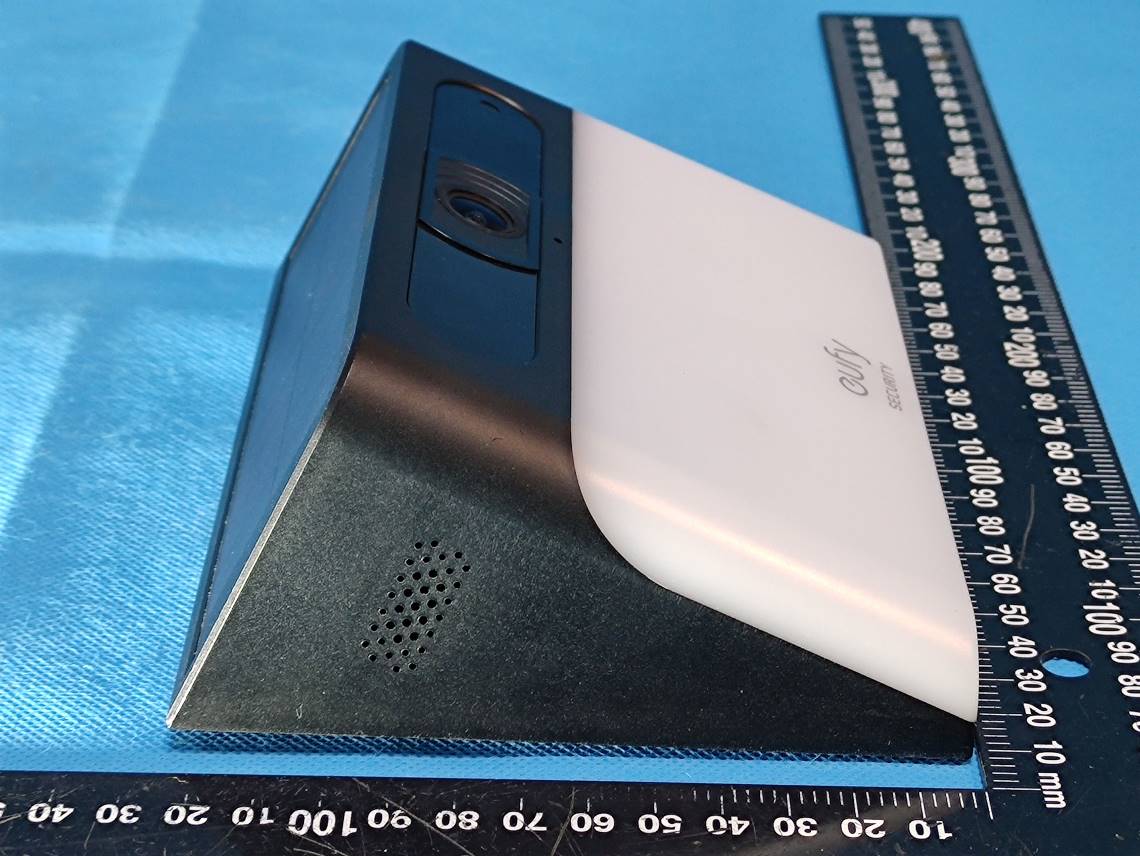

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230421626-00A Page 57 of 58 5. RF EXPOSURE EVALUATION 5.1 MPE-Based Exemption 5.1.1 Applicable Standard According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.1.2 Measurement Result Operation Modes Frequency (MHz) λ/2π (mm) Distance (mm) Exemption ERPMaximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP (dBm) MPE- Based Exemption (mW)(dBm) WLAN 2.4G 2412-2462 19.40 200 768 28.85 20 3.05 20.9 Compliant Note: The Maximum Conducted Power including Tune-up Tolerance was declared by manufacturer. Result: The device compliant the MPE-Based Exemption at 20cm distances.

0 客户 承认 确认 器件/结构品质采购研发核准 供应商 承认 确认 确认校对审核批准 杨国昌 徐丽英 APPROVAL No.ATCSZ-5-170807-001ISSUE1 规 格 书 SPECIFICATION FOR APPROVAL 物料描述 DESCRIBE: Antenna For海翼智新 T81A0 客户料号 Customer NO: 物料编码 PART NO: ATC1362-HY050B70RA 天线类型 Antenna type 2.4G WIFI天线 FPC+CABLE 日期 DATE: 2023.03.14 供应商 PROVIDER: 爱特恩科技（深圳）有限公司 1 测试设备 ANT 2 Antenna S11 3 Antenna *Efficiency Frequency/MHzEfficiency/% Gain.dBi 240058%2.82 241059%2.70 242058%2.51 243058%2.44 244059%2.58 245060%2.61 246059%2.67 247059%2.75 248061%2.86 249063%3.05 250061%3.03 4 天线图 5 QC工程图 文件名 称 ： Fil e Name： QC 工程 图 文件 编 号 ： File NO： ATCHS 版本 号 ： Edition No： A.0 品名 生效日期： Operation Date： 2017-12-06 页码 ： 1/1 Page：1/1 制程 编 号Part / Proce ss / Nu mber 制 造 流 程 Process Name/Op eration Descrip tion 机器 设 备 名 称 Machin e , Dev ice , J ig , To ols for Mfg. 管 理 项 目 及 特 性 等 级 Management Item and Ch aracteristics class 检 查 担 当 Inspector 管 理 基 准 规 格 / 公 差 Product / Process Specification / To lerance 量 测 判 定 方 式 /设 备 Evaluation / Measurement T echnique 抽 样 Sample 管 理 方 法 Manage Methods 反 应计划 Reaction Plan Product 产 品 Process 制程 管 理 特 性 Managemen t Charact eristics 作 业 员 I Q C I P Q C F Q C O Q C I P Q C 数 量 Size 频 率 Freq. 1 来 料 基材 检验 型 号/ 可靠 性 ● FPC检验规 范 90°剥 离 测试 随 机抽 样 每批 《IQC检验报 告 》 特采 / 退 货 胶纸检验 ● FPC检验规 范 随 机抽 样 每批特采 / 退 货 油墨 检验 ● FPC检验规 范确 认 有效期 随 机抽 样 每批特采 / 退 货 2 开 料 开 料机 基材原材料 基材型 号 ● 图纸 要求目 视随 机抽 样 每批 《流程卡》 《质量异常联络 单》 《巡 检报告》 调 整机器 基材 规 格 ● 图纸 要求 设备调试确认 随 机抽 样 每批 调 整机器 胶纸 原材料 胶纸 型 号 ● 图纸 要求目 视随 机抽 样 每批 《流程卡》 《质量异常联络 单》 《巡 检报告》 调 整机器 胶纸规 格 ● 图纸 要求 设备调试确认 随 机抽 样 每批 调 整机器 3 贴 板板基材 贴 装 对 准 ● 贴板作业指导书 目 视 巡 检 每批 《首件检验报告》 《IPQC巡检报告》 调整放置 方式 4 磨板磨板机基材 贴 装放置 ● 磨板作业指导书 目 视 巡 检 每 2H 《首件检验报告》 《IPQC巡检报告》 调整放置 方式 5爆光 爆光 机 半成品 爆光 外 观 ● FPC检验规 范 AOiAQL 生 产 批 《首件检验报告》 《IPQC巡检报告》 调 整 网 版 6显影显影 半成品 显影时间 ● FPC检验规范 烘烤参数表 AOiAQL 生 产 批 《首件检验报告》 《IPQC巡检报告》 调 整 网 版 7 蚀 刻 蚀 刻机半成品 蚀 刻 药 水 ● 药 水配比 确认药水配比 巡 检 每 2H 《首件检验报告》 《IPQC巡检报告》 8 印阻油 墨 丝 印机半成品印油墨外 观 ● FPC检验规 范 目 视 AQL 生 产 批 《首件检验报告》 《IPQC巡检报告》 调 整 网 版 9 烘 烤烤 箱半成品烘 烤 时间 ● FPC检验规范 烘烤参数表 目 视 AQL 生 产 批 《首件检验报告》 《IPQC巡检报告》 确认烘烤 时间 10 电 金 电 金 线 半成品 电 金 时间 ，金 厚 ● FPC检验规 范 目视/膜厚测试 仪 AQL/5PCS 生 产 批 《首件检验报告》 《IPQC巡检报告》 返工 11 贴 背 胶过胶 机半成品 贴 装 对 位 ● FPC检验规 范 目 视 AQL 生 产 批 《首件检验报告》 《IPQC巡检报告》 返工 12 冲 压 冲床半成品冲 压 模具 ● FPC检验规 范 目 视 AQL 生 产 批 《首件检验报告》 《IPQC巡检报告》 返工 13 包装手工成品包装 数 量、 标 示 ●●● FPC检验规 范 目视，二次元AQL/5PCS 生 产 批 《首件检验报告》 《IPQC巡检报告》 《出货检验报告》 返工 14 出 库检 验 二次元成品出 库 外 观 ● OQC检验指导书 FPC检验规范 目 视 AQL 出 货 批 《OQC检验报 告 》 重工 标识 ● 目 视 随 机抽 样 出 货 批重工 尺寸 ● 成品 结构图 二次元，盐雾 测试机 5PCS 出 货 批通知主管 可靠性 测 试 ● 公司文件或客户要求5PCS 出 货 批通知主管 6 出货检测项目 序 号检测项 目 规 格 检测仪 器 实测数 据 SAMPLE # 1 SAMPLE # 2 SAMPLE # 3 SAMPLE # 4 SAMPLE # 5 1外观 ① 重点管理项目（主要不良类型） ② 不能有漏铜切断现像区域 ③ 公差±0.15mm 以内 ④ 不多胶铜短路胶 ⑤ 产品不能有划伤，脏污，印刷掉落 等 目测OKOKOKOKOK 2颜色 ① 要在颜色限度样本范围内 ② 时颜色不能有明显差异（上~下） 目测 OKOKOKOKOK 3包装 ① 生产日期，Part No， 等 入库/出货每日检查一致性 目测 OKOKOKOKOK 4尺寸测量 承认图纸重要管理尺寸测量 ※ 参照尺寸测量日志 - 判定基准：Spec 判定 三次元 测量仪 OKOKOKOKOK 5铜层厚度 cu：0.5Oz 厚度测量仪 6有害物质 要达到 Rohs 6大物质及Halogen物质基准 ※ 参照 XRF 分析日志 XRF 测量仪OKOKOKOKOK 7性能 测试治具性能确认 网络分析仪OKOKOKOKOK 8 9 7 NODESCRIPTIONQ'TYMATERIALREMARKSREV. 1 ANTENNA1/100PETN/AA 2 PAD OUT 1/4 SW A골 5TN/AA 4 CARTOON BOX-SW A골 5TN/AA 5 PACKING TAPE-PPN/AA Packaging method PART LIST *包装图为示意图，不代表图片为实际产品 PE bag packaging, product emission neat, uniform quantity

TEST REPORT Applicant: Anker Innovations Limited Address: Room 1318-19,Hollywood Plaza,610 Nathan Road, Mongkok, Kowloon, Hong Kong FCC ID: 2AOKB-T81A0 IC: 23451-T81A0 HVIN: T81A0 Product Name: S120 Solar Wall Light Cam Standard(s): 47 CFR Part 15, Subpart C(15.247) RSS-247 Issue 2, February 2017 RSS-Gen, Issue 5, February 2021 Amendment 2 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230421626-00A Date Of Issue: 2023/5/30 Reviewed By: Julie Tan Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230421626-00A Page 2 of 58 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230421626-00A Page 3 of 58 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 14 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 14 3.1.4 Test Procedure ............................................................................................................................................. 15 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.2 RADIATED SPURIOUS EMISSIONS ...................................................................................................... 16 3.2.1 Applicable Standard ..................................................................................................................................... 16 3.2.2 EUT Setup.................................................................................................................................................... 16 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 17 3.2.4 Test Procedure ............................................................................................................................................. 17 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 18 3.3 MINIMUM 6 DB BANDWIDTH: ........................................................................................................... 19 3.3.1 Applicable Stand…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
