2AOKB-T8321MVideo Baby Monitor 720P ( 2.4G FHSS Transmitter )

Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners. 51005002167 V01 USER MANUAL Video Baby Monitor 720P English 01 TABLE OF CONTENTS What’s in the Box 0209 Mounting the Baby Camera on the Wall Feature Introduction 0312 Monitor Menu Settings Setting Up the Camera and Monitor 0515 Notice Adding a New Baby Camera to the Baby Monitor 0719 Customer Service Using the Baby Monitor 08 02 EnglishEnglish 03 WHAT’S IN THE BOX Welcome Card Video Baby Monitor 720P Model: T8321-C FCC ID:2AOKB-T8321C IC:23451-T8321C Monitor Micro-USB Power Cable (1 m) Monitor Adapter (5V 2A) Welcome Card Video Baby Monitor 720P Model: T8321-M FCC ID:2AOKB-T8321M IC:23451-T8321M Camera Micro- USB Power Cable (3 m) Mounting Screws Wall Mount Camera Adapter (5V 1A) User Manual Note: Power adapter varies by region. FEATURE INTRODUCTION Monitor Features 12 4 3 5 6 7 8 9 10 11 12 13 1 Screen 6 LED indicator 2 Menu button • Red: charging • White: Fully charged 3 Navigation button 4 OK button 7 Micro USB charging port • Press to confirm the selection • Press to switch camera display if more than 2 cameras added 8 Volume down 9 Volume up 10 Zoom button 11 Power button 5 Return to previous level of menu / Talk button 12 Reset • Press and hold to speak to the camera • When menu is opened, press to return to the previous level of menu 13 Speaker 04 EnglishEnglish 05 Camera Features 1 2 3 4 5 6 7 1 Microphone 5 Pairing button 2 Standard camera lens 6 Micro USB port 3 LED indicator 7 Speaker 4 Temperature & humidity sensor SETTING UP THE CAMERA AND MONITOR Charge the Monitor Fully charge the monitor before use. To charge: 1 . Connect one end of the micro USB cable to the baby monitor, and the other end to the power adapter (5V/2A). 2 . Plug the adapter into a power outlet. 3 . Press and hold the power button for 2 seconds to turn the baby monitor on. 5V/2A 06 EnglishEnglish 07 Charge the Camera 1 . Connect one end of the micro USB cable to the baby camera, and the other end to the power adapter (5V 1A). 2 . Plug the power adapter into a power outlet. 5V/1A The new baby monitor and camera will set up automatically. You are all set to use the products after the monitor and camera are fully charged. ADDING A NEW BABY CAMERA TO THE BABY MONITOR The baby camera and baby monitor are paired and ready to use right out of the box. Refer to the following steps when adding extra baby cameras or after resetting a baby camera. 1 . Enter menu settings, go to Camera -> Add Camera, then follow the onscreen instructions to start the pairing. Add Camera Delete Camera Cycle Cameras Camera Settings 60 Secs Scanning for new camera Push the button on the camera to pair. 1Secs 4 23 o c 06 12 AM : 2 . Press and hold the pairing button on the rear of the camera for 1 second until a notification prompt is heard. 3 . Check the firmware version of the monitor (see image below) to make sure your baby monitor and camera are running the same, latest firmware version. Language Anti-Screen Flicker Default Settings Temperature Unit Sleep Mode Connect with Us Night Vision Mode Time Set 4 06 12 AM : Monitor: v x.x.x Camera: v x.x.x SN: T8300E0A18370E72 https://www.eufylife.com United States +1 (800) 988 7973 United Kingdom +44 (0) 1604 936 200 Germany +49 (0) 69 9579 7960 Japan +81 03 4455 7823 [email protected] 08 EnglishEnglish 09 To check whether it is the latest version: 1 Visit the website below: https://www.eufylife.com/support/5505/spaceview-baby-monitor 2 If the firmware version is lower than the version shown online (highlighted in green), click the firmware version to download. The downloaded file includes firmware for both T8300 and T8321 models, make sure you use the T8321 firmware. 3 Follow the steps in the “eufy Security Software Upgrade Guide” video or Firmware Upgrade Manual to complete firmware upgrade. Note: The eufy Security Spaceview baby camera can be added to the monitor. Before adding the camera, make sure SpaceView baby camera is running the same, latest version (in the T8300 folder) with the monitor’s. USING THE BABY MONITOR When more than 2 cameras are added to the monitor, you can manually switch among cameras by pressing the monitor’s OK button. Once the camera switch is completed, the icon of the selected camera will appear on the corner of the baby monitor . You can also select the “Cycle Camera” option. The screen cycles through the list of connected baby cameras according to the preset intervals. Note: The monitor will emit a loud noise if placed too close to the camera. This is normal and is resolved once the camera is moved away from the monitor. MOUNTING THE BABY CAMERA ON THE WALL 1 . Place the wall mount against the wall, matching the direction as UP indicates. Mark the screw holes with a pencil. UP 2 . Drill 5 1 '' holes into the wall and then insert anchors into the holes. Anchors are not needed for wooden walls. 10 EnglishEnglish 11 3 . Insert the screws through the mounting holes of the wall mount and screw into the anchors. UP 4 . Snap the baby camera onto the wall mount. UP 5 . To get the optimal viewing angle, rotate the camera (25°upwards, 60° backwards, 250° horizontally) manually, as pan and tilt functions are not supported on this model when using the navigation button. 72 °F 60° 25° 250° 12 EnglishEnglish 13 MONITOR MENU SETTINGS Press and hold the power button to power on the monitor. Press the menu button to open Menu Settings. Menu Settings Menu OptionsDescription Brightness Set the brightness of the screen. Sleep Mode Enable to automatically turn off the screen after 1 min, 3 min, 5 min or Off. Sound Alert You can set the baby monitor to alert you when a specific noise level is detected. Note : Surrounding noise might set off false alarm. Lullaby Select your desired lullaby song. You can adjust the volume by selecting t…

Text truncated - open the document above for the full version.

Anker Innovations Limited Date: 2020/4/20 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Anker Innovations Limited, the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Anker Innovations Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID:2AOKB-T8321M including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Anker Innovations Limited in connection with the Application shall have the same effect as acts of the Anker Innovations Limited.Anker Innovations Limited also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name: louis Qi Title:NA Tel:+86-13652441319 Email:[email protected] Company name: Anker Innovations Limited

Anker Innovations Limited Date: 2020/4/20 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: 2AOKB-T8321M To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Anker Innovations Limited hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality (max time 180 days from grant date) as outlined in Public Notice DA04-1705. This provision will give Anker Innovations Limited temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1Block Diagram 2Operational Description 3Schematics 4BOM SHORT-TERM 5External Photos 6Internal Photos 7Test-Setup Photos 8User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory： Name：louis Qi Company name：Anker Innovations Limited Address：Room 1318-19,Hollywood Plaza,610 Nathan Road,Mongkok,Kowloon,Hong Kong Tel：+86-13652441319 Email：[email protected]

Anker Innovations Limited Supplier’s Declaration Of Conformity for the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906 : Product Name: ___Video Baby Monitor 720P___ Brand Name: ___eufy SECURITY___ Model Number: ___T8321-M____ Report Number: ___SZ20020089E02___ It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: Anker Innovations Limited Company Address: Room 1318-19,Hollywood Plaza,610 Nathan Road,Mongkok,Kowloon,Hong Kong Telephone: +86-13652441319 Fax: / Person is responsible for marking this declaration: Louis Qi ____________________________________ ______________________________________ Name (Full name)Position / Title ____________________________________ Legal Signature 2020-4-20 ______________________________________ Date

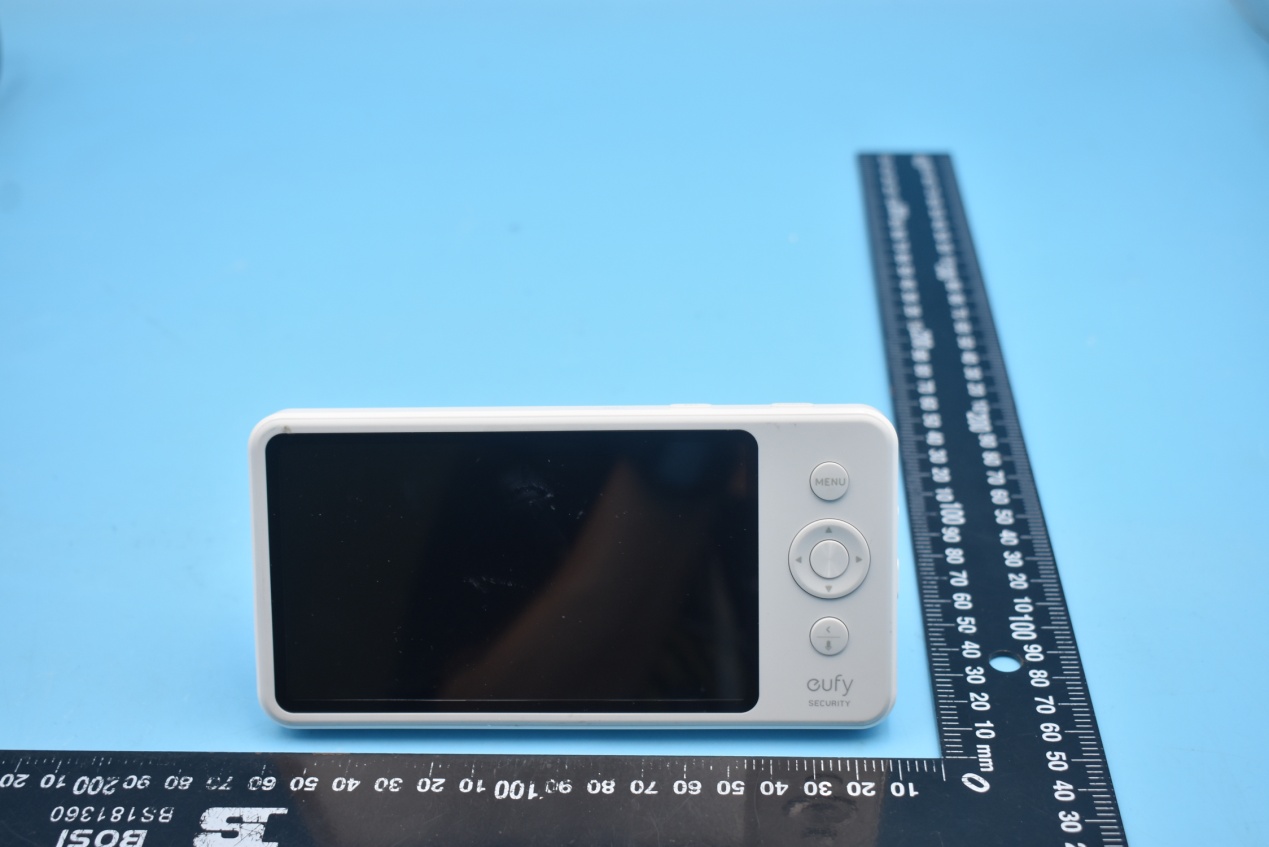

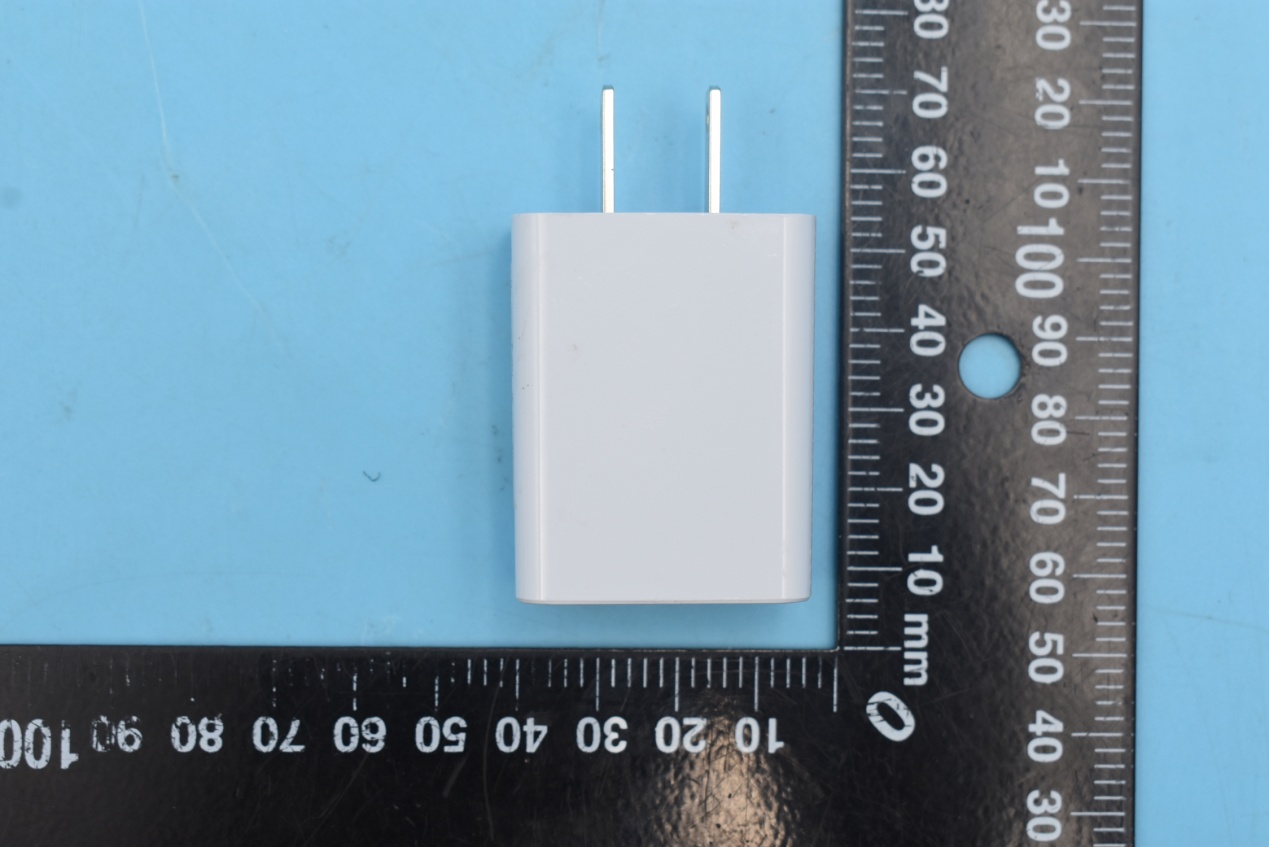

FCC ID:2AOKB-T8321M and IC:23451-T8321M External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

FCC ID:2AOKB-T8321M and IC:23451-T8321M Internal Photos 1. EUT uncover view 2. Antenna view Wi-Fi Antenna

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20020089S02 Annex C Plots of System Performance Check Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.05.02 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.838 S/m; ε r = 40.92; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.3, 7.3, 7.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn871; Calibrated: 2019.06.27 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW2450/Area Scan (101x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 16.2 W/kg CW2450/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.10 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 31.1 W/kg SAR(1 g) = 13.4 W/kg; SAR(10 g) = 6.14 W/kg Maximum value of SAR (measured) = 16.2 W/kg 0 dB = 16.2 W/kg

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20020089S02 Annex D Plots of Maximum SAR Test Results Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.05.02 Frequency: 2.4GHz_Back Side_0mm_F= 2441.5 MHz Communication System: UID 0, WLAN 2.4GHz 802.11b (0); Frequency: 2441.5 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2441.5 MHz; σ = 1.832 S/m; ε r = 40.973; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.3, 7.3, 7.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn871; Calibrated: 2019.06.27 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) F=2441.5 MHz/Area Scan (71x121x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.952 W/kg F=2441.5 MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.536 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 1.51 W/kg SAR(1 g) = 0.669 W/kg; SAR(10 g) = 0.281 W/kg Maximum value of SAR (measured) = 0.770 W/kg 0 dB = 0.770 W/kg

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1- 3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755 -36698555 Fax: 86- 755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No .：SZ20020089S04 Annex E DASY Calibration Certificate

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2019.10.22 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D2450V2-SN:997 Antenna Parameters with Head TSL Impedance, transformed to feed point 47.04Ω-2.73jΩ Return Loss -34.36dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 43 REPORT No.：SZ20020089S02 TEST REPORT APPLICANT : Anker Innovations Limited PRODUCT NAME : Video Baby Monitor 720P MODEL NAME : T8321-M BRAND NAME : eufy SECURITY FCC ID : 2AOKB-T8321M STANDARD(S) : 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2020-02-20 TEST DATE : 2020-05-02 ISSUE DATE : 2020-05-08 Edited by : Liang Yumei (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 43 REPORT No.：SZ20020089S02 DIRECTORY 1. SAR Results Summary ······································································································ 6 2. Technical Information········································································································ 7 2.1. Applicant and Manufacturer Information ······································································ 7 2.2. Equipment Under Test (EUT) Description ····································································· 7 2.3. Environment of Test Site/Conditions ············································································· 8 3. Specific Absorption Rate (SAR)······················································································· 9 3.1. Introduction ······················································································································· 9 3.2. SAR Definition ··················································································································· 9 4. RF Exposure Limits ········································································································· 10 4.1. Uncontrolled Environment ···························································································· 10 4.2. Controlled Environment ································································································ 10 5. Applied Reference Documents ······················································································ 11 6. SAR Measurement System ····························································································· 12 6.1. E-Field Probe ··················································································································· 13 6.2. Data Acquisition Electronics (DAE) ············································································· 14 6.3. Robot ································································································································ 15 6.4. Measurement Server ······································································································ 15 6.5. Light Beam Unit ·············································································································· 16 6.6. Phantom ··························································································································· 16 6.7. Device Holder ·················································································································· 17 6.8. Data Storage and Evaluation ························································································ 18 6.9. Test Equipment List ······································································································· 21 7. Tissue Simulating Liquids ······························································································ 23 8. SAR System Verification ································································································· 25 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 43 REPORT No.：SZ20020089S02 8.1. Purpose of System Performance check ······································································ 25 8.2. System Setup ·················································································································· 25 8.3. Validation Results ··········································································································· 26 9. EUT Testing Position ······································································································· 27 9.1. Hotspot Mode Exposure Position Conditions ···························································· 27 9.2. Hand-held evaluation ····································································································· 28 10. Measurement Procedures ······························································································ 29 10.1. Spatial Peak SAR Evaluation ······················································································ 29 10.2. Power Reference Measurement ·················································································· 30 10.3. Area Scan Procedures ···························································································…

Text truncated - open the document above for the full version.

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page1of 48 REPORT No.：SZ20020089W02 TEST REPORT APPLICANT : Anker Innovations Limited PRODUCT NAME : Video Baby Monitor 720P MODEL NAME : T8321-M BRAND NAME : eufy SECURITY FCC ID : 2AOKB-T8321M STANDARD(S) : 47 CFR Part 15 Subpart C RECEIPT DATE : 2020-02-27 TEST DATE : 2020-04-02 to 2020-04-16 ISSUE DATE : 2020-05-19 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui ( Supervisor ) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page2of 48 REPORT No.：SZ20020089W02 DIRECTORY 1. Technical Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.1. Applicant and Manufacturer Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.2. Equipment Under Test (EUT) Description ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.3. The Channel Number and Frequency ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 1.4. Test Standards and Results ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 1.5. Environmental Conditions ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 2. 47 CFR Part 15C Requirements ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 2.1. Antenna requirement ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 8 2.2. Hopping Mechanism ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 2.3. Duty Cycle of Test Signal ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10 2.4. Number of Hopping Frequency ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 12 2.5. Maximum Peak and Average Conducted Output Power ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 14 2.6. 20dB Bandwidth ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 15 2.7. Carried Frequency Separation ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 18 2.8. Time of Occupancy (Dwell time) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 20 2.9. Conducted Spurious Emissions ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 23 2.10. Conducted Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 28 2.11. Restricted Frequency Bands ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 32 2.12. Radiated Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 37 Annex A Test Uncertainty ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 45 Annex B Testing Laboratory Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 46 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page3of 48 REPORT No.：SZ20020089W02 Change History Version Date Reason for change 1.0 2020-05-19 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page4of 48 REPORT No.：SZ20020089W02 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Anker Innovations Limited Applicant Address: Room 1318-19,Hollywood Plaza,610 Nathan Road, Mongkok, Kowloon, Hong Kong Manufacturer: Anker Innovations Limited Manufacturer Address: Room 1318-19,Hollywood Plaza,610 Nathan Road, Mongkok, Kowloon, Hong Kong 1.2. Equipment Under Test (EUT) Description Product Name: Video Baby Monitor 720P Serial No: (N/A, marked #1 by test site) Hardware Version: V01 Software Version: V3 Modulation Type: FHSS (GFSK) Operating Frequency Range: 2410MHz – 2477MHz Channel Number: 20 Antenna Type: FPC Antenna Antenna Gain: 1.9dBi Accessory Information: Battery Brand Name: N/A Model No.: PT18650-2P PCM5200 Serial No.: (N/A, marked #1 by test site) Capacity: 5200mAh Rated Voltage: 3.70V Charge Limit: 4.20V MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page5of 48 REPORT No.：SZ20020089W02 Accessory Information: AC Adapter Brand Name: N/A Model No.: TEKA012-0502000UK Serial No.: (N/A, marked #1 by test site) Rated Output: 5.00V2.0A Rated Input: 100-240V0.35A, 50~60MHz Note 1: The lowest, middle, highest channel numbers of the EUT used and tested in this report are separately 1 (2410MHz), 10 (2441.5MHz) and 20 (2477MHz).. Note2:For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. 1.3. The Channel Number and Frequency Channel Frequency (MHz) Channel Frequency (MHz) 1 2410 11 2445 2 2413.5 12 2448…

Text truncated - open the document above for the full version.

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20020089S02 Annex B Test Setup Photos EUT Antenna Location: MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20020089S02 Extremity Back Side (Test distance: 0mm, Thickness of EU T: 40mm Left Side (Test distance: 0mm, Thickness of EU T: 40mm) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20020089S02 To p Side (Test distance: 0mm, Thickness of EUT: 40mm)

FCC ID:2AOKB-T8321M and IC:23451-T8321M Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement Setup (2.4G_FHSS)
