2AOKB-T8423eufy Floodlight Cam 2 Pro

Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners. QUICK START GUIDE EUFY FLOODLIGHT CAM 2 PRO English01 Deutsch27 Español49 Français73 Italiano97 Nederlands121 Portuguese145 Δϳ ˶ Α ˴ έ ˴ όϟ 169 EN 001 Table of Contents SAFETY INSTRUCTIONS 02 WHAT'S IN THE BOX 02 PRODUCT OVERVIEW 03 DECLARATIONS 04 POWERING ON YOUR FLOODLIGHT CAMERA 06 SETTING UP THE FLOODLIGHT CAMERA 07 PREPARING FLOODLIGHT CAMERA FOR INSTALLATION 08 INSTALLING THE JUNCTION BOX 09 MOUNTING YOUR FLOODLIGHT CAMERA 12 ADJUSTING THE LIGHTING ANGLE 21 NOTICE 24 002 EN SAFETY INSTRUCTIONS • Disconnect power at the fuse or circuit breaker before installing. • Do not install the product near flammable surfaces. • To avoid risk of shock, injury or death, always be cautious when working with electricity. • Consult a licensed electrician if you are uncomfortable working with electrical wiring. • Make sure the Floodlight Camera is properly grounded. • Floodlight Camera must be installed on a wall and on a UL-listed junction box. WHAT'S IN THE BOX eufy Floodlight Cam 2 Pro (T8423) Charging Cable Central Screw Central Screw CapPlate Screws Junction box Installation Hook & String EN 003 PRODUCT OVERVIEW Floodlight Speaker System Indicator Cam Component Infrared Component Light Adjustment Knob Mounting Base Tilt Adjustment Slide Block SYNC Button / USB Port Motion Sensor Component 004 EN DECLARATIONS IP65-rated dustproof and waterproof This product meets IP65 (dustproof and waterproof) requirements. For dustproof testing, the product was vacuumed and placed in a dust box. After 8 hours of testing, no dust was found in the product. For waterproof testing, the product was sprayed by a nozzle with an inner diameter of 6.3mm, and water flow of 12.5 L/min. After the test, the product operated normally with no water found inside. EN 005 Anti-corrosion The metal surface of the product is galvanized, and can survive continuous exposure to salt spray at 35 ° C +/- 2 ° C (relative humidity: 90%-95%) with a salt concentration of 5% NaCl for 48 hours in the salt spray test. Load-bearing tests The L-shaped bracket and center screw of the product are made of SUS304 steel and have passed industrial-grade outdoor reliability and durability tests. NOTE: The total weight of the product is 2.2kg (4.9lbs), and the L-shaped bracket and center screw is strong enough to carry a load of 10kg (22lbs). 10kg EN 007 SETTING UP THE FLOODLIGHT CAMERA Push and hold the button to open the mounting base and find a QR Code. Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices). Log in or sign up for a eufy Security account, then follow the on-screen instructions to complete the setup. 008 EN Make sure you can livestream video from Floodlight Camera before mounting. If the Floodlight Camera LED keeps blinking red, it means the floodlight is not connected to the Internet. Please make sure the Wi-Fi signal is strong at the desired location. You may consider moving the wireless router closer to Floodlight Camera or using a Wi-Fi range extender. . 2. Shut down the circuit breaker in your house. Switch on/off the lights to make sure the electricity in your house is properly shut off. EN 009 To avoid risk of shock, injury or death, always be cautious when working with electricity. INSTALLING THE JUNCTION BOX 1. Remove the rubber plugs indicated in the illustration below. 010 EN 2. Run the existing wire through the hole. If you don’t have existing wires outdoors, contact a licensed electrician to run the wires. 3. Install the junction box: • Orient the two mounting holes vertically to ensure stable mounting. • On wooden walls, DO NOT pre-drill holes. Use the screws provided to fix the junction box onto the wall. EN 011 • On walls that are made out of hard materials, such as stucco, brick, or concrete, drill holes with a 15/64 inch (6 mm) drill bit, and then insert the anchors provided into the holes. Use the screws provided to fix the junction box on the wall. 12 4. Unscrew the bolt with a flat-head screwdriver. Connect the Neutral (blue) / Ground (green / green and yellow) / Live (brown) wire to the Neutral / Ground / Live wire connector in the junction box respectively. Secure the wires tightly to prevent wires from falling. N L Neutral Ground Live 12 012 EN MOUNTING YOUR FLOODLIGHT CAMERA To ensure the best motion detection range, we recommend in- stalling the Floodlight Camera within 2-3 meters of the ground. You can hang Floodlight Camera upside down or install it vertically on the wall. Select the installation method that best suits the position of your junction box. Wall Mount Upside-down Mount EN 013 Mount Floodlight Camera onto a Wall STEP 1. Before Mounting 1. Pass the hook through the other end of the string as illustrated. 014 EN 2. You need a ladder to mount your Floodlight Camera on the wall. Make sure you do not place your ladder right under the Floodlight Camera. Place it to the lower left or right of the Floodlight Camera as illustrated below to avoid obstructing your view while mounting. EN 015 3. Screw part of the central screw through the center of the Junction box and leave the screw long enough to hang the Floodlight Camera using the provided hook. STEP 2. Connect Wires 1. Connect the ground wire from the Floodlight Camera to the ground wire from the wire connector in the junction box. 016 EN 2. Connect the live / neutral wire from the Floodlight Camera to the live / neutral wire from the wire connector in the junction box respectively. N L Neutral Ground Live 3. Secure the wires with a screwdriver. 4. Hold the Floodlight Camera, and remove the hook, strings, and central screw from the junction box. box. •If you have problems with the proper operation of Flood- light Camera, consult a licensed technician. •Green / gree…

Text truncated - open the document above for the full version.

Anker Innovations Limited ADD: Room 1318-19,Ho llywood Plaza,610 Nathan Road,Mongkok,Kowloon,Hong Kong Tel.: +86-13652441319 E-mail: [email protected] Date: 2021-06-18 FEDERAL COMMUNICATIONS C OMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We,Anker Innovations Limited, hereby authorize Bay Area Compliance Laboratories Corp (Dongguan) . to act as a laboratory for testing and test report generation for the following p roject(s): (Product name: eufy Floodlight Cam 2 Pro, FCC ID:2AOKB-T8423, Model name: T8423) The chip BCM43436 supports BT,BLE and WIFI. But for this device, BT was disable by software. Sincerely Yours, Client’s signature Printed Name: louis.qi Title: Manager

QA-FR-172-A Anker Innovations Limited ADD: Room 1318-19,Hollywood Plaza,610 Nathan Road,Mongkok,Kowloon,Hong Kong TEL: +86-13652441319 E-mail: [email protected] FCC Confidential Authorization Date: 2021-08-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AOKB-T8423 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Anker Innovations Limited hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description As well as short-term (secrecy cycle: 180 days) confidential treatment of information accompanying this application as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature Printed Name: louis.qi Title: Manager

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

Labbel and loccation Labeel Label

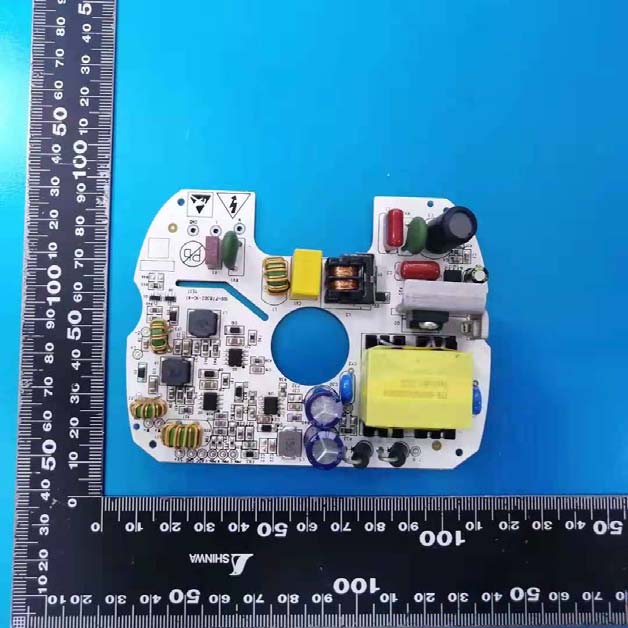

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Wifi Antenna 1(BLE Antenna) wifi Antenna 0 Antenna Antenna

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG210401004-00 Page 12 of 82 1- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Operation Mode Frequency (MHz) Antenna Gain Conducted output power including Tune-up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) BLE 2402-2480 3.86 2.43 1.00 1.26 200.0006 1.0 2.4G Wi-Fi 2412-2462 3.86 2.43 24.00 251.19 200.1216 1.0 Note: the wifi and BLE can`t transmitting simultenuously. Result: The device meet FCC MPE at 20 cm distance

FCC PART 15.247 RSS-GEN, ISSUE 5, FEBRUARY 2021 AMENDMENT 2 RSS-247, ISSUE 2, FEBRUARY 2017 TEST REPORT For Anker Innovations Limited Room 1318-19,Hollywood Plaza,610 Nathan Road,Mongkok,Kowloon,Hong Kong Report Type: Original Report Product Name: eufy Floodlight Cam 2 Pro Re port Number: RDG210401004-00 Re port Date: 2021-06-22 Reviewed By: Allen Qiao RF Supervisor Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2AOKB-T8423 IC: 23451-T8423 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG210401004-00 Page 2 of 82 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 EQUIPMENT MODIFICATIONS ..................................................................................................................................... 10 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 SUPPORT CABLE LIST AND DETAILS .......................................................................................................................... 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 1- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .............................................................................................. 12 APPLICABLE STANDARD ............................................................................................................................................ 12 2 - EXEMPTION LIMITS FOR ROUTINE EVALUATION – RF EXPOSURE EVALUATION ..................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 3 - ANTENNA REQUIREMENT ............................................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 4 – AC LINE CONDUCTED EMISSIONS ............................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST SYSTEM SETUP .................................................................................................................................................. 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 16 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 17 5 - SPURIOUS EMISSIONS ....................................................................................................................................... 19 APPLICABLE STANDARD ............................................................................................................................................ 19 TEST SYSTEM SETUP .................................................................................................................................................. 19 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .......................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
