2AOKB-Y2641Rechargeable Wireless Keyboard

010203040506 Important Safety Instructions CARE AND STORAGE What’s in the Box At a Glance DISPOSAL This keyboard is not a toy. Keep away from children. Read and follow all instructions and warnings before use. • Inspect the keyboard and charging cable before use. If any parts are damaged, contact Technical Support before resuming use. • Do not open, disassemble, modify, drop, crush, puncture, incinerate, or shred the Bluetooth® keyboard. • The keyboard is not serviceable. Do not attempt to open, repair, or modify. • To prevent a short circuit or other potential hazards, do not insert foreign metal objects into the keyboard or its ports. • Keep the keyboard away from moisture and do not use it with wet hands. Moisture in or on the keyboard may lead to electrical shock. If exposed to moisture during use, turn off and unplug the charging cable immediately. Contact Technical Support before resuming use. • The keyboard contains a lithium-ion battery. Keep away from heat sources and open flames. • It is normal for the keyboard to become warm during operation. To prevent overheating, keep the area around the keyboard ventilated. Do not place anything on or around the keyboard during operation. • Do not operate the keyboard near a heat source or in direct sunlight. Recommended for use in temperatures between -5°C and 50°C. NEVER use in temperatures outside the range of -5°C to 50°C. • If the keyboard begins to emit a strong odor, becomes hot to the touch, swells or expands, turn it off and unplug the keyboard immediately and contact Technical Support. • If the battery inside the keyboard leaks for any reason, turn off and unplug the keyboard immediately. • Do not allow the contents of the battery to contact your skin or eyes. In the event of contact, wash the affected area with large amounts of water and seek medical attention immediately. • Do not store your keyboard in areas of high temperatures (such as in your car) or in high humidity. • Do not place heavy objects on top of the keyboard. • Keep the keyboard away from oil, chemicals, and liquids. • Clean the keyboard with a damp clean cloth. • Do not burn or dispose of your keyboard in a fire or incinerator. • Do not throw your keyboard away in the trash. The keyboard contains a lithium ion battery. Contact your local electronics recycler to recycle the keyboard. • Rechargeable Wireless Keyboard • Micro USB Cable 43652 1 7 Speification KeyFn Functionality on Android Functionality on iOS Functionality on Windows ESC Key Fn LockFn LockFn Lock F1Brightness -Brightness -Brightness - F2Brightness +Brightness +Brightness + F3SearchSearchSearch F4HomeHome Open Browser F5 Open the menu N/A Open the menu 1. Caps Lock Indicator 2. Bluetooth Status Indicator 3. Connect Button 4. On/Off Slider 5.Charging Indicator 6. Power Indicator 7. USB power charging port Keys and FunctionsKeys and Functions KeyFn Functionality on Android Functionality on iOS Functionality on Windows F6BackBackPrevious Track F7 Previous Track Previous Track Previous Track F8Pause/PlayPause/PlayPause/Play F9Next TrackNext TrackNext Track F10MuteMuteMute F11Volume -Volume -Volume - F12Volume +Volume +Volume + Rechargeable Wireless Keyboard User Manual Need help? We’re here for you every day from 7 a.m. - 9 p.m. CST. Give us a call at 1-888-516-2630 We'd love to hear from you. Scan with your Walmart app and let us know what you think 26 8 1 1 3 1 3 9 7 3 2 TAAUSL100042338 0708091011121314 Pairing Your Wireless Keyboard with Your Devices Plug one end of the provided cable into the keyboard and the other into a power adapter (not provided). Note: The cable is used for charging your keyboard only. catio1 Operating Voltage3.0V - 4.2V Operating Current< 2 mA Standby Current45 uA Operating Range< 7.3 m Lithium Battery Capacity 280 mA Sleep Time< 30 min Wakeup Time3 sec Charging Voltage / Current (Max) 5V / 200 mA Operating Temperature -5 °C to 50 °C Bluetooth VersionBT 5.1 (BDR) Standby Time90 days Working Time90 hours Specifications Notice Notice CAUTION FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong The following importer is the responsible party. Company Name: Fant…

Text truncated - open the document above for the full version.

Anker Innovations Limited Agent Authorization Company: Anker Innovations Limited Address: Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong Product Name: Rechargeable Wireless Keyboard Model Number(s): TAAUSL100042338 Product Description: Rechargeable Wireless Keyboard We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-19 Name: louis Qi Company: Anker Innovations Limited

AnkerInnovationsLimited OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Subject;RequestforConfidentiality FCCID:2AOKB-Y2641 Date: 2021-03-15 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely AnkerInnovationsLimited Contactperson: louisQi

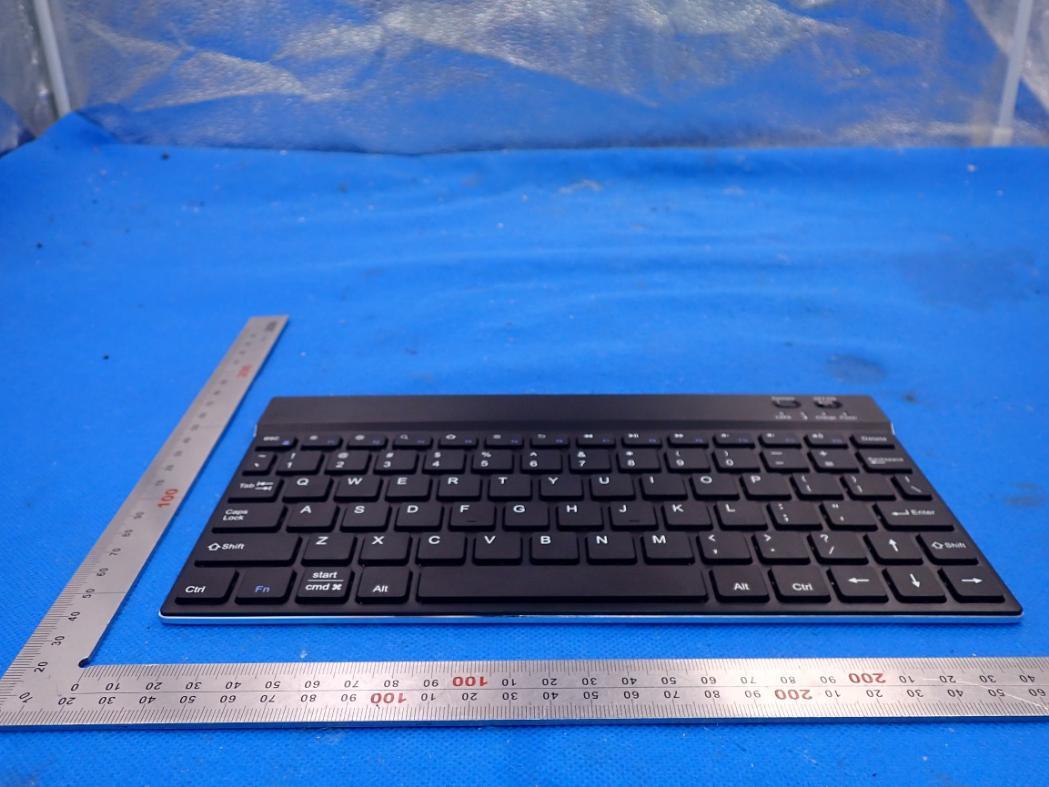

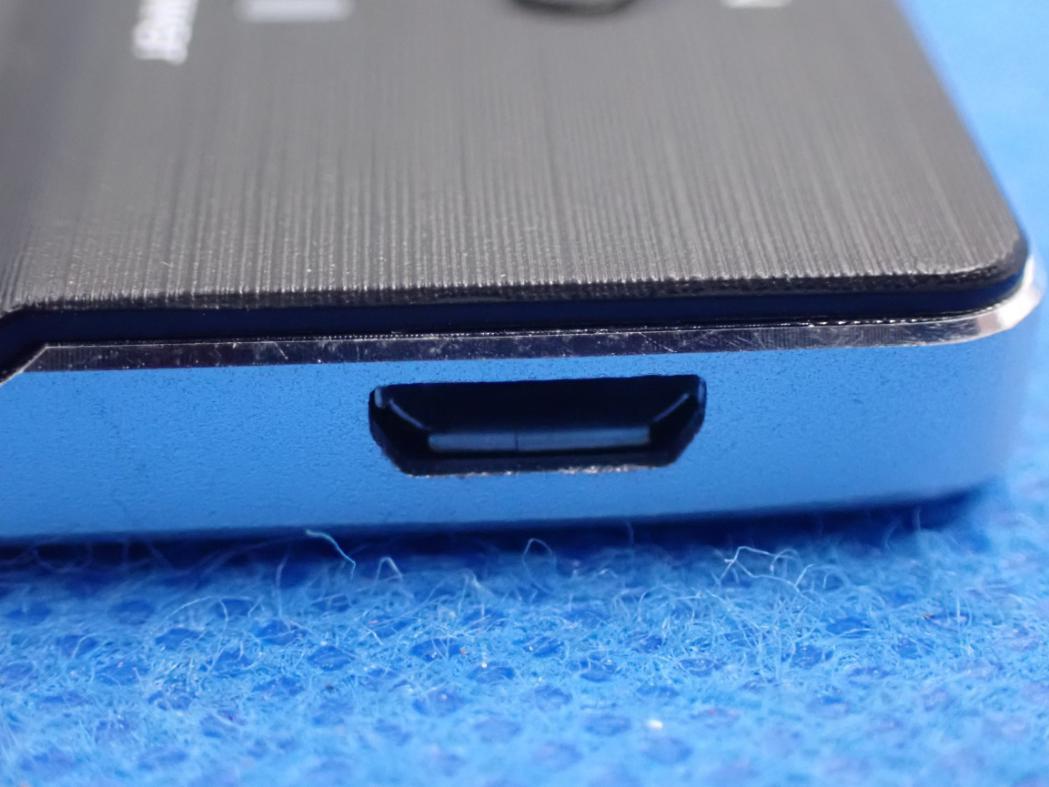

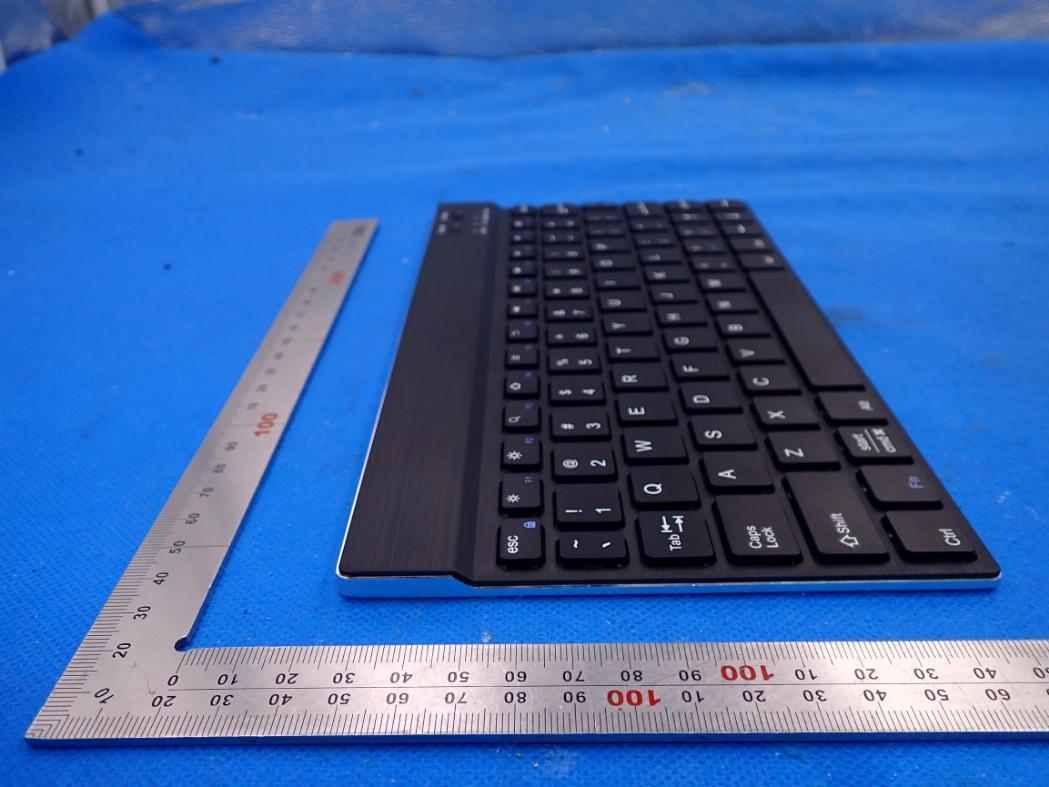

External Photos EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT EXTERNAL VIEW-7 OF EUT

FCC ID Label Location • Note: The label is located on the back of the product, slightly above the middle. FCC ID: 2AOKB-Y2641

Internal Photos INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT Antenna INTERNAL VIEW-5 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Rechargeable Wireless Keyboard Model Name TAAUSL100042338 FCC ID 2AOKB-Y2641 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR P t =-6.333dBm=0.23mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.23mW /5mm) .[√2.402GHz)]=0.07<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 51 FCC Test Report Report No.: AGC00803210302FE03 FCC ID : 2AOKB-Y2641 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Rechargeable Wireless Keyboard BRAND NAME : MODEL NAME : TAAUSL100042338 APPLICANT : Anker Innovations Limited DATE OF ISSUE : Mar. 15, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00803210302FE03 Page 2 of 51 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 15, 2021 Valid Initial Release Report No.: AGC00803210302FE03 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.10. ANTENNA REQUIREMENT .................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 16 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 17 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 19 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 19 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 19 Report No.: AGC00803210302FE03 Page 4 of 51 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 19 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 19 10. RADIATED EMISSION ............................................................................................................................... 28 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 28 10.2. TEST SETUP ....................................................................................................................................... 30 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 31 10.4. TEST RESULT ..................................................................................................................................... 31 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 41 11.1. MEASUREMENT PROCEDURE ..........…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
