2AON7-WJ8063TZUMIionvac UltraClean UV sanitizing robo vac (Robotic Vacuum Cleaner)

 PP3ⵖ梷⊠┡昱ゾⓅ☦勱⋚槊⊠┡昱ゾⓅ毦毁峷㛮╌ϸ1-

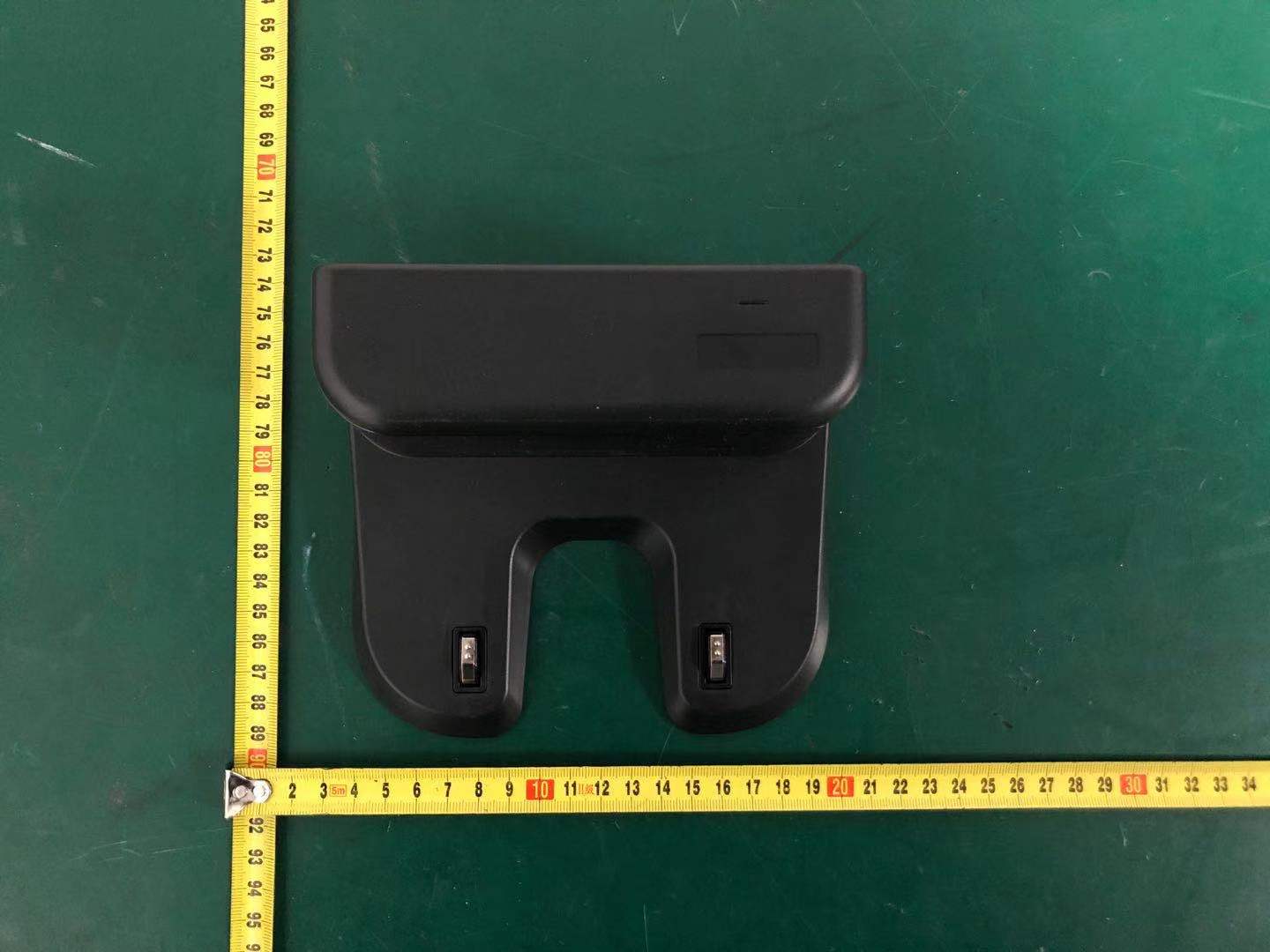

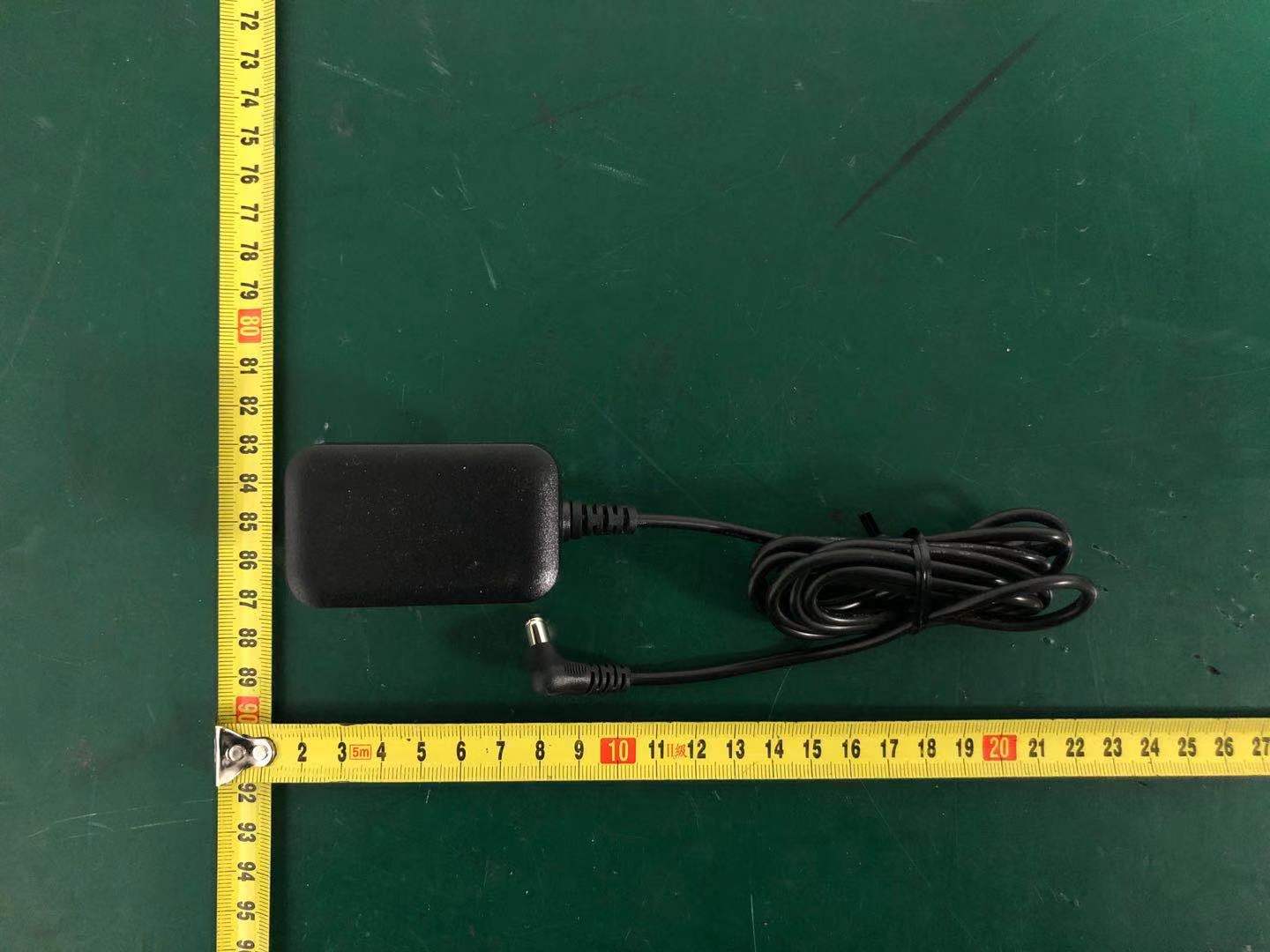

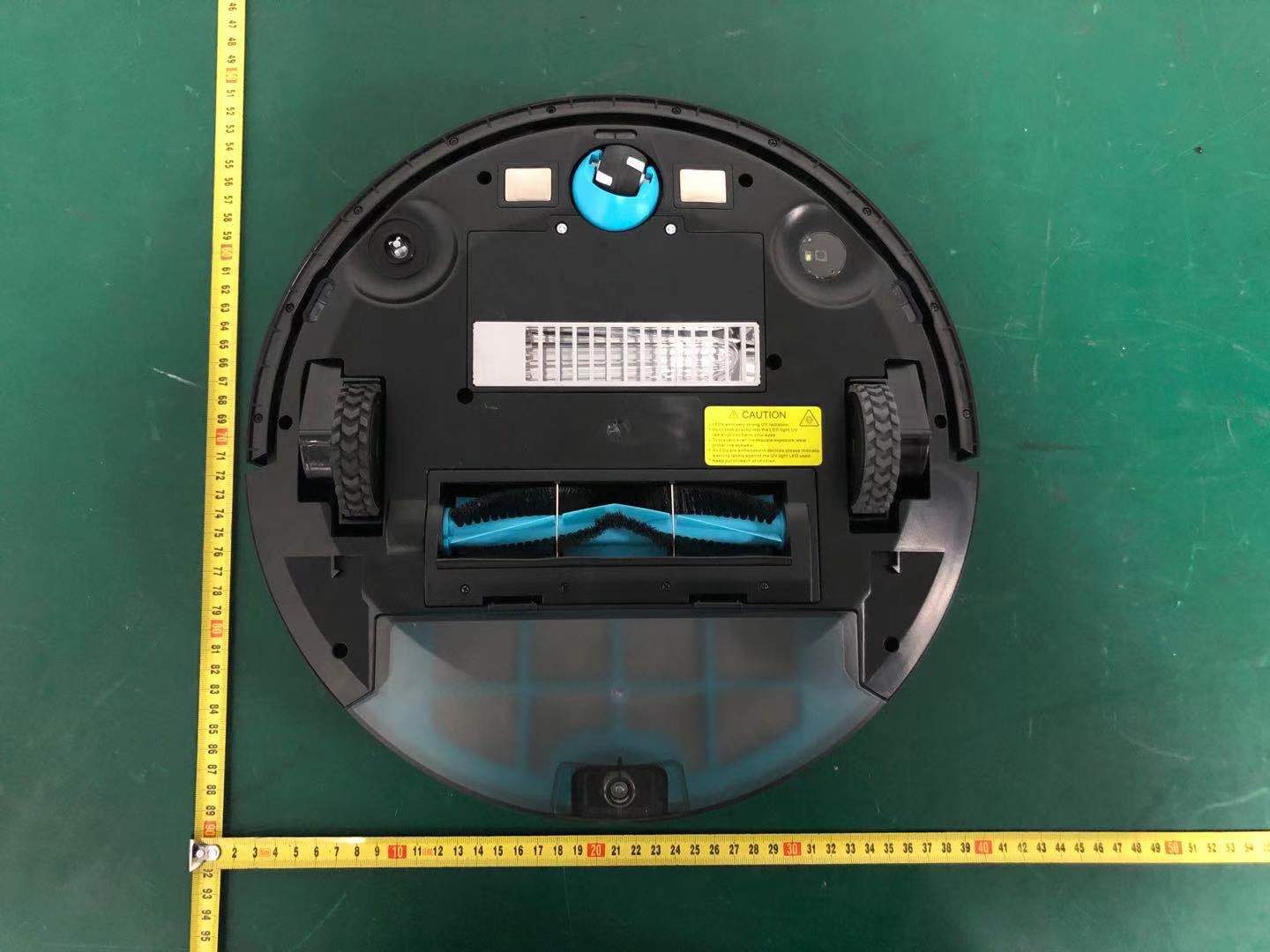

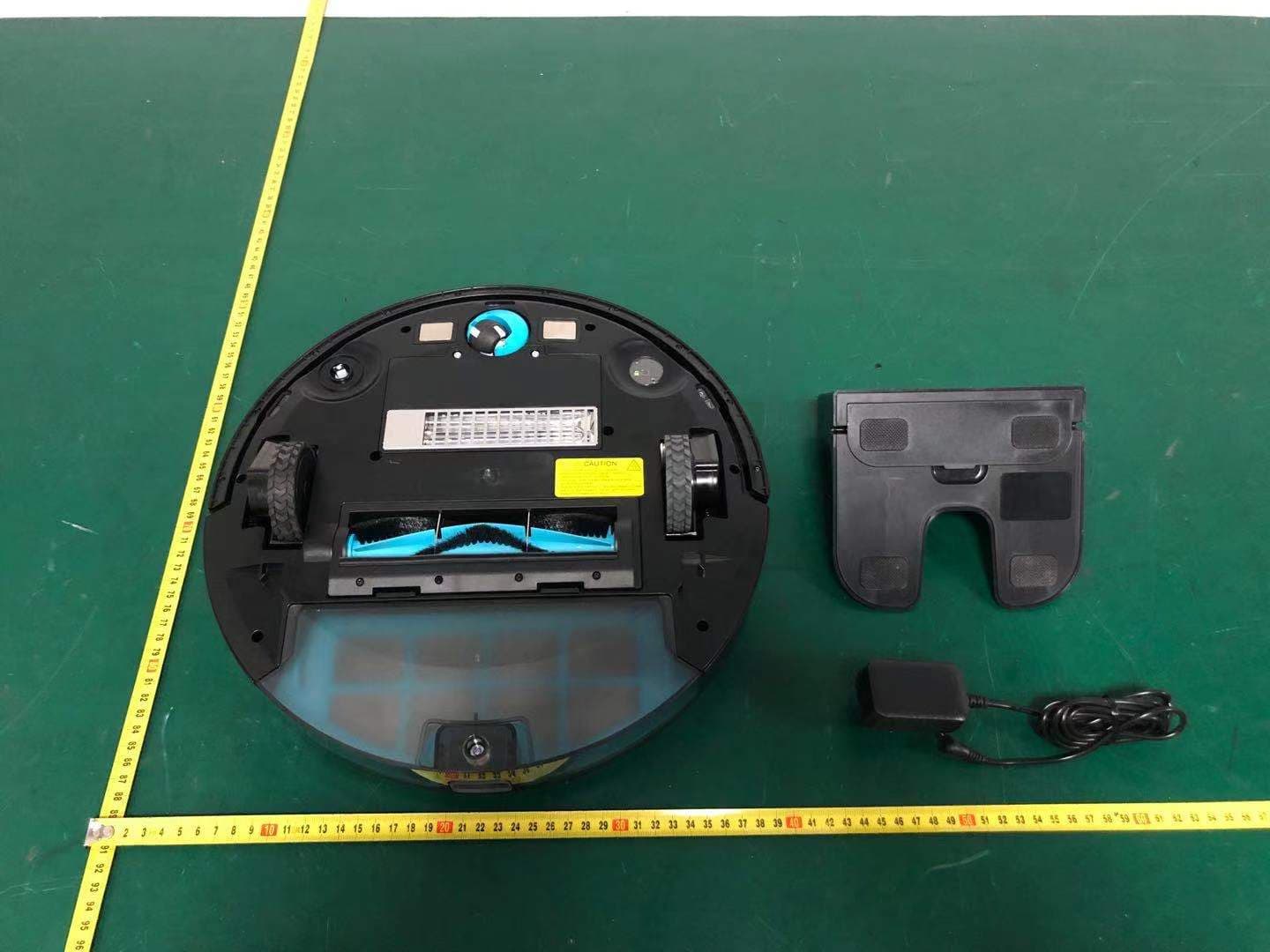

External Photos M/N: 8063 External Photos M/N: 8063 External Photos M/N: 8063 External Photos M/N: 8063 External Photos M/N: 8063 Power Supply Power Supply

79.5mm 31.5mm 8063 Label Location 79.5mm 31.5mm 8063WM Label Location

Internal Photos M/N: 8063 Internal Photos M/N: 8063 Internal Photos M/N: 8063 Internal Photos M/N: 8063 Internal Photos M/N: 8063 Internal Photos M/N: 8063 Wi-Fi Antenna Internal Photos M/N: 8063 Internal Photos M/N: 8063 Internal Photos M/N: 8063 Internal Photos M/N: 8063 Internal Photos M/N: 8063 Internal Photos M/N: 8063

FCC ID: 2AON7-WJ8063TZUMI EST Technology Co. ,Ltd Report No. ESTE-R2101075 Page 1 of 4 FCC 47 CFR MPE REPORT TZUMI Electronics,LLC ionvac UltraClean UV sanitizing robo vac (Robotic Vacuum Cleaner) Model Number: 8063 Additional Model: 8063WM FCC ID: 2AON7-WJ8063TZUMI Prepared for: TZUMI Electronics,LLC 16 EAST 34TH STREET 16TH FLOOR, New York 10016, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2101075 Date of Test: Dec. 25, 2020~Jan. 18, 2021 Date of Report: Jan. 20, 2021 FCC ID: 2AON7-WJ8063TZUMI EST Technology Co. ,Ltd Report No. ESTE-R2101075 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AON7-WJ8063TZUMI EST Technology Co. ,Ltd Report No. ESTE-R2101075 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AON7-WJ8063TZUMI EST Technology Co. ,Ltd Report No. ESTE-R2101075 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11b 2412 15.71 37.239 15 ±1 2.5 1.78 2437 15.63 36.559 15 ±1 2.5 1.78 2462 15.51 35.563 15 ±1 2.5 1.78 IEEE 802.11g 2412 20.11 102.565 20 ±1 2.5 1.78 2437 20.00 100.000 20 ±1 2.5 1.78 2462 19.99 99.770 19 ±1 2.5 1.78 IEEE 802.11n HT20 2412 20.04 100.925 20 ±1 2.5 1.78 2437 20.61 115.080 20 ±1 2.5 1.78 2462 20.16 103.753 20 ±1 2.5 1.78 IEEE 802.11n HT40 2422 17.51 56.364 17 ±1 2.5 1.78 2437 17.47 55.847 17 ±1 2.5 1.78 2452 17.52 56.494 17 ±1 2.5 1.78 3. Calculated Result and Limit Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) 2.4G Band IEEE 802.11b 16 2.5 1.78 0.01408 1 Compiles IEEE 802.11g 21 2.5 1.78 0.04454 1 Compiles IEEE 802.11n HT20 21 2.5 1.78 0.04454 1 Compiles IEEE 802.11n HT40 18 2.5 1.78 0.02232 1 Compiles End of Test Report

FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 44 of 86 8. RADIATED SPURIOUS EMISSIONS AND BAND EDGE 8.1. Limit All the emissions appearing within 15.205 restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 15.205 Restricted frequency band 15.209 Limit Frequency (MHz) Field Strength(μV/m) Distance(m) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Note: (1) Emission level dBV = 20 log Emission level V/m. (2) The smaller limit shall apply at the cross point between two frequency bands. (3) Distance is the distance in meters between the measuring instrument,antenna and the closest point of any part of the device or system. FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 45 of 86 8.2. Test setup FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 46 of 86 8.3. Spectrum Analyzer Setting For 9KHz-150KHz Spectrum Parameters Setting RBW 300Hz(for Peak&AVG)/CISPR 200Hz(for QP) VBW 300Hz(for Peak&AVG)/CISPR 200Hz(for QP) Start frequency 9KHz Stop frequency 150KHz Sweep Time Auto Detector PEAK/QP/AVG Trace Mode Max Hold For 150KHz-30MHz Spectrum Parameters Setting RBW 9KHz VBW 9KHz Start frequency 150KHz Stop frequency 30MHz Sweep Time Auto Detector QP Trace Mode Max Hold For 30MHz-1GHz Spectrum Parameters Setting RBW 120KHz VBW 300KHz Start frequency 30MHz Stop frequency 1GHz Sweep Time Auto Detector QP Trace Mode Max Hold For Above 1GHz Spectrum Parameters Setting RBW 1MHz VBW PEAK Measurement AVG Measurement 3MHz Duty cycle≥98%,VBW=10Hz Duty cycle＜98%,VBW≥1/T Start frequency 1GHz Stop frequency 25GHz Sweep Time Auto Detector PEAK Trace Mode Max Hold Note : 1. T is the on-time time of the duty cycle,when EUT transmit continuously with maximum output power,unit is seconds. reference section 2.8 for the on-time time. FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 47 of 86 8.4. Test Procedure a. EUT was placed on a turn table, which is 0.1 meter high above ground for below 1GHz test, and which is 0.1 meter high above ground for above 1GHz test. b. EUT is set 3 meters away from the receiving antenna, which is mounted on a antenna tower. c. Set the EUT transmit continuously with maximum output power. d. The turn table can rotate 360 degrees to determine the position of the maximum emission level. e. The antenna can be moved up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on test. f. Spectrum analyzer setting parameters in accordance with section 8.3. g. Repeat above procedures until all channels were measured. h. Record the results in the test report. Note: 1. For emissions above 1GHz, if peak level comply with average limit, then the average level is deemed to comply with average limit. 2. The frequency 2412MHz/2422MHz/2437MHz/2452MHz/2462MHz are fundamental frequency,which no limit, the limit on plots is automatically generated by the software, it's not fundamental limit, we can't remove it. FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 48 of 86 8.5. Test Result Radiated Emissions Below 1GHz FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 49 of 86 Note: 1. The amplitude of 9KHz to 30MHz spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. 2. All channels had been pre-test,only the worst case was reported. FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 50 of 86 Radiated Emissions Above 1G FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 51 of 86 FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 52 of 86 FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 53 of 86 FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 54 of 86 FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 55 of 86 Note: 1. The amplitude of 18GHz to 25GHz spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. 2. All test mode had been pre-test,only Low/Middle/High Channel of the worst case modulation mode was reported. FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 56 of 86 Radiated Band Edge FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 57 of 86 FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 58 of 86 FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 59 of 86 Note: 1. All channels had been pre-test,only of the worst case channels were reported. FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 60 of 86 9. AC POWER LINE CONDUCTED EMISSIONS 9.1. Limit Frequency Maximum RF Line Voltage Quasi-Peak Level dB(V) Average Level dB(V) 150kHz ~ 500kHz 66 ~ 56* 56 ~ 46* 500kHz ~ 5MHz 56 46 5MHz ~ 30MHz 60 50 Note: 1. * Decreasing linearly with logarithm of frequency. 2. The lower limit shall apply at the transition frequencies. 9.2. Test Setup 9.3. Spectrum Analyzer Setting Spectrum Parameters Setting RBW 9KHz VBW 9KHz Start frequency 150KHz Stop frequency 30MHz Sweep Time Auto Detector QP/AVG Trace Mode Max Hold 9.4. Test Procedure a. The EUT was placed on a non-metallic table, 0.1m above the ground plane. b. The EUT Power connected to the power mains through a line impedance stabilization network. c. Provides a 50 ohm coupling impedance for the EUT (Please refer the block diagram of the test setup and photographs). d. Set the EUT transmit continuously with maximum output power. e. Spectrum analyzer setting …

Text truncated - open the document above for the full version.

FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 1 of 86 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TZUMI Electronics,LLC ionvac UltraClean UV sanitizing robo vac (Robotic Vacuum Cleaner) Model Number: 8063 Additional Model: 8063WM FCC ID: 2AON7-WJ8063TZUMI Prepared for: TZUMI Electronics,LLC 16 EAST 34TH STREET 16TH FLOOR, New York 10016, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2101074 Date of Test: Dec. 25, 2020~Jan. 18, 2021 Date of Report: Jan. 20, 2021 FCC ID: 2AON7-WJ8063TZUMI EST Technology Co., Ltd Report No. ESTE-R2101074 Page 2 of 86 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test Mode ......................................................................................................................................... 9 2.7. Power Setting of Test Software ...................................................................................................... 10 2.8. Duty Cycle ...................................................................................................................................... 10 2.9. Channel List ................................................................................................................................... 13 2.10. Test Equipment List ....................................................................................................................... 14 3. 6DB BANDWIDTH .......................................................................................................................... 15 3.1. Limit ............................................................................................................................................... 15 3.2. Test Setup ....................................................................................................................................... 15 3.3. Spectrum Analyzer Setting ............................................................................................................. 15 3.4. Test Procedure ................................................................................................................................ 15 3.5. Test Result ...................................................................................................................................... 16 4. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 23 4.1. Limit ............................................................................................................................................... 23 4.2. Test Setup ....................................................................................................................................... 23 4.3. Spectrum Analyzer Setting ............................................................................................................. 23 4.4. Test Procedure ................................................................................................................................ 23 4.5. Test Result ...................................................................................................................................... 24 5. POWER SPECTRAL DENSITY .......................................................................................................... 31 5.1. Limit ............................................................................................................................................... 31 5.2. Test Setup ....................................................................................................................................... 31 5.3. Spectrum Analyzer Setting ............................................................................................................. 31 5.4. Test Procedure ................................................................................................................................ 31 5.5. Test Result ...................................................................................................................................... 32 6. CONDUCTED BAND EDGE ............................................................................................................. 39 6.1. Limit ............................................................................................................................................... 39 6.2. Test Setup .................…

Text truncated - open the document above for the full version.

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
