2AONZHL1C4iFootage RGBW Handy Light

Zhongshan Dashan Photographic Equipment Co.,Ltd
iFootage RGBW Handy Light - FCC ID 2AONZHL1C4 - Zhongshan Dashan Photographic Equipment Co.,Ltd
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 24, 2022
Application Purpose
Original Equipment
Date of Application
Nov 24, 2022
Equipment Note
iFootage RGBW Handy Light
Frequency Range
2402.00000000 - 2480.00000000
Company
Zhongshan Dashan Photographic Equipment Co.,Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗
↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

HL1 C4 RGBW Handy Light User Manual Thank you for purchasing this iFootage product. This manual provides important user information for the HL1 C4 Handy Light. Please read the manual carefully before operating the equipment and keep the manual safe for future reference. The HL1 C4 is a portable, exible,RGBW handy light and features colour temperature, HSI, special eects and multi-light control. It's the perfect light for Smartphone recording, interior and exterior video recording, vlogging, Youtube presenting, wedding and event photography and much more. CONTENTS FEATURES1 PRECAUTIONS 2 COMPONENT DESCRIPTION 3 USER GUIDE 4 APP OVERVIEW 13 BLUETOOTH INTRODUCTION 12 MODE SELECTION 8 LIST OF ITEMS 15 PRODUCT PARAMETERS 15 NOTES 16 MAINTENANCE17 FCC STATEMENT 18 IC STATEMENT19 IFOOTAGE RGBW HANDY LIGHT 20 1 1. The colour temperature range is 2700K~10000K. A CRI RA value of 95 is achieved when the colour temperature range is between 2700K and 7500K. 2. A customized TIR lens improves LED energy consumption. 3. The rotating lights ensure more realistic shadows. 4. Quickly move between spot light and soft light functions. 5. The rear of the handy light is magnetic allowing the light to be attached to metal surfaces. 6. The Handy Light is convenient, compact and portable - small enough to t in your pocket. 7. The light has CCT, HSI, numerous special eects options and can be controlled using the Lumix APP via Bluetooth to access RGBW, colour co-ordinates XY, paper colour GEL, keyframes and multi-light control modes. 8 Built-in SOS light signal. 9. Low battery prompt: Battery display ashes to provide low battery warning. Battery level is constantly shown on the display. 10. Overheat protection: if the product is in use or charging and the temperature is too high - the 'Overheat Warning' will appear. FEATURES 2 PRECAUTIONS 1. Do not expose to water or other liquids. This product is not dustproof or waterproof. 2. Please ensure that you do not apply pressure to the OLED screen as this may result in permanent screen damage. 3. Do not look directly into the LED bead lights as this may impair vision. 4. When the product is not in use for an extended period of time, it is recom- mended that it should be discharged and recharged to a minimum of 60% power in order to preserve the life of the battery. 5. This product's battery contains potentially harmful materials and needs to be disposed of appropriately. Please follow your local waste management guide- lines when recycling or disposing of the battery. 1 2 3 4 5 6 7 8 9 1 2 3 4 5 7 6 8 9 3 COMPONENT DESCRIPTION 4 Functions: User operation instructions Key features USER GUIDE 1. To turn on the HL1 C4, press and hold the power button for 3 seconds, then release the power button when the screen lights up. 2. To turn o the HL1 C4, press and hold the power button for 3 seconds, then release the power button when the screen turns o. 3. To temporarily switch the light o, press once and press again to switch the light back on. 1. Press and hold the SET button to select an operational mode. Press again to select the chosen mode. 2. Press the SET button to select the parameter. On/O Power Button SET Button Type-C Charging Port “+”Key / Previous “- ”Key / Next On/O Power Button SET Button Type-C Charging Port Power input connector. Input voltage 5V, current 1A. 5 USER GUIDE “ +” Key / Previous,“ -” Key / Next 1. The value of the corresponding parameter is adjusted. 2. Use "+" and "- " to adjust parameters. The main display interface shows colour temperature, HSI, special eects, Bluetooth reset, and additional settings (colour temperature, HSI, eects, green/ magenta, saturation and brightness are all adjustable). Display Example: Automatic switching between battery life time and device ID code Main Interface Colour parameter interface Colour parameter interface Bluetooth Connection Indicator Power Level Indicator (Low Power Flashing) Colour temperature 6 Soft Cover When the soft cover is removed the light will create a spot light eect. With the soft cover attached the light will create a soft light or diused eect. Once removed, the soft cover can be safely housed on the back case. USER GUIDE For diused lighting please use the soft cover For a spot light eect, please remove the soft cover 7 1/4”thread The base of the light has a 1/4" thread designed for attaching to most accessories. Built-in magnets in the back case USER GUIDE Magnets have been located in the back casing so that the lights can be securely attached to metal objects. Metal shelving For example: 8 CCT Mode When CCT mode is selected: Use the "+,-" button -> to adjust parameter value Press the SET button to select The adjustable parameters within colour temperature mode are: colour temperature range of 2700K ~ 10000K. Brightness range of 0% ~ 100% and a green/magenta range of -1 ~ +1. Press and hold the SET button -> Press the SET button to select the parameters -> Select special eects mode using "+,-" Mode Selection 9 Press and hold the SET button →Press the SET button to select/switch the parameters →Select the HSI mode with "+, -" HSI Mode "+, -" button → adjust the parameter value Press the SET button to select The adjustable parameters of the HSI mode are: HSI range 0° ~ 360°, saturation range 0% ~100% and brightness 0% ~100%. Mode Selection On/O Key Press To Switch On/O When HSI mode is selected: 10 Press and hold the SET button -> Press the SET button to select the parameters -> Select special eects mode using "+,-" Special Eects Mode Use the "+,-" button -> to adjust parameter value Press the SET button to select There are in excess of 18 special effects including: fireworks, SOS, rainbow, lightening, TV light emission, pulsating light, emergency vehicle, firelight, nightclub or party, strobe light, welding light, flickering candlelight, intermittent light bulb, light through clouds and explosion. Brightness ranges from 0% - 100%. Mode Selection On/O Key Press To Switch On/O…

Text truncated - open the document above for the full version.

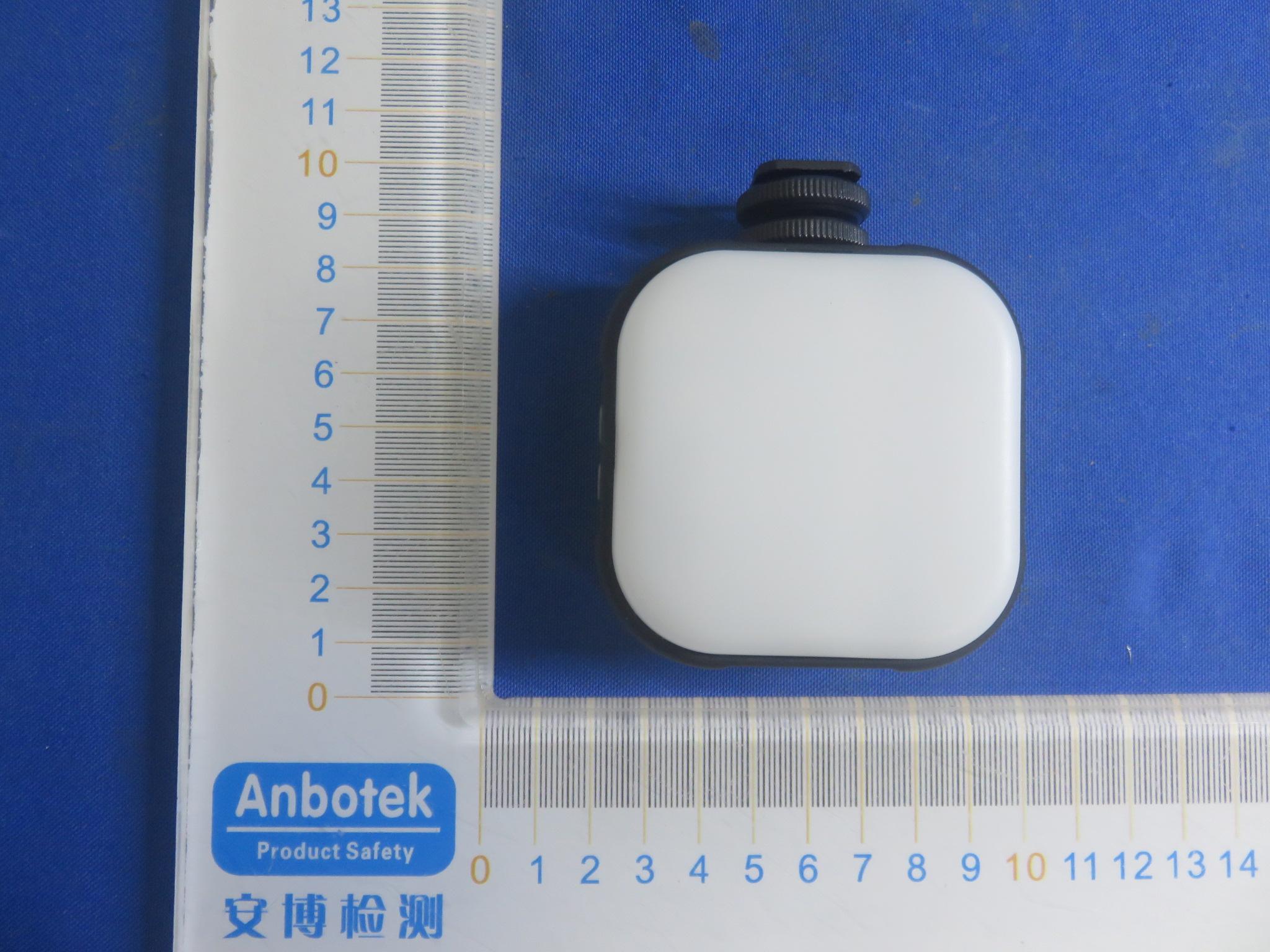

External Photos

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b

Internal Photos

Code:AB-RF-05-b InternalPhotograph ANT Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

Operational Description

version01 ZhongshanDashanPhotographicEquipmentCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:HL1C4 FCCID: 2AONZHL1C4 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:FPCantenna Gainoftheantenna:3.43dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ZhongshanDashanPhotographicEquipmentCo.,Ltd. Address:No.147ChengguiRoad,DabuVillage,SanxiangTown,Zhongshan,China City:Zhongshan ZIP/Postalcode:/ Country:China Place:ZhongshanDate:11/18/2022 Signature:

Operational Description

承认书项目表 内容 页数页码 NO. ( Number ( Page ( Contents ) ofPage ) Code ) 1 承认书封面(SpecCover) 11 2 承认书项目表(SpecItem) 12 3 工程成品图(Drawing) 13 4 电性测试报告(TestReports) 14 5 S参数测试(SParameter) 15 6 增益测试(GainTest) 16 7 8 9 10 --- 11--- 12 --- Tel:0769-33691210Fax:0769-82381572 D E S C R I P T I O N S I G N D A T E A P P R O V E R D C B Y D 2 0 1 4 - 0 3 - 1 8 S C A L E : 1 / 1 U N I T S : m m R E V I S I O N : A A P P R O V E D B Y T o l e r a n c e T I T L E : W I F I A N T E N N A P A R T N O . : D W G N A M E : C H E C K E D B Y D E S I D N E D B Y ± 3 ° X ° X . X ± 0 . 2 0 X . X X ± 0 . 1 0 F P C 3 7 * 1 0 * 0 . 1 m m O . D . 1 . 1 3 m m B l a c k M i n i C o n n e c t o r P a r t N u m b e r N a m e M X 2 4 5 8 N - A 0 1 F P C R - C B - 1 1 3 B C o a x i a l C a b l e C o n n e c t o r C I - 1 1 3 1 N o . 2 3 1 1 Q ' t y 1 M a t e r i a l l e o n 2 0 1 4 - 0 3 - 1 8 j e f f 2 0 1 4 - 0 3 - 1 8 东 莞 市 速 波 电 子 有 限 公 司 6 0 电性测试报告 T estReports Impedance50 0hm Nominal Return Loss-10 dB Max RadiationOmni-directional Cable Loss2 dB / m Max @ 5000 MHz PolarizationLinear, Vertical Admitted Power1 W Connector P hysicalProperties Antenna MaterialFPC Cable TypeO.D. 0.81mm // 60 mm Operating Temp. -10 ~ +60 ̊C Storage Temp.-10 ~ +70 ̊C T el:0769-33691210 Fax:0769-82381572 Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <= 2.0 @ 2400 ~ 2500 MHz Antenna Gain 3.43dBi S参数测试 SParameterTest AgilentE5071C Tel:0769-33691210Fax:0769-82381572 增益测试 GainTest Antenna Radiation Pattern VS Gain Tel:0769-33691210Fax:0769-82381572 0 OTA TEST RESULT Client Test Date 2022/11/1 Product Name NB3710IPX4-081 -LX60 Model / Temperature 19 °C -21 °C Humidity 70% Frequency (MHz)Efficiency (%)Gain (dBi) 2400 62.33%3.19 2410 61.50%3.21 2420 60.28%3.23 2430 63.42%3.16 2440 64.53%3.28 2450 65.50%3.31 2460 64.38%3.43 2470 64.56%3.24 2480 63.56%3.32 2490 60.56%3.14 2500 62.12%3.21 Zhongshan Dashan Photographic Equipment Co.,Ltd.

RF Exposure Info

RFEXPOSUREEVALUATION FCCID:2AONZHL1C4 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 24021.971.97 ±1 2.9750.614 3 GFSK 244022 ±1 35 0.623 3 248022 ±1 350.628 3 Result:NoStandaloneSARtestisrequired.

Test Report

Page1of23 AppendixTestData ReportNo.:18220WC20235801TestSampleNo.:1-2-2 StartTestDate:2022.10.9FinishTestDate:2022.10.10 TestEngineer:Auditor: Temperature:27.3 °C RelativeHumidity:47% Pressure:1012hPa AppendixA:DTSBandwidth TestResult TestModeAntennaFrequency[MHz] DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.6442401.6682402.3120.5PASS 24400.6602439.6642440.3240.5PASS 24800.6362479.6642480.3000.5PASS Page2of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page3of23 Page4of23 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz] OCB[MHz] FL[MHz]FH[MHz] BLE_1MAnt1 24021.03942401.47502402.5144 24401.03542439.47612440.5115 24801.03432479.47852480.5128 Page5of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page6of23 Page7of23 AppendixC:Maximumoutputpower TestResultPeak TestModeAntennaFrequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] EIRP Power[dBm] EIRP Limit[dBm] Verdict BLE_1MAnt1 24021.97≤305.4≤36.02PASS 24402≤305.43≤36.02PASS 24802≤305.43≤36.02PASS Page8of23 TestGraphsPeak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page9of23 Page10of23 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-13.06≤8.00PASS 2440-13.05≤8.00PASS 2480-13.01≤8.00PASS Page11of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page12of23 Page13of23 AppendixE:Bandedgemeasurements TestResult TestMod e Antenn a ChNam e Frequency[MHz ] RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1MAnt1 Low24021.17-49.39≤-18.83PASS High24801.00-52.95≤-19PASS Page14of23 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Page15of23 AppendixF:ConductedSpuriousEmission TestResult TestMod e Antenn a Frequency[MHz ] FreqRange [MHz] RefLeve l [dBm] Result[dBm ] Limit[dBm ] Verdic t BLE_1MAnt1 2402 Reference0.090.09---PASS 30~10000.09-56.66≤-19.91PASS 1000~2650 0 0.09-53.52≤-19.91PASS 2440 Reference0.830.83---PASS 30~10000.83-56.79≤-19.17PASS 1000~2650 0 0.83-52.94≤-19.17PASS 2480 Reference1.071.07---PASS 30~10001.07-57.01≤-18.93PASS 1000~2650 0 1.07-53.59≤-18.93PASS Page16of23 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Page17of23 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Page18of23 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Page19of23 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Page20of23 Page21of23 AppendixG:DutyCycle TestResult TestModeAntennaFrequency[MHz] ONTime [ms] Period [ms] DutyCycle [%] DutyCycle Factor[dB] BLE_1MAnt1 24020.390.6361.902.08 24400.390.6361.902.08 24800.390.6361.902.08 Page22of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page23of23 ---End---

Test Report

ReportNo.:18220WC20235801FCCID:2AONZHL1C4Page1of30 Code:AB-RF-05-b FCCTestReport ClientName: ZhongshanDashanPhotographicEquipment Co.,Ltd. ClientAddress: No.147ChengguiRoad,DabuVillage, SanxiangTown,Zhongshan,China ProductName:iFootageRGBWHandyLight ReportDate:Nov.18,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20235801FCCID:2AONZHL1C4Page2of30 Code:AB-RF-05-b Contents 1.GeneralInformation ............................................................................................................................................6 1.1.ClientInformation ....................................................................................................................................6 1.2.DescriptionofDevice(EUT) ..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest .................................................................................................7 1.4.DescriptionofTestConfiguration ..........................................................................................................7 1.5.DescriptionOfTestSetup ......................................................................................................................8 1.6.TestEquipmentList .................................................................................................................................9 1.7.MeasurementUncertainty ....................................................................................................................10 1.8.DescriptionofTestFacility ...................................................................................................................10 2.SummaryofTestResults .................................................................................................................................11 3.ConductedEmissionTest ................................................................................................................................12 3.1.TestStandardandLimit ........................................................................................................................12 3.2.TestSetup ...............................................................................................................................................12 3.3.TestProcedure .......................................................................................................................................12 3.4.TestData .................................................................................................................................................12 4.RadiationSpuriousEmissionandBandEdge .............................................................................................15 4.1.TestStandardandLimit ........................................................................................................................15 4.2.TestSetup ...............................................................................................................................................15 4.3.TestProcedure .......................................................................................................................................16 4.4.TestData .................................................................................................................................................17 5.MaximumPeakOutputPowerTest ...............................................................................................................25 5.1.TestStandardandLimit ........................................................................................................................25 5.2.TestSetup ...............................................................................................................................................25 5.3.TestProcedure .......................................................................................................................................25 5.4.TestData .................................................................................................................................................25 6.6DBOccupyBandwidthTest ..........................................................................................................................26 6.1.TestStandardandLimit ........................................................................................................................26 6.2.TestSetup ...............................................................................................................................................26 6.3.TestProcedure .......................................................................................................................................26 6.4.TestData .................................................................................................................................................26 7.PowerSpectralDensityTest ...........................................................................................................................27 7.1.TestStandardandLimit ........................................................................................................................27 7.2.TestSetup ...............................................................................................................................................27 7.3.TestProcedure .......................................................................................................................................27 7.4.TestData .................................................................................................................................................27 8.100kHzBandwidthofFrequencyBandEdgeRequirement ......................................................................28 ReportNo.:18220WC20235801FCCID:2AONZHL1C4Page3of30 Code:AB-RF-05-b 8.1.TestStandardandLimit ..........................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b

Contact Information

Applicant

Xiaolan Zhu
[email protected]076085886553Fax: 076085886552

Test Firm

Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
[email protected]86-755-26064492Fax: 86-755-26014772

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.60 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted.
