2AOOM-G80Keyboard

SHENZHEN OUNI TECHNOLOGY CO.,LTD.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jan 22, 2026
Application Purpose: Original Equipment
Equipment Note: Keyboard
Frequency Range: 2402.00000000 - 2480.00000000
Company: SHENZHEN OUNI TECHNOLOGY CO.,LTD.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 SPECIFICATION AND USER MANUAL Model Name: 794 Triple mode wireless keyboard Keys:94keys Product Picture Category Details Standard Details Standard BASE SPECIFICATION Keyboard Type Membrane Keyboard Layout Version EN /US/UK/ES/TR Interface Type USB Detachable Size (L * W * H) 392.7×144.15×35.31± 1mm Connection Mode Wired/Bluetooth/2.4G N.W 671g BT Channel Two Bluetooth Version 5.0&3.0 Multimedia Function Key Support Cable Type C wired Rechargeable Working Voltage DC 3.7V Cable Color Black or White Key Material ABS Interface Compatibility USB1.1port&lastest Key Resilience 60 ± 10 g System Compatibility All Windows operating systems WIN XP, WIN7,WIN8,WIN10 (In Win95, Win98 systems, drivers may be required) Key Life 10 million times Backlight Color RGB Backlight Support Backlit Breathing Light Yes Backlight Control Key Yes Wave Lighting No Battery Capacity 2000mAh Return rates 125Hz ESD Test Passed 2 Editable Software No Ergonomic Yes Support Plug and Play Support Letter Printing Laser print IC core BYKC-PX794-9520-V 1.0 Working Current < 50 mA Working Humidity 10%~90% RH 25°C Storage Humidity 5%~95% RH 25°C Storage Temperature -20°C~65°C Working Temperature 5°C~50°C Aesthetic Seam Test Seam between the top cover and bottom cover: 0.2 ± 0.1 mm. Keyboard Noise Test: Measured at a distance of 420 ± 10 mm, noise level ≤ 90 dB. Selling Points 1 No USB driver is required for plug and play 2 FN function 3 Comfortable & delicate touch feeling 4 Not greasy after long Use/Quite typing /Quick response 5 FN+Pgup Increase Brightness of the LED light FN+Pgdown Decrease Brightness of the LED light 6 Fashionable, designed colors，mysterious color 7 Abs materials ,not easy to break,super durable 8 Different layer key cap design,Ergonomic 9 19 keys Anti-ghosting Material specification parameter Spare Part Color Material Surface Treatment Cover White ABS - Bottom White ABS - Key caps White&blue&red ABS - Aluminum Plate ABS Two-stage Adjustable Feet ABS Foot pad Silicone 3 Windows system Multimedia Shortcuts KEY COMBINATION MAC system Multimedia Shortcuts KEY COMBINATION FN+F1 Open the player FN+F1 decrease Brightness of the LED Light FN+F2 Volume- FN+F2 Increase Brightness of the LED Light FN+F3 Volume+ FN+F3 (CMD+ALT+↑)Show/Hide Dock FN+F4 Mute FN+F4 (CMD+SPACE) Open Launchpad FN+F5 Stop FN+F5 Previous song FN+F6 Previous song FN+F6 (CMD+SHIFT+4) Screen Shot FN+F7 Play/Pause FN+F7 Previous song FN+F8 Next song FN+F8 Play/Pause FN+F9 Mail FN+F9 Next song FN+F10 Homepage FN+F10 Mute FN+F11 Lock PC FN+F11 Volume- FN+F12 Calculator FN+F12 Volume+ BT1 BT2 2.4G Scroll mode to switch volume up or down, press mute FN+↑ Increase brightness (levels: 0% → 25% → 50% → 75% → 100%). When set to maximum brightness, the indicator flashes 3 times. FN+← Speed reduction (a total of 5 speed adjustable, adjusted to the slowest when indicator flashing 3 times) FN+↓ Decrease brightness (levels: 100% → 75% → 50% → 25% → 0%). When set to minimum brightness, the indicator flashes 3 times. FN+→ Speed increase (a total of 5 speed adjustable,adjusted to the fastest when indicator flashing 3 times） FN+1 Bluetooth 1 FN+2 Bluetooth 2 FN+｜/ Switching the color of the light effect (red - green - blue - purple - orange - blue - white - rainbow) FN+A Switching Mac systems FN+S Switching Mac systems FN+Enter Switching 15 RGB light effects FN+ESC Reset to factory Default(The indicator light will flash 3 times) FN+Backspace Turn the lights off/on FN + Left Win Lock or unlock the Left Win key or App key (only in Windows mode) Remark: 1. FN + 1: For Bluetooth 1. Press and hold FN + 1 for 3 seconds. During broadcasting mode, the Number Lock red light will flash quickly. Once reconnected or connected, the red light will stop. 2. FN + 2: For Bluetooth 2. Press and hold FN + 2 for 3 seconds. During broadcasting mode, the Caps Lock red light will flash quickly. Once reconnected or connected, the red light will stop. 3. After switching to Mac/IOS mode, the Left Win and Left Alt keys will swap positions 4 19 keys Anti-Ghosting Q、A、Z、W、S、 X、E、D、C、B、Space、↑、↓、←、→、Tab、Alt-L、Ctrl_L、Shift_L No No. Name Brightnes s Speed Description 1 1 Always on √ Backlit lighting always on 2 2 Breathing √ √ Breathing light slowly changing from darkness to brightness 3 3 Horse Running √ √ 4 different colors lighting run from right to left. 4 4 Rainbow Changing √ √ Red-Orange-Green-Blue-Purple colors keep changing. 5 5 Flash Horse Running √ √ Waving lighting flows 6 6 Starry √ √ Automatic light up and slowly off 7 7 River flowing √ √ Waving lighting, flows from left to right 8 8 Flashy √ √ Flashing and exchanging colors 9 9 Rainbow √ √ Rainbow horse running 10 10 Come and Go √ √ Lightening on from one direction, and full light up then return back 11 11 Single way √ √ 4 different lights in single way lightening up and off 12 12 Two ways √ √ Different lights in two ways lightening up and off 13 13 Run to the middle √ √ Two become one horse running lighting effect. 14 14 Opposite way √ √ Spread from middle orse running lighting 15 15 Snowy √ √ Press any keys to light up the lighting. Instructions： 1. Switch the power to ON mode. If the USB cable is not connected, the charging/pairing indicator will flash slowly. Press and hold FN + 3# key for 3 seconds. The red charging indicator will flash quickly, indicating the keyboard has entered pairing mode. Insert the receiver at this point, and the pairing indicator will stop flashing. This confirms a successful 2.4G connection. *Note: When connecting in 2.4G mode, ensure the keyboard starts searching before inserting the receiver. The keyboard is pre-paired at the factory by default. 2. Switch the power to ON mode. If the USB cable is not connected, the keyboard will automatically broadcast according to the Bluetooth version of the device. The keyboard can connect to up to two Bluetooth devices. After a successful connection, it will display BT5.0 KB: 3. After turning on the keyboard, connecting the USB cable will switch the keyboard to…

Text truncated - open the document above for the full version.

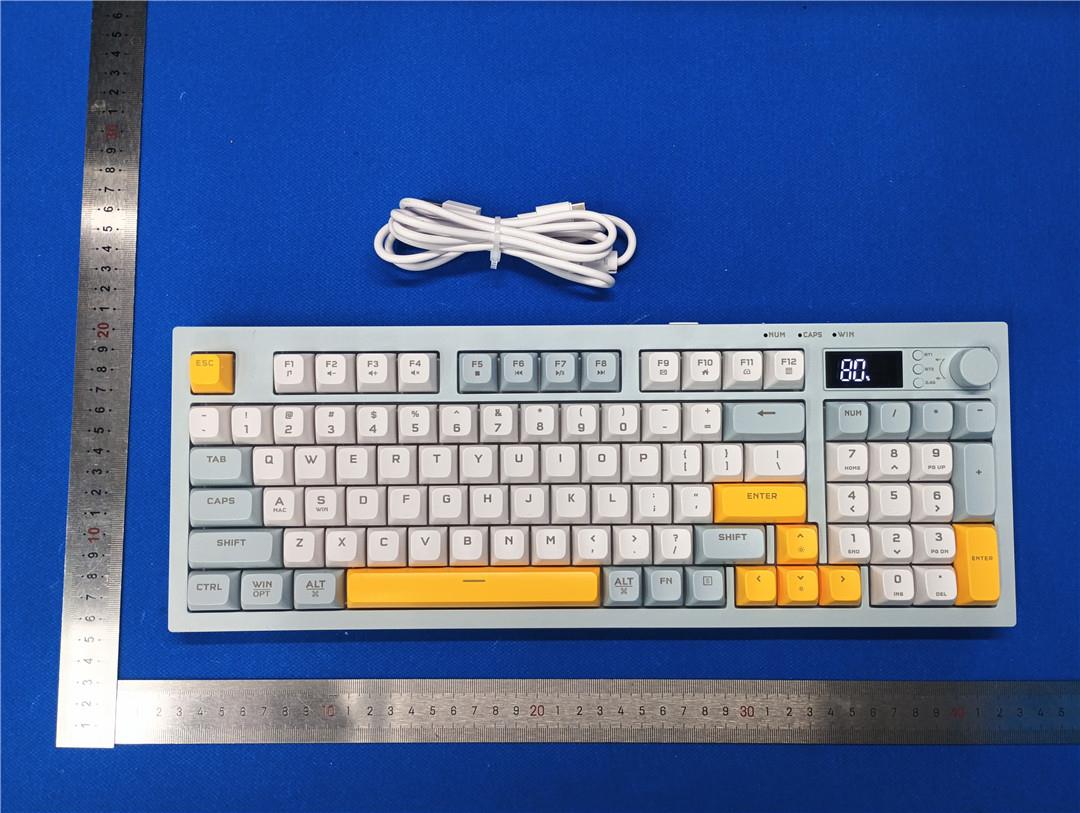

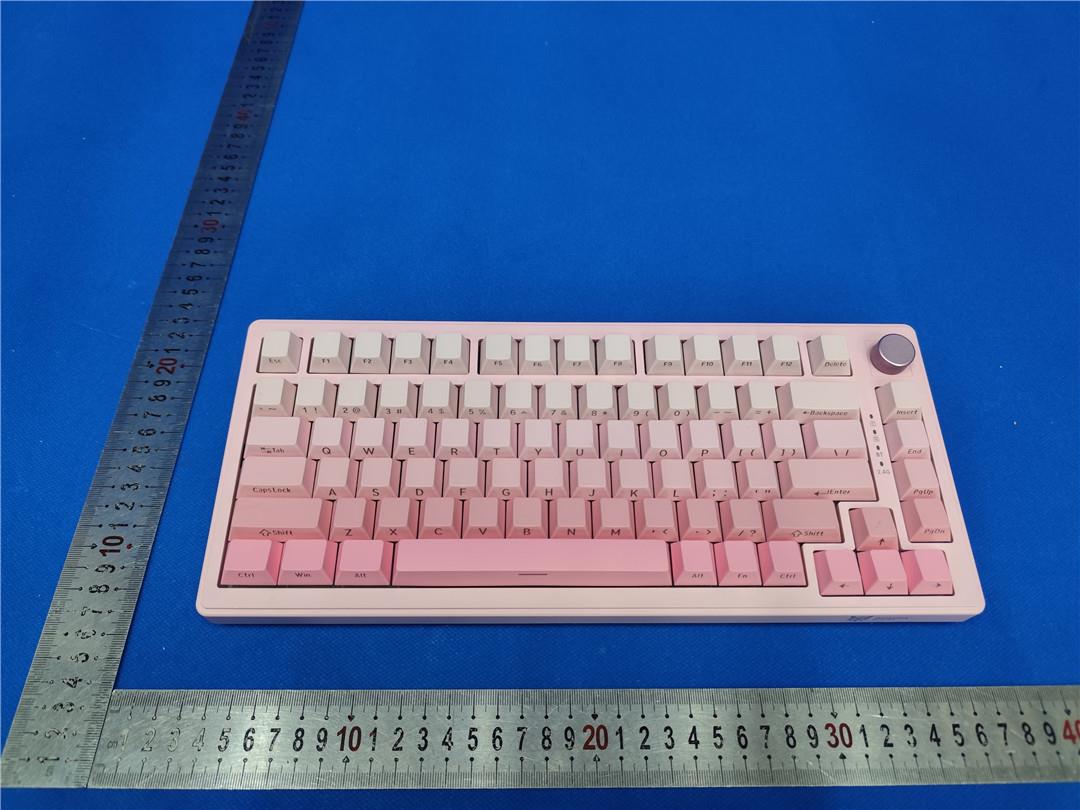

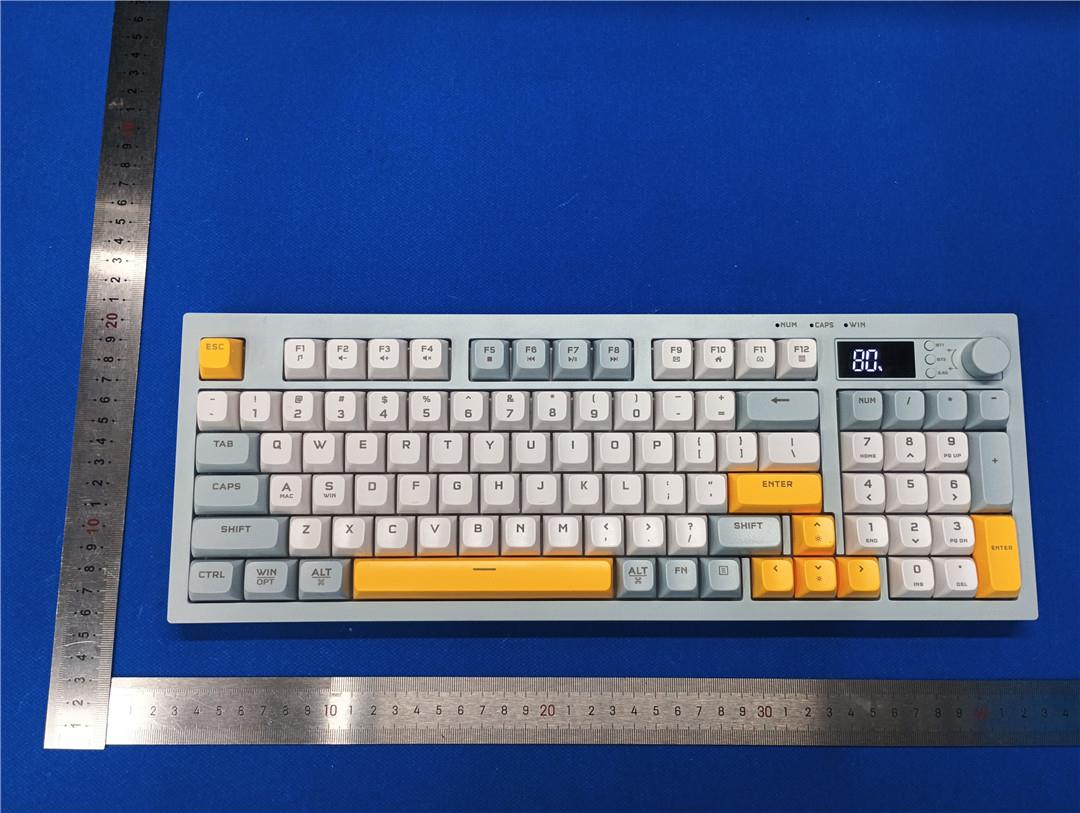

External Photos

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2025081245 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 6 Product Name: Keyboard Model No.: G80 EUT Constructional Details External Photo Report No.: HTT2025081245 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 6 Report No.: HTT2025081245 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 6 Report No.: HTT2025081245 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 6 Report No.: HTT2025081245 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 5 of 6 Report No.: HTT2025081245 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 6 of 6 ------End------

ID Label/Location Info

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2AOOM-G80

Internal Photos

RF Exposure Info

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 8 RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : HTT2025081245F03 2AOOM-G80 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Sep. 17, 2025 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : SHENZHEN OUNI TECHNOLOGY CO.,LTD. Address............................................ : Floor 9, Area C, Building 8, Evergrande Fashion Huigu Building, beside FulongRoad, Dalang Street, Longhua District, Shenzhen, Guangdong. Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Keyboard Manufacturer .................................... : SHENZHEN OUNI TECHNOLOGY CO.,LTD. Trade Mark ........................................ N/A Model/Type reference ...................... : G80 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT2025081245F03 Page 2 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 8 T E S T R E P O R T Equipment under Test : Keyboard Model /Type : G80 Series model: MT601,MT602,MT603,MT605,MT606,MT607,MT608,MT609,MT610, MT701,MT702,MT703,MT705,MT706,MT707,MT708,MT709,MT710, MT901,MT902,MT903,MT905,MT906,MT907,MT908,MT909,MT910, G83,G70, G60 Applicant : SHENZHEN OUNI TECHNOLOGY CO.,LTD. Address : Floor 9, Area C, Building 8, Evergrande Fashion Huigu Building, beside FulongRoad, Dalang Street, Longhua District, Shenzhen, Guangdong. Manufacturer : SHENZHEN OUNI TECHNOLOGY CO.,LTD. Address : Floor 9, Area C, Building 8, Evergrande Fashion Huigu Building, beside FulongRoad, Dalang Street, Longhua District, Shenzhen, Guangdong. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT2025081245F03 Page 3 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 8 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 5 3 T E S T E N V I R O N M E N T 6 3.1 Address of the test laboratory 6 3.2 Test Facility 6 3.3 Statement of the measurement uncertainty 6 4 T E S T L I M I T 7 4.1 Requirement 7 4.2 Conducted Power Results 7 4.3 Manufacturing tolerance 8 4.4 Evaluation Result 8 4.5 Simultaneous Transmission for SAR Exclusion 8 5 C O N C L U S I O N 8 Report No.: HTT2025081245F03 Page 4 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 8 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Report No.: HTT2025081245F03 Page 5 of 8 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 8 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Sep. 08, 2025 Testing commenced on : Sep. 08, 2025 Testing concluded on : Sep. 17, 2025 2.2 Product Description Product Name: Keyboard Model No.: G80 Series model: MT601,MT602,MT603,MT605,MT606,MT607,MT608,MT609,MT610,MT7 01,MT702,MT703,MT705,MT706,MT707,MT708,MT709,MT710,MT901, MT902,MT903,MT905,MT906,MT907,MT908,MT909,MT910,G83,G70,G 60 Test sample(s) ID: HTT2025081245-1(Engineer sample) HTT2025081245-2(Normal sample) Power Supply: DC 3.7V From Battery and DC 5V From External Circuit Adapter Information (Auxiliary test provided by the lab): Mode: GS-0500200 Input: AC100-240V, 50/…

Text truncated - open the document above for the full version.

Test Report

Report No.: BL-SZ2450497-902 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2024-02-22) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Boyi Innovation Technology Co., Ltd North, 5 / F, Building 3, Tea West, Zone A, Huafeng Address: First Science Park, Hangcheng Street, Baoan District, Shenzhen Equipment Type: BYKC-OM6228A2 Model Name: BYKC-118 Brand Name: Boyi scientific and technological innovation Test Standard: IEEE Std 149-2021 Sample Arrival Date: May 14, 2024 _______________ _______________ _______________ Test Date: May 14, 2024 Date of Issue: May 16, 2024 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Xia Long Approved by: Tolan Tu (Testing Director) Report No.: BL-SZ2450497-902 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2024-02-22) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Version Rev. 01 Revision History Issue Date May 16, 2024 Revisions Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION .............................................................................................................. 3 1.1 Test Laboratory ........................................................................................................................... 3 1.2 Test Location ............................................................................................................................... 3 2 PRODUCT INFORMATION ............................................................................................................... 4 2.1 Applicant Information ................................................................................................................. 4 2 .2 Manufacturer Information ........................................................................................................... 4 2.3 General Description for Equipment under Test (EUT) ............................................................ 4 2.4 Ancillary Equipment ................................................................................................................... 4 2.5 Technical Information .................................................................................................................. 4 3 SUMMARY OF TEST RESULTS ...................................................................................................... 5 3.1 Test Standards ............................................................................................................................ 5 3.2 Test Verdict ................................................................................................................................. 5 3.3 Test Uncertainty .......................................................................................................................... 5 4 GENERAL TEST CONFIGURATIONS ............................................................................................ 6 4.1 Test Condition ............................................................................................................................. 6 4.2 Test Equipment List ................................................................................................................... 6 4.3 Test Setup .................................................................................................................................... 7 4.4 Test Frequencies ....................................................................................................................... 7 ANNEX A TEST RESULTS ................................................................................................................... 8 A.1 Gain and Efficiency .................................................................................................................... 8 ANNEX B RADIATION PATTERN ...................................................................................................... 9 ANNEX C TEST SETUP PHOTO ...................................................................................................... 12 ANNEX D EUT PHOTO ..................................................................................................................... 13 Report No.: BL-SZ2450497-902 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2024-02-22) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name S henzhen BALUN Technology Co., Ltd. Location R Block B, 1/F, Baisha Science and Technology Park, Shahe Xi oad, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, . 1008, Songbai Road, Yangguang Community, Xili Sub-district, anshan District, Shenzhen, Guangdong Province, P. R. China No N Report No.: BL-SZ2450497-902 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2024-02-22) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Shenzhen Boyi Innovation Technology Co., Ltd Address North, 5 / F, Building 3, Tea West, Zone A, Huafeng First Science Park, Hangcheng Street, Baoan District, Shenzhen Contact Person Wang Weiyuan Telephone Number 18675575732 E-mail Address sparkwang2008…

Text truncated - open the document above for the full version.

Test Report

1 Appendix RF Test Data for BLE Company: : SHENZHEN OUNI TECHNOLOGY CO.,LTD. EUT : Keyboard FCC ID: : 2AOOM-G80 Model Number : G80 Report No. : HTT2025081245F02 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 0.089 0.625 14.24 8.46 0.00 2440 0.089 0.625 14.24 8.46 0.00 2480 0.088 0.625 14.08 8.51 0.00 3 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 4 1M_HCH_2480MHz_Ant1_NTNV 5 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.154 / Pass 2440 1 1.160 / Pass 2480 1 1.201 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.518 >=0.5 Pass 2440 1 0.530 >=0.5 Pass 2480 1 0.539 >=0.5 Pass 6 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 7 1M_HCH_2480MHz_Ant1_NTNV 8 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 9 1M_HCH_2480MHz_Ant1_NTNV 10 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -0.70 <=30 Pass 2440 0.36 <=30 Pass 2480 0.83 <=30 Pass 11 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 -0.98 <=8 Pass 2440 0.10 <=8 Pass 2480 0.56 <=8 Pass 12 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 13 1M_HCH_2480MHz_Ant1_NTNV 14 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -0.96 2440 1 0.10 2480 1 0.58 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 0.58 -19.42 Pass 2440 1 0.58 -19.42 Pass 2480 1 0.58 -19.42 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 15 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 16 1M_HCH_2480MHz_Ant1_NTNV 17 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV 18 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV 19 1M_HCH_2480MHz_Ant1_NTNV

Test Report

Shenzhen HTT Technology Co., Ltd. Report No.: HTT2025081245F02 This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 27 TEST Report Applicant: SHENZHEN OUNI TECHNOLOGY CO.,LTD. Address of Applicant: Floor 9, Area C, Building 8, Evergrande Fashion Huigu Building, beside FulongRoad, Dalang Street, Longhua District, Shenzhen, Guangdong. Manufacturer : SHENZHEN OUNI TECHNOLOGY CO.,LTD. Address of Manufacturer : Floor 9, Area C, Building 8, Evergrande Fashion Huigu Building, beside FulongRoad, Dalang Street, Longhua District, Shenzhen, Guangdong. Equipment Under Test (EUT) Product Name: Keyboard Model No.: G80 Series model: MT601,MT602,MT603,MT605,MT606,MT607,MT608,MT609,M T610,MT701,MT702,MT703,MT705,MT706,MT707,MT708,MT 709,MT710,MT901,MT902,MT903,MT905,MT906,MT907,MT9 08,MT909,MT910,G83,G70, G60 Trade Mark: N/A FCC ID: 2AOOM-G80 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Sep. 08, 2025 Date of Test: Sep. 08, 2025 ~ Sep. 17, 2025 Date of report issued: Sep. 17, 2025 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: HTT2025081245F02 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 27 1. Version Version No. Date Description 00 Sep. 17, 2025 Original Tested/ Prepared By Date: Sep. 17, 2025 Project Engineer Check By: Date: Sep. 17, 2025 Reviewer Approved By : Date: Sep. 17, 2025 Authorized Signature Report No.: HTT2025081245F02 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 27 2. Contents Page 1. VERSION ........................................................................................................................................................ 2 2. CONTENTS .................................................................................................................................................... 3 3. TEST SUMMARY ........................................................................................................................................... 4 4. GENERAL INFORMATION ............................................................................................................................ 5 4.1. GENERAL DESCRIPTION OF EUT ................................................................................................................ 5 4.2. TEST MODE ............................................................................................................................................... 7 4.3. DESCRIPTION OF SUPPORT UNITS .............................................................................................................. 7 4.4. DEVIATION FROM STANDARDS .................................................................................................................... 7 4.5. ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................... 7 4.6. TEST FACILITY ........................................................................................................................................... 7 4.7. TEST LOCATION ......................................................................................................................................... 7 4.8. ADDITIONAL INSTRUCTIONS ........................................................................................................................ 7 5. TEST INSTRUMENTS LIST ........................................................................................................................... 8 6. TEST RESULTS AND MEASUREMENT DATA ........................................................................................... 9 6.1. CONDUCTED EMISSIONS ............................................................................................................................ 9 6.2. CONDUCTED OUTPUT POWER .................................................................................................................. 12 6.3. CHANNEL BANDWIDTH .............................................................................................................................. 13 6.4. POWER SPECTRAL DENSITY ..................................................................................................................... 14 6.5. BAND EDGES ........................................................................................................................................... 15 6.5.1 Conducted Emission Method .......................................................................................................... 15 6.5.2 Radiated Emission Method ............................................................................................................. 16 6.6. SPURIOUS EMISSION ................................................................................................................................ 18 6.6.1 Conducted Emission Method .......................................................................................................... 18 6.6.2 Radiated Emission Method ............................................................................................................. 19 6.7. ANTENNA REQUIREMENT .......................................................................................................................... 26 7. TEST SETUP PHOTO ................................................…

Text truncated - open the document above for the full version.

Test Setup Photos
