2AOQN-I01Media Player

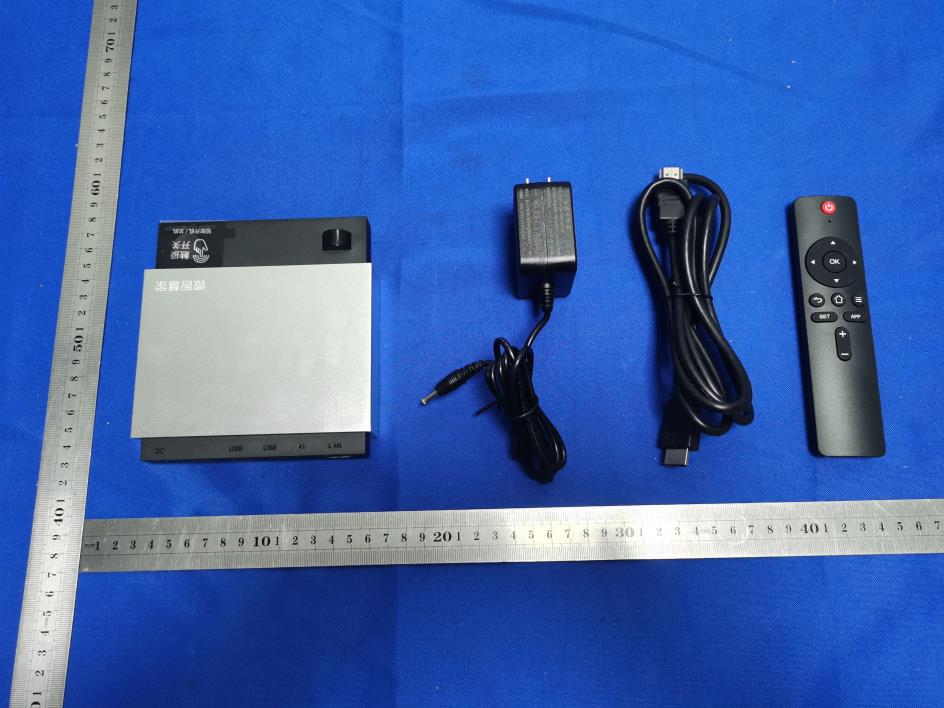

展开尺寸：345x105mm 折成品尺寸：115x105mm 材质：157g书纸 工艺：单黑正反面印刷，三折页，折成品 三、开机启动 1、安装操作 以下步骤以HDMI连接来描述，如果你是用AV线连接，请选择电视机的AV接口。 ① 先将高清线一头连接机顶盒，另一头连接电视机或其他显示屏的HDMI1接口。 ② 电视连接：使用电视机遥控器，找到【信号源】按键，将电视机信号源切换到HDMI1信号；一般电视机有 几个HDMI 接口，只有选择了正确的信号才能正确连接。如果你是用AV线连接，则请选择AV接口。 ③ 将AC电源线（12V/1.5A）一头接盒子一头接插座，打开开机按钮直到LED信号灯亮起，等待广告首页画面出 现。 2、联网操作 ① 无线连接 进入“设置”-“WIFI”，选择您的WIFI，输入密码，点击“确定”进行连接，稍后会显示连接状态。 注：请确保路由器无线网已连接到外网。 ② 有线连接 a.将网线一端插入盒子网口，另一端插入路由器。 b.进入设置打开有线网络，连接好后，会在盒子右上角显示连接状态。 四、安装 / 卸载APK 1、安装APK ① 将下载的APK复制到U盘或移动硬盘，并连接到盒子。 ②在盒子里找到【全部应用-媒体中心】APP，点击，找到U盘，选择要安装的APK，点击遥控器确定键即可安装。 2、卸载APK ① 进入【全部应用】, 【调到】要删除的APK图标位置。 ② 遥控器点击“菜单键”。 ③ 选择“卸载”即可。 二、产品包装内容 产品主机 遥控器 电源适配器 HDMI高清视频线* 网线 快速使用指南 1 2 3 4 5 6 1 1 1 1 1 1 (如部分图片有差异，以实际产品为准。使用该产品前，请详细阅读本说明书。同时请保留，供以后参考。） 一、产品接口说明 媒体播放机说明书 i01 编 号部件名称数 量 3Get started4Install / Uninstall APK 2Product Package Media Player Remote Controller Power Adaptor HDMI Cable Etherlan Cable Product Manual 1 2 3 4 5 6 1 1 1 1 1 1 (If some pictures are different, the actual products shall prevail. Please read this manual carefully before using the product. Please keep it for future reference.) 1Product Interface Details i01 NO.NAMEQUANTITY MEDIA PLAYER PRODUCT MANUAL 1Installing and setting up the device The steps described below is for connection through a HDMI cable, if an AV cable is used, please connect it to AV (yellow, red, white) ports respectively on TV. Connect one end of the supplied HDMI cable to the Media Player Box, the other end to a HDMI port on TV or other display device. Use TV remote controller (the signal source key) to select right signal path for the HDMI port connected. There are normally several HDMI ports on a TV, and the connection can be enabled only when the right signal path is selected. If an AV cable is used, please select AV port instead. Connect the AC power adapter12V/1.5Ato the box and the other end to the power socket, turn on the box by pressing the power key until the LED indicator lights up, wait the box home page show in the T V. 2Connect to internet Wireless connection Go to setting, WI-FI, click on the desired wifi hot spot, and input password of the wireless router for connection (A wifi icon pops up on the status bar after connection). Note: Please ensure that the wireless router has access to external internet. Wired connection a)Plug one end of the net work cable in the LAN port on the device, and the other end to the router. b)Go to setting turn on ethernet, after connection, an icon of cabled connection appears on top-right conner of the status bar. 1Install APK Copy the downloaded APK to USB flash drive, hard drive, etc, and connect it to the box. Chick "All APPs" --- "Filemanager", find USB, select the desired APK, and click on Install. 2Uninstall APK Go to “All Apps”, Click on the icon of the APK you want to delete. Click “menu” key on remote controller. Click “uninstall” to remove the APK. FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna. USB 2.0 AV 电源适配器 HDMI高清输出连接电视 触控开关 USB 3.0 USB 2.0 AV Power Adaptor HDMI cable connect to TV Switch USB 3.0 Etherlan Cable

Attestation Statements (2023.02.10) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (2AOQN-I01) (Shenzhen Lunzn Technology CO., Ltd. ), the undersigned, hereby authorize (Live Signs Advertising Inc.) to act as our designated U.S. agent for service of process, (Shenzhen Lunzn Technology CO., Ltd.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Live Signs Advertising Inc.) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Shenzhen Lunzn Technology CO., Ltd. Contact Name: Xinchao Li Address: Room606, Gangtou Development Building, No. 133 Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Telephone No: 0755-33552726 Email: [email protected] U.S. Agent Information: Company Name: Live Signs Advertising Inc. Address: 2750 W. Devonshire Ave. Hemet, CA. 92545 Contact Name: Dumitru Damian Telephone No: 1-951-531-4501 Email: [email protected] FRN: 0033410788 Applicant Signature: Agent Signature: Applicant printed name: Xinchao Li Agent printed name: Dumitru Damian

Shenzhen Lunzn Technology CO., Ltd. (2023.02.14) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Media Player / i01/ FCC ID: 2AOQN- I01 ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Xinchao Li Title: Manager

Shenzhen Lunzn Technology CO., Ltd. (2023.02.14) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Xinchao Li Title: Manager

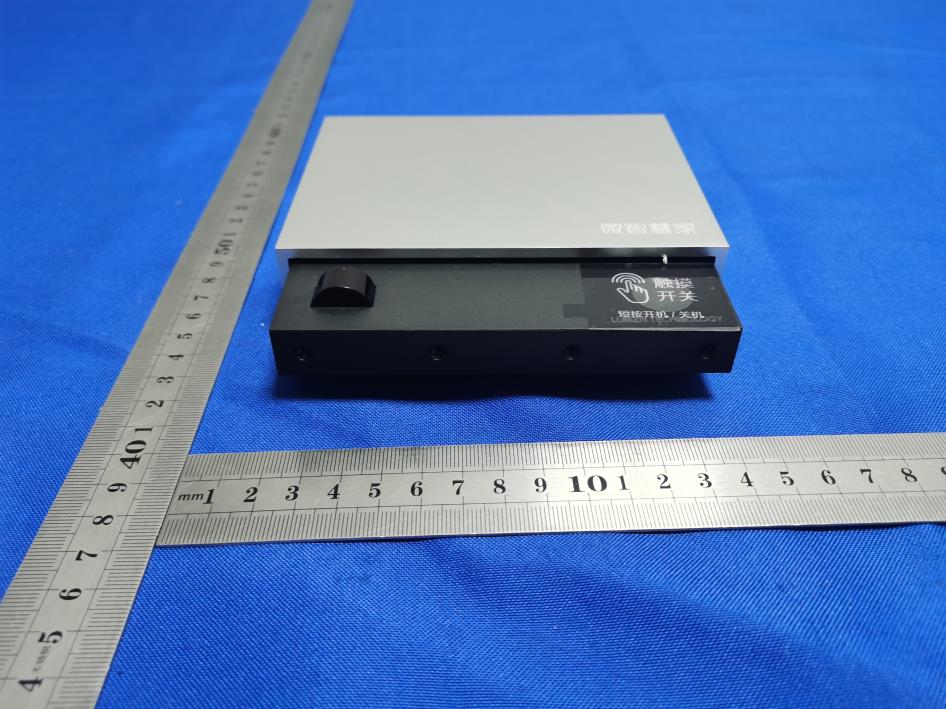

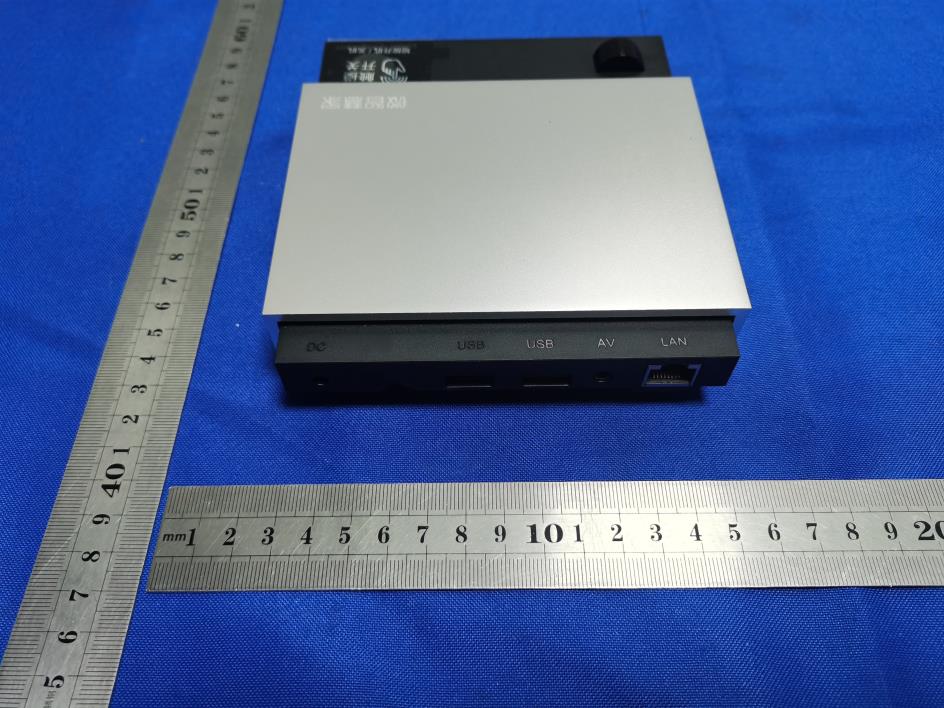

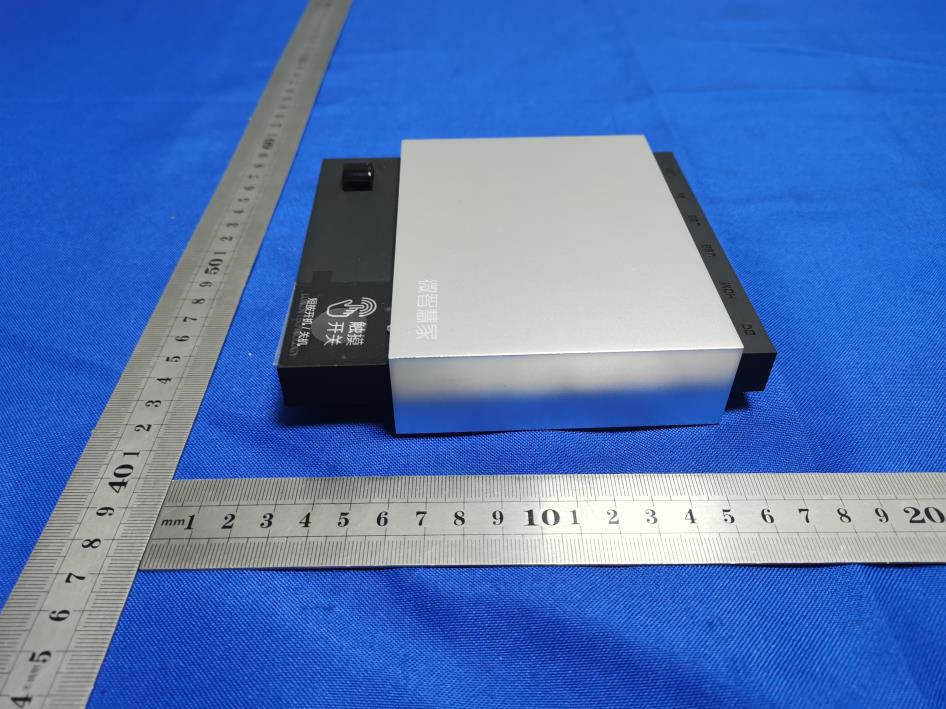

External Photos

FCC ID LABEL: Label Location: FCC ID: 2AOQN-I01 Model No.: i01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos 2.4GWIFI+ 5GWIFI ANT1 2.4GWIFI+ 5GWIFI ANT2 BT ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AOQN-I01 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result EDR π/4DQPS K&LCH 2±1 3 1.9953 1.2274 (0.89dBi) 0.00049 1 Pass 2.4G WIFI ANT1 802.11b&2 462 12±1 13 19.9526 1.4928 (1.74dBi) 0.00593 1 Pass 2.4G WIFI ANT2 802.11b&2 462 12±1 13 19.9526 1.6106 (2.07dBi) 0.0064 1 Pass 5.2GWIFI ANT1 802.11n(H T20)& 5240 12±1 13 19.9526 2.904 (4.63dBi) 0.01153 1 Pass 5.2GWIFI ANT2 802.11n(H T20)& 5240 12±1 13 19.9526 1.5524 (1.91dBi) 0.00617 1 Pass 5.8GWIFI ANT1 802.11n(H T20)& 5825 12±1 13 19.9526 2.2439 (3.51dBi) 0.00891 1 Pass 5.8GWIFI ANT2 802.11a&5 825 13±1 14 25.1189 3.1333 (4.96dBi) 0.01567 1 Pass Tech nolo gy Tune up Produce power(dBm) Maximum Tune-up (dBm) Antenna Gain(ANT 1/ANT 2) (numeric) Power Density (S) (mW/ cm2) MPE Limit (mW/ cm2) ∑ MPE Ratio ∑ MPE Ratio Limit Result ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 2.4G WIFI MIM O 12 ±1 12 ±1 13 13 ANT1:1.4928 (1.74dBi) ANT2:1.6106 (2.07dBi) 0.0004 9 0.0059 3 1 0.0064 1 Pass Tech nolo gy Tune up Produce power(dBm) Maximum Tune-up (dBm) Antenna Gain(ANT 1/ANT 2) (numeric) Power Density (S) (mW/ cm2) MPE Limit (mW/ cm2) ∑ MPE Ratio ∑ MPE Ratio Limit Result ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 5G WIFI MIM O 12 ±1 12 ±1 13 13 ANT1:2.2439 (3.51dBi) ANT2:3.1333 (4.96dBi) 0.0089 1 0.0156 7 1 0.0246 1 Pass

Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230207035RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 58 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Media Player FCC ID: 2AOQN-I01 Trademark: Lunzn Model Number: i01 Prepared For: Shenzhen Lunzn Technology CO., Ltd. Address: Room606, Gangtou Development Building, No. 133 Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Manufacturer: Shenzhen Lunzn Technology CO., Ltd. Address: Room606, Gangtou Development Building, No. 133 Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jan. 11, 2023 Sample tested Date: Jan. 11, 2023 to Feb. 08, 2023 Issue Date: Feb. 08, 2023 Report No.: CTB230207035RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230207035RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 58 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ........................................................................................................................................ 4 2. TEST SUMMARY ........................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................. 6 4. PRODUCT INFORMATION AND TEST SETUP ............................................................................ 7 4.1 Product Information .......................................................................................................................... 7 4.2 Test Setup Configuration .................................................................................................................. 7 4.3 Support Equipment........................................................................................................................... 7 4.4 Channel List ..................................................................................................................................... 8 4.5 Test Mode ........................................................................................................................................ 8 4.6 Test Environment ............................................................................................................................. 8 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................................................... 9 5.1 Test Facility ...................................................................................................................................... 9 5.2 Test Instrument Used ....................................................................................................................... 9 6. AC POWER LINE CONDUCTED EMISSION ................................................................................ 11 6.1 Block Diagram Of Test Setup ......................................................................................................... 11 6.2 Limit ................................................................................................................................................ 11 6.3 Test procedure ............................................................................................................................... 11 6.4 Test Result ..................................................................................................................................... 13 7. RADIATED SPURIOUS EMISSION ............................................................................................. 15 7.1 Block Diagram Of Test Setup ......................................................................................................... 15 7.2 Limit ................................................................................................................................................ 15 7.3 Test procedure ............................................................................................................................... 16 7.4 Test Result ..................................................................................................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS ............................................... 26 8.1 Block Diagram Of Test Setup ......................................................................................................... 26 8.2 Limit ................................................................................................................................................ 26 8.3 Test procedure ............................................................................................................................... 26 8.4 Test Result ..................................................................................................................................... 27 9. COUDUCTED PEAK OUTPUT POWER .....................................................…

Text truncated - open the document above for the full version.

OTA-800 Brand：ETS Frequency range：370MHz-8.5GHz Function: passive, active test; G network, C network, 2G/3G/4G, WIFI, BT and other standard TRP, TIS test. 1.Device under test 5071C Brand：安捷伦 Frequency range：9KHz-8.5GHz Function: 2G/3G/4G/BT/WIFI antenna comprehensive passive test. 8960 Brand：安捷伦 Function： 292MHz-2700GHz功能： Meet 2G/3G active test. CMW500 Brand：罗德与施瓦茨 Function：70KHz-6GHz Functions: 2G/3G/4G/BT/WIFI/ NB-LOT and other antennas comprehensive active test. 2.Physical picture of antenna assembly position antenna 电性能指标Electrical Parameter 频率范围(MHz) Frequency Range (MHz)2400~2500 电压驻波比 VSWR≤7.0 输入阻抗(Ω) Input Impedance(Ω)50 增益(dBi) Gain(dBi)0.89 极化形式(°)Polarization(°) vertical 最大功率(W) Max power(W)10 天线类型 Antenna TypeMonopole 工作温度(°C)Working Temperature(°C) -40~+80 3.Electrical performance index 4.Antenna passive data FreqEffiGain (MHz)(%)(dBi) 2400 1.60.89 2410 1.360.87 2420 1.770.86 2430 1.450.85 2440 1.420.79 2450 1.180.78 2460 1.630.77 2470 1.010.76 2480 10.69 2490 0.730.61 2500 1.420.67 5.Antenna gain/efficiency /3D Apple diagram 6.Antenna pattern

Radiated Emission Below 1G Above 1G Conducted emissions
