2AOR7-TABLOHD0OTA streamer

The distance between user and device should be no less than 20cm. la distance entre l'utilisation et l'appareil ne doit pas être inférieure à 20 cm.

Differences Declaration To whom concern, We company Nuvyyo Inc. hereby declares: The product models TDNS-HDMI-2B-01-CN,TQNS-HDMI-4B-01-CN,T30-DNS-HDMI-2B-01-CN, T30-QNS-HDMI-4B-01-CN,T13-DNS-HDMI-2B-01-CN,T13-QNS-HDMI-4B- 01-CN are identical in the same PCB layout, interior structure and electrical circuits, the only difference is the model name for commercial purpose. Authorized signature: Date: 2020-10-12

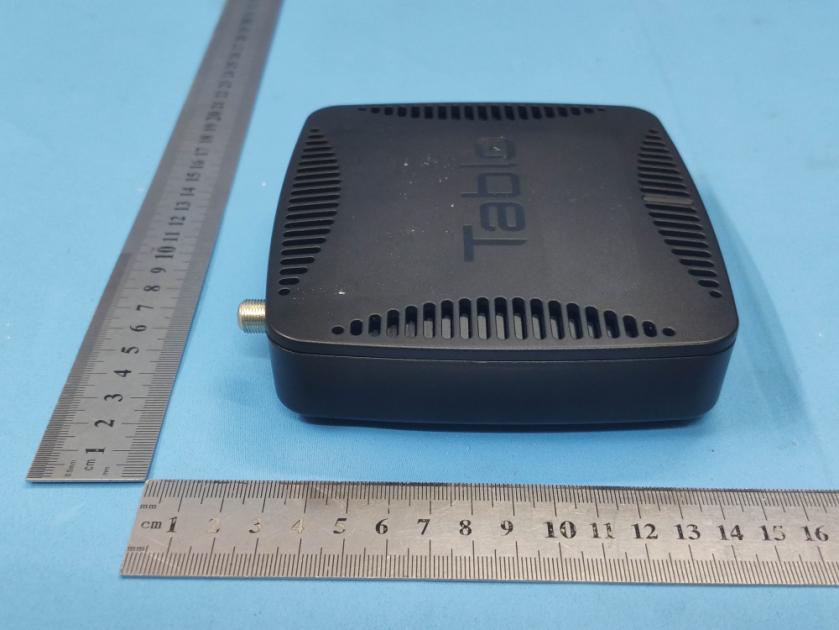

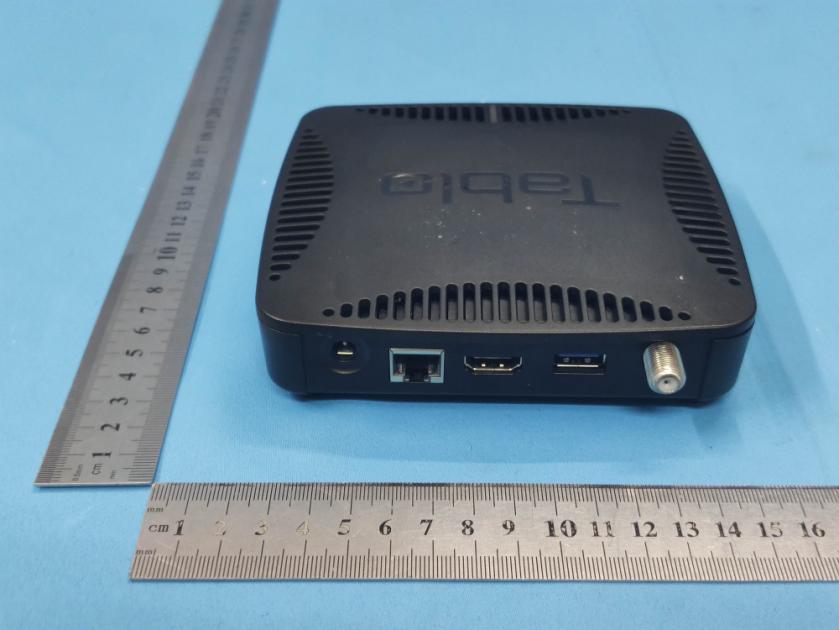

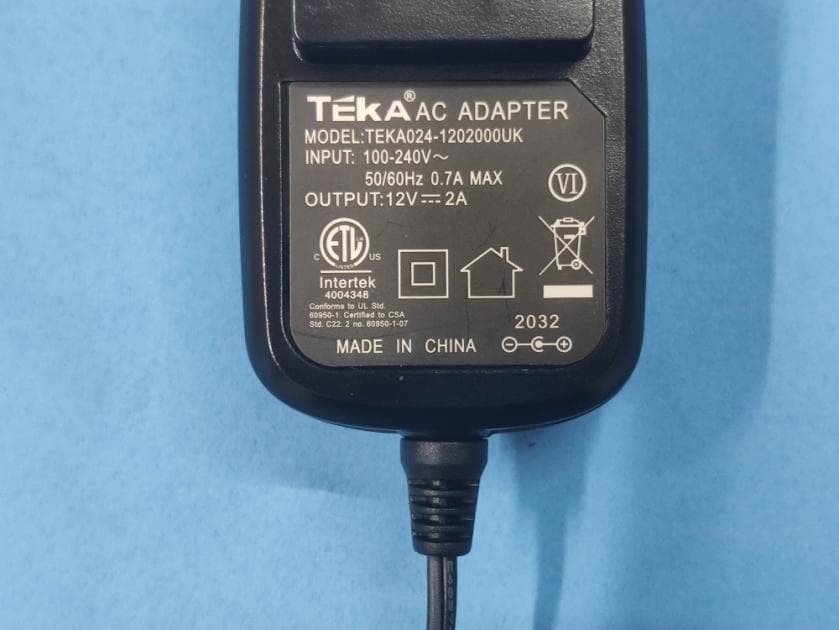

Test Model No.: T30-QNS-HDMI-4B-01-CN Model No.: TDNS-HDMI-2B-01-CN

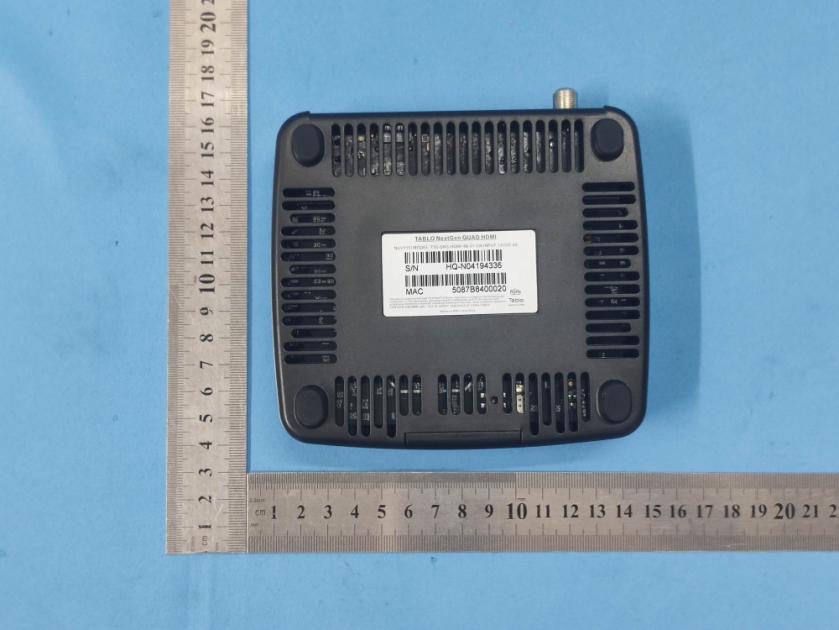

EE D C 321654 D C 5087B8400034 HD-A04194356  5087B8400034

Label location

Test Model No.: T30‐QNS‐HDMI‐4B‐01‐CN Model No.: TDNS‐HDMI‐2B‐01‐CN

FCC ID: 2AOR7-TABLOHD0 RF Exposure Evaluation FCC Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2AOR7-TABLOHD0 WIFI 2.4G mode: Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2412MHz 149.28 0.06177 1.0 PASS Antenna gain:3.18 dBi WIFI 5G mode: Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5190 MHz 77.62 0.03089 1.0 PASS Antenna gain: 3dBi WIFI 5.8G mode: Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5795 MHz 91.20 0.03629 1.0 PASS Antenna gain: 3dBi BT mode: Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5795 MHz 91.20 0.03629 1.0 PASS Antenna gain: 3.18dBi BLE mode: Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2402 MHz 1.81 0.00075 1.0 PASS Antenna gain: 3.18dBi

Global United Technology Services Co., Ltd. Report No.: GTS202009000089F05 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 46 1 Cover Page TEST REPORT Applicant: Nuvyyo Inc. Address of Applicant: 555 Legget Drive Tower B Suite 836 Kanata, ON K2K2X3, Canada Manufacturer: Nuvyyo Inc. Address of Manufacturer: 555 Legget Drive Tower B Suite 836 Kanata, ON K2K2X3, Canada Factory: SHENZHEN GIEC DIGITAL CO., LTD Address of Factory: 1st&3rd Building, No.26 Puzai Road, Pingdi, Longgang District, Shenzhen, China Equipment Under Test (EUT) Product Name: OTA streamer Model No.: TDNS-HDMI-2B-01-CN,TQNS-HDMI-4B-01-CN,T30-DNS- HDMI-2B-01-CN,T30-QNS-HDMI-4B-01-CN,T13-DNS-HDMI- 2B-01-CN,T13-QNS-HDMI-4B-01-CN FCC ID: 2AOR7-TABLOHD0 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: September 10, 2020 Date of Test: September 11, 2020-October 09, 2020 Date of report issued: October 10, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202009000089F05 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 46 2 Version Version No. Date Description 00 October 10, 2020 Original Prepared By: Date: October 10, 2020 Project Engineer Check By: Date: October 10, 2020 Reviewer Report No.: GTS202009000089F05 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 46 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION .................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 20DB EMISSION BANDWIDTH ............................................................................................................. 18 7.5 CARRIER FREQUENCIES SEPARATION ................................................................................................ 22 7.6 HOPPING CHANNEL NUMBER ............................................................................................................. 26 7.7 DWELL TIME ..................................................................................................................................... 28 7.8 BAND EDGE ...................................................................................................................................... 30 7.8.1 Conducted Emission Method ..................................................................................................... 30 7.8.2 Radiated Emission Method ........................................................................................................ 34 7.9 SPURIOUS EMISSION ......................................................................................................................... 36 7.9.1 Conducted Emission Method ..................................................................................................... 36 7.9.2 Radiated…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
