2AOSZQQGWZW-01Smart Gateway

Product Description The zigbee gateway is a control center for smart home devices. It communicates with the cloud and mobile phones through Wi-Fi. After users add Zigbee devices to the gateway, they can use App to view and remote control these devices. In addition, it can achieve many intelligent applications, such as third-party control, group control, scene linkage and so on. 55x55mm 220mm 55mm 220x55mm 图纸发布类别 正式归档图纸 Zigbee Gateway Product instruction manual 成品尺寸 单位：mm 公差： 展开图尺寸： ±1mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit dif ferent from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body CE Products with the CE marking comply with the Radio Equipment Directive (2014/53/EU), the Electromagnetic Compatibility Directive (2014/30/EU), the Low Voltage Directive (2014/35/EU) – issued by the Commission of the European. Compliance with these directives implies conformity to the following European Standards EN300328 V2.1.1 EN301489-1/-17 V2.1.1 EN62368-1:2014+A11:2017 EN55032:2015+AC:2016(ClassB); EN55035:2017 EN62311:2008 CE Notice ZIGBEE无线网关 接合方式 印刷色 材质 加工工艺 105g铜版纸 风琴四折页，正反印刷 单黑 / - 20211124 Power Outlet Red Indicator Light (Wi-Fi) Blue Indicator Light (Zigbee) Switch/ Reset Button Indicator Light Description Product Status Connected Waiting for the Connection Wi-Fi information has been con- figured, but cannot be connected Allows sub-devices to access the network Nonactivated Activated Indicator Light Status The indicator light is constant on. The indicator light flashes rapidly. The indicator light is off. The indicator light is constant on. Red Indicator Light （Wi-Fi） Blue Indicator Light (Zigbee) Indicator Light The indicator light flashes rapidly. The indicator light is off. Installation and Distribution Network 1. Please use the 5V 1A adapter and power cord in the box to power on the gateway. 2. After the power is turned on, wait for the red indicator light of the gateway to change from steady on to flash rapidly, then you can connect it to the Larkkey App. 3. Before adding a gateway, ensure that the mobile phone is connected to a 2.4GHz Wi-Fi network. 4. Scan the QR code or search for "Larkkey" in the App store to download and install the Larkkey App. Open the Larkkey App and click "+" in the upper right corner of the home page to automatically discover the wireless gateway(Zigbee) to be added Click "Add" and add devices as prompted by App. Scan the QR code to download the Larkkey App *App is subject to the actual release version Tips: （1）If the connection fails, you can press and hold the gateway reset button for 5 seconds until the blue light turns on. Then, you can add it again after the red light flashes. （2）For smooth connection, keep the mobile phone as close to the gateway as possible and ensure that the mobile phone and the gateway are on the same Wi-Fi network. （3）If the gateway is not automatically discovered, you can select the gateway control -> wireless gateway(Zigbee) on the "Manually add" page and add the gateway as prompted. Use Gateway Product Specifications After the gateway is successfully added, please refer to the manual of the smart device that can be connected to the Larkkey App to add the corresponding sub-device. The added sub-devices can be viewed on the gateway device page, and the automation and Tap-to-Run can be configured in the "smart" page in the Larkkey App, which can realize rich automation control. Item Number Power Input Working Temperature Working Humidity Product Size Product Net Weight Wireless Protocol -10°C～+50°C 10%-90%RH（No Condensation） 67.5mm*67.5mm*15.9mm 33g 2.4GHz Wi-Fi，Zigbee3.0 5V 1A QQGWZW-01 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radi…

Text truncated - open the document above for the full version.

HANGZHOU QUEQI TECHNOLOGY CO.,LTD Model Difference Product description: Smart Gateway Model name: QQGWZW-01, TYGWZW01N, 70278, 700089 Trade Name: N/A FCC ID:2AOSZQQGWZW-01 All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Chen Jianmin/N/A Contact information / address: 728-5, CECEP, XIXI CENTER, WEST LAKE DISTRICT, HANGZHOU, ZHEJIANG, CHINA

Hangzhou Queqi Technology Co., Ltd. 2022.07.15 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Smart Gateway Trademark: N/A MODEL : QQGWZW-01, TYGWZW01N, 70278, 700089 FCC ID:2AOSZQQGWZW-01 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Chen Jianmin /N/A Contact information / address: 728-5, CECEP, XIXI CENTER, WEST LAKE DISTRICT, HANGZHOU, ZHEJIANG, CHINA

Hangzhou Queqi Technology Co., Ltd. 2022.07.15 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Chen Jianmin /N/A Contact information / address: 728-5, CECEP, XIXI CENTER, WEST LAKE DISTRICT, HANGZHOU, ZHEJIANG, CHINA

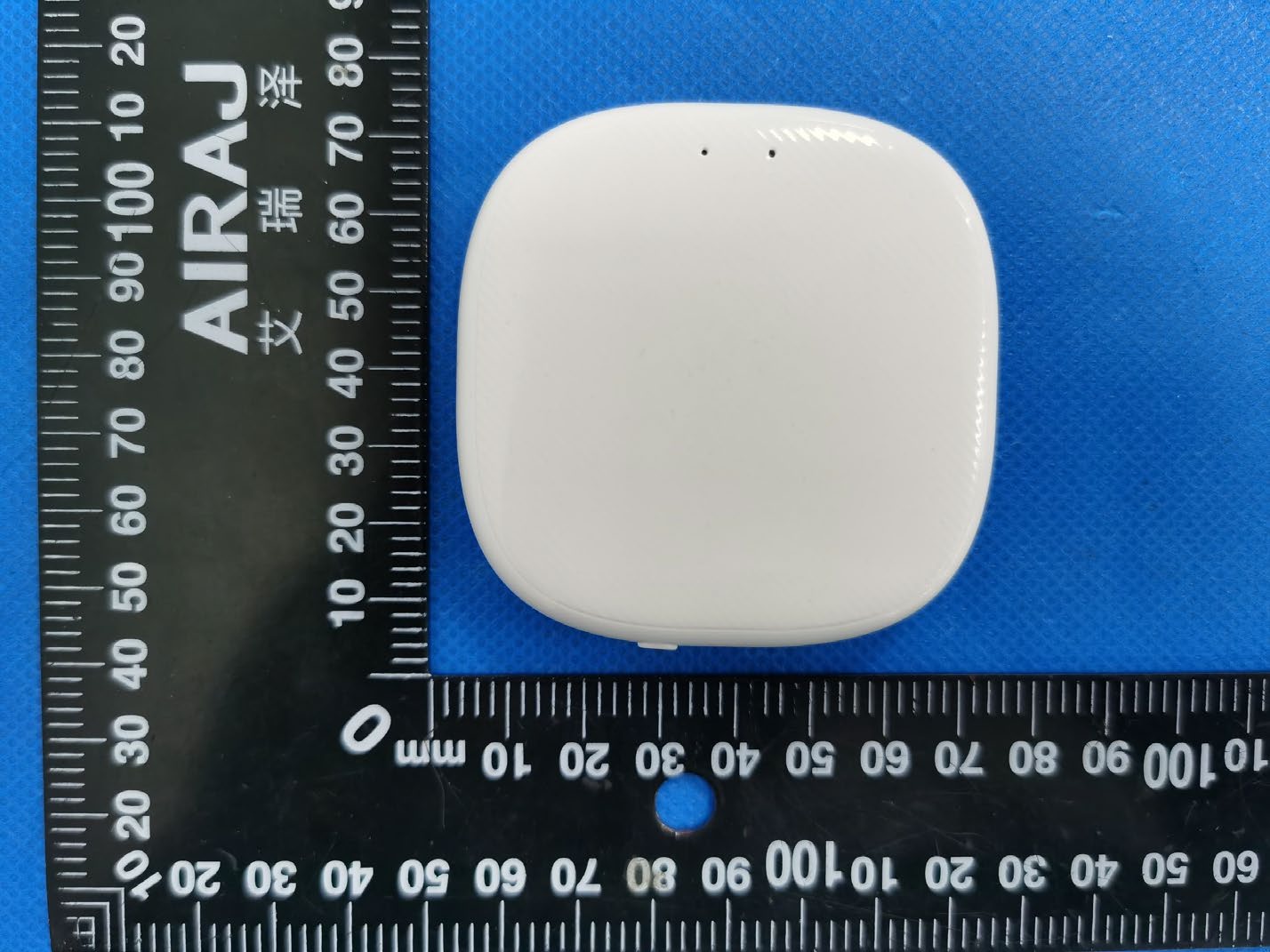

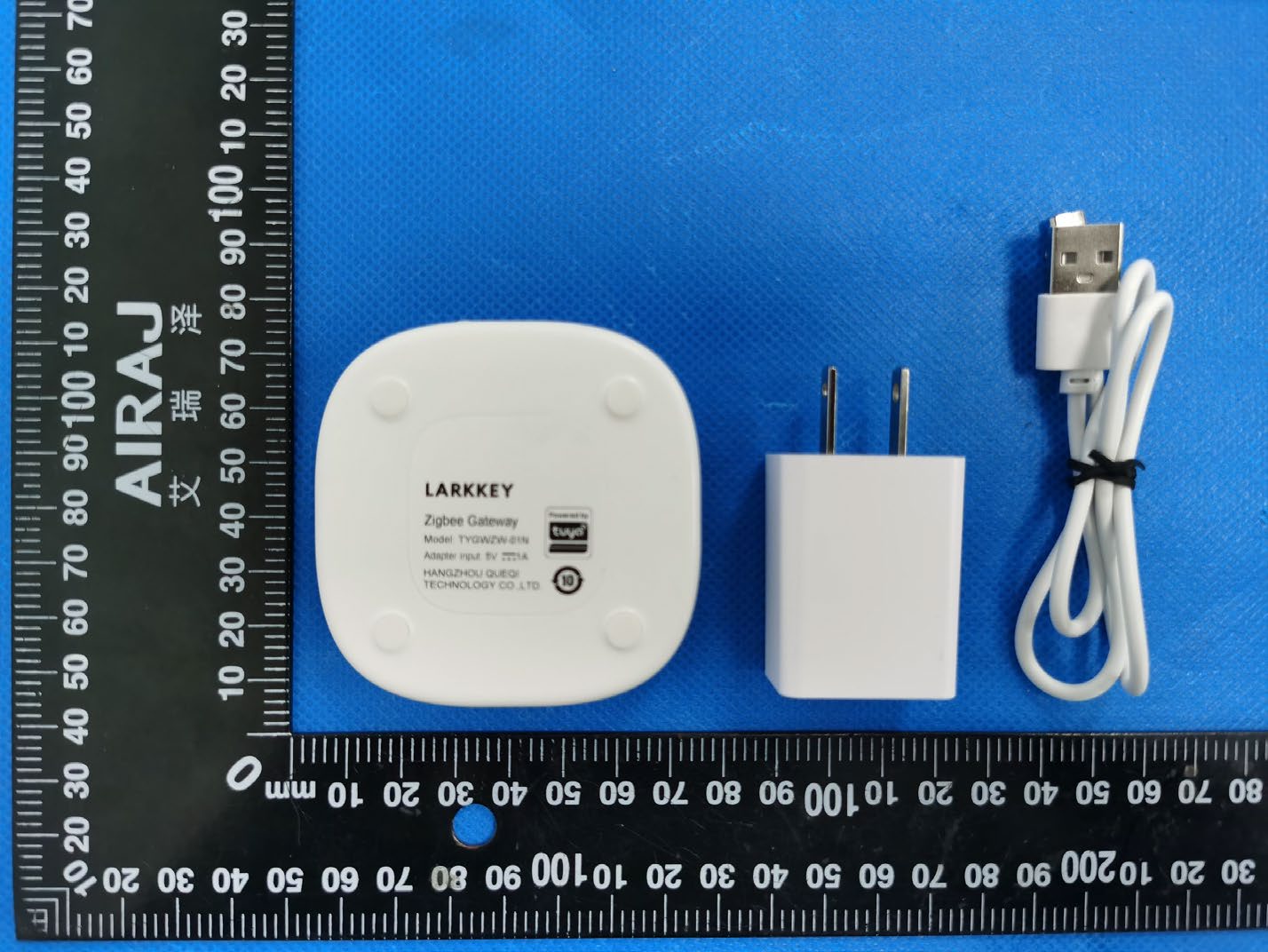

External Photos

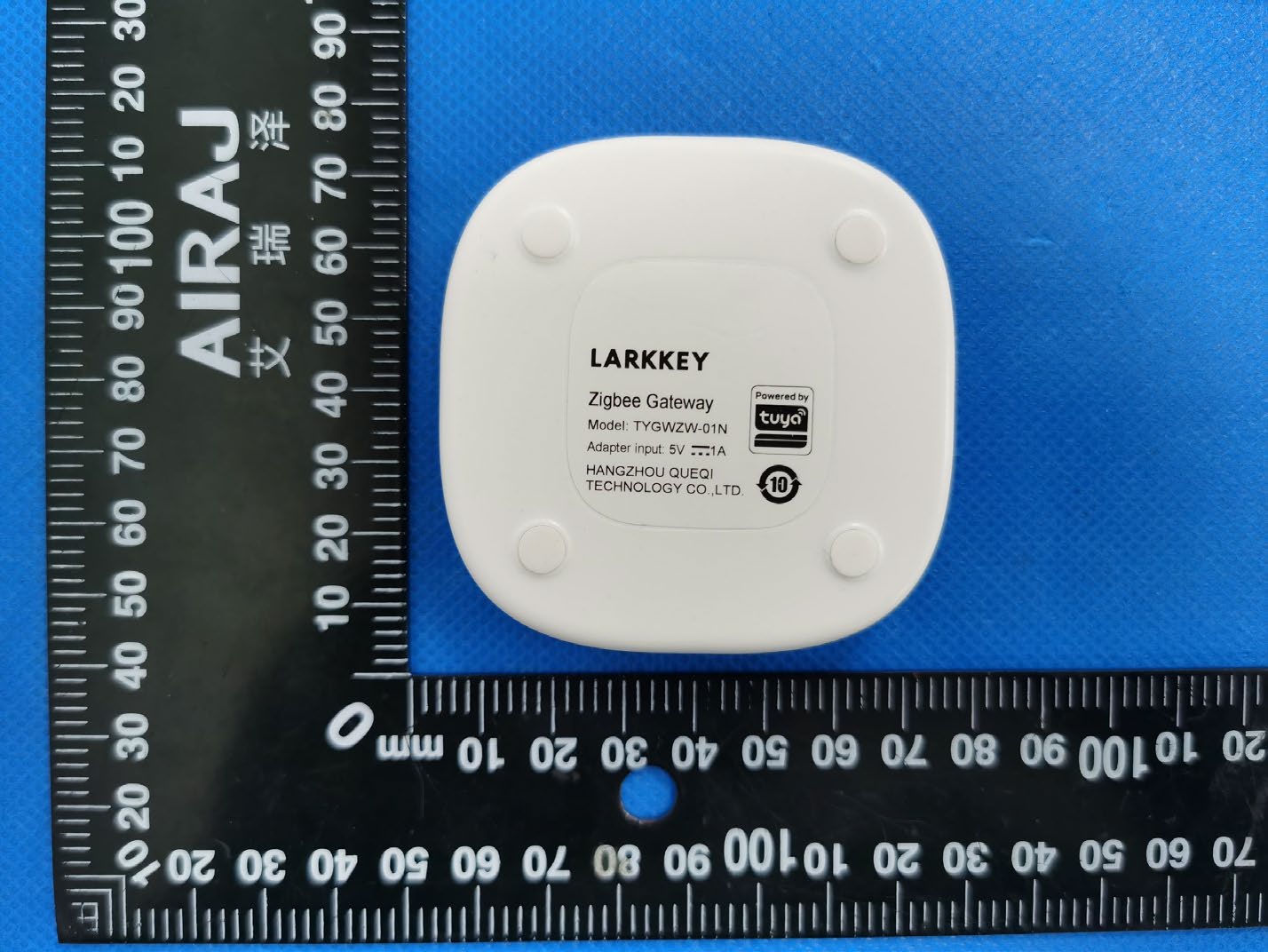

Label & label location + 20mm*10mm FCC ID:2AOSZQQGWZW-01 Label location

Internal Photos WIFI Antenna ZIGBee Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AOSZQQGWZW-01 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Conclusion: For the max result : 0.04997≤ 1.0, compliance with FCC's RF Exposure Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result WIFI 13±1 14 25.12 1.000 (0dBi) 0.04997 1 Pass ZIGbee 3±1 4 2.51 1.000 (0dBi) 0.00500 1 Pass

No.：BCTC/RF-EMC-00 5 Page: 1 of 63 Edition：A.4 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2206501300-1E Applicant: HANGZHOU QUEQI TECHNOLOGY CO.,LTD Product Name: Smart Gateway Model/Type Ref.: QQGWZW-01 Tested Date: 2022-06-22 to 2022-07-08 Issued Date: 2022-07-08 Report No.: BCTC2206501300-1E No.：BCTC/RF-EMC-00 5 Page: 2 of 63 Edition：A.4 FCC ID:2AOSZQQGWZW-01 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Smart Gateway Trademark: N/A Model/Type Ref.: QQGWZW-01 TYGWZW01N, 70278, 700089 Prepared For: HANGZHOU QUEQI TECHNOLOGY CO.,LTD Address: 728-5, CECEP, XIXI CENTER, WEST LAKE DISTRICT, HANGZHOU, ZHEJIANG, CHINA Manufacturer: HANGZHOU QUEQI TECHNOLOGY CO.,LTD Address: 728-5, CECEP, XIXI CENTER, WEST LAKE DISTRICT, HANGZHOU, ZHEJIANG, CHINA Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-06-22 Sample tested Date: 2022-06-22 to 2022-07-08 Issue Date: 2022-07-08 Report No.: BCTC2206501300-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Jeff.Fu/Project Handler Zero Zhou/Reviewer Report No.: BCTC2206501300-1E No.：BCTC/RF-EMC-00 5 Page: 3 of 63 Edition：A.4 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 26 8.1 Block Diagram Of Test Setup .............................................................................. 26 8.2 Limit .................................................................................................................... 26 8.3 Test Procedure ................................................................................................... 27 8.4 EUT Operating Conditions .................................................................................. 27 8.5 Test Result .......................................................................................................... 28 9. Power Spectral Density Test ............................................................................... 30 9.1 Block Diagram Of Test Setup .............................................................................. 30 9.2 Limit .................................................................................................................... 30 9.3 Test Procedure ................................................................................................... 30 9.4 EUT Operating Conditions .................................................................................. 30 9.5 Test Result…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page 1 of 43 Edition：A.4 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2206501300-2E Applicant: HANGZHOU QUEQI TECHNOLOGY CO.,LTD Product Name: Smart Gateway Model/Type Ref.: QQGWZW-01 Tested Date: 2022-06-22 to 2022-07-08 Issued Date: 2022-07-08 Report No.: BCTC2206501300-2E No.：BCTC/RF-EMC-005 Page 2 of 43 Edition：A.4 FCC ID:2AOSZQQGWZW-01 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Smart Gateway Trademark: N/A Model/Type Ref.: QQGWZW-01 TYGWZW01N, 70278, 700089 Prepared For: HANGZHOU QUEQI TECHNOLOGY CO.,LTD Address: 728-5, CECEP, XIXI CENTER, WEST LAKE DISTRICT, HANGZHOU, ZHEJIANG, CHINA Manufacturer: HANGZHOU QUEQI TECHNOLOGY CO.,LTD Address: 728-5, CECEP, XIXI CENTER, WEST LAKE DISTRICT, HANGZHOU, ZHEJIANG, CHINA Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-06-22 Sample tested Date: 2022-06-22 to 2022-07-08 Issue Date: 2022-07-08 Report No.: BCTC2206501300-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Jeff.Fu/Project Handler Zero Zhou/Reviewer Report No.: BCTC2206501300-2E No.：BCTC/RF-EMC-005 Page 3 of 43 Edition：A.4 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ..................................................... 9 5. Test Facility And Test Instrument Used ............................................................... 10 5.1 Test Facility ......................................................................................................... 10 6. Conducted Emissions .......................................................................................... 12 6.1 Block Diagram Of Test Setup .............................................................................. 12 6.2 Limit .................................................................................................................... 12 6.3 Test Procedure ................................................................................................... 12 6.4 EUT Operating Conditions .................................................................................. 12 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup .............................................................................. 15 7.2 Limit .................................................................................................................... 16 7.3 Test Procedure ................................................................................................... 17 7.4 EUT Operating Conditions .................................................................................. 18 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT Operating Conditions .................................................................................. 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.5 Test Result .......................................................................................................... 27 10. Bandwidth Test .................................................................................................... 29 10.1 Block Diagram Of Test Setup .......................…

Text truncated - open the document above for the full version.

Report No.: BCTC2206501300-1E No.：BCTC/RF-EMC-00 5 Page: 61 of 63 Edition：A.4 16. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos Report No.: BCTC2206501300-1E No.：BCTC/RF-EMC-00 5 Page: 62 of 63 Edition：A.4
