2AOTTIDCIDC CONSOLE

4 x AA Battery A B C D EF G H IJK L N MM INDOOR CYCLE CONSOLE OWNER’S MANUAL English2 FAHRRADTRAINER-KONSOLE BEDIENUNGSANLEITUNG Deutsch6 CONSOLE HOMETRAINER GEBRUIKERSHANDLEIDING Nederlands10 CONSOLE VÉLO D’EXERCICE MANUEL D’UTILISATION Français14 CONSOLE BIKE MANUALE DELL’UTENTE Italiano18 CONSOLA DE LA BICICLETA DE SPINNING MANUAL DE USUARIO Español22 CONSOLE DO CICLO INTERNO MANUAL DO PROPRIETÁRIO Português26 室內健身車主控台使用手冊繁體中文 30 室内健身车仪表用户手册简体中文 34 2 4 x AA Battery A B C D EF G H IJK L N MM A) Workout Track • D ot light means in-progress RPM workout. • Blinking light means the goal to achieve (only in Program 2) B) Target / RPM • P rogram 1: means resistance target level • P rogram 2: means current RPM • P rogram 3: means HR target C) Workout Programs • Select by at standby page D) Distance - km / mile • S witch in engineer mode. E) Calories / Speed • Press to switch F) Heart Rate G) Workout Time H) Goal Achievement • Achieve the goal : will light on ENGLISH 3 4 x AA Battery A B C D EF G H IJK L N MM I) Wireless Heart Rate Connection J) Workout Data • To see AVG & MA X workout data, press to pause page. to switch calories / speed. to switch AVG / MA X. K) Battery (shows 100%, 70%, 40%, 10%) GLOW RIDE LIGHTING SYSTEM L) Position 1-SIT Fully seated position which is ideal for warming up, cooling down or recovering from a sprint interval. M) Position 2-RUN The “run” portion of your cycling workout which forces you to stand on the pedals, maximizing the effort required. N) Position 3-JUMP The “jump” portion of your workout will simulate the up-and-down feel of mountain biking. ENGLISH 4 BUTTONFUNCTION SWITCH AVG & MA X WORKOUT DATA WHEN PAUSE START / PAUSE / ENTER / PRESS 3 SEC TO STANDBY PAGE SELECT PROGR AMS / SWITCH WORKOUT DATA WINDOWS ICON PROGRAM PROGRAM PROGRAM PROGRAM PROGRAM Program 1 HIGH INTENSITY INTERVAL TRAINING TARGETRESISTANCE CHART PROGRAM PROGRAM PROGRAM PROGRAM ICON PROGRAM PROGRAM PROGRAM PROGRAM PROGRAM Program 2 INTERVAL SPEED TRAINING TARGETRPM CHART PROGRAM PROGRAM PROGRAM PROGRAM ICON PROGRAM PROGRAM PROGRAM PROGRAM PROGRAM Program 3 INTERVAL HR TRAINING TARGETHE ART R ATE CHART PROGRAM PROGRAM PROGRAM PROGRAM SETTING In the standby page, press & for 3 sec into engineer mode. For changing parameter page For adjust setting data For confirm setting For 3 sec to exit engineer mode UNIT SETTING At the first page of engineer mode, to unit page RATIO SETTING Press 1 times to ratio page Select your GR indoor cycle ratio as below GR3, GR 5, GR6, GR 7 / 7s BACKLIT SETTING Press 2 times to backlit page ENGLISH 5 GR 3 / 5 / 6 GR 7 / 7S GR 7 / 7S GR 7 / 7S Suggest to replace the battery of transmitter while the icon blinking. ASSEMBLY Put foam paper between handlebar and console bracket, if needed. PARTS INCLUDED: 1 console with bracket 2 double-sided tape 4 AA batteries 1 round magnet 1 foam piece 2 screws 1 transmitter (only for GR7 / 7S) ENGLISH

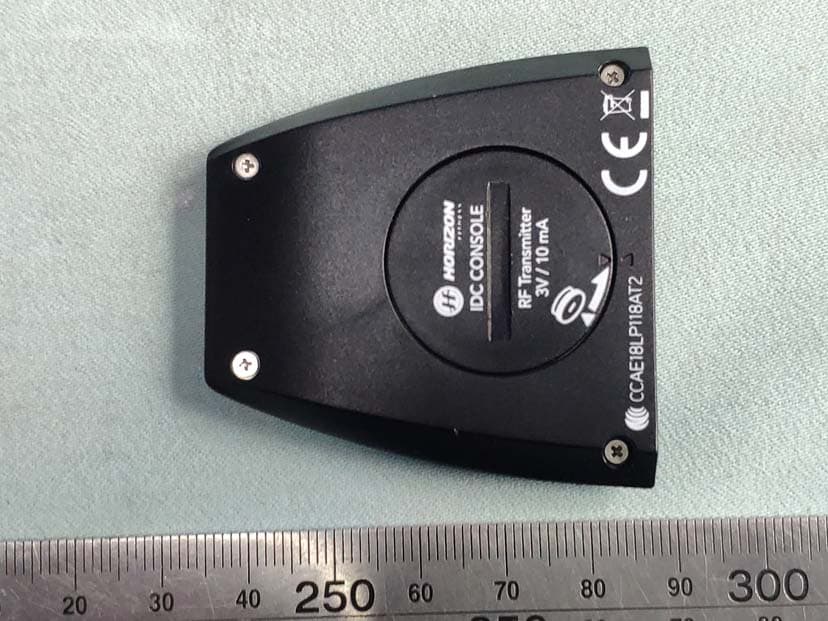

FIGURE 1 IDC CONSOLE (M/N: IDC CONSOLE) G ENERAL APPEARANCE (TOP VIEW) F IGURE 2 IDC CONSOLE (M/N: IDC CONSOLE) GENERAL APPEARANCE (BOTTOM VIEW) FIGURE 3 IDC CONSOLE (M/N: IDC CONSOLE) G ENERAL APPEARANCE (FRONT VIEW) F IGURE 4 IDC CONSOLE (M/N: IDC CONSOLE) GENERAL APPEARANCE (BACK VIEW) FIGURE 5 IDC CONSOLE (M/N: IDC CONSOLE) G ENERAL APPEARANCE (LEFT VIEW) F IGURE 6 IDC CONSOLE (M/N: IDC CONSOLE) GENERAL APPEARANCE (RIGHT VIEW)

FIGURE 7 IDC CONSOLE (M/N: IDC CONSOLE) C OVER REMOVED F IGURE 8 IDC CONSOLE (M/N: IDC CONSOLE) MAIN BOARD(FRONT VIEW) FIGURE 9 IDC CONSOLE (M/N: IDC CONSOLE) M AIN BOARD(BACK VIEW) F IGURE 10 IDC CONSOLE (M/N: IDC CONSOLE) CRYSTAL#1 ON MAIN BOARD FIGURE 11 IDC CONSOLE (M/N: IDC CONSOLE) C RYSTAL#2 ON MAIN BOARD F IGURE 12 IDC CONSOLE (M/N: IDC CONSOLE) ANTENNA PART1 Antennapart1 FIGURE 13 IDC CONSOLE (M/N: IDC CONSOLE) ANTENNA PART2 Antennapart2

JOHNSON INDUSTRIES (SHANGHAI) CO.,LTD FCC ID: 2AOTTIDC Page 1 of 20 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F20135 Prepared For: JOHNSON INDUSTRIES (SHANGHAI) CO.,LTD A1 NO.4500 BAOQIAN ROAD, ZHUQIAN TOWN, JIADING DISTRICT, SHANGHAI Prepared By: Audix Technology (Shanghai) Co., Ltd. 3F and 4F, 34Bldg, 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 File No. : C1D2001027 Report No. : ACI- F20135 Date of Test : 2020.01.17-05.21 Date of Report : 2020.05.21 TEST REPORT On behalf of JOHNSON INDUSTRIES (SHANGHAI) CO.,LTD Product Name: IDC CONSOLE Model No.: IDC CONSOLE FCC ID: 2AOTTIDC The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NI S T, or any agency of the Federal Government. TESTING NVLAP LAB CODE 200371-0 JOHNSON INDUSTRIES (SHANGHAI) CO.,LTD FCC ID: 2AOTTIDC Page 2 of 20 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F20135 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Description of Test Facility ........................................................................................................ 5 3 RADIATED EMISSION AND FUNDAMENTAL FREQUENCY ............................................. 6 3.1 Test Equipment........................................................................................................................... 6 3.2 Block Diagram of Test Setup ..................................................................................................... 6 3.3 Radiated Emission Limit (§15.209) ........................................................................................... 7 3.4 Test Configuration ...................................................................................................................... 8 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 8 3.7 Test Results ................................................................................................................................ 9 4 EMISSION BANDWIDTH ............................................................................................................ 15 4.1 Test Equipment......................................................................................................................... 15 4.2 Block Diagram of Test Setup ................................................................................................... 15 4.3 Specification Limits (§15.231(c)) ............................................................................................ 15 4.4 Operating Condition of EUT .................................................................................................... 15 4.5 Test Procedure .......................................................................................................................... 15 4.6 Test Results .............................................................................................................................. 16 5 TIME MEASUREMENT............................................................................................................... 17 5.1 Test Equipment......................................................................................................................... 17 5.2 Block Diagram of Test Setup ................................................................................................... 17 5.3 Specification Limits (§15.231(a)(1)) ........................................................................................ 17 5.4 Operating Condition of EUT .................................................................................................... 17 5.5 Test Procedure .......................................................................................................................... 17 5.6 Test Results .............................................................................................................................. 18 6 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 19 7 MEASUREMENT UNCERTAINTY LIST ................................................................................. 20 JOHNSON INDUSTRIES (SHANGHAI) CO.,LTD FCC ID: 2AOTTIDC Page 3 of 20 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F20135 BYRON KWO/Assistant General Manager BYRON WU / Deputy Assistant Manager JAREY LU / Supervisor TEST REPORT Applicant : JOHNSON INDUSTRIES (SHANGHAI) CO.,LTD EUT Description : IDC CONSOLE (A) Model No. : Refer to Sec.2.1 (B) Power Supply : DC 3V (C) Test Voltage : DC 3V Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C AND ANSI C63.10-2013 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This repo…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Radiated Test (B ELOW 1GHZ) (ABOVE 1GHZ) 2. Antenna-port Conducted Test
