2AOV6-SP3509Bluetooth Speaker
Shenzhen Minsuo Industrial Co.,Ltd
Click to zoom
Application Details
- Equipment Class
- DSS - Part 15 Spread Spectrum Transmitter
- Date of Grant
- Nov 25, 2020
- Application Purpose
- Original Equipment
- Date of Application
- Nov 25, 2020
- Equipment Note
- Bluetooth Speaker
- Frequency Range
- 2402.00000000 - 2480.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
æć ć°ș毞: 70 x 105mm SP3509 Bluetooth Speaker User manual Bluetooth version: 5.0 Built-in rechargeable lithium battery 300mAh Bluetooth range: up to 10 meters Signal to noise ratio: â„85dB Frequency response range: 280Hz - 20KHz Speaker size: 45mm Output power: 3 Watt IPX4 splash proof Playing time: up to 1-1.5 hours Charging time 1 hour Key functions: 1 Power ON / OFF 2 Play / Pause 3 VOLUME+ / NEXT SONG 4 VOLUME- / PREVIOUS SONG 5 Hands-free call 6 Micro-USB port 1 Short press button (2) to play / pause music: 2 Long press button (3) to increase the volume, short press button (3) for next song: 3 Long press button (4) to decrease the volume, short press button (4) for previous song: 4 Press button (5) to answer phone call / end phone call Bluetooth pairing: Turn on the speaker, the speaker will enter the Bluetooth mode and is ready for pairing, open your smartphones Bluetooth function and s earch the Bluetooth name â SP3509â. Connect and then you can play music through the speaker. Charging the speaker: 1 hour 2. Plug the Micro-USB connector into your Bluetooth speaker, and plug the other end of the charging cable into a computer or a DC 5V USB Power Adapter. The LED indicator light will turn red when the speaker is charging. The LED indicator light will be OFF, when Made in China Made in China Produced for Dangaard Group A/S Industrivej 1 DK-6330 Padborg Produced for Dangaard Group A/S Industrivej 1 DK-6330 Padborg 2 1 3 5 4 6 2 1 3 5 4 6 SP3509 Bluetooth Speaker Bruksanvisning Bluetooth version: 5.0 Inbyggt uppladdningsbart litiumbatteri: 300mAh Bluetooth rĂ€ckvidd: upp till 10 meter SignalbrusförhĂ„llande: â„85dB FrekvensomrĂ„de: 280Hz - 20KHz Högtalarstorlek: 45 mm Utef fekt: 3 Watt IPX4 stĂ€nkskydd Speltid: upp till 1 â 1,5 timme Laddningstid: 1 timme Funktioner: 1 Ström PĂ / AV 2 Spela / Paus 3 VOLYM + / NĂSTA LĂ T 4 VOLYM - / FĂREGĂ ENDE LĂ T 5 Handsfree samtal 6 Micro-USB port Knappbeskrivning: 1 Tryck kort pĂ„ knapp (2) för att spela upp / göra paus i musiken. 2 Tryck och hĂ„ll knapp (3) intryckt för att höja volymnivĂ„n. Tryck kort pĂ„ knapp (3) för att gĂ„ vidare till nĂ€sta lĂ„t. 3 Tryck och hĂ„ll knapp (4) intryckt för att sĂ€nka volymnivĂ„n. Tryck kort pĂ„ knapp (4) för att gĂ„ tillbaka till föregĂ„ende lĂ„t. 4 Tryck pĂ„ knapp (5) för att svara och avsluta telefonsamtal. Bluetooth parning: SĂ€tt pĂ„ högtalaren. Högtalaren kommer att gĂ„ i Bluetooth lĂ€ge, och Ă€r redo att paras med annan enhet. Starta Bluetooth funktionen pĂ„ din smartphone och sök efter en Bluetooth enhet med namnet â SP3509â. Anslut enheten och sedan kan du njuta av att spela upp musik frĂ„n din smartphone genom högtalaren. Ladda upp högtalaren: 1. Innan högtalaren anvĂ€nds första gĂ„ngen, ska den laddas upp i 1 timme. 2.Koppla in micro-USB kontakten i din Bluetooth högtalaren, och anslut den andra kontakten pĂ„ laddningskabeln in i en dator eller en DC 5V USB strömadapter. LED lampan kommer att lysa rött nĂ€r högtalaren laddas upp. LED lampan slocknar nĂ€r högtalarens batteri Ă€r fullt uppladdat.

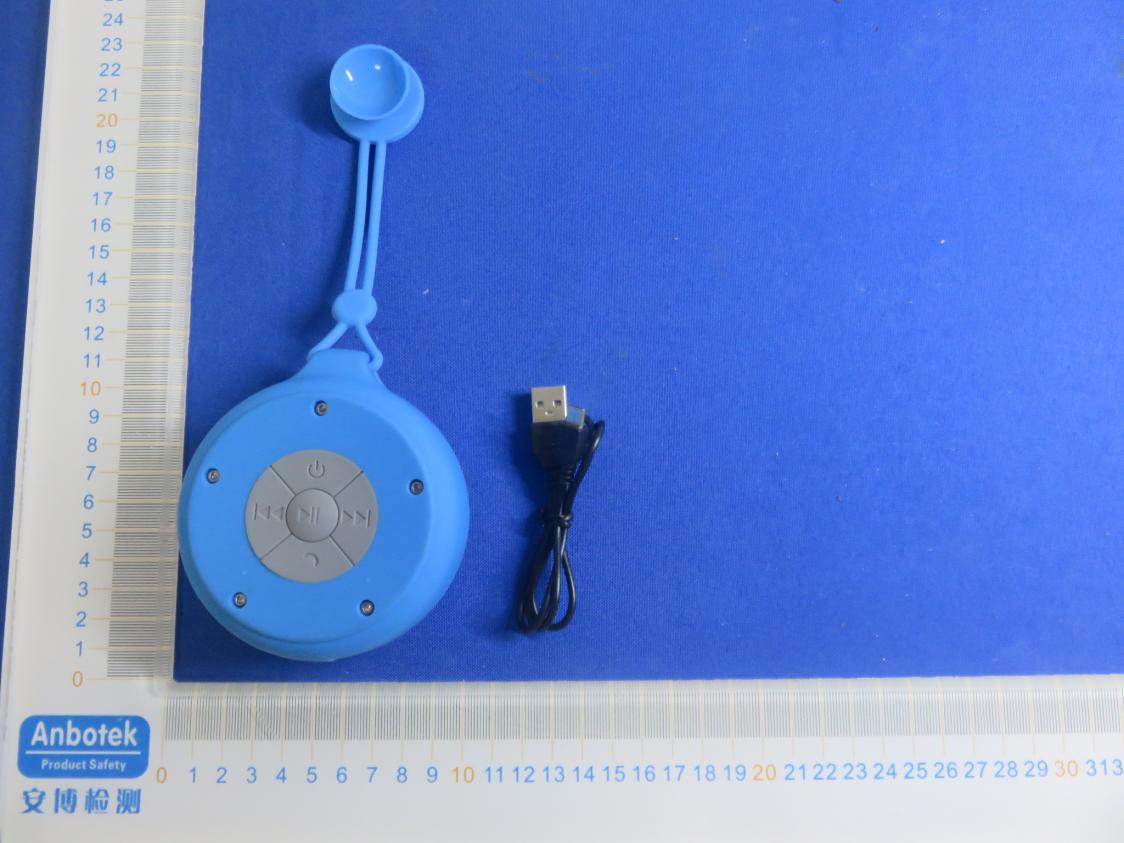

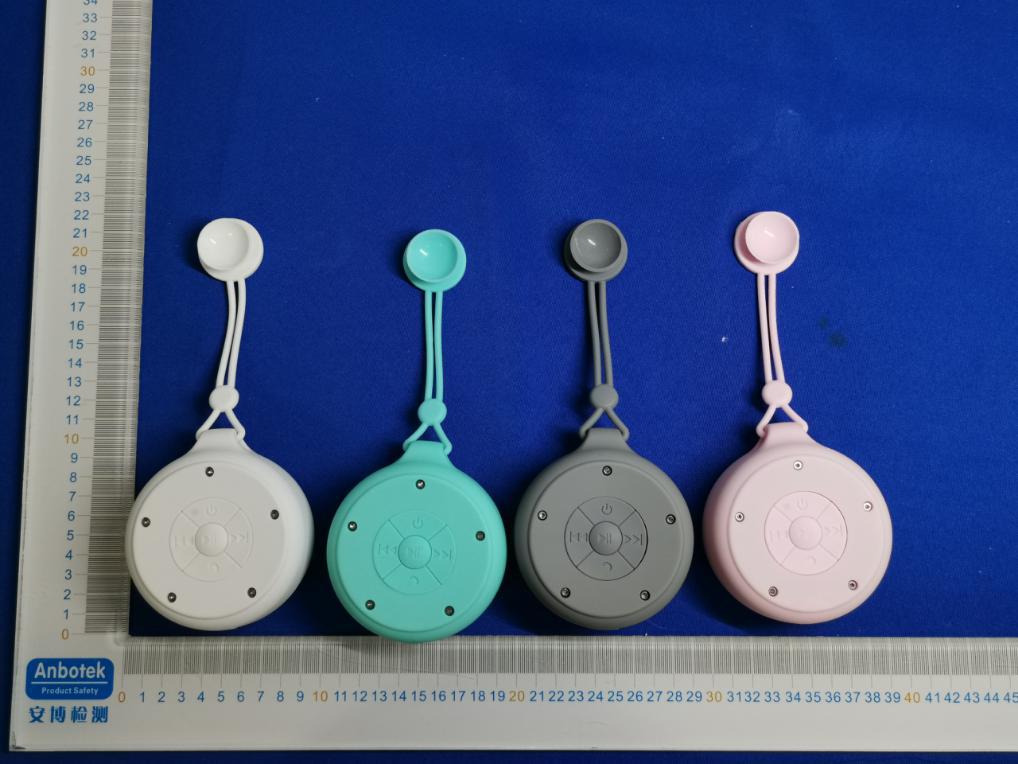

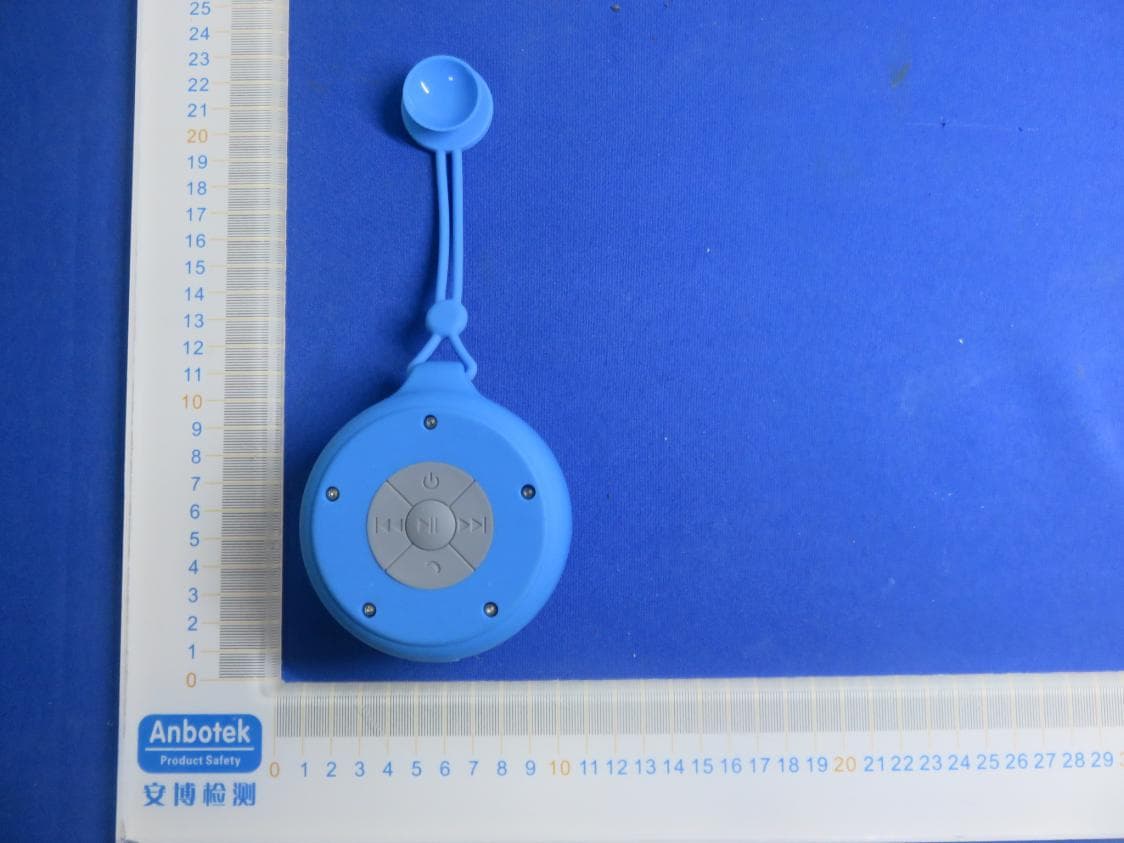

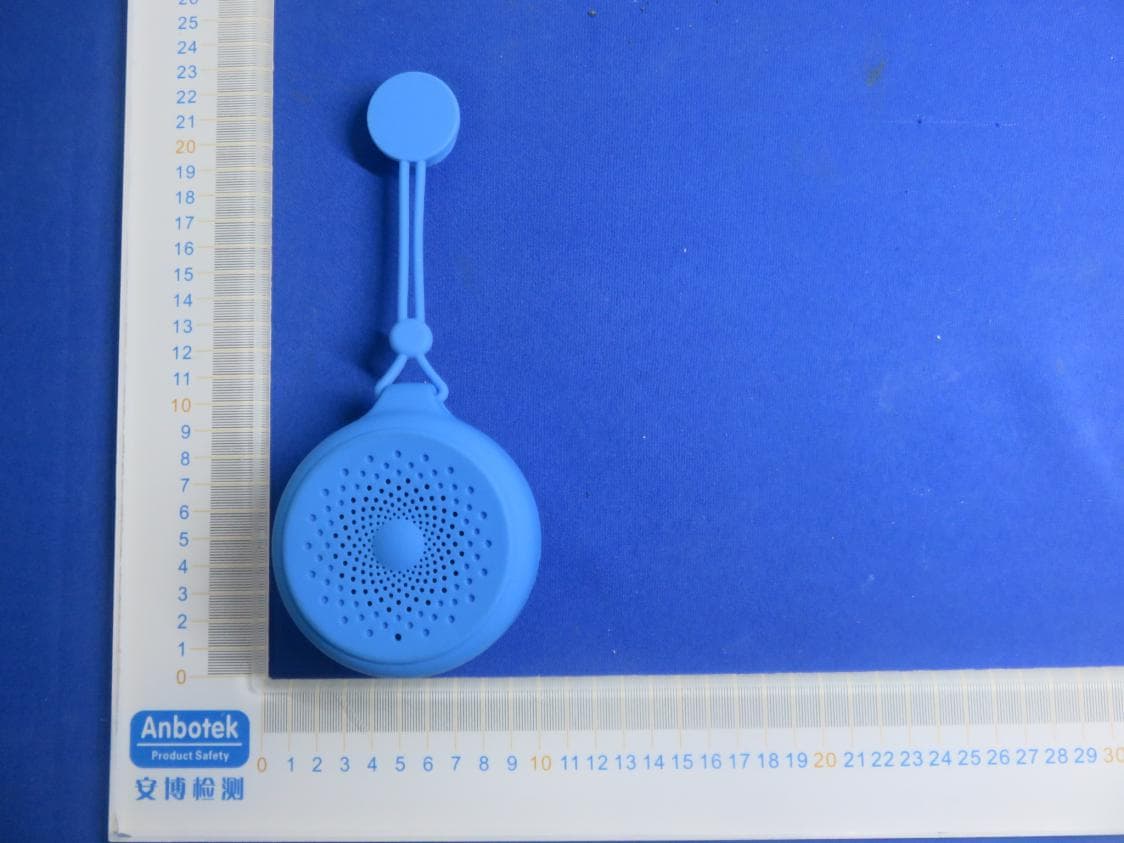

External Photos
FCCID:2AOV6-SP3509
ID Label/Location Info
LabelLocationOnEUT Label ProductName:BluetoothSpeaker ModelNo.:SP3509 FCCID:2AOV6-SP3509
Internal Photos
FCCID:2AOV6-SP3509 BTANT
Operational Description
version01 ShenzhenMinsuoIndustrialCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:SP3509,SP-054 FCCID:2AOV6-SP3509 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna BDR&EDR+BLE Gainoftheantenna:0dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShenzhenMinsuoIndustrialCo.,Ltd. Address:12thfloor,BlockB,TengyaoBuilding,No.268Gushu2ndroad,XixiangTown, Bao'an,Shenzhen,China City:Shenzhen ZIP/Postalcode:N/A Country:China Place:ChinaDate:11/26/2020 Signature:
RF Exposure Info
RFEXPOSUREEVALUATION FCCID:2AOV6-SP3509 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTune UpPower (dBm) Distance (mm) Calculation results Limit Operating Mode 2402-3.774-3.774±1-2.77450.1643 BDR+EDR 2441-3.348-3.348 ±1 -2.34850.1823 2480-3.005-3.005±1-2.00550.1983 2402-3.458-3.458±1-2.45850.1763 2441-3.103-3.103 ±1 -2.10350.1933 2480-2.719-2.719±1-1.71950.2123 TestResults:PASS.
Test Report
Report No.: 18220WC00143901FCC ID: 2AOV6-SP3509Page 1 of 50 Code:AB-RF-05-a FCC TEST REPORT Client Name:Shenzhen Minsuo Industrial Co.,Ltd. Address: 12th floor, Block B, Tengyao Building, No. 268 Gushu 2nd road, Xixiang Town, Bao'an, Shenzhen, China Product Name:Bluetooth Speaker Date:Nov. 26, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00143901FCC ID: 2AOV6-SP3509Page 2 of 50 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 3.4. Test Data .................................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 17 4.1. Test Standard and Limit .......................................................................................................................... 17 4.2. Test Setup .................................................................................................................................................. 17 4.3. Test Procedure .......................................................................................................................................... 18 4.4. Test Data .................................................................................................................................................... 19 5. Maximum Peak Output Power Test .................................................................................................................. 27 5.1. Test Standard and Limit .......................................................................................................................... 27 5.2. Test Setup .................................................................................................................................................. 27 5.3. Test Procedure .......................................................................................................................................... 27 5.4. Test Data .................................................................................................................................................... 27 6. 20DB Occupy Bandwidth Test ........................................................................................................................... 31 6.1. Test Standard ............................................................................................................................................ 31 6.2. Test Setup .................................................................................................................................................. 31 6.3. Test Procedure .......................................................................................................................................... 31 6.4. Test Data .................................................................................................................................................... 31 7. Carrier Frequency Separation Test ................................................................................................................... 35 7.1. Test Standard and Limit .......................................................................................................................... 35 7.2. Test Setup .................................................................................................................................................. 35 7.3. Test Procedure ....................................................................................................................âŠ
Text truncated - open the document above for the full version.
Test Setup Photos
FCCID:2AOV6-SP3509 PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest
Contact Information
Applicant
Henry Xu(manager)
Test Firm
Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 600.00 ”W |
