2AOVU-SEI800CCOAset top box

DC 12VHDMI Claro STB HDMI Cable 43 6 2 Android TV™ Bring your entertainment together in one place to easily jump from live TV and on-demand to the top streaming apps, or cast your favorites from your smartphone to your TV. And do it using voice search – search for shows, control your TV, and more. Hardware Video Power Chipset Video Decoding RAM FlasheMMC 8GB device AV1 [email protected] up to 4Kx2K@60fps VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC [email protected] up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC [email protected] up to 4Kx2K@30fps H.264 MVC up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) RealVideo 8/9/10 up to 1080P@60fps Quad Core ARM A55 24,000 DMIPS 2GB Video OutputHDMI 2.1 , HDCP2.2 DC Input Range Power Consumption Aspect RatioAuto, Full screen 480i/p, 576i/p, 720p, 1080i/p and 4Kx2KVideo Resolution Video File Format Support *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm, *.jpg, *.bmp, *.gif etc... Google, Google Play, YouTube, Android TV and other marks are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. Access and Availability to this applications subject to terms and conditions. Third party applications may require monthly subscription. 12V 1A 12 W device Android TV™ AV 8 9 RESETUSBPower LANOPTICAL 8 Light 9 说明书 SY.SMS. 技术要求： 1. 成形尺寸：95 * 95mm 2.产品不能变形、压痕、划伤、脏污等缺陷 3.图案文字印刷清晰，色差在允许范围内 4.风琴折 5.80g书纸，4C Y.017. V1 Shenzhen SEI Robotics Co., Ltd. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The distance between user and products should be no less than 20cm. The EUT is In door use only Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

<SHENZHEN SEI Robotics Co.,Ltd> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021 04-20 Subject; Request for Long Term Confidentiality FCC ID: 2AOVU-SEI800CCOA To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name Jason zhao Title: General manager

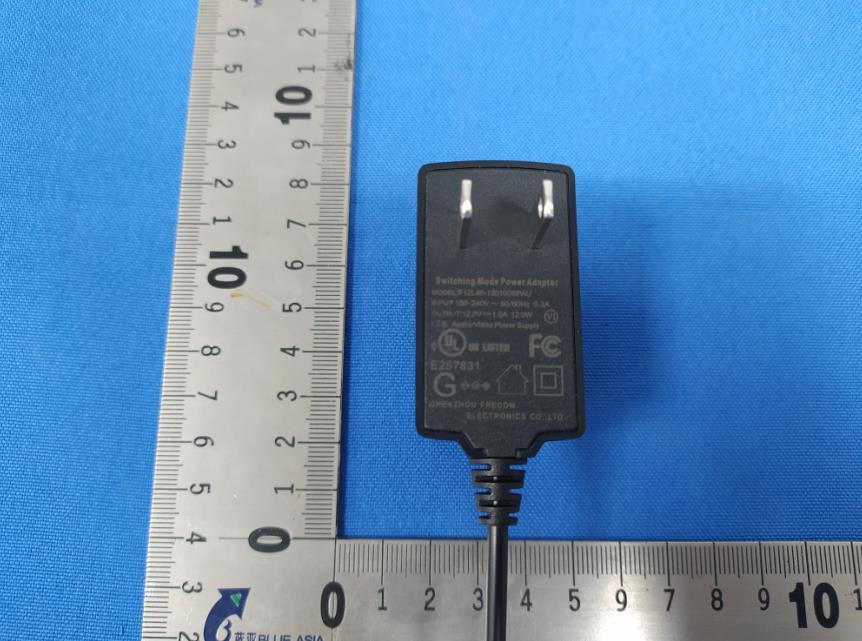

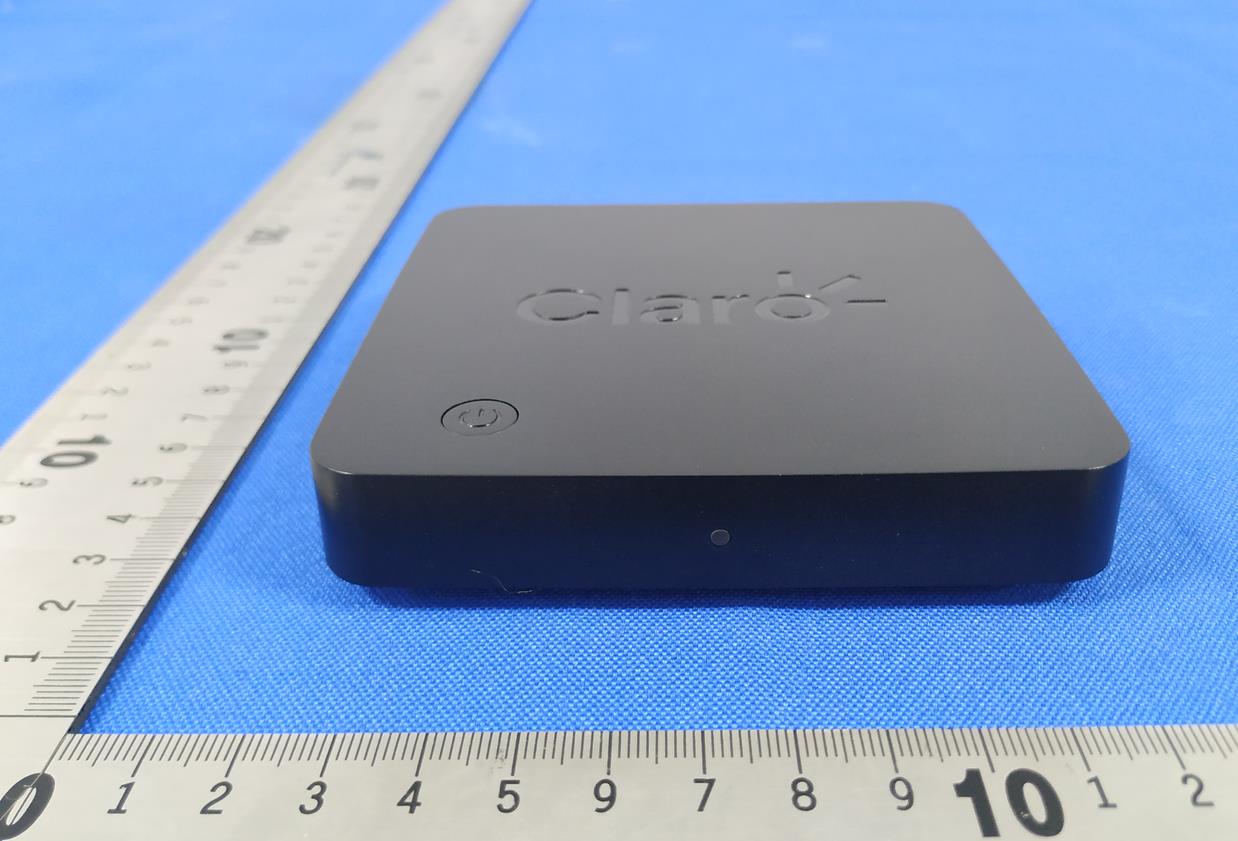

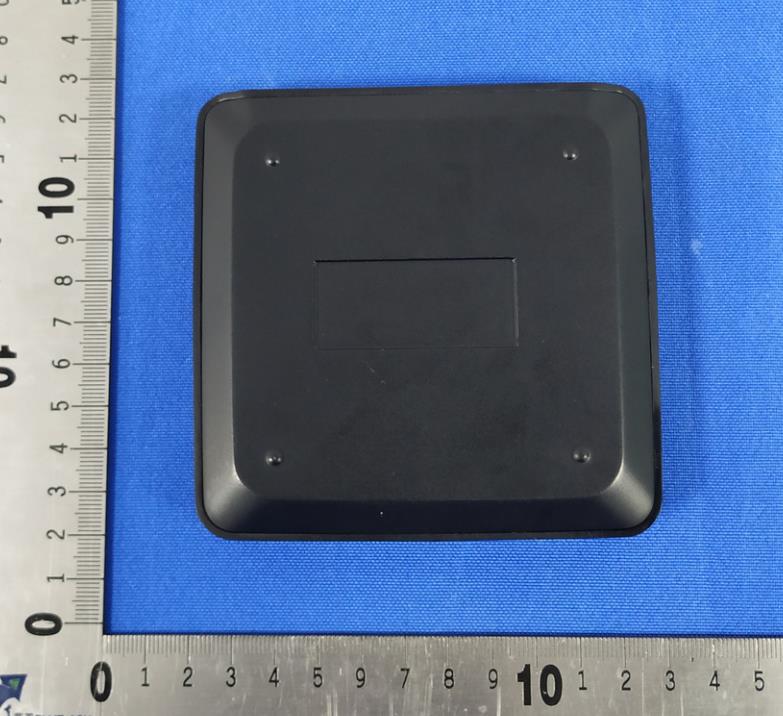

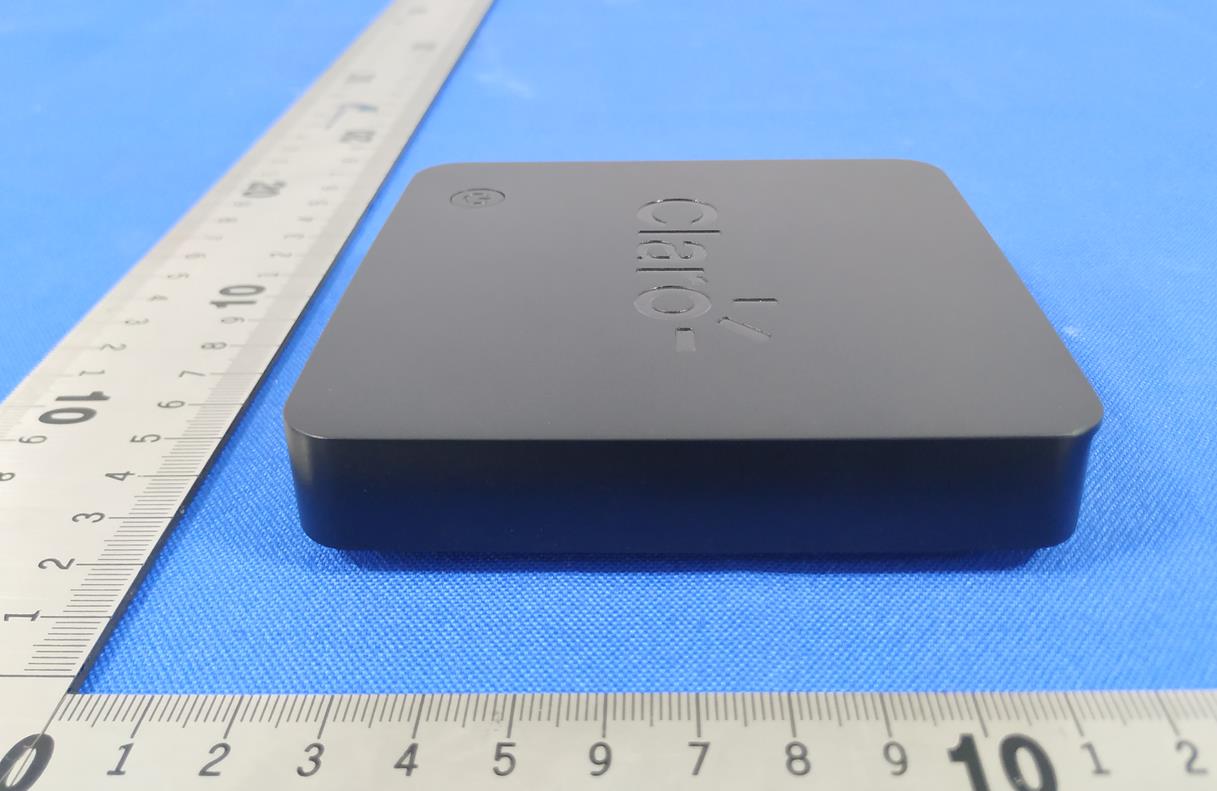

Model No.: Claro STB SEI800CCOA

44.5mm 19.5mm Model: Claro STB SEI800CCOA Company: Shenzhen SEI Robotics Co.,Ltd Made in China FCC ID:2AOVU-SEI800CCOA STB SN: XXXXXXXXXXXXXXXXX STB MAC: XXXXXXXXXXXXXXXX 12V DC 1A Max

Model No.: Claro STB SEI800CCOA

Page 1 of 2 Product Name: set top box Model No.：Claro STB SEI800CCOA FCC ID：2AOVU-SEI800CCOA RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page 2 of 2 1.1.3 EUT RF Exposure Evaluation Antenna Gain:1.9dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.55 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: BLE: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result lowest 2402 6.950 4.95450 0.00153 1.0 PASS EDR Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result lowest 2402 -1.170 0.76384 0.00024 1.0 PASS 2.4G WIFI: 802.11n40 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result lowest 2422 18.709 74.28481 0.02289 1.0 PASS 5G WIFI:802.11ac20 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Highest 5825 18.305 67.68618 0.02086 1.0 PASS Note: Refer to report No. BLA-EMC-202103-A5202/03/04/05 for EUT test Max Conducted Peak Output Power value. The distance r (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Report No. : BLA- EMC -202103-A5204 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com FCC Report (WIFI) Product Name : set top box Trade mark : N/A Model No. : Claro STB SEI800CCOA FCC ID : 2AOVU-SEI800CCOA Report Number : BLA-EMC-202103-A5204 Date of sample receipt : 2021/3/17 Date of Test : 2021/3/17 to 2021/4/15 Date of Issue : 2021/4/16 Test standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Test result : PASS Prepared for: SHENZHEN SEI Robotics Co.,Ltd 4thfloor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen 518057, P.R.China. Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/4/16 Report No. : BLA-EMC-202103-A5204 Page 2 of 51 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2 Version Version No. Date Description 00 2021/4/16 Original  Report No. : BLA-EMC-202103-A5204 Page 3 of 51 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 TEST FACILITY ................................................................................................................................... 7 5.5 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSION ..................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 15 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 16 7.6 BAND EDGES .................................................................................................................................... 17 7.6.1 Conducted Emission Method ..................................................................................................... 17 7.6.2 Radiated Emission Method ........................................................................................................ 18 7.7 SPURIOUS EMISSION......................................................................................................................... 36 7.7.1 Conducted Emission Method ..................................................................................................... 36 7.7.2 Radiated Emission Method ........................................................................................................ 37 8 TEST SETUP PHOTO ............................................................................................................................ 48 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 50 10 APPENDIX .............................................................................................................................................. 50 Report No. : BLA-EMC-202103-A5204 Page 4 of 51 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 Pass Conducted Peak Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2) Pass Power Spectral Density 15.247 (e) Pass Band Edge 15.247(d) Pass Spurious Emission 15.205/15.209 Pass Remark: Test according to ANSI C63.10:2013. Pass: The EUT complies with the essential requirements in the standard. N/A: Not applicable. Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 9kHz ~ 30MHz  4.34dB (1) Radiated Emission 30MHz ~ …
