2AOVU-SX6BHET4K Set Top Box

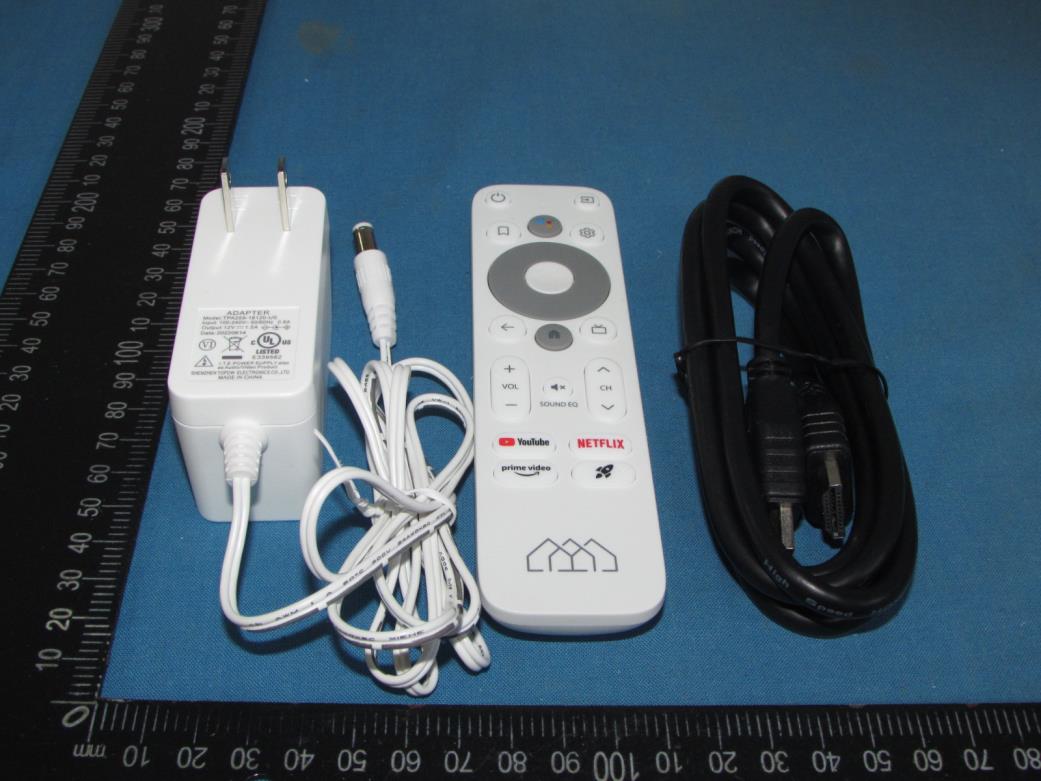

Long press the Back and Home button at the same time until the red light flashes quickly, then release. This means the remote control has entered pairing mode. Wait for a few seconds without pressing any buttons until a message pops up on the screen that the remote has paired successfully. STB Power AdapterBattery Quick GuideRemote Control HDMI Cable Hardware Video Power Chipset Video Decoding RAM Flash Video Output DC Input Range Power Consumption Aspect Ratio Video Resolution Video File Format Support *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm, *.jpg, *.bmp, *.gif etc... Android TV™ makes it easier to get more from your TV. Choose from 400,000+ movies and shows from across streaming services. Ask Google to control your TV, get recommendations of what to watch, dim the lights, and more with your voice. Cast photos, videos, and music from smart devices to your TV with Chromecast built-in™. Do more on your TV with your voice Search for shows, get recommendations, even control your TV – faster – with your voice. Ask Google for a little help on your big screen. device device device HDMI 2.1 , HDCP 2.2 Amlogic S905X4-K AV1 codec , [email protected] up to 4Kx2K@60fps VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC [email protected] up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps H.264 AVC [email protected] up to 4Kx2K@30fps H.264 MVC up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) RealVideo 8/9/10 up to 1080P@60fps 12V 1.5A 18W SETUPLEGAL NOTICES USB-C USB-C Google Assistant is not available in certain languages and countries. Google, Google Play, Android TV, Chromecast built-in and other marks are trademarks of Google LLC. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, DTS-HD, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED 2 Ok Google FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen SEI Robotics Co., Ltd 4th Floor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen, China Date: 2023/1/9 FCC ID: 2AOVU-SX6BHET Dear Sir/Madam, We, Shenzhen SEI Robotics Co., Ltd, Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: 4K Set Top Box Model no.: SX6BHET,SX6BLG, SX6BXXX(XXX:A~Z), Box R 4K Plus, SEI804HM Sincerely, Name/Title： Jason Zhao / Engineer Company: Shenzhen SEI Robotics Co., Ltd Address: 4th Floor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen, China Phone: 0755-26613121 Fax: 0755-26734204 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/1/9 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AOVU-SX6BHET SX6BHET For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos 180 Internal Photos 180 Block Diagram Schematics Test Setup Photos 180 User’s Manual 180 Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jason Zhao / Engineer Company: Shenzhen SEI Robotics Co., Ltd Address: 4th Floor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen, China Phone: 0755-26613121 Fax: 0755-26734204 E-Mail: [email protected]

Shenzhen SEI Robotics Co., Ltd 4th Floor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/1/9 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AOVU-SX6BHET including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jason Zhao / Engineer Company: Shenzhen SEI Robotics Co., Ltd Address: 4th Floor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen, China Phone: 0755-26613121 Fax: 0755-26734204 E-Mail: [email protected]

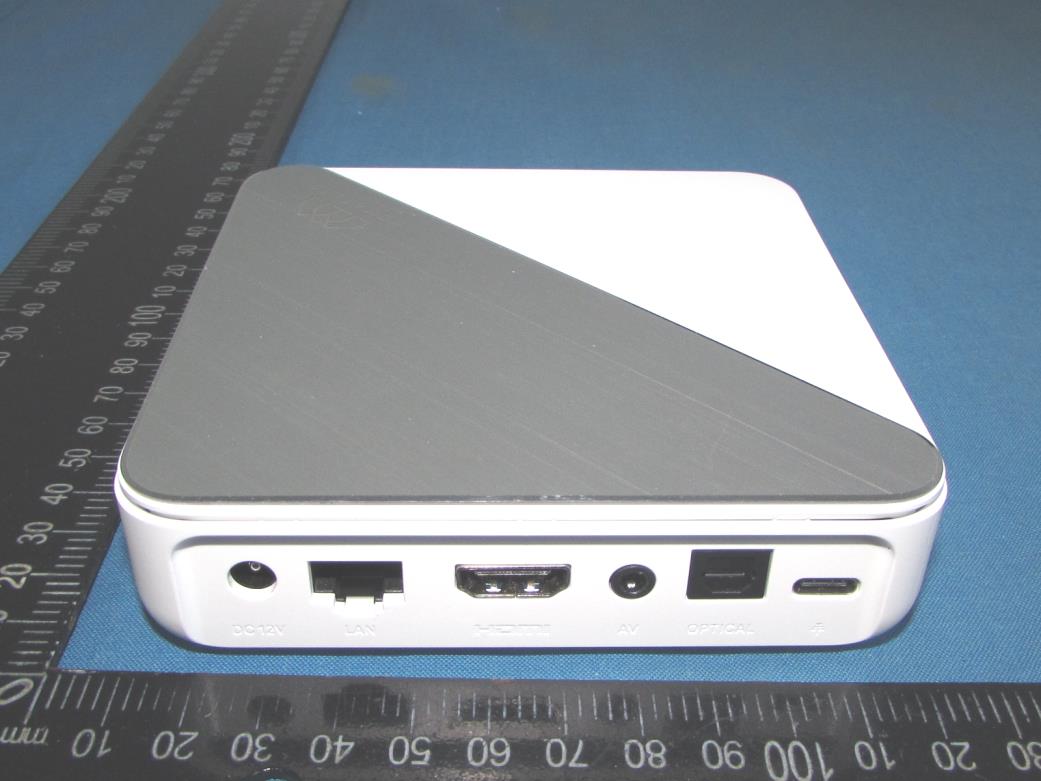

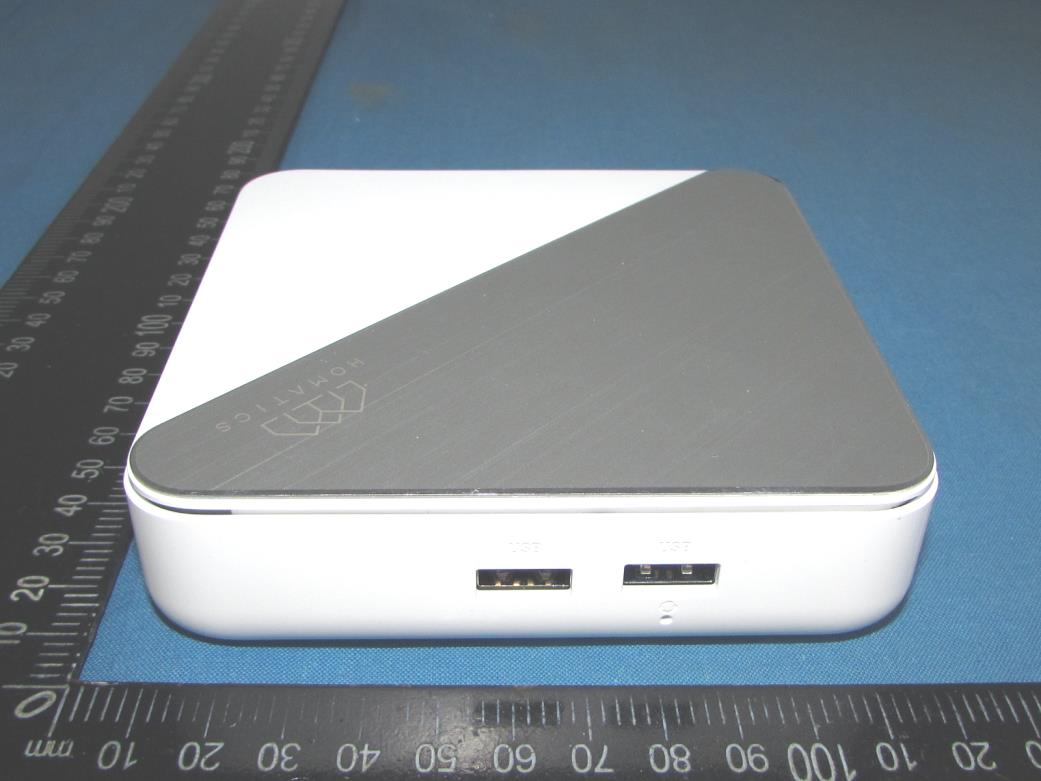

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7 Fig.8

Label Location: FCC ID: 2AOVU-SX6BHET

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 LINTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 WiFi antenna WiFi antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Bluetooth antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 1 of 16 Maximum Permissible Exposure Report Product Information EUT : 4K Set Top Box Model Number : SX6BHET,SX6BLG, SX6BXXX(XXX:A~Z), Box R 4K Plus, SEI804HM Model Declaration : All the same except for the model name Test Model : SX6BHET Power Supply : DC 12V by adapter Hardware version : SMB.280.08E Software version : SEI804HM-user-burn-20220923-v11.8.2856-secureboot-flag.img Sample ID : TZ221203933–2#&TZ221203933–4# Bluetooth Bluetooth Version : V5.0 Operation Frequency : 2402 – 2480 MHz Channel Number : 79 Channels for Bluetooth BR/EDR(DSS) 40 Channels for BLE (DTS) Modulation Technology : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth BR/EDR (DSS) GFSK for BLE (DTS) Data Rates : Bluetooth BR/EDR (DSS): 1/2/3Mbps BLE (DTS): 1/2Mbps Antenna Type And Gain : Internal Antenna:-1.02dBi WiFi WLAN : Supported IEEE 802.11a/b/g/n/ac/ax WLAN FCC Operation Frequency : IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz / 5180-5240MHz / 5745-5825MHz IEEE 802.11a: 5180-5240MHz / 5745-5825MHz IEEE 802.11ac VHT20: 5180-5240MHz/5745-5825MHz IEEE 802.11ac VHT40: 5190-5230MHz / 5755-5795MHz IEEE 802.11ac VHT80: 5210MHz / 5775MHz IEEE 802.11ax HT20: 2412-2462MHz / 5180-5240MHz / 5745-5825MHz IEEE 802.11ax HT40: 5190-5230MHz / 5755-5795MHz IEEE 802.11ax HT80: 5210MHz / 5775MHz WLAN Channel Number : 11 Channels for 2412-2462MHz(IEEE 802.11b/g/n HT20/ax HT20) 4 Channels for 5180-5240MHz (IEEE 802.11a/ac VHT20/n HT20/ax HT20) 2 Channels for 5190-5230MHz (IEEE 802.11ac VHT40/n HT40/ax HT40) 1 Channels for 5210MHz (IEEE 802.11ac VHT80/ax HT80) 5 Channels for 5745-5825MHz(IEEE 802.11a/ac VHT20/n HT20/ax HT20) 2 Channels for 5755-5795MHz(IEEE 802.11ac VHT40/n HT40/ax HT40) 1 Channels for 5775MHz(IEEE 802.11ac VHT80/ax HT80) WLAN Modulation Technology : IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ax: OFDM (1024-QAM,256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Type And Gain : Antenna 1: 2.75dBi (Max.), for TX/RX (WLAN 2.4G Band) 3.96dBi (Max.), for TX/RX (WLAN 5.2G Band) Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 2 of 16 4.04dBi (Max.), for TX/RX (WLAN 5.8G Band) Antenna 2: 4.5dBi (Max.), for TX/RX (WLAN 2.4G Band) 4.85dBi (Max.), for TX/RX (WLAN 5.2G Band) 4.9dBi (Max.), for TX/RX (WLAN 5.8G Band) 802.11n/ac/ax support 2T2R.[Antenna 1 and Antenna 2] Note 1: Antenna position refer to EUT Photos Note 2: The above information supplied by the applicant 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 3 of 16 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit a…

Text truncated - open the document above for the full version.

BT antenna test report 1. Antenna and test environment diagram Test the environment Second, the BT antenna standing wave ratio is isolated from the nearest WIFI antenna BT antenna standing wave ratio diagram BT antenna standing wave ratio value Frequenc y (MHZ). 2400 2500 5150 5180 5210 5330 5775 5825 5850 Standing ratio 3.0 2.3 / / / / / / / Diagram of BT antenna isolation from nearest WIFI antenna Antenna isolation value (1). Frequenc y (MHZ). 2400 2500 5150 5180 5210 5330 5775 5825 5850 Isolation (DBI). -23.1 -24.1 -26.1 -25.6 -25.3 -26.1 -24.1 -22.7 -22.9 Third, antenna gain and antenna efficiency BT antenna Gain&Efficiency Gain and efficiency frequency gain mingain CP Gain CO Gain efficiency efficiency Cross- polarizatio n The main polarizatio n is the most Minimum gain Maximum gain Big gain Frequency (MHz). Gain (dBi). (dBi) (dBi) (dBi) Efficiency (dB). Efficiency (%) 2400 -2.81 -31.62 -6.33 -3.05 -9.01 12.55 2410 -2.36 -35.37 -5.84 -2.6 -8.56 13.95 2420 -2.11 -33.27 -5.55 -2.37 -8.16 15.26 2430 -2.69 -30.07 -5.85 -2.93 -8.56 13.94 2440 -1.51 -24.67 -4.31 -1.78 -7.27 18.76 2450 -2.31 -23.36 -5.07 -2.99 -8.09 15.53 2460 -1.56 -21.29 -3.95 -2.28 -7.16 19.25 2470 -1.33 -20.91 -3.62 -2.12 -6.93 20.27 2480 -1.64 -21.07 -3.84 -2.47 -7.27 18.77 2490 -1.02 -20.65 -3.48 -1.85 -6.73 21.21 2500 -1.88 -21.53 -3.88 -2.71 -7.24 18.88 Fourth, the antenna pattern Shenzhen Everything Connected Communication Co., Ltd 2022.01.04

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 1 of 43 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: 4K Set Top Box Trade Mark: Homatics Test Model: SX6BHET FCC ID: 2AOVU-SX6BHET Environmental Conditions Temperature: 23.4°C Relative Humidity: 49% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.960 2401.544 2402.504 --- --- 2441 0.984 2440.490 2441.474 --- --- 2480 0.966 2479.532 2480.498 --- --- 2DH5 Ant1 2402 1.344 2401.337 2402.681 --- --- 2441 1.329 2440.334 2441.663 --- --- 2480 1.344 2479.322 2480.666 --- --- 3DH5 Ant1 2402 1.302 2401.352 2402.654 --- --- 2441 1.362 2440.316 2441.678 --- --- 2480 1.356 2479.310 2480.666 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 2 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 3 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 4 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 5 of 43 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86399 2401.5688 2402.4328 --- --- 2441 0.86822 2440.5647 2441.4329 --- --- 2480 0.86925 2479.5563 2480.4255 --- --- 2DH5 Ant1 2402 1.1952 2401.4049 2402.6001 --- --- 2441 1.2025 2440.3958 2441.5983 --- --- 2480 1.2041 2479.3881 2480.5922 --- --- 3DH5 Ant1 2402 1.2077 2401.3914 2402.5991 --- --- 2441 1.2072 2440.3836 2441.5908 --- --- 2480 1.2068 2479.3780 2480.5848 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 6 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 7 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 8 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 9 of 43 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 9.32 ≤30.0 PASS 2441 8.39 ≤30.0 PASS 2480 7.9 ≤30.0 PASS 2DH5 Ant1 2402 10.56 ≤20.97 PASS 2441 9.42 ≤20.97 PASS 2480 8.22 ≤20.97 PASS 3DH5 Ant1 2402 11.02 ≤20.97 PASS 2441 9.87 ≤20.97 PASS 2480 8.76 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 10 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 11 of 43 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 12 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 13 of 43 Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.994 ≥0.984 PASS 2DH5 Ant1 Hop 0.904 ≥0.896 PASS 3DH5 Ant1 Hop 0.938 ≥0.908 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 14 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 15 of 43 Appendix E: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.884 90 0.26 ≤0.4 PASS 2DH5 Ant1 Hop 2.886 130 0.375 ≤0.4 PASS 3DH5 Ant1 Hop 2.889 70 0.202 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 16 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 17 of 43 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 18 of 43 Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 19 of 43 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 20 of 43 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 8.65 -49.4 ≤-11.35 PASS High 2480 7.92 -48.99 ≤-12.08 PASS Low Hop_2402 8.52 -49.97 ≤-11.48 PASS High Hop_2480 7.21 -48.25 ≤-12.79 PASS 2DH5 Ant1 Low 2402 8.42 -48.46 ≤-11.58 PASS High 2480 6.10 -47.91 ≤-13.9 PASS Low Hop_2402 5.89 -49.9 ≤-14.11 PASS High Hop_2480 5.03 -48.72 ≤-14.97 PASS 3DH5 Ant1 Low 2402 8.24 -49.19 ≤-11.76 PASS High 2480 6.06 -48.8 ≤-13.94 PASS Low Hop_2402 6.56 -49.91 ≤-13.44 PASS High Hop_2480 5.66 -47.83 ≤-14.35 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 21 of 43 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 22 of 43 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 23 of 43 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 24 of 43 3DH5_Ant1_Low…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 33 of 43 3DH5_Ant1_2441_30~1000 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 34 of 43 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 35 of 43 Appendix I: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] DH5 Ant1 2402 2.89 3.75 77.07 0.35 2441 2.89 3.75 77.07 0.35 2480 2.89 3.75 77.07 0.35 2DH5 Ant1 2402 2.88 3.74 77.01 0.35 2441 2.89 3.75 77.07 0.35 2480 2.88 3.75 76.80 0.35 3DH5 Ant1 2402 2.89 3.75 77.07 0.35 2441 2.89 3.75 77.07 0.35 2480 2.89 3.75 77.07 0.35 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 36 of 43 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 37 of 43 2DH5_Ant1_2441 2DH5_Ant1_2480 3DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 38 of 43 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 39 of 43 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq(MHz) Result(dBm) Limit(dBm) Verdict DH5 Ant1 Low 2402 AV 2310.000 -48.65 ≤-41.20 PASS AV 2388.095 -48.22 ≤-41.20 PASS AV 2390.000 -48.24 ≤-41.20 PASS Peak 2310.000 -42.1 ≤-21.20 PASS Peak 2335.280 -38.76 ≤-21.20 PASS Peak 2390.000 -41.74 ≤-21.20 PASS High 2480 AV 2483.500 -46.52 ≤-41.20 PASS AV 2483.520 -46.52 ≤-41.20 PASS AV 2500.000 -47.72 ≤-41.20 PASS Peak 2483.500 -40.97 ≤-21.20 PASS Peak 2496.480 -37.54 ≤-21.20 PASS Peak 2500.000 -40.91 ≤-21.20 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -48.65 ≤-41.20 PASS AV 2381.480 -48.14 ≤-41.20 PASS AV 2390.000 -48.32 ≤-41.20 PASS Peak 2310.000 -41.33 ≤-21.20 PASS Peak 2375.810 -38.61 ≤-21.20 PASS Peak 2390.000 -41.84 ≤-21.20 PASS High 2480 AV 2483.500 -46.2 ≤-41.20 PASS AV 2483.520 -46.2 ≤-41.20 PASS AV 2500.000 -47.68 ≤-41.20 PASS Peak 2483.500 -42.81 ≤-21.20 PASS Peak 2484.400 -37.94 ≤-21.20 PASS Peak 2500.000 -41.24 ≤-21.20 PASS 3DH5 Ant1 Low 2402 AV 2310.000 -48.64 ≤-41.20 PASS AV 2388.620 -48.18 ≤-41.20 PASS AV 2390.000 -48.36 ≤-41.20 PASS Peak 2310.000 -40.91 ≤-21.20 PASS Peak 2382.425 -37.67 ≤-21.20 PASS Peak 2390.000 -40.99 ≤-21.20 PASS High 2480 AV 2483.500 -46.15 ≤-41.20 PASS AV 2483.520 -46.15 ≤-41.20 PASS AV 2500.000 -47.74 ≤-41.20 PASS Peak 2483.500 -40.61 ≤-21.20 PASS Peak 2485.200 -37.78 ≤-21.20 PASS Peak 2500.000 -41.33 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 40 of 43 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV DH5_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 41 of 43 2DH5_Ant1_Low_2402_AV 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 42 of 43 2DH5_Ant1_High_2480_Peak 3DH5_Ant1_Low_2402_AV 3DH5_Ant1_Low_2402_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AOVU-SX6BHET Report No.: TZ221203933-E1 Page 43 of 43 3DH5_Ant1_High_2480_AV 3DH5_Ant1_High_2480_Peak

Report No.: TZ221203933-E1 Page 1 of 38 FCC TEST REPORT Test report On Behalf of Shenzhen SEI Robotics Co., Ltd For 4K Set Top Box Model No.: SX6BHET,SX6BLG, SX6BXXX(XXX:A~Z), Box R 4K Plus, SEI804HM FCC ID: 2AOVU-SX6BHET Prepared for : Shenzhen SEI Robotics Co., Ltd 4th Floor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: Dec.21, 2022~ Jan.4, 2023 Date of Report: Jan.5, 2023 Report Number: TZ221203933-E1 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ221203933-E1 Page 2 of 38 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen SEI Robotics Co., Ltd Address .................................. : 4th Floor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen, China Manufacture's Name ............ : Shenzhen SEI Robotics Co., Ltd Address .................................. : 4th Floor, Productivity Building D, #5 Hi-Tech Middle 2nd Road, Shenzhen Hi-Tech Industrial Park, Nanshan District, Shenzhen, China Product description Trade Mark ............................. : Homatics Product name ......................... : 4K Set Top Box Model and/or type reference : SX6BHET,SX6BLG, SX6BXXX(XXX:A~Z), Box R 4K Plus, SEI804HM Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test : Date (s) of performance of tests : Dec.21, 2022~ Jan.4, 2023 Date of Issue : Jan.5, 2023 Test Result : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ221203933-E1 Page 3 of 38 Revision History Revision Issue Date Revisions Revised By 00 Jan.5, 2023 Initial Issue Andy Zhang Report No.: TZ221203933-E1 Page 4 of 38 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.4 Description of Test Facility .......................................................................................................................... 7 1.5 Statement of the Measurement Uncertainty ............................................................................................. 8 1.6 Measurement Uncertainty ........................................................................................................................... 8 1.7 Description of Test Modes .......................................................................................................................... 8 2. TEST METHODOLOGY ............................................................................................................…

Text truncated - open the document above for the full version.
