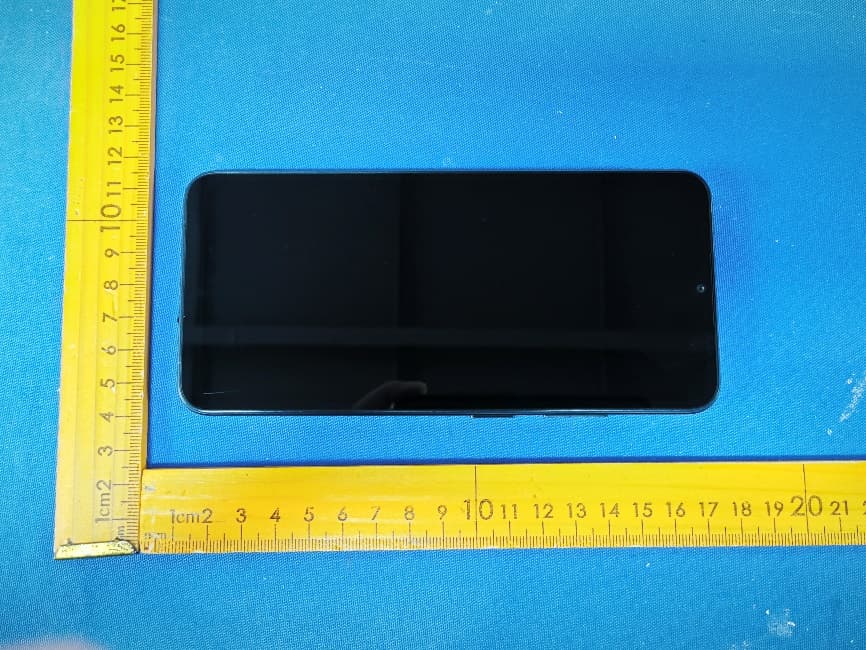

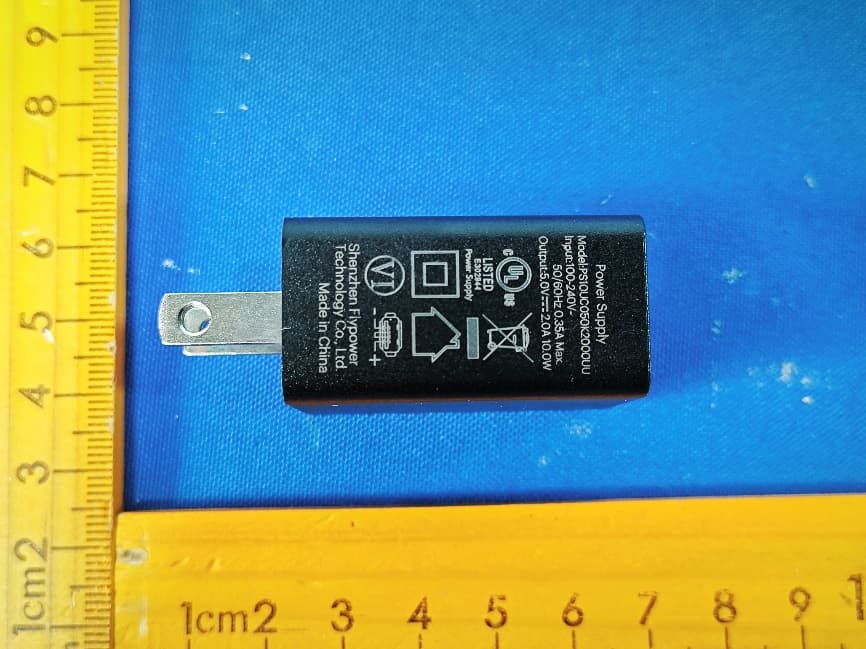

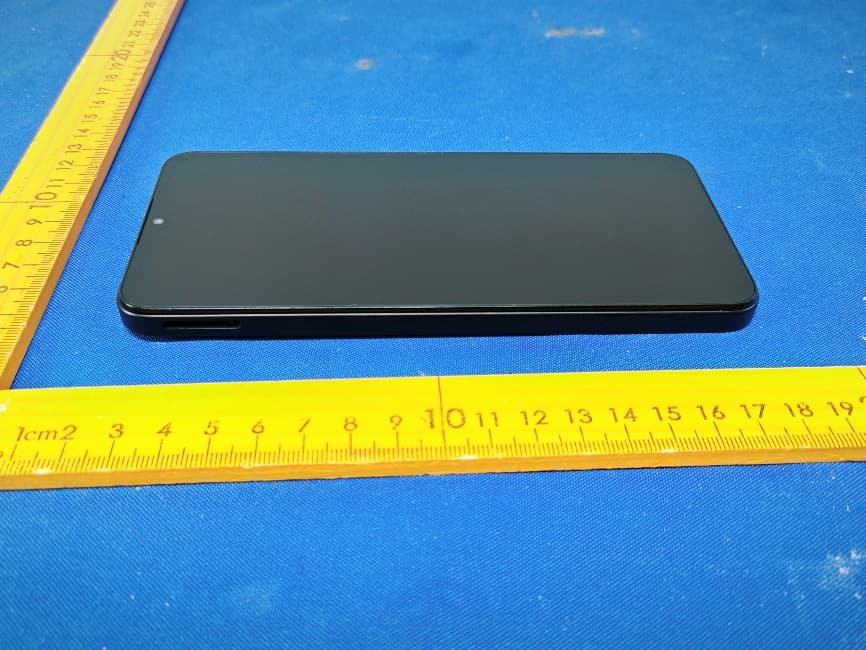

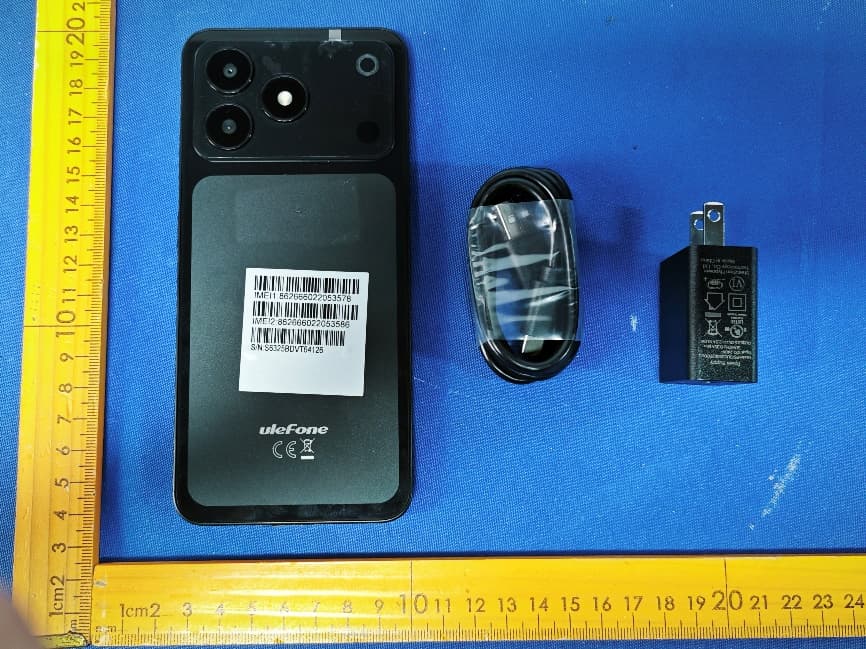

2AOWK-3296Smart Phone

FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ISED Statement: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil contient des émetteurs/récepteurs sans licence conformes aux norms CNR d'Innovation, Sciences et Développement économique Canada. Son fonctionnement est assujetti aux deux conditions suivantes : (1) Cet appareil ne doit pas causer d'interférence ; et (2) Cet appareil doit tolérer toute interférence, y compris celles qui pourraient entraîner un fonctionnement indésirable. RF Exposure Statement SAR tests are conducted using standard operating positions according standards with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This model product has been tested and meets the RF exposure guidelines with the test distance 0mm for head, 5mm for body worn, 0mm for limbs. The highest SAR 1g value is 0.774 W/Kg for head and 1.021W/Kg for body worn, the highest SAR 10g value is 0.962 W/Kg for limbs. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided Déclaration sur l'exposition aux radiofréquences Les tests DAS sont effectués dans des positions d'utilisation standard, conformément aux normes, l'appareil émettant à sa puissance certifiée maximale dans toutes les bandes de fréquences testées. Bien que le DAS soit déterminé à la puissance certifiée maximale, le niveau DAS réel de l'appareil en fonctionnement peut être nettement inférieur à cette valeur maximale. Ce modèle a été testé et est conforme aux directives relatives à l'exposition aux radiofréquences, avec une distance de test de 0 mm pour la tête, 5 mm pour le port sur le corps et 0 mm pour les membres. La valeur DAS 1g la plus élevée est de 0,774 W/kg pour la tête et de 1,021 W/kg pour le port sur le corps. La valeur DAS 10g la plus élevée est de 0,962 W/kg pour les membres. Les attaches de ceinture, étuis et accessoires similaires ne doivent pas contenir de composants métalliques. L'utilisation d'accessoires non conformes à ces exigences peut entraîner une non- conformité aux exigences d'exposition aux radiofréquences et devrait être évitée.

Page 171 of 233 Report No.: AiTSZ-260512044FW6 #41 Date of measurement: 14/5/2026 A. Experimental conditions. Probe0523-EPGO-403 ConvF2.01 Area Scandx=15mm dy=15mm, Complete Zoom Scan5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete PhantomValidation plane Device PositionBody BandLTE band 66 Channel Center [EARFCN] / Channel Center [MHz]Middle (132322)/ frequency 1745.00 Mhz B. Permitivity Middle TX Frequency (MHz)1745.00 Relative permitivity (real part)40.105 Relative permitivity (imaginary part)14.103 Conductivity (S/m)1.367 C. SAR Surface and Volume SURFACE SARVOLUME SAR Maximum location: X=5.00, Y=34.00 ; SAR Peak: 2.10 W/kg D. SAR 1g & 10g SAR 10g (W/Kg)0.504 SAR 1g (W/Kg)1.063 Variation (%)2.690 Horizontal validation criteria: minimum distance (mm)11.313708 Vertical validation criteria: SAR ratio M2/M1 (%)48.397699 Page 172 of 233 Report No.: AiTSZ-260512044FW6 E. Z Axis Scan Z (mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg)2.1331.2170.5890.3620.2290.1380.099 F. 3D Image 3D screen shotHot spot position Page 173 of 233 Report No.: AiTSZ-260512044FW6 #42 Date of measurement: 14/5/2026 A. Experimental conditions. Probe0523-EPGO-403 ConvF2.01 Area Scandx=15mm dy=15mm, Complete Zoom Scan5x5x7,dx=8mm dy=8mm dz=5.0mm,Complete PhantomValidation plane Device PositionBody BandLTE band 66 Channel Center [EARFCN] / Channel Center [MHz]Middle (132322)/ frequency 1745.00 Mhz B. Permitivity Middle TX Frequency (MHz)1745.00 Relative permitivity (real part)40.105 Relative permitivity (imaginary part)14.103 Conductivity (S/m)1.367 C. SAR Surface and Volume SURFACE SARVOLUME SAR Maximum location: X=5.00, Y=34.00 ; SAR Peak: 0.83 W/kg D. SAR 1g & 10g SAR 10g (W/Kg)0.231 SAR 1g (W/Kg)0.444 Variation (%)-1.240 Horizontal validation criteria: minimum distance (mm)11.313708 Vertical validation criteria: SAR ratio M2/M1 (%)55.040323 Page 174 of 233 Report No.: AiTSZ-260512044FW6 E. Z Axis Scan Z (mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg)0.8150.4960.2730.1980.1340.0950.067 F. 3D Image 3D screen shotHot spot position Page 175 of 233 Report No.: AiTSZ-260512044FW6 Appendix D. Calibration Certificate Table of contents E Field Probe - 0523-EPGO-403 750 MHz Dipole - SN 2614 DIP0G750-325 900 MHz Dipole - SN 1811-DIP0G900-151 1800 MHz Dipole - 1811-DIP1G800-152 1900 MHz Dipole - 1811-DIP1G900-153 2450 MHz Dipole - SN 1811-DIP2G450-155 2600 MHz Dipole - SN 2614-DIP2G600-326 Page 176 of 233 Report No.: AiTSZ-260512044FW6 Page 177 of 233 Report No.: AiTSZ-260512044FW6 Page 178 of 233 Report No.: AiTSZ-260512044FW6 Page 179 of 233 Report No.: AiTSZ-260512044FW6 Page 180 of 233 Report No.: AiTSZ-260512044FW6 Page 181 of 233 Report No.: AiTSZ-260512044FW6 Page 182 of 233 Report No.: AiTSZ-260512044FW6 Page 183 of 233 Report No.: AiTSZ-260512044FW6 Page 184 of 233 Report No.: AiTSZ-260512044FW6 Page 185 of 233 Report No.: AiTSZ-260512044FW6 Page 186 of 233 Report No.: AiTSZ-260512044FW6 Page 187 of 233 Report No.: AiTSZ-260512044FW6 Page 188 of 233 Report No.: AiTSZ-260512044FW6 Page 189 of 233 Report No.: AiTSZ-260512044FW6 Page 190 of 233 Report No.: AiTSZ-260512044FW6 Page 191 of 233 Report No.: AiTSZ-260512044FW6 Page 192 of 233 Report No.: AiTSZ-260512044FW6 Page 193 of 233 Report No.: AiTSZ-260512044FW6 Page 194 of 233 Report No.: AiTSZ-260512044FW6 Page 195 of 233 Report No.: AiTSZ-260512044FW6 Page 196 of 233 Report No.: AiTSZ-260512044FW6 Page 197 of 233 Report No.: AiTSZ-260512044FW6 Page 198 of 233 Report No.: AiTSZ-260512044FW6 Page 199 of 233 Report No.: AiTSZ-260512044FW6 Page 200 of 233 Report No.: AiTSZ-260512044FW6

FCC ID: 2AOWK-3296 IC: 12564A-3296 Test Positions Left Cheek (Separation distance of 0mm) Left Tilt 15 Degree (Separation distance of 0mm) Right Cheek (Separation distance of 0mm) Right Tilt 15 Degree (Separation distance of 0mm) Front Side (Separation distance of 5mm) Back Side (Separation distance of 5mm) Left Side (Separation distance of 5mm) Right Side (Separation distance of 5mm) FCC ID: 2AOWK-3296 IC: 12564A-3296 Top Side (Separation distance of 5mm) Bottom Side (Separation distance of 5mm) Back Side (Separation distance of 0mm)

FCC ID: 2AOWK-3296 Conducted Emission Radiated Emission 30MHz-1GHz Radiated Emission above 1GHz FCC ID: 2AOWK-3296 RF conducted

旗开S6325B天线报告 报告日期：2026年7月13日星期一 Antenna Design And Test Report 目录 CONTENTS 项目概述 Project Overview 01 测试环境 Test Environment 02 03 附加说明 Additional Notes 04 有源报告 PassiveReport 05 产品图 06 Product diagram 附加说明 Sum up 项目概述 3 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 一切为了客户 Project Overview 报告版本: Report version 日期 Date 内容 Content v1.02026.6.16 样机天线测试报告 主天线设计频段: main antenna design spectrum GSM : 850/900/1800/1900 WCDMA: W1/2/4/5/8 FDD:B1/2/3/4/5/7/8/12/17/19/20/26 28/66 TDD:B38/40/41 天线类型: Type of antenna FPC 副天线设计频段: Deputy antenna design spectrum GPS/WIFI/BT 天线类型: Type of antenna FPC 测试环境 4 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 看完了关于如何做科 学研究的几本书，只 是觉得像喝了几碗鸡 汤，然并卵罢了 一切为了客户 Test Environment 3座远场3D全电波微波暗室实验室系统，1座MVG SG24LT（Satmio）近场3D微波暗室实验室系统（与国家相关实验室同步） 产品图 5 PART WO 一切为了客户 有源报告 6 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 一切为了客户 Active Report BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS G850 L 25.0725.0525.7125.41 M 25.9225.8925.9225.79 H 26.27-102.5626.31-102.7725.72-102.125.57-102.02 G900 L 24.9825.0625.1625.15 M 25.5625.8325.2425.38 H 25.62-102.1325.86-102.2325.04-102.0325.54-101.88 DCS1800 L 23.0624.3623.7724.36 M 24.2124.7523.1824.75 H 24.24-105.2224.23-105.9323.52-105.6724.23-106.53 PCS1900 L 25.6525.6925.1124.09 M 25.1725.0825.4525.56 H 25.52-106.2125.01-105.6625.31-106.725.48-106.72 有源报告 7 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 一切为了客户 Active Report BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS W1 L 17.8717.5317.7117.65 M 18.3417.8118.9218.94 H 18.79-106.9317.21-106.6518.72-106.818.3-107.02 W2 L 18.4818.2118.1618.23 M 18.8718.5318.2418.63 H 19.69-108.9318.09-108.3817.04-108.9317.66-108.88 W4 L 17.1917.0817.1317.63 M 17.1817.0517.3517.88 H 17.69-106.4917.57-106.5417.83-106.5317.59-106.53 W5 L 16.8616.1316.2516.62 M 16.8516.3616.1816.15 H 16.46-104.8716.2-105.1515.73-105.3717.6-105.22 W8 L 16.4216.9716.1516.82 M 16.3616.2116.5716.76 H 16.21-103.8816.29-103.5716.39-103.5816.11-103.28 有源报告 8 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 一切为了客户 Active Report BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS LTE B1 10M L 18.1218.0918.39 18.38 M 18.5618.4518.14 18.79 H 19.13 -93.81 19.06-94.3518.92-93.89 19.33-94.29 LTE B2 10M L 18.9119.3319.42 19.11 M 19.219.4618.88 19.24 H 19.04 -93.91 19.4-93.7518.98-93.84 19.56-94.21 LTE B3 10M L 17.1917.4317.79 17.5 M 17.5217.8618.11 17.81 H 18.21 -93.29 18.55-93.1618.76-93.15 18.39-93.59 LTE B4 10M L 17.2417.4318.83 17.46 M 17.2417.4718.61 17.45 H 17.6 -93.12 17.84-93.5617.26-93.46 17.82-93.42 有源报告 9 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 一切为了客户 Active Report BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS LTE B5 10M L 16.7216.816.35 16.63 M 16.5416.916.34 16.38 H 16.34-92.5116.87-92.8816.04-92.42 16.05-92.55 LTE B7 10M L 18.8318.7318.99 18.02 M 18.1618.0818.86 17.54 H 17.92-91.7417.77-92.0717.16-92.12 17.87-91.85 LTE B8 10M L 16.1416.1115.84 16.24 M 16.2916.3216.11 16.39 H 16.52-92.4416.45-92.6116.21-92.39 16.24-92.23 LTE B12 10M L 16.7417.0917.11 16.71 M 16.8417.3816.85 16.76 H 16.76-92.5117.23-92.416.61-92.58 16.62-92.31 有源报告 10 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 一切为了客户 Active Report BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS LTE B17 10M L 16.8917.02 17.1716.96 M 16.7617.19 17.1717.01 H 16.81-91.5917.16-91.19 17.14 -91.33 17.06-91.35 LTE B19 10M L 16.616.37 16.7716.6 M 16.5616.32 16.8616.39 H 16.31-92.6316.22-92.96 16.74 -93.33 16.2-93.71 LTE B20 10M L 16.8417.3217 17.08 M 17.0417.4417 17.21 H 17.14-91.6317.56-91.7617.23 -91.3717.19-91.47 LTE B26 10M L 16.5816.3516.42 16.57 M 16.5216.3916.73 16.5 H 16.24-92.4416.14-92.9216.72 -92.916.06-92.45 有源报告 11 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 一切为了客户 Active Report BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS LTE B28 10M L 16.6616.99 17.1716.65 M 16.7416.14 16.3316.66 H 16.47-92.0816.87-92.03 17.08 -92.21 16.83-92.24 LTE B38 10M L 17.9917.66 17.7917.85 M 17.6317.79 17.4617.86 H 17.49-90.9717.38-90.64 17.56 -90.67 17.34-90.51 LTE B40 10M L 20.1620.0919.95 20.04 M 19.9519.8419.61 20.03 H 19.64-90.6419.56-90.8119.64 -90.6419.59-91.31 LTE B41 10M L 17.6717.6918.57 17.99 M 17.7417.117.74 17.89 H 17.82-90.0317.68-90.318.22 -90.2318.18-90.82 有源报告 12 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 一切为了客户 Active Report BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS LTE B66 10M L 16.46 16.16 16.71 16.65 M 16.8 16.47 16.92 16.94 H 16.35-93.19 17.02-91.43 17.72 -92.1217.3-91.42 BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS LTE B66 10M L 16.46 16.56 16.71 16.65 M 16.8 16.47 16.92 16.94 H 17.35-92.19 17.02-92.43 17.22 -92.1217.3-92.42 有源报告 13 最近工作和生活都有 些懈怠，事情比较多 比较杂，搅在一起让 人丧失了动力 PART WO 一切为了客户 Active Report BandCH 1#2#3#4# TRPTISTRPTISTRPTISTRPTIS WiFi-B L 12.1411.2910.9212.33 M 13.0712.7712.4812.25 H 12.19-79.8212.29-79.3712.16-79.2313-79.16 BandCH 1#2#3#4# GPS TRP 38.23 38.09 38.3938.17 TIS -151.16 -151.32 -151.2-151.04 RF2（703-803mhz）-TX RF3（824-894MHZ）-TX  RF4（ 1700-2700MHZ）-RX  Efficiency and gain RF1（880-960MHZ）TX RF2（703-803mhz）-TX RF3（824-894MHZ）-TX RF4（1700-2700MHZ）-RX Radiation pattern RF1 RF2 RF3 RF4 Structure size： 2、ANT1 Technical parameters WWAN：2G/3G/4G Antenna company ： Antenna form：PIFA Frequency：700MHz~2690MHz S11 RF1（1710-2170MHZ-TX） RF2（700-803MHZ-RX） RF3（824-894MHZ-RX） RF4（880-960MHZ-RX） RF5（2300-2700HZ-TX） Efficiency and gain RF1（1710-2170MHZ-TX） RF2（700-803MHZ-RX） RF3（824-894MHZ-RX） RF4（880-960MHZ-RX） RF5（2300-2700HZ-TX） Radiation pattern RF1 RF2 RF3 RF4 RF5 7、ANT2 Technical parameters WLAN：GPS&2.4GWIFI Antenna company： Antenna form：PIFA Frequency： 1575MHZ 2400-2500MHZ S11 Efficiency and gain Radiation pattern G900/W8/B8: +1.2DBI G850/B5/B20/W5:0.7DBI B28//12/13/17:0.2dbi DCS/B3/B4/B66/W4:0.3DBI PCS/B2/W2:1.1DBI W1/B1: 0.7DBI B7/B41/B38:2.7DBI B40:0.4dbi Wifi 2.4G/BT:1.4dbi GPS:1.8dbi WWAN DIV ANT WWAN Main ANT BT/WIFI ANT 14 PART WO 一切为了客户 总结 以上为样机测试报告 环境处理及匹配方案沿用往期报告，不做调整 附加说明 15 03 01 报告中天线匹配电路是否改动，天线有关的环境处理是否增加，将直接影响天线性能，请 仔细确认查看。 02 贵司如有最新试产或更新产品（如软件，ESD，物料等）请尽快提供我司进行验证，以确认 天线性能是否有变化影响。 倘若贵司需要送第三方检测机构复测或客户测试，请务必先与我司进行天线相关测试确认， 因主板·装配的一致性，以及…

Text truncated - open the document above for the full version.

Page 1 of 39 Report No.: AiTSZ-260512044FW3 Appendix RF test data for WIFI2.4G Page 2 of 39 Report No.: AiTSZ-260512044FW3 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 8.383 8.413 99.64 0.02 0.04 2437 8.383 8.413 99.64 0.02 0.04 2462 8.384 8.414 99.64 0.02 0.04 802.11g SISO 2412 1.392 1.428 97.48 0.11 0.03 2437 1.392 1.428 97.48 0.11 0.03 2462 1.394 1.428 97.62 0.10 0.03 802.11n (HT20) SISO 2412 1.302 1.336 97.46 0.11 0.03 2437 1.301 1.336 97.38 0.12 0.10 2462 1.302 1.336 97.46 0.11 0.03 Page 3 of 39 Report No.: AiTSZ-260512044FW3 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 4 of 39 Report No.: AiTSZ-260512044FW3 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 5 of 39 Report No.: AiTSZ-260512044FW3 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 6 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 7 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Page 8 of 39 Report No.: AiTSZ-260512044FW3 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 12.706 / Pass 2437 1 12.721 / Pass 2462 1 12.658 / Pass 802.11g SISO 2412 1 16.496 / Pass 2437 1 16.464 / Pass 2462 1 16.420 / Pass 802.11n (HT20) SISO 2412 1 17.623 / Pass 2437 1 17.604 / Pass 2462 1 17.561 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 8.166 >=0.5 Pass 2437 1 8.163 >=0.5 Pass 2462 1 8.148 >=0.5 Pass 802.11g SISO 2412 1 16.081 >=0.5 Pass 2437 1 16.152 >=0.5 Pass 2462 1 15.996 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.328 >=0.5 Pass 2437 1 17.257 >=0.5 Pass 2462 1 17.245 >=0.5 Pass Page 9 of 39 Report No.: AiTSZ-260512044FW3 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 10 of 39 Report No.: AiTSZ-260512044FW3 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 11 of 39 Report No.: AiTSZ-260512044FW3 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 12 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 13 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Page 14 of 39 Report No.: AiTSZ-260512044FW3 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 15 of 39 Report No.: AiTSZ-260512044FW3 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 16 of 39 Report No.: AiTSZ-260512044FW3 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 17 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 18 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Page 19 of 39 Report No.: AiTSZ-260512044FW3 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 12.86 <=30 Pass 2437 12.51 <=30 Pass 2462 12.72 <=30 Pass 802.11g SISO 2412 17.68 <=30 Pass 2437 17.61 <=30 Pass 2462 17.86 <=30 Pass 802.11n (HT20) SISO 2412 17.95 <=30 Pass 2437 17.83 <=30 Pass 2462 18.00 <=30 Pass Page 20 of 39 Report No.: AiTSZ-260512044FW3 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 802.11b SISO 2412 2.53 <=8 Pass 2437 1.57 <=8 Pass 2462 2.45 <=8 Pass 802.11g SISO 2412 -0.41 <=8 Pass 2437 -0.68 <=8 Pass 2462 0.24 <=8 Pass 802.11n (HT20) SISO 2412 -0.39 <=8 Pass 2437 -0.12 <=8 Pass 2462 0.44 <=8 Pass Note1: Antenna Gain: Ant1: 1.80dBi; Page 21 of 39 Report No.: AiTSZ-260512044FW3 4.2 Test Graph 4.2.1 PSD 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 22 of 39 Report No.: AiTSZ-260512044FW3 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 23 of 39 Report No.: AiTSZ-260512044FW3 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 24 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 25 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Page 26 of 39 Report No.: AiTSZ-260512044FW3 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 802.11b SISO 2412 1 2.61 2437 1 2.34 2462 1 2.30 802.11g SISO 2412 1 -0.79 2437 1 -0.21 2462 1 0.16 802.11n (HT20) SISO 2412 1 0.22 2437 1 -0.43 2462 1 -0.46 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 802.11b SISO 2412 1 2.61 -17.39 Pass 2437 1 2.34 -17.66 Pass 2462 1 2.30 -17.70 Pass 802.11g SISO 2412 1 -0.79 -20.79 Pass 2437 1 -0.21 -20.21 Pass 2462 1 0.16 -19.84 Pass 802.11n (HT20) SISO 2412 1 0.22 -19.78 Pass 2437 1 -0.43 -20.43 Pass 2462 1 -0.46 -20.46 Pass Page 27 of 39 Report No.: AiTSZ-260512044FW3 5.2 Test Graph 5.2.1 Ref 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 28 of 39 Report No.: AiTSZ-260512044FW3 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 29 of 39 Report No.: AiTSZ-260512044FW3 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 30 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 31 of 39 Report No.: AiTSZ-260512044FW3 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Page 32 of 39 Report No.: AiTSZ-260512044FW3 5.2.2 CSE 802.11b_LC…

Text truncated - open the document above for the full version.

Page 1 of 21 Report No.: AiTSZ-260512044FW2 Appendix RF test data for BLE Page 2 of 21 Report No.: AiTSZ-260512044FW2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 2.144 2.501 85.73 0.67 0.03 2440 2.128 2.501 85.09 0.70 0.03 2480 2.128 2.500 85.12 0.70 0.03 Page 3 of 21 Report No.: AiTSZ-260512044FW2 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 21 Report No.: AiTSZ-260512044FW2 1M_HCH_2480MHz_Ant1_NTNV Page 5 of 21 Report No.: AiTSZ-260512044FW2 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.039 / Pass 2440 1 1.040 / Pass 2480 1 1.040 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.668 >=0.5 Pass 2440 1 0.669 >=0.5 Pass 2480 1 0.671 >=0.5 Pass Page 6 of 21 Report No.: AiTSZ-260512044FW2 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 7 of 21 Report No.: AiTSZ-260512044FW2 1M_HCH_2480MHz_Ant1_NTNV Page 8 of 21 Report No.: AiTSZ-260512044FW2 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 9 of 21 Report No.: AiTSZ-260512044FW2 1M_HCH_2480MHz_Ant1_NTNV Page 10 of 21 Report No.: AiTSZ-260512044FW2 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -2.21 <=30 Pass 2440 -2.01 <=30 Pass 2480 -1.61 <=30 Pass Page 11 of 21 Report No.: AiTSZ-260512044FW2 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 12 of 21 Report No.: AiTSZ-260512044FW2 1M_HCH_2480MHz_Ant1_NTNV Page 13 of 21 Report No.: AiTSZ-260512044FW2 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 -2.42 <=8 Pass 2440 -2.23 <=8 Pass 2480 -1.82 <=8 Pass Note1: Antenna Gain: Ant1: 1.80dBi; Page 14 of 21 Report No.: AiTSZ-260512044FW2 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 21 Report No.: AiTSZ-260512044FW2 1M_HCH_2480MHz_Ant1_NTNV Page 16 of 21 Report No.: AiTSZ-260512044FW2 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -2.42 2440 1 -2.23 2480 1 -1.83 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 -2.42 -22.42 Pass 2440 1 -2.23 -22.23 Pass 2480 1 -1.83 -21.83 Pass Page 17 of 21 Report No.: AiTSZ-260512044FW2 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 18 of 21 Report No.: AiTSZ-260512044FW2 1M_HCH_2480MHz_Ant1_NTNV Page 19 of 21 Report No.: AiTSZ-260512044FW2 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 20 of 21 Report No.: AiTSZ-260512044FW2 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 21 of 21 Report No.: AiTSZ-260512044FW2 1M_HCH_2480MHz_Ant1_NTNV ********************** End of Report **********************

Page 1 of 35 Report No.: AiTSZ-260512044FW3 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name: Smart Phone Brand Name: ulefone Model: Note 23 Series Model: N/A FCC ID:2AOWK-3296 Applicant: Shenzhen Gotron Electronic CO.,LTD. Address: 7B01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Manufacturer: Shenzhen Gotron Electronic CO.,LTD. Address: 7B01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Standard(s):FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt:May 12, 2026 Date of Test: May 12, 2026 ~ June 04, 2026 Issued Date: June 05, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 35 Report No.: AiTSZ-260512044FW3 Report Revise Record Report VersionIssued DateNotes M0June 05, 2026Initial Release Page 3 of 35 Report No.: AiTSZ-260512044FW3 Contents 1TEST SUMMARY......................................................................................................................................................4 1.1TEST STANDARDS.........................................................................................................................................................4 1.2TEST SUMMARY...........................................................................................................................................................4 1.3TEST FACILITY..............................................................................................................................................................5 1.4MEASUREMENT UNCERTAINTY........................................................................................................................................5 2GENERAL INFORMATION........................................................................................................................................6 2.1ENVIRONMENTAL CONDITIONS........................................................................................................................................6 2.2GENERAL DESCRIPTION OF EUT......................................................................................................................................6 2.3DESCRIPTION OF TEST MODES AND TEST FREQUENCY.........................................................................................................7 2.4SPECIAL ACCESSORIES...................................................................................................................................................8 2.5EQUIPMENT LIST FOR THE TEST.......................................................................................................................................8 3TEST CONDITIONS AND RESULTS...........................................................................................................................10 3.1CONDUCTED EMISSIONS TEST.......................................................................................................................................10 3.2RADIATED EMISSIONS AND BAND EDGE..........................................................................................................................13 3.3MAXIMUM PEAK CONDUCTED OUTPUT POWER...............................................................................................................29 3.4POWER SPECTRAL DENSITY..........................................................................................................................................30 3.56DB BANDWIDTH......................................................................................................................................................31 3.6OUT-OF-BAND EMISSIONS...........................................................................................................................................32 3.7ANTENNA REQUIREMENT.............................................................................................................................................33 4TEST SETUP PHOTOGRAPHS OF EUT......................................................................................................................34 5PHOTOS OF EUT....................................................................................................................................................35 Page 4 of 35 Report No.: AiTSZ-260512044FW3 1TEST SUMMARY 1.1Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10-2020+COR.1-2023: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spreda Spectrum System, and Hybrid System Devices Operating Under Section…

Text truncated - open the document above for the full version.

Page 1 of 35 Report No.: AiTSZ-260512044FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without…
