2AP22-HT08Microhard Radio P900

P a g e | 1 www.holybro.com Model:HT08 Holybro P900 Radio integrates microhard Pico Series P900 RF module which is capable of delivering high-performance wireless serial communications in robust and secure Mesh, Point to Point or Point to Multipoint topologies. P900 Radio operate within the 902-928 MHz ISM frequency band, using frequency hopping spread spectrum (FHSS) technology, providing reliable wireless asynchronous data transfer between most equipment types which employ a serial interface. P900 Radio may be configured as a Primary Coordinator, Secondary Coordinator, Standby Coordinator or Remote in a Mesh Topology, or a Master, Repeater or Remote in a PP or PMP Topology. This versatility is very convenient for the user. P900 Radio is configured using AT commands through the Data port or using PicoConfig application through the Diagnostic Microhard Radio P900 Port. P a g e | 2 www.holybro.com Frequency R BENEFITS –USB Type-C port, integrated USB to UART converter –6-position JST-GH connector, can be directly connected to the TELEM port on various flight controller such as the pixhawk4 –High voltage BEC onboard, Support DC12V voltage supply –UART transmission LED indicator –Three-stage RSSI LED indicator –Transmission within a public, license-exempt band of the radio spectrum –Transparent, low latency link rates up to 276 kbps –Supports a robust true Mesh operation with auto-routing –32 bits of CRC, selectable retransmission and forward error correction –Separate diagnostics port, transparent remote diagnostics and online network control SPECIFICATIONS ange ISM 902 to 928 MHz Transmit Power (Software Selectable) 4mW Band Segments Selectable via Freq. Zones Link Rate Up to 276kbps Serial Baud Rate Up to 230.4kbps asynchronous Low and middle data rate: 101; Sensitivity Link Rate 10 ̅6 BER 10 ̅3 BER 57.6 kbps -111dBm -114dBm 115.2 kbps -110 dBm -113dBm 172 kbps -108dBm -111dBm 230 kbps -107dBm -110dBm 276 kbps -106dBm -109dBm Range 40 miles (60km) Spreading Technology Frequency Hopping Spread Spectrum (FHSS) Supported Network Topologies (Software Selectable ) Coordinator, point-to-point, point-to-multipoint, mesh Error Detection 32 bits of CRC, ARQ Data Encryption 128, 196 or 256-bit AES Encryption (Requires export permit outside US and Canada.) P a g e | 3 www.holybro.com Status LEDs P900 Radio have 6 status LEDs, there are three blue, two orange and one green LEDs. The meaning of the different LEDs are: Power LED(green) This LED will illuminate when the P900 Radio is connected to a power source (7-35VDC). TX LED (orange) When illuminated, this LED indicates that the Radio is transmitting data over the air. RX LED (orange) This LED indicates that the Radio is synchronized and has received valid packets. RSSI LEDs (3x Blue) As the received signal strength increases, starting with the furthest left, the number of active RSSI LEDs increases. Signal strength is calculated based on the last four valid received packets with correct CRC. The value of RSSI is reported in S123. P a g e | 4 www.holybro.com RSSI LEDs(blue) - indicate the receive signal strength. RSSI <20% LED-20 off LED-50 off LED-100 off 20%<RSSI<50% LED-20 on LED-50 off LED-100 off 50%<RSSI<80% LED-20 on LED-50 on LED-100 off 80%<RSSI LED-20 on LED-50 on LED-100 on Config Button Holding this button while powering-up the radio will boot the unit into COMMAND mode: the default serial interface will be active and temporarily set to operate at its default serial settings of 9600/8/N/1. USB USB TypeC Port. Internal USB to Serial Converter. The USB port of Holybro P900 Radio is different from MicroHard P900 Enclosed. The USB port of P900 Enclosed provides access to the Diagnostic Port. But Holybro P900 Radio’s USB port Provides access to the Serial data Port. That means you can connect Holybro P900 Radio to your ground station via USB port directly. USB Vbus only power the USB to Serial chip, and don’t power the Radio. Data Port 6-position JST-GH. Data Port is used to connect to the telemetry port of a flight controller. When USB TypeC port don’t connect, this connector connects to the Serial data Port automatically. When USB TypeC is pluged in, this connector is floating. Data Port don’t power the Radio. Diagnostic Port 4-position JST SH. This connector connects to the Diagnostic Port. If you use PicoConfig application or special diagnostic commands to config the Radio, you should connect to this port. Diagnostic Port is 3.3V logic level compatibility. A USB to Serial board is needed for connecting the radio to your computer. P a g e | 5 www.holybro.com Power Port 4-position JST-GH. The input Voltage range is 7-35 Vdc. The Radio is powered by the Power Port only. Please connect the power supply when in use and configuration. Default Setting The default setting of microhard P900 module do not match the telemetry setting of flight controller. Holybro P900 Radio have been configured to Point to Point Operating Mode and 57600 Serial Baud Rate in factory. Using these parameters, the Radio communicates successfully with the pixhawk series flight controller. After Firmware Update or resetting the Radio, you need to re-config them as following. In Point to Point operating modes, there must be a master to provide network synchronization for the system, so one Radio should be configured to PP Master and another should be configured to PP Remote. Refer to <Pico Series P900.Operating Manual.v1.8.7> for the detail information of Radio Configuration. Power Consumption Supply voltage: DC7~35V from 4-position JST-GH Transmit current: 200 mA/7V at 20dBm 350mA/7V at 27dBm 800 mA/7V at 30dBm Receive current: 100 mA Weight: 42g (without antenna) P a g e | 6 www.holybro.com PIN OUTS Data Port Pin Signal Volt 1(red) NC -- 2(black) RX +3.3V 3(black) TX +3.3V 4(black) CTS +3.3V 5(black) RTS +3.3V 6(black) GND GND Diagnostic Port Pin Signal Volt 1 NC -- 2(black) RX +3.3V 3(black) TX +3.3V 4(black) GND GND Power Port Pin Signal Volt 1(red) BAT+ 7-35V 2(red) B…

Text truncated - open the document above for the full version.

Federa l Communications Commissio HOLYBRO(H.K.) LIMITED n Authorization and Evaluation Division Equi pm ent Aut hor izat ion Branc h 7435 Oak land Mills Road Col um bi a, MD 21046 5/12/23 U.S . Agent Designati on HOLYBRO(H.K.) LIMITED acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AP22- HT08): Name and company of U.S. agent: Stone Trading Limited Physical U.S. address of agent: 6547 N Academy Blvd #2266,Colorado Springs,CO 80918,United States FRN of U.S. agent: 0033401936 Email address of U.S. agent: Email:[email protected] Stone Trading Limited acknowledges their obligation to accept service of process on behalf of HOLYBRO(H.K.) LIMITED. HOLYBRO(H.K.) LIMITED accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature [Name]Zhide Pu [Title]Manager [Company]HOLYBRO(H.K .) LIM IT ED The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U. S. agent changes, the grantee is obligated to notify the FCC. Signature [Name of U.S. agent]Dongmei Fang [Title of U.S. agent] Manager [Company of U.S. agent]Sto ne Trading Limite d

Sincerely, Name/Title： Pu Zhide/Product Development Manager Company: HOLYBRO(H.K.) LIMITED Address: RM 1902 EASEY COMM BLDG253-261 HENNESSY RD WANCHAI Hongkong China Phone: 0755-23576763 Fax: N/A E-Mail: [email protected]

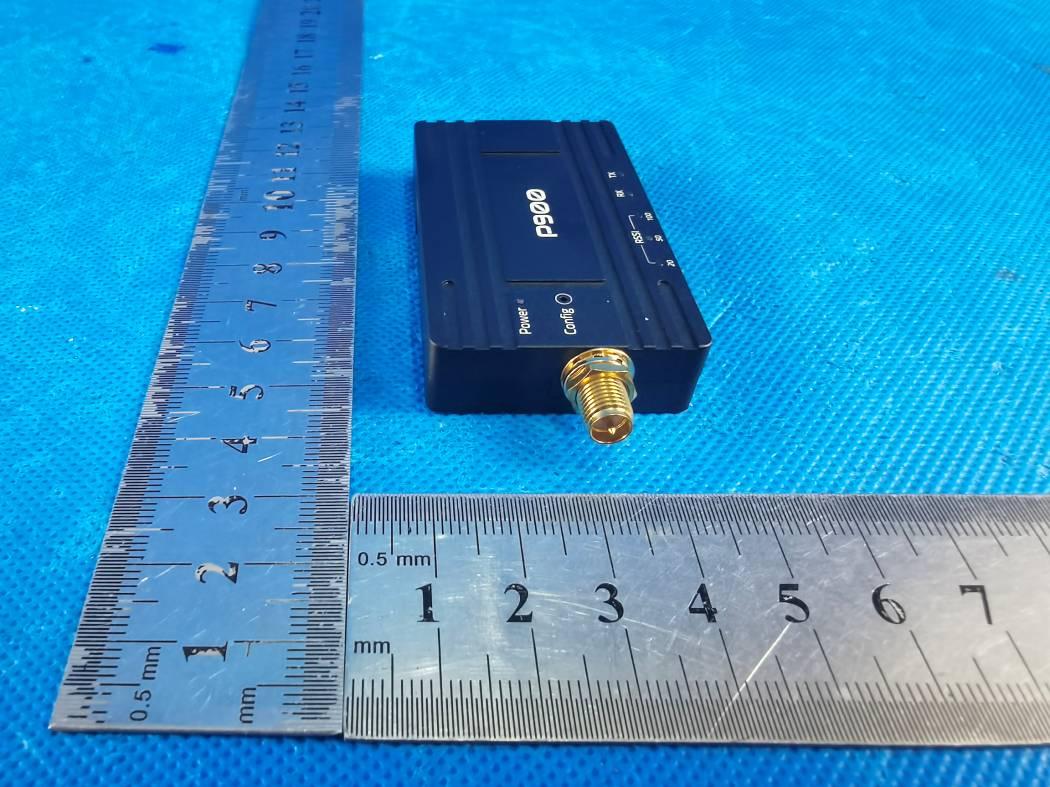

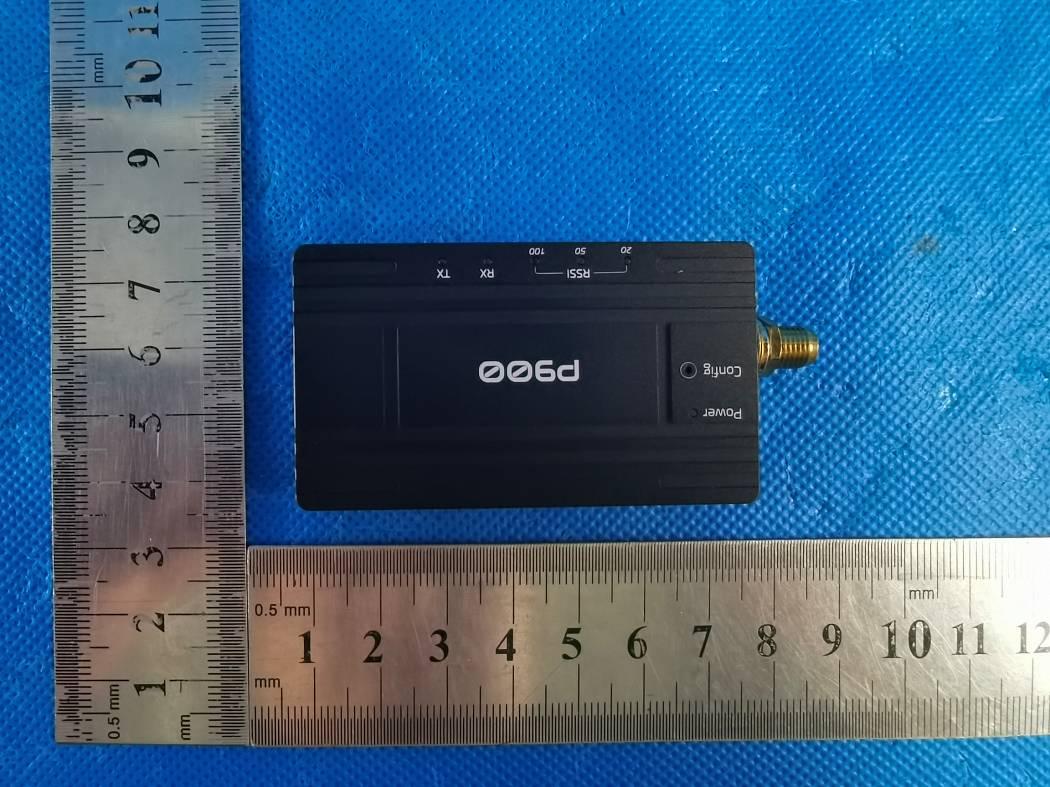

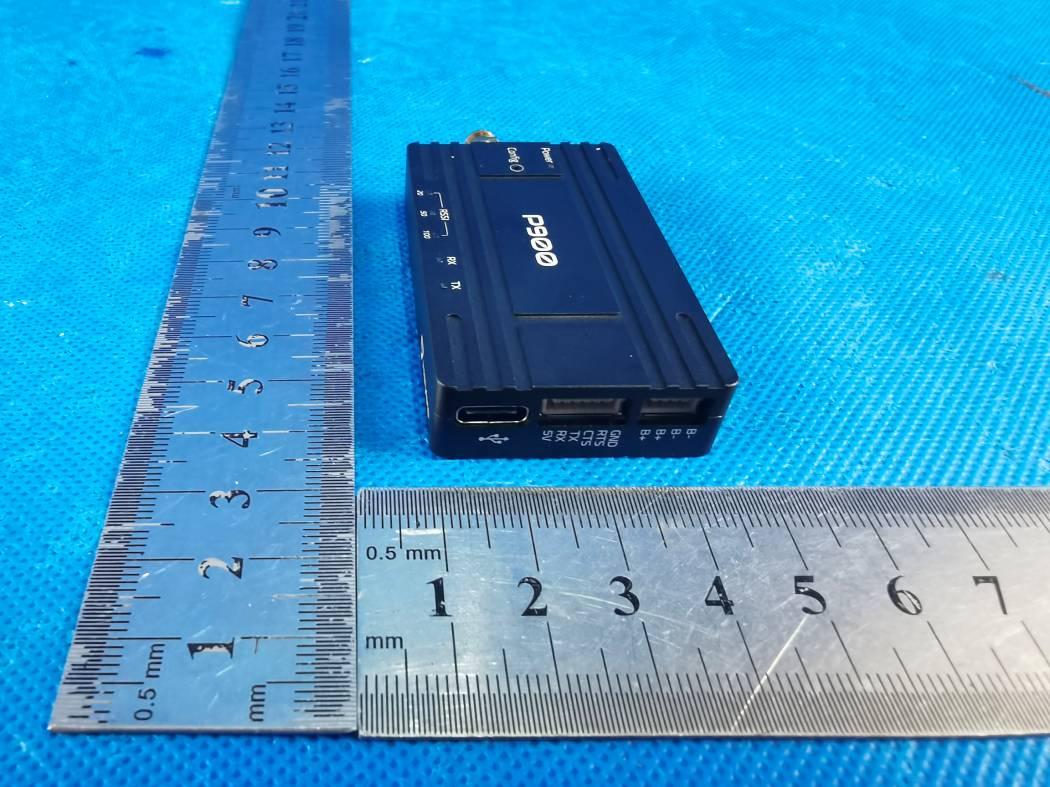

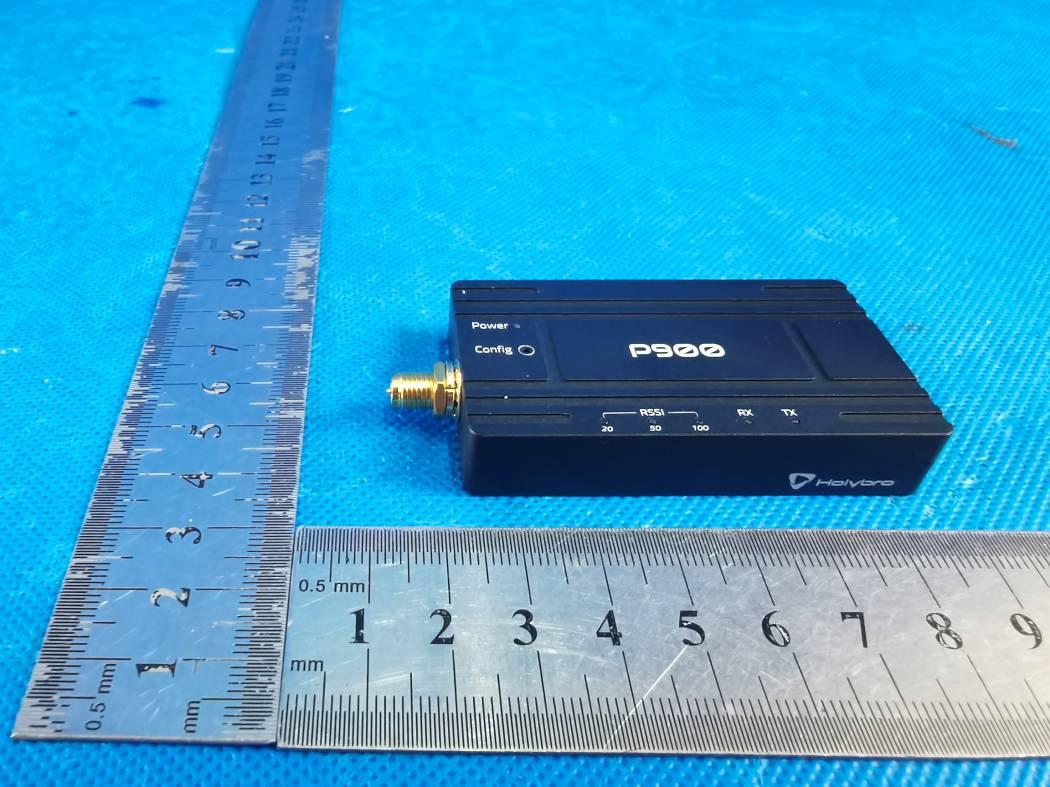

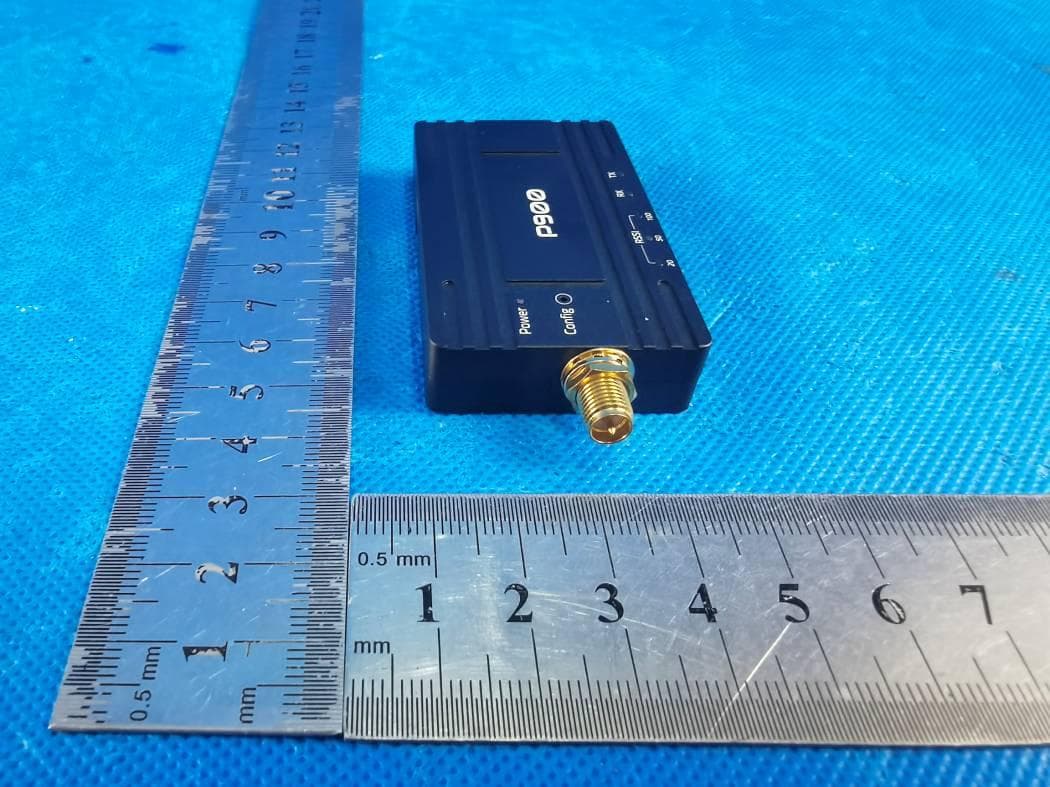

Page1of6FDDID:2AP22-HT08 PHOTOGRAPHSOFEUT AllVIEWOFEUT TOPVIEWOFEUT RODAntenna Page2of6FDDID:2AP22-HT08 BOTTOMVIEWOFEUT FRONTVIEWOFEUT Page3of6FDDID:2AP22-HT08 FRONTVIEWOFEUT BACKVIEWOFEUT Page4of6FDDID:2AP22-HT08 LEFTVIEWOFEUT

Label FCCID:2AP22-HT08

Page5of6FDDID:2AP22-HT08 OPENVIEWOFEUT(FIGURE1) OPENVIEWOFEUT(FIGURE2) Page6of6FDDID:2AP22-HT08 INTERNALVIEWOFEUT(FIGURE1) INTERNALVIEWOFEUT(FIGURE2) ----ENDOFREPORT----

RFExposureevaluation FCCID:2AP22-HT08 Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; AntennaNo. ModelNo. ofantenna: Typeofantenna: Gainoftheantenna (Max.) Frequencyrange: 915M/RODANT.1.0dBifor902-928MHz 5.ManufacturingTolerance 915M(Conducted) Frequency (MHz) GFSK 914.65 Target(dBm)-5.0 Tolerance±(dB)1.0 Note: E=89.71dBuV/m(Max.) EIRP=E-95.4=89.71-95.4=-5.69dBm 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast 20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedantennais refertosection4,theRFpowerdensitycanbeobtained. ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBmmW GFSK-4.00.3981.01.0000.0000791.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

Page 1 of 33 ReportNo.:AIT23041404FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong, China. RFTESTREPORT ClientInformation: Applicant:HOLYBRO(H.K.)LIMITED Applicantadd.: RM1902EASEYCOMMBLDG253-261HENNESSYRDWANCHAIHONG KONG Manufacturer:ShenzhenHolyBroHobbyTechnicalCo.,LTD Manufactureradd.: Floor4,JiangHaiIndustryDistrict,No.7yongheRoad,ShiYanTown,Bao'an District,ShenzhenCity,GuangdongProvince,China ProductInformation: ProductName:MicrohardRadioP900 ModelNo.:HT08,TelemetryRadioSeries BrandName:N/A FCCID: 2AP22- HT08 Applicablestandards: FCCCFRTitle47Part15SubpartCSection15.249 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:2023.04.17DateofTest:2023.04.17~2023.05.06 DateofIssue:2023.05.06TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: SimbaHuangSeal.chen Page 2 of 33 ReportNo.:AIT23041404FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong, China. TABLEOFCONTENTS 1.TESTSUMMARY...............................................................................................................................3 1.1. TESTSTANDARDS..........................................................................................................................3 1.2.REPORTVERSION..........................................................................................................................3 1.3.TESTDESCRIPTION........................................................................................................................4 1.4. TABLEOFCARRIERFREQUENCY....................................................................................................4 1.5.MEASUREMENTUNCERTAINTY.....................................................................................................5 1.6.ENVIRONMENTALCONDITIONS....................................................................................................5 2.GENERALINFORMATION.................................................................................................................6 2.1. GENERALDESCRIPTIONOFEUT....................................................................................................6 2.2. MEASUREMENTINSTRUMENTSLIST............................................................................................7 2.3.TESTLOCATION.............................................................................................................................8 2.4. DESCRIPTIONOFTESTMODES......................................................................................................8 2.5. TESTSOFTWARE............................................................................................................................8 3.TESTITEMANDRESULTS..................................................................................................................9 3.1. ANTENNAREQUIREMENT.............................................................................................................9 3.2.20DBBANDWIDTH......................................................................................................................10 3.3. CONDUCTEDEMISSION..............................................................................................................13 3.4.RADIATEDSPURIOUSEMISSIONS...............................................................................................16 3.5.BANDEDGEEMISSIONS(RADIATED)...........................................................................................28 4.EUTTESTPHOTOS..........................................................................................................................33 Page 3 of 33 ReportNo.:AIT23041404FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong, China. 1.TESTSUMMARY 1.1.TESTSTANDARDS Thetestswereperformedaccordingtofollowingstandards: FCCRulesPart15.249:Operationwithinthebands902-928MHz,2400-2483.5MHz,5725-5875 MHz,and24.0-24.25GHz. ANSIC63.10-2013:AmericanNationalStandardforTestingUnlicensedWirelessDevices. 1.2.REPORTVERSION RevisedNo.DateofissueDescription 012023.05.06Original Page 4 of 33 ReportNo.:AIT23041404FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong, China. 1.3.TESTDESCRIPTION FCCRulesPart15.249 TestItem SectioninCFR47 Result Test Engineer FCC Antennarequirement15.203Pass Simba Huang ACPowerLineConducted Emissions 15.207Pass Simba Huang 20dBBandwidthSection15.215(c)Pass Simba Huang BandedgeEmissionsSection15.249(d)Pass Simba Huang RadiatedSpuriousEmissions Section15.205(a),Section15.209(a), Section15.249,Section15.35 Pass Simba Huang Note: 1.Themeasurementuncertaintyisnotincludedinthetestresult. 1.4.TABLEOFCARRIERFREQUENCY Channel Number Frequency MHz Channel Number Frequency MHz Channel Number Frequency MHz 0902.418906.936911.4 1902.6519907.1537911.65 2902.920907.438911.9 3903.1521907.6539912.15 4903.422907.940912.4 5903.6523908.1541912.65 6903.924908.442912.9 7904.1525908.6543913.15 8904.426908.944913.4 9904.6527909.1545913.65 10904.928909.446913.9 11905.1529909.6547914.15 12905.430909.948914.4 13905.6531910.1549914.65 14905.932910.4 15906.1533910.65 16906.434910.9 17906.6535911.15 Page 5 of 33 ReportNo.:AIT23041404FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet…

Text truncated - open the document above for the full version.

ShenZhen Huaxinwei communication technolo gy gy Co.,Ltd . Antenna test repor t 2 The customer name Xun Rui Project Name MV2T-1 Detailed abo e NO. project Detailed abo v e 1 spectrum 915M 2 Project type The controller 2 Project type The controller 3 Antenna space area Fd it 4 F ee d po i n t type 5 The sensitivity 6 Type of antennaThe length 7 of the PCB board 8 note Debugging prototype RF Zhang Jun 13430517892 [email protected] 3 1 、 Test system and test equipment System Brand: MVG(SATIMO) measurement features: gain • pattern beamwidth cross polarization resolution sidelobe level 3D cavity reflectance at any polarization cavity reflectance (line or arc) antenna efficiency TRP, TIS, EIRP and EIS. Frequency band: StarLab 6 GHZ ‐ 650 MHZ to 6 GHZ The object under test Link antenna Test Equipment Antenna position Lora antenna Efficient ( Lora ) PEAK GAIN LORA: Frequency range Efficiency(%) Gain(dBi) 902~928Mhz 20.05 1.0 ~ 915M Efficient ( 902~928MHz ）

Page 1 of 2 FCCID:2AP22-HT08 TESTSETUPPHOTOS RadiatedMeasurement(Below1GHz) RadiatedMeasurement(Above1GHz) Page 2 of 2 FCCID:2AP22-HT08 ConductedEmission ****************************************EndofReport*************************************
