2AP2T-STLTHVStealth V

Rev. 9/30/19 CovertTrack Group, Inc. 15600 N. 78th Street, Scottsdale, AZ 85260 Tracking: www.coverttrack.com Customer Support 480.657.9545 Stealth V – Quick Start Guide POWER ON Press and hold the power button at least 3 seconds then release. LEDs will flash in sequence, display current state, and then turn off after a short period. POWER OFF Press and hold the power button at least 5 seconds then release. The LEDs will cycle through a sequence and then turn off. CHARGING •Turn the tracking device off by holding down the power button for 5 seconds. •Open the charging port cover & attach the supplied charger. •The red light will blink while charging & turn solid red once charged. •Once fully charged, remove the charger, then screw the charging port cover back on. DO NOT overtighten. CHARGING NOTES •Always fully charge your device before deploying. •Charging time can take up to 12 hours if fully drained. •Once fully charged, power off, unplug and store until needed. •Always charge on a fireproof surface under supervision. •Use only the supplied charger. •When not in use, battery should be recharged when it drains to 50% capacity. CHECK ON/OFF STATUS To determine if the device is ON, tap (do not hold) the power Button to view the LED’s. BATTERY LEVEL To check the battery level of your device, visit the coverttrack.com website. PLACEMENT Typical placement is under the vehicle within 10” of one side of the vehicle. COVERAGE AREA The tracking device must be within 4G coverage of selected model (AT&T or Verizon) to function. CHARGING PORT POWER BUTTON + LED *If the device is powered off and the charge cable is disconnected, the Power LED will turn off. WARNINGS •Contains strong magnets that may damage any LCD, Mobile Device Screen, or Computer screen in close proximity. •Always charge on a fireproof surface under supervision. •Only use the supplied charger. •Failure to secure the charging port cover may cause damage to the unit! •Do not leave connected to the charger for longer than 24 hours. •When deploying the tracker, do not place the device near or on fuel tank or fuel tank lines. •Do NOT place near any source of heat (ex: exhaust system or engine compartment) as this may cause fire. •Failure to follow the instructions may result in fire, personal injury and damage to property. Please test device and check tracking on CovertTrack.com before deploying. Rev. 9/29/19 CovertTrack Group, Inc. 15600 N. 78th Street, Scottsdale, AZ 85260 Tracking: www.coverttrack.com Customer Support 480.657.9545 Power Output ...........................................................................................................0.1mW Maximum Operating Frequency ....................................................................................... 216.025 – 216.975 MHz Operating Channels/Modes ......................................................................20 channels, 50 kHz spacing Data Rates ..................................................................................................................................N/A Tuning Range ................................................................................................... 216.025 – 216.975 MHz Intended Use .......................................................................................... Tracking by Law Enforcement Antenna Connector/Gain Information ......................................Internal Antenna, 0 dBi maximum gain Note: This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the body of the user or nearby persons. FCC Regulations: 105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an output on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. (15.21) Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by CTRACK might cause harmful interference and void the FCC authorization to operate this product. (15.19(a)(3)) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation RF Note: This product complies with FCC OET Bulletin 65 radiation exposure limits set forth for an uncontrolled environment. A shielded USB cable must be used with this device. Part 95 Transmitter Technical Specifications LPRS Note: This device may not interfere with TV reception or Federal Government radar. This transmitter is authorized by rule under the Low Power Radio Service (47 CFR part 95) and must not cause harmful interference to TV reception or to the United States Air Force Space Surveillance System operating in the 216.88-217.08 MHz band. With the exception of automated maritime telecommunications system (AMTS) devices, you do not need an FCC license to operate this transmitter. This transmitter may only be used to provide: auditory assistance to persons with disabilities, persons who require language translation, or person…

Text truncated - open the document above for the full version.

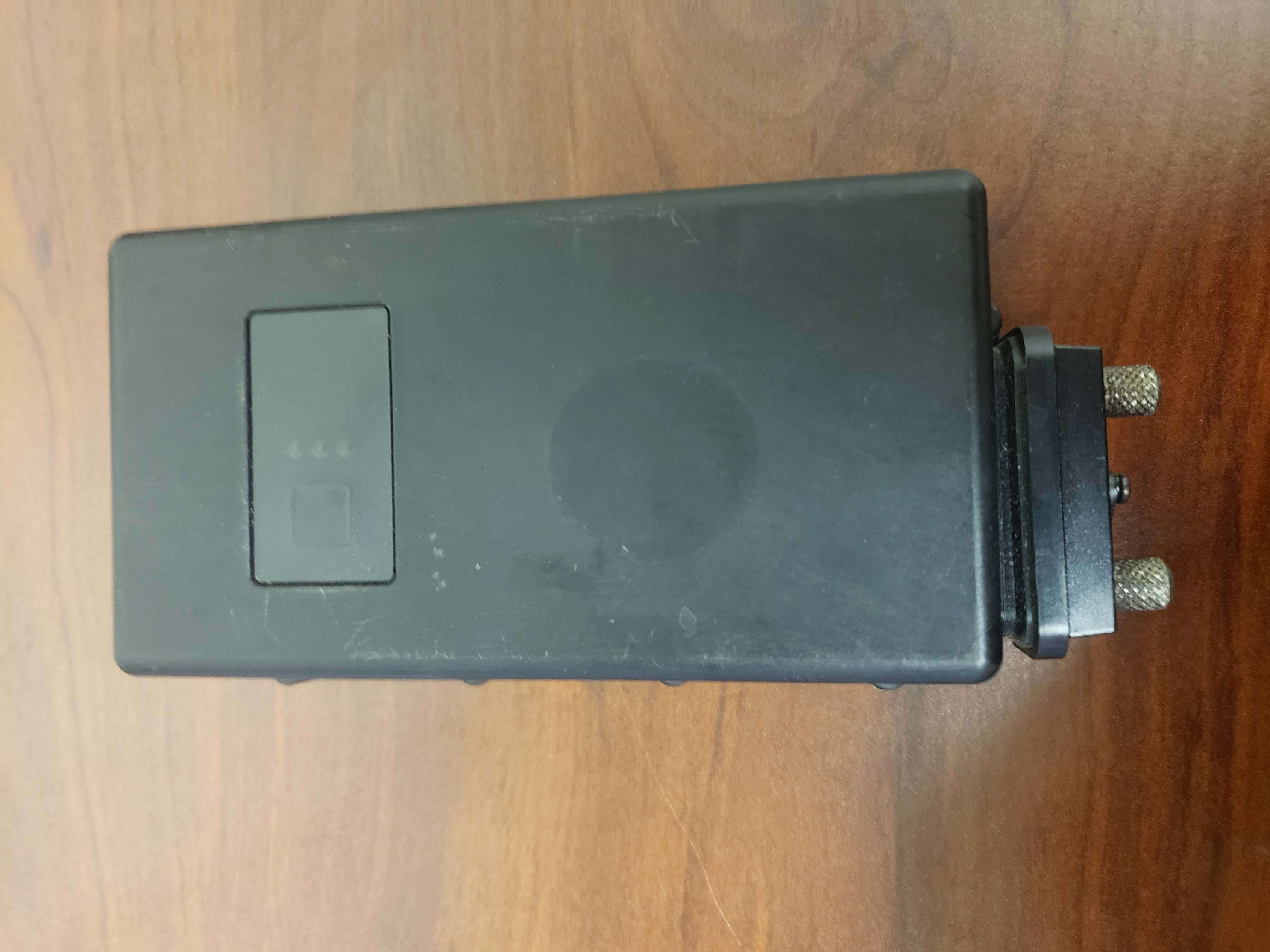

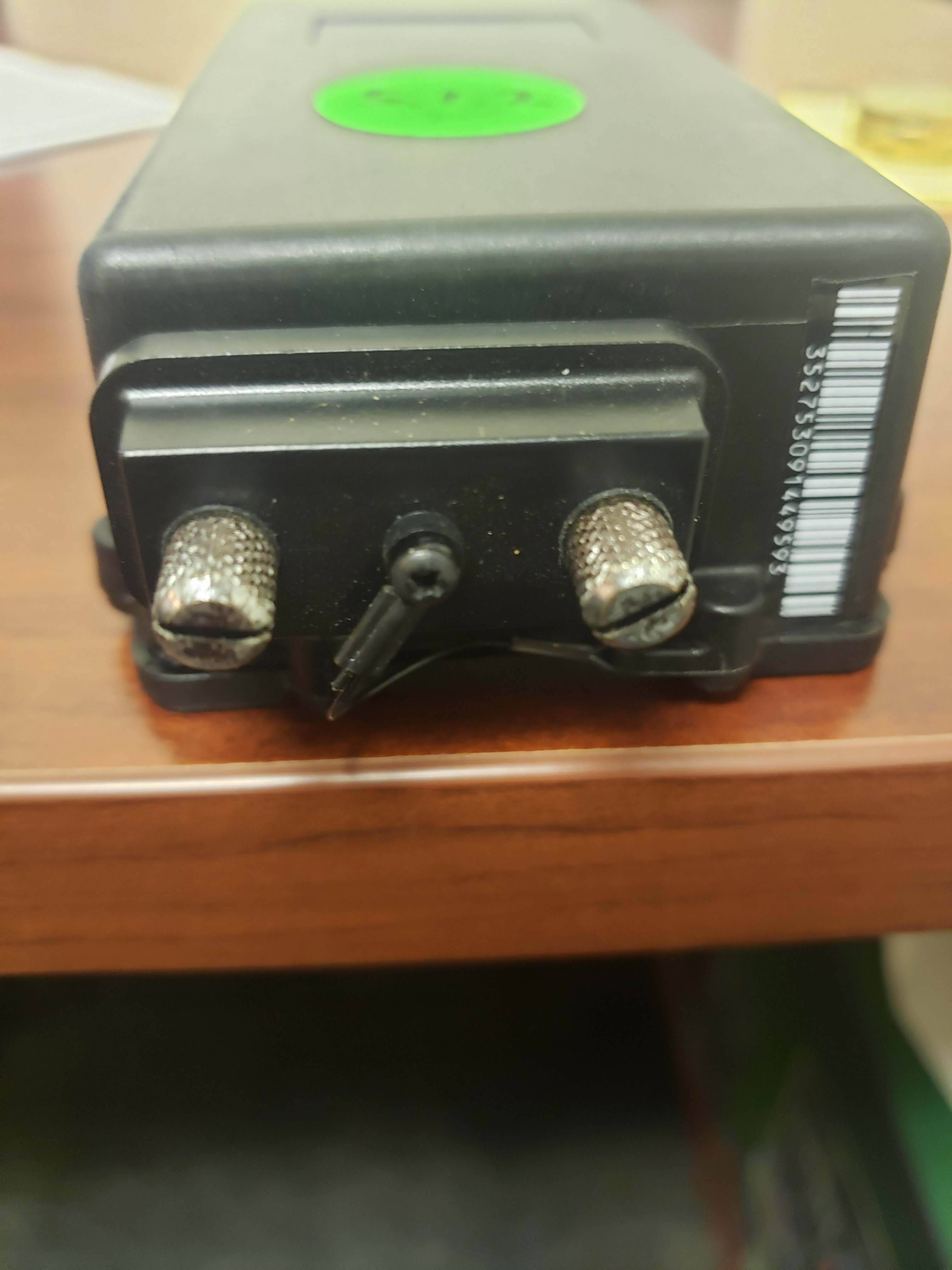

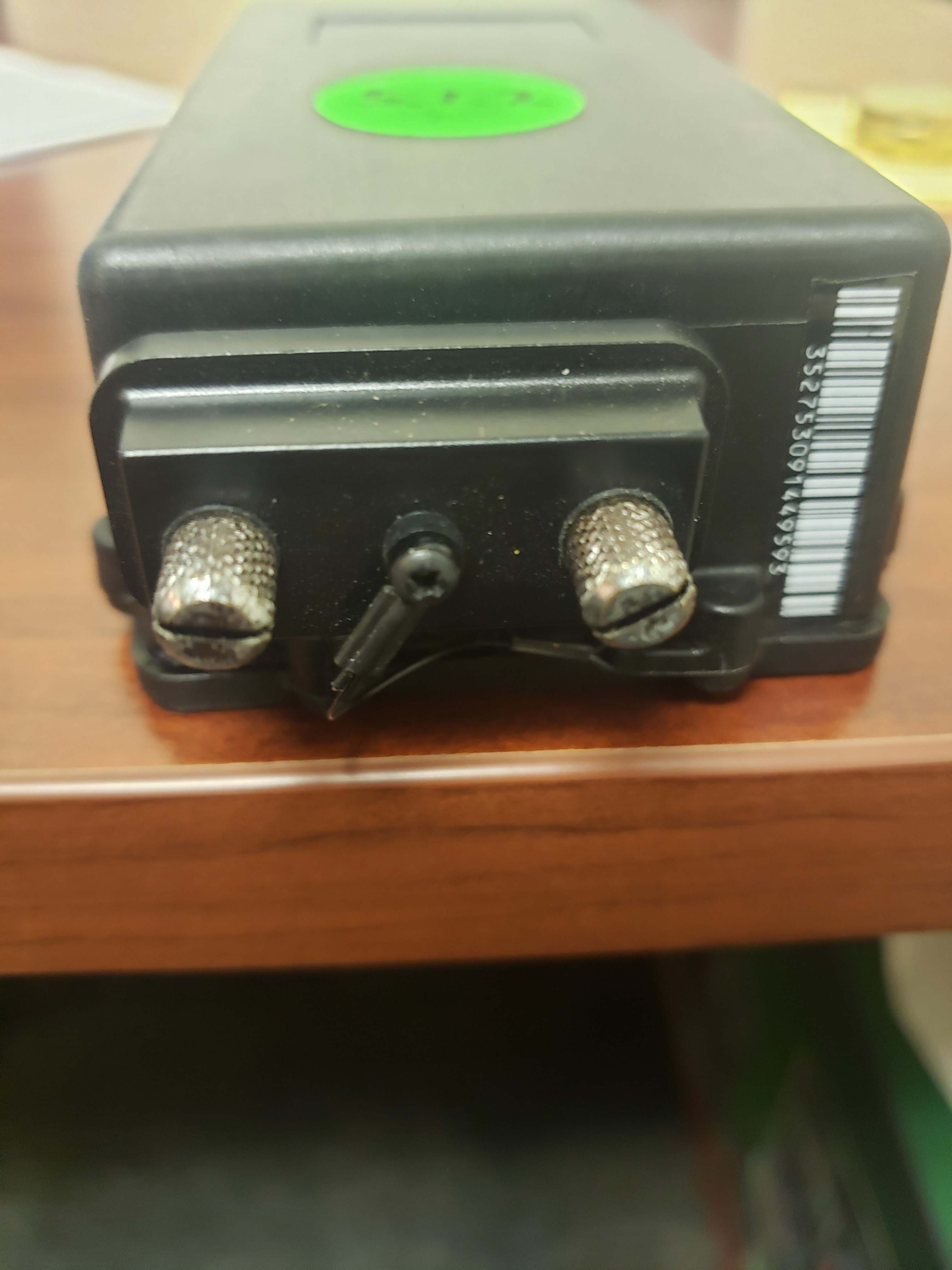

External Photo - Top External Photo - Top External Photo - Bottom External Photo - Bottom External Photo - Face External Photo - Face with Cover (Normal position while in use)

FCC Label information: (Electronic Labeling) Screenshots for FCC popup. 1.Log in page press sign in. 2.It will take you to the tracking page. Click Account in the top Right. 3.It will take you to the account page and list your devices.Click FCC and it will provide the Popup.

Packaging Photos - Front of Equipment Case Packaging Photos - Back of Equipment Case

Internal Photos - Top PCB Internal Photos - Bottom PCB This is the Part 95 integral antenna. Internal Photos - PCB inside enclosure

Maximum Permissible Exposure (MPE) Standard Applicable: FCC 1.1310 Radiofrequency radiation exposure limits (Calculations using FCC MPE-mobile RF Exposure Multiple antennas template) Note: The CovertTrack STLTHV device can only function and operate on LTE Band 13 (777-787 MHz). Pinger + LTE Band 13 + BLE Antenna No. Total 1 2 3 Tx Status On On On Frequency MHz 216.025 777 2480 MPE Limit mW/cm 2 0.20 0.52 1.00 Max % MPE % 14.9 0.0 14.6 0.3 Power (W) 0.284 0.000 0.275 0.009 Antenna Gain dBi 1.40 1.40 2.34 EIRP (W) 0.40 0.000 0.380 0.015

Application for Certification For a LPRS Transmitter. CovertTrack Group Inc 15600 N. 78 th Str. Scottsdale, AZ 85260 LPRS Transmitter used for Law Enforcement Tracking M/N: STLTHV FCC ID: 2AP2T-STLTHV IC: 25178-STLTHV HVIN: STLTHV REPORT # UT96134A-005 This report was prepared in accordance with the requirements of the FCC Rules and Regulations Part 2, Subpart J, 2.1033, Part 95, RSS-210 Issue 9 and other applicable sections of the rules as indicated herein. Prepared By: DNB Engineering, Inc. 1100 E Chalk Creek Road Coalville, UT 84017 9 Jul 2019 TABLE OF CONTENTS Paragraph numbers in this report follow the application section numbers found in the FEDERAL COMMUNICATIONS COMMISSION Rules and Regulations, Part 2, Subpart J for Certification of electronic equipment. TABLE OF CONTENTS................................................................................................................2 1.0ADMINISTRATIVE DATA...............................................................................................3 1.1Certifications and Qualifications............................................................................3 1.2Measurement Repeatability Information.................................................................3 1.3Test Equipment List................................................................................................4 2.1033 (b) (1)Application for Certification...................................................................................5 2.1033 (b) (2)FCC Identifier.........................................................................................................6 2.1033 (b) (3)Installation and Operating Instructions...................................................................7 2.1033 (b) (4)Brief Description of Circuit Function.....................................................................8 2.1033 (b) (5)Block Diagram........................................................................................................9 2.1033 (b) (6)Report of Measurements ......................................................................................10 End of Report UT96134A-001.....................................................................................................74 Page 2 of 75 1.0ADMINISTRATIVE DATA 1.1Certifications and Qualifications I certify that DNB Engineering, Inc conducted the tests performed in order to obtain the technical data presented in this application. Also, based on the results of the enclosed data, I have concluded that the equipment tested meets or exceeds the requirements of the Rules and Regulations governing this application. 1.2Measurement Repeatability Information The test data presented in this report has been acquired using the guidelines set forth in FCC Part 2.1031 through 2.1057, Part 95. The test results presented in this document are valid only for the equipment identified herein under the test conditions described. Repeatability of these test results will only be achieved with identical measurement conditions. These conditions include: The same test distance, EUT Height, Measurement Site Characteristics, and the same EUT System Components. The system must have the same Interconnecting Cables arranged in identical placement to that in the test set-up, with the system and/or EUT functioning in the identical mode of operation (i.e. software and so on) as on the date of the test. Any deviation from the test conditions and the environment on the date of the test may result in measurement repeatability difficulties. All changes made to the EUT during the course of testing as identified in this test report must be incorporated into the EUT or identical models to ensure compliance with the FCC regulations. C. L. Payne III (Para. 1.1) Facility Manager Coalville Facility. DNB Engineering, Inc. Tel. (435) 336-4433 FAX (435) 336-4436 Page 3 of 75 1.3Test Equipment List TEST EQUIPMENT LIST - RADIATED EMISSIONS DescriptionManufacturer/MNAsset #Serial #Cal Due AmplifierHP/8447DU-0652727A061806 May 20 BiconiLog AntennaETS / 3142EU-25616632228 Feb 21 HF CableW.L.GroveU-075P446094 Mar 20 DRG Horn AntennaAH Systems/SAS-200/571U-07141710 Jul 19 Spectrum Analyzer R&S/FSV30U-24810136717 Aug 20 TILE SoftwareETS- Lindgern/ 3.4.11.13U-31781120067 Mar 20 TEST EQUIPMENT LIST - ANTENNA CONDUCTED DescriptionManufacturer/MNAsset #Serial #Cal Due Spectrum Analyzer R&S/FSV30U-24810136717 Aug 20 Page 4 of 75 1.4Test Summary Cross Reference Test ItemFCC RequirementIC RequirementTest MethodResult Antenna Requirement FCC Part 95, Subpart G Section 95.2141 (a) RSS-Gen-Issue 5 Section 6.8 ---Pass Minimum 26dB Bandwidth FCC Part 95, Subpart G Section 95.2173 RSS-Gen-Issue 5 Section 6.7 ANSI C63.26 (2015) Section 5.4 Pass 99% Occupied Bandwidth FCC Part 95, Subpart G Section 95.2173 RSS-Gen-Issue 5 Section 6.7 ANSI C63.26 (2015) Section 5.4 Pass Output Power FCC Part 95, Subpart G Section 95.2167 RSS-210 Issue 9 Aug 2016 Annex C.2 (a) ANSI C63.26 (2015) Section 5.2 Pass Power Spectrum Density FCC Part 95, Subpart G Section 95.2167 RSS-210 Issue 9 Aug 2016 Annex C.2 (a) ANSI C63.26 (2015) Section 5.2 Pass OOB / Band Edge FCC Part 95, Subpart G Section 95.2179 RSS-210 Issue 9 Aug 2016 Annex C.2 (d) ANSI C63.10 (2013) Section 5.7 Pass Radiated Spurious Emissions FCC Part 95, Subpart G Section 95.2179 RSS-210 Issue 9 Aug 2016 Annex C.2 (d) ANSI C63.26 (2015) Section 5.5 Pass Frequency Stability FCC Part 95, Subpart G Section 95.2165 RSS-210 Issue 9 Aug 2016 Annex C.2 (b) ANSI C63.26 (2015) Section 5.6 Pass Preliminary scans were performed to determine worst case modulation, packet length, and data rates. Only worst case data has been recorded within the body of the test report. 1.5Measurement Uncertainty Measurement TypeUncertainty AC Conducted Emissions± 1.67 dB OATS - Radiated Emissions - Vertical Biconical (30-300MHz)± 4.17 dB OATS - Radiated Emissions - Horizontal Biconical (30-300MHz)± 4.22 dB OATS - Radiated Emissions - Vertical Log Per…

Text truncated - open the document above for the full version.

1 Transmitter Colocation Report CovertTrack Model: STLTHV REPORT # RV98064A-004 Prepared By: DNB Engineering, Inc. 5969 Robinson Avenue Riverside, CA 92503 2 Table of contents Paragraph numbers in this report follow the application section numbers found in the FCC Rules and Regulations, Part 2, Subpart J for Certification of electronic equipment. Table of contents ............................................................................................................... 2 1.0 ADMINISTRATIVE DATA ..................................................................................... 3 1.1 Certifications and Qualifications ................................................................................. 3 1.2 Measurement Repeatability Information ..................................................................... 3 FCC 2.1033 (b) (1), IC RSS-Gen 3.1 Application for Certification ............................. 4 Brief Summary of Test Results ........................................................................................ 5 FCC 2.1033 (b) (6), IC RSS-Gen 3.2(j) Report of Measurements ............................... 6 Radiated Spurious Emissions........................................................................................... 7 EUT Operating Conditions: ............................................................................................. 8 Maximum Permissible Exposure (MPE) ...................................................................... 18 End of Test Report RV98064-002 .................................................................................. 20 3 1.0 ADMINISTRATIVE DATA 1.1 Certifications and Qualifications I certify that DNB Engineering, Inc conducted the tests performed in order to obtain the technical data presented in this test report. Also, based on the results of the enclosed data, I have concluded that the equipment tested meets or exceeds the requirements of the Rules and Regulations governing the operation of the equipment under test. NIST / NVLAP: Lab Code No: 200851-0 1.2 Measurement Repeatability Information The test data presented in this report has been acquired using the guidelines set forth in FCC Part 2.1031 through 2.1057, Part 15, Part 22, Part 24, Part 27 and Part 95. The test results presented in this document are valid only for the equipment identified herein under the test conditions described. Repeatability of these test results will only be achieved with identical measurement conditions. These conditions include: The made test distance, EUT Height, Measurement Site Characteristics, and the same EUT System Components. The system must have the same interconnecting Cables arranged in identical placement to that in the test setup, with the system and/or EUT functioning in the identical mode of operation (i.e. software and so on) as on the date of the test. Any deviation from the test conditions and the environment on the date of the test may result in measurement repeatability difficulties. Any changes made to the EUT during the course of testing as identified in this test report must be incorporated into the EUT or identical models to ensure compliance with the FCC regulations. Thomas Elders Facility Manager Riverside Branch DNB Engineering, Inc. Tel. (951) 637-2630 FAX (951) 637-2704 4 FCC 2.1033 (b) (1), IC RSS-Gen 3.1 Application for Certification Name of Applicant: CovertTrack Applicant is: Manufacturer Name of Manufacturer: CovertTrack Description: Tracking System Model Number: STLTHV Anticipated Production Quantity: Multiple Units Contains FCC ID: XPY2AGQN4NNN X8WBT840 15.247 Rated Power: 10 mW 22.913 Rated Power: 316 mW 24.232 Rated Power: 316 mW 27.50 Rated Power: 316 mW 95.2167 Rated Power: 0.1 mW Test Procedure: ANSI C63.10-2013, C63.4-2014 5 Brief Summary of Test Results Pages FCC Part Sections RSS sections Test Descriptions Result 14, 22,15, 17 22.913, 2.1046, 95.2167, 27.50 Effective Radiated Power Compliant 16 24.232, 2.1046 RSS-132, RSS- 133, RSS-130, RSS-139, Equivalent Isotropic Radiated Power Compliant 11,13, 14, 15, 16, 17 Clause 7of KDB971168 D01 v02r02, 15.209, 15.247 RSS-210 Field Strength of Spurious Radiation Compliant 18 FCC 1.1310 Maximum Permissible Exposure Compliant 6 FCC 2.1033 (b) (6), IC RSS-Gen 3.2(j) Report of Measurements 7 Radiated Spurious Emissions Equipment List: Asset Equipment Manufacturer Model # Serial # Location Cal date Days Due date 1965 QP Adapter HP 85650A 2043A00277 Riverside 14 Nov 18 730 14 Nov 20 1234 CRT Display HP 85662A 238AG5252 Riverside 14 Nov 18 730 14 Nov 20 1430 Analyzer HP 8568B 2732A03600 Riverside 14 Nov 18 730 14 Nov 20 Pre-selector HP 85685A 2724A00659 Riverside 14 Nov 18 730 14 Nov 20 2264 Analyzer Agilent E4407B MY45103462 Riverside 26 Mar 19 730 26 Mar 21 1758 Biconical Antenna AH Systems 2052 524 Riverside 22 Feb 18 730 22 Feb 20 31 Log-periodic Antenna EMCO 3146 1284 Riverside 14 Feb 18 730 14 Feb 20 11 DRG Antenna EMCO 3115 2281 Riverside 25 Jul 17 730 25 Jul 19 1875 Cable DNB NMN 11875 Riverside 02 Feb 1 9 365 02 Feb 20 1880 Cable DNB (Helix) NMN 11880 Riverside 02 Feb 1 9 365 02 Feb 20 1884 Cable DNB (Helix) NMN 11880 Riverside 02 Feb 1 9 365 02 Feb 20 1772 Attenuator Alan NMN 117018 Riverside 22 Sep 18 365 22 Sep 19 1761 Preamp Miteq JS2- 0200400 664011 Riverside 28 Feb 19 365 28 Feb 20 1760 Pre-Amp (called ZFL) Mini-Circuits ZFL- 2000 8350 1760 28 Feb 19 365 28 Feb 20 Test Procedure: The EUT was measured on an Open Area Test Site (OATS) A measuring distance of 3m was used for measurements. The EUT shall be placed upon a non-conductive table .8 meters above the ground plane for measurements in the 30MHz to 1GHz range and 1.5 meters for measurements above 1GHz. For measurements above 1GHz RF absorbent material shall be placed on the ground plane as described in ANSI C63.4-2014. The EUT shall be placed in the “worst case” transmitting mode. The EUT shall be rotated 360 degrees to find the azimuth maxima. The receive antenna shall then be raised and lowere…

Text truncated - open the document above for the full version.

1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Test Set-Up DNB Job Number:96134Date:27 May 2019Specification [X] FCC Part 95 [X] RSS-210 Annex C [X] ANSI C63.26:2015 Customer:CovertTrack Inc Model Number:STLTHV Description:LPRS GPS Locating Device RADIATED EMISSIONS TEST SET UP BELOW 1 GHZ Page 68 of 75 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Test Set-Up DNB Job Number:96134Date:27 May 2019Specification [X] FCC Part 95 [X] RSS-210 Annex C [X] ANSI C63.26:2015 Customer:CovertTrack Inc Model Number:STLTHV Description:LPRS GPS Locating Device RADIATED EMISSIONS TEST SET UP ABOVE 1 GHZ Page 69 of 75 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Test Set-Up DNB Job Number:96134Date:27 May 2019Specification [X] FCC Part 95 [X] RSS-210 Annex C [X] ANSI C63.26:2015 Customer:CovertTrack Inc Model Number:STLTHV Description:LPRS GPS Locating Device RADIATED EMISSIONS TEST SET UP - X AXIS Page 70 of 75 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Test Set-Up DNB Job Number:96134Date:27 May 2019Specification [X] FCC Part 95 [X] RSS-210 Annex C [X] ANSI C63.26:2015 Customer:CovertTrack Inc Model Number:STLTHV Description:LPRS GPS Locating Device RADIATED EMISSIONS TEST SET UP - Y AXIS Page 71 of 75 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Radiated Test Set-Up DNB Job Number:96134Date:27 May 2019Specification [X] FCC Part 95 [X] RSS-210 Annex C [X] ANSI C63.26:2015 Customer:CovertTrack Inc Model Number:STLTHV Description:LPRS GPS Locating Device RADIATED EMISSIONS TEST SET UP - Z AXIS Page 72 of 75 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Conducted Test Set-Up DNB Job Number:96134Date:27 May 2019Specification [X] FCC Part 95 [X] RSS-210 Annex C [X] ANSI C63.26:2015 Customer:CovertTrack Inc Model Number:STLTHV Description:LPRS GPS Locating Device CONDUCTED TEST SET UP Page 73 of 75 1100 E Chalk Creek Road Coalville, UT 84017 (435) 336-4433 FAX (435) 336-4436 Stability Test Set-Up DNB Job Number:96134Date:27 May 2019Specification [X] FCC Part 95 [X] RSS-210 Annex C [X] ANSI C63.26:2015 Customer:CovertTrack Inc Model Number:STLTHV Description:LPRS GPS Locating Device FREQUENCY STABILITY TEST SET UP Page 74 of 75
