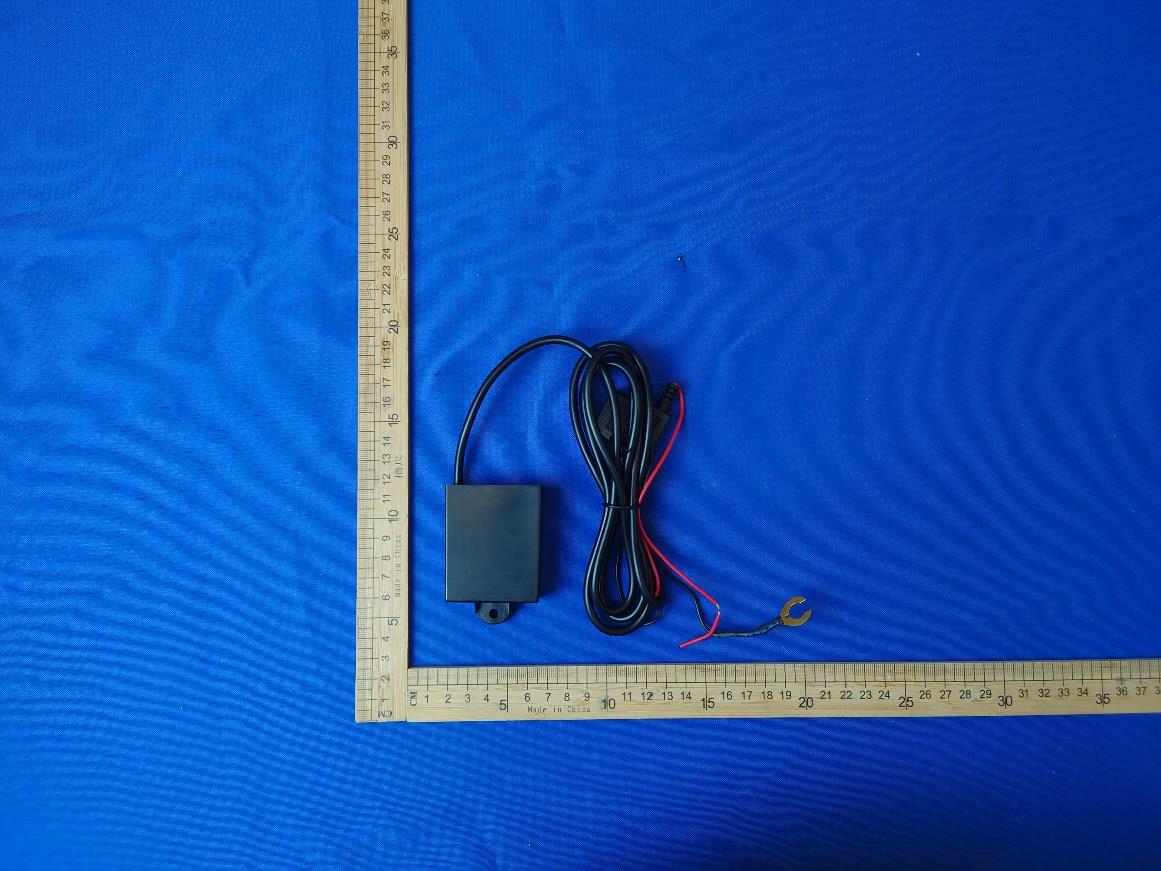

2AP2YKC-01Booster

All rights reserved. We reserve the rights to change designs and specications for improving the products without prior notice. Multi-trailer TPMS MATA 7S Product Manual 07 Booster Installation for truck Thank you for purchasing our multi-trailer TPMS! Mata7S is a tyre pressure monitoring system suitable for 12-24V trucks, B-doubles and road-trains. The system monitors real-time tyre pressures and temperatures and can alert the driver to any abnormal tyre condition. Mata7S can monitor up to 110 tyres, including 1 towing truck (max 14 tyres) plus 6 trailers (max 16 tyres per trailer). Mata7S’s hook-and-drop function will automatically show any connected trailers and the user does not need to perform any function. This allows for easy mix-and-match between trucks and trailers, which is great for eets. Brief description 1. This product must be installed correctly before use. Avoid damaging the sensor and the wheel when installing. 2. This product is a safety accessory and cannot directly prevent puncture or tyre leakage. Please react promptly to the product warning signals and resolve abnormal tyre conditions before getting back on the road. 3. The user is responsible for safe driving, taking care of the vehicle, and ensuring the correct installation and use of the product. We assume no liability for damages and losses. 4. Never place the display in an airbag deployment area. Before using the product, please read and follow the manual instructions. For your safety 21 24 18 01 1. Package Contents 05 3. Installation 05 Four installation steps 05 Display Installation 08 Repeater Installation for trailer 09 Sensor Installation 10 External Sensor Installation 11 Internal Sensor Installation 12 4. Functional Test after Installation 7. Sensor Pairing 31 11. TPMS Warning Signals 26 9. Q & A 29 10. What to do if I get an alarm 14 5. Product Specications 03 2. Display 15 6. TPMS Settings 16 Front Axle Tyre Baseline Pressure 16 Pressure Unit Selection 16 Temperature Unit Selection 17 Rear Tyre Baseline Pressure 17 High Temperature Alarm Alarm Sound ON/OFF 18 Display Modes 19 Tyre Swap Function Table of Contents 8. Sensor Deletion 0102 Package Contents (External)1 External truck sensor Display Stand KC-01 booster for truck Booster KC-01 External truck sensor Manual Double-sided Sticker Spanner Mata 7S Display Screw Truck Module Kit Trailer Module Kit TC-02 repeater for trailer Repeater TC-02 Display cable Package Contents (Internal) Display Stand KC-01 booster for truck Booster KC-01 Manual Mata 7S Display Truck Module Kit Trailer Module Kit Internal tructk sensor Strap with Clamp Internal tructk sensor Strap with Clamp Display cable Tie Tie Tie Tie Double-sided Sticker Screw TC-02 repeater for trailer Repeater TC-02 0304 Display 2 Display front Temperature Down Button Vehicle Battery Voltage Temperature Unit Setting Button Pressure Unit Up Button Battery Indicator Warning Indicator Pressure No. of trailers Display back Display will automatically go into SLEEP mode to save power in 4 minutes if there is no vibration detected. If vibration is detected, display will awaken from SLEEP mode. Display will automatically turn on when charging or connected to power. Display can also be manually turned ON/OFF by holding and button for 3 seconds, when the display is disconnected from power. 1. Display ON/OFF/SLEEP To manually check the next two tyre temperatures and pressures, press the button. To check the previous two tyre temperatures and pressures, press the button. 2. Quick check When the display is set to Front Axle Only View, the display will only show the front axle tyre pressure and temperature. This does not aect the alarm function: if another tyre is experiencing tyre problems, it will pop up on the display. When the display is set to Truck Only View or All Tyre View, the display scrolls through tyre pressure and temperature data two at a time on the screen, starting from the rst axle to the last, and then loops back. When the display is set to All Tyre View, for trailers, the display will assign each trailer a random “trailer number”. It will then scroll through truck, trailer 1, trailer 2, trailer 3... up to trailer 6, before looping back to truck data. If there is an alert, the warning indicator will ash. Flip to the last few pages of this manual for dierent warning signals. 3. Reading the display Data Output6 Pin contacts Input 9-32V DC Mata7S Display Mata7S CAN / Mata7RS Display 0506 (1) Display Installation Installation 3 Display stand Screw Double-sided Sticker Mata 7S Display Display cable What you need: Four installation steps: (1) Display (2) Booster (3) Repeater (4) Sensors Overview diagram: Note: a sensor is installed on each tyre that requires monitoring. Trailer RepeaterTPMS display Booster Mount the display stand onto the dashboard with screws or double-sided sticker. Choose somewhere visible but not obtrusive. Make sure the display cable can reach the display stand. Do not place in an airbag deployment area. Display Installation: Mata7S CAN Display Installation Mata7S Display Installation Mata7S RS Display Installation Wire Connection 0708 GND ACC ON (+9~32V Black silver Black ACC ON (+9~32V ACC ON (+9~32V RX TX (2) Booster Installation for truck • Install the booster on the truck / prime mover. The booster front side must not face metal parts. • Booster is waterproof and can be installed on underside of the truck. • Position the booster as short distance as possible to the sensors. • The booster should be mounted rmly by tie or screw. GND ACC ON (+9~32V) Red Black KC-01 Booster KC-01 Underside OK. Front side Back side KC-01 KC-01 booster Wiring & positioning: Tie The front side must face away from metal. Vehicle body What you need: 0910 (3) Repeater Installation for trailer What you need: Installation instruction: • TC-02 repeater communicates trailer data to the display through power line. • Install the repeater on the trailer. It needs to be connected to the same power loop a…

Text truncated - open the document above for the full version.
