2AP5E-JYS2900Alloy Spider Car

Shantou Jinyishuo Toy Co.,ltd Longtian industrial area,Guangyi Street in Chenghai District, SHANTOU GUANGDONG CHINA SHANTOU City, 518000 China Date: 5-25-2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AP5E-JYS2900 US Agent – Attestation Statement / Part 2.911(d)(7) Shantou Jinyishuo Toy Co.,ltdcertifies, that as of 5-30-2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AP5E-JYS2900. Shantou Jinyishuo Toy Co.,ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Shantou Jinyishuo Toy Co.,ltd for FCC ID: 2AP5E-JYS2900. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Shantou Jinyishuo Toy Co.,ltd Designated Agent: FCC US Agent, LLC Company Representative: Yong Lin Designated Agent Representative: Tim Payne Signature: [Signature] Signature:

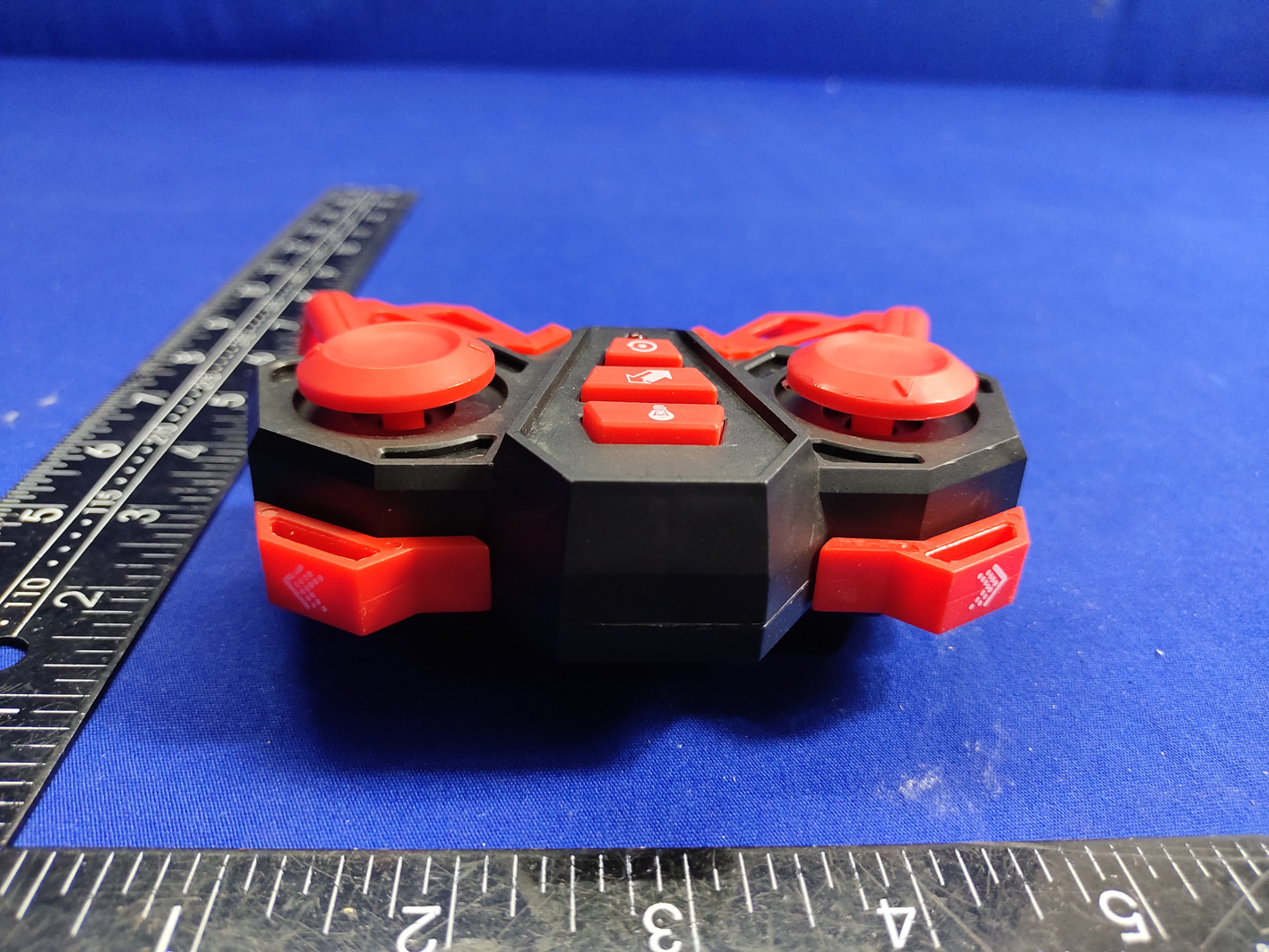

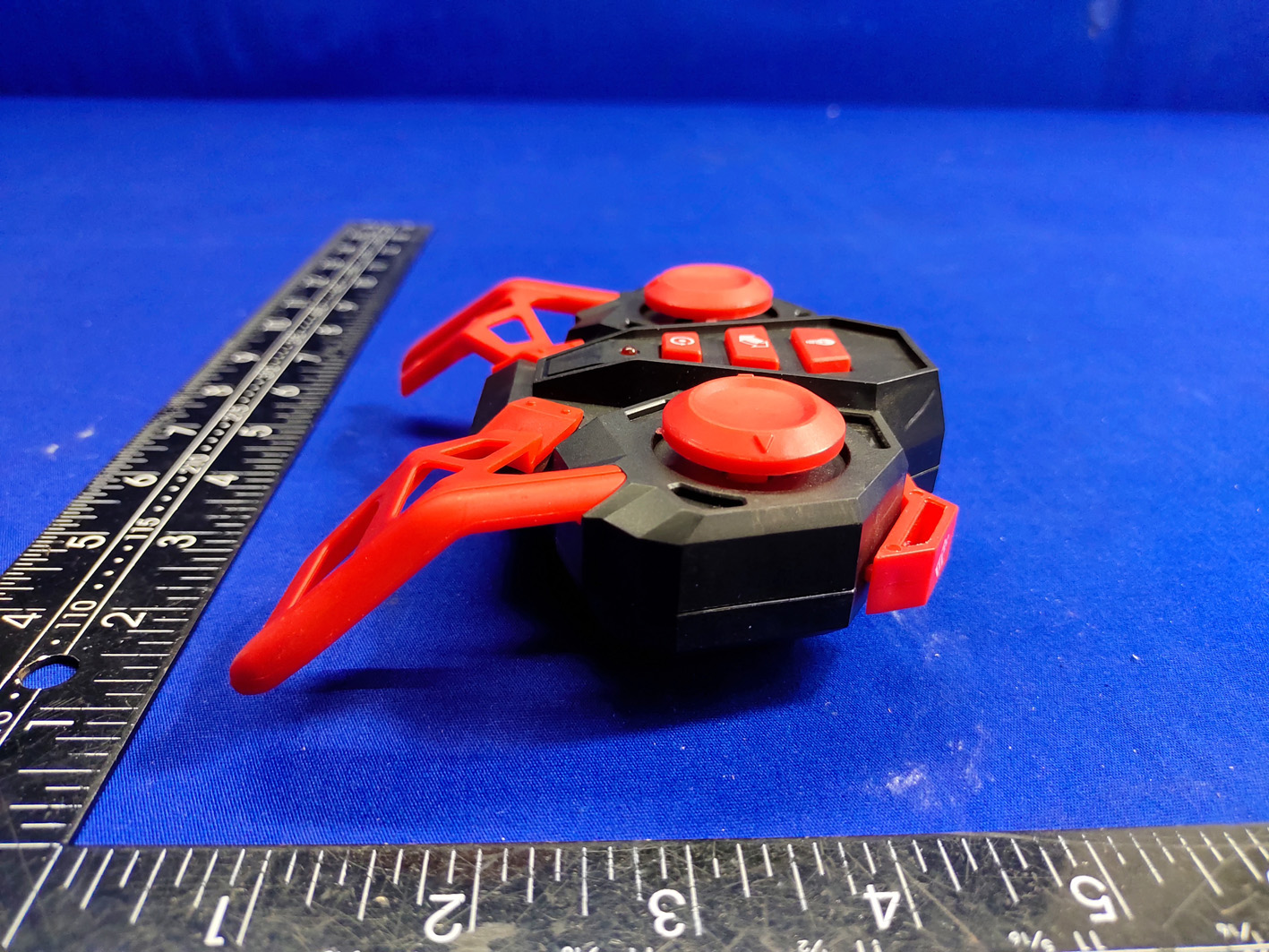

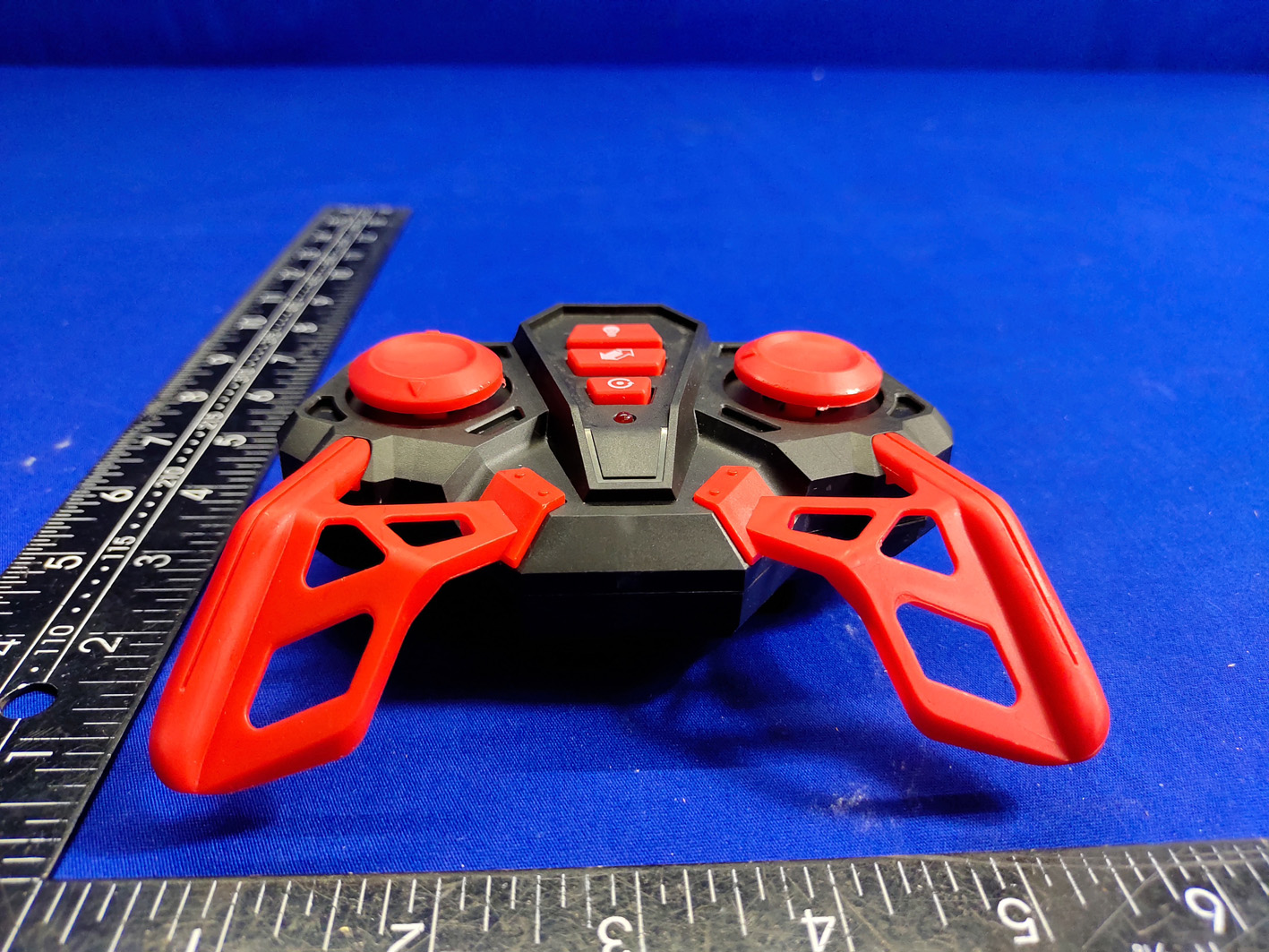

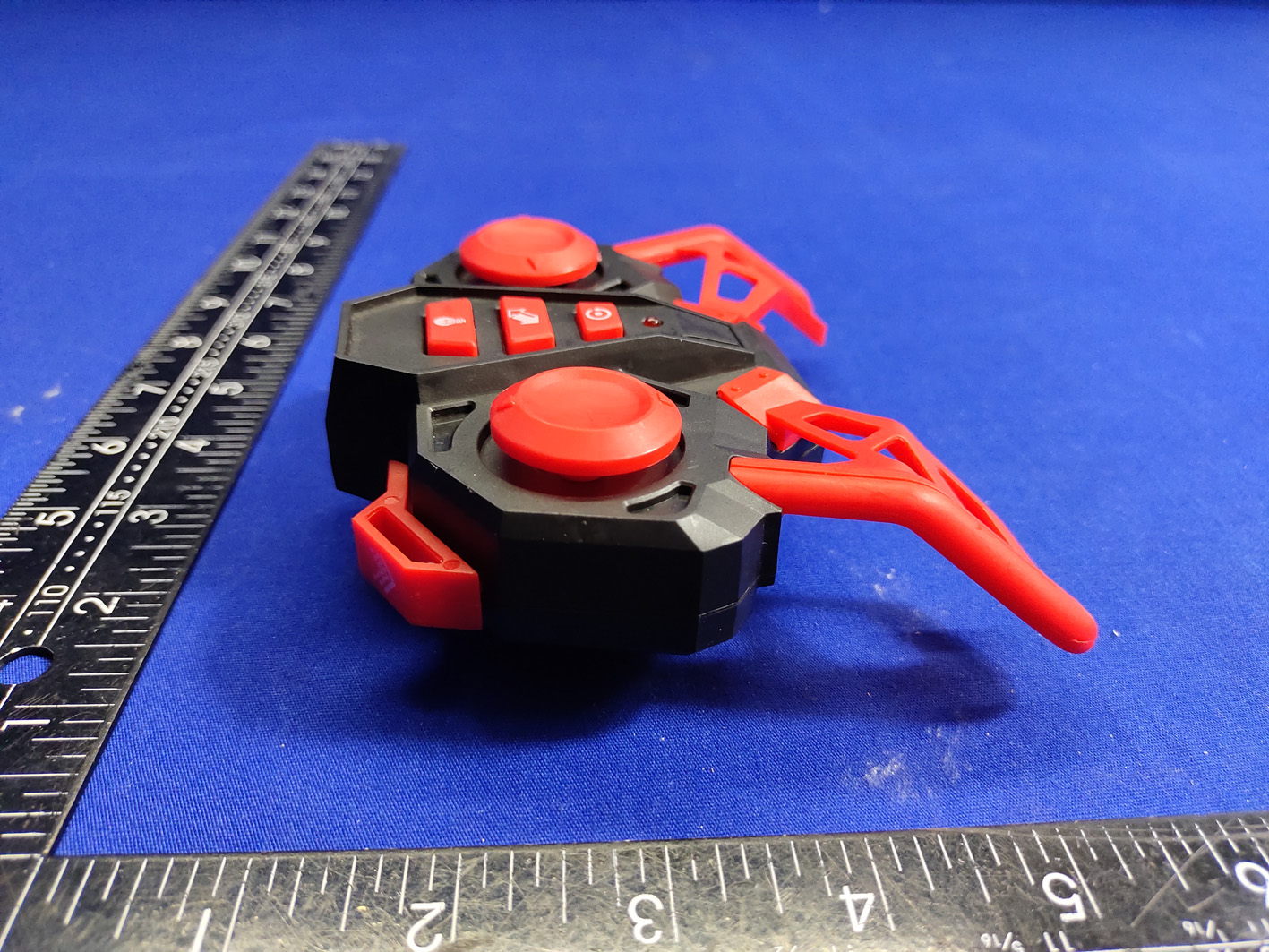

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

FCC ID: 2AP5E-JYS2900 This device complles with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.operation.

EUT INTERNAL PHOTOGRAPHS Antenna ----------------The end----------------

FCC ID : 2AP5E-JYS2900  Test Standards and Limits 1. According to KDB 447498 D01 v06, Section 4.3.1 2. FCC Radiofrequency radiation exposure limits: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel)/(min test separation distance)]*[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. For 2.4G band device, the limit of worse case is P max ≤3.0*D min )/ f =3.0*5/ [√2.474] =9.537mW  Measurement and Calculation 1. Maximum transmit power 2.4G SRD, Antenna Gain: 0 dBi Operation Mode Channel Number Channel Frequency (MHz) EIRP (dBm) 2.4G SRD 1 2410 -19.788 5 2445 -16.578 6 2473 -16.908 * EIRP[dBm] = E[dBμV/m] + 20 log(d[meters]) - 104.77 2. MPE Calculation According to the formula. calculate the EIRP test result: EIRP= 0.02mW < 9.525mW So the SAR report is not required. -End of the Report-

XuShengElectronics AntennaSpecificationforApproval CustomerName: ProductName:2.4GAntennalength40mm PartNO:Ant40l WriteBy: IssuedDate: Client R&DDeptBusinessDeptApprovedBY XuShengElectronics R&DDeptEngineerDeptApproved ProductSpecification 1 ， Electricalcharacteristics Frequency2.4GHz~2.5GHz VSWR<3.0 Efficiency>30% Impedance50Ω PolarizationLine Gain0dBi 2 ， Material&MechanicalCharacteristics MaterialofRadiatorCu CableType0.112p ConnectorType: 3 ， Environmental OperationTemperature:-30 °C ~+80 °C StorageTemperature:-30 °C ~+80 °C TestEquipment&Conditions 1 ， NetworkAnalyzers Agilent8733D5071B 2 ， CommunicationsTestSet AgilentE5515C

Report No. ENS2304100017W00501R Page 1 of 32 Ver.1.0 TEST REPORT Product Name ： Alloy Spider Car Model Number ： See Page 6 for details FCC ID ： 2AP5E-JYS2900 Prepared for : Shantou Jinyishuo Toy Co.,ltd Address : Longtian industrial area,Guangyi Street in Chenghai District, SHANTOU GUANGDONG CHINA Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2304100017W00501R Date(s) of Tests : April 10, 2023 to May 10, 2023 Date of issue : May 10, 2023 $二维码$ Report No. ENS2304100017W00501R Page 2 of 32 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 7 4 TEST METHODOLOGY ........................................................................................................................... 8 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 8 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 8 4.3 DESCRIPTION OF TEST MODES ............................................................................................... 10 5 FACILITIES AND ACCREDITATIONS ................................................................................................... 11 5.1 FACILITIES .................................................................................................................................. 11 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................... 11 6 TEST SYSTEM UNCERTAINTY ............................................................................................................ 12 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 13 7.1 RADIO FREQUENCY TEST SETUP 1 ......................................................................................... 13 7.2 RADIO FREQUENCY TEST SETUP 2 ......................................................................................... 13 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 15 7.4 SUPPORT EQUIPMENT ............................................................................................................. 15 8 TEST REQUIREMENTS ......................................................................................................................... 16 8.1 BANDWIDTH TEST ..................................................................................................................... 16 8.2 RADIATED SPURIOUS EMISSION ............................................................................................. 19 8.3 CONDUCTED EMISSIONS TEST ............................................................................................... 31 8.4 ANTENNA APPLICATION ............................................................................................................ 32 Report No. ENS2304100017W00501R Page 3 of 32 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Shantou Jinyishuo Toy Co.,ltd Address : Longtian industrial area,Guangyi Street in Chenghai District, SHANTOU GUANGDONG CHINA Manufacturer : Shantou Jinyishuo Toy Co.,ltd Address : Longtian industrial area,Guangyi Street in Chenghai District, SHANTOU GUANGDONG CHINA EUT : Alloy Spider Car Model Name : See Page 6 for details Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.249 The test results of this report relate only to the tested sample identified in this report Date of Test : April 10, 2023 to May 10, 2023 Prepared by : Luo peiye /Editor Reviewer : Joe Xia/Supervisor Approve & Authorized Signer : Lisa Wang/Manager Report No. ENS2304100017W00501R Page 4 of 32 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product: Alloy Spider Car Model Number: See Page 6 for details Power Supply: DC 3V from 2X 1.5V “AA” Batteries Sample number: 2# Modulation: GFSK Data Rate : 1Mbps Frequency Range: 2410 MHz to 2473 MHz Number of Channels: 6 Channels Max Transmit Power: 89.69 dBuV/m Antenna Gain: 0 dBi Antenna: Internal Antenna Temperature Range: +25°C ~ +40°C Note: for more details, please refer to the User’s manual of the EUT. Report No. ENS2304100017W00501R Page 5 of 32 Ver.1.0 Modified Information Version Report No. Revision Date Summary Ver.1.0 ENS2304100017W00501R / Original Report Report No. ENS2304100017W00501R Page 6 of 32 Ver.1.0 Declaration on model Model no. 2350,2360, 2320, 2370, 2380, 3555, 3577, 3577, 3659, 3658, 2230, 2220, 2900, ODY-119, 2310, 3388, 3388, 3300, 9166, 3266, 3966, 3866-1, 3700, 1688, 3366, 3590, 2188, 2188-1, 2199-1, 2199-2, 2288, 2388, 2399, 2388, 2388-2, 2399-1, 2399-2, 2488, 2588, 2688, 2788, 2888, 2988, 3388, 3488, 3588, 3688, 3788, 3888, 3988, 20171, 20172, 20173, 20173-1, 20174, 20175, 20176, 20177, 20178, 1288, 1388, 1488, 1588, 1688, 1788, 1888, 1988, 8288, 8388, 8488, 8588, 8688, 8788, 8888, 8988, 2155, 2255, 2355, 2455, 2555, 2655, 2755, 2855, 2955, 2166, 2266, 2366, 2466, 2566, 2766, 2866, 2966, 3155, 3255, 3355, 3455, 3555, 3…

Text truncated - open the document above for the full version.

Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
