2AP7NBTS0022IPBTS Official Light Stick SE

'PMEJOH'PMEJOH'PMEJOH'PMEJOH <
#54
4&
."/6"-
%&4*(/
> 8


)
@NN

"SU
1BQFS
H FY EU Declar ĂƟŽŶŽĨŽŶĨŽ rmity We, as a ma Ŷ u Ĩ a ct urer, hereby declare that the pr Ž du ct Type BTS O ĸ cial Light S Ɵ ck SE : MAP OF THE SOUL Model Name BTS O FF ICIAL 0020IP sa Ɵ s Į es all the tec ŚŶ ical regula ƟŽŶƐ applicable t Ž the pr Ž du ct withi Ŷ the sc Ž pe ŽĨ the Dir ĞĐƟǀĞ 20 14 /53/EU Ar Ɵ cle 3.2 Radio EN 300 328 V2.1.1 Ar Ɵ cle 3.1b EMC EN 301 489-1 V2.2.3 (2019-11) EN 301 489- 17 V3.1.1 (2017-02) Ar Ɵ cle 3.1a Safety/Health EN 62471:2008 EN 6 095 0-1 :2006+ A11:2009+A1:2010 + A12:2011 + A2:2013 EN 50663:2017 Ma ŶƵ Ĩ acturer FANLIGHT Co., Ltd. 4F, 22, Nonhye on-ro 128-gil, Gangnam-gu, Seoul, Re pub lic of Korea Gil-won Lee +82-70-4848-4304 N ŽƟĮ ed B Ž dy N ŽƟĮ ed B Ž dy Ide ŶƟĮ ca ƟŽŶ ZĞĨĞ re Ŷ ce SGS FIMKO OY Takomo Ɵ e 8, 00380 HELSINK I , F inland 0598 RED-1862 This declara Ɵ on is issued under the sole respon sibility of the manufacturer and , if a pplicable, his autho rized represen ta Ɵ ve , and is marked in accordance wit h the CE marking direc Ɵ ve. P Ž i Ŷ t ŽĨ ŽŶ tact FANLIGHT Co., Ltd./ Gil-won Lee 1 Apri l 2020 Gil-won Lee Senior Researc h Engineer FANLIGHT Co., Ltd. 5IF
BCPWF
JNBHF
NBZ
EJFS
GSPN
UIF
BDUVBM
QSPEVDU RF du FCC et IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de FCC et IC rayonnements RF limites é-tablies pour un environnement non contrôlé. L’antenne pour ce transmetteur ne doit pas être même endroit avec d’autres émetteur sauf conformément à FCC et IC procédures de produits Multi-émetteur.

RadiAnt 1 A4(210X297mm) SPECIFICATION Date :2022.05.19 Product Name ANTENNA Customer FANLIGHT Model Name BTS OFFICIAL 0022IP Provider RadiAnt Buyer Submitted Checked Approved RadiAnt Submitted Checked Checked Approved RadiAnt 2 A4(210X297mm) – Table of Contents – 1. Product History---------------------------------------------------------------------------------- 3 2. Electrical Feature -------------------------------------------------------------------------------- 4 2.1 Frequency Band 2.2 Impedance 2.3 VSWR 2.4 Directivity 2.5 Maximum Power 3. Environment Test -------------------------------------------------------------------------------- 6 4. Electric Performance Data -------------------------------------------------------------------- 8 RadiAnt 3 A4(210X297mm) 1. Product History LIST NO Data Front After Change REV 1 2022.05.19 Approval 0 2 3 4 5 6 7 8 9 10 11 12 13 14 15 RadiAnt 4 A4(210X297mm) 2. Electrical Feature 2.1. Frequency Band BAND BLUETOOTH FREQUENCY 2400~ 2485MHz 2.2 Impedance 2.2.1 Input Impedance - R =50Ω 2.2.2 Measuring Method By using Network Analyzer, connect the antenna installed Set BT terminal to the reflection point of Analyzer and measure the impedance value within the designated frequency band. 2.4 VSWR Impedance Matching optimization is performed under the below mentioned environment. 2.3.1 Free Space Environment <BT ant> BAND BLUETOOTH FREQ. 2400MHz 2425MHz 2450MHz 2485MHz VSWR 1.73 : 1 under 1.48 : 1 under 1.51 : 1 under 1.59 : 1 under 2.3.1 Measuring Method Connect (soldering) 50Ω semi-rigid coaxial cable to the 50Ω spot in Set BT terminal. To minimize the loss of transmission, semi-rigid coaxial cable is used. Including PCB, the Set BT terminal shouldn’t be different from the one, which will be used for mass production. Specification should be the same for all frequency bands. Free Space means that Set BT terminal is put on the surface of no conducting plastic. RadiAnt 5 A4(210X297mm) 2.5 Directivity Omni-directional (SUM) <BT Ant> 2.6 Maximum Power - P=2W Under RadiAnt 6 A4(210X297mm) 3. Environment Test 3.1 Operating Temperature Test 3.1.1 Test Condition Temperature = -30°C, +80°C Duration time = 1 hour 3.1.2 Requirements After the test, the antenna must not have an outer damage, and also it must pass requirement shown in 2.4. 3.1.3 Measuring Method Antenna is kept at -30°C for 1 hour and +80°C for 1 hour and than passed test of 2.4 3.2 Temperature Cycling Test 3.2.1 Test Condition - Low cycling Temperature TLC = -40°C - High cycling Temperature THC = +80°C - 1Cycle = 4 hours - Test number = 10Cycle 3.2.2 Requirements After the test, the antenna must not have an outer damage, and also it must pass requirement shown in 2.4. RadiAnt 7 A4(210X297mm) 3.2.3 Measuring Method Antenna is kept at low temperature -40°C for 2 hours and increase the temperature up to +80°C within 2 hour and kept for another 2 hours at the same temperature will be 1 cycle. As shown in Figure 3.2.1 repeat 10 cycle and kept for 2 hour in normal temperature. Figure 3.2.1 Temperature Cycling 3.3 Corrosion Resistance Test 3.3.1 Test Condition - NaCl = 90% - Water Temperature = 60°C - Duration Time = 96 hours 3.3.2 Requirements After the test, the antenna must not have an outer damage, and also it must pass requirement shown in 2.4. 3.3.3 Measuring Method Antenna is soaked in sodium chloride solution at temperature +60°C and 90%(NaCl) for 96 hours and dry out. RadiAnt 8 A4(210X297mm) 4. Electric Performance Data 4.1. Smith Chart & VSWR <BT Antenna> <2.400~2.485GHz > RadiAnt 9 A4(210X297mm) 4.2. GAIN DATA 4.2.1 BT ant -3D Radiation Pattern -2D Radiation Pattern

4F, 22, Nonhyeon-ro 128-gil, Gangnam-gu, Seoul, Republic of Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: 2AP7NBTS0022IP To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 14 September 2022 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Gil-Won Lee / Senior Research Engineer FANLIGHT Co., LTD. TEL: +82-70-4848-4304 E-mail: [email protected] 4F, 22, Nonhyeon-ro 128-gil, Gangnam-gu, Seoul, Republic of Korea

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name FANLIGHT Co.,Ltd. Address 4F, 22, Nonhyeon‐ro 128‐gil, Gangnam‐gu, Seoul, Republic of Korea Grantee Code 2AP7N FCC ID 2AP7NBTS0022IP Authorized Contact Name Gil-won Lee Contact Email [email protected] Contact Phone +82-70-4848-4304 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 15 September 2022 Print Name: Gil-won Lee Title: Senior Research Engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

14 September 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: 2AP7NBTS0022IP To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, FANLIGHT CO., LTD., hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade se crets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give FANLIGHT CO., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Gil-Won, Lee / Senior Research Engineer FANLIGHT Co., LTD. TEL: +82-70-4848-4304 E-mail: [email protected] 4F, 22, Nonhyeon-ro 128-gil, Gangnam-gu, Seoul, Republic of Korea

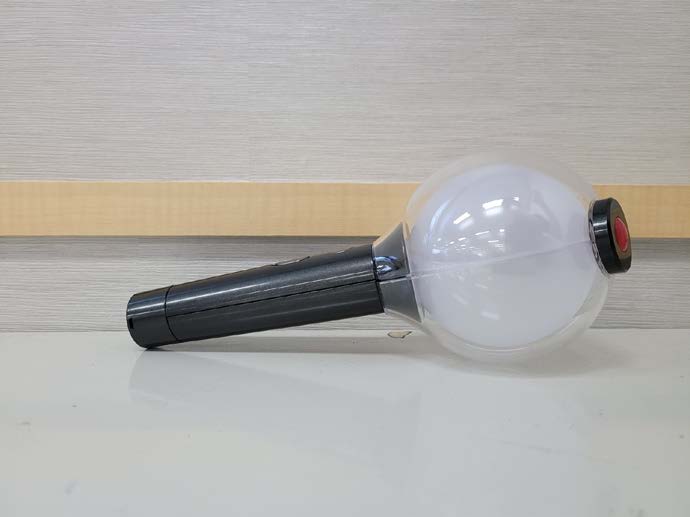

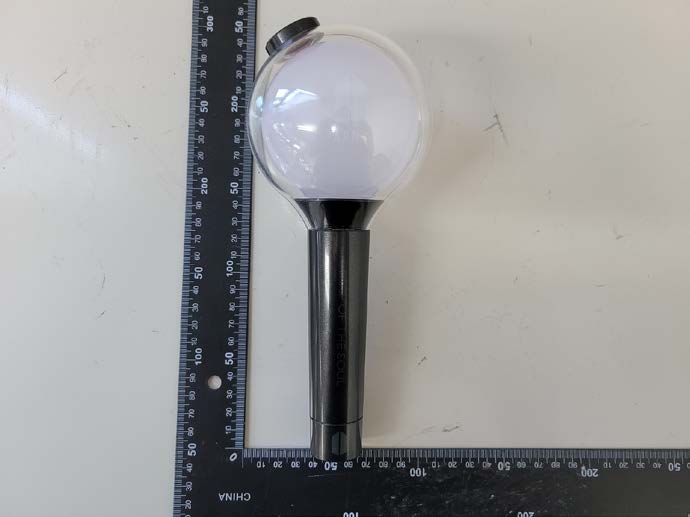

Model name: BTS OFFICIAL 0022IP External photos of EUT Model name: BTS OFFICIAL 0022IP Top view of EUT Bottom view of EUT Model name: BTS OFFICIAL 0022IP Side view of EUT Model name: BTS OFFICIAL 0022IP

Label Format and Location <Bottom view of EUT> •Model : BTS OFFICIAL 0022IP • FCC ID : 2AP7NBTS0022IP • IC : 24019-BTS0022IP *15.19 requirement will be written on the manual due to its size. *The label will be placed inside the battery compartment.

Model name: BTS OFFICIAL 0022IP Internal photos of EUT Model name: BTS OFFICIAL 0022IP Internal view of EUT Model name: BTS OFFICIAL 0022IP Top view of Main PCB Bottom view of Main PCB Model name: BTS OFFICIAL 0022IP Top view of Sub PCB Bottom view of Sub PCB Model name: BTS OFFICIAL 0022IP View of Module View of Antenna Bluetooth Low Energy Module Bluetooth Low Energy Antenna

FCC ID: 2AP7NBTS0022IP According to KDB 447498 D01 General RF Exposure Guidance At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 ㎜, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 2 480 ㎒ (min. separation distances = 0 ㎜) SAR test exclusion thresholds(5 ㎜) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Max. tune-up tolerance (㎽) SAR Test Exclusion Thresholds (5 ㎜) (㎽) 0.126 9.525 Calculation value: 0.126 (㎽) / 5 (㎜) x √ 2.480 = 0.040 So, Calculation value ≤ 3.0 Remark; - Max. tolerance power of EUT (-9.0 ㏈m) - Max. tolerance power of EUT is 0.126(㎽). - When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003355 Page: 2 of 35 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ----------- 8 3. 6 ㏈ Bandwidth & 99 % Bandwidth ----------------------------------------------------------------- 24 4. Maximum Peak Conducted Output Power --------------------------------------------------------- 29 5. Power Spectral Density --------------------------------------------------------------------------------- 32 6. Antenna Requirement ----------------------------------------------------------------------------------- 35 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003355 Page: 3 of 35 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : FANLIGHT Co., Ltd. Address : 4F, 22, Nonhyeon-ro 128-gil, Gangnam-gu, Seoul, South Korea, 06105 Contact Person : Gil-won, Lee Phone No. : +82 70 4848 4304 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product BTS Official Light Stick SE Model Name BTS OFFICIAL 0022IP Serial Number Conducted: 001, Radiated: 002 Power Supply DC 4.5 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth Low Energy) Modulation Technique GFSK Number of Channels 40 channels (Bluetooth Low Energy) Antenna Type PCB Pattern Antenna Antenna Gain ※ 3.98㏈i H/W Version 2.0 S/W Version 2.0 FVIN N/A 1.5. Manufacturer Declaration The Bluetooth version of the EUT is 5.0 and only 37 bytes of PHY 1M are supported. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003355 Page: 4 of 35 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Jun. 16, 2022 Annual Jun. 16, 2023 Signal Generator R&S SMBV100A 255834 May 25, 2022 Annual May 25, 2023 Spectrum Analyzer R&S FSV30 103210 Dec. 08, 2021 Annual Dec. 08, 2022 Spectrum Analyzer Agilent N9020A MY53421758 Aug. 27, 2021 Annual Aug. 27, 2022 Attenuator AEROFLEX / INMET 40AH2W-10 40G-1 Jun. 08, 2022 Annual Jun. 08, 2023 High Pass Filter Wainwright Instrument GmbH WHKX3.0/18G-6SS 21 Jun. 09, 2022 Annual Jun. 09, 2023 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 11 Aug. 11, 2021 Annual Aug. 11, 2022 Low Pass Filter Mini-Circuits NLP-1200+ V 8979400903-2 Feb. 10, 2022 Annual Feb. 10, 2023 Power Sensor R&S NRP-Z81 100669 May 06, 2022 Annual May 06, 2023 DC Power Supply R&S HMP2020 019258024 Oct. 29, 2021 Annual Oct. 29, 2022 Preamplifier H.P. 8447F 2944A03909 Aug. 04, 2022 Annual Aug. 04, 2023 Signal Conditioning Unit R&S SCU-18 10117 Jun. 13, 2022 Annual Jun. 13, 2023 Preamplifier TESTEK TK-PA1840H 130016 Jan. 10, 2022 Annual Jan. 10, 2023 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 23, 2021 Biennial Aug. 23, 2023 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Feb. 07, 2022 Annual Feb. 07, 2023 Horn Antenna R&S HF906 100326 Feb. 18, 2022 Annual Feb. 18, 2023 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 9170-540 Nov. 30, 2021 Annual Nov. 30, 2022 EMI Test Receiver R&S ESU26 100109 Jan. 18, 2022 Annual Jan. 18, 2023 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/38 330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Apr. 04, 2022 Semi- Annual Oct. 04, 2022 Coaxial Cable micro-coax UTiflex 142A SERIES 502839-8 (10 m) 90000034 Apr. 04, 2022 Semi- Annual Oct. 04, 2022 Coaxial Cable RFONE PL360P-292M292M-1.5 M-A 20200324002 Feb. 18, 2022 Semi- Annual Aug. 18, 2022 Note; For equipment listed above that has a calibration date or calibration due date that falls within the test date range, care was taken to ensure that this equipment was used after the calibration date and before the calibraition due date. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003355 Page: 5 of 35 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C, RSS-247 Issue 2, RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 15.205(a) 15.209 15.247(d) RSS-247 Issue 2 5.5 RSS-Gen Issue 5 8.9 Transmitter Radiated Spurious Emissions and Conducted Spurious Emission Complied 15.247(a)(2) RSS-247 Issue 2 5.2(a) RSS-Gen Issue 5 6.7 6 ㏈ Bandwidth & 99 % Bandwidth Complied 15.247(b)(3) RSS-247 Issue 2 5.4(d) Maximum Peak Conducted Output Power Complied 15.247(e) RSS-247 Issue 2 5.2(b) Power Spectral Density Complied 15.207 RSS-Gen Issue 5 8.8 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because th…
