2AP7P-AMS-10RGBF - Series

AMS‐10RGB PRINCIPAL SPECIFICATIONS Compatible sheet types Bi + RGB 10W Range of dimming 1% ~ 100.0% (1% resolution) Color temperature 2850k ~ 6098k, Hue 0 ~ 360 Output power Up to 10W Output channel 5 channels / Bi‐Color + RGB User interface Graphic OLED (128 X 64) Input power sources 5V USB‐C Supports wireless Bluetooth LE SUMMARY Flicker free high precision dimming controller ‐ It can adjust to 2500 steps for dimming control Useful OLED screen ‐ The small OLED screen displays useful information for operator ‐ It provides an easy way to set the parameters with three buttons Provides a variety of remote control methods ‐ It supports Android or iPhone controller by Bluetooth LE CAUTION Please keep below things in mind before using the product and if you have a problem please get in touch with store or warranty service number ‐ Do not use near flammable's and heater ‐ Do not use in rain or places where the product may get wet ‐ Do not expose to direct sunlight ‐ The product will heat up when you use for a long period of time, In this case you should be careful to touch and you would better to separate between the dimmer and power source to prevent thermal conduction by power source ‐ Use the product only in the temperature range from ‐10 °C to 40°C ‐ Use the product with power sources that we suggested ‐ Keep out of infants ‐ Do not touch with wet hands DESCRIPTION OPERATION OLED STATE Bi – Fast 30% 3500k Bi Color mode, Control dimming and kelvin in Bi color HSI – Fast 30% Hue:180 RGB Mode, Control dimming and Hue in RGB Effect Strobe 25 Effect mode Control effects with dimming volume ‐ Strobe, Fade, Flicker, Flash, Police, Welding, Fire, Candle, Television, Dissolve Control effect speed with color volume Fast or Accuracy Select fast mode or accuracy mode with click color volume Bi or HSI or Effect Select Bi or HIS or Effect mode with click dimming volume Black Out Click dimming volume and hold Lock On or Off Click color volume and hold Color volume On/Off switch Dimming volume USB‐CInput Mount for tripod cover This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution Any changes or modifications (including the antenna) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co‐located or operation in conjunction with any other antenna or transmitter. This equipment complies with FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. WARRANTY We offer a one‐year free warranty period after purchased and you can continually get a warranty service with extra charge after expired free warranty period We do not guarantee the service for free of charge in case of below even though it is within free warranty period ‐ Product failure due to consumer negligence ‐ Product failure due to power trouble that we did not allow ‐ Product failure due to disassembling by unofficial facilities that we did not allow ‐ Product failure due to natural disaster Thank you for purchasing our product Purchased store: Purchased date: Manufacturer: Aladdin / www.aladdin‐lights.com / tel. +82‐2‐386‐1245

Building B-No.712, DMC Hi-tech Industry Center, 330, Seongam-ro, Mapo-gu, Seoul, Republic of Korea Tel/Fax: +82-2-386-1245 / +82-2-385-1245 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 2021. 01. 12 Product: F - Series Model: AMS-10RGB FCC ID: 2AP7P-AMS-10RGB SUBJECT: Attestation letter for Declaration of Conformity Dear Sir or Madam: We, the undersigned, hereby attest to declare that the composite portion categorized as all other devices has been authorized under the Supplier’s Declaration of Conformity procedures. Sincerely, SungHo, Choi / President

Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 F 352.472.2030 email: [email protected] 2021. 01. 12. SUBJECT: UPLOAD FILES TO WEBSITE Product: F - Series Applicant: Aladdin Co., Ltd. Model: AMS-10RGB Address: Building B-No.712, DMC Hi-tech Industry Center, 330, Seongam-ro, Mapo-gu, Seoul, Republic of Korea FCC ID: 2AP7P-AMS-10RGB Dear Sir/Madam As appointed agent for Aladdin Co., Ltd., we submit the application to Timco Engineering Inc, for certification of the above product. Please review all files uploaded to Timco web site. If you have any queries, please do not hesitate to contact us Best regards, Kwang-Yeol Choo / Test Engineer e-mail: [email protected]

Building B‐No.712, DMC Hi‐tech Industry Center, 330, Seongam‐ro, Mapo‐gu, Seoul, Republic of Korea Tel/Fax: +82‐2‐386‐1245 / +82‐2‐385‐1245 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2AP7P-AMS-10RGB To Whom It May Concern: We, the undersigned, hereby authorize Kwang-Yeol, Choo at Kostec Co., Ltd on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Kwang-Yeol, Choo at Kostec Co.,Ltd on our behalf shall have the same effect as acts of our own. Sincerely, Date: 2021. 01. 12. ________________________ SungHo, Choi / President

Building B‐No.712, DMC Hi‐tech Industry Center, 330, Seongam‐ro, Mapo‐gu, Seoul, Republic of Korea Tel/Fax: +82‐2‐386‐1245 / +82‐2‐385‐1245 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: 2AP7P-AMS-10RGB Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File name Block diagram Circuit Description Operational Description Part list Antenna Specification CONF APPENDIX_AMS-10RGB_BLK CONF APPENDIX_AMS-10RGB_SCH CONF APPENDIX_AMS-10RGB_Operational Description CONF APPENDIX_AMS-10RGB_BOM CONF APPENDIX_AMS-10RGB_Antenna-spec The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 and 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Date: 2021. 01. 12. ________________________ SungHo, Choi / President

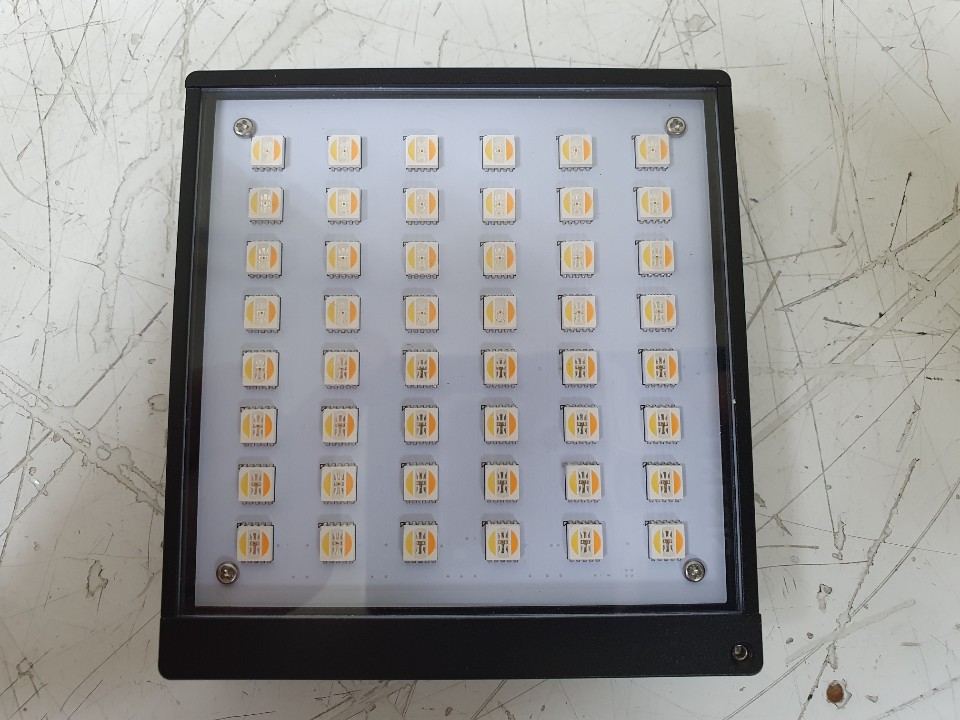

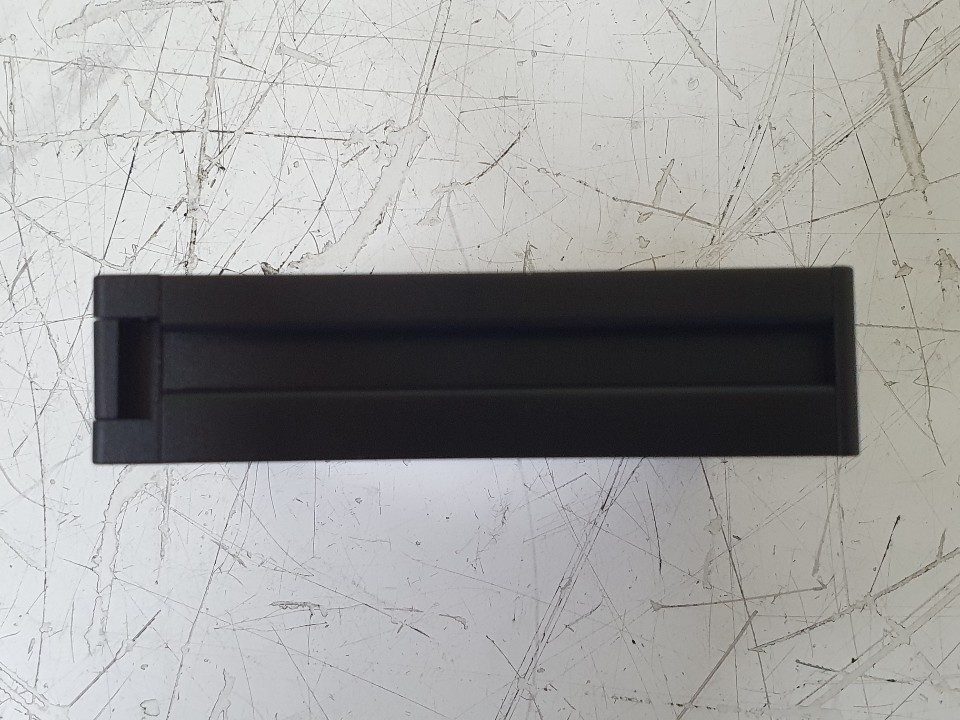

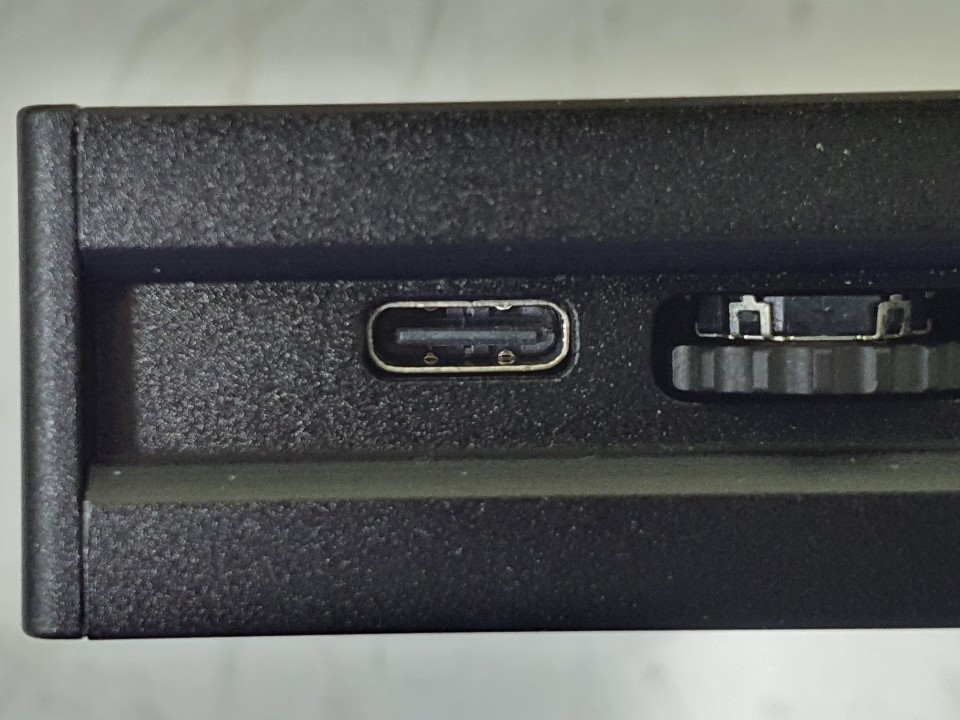

Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 1 / 4 Appendix 2. Photographs of EUT [External View] [Front] [Rear] Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 2 / 4 [ Top ] [ Bottom ] Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 3 / 4 [ Left ] [ Right ] Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 4 / 4 [ Port ]

Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 1 / 1 Appendix 4. Sample Label & Location Label Information The following is a sample copy of the label that will be placed on back side of the product. The FCC ID is marked in the product label and below information is visible printed on the label. Label location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is located here.

Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 1 / 6 Appendix 3. Photographs of EUT [Internal View] [ Main Board Top] Antenna Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 2 / 6 [Main Board Bottom] Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 3 / 6 [LED Board Top] Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 4 / 6 [LED Board Bottom] Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 5 / 6 [Module_Shield removed] Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 6 / 6 [Inside]

MPE Calculation / RF Exposure Product: F - Series Applicant: Aladdin Co., Ltd. Model: AMS-10RGB Address: Building B-No.712, DMC Hi-tech Industry Center, 330, Seongam-ro, Mapo-gu, Seoul, Republic of Korea FCC ID: 2AP7P-AMS-10RGB The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency at a distance of 20 cm from the device to the body of the user. According to §2.1091, §2.1093 and §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Classfication The antenna of this product is at least 20 cm away from the body of the user. So this product is classified as mobile device. S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropically Radiated Power R = distance to the centre of radiation of the antenna Values S = 1.0 mW/cm 2 for General population uncontrolled exposure (FCC Part 1.1310 Radiofrequency radiation exposure limits) S = 1.0 mW/cm 2 PT(BDR/EDR) = -5.58 dBm (0.28 mW) : measured maximum output power G = Antenna gain = 2.041 dBi (1.600 in linear terms) EIRP = PT x G R = 20 cm Calculation EIRP(BDR/EDR) = 0.28 x 1.600 = 0.44 mW S(BDR/EDR) = 0.44/12.56 x (20) 2 = 0.44/5024 S(BDR/EDR) = 0.00009 mW/cm 2 Conclusion This confirms compliance to the required radio frequency radiation exposure limit of 1.0 mW/cm 2 at 20 cm operation.

Report No.: KST-FCR-210002 KST-FCR-RFS-Rev.0.5 Page: 2 / 34 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd, Table of Contents 1. GENERAL INFORMATION .............................................................................................................. 3 1.1 Test Facility ............................................................................................................................................... 3 1.2 Location .................................................................................................................................................... 3 1.3 Revision History of test report .................................................................................................................. 4 2. EQUIPMENT DESCRIPTION ........................................................................................................... 5 3. SYSTEM CONFIGURATION FOR TEST ......................................................................................... 6 3.1 Characteristics of equipment .................................................................................................................... 6 3.2 Used peripherals list ................................................................................................................................. 6 3.3 Product Modification ................................................................................................................................. 6 3.4 Operating Mode ........................................................................................................................................ 6 3.5 Test Setup of EUT .................................................................................................................................... 6 3.6 Parameters of Test Software Setting ........................................................................................................ 7 3.7 Table for Carrier Frequencies ................................................................................................................... 8 3.8 Used Test Equipment List ......................................................................................................................... 9 4. SUMMARY TEST RESULTS .......................................................................................................... 11 5. MEASUREMENT RESULTS .......................................................................................................... 12 5.1 Max. Conducted output power ............................................................................................................... 12 5.2 Power spectral density ........................................................................................................................... 15 5.3 6 dB spectrum Bandwidth ...................................................................................................................... 18 5.4 Band-edge Compliance of RF Conducted emissions ............................................................................ 21 5.5 Spurious RF Radiated emissions ........................................................................................................... 24 5.6 Antenna requirement .............................................................................................................................. 31 5.7 AC Power Conducted emissions ............................................................................................................ 32 Report No.: KST-FCR-210002 KST-FCR-RFS-Rev.0.5 Page: 3 / 34 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd, 1. GENERAL INFORMATION 1.1 Test Facility Test laboratory and address KOSTEC Co., Ltd. 28(175-20,Annyeong-dong)406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Telephone Number: 82-31-222-4251 Facsimile Number: 82-31-222-4252 Registration information KOLAS No.: KT232 RRA (National Radio Research Agency): KR0041 FCC Designation No.: KR0041 IC Designation No.: KR0041 VCCI Membership No.: 2005 1.2 Location KOSTEC Co., Ltd. Report No.: KST-FCR-210002 KST-FCR-RFS-Rev.0.5 Page: 4 / 34 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd, 1.3 Revision History of test report Rev. Revisions Effect page Reviewed Date - Initial issue All Gyeong Hyeon, Park 2021. 01. 08. Report No.: KST-FCR-210002 KST-FCR-RFS-Rev.0.5 Page: 5 / 34 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd, 2. EQUIPMENT DESCRIPTION The product specification described herein was declared by manufacturer. And refer to user’s manual for the details. Equipment Name F - Series Model No AMS-10RGB Usage BLE LED Dimmer Serial Number Proto type Modulation type GFSK Emission Type F1D Maximum output power -5.58 dBm Operated Frequency 2 402 MHz ~ 2 480 MHz Channel Number 40 Operation temperature -10 °C ~ 55 °C Power Source DC 5 V Antenna Description Internal chip antenna, gain : 2.041 dBi Remark 1. The device was operating at its maximum output power for all measurements. 2. The radiation measurements are performed in X, Y, Z axis positioning. Only the worst case (X) is shown in the report. 3. The above DUT’s information was declared by manufacturer. Please refer to the specifications or user manual for more detailed description. FCC ID 2AP7P-AMS-10RGB Report No.: KST-FCR-210002 KST-FCR-RFS-Rev.0.5 Page: 6 / 34 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd, 3. SYSTEM CONFIGURATION FOR TEST 3.1 Characteristics of equipment The Equipment Under Test (EUT) contains the following capabilities: This equipment is BLE LED Dimmer. The detailed explanation is refer as user manual. 3.2 Used peripherals list Description Model No. Serial No. Manufacture Remark Notebook BCM-1063 2Z7S1Z1 Dell Inc - Adapter DA65NM111-00 None Dell Inc For note…

Text truncated - open the document above for the full version.

Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 1 / 4 Appendix 1. Photographs of test setup Radiated RF measurement (30 MHz ~ 1 GHz) Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 2 / 4 Radiated RF measureme nt (Above 1 GHz) Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 3 / 4 AC Conducted measurement (Front view) Head office & Test Lab: 28(175-20,Annyeong-dong) 406-gil sejaro, Hwaseong-si Gyeonggi-do, Korea Tel: +82-31-222-4251 / Fax: +82-31-222-4252 Page: 4 / 4 AC Conducted measurement (Rear view)
