2AP8A-2BMTW0220Ture Wireless Earbuds

Bluetooth Easy-Sync BUTTON FUNCTIONS LEFT BUTTONRIGHT BUTTON WARNINGS PACKAGE CONTENTS CHARGING TROUBLESHOOTING CONNECTING TO BLUETOOTHPHONEHOW TO USE EARBUDS WITH ACCESSORIES QUICK START GUIDE MODEL #’S 2022007 1 Turn on earbuds (earbuds should turn on automatically once taken out of charging case) 2 Turn on Bluetooth on your phone or bluetooth device 3 On phone select: BPM Sound Pack from list of available bluetooth devices. When earbuds do not sync together or become disconnected during use. 1: Put Earbuds back into charging case. Open up Bluetooth setting on your mobile device and scan for “ BPM Sound Pack ”. Device cannot find Bluetooth earbuds 1: Check whether earbuds are charged. If earbuds always disconnect or make noise when playing: The bluetooth earbud‘s power status is low, please charge it. Or there may be obstructions between the mobile device and the bleutooth earbuds or the distance is beyond signal range (<32ft). 1: Auto Pairing: When taking out the wireless earbuds from the charging case the earbuds will automatically turn on, sync together and enter pairing mode. *note: when in pairing mode only the right headphone will flash red and blue. Once connected all lights will turn o. 2: Activate Bluetooth on your mobile device, find the pairing name “ BPM Sound Pack ” and connect it. The earbuds will re-connect with the last device after re-start. If earbuds do not re-connect, re-connect manually by selecting earbuds from the bluetooth menu list in the mobile phone device. Disconnect from mobile device: Disconnect manually by selecting the earbuds name in your mobile device’s bluetooth list and press the disconnect button. Read the below warning thoroughly before you start using your headset. Store this manual with product packaging. The safety precaution manual reduce the risk of fire or injury when correctly complied to. To reduce the risk of injury : Keep batteries out of reach of children. Do not heat, open, or dispose of battery pack in fire. Do not allow metal objects to touch the battery on the device. Do not expose battery pack to excessive heat. Connect the charging case to a power supply with the included cable and charge it completely (light will flash red when charging, and will stay red when fully charged. Fully charge the case and earbuds before using for the first time. -If earbuds do not start charging when put into case, press case power button to manually make sure it starts charging -Warning: Earbuds should only be used with provided charging case. Phone calls: when call is incoming, unit will pause playback and ring to alert you of call. Press either earbud to answer call. To end call press either button. Technical Specs: Bluetooth version: 5.0 Battery capacity: Earphone battery 40mAh Charging case battery: 300 mAh Eective distance: 32ft Earbud Working time: Up to 2 hours per charge Standby time: 12 hours Earbud charging time: About 1 hour Charging case charging time: About 1.5 hours (1) - left earbud (1) - right earbud (1) - pair of silicone eartips (1) - silicone neckband (1) - carrying charging case (1) - charging cable (1) - user manual VOLUME DOWN (-): Quick press 2 times VOLUME UP (+): Quick press 2 times PREVIOUS SONG: Quick press 3 times NEXT SONG: Quick press 3 times OUTSIDE FRONTBACKFOLDED IN INSIDE more info support: 877-543-3540 FOLDED IN ON: Take earbuds out of case OFF: Put earbuds into case VOICE ASSISTANT: Press and hold for 2 seconds PLAY/PAUSE: Press 1 time ANSWER/END CALL: Press 1 time This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. EARBUD CONTROL PRESS HERE INDICATOR LIGHT CHARGING POWER BUTTON CASE CHARGING PORT FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Shenzhen D-fast Technology Co.LTD Agent Authorization Company: Shenzhen D-fast Technology Co.LTD Address: A301, Gangyi Factory, No.27, Baolong Road, Lianhe Industrial Zone, Nanyue Community, Baolong street, Longgang District, Shenzhen, 518116 China Product Name: Ture Wireless Earbuds Model Number(s): 2BMTW0220, 2BMTW0220W0G7 Product Description: Ture Wireless Earbuds We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 04, 2020 Name: Ms Abby Title: Manager Company: Shenzhen D-fast Technology Co.LTD

Shenzhen D-fast Technology Co.LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Nov. 04, 2020 Subject; Request for Confidentiality FCC ID: 2AP8A-2BMTW0220 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ms Abby Title: Manager

Model Difference Declaration To Whom It May Concern, We, Shenzhen D-fast Technology Co.LTD(Ture Wireless Earbuds) Trademark:N/A; Model Number: 2BMTW0220, 2BMTW0220W0G7;All model’s the function, software and electric circuit are the same, only with a product model named different for commercial purpose. Test sample model: 2BMTW0220. Please contact me if you have any question. Name: Ms Abby Date: Nov. 04, 2020 Title: Manager Signature of applicant:

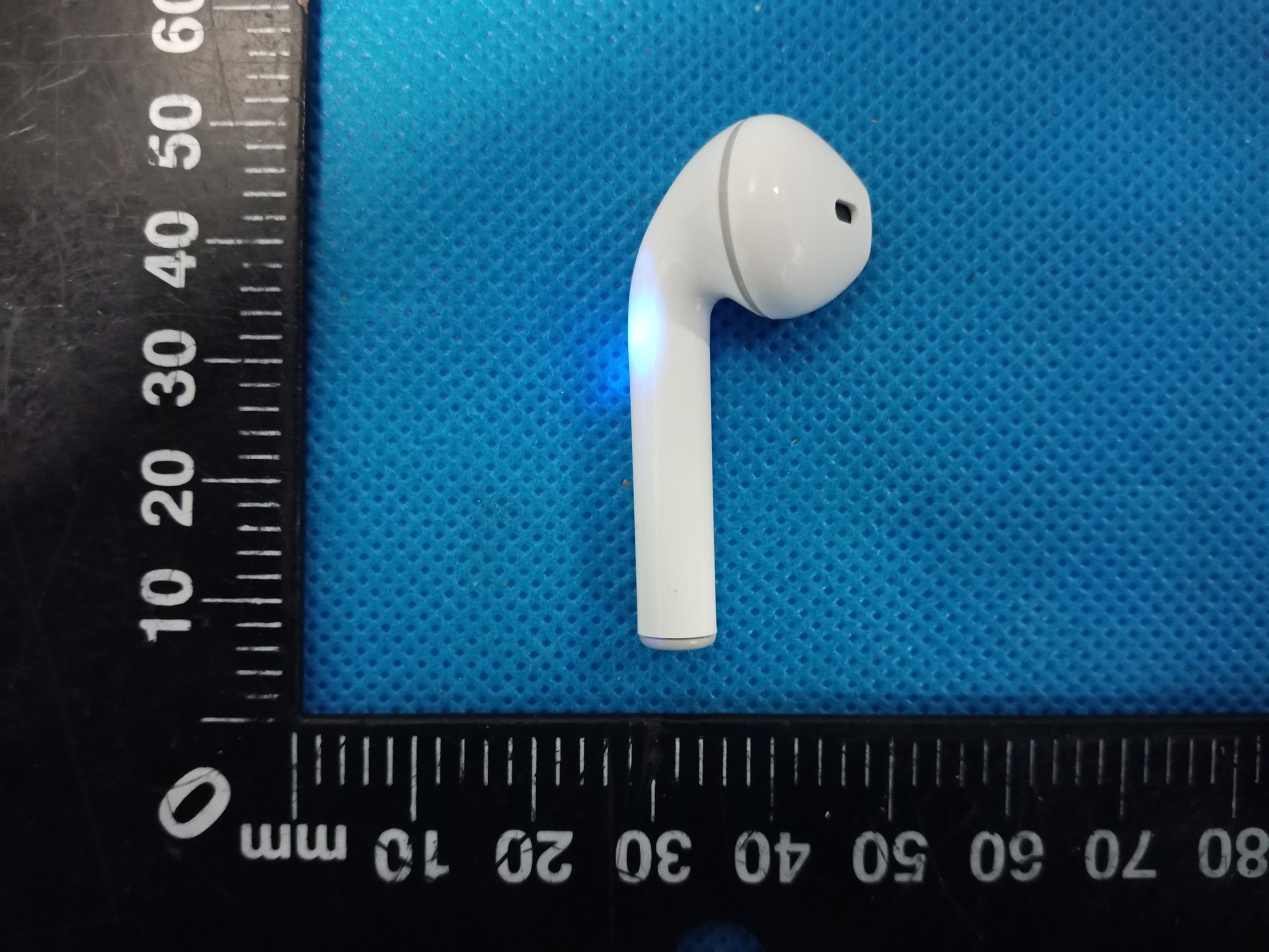

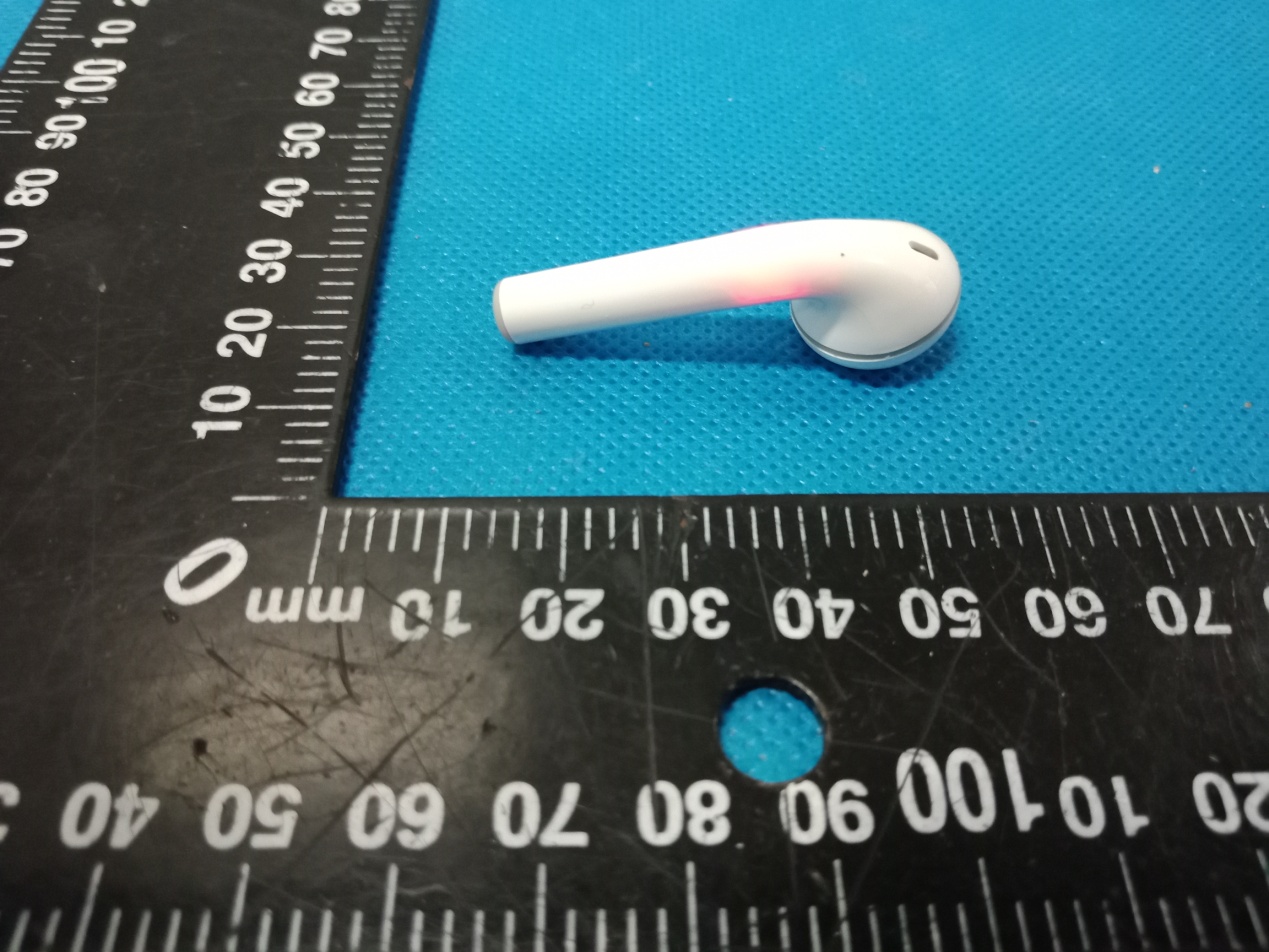

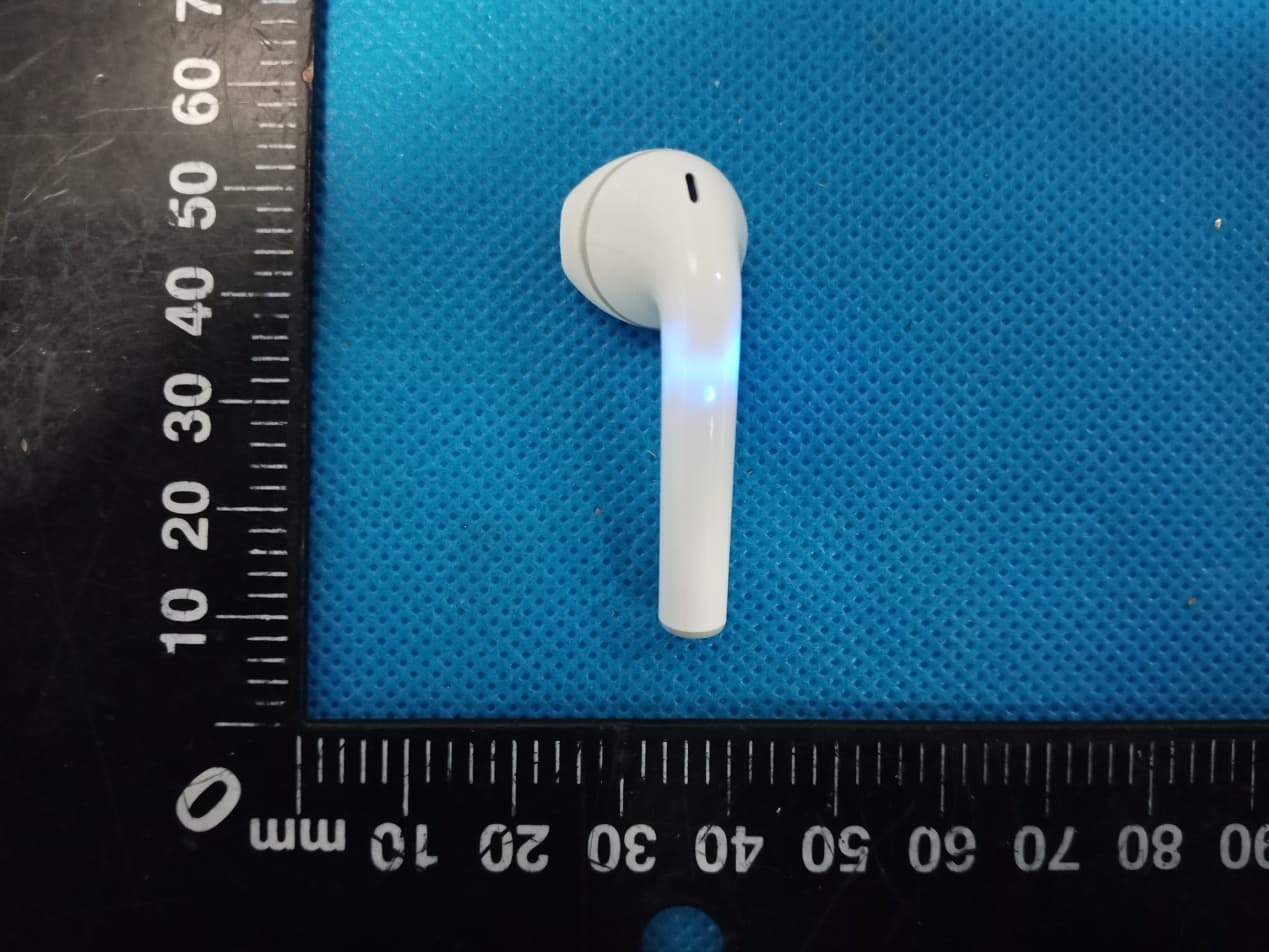

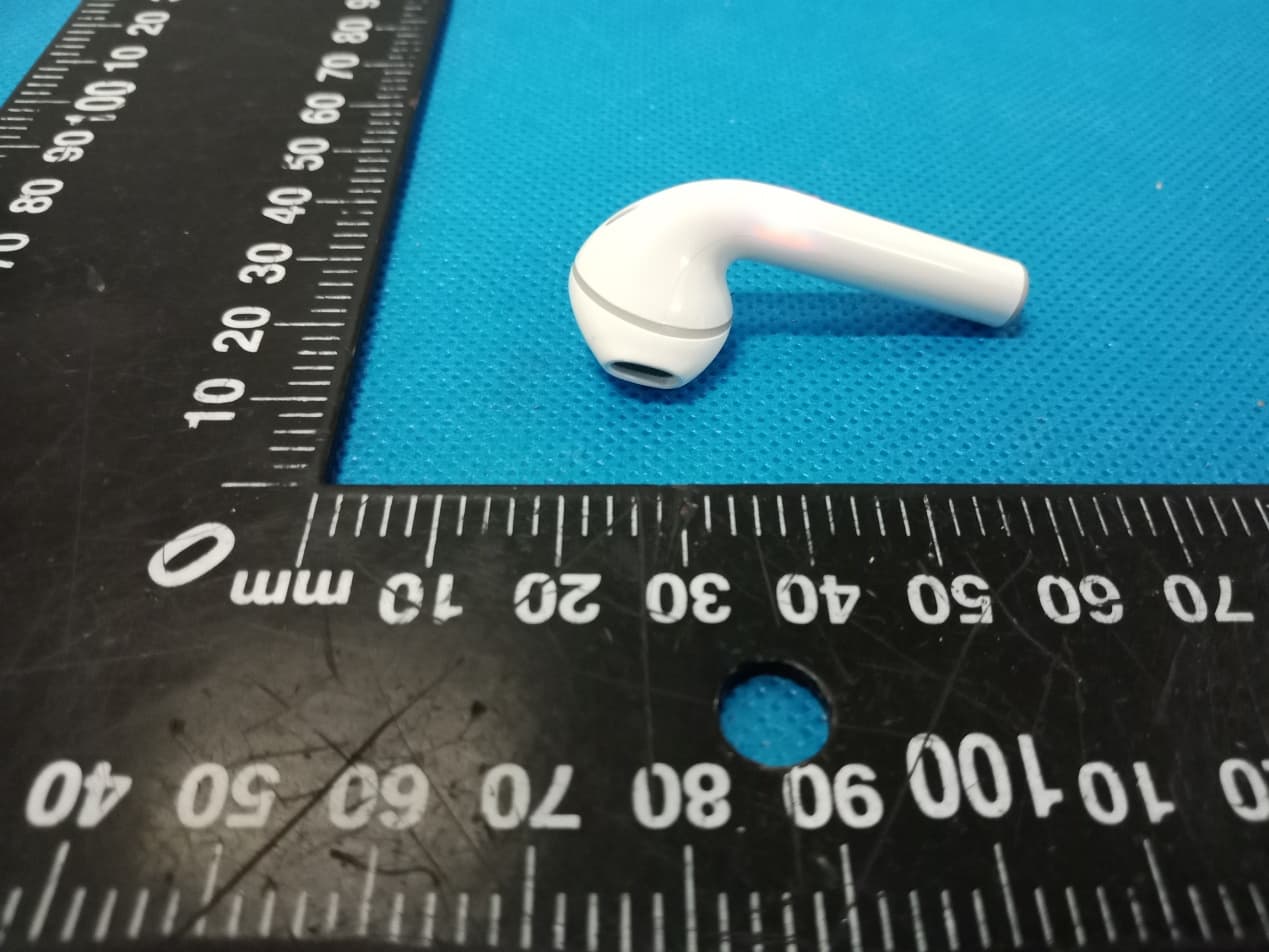

Annex A External Photos Report No.: HK2010263140‐E Page 1 of 4 Report No.: HK2010263140‐E Page 2 of 4 Report No.: HK2010263140‐E Page 3 of 4 Report No.: HK2010263140‐E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AP8A-2BMTW0220

Annex B Internal Photo Report No.:HK2010263140-E Page 1 of 4 Antenna Report No.:HK2010263140-E Page 2 of 4 Antenna Report No.:HK2010263140-E Page 3 of 4 Report No.:HK2010263140-E Page 4 of 4

FCC RF Exposure EUT Description: Ture Wireless Earbuds Model No.: 2BMTW0220 FCC ID: 2AP8A-2BMTW0220 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n EDR -3.582 -3±1(-2) 0.631 5 0.199 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2010263140-E antenna gain=-0.58dB Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.199 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 44 Report No.: HK2010263140-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen D-fast Technology Co.LTD For Ture Wireless Earbuds Model No.: 2BMTW0220, 2BMTW0220W0G7 FCC ID: 2AP8A-2BMTW0220 Prepared for : Shenzhen D-fast Technology Co.LTD A301, Gangyi Factory, No.27, Baolong Road, Lianhe Industrial Zone, Nanyue Community, Baolong street, Longgang District, Shenzhen, 518116 China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Oct. 22, 2020 ~ Oct. 29, 2020 Date of Report: Oct. 29, 2020 Report Number: HK2010263140-E Page 2 of 44 Report No.: HK2010263140-E TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen D-fast Technology Co.LTD Address ................................. : A301, Gangyi Factory, No.27, Baolong Road, Lianhe Industrial Zone, Nanyue Community, Baolong street, Longgang District, Shenzhen, 518116 China Manufacture's Name ............ : Shenzhen D-fast Technology Co.LTD Address ................................. : A301, Gangyi Factory, No.27, Baolong Road, Lianhe Industrial Zone, Nanyue Community, Baolong street, Longgang District, Shenzhen, 518116 China Product description Trade Mark: N/A Product name ........................... : Ture Wireless Earbuds Model and/or type reference : 2BMTW0220, 2BMTW0220W0G7 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Oct. 22, 2020 ~ Oct. 29, 2020 Date of Issue ........................................... : Oct. 29, 2020 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 44 Report No.: HK2010263140-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 25 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 26 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 29 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 31 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 33 3.8. OUT‐OF‐BAND EMISSIONS .....................................................................................................…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
