2AP8A-2MNTW0398True Wireless earphones

Type-C Press either button twice Press and hold either button for 2 second Press either button twice When the charging case is opened, both earphones will automatically power ON and sync up; Or when the earphones are OFF you can press and hold both buttons for 5s to turn them ON. Put earphones back into the charging case, ensure the case is powered, they will be automatically powered OFF; Or you can press and hold the button of either earphone for 7seconds, both earphones will be turned OFF. Press the left button 3 times in quick succession Press the right button 3 times in quick succession Press the left button Press the right button Hold and press the earbuds button for around 2 seconds Go to"Bluetooth"Settings on your Bluetooth device(phone, tablet, etc.) Turn the Bluetooth ON, on your device. Open the charging case, they will automatically turn on(or they can be turned on manually). Hold and press the charging case button for 3 seconds, the LED indicator on the case will flash white, indicating the earphones enter pairing mode with Bluetooth device. On your Bluetooth Device, select the pairing name of your Earphones on the list of available devices,Pairing name is: Monster Verse TWS. If the Earphones do not connect to your device, turn the Earphones OFF, turn your device's Bluetooth OFF and then back ON, then repeat the pairing process. Your Earphones are designed to automatically sync to each other when they are turned ON, however if they ever fail to sync, please put both Earphones back into the charging case and close the cover to turn them OFF, then open the cover, the Earphones will turn on and sync together again. If there is an incoming call on your Bluetooth device , the Earphones will pause the playback and ring to alert you of the call . Press either Earphone button twice to answer the call or press and hold either button for 2 seconds to reject the call . To end the call press either Earphone button twice again. Connect the USB-C charging cable into the socket on the Charging Case . Plug the cable into a standard USB 5V / 1A out put . The LED indicator on the case will flash amber while the charging case is charging and green light stay on when fully charged. You can also charge your case via wireless charger pad, a fully chage will take around 2.5 hours. To avoid damage to the Charging Case , please only use a 5V / 1A charger . Put the Earphones into the Charging Case , The LED on the case stay white while the earphone are charging. When the earphone are fully charged, LED on the case will turn off when the earphone are fully charged. ( Note the Earphones come with a built-in rechargeable battery . Before using them for the first time , we recommend you fully charge the battery . A full charge takes approximately 1 hour ) . The Earphones can only be used with the provided Charging Case . 5 minutes Monster verse TWS 7 Press either button twice Type-C Small and Large eartips Charging case LED indicator Charging case button Type-C charging port Earphone button This occurs right after you press the pairing button on the back of your Monster verse charging case. It indicates that your earphone have entered pairing mode and is ready to initiate Bluetooth connection with a new device. If you haven’t inserted your earphone and you still see the green LED light up, it means your Monster verse charging case is at full battery and doesn’t require any addi- tional charging. This indicates that your charging case isn’t at full battery and needs to be charged. This shows that your Monster verse case is being actively charged. This means that your Monster verse case is fully charged and you can disconnect it from the power source. If you’re one of those unlucky people to come across this status light on your case, don’t freak out. It simply means you’ve encountered a pairing error and you’ll have to reset your earphone by holding the pairing button on the back and redo the pairing process. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Shenzhen D-fast Technology Co.LTD Agent Authorization Company: Shenzhen D-fast Technology Co.LTD Address: A301, Gangyi Factory, No.27, Baolong Road, Lianhe Industrial Zone, Nanyue Community, Baolong street, Longgang District, Shenzhen, 518116 China Product Name: True Wireless earphones Model Number(s): 2MNTW0398, 2MNTW0398B0L2, 2MNTW0398W0L2 Product Description: True Wireless earphones We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 15, 2021 Name: Ms Abby Title: Manager Company: Shenzhen D-fast Technology Co.LTD

Shenzhen D-fast Technology Co.LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 15, 2021 Subject; Request for Confidentiality FCC ID: 2AP8A-2MNTW0398 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ms Abby Title: Manager

Model Difference Declaration To Whom It May Concern, We, Shenzhen D-fast Technology Co.LTD(True Wireless earphones) Trademark:Monster; Model Number: 2MNTW0398, 2MNTW0398B0L2, 2MNTW0398W0L2;All model’s the function, software and electric circuit are the s ame, only with a product color, appearance and model named different for commercial purpose. Test sample model: 2MNTW0398. Please contact me if you have any question. Name: Ms Abby Date: Apr. 15, 2021 Title: Manager Signature of applicant:

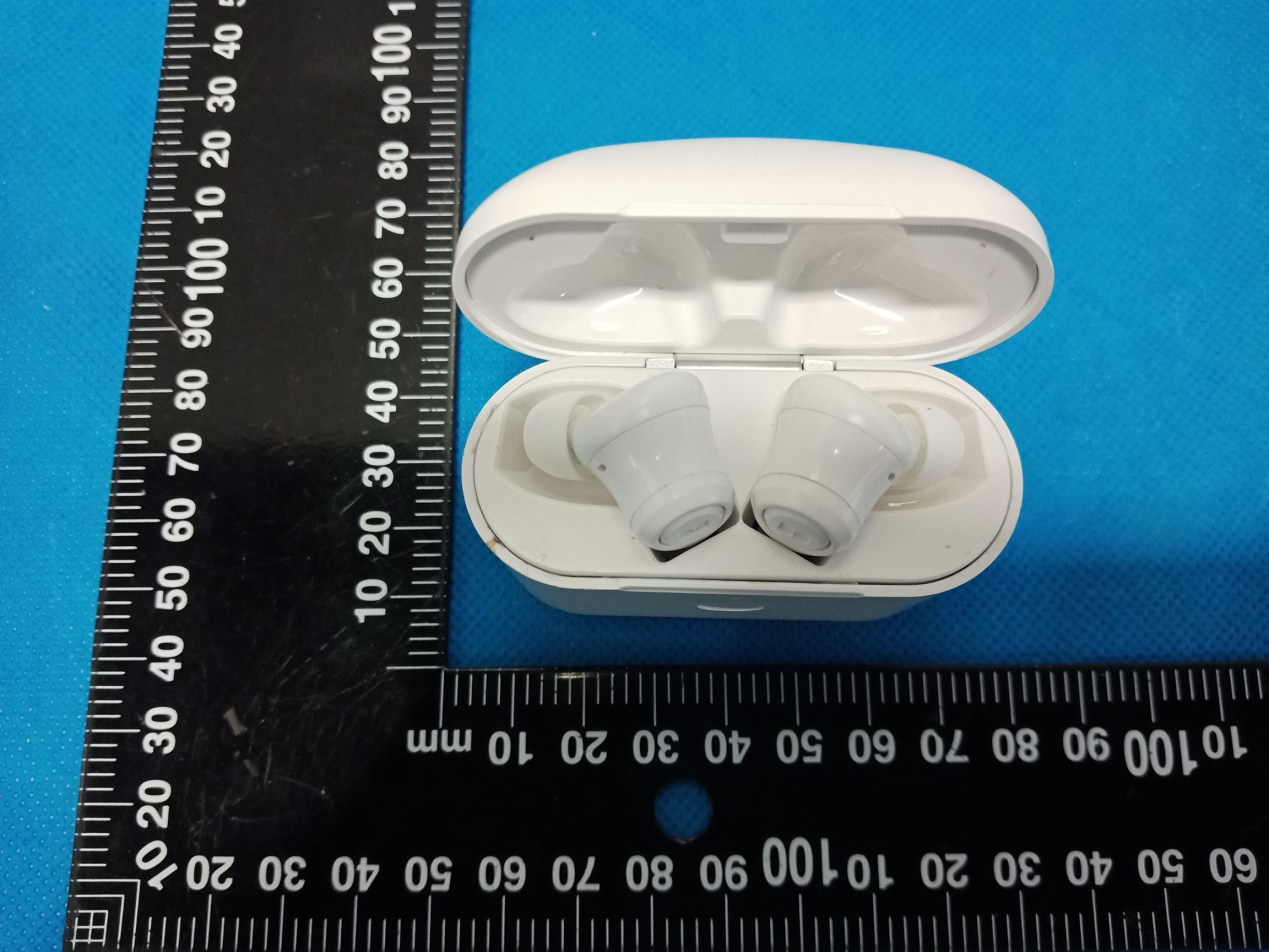

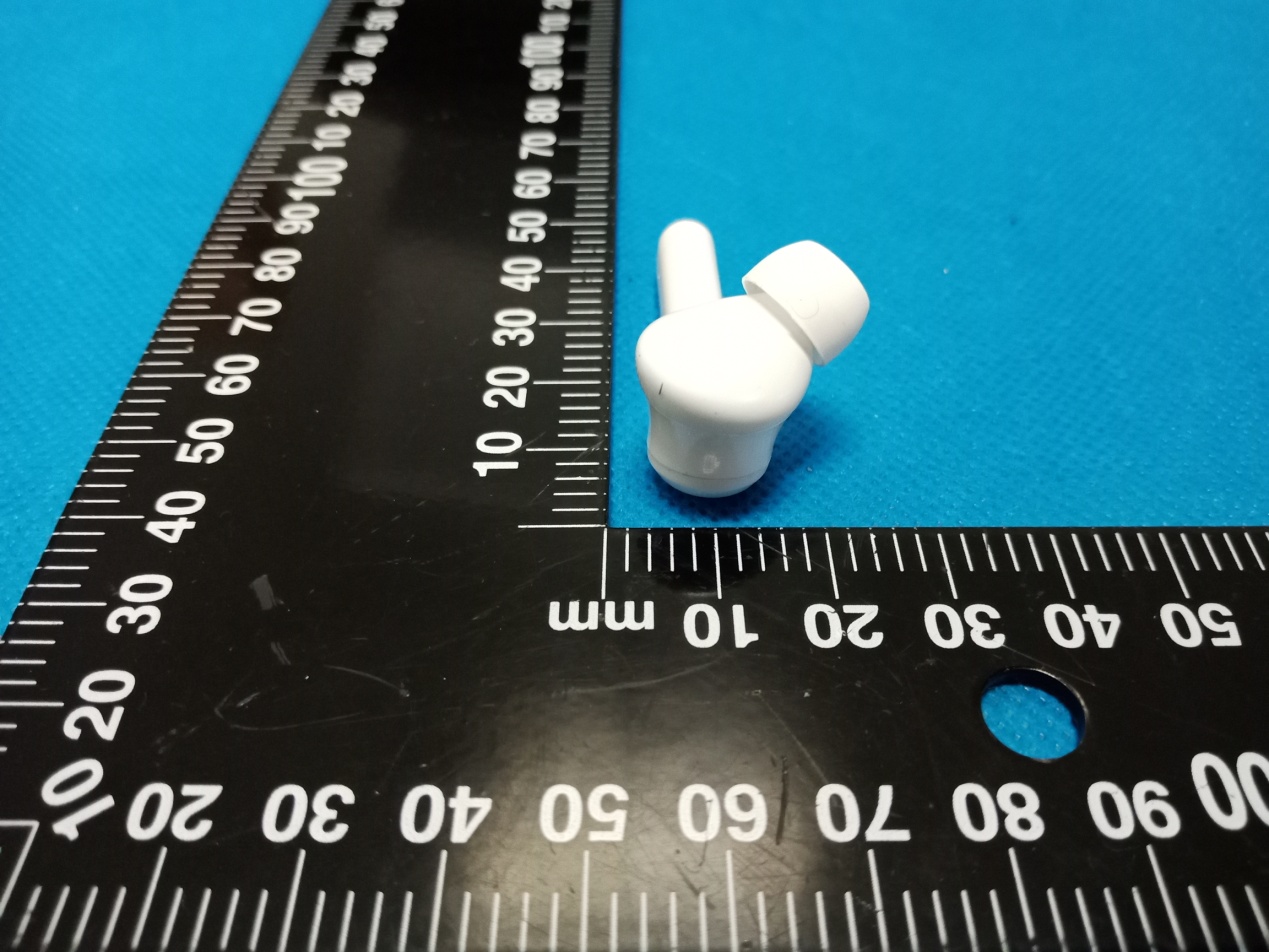

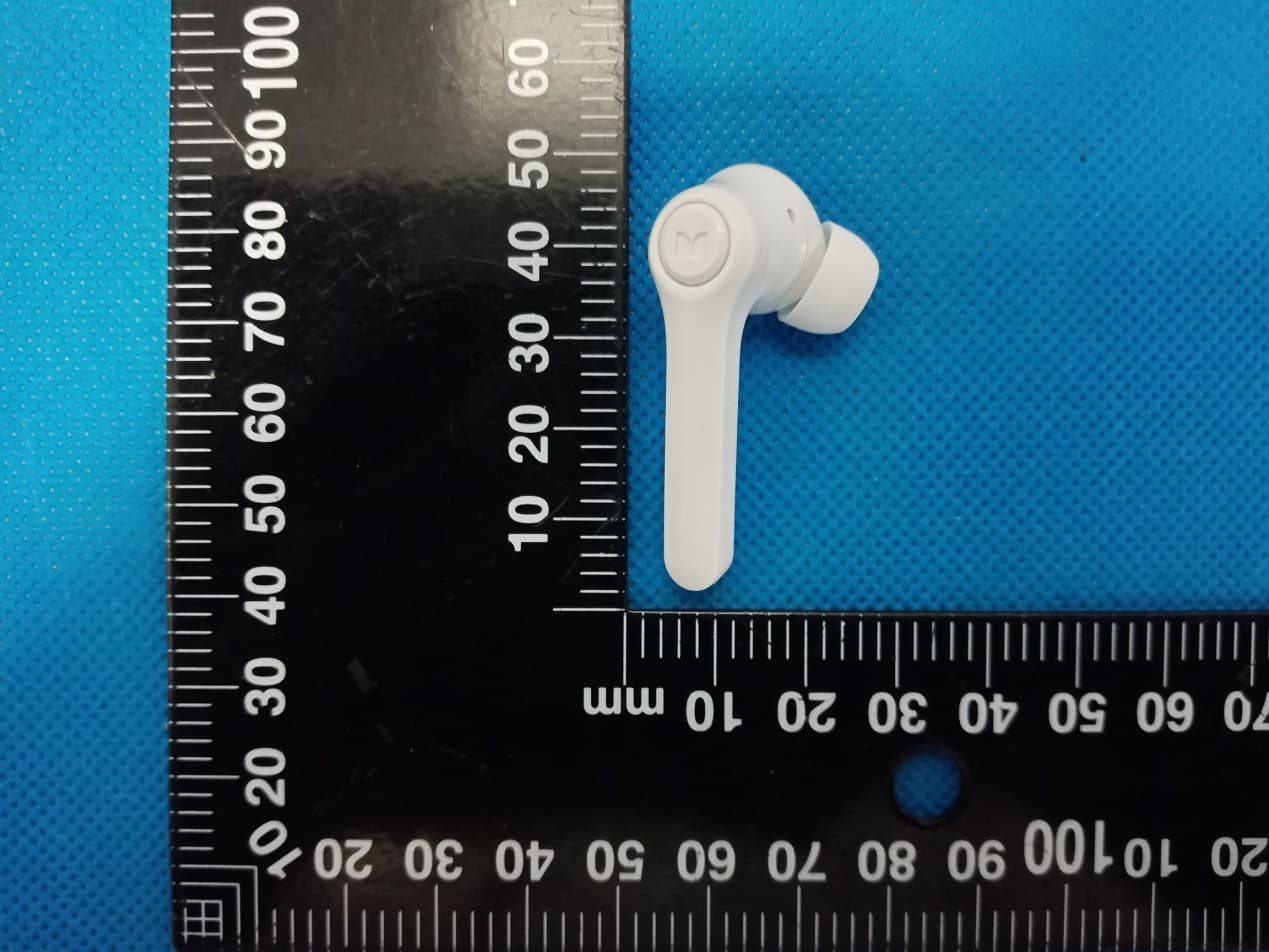

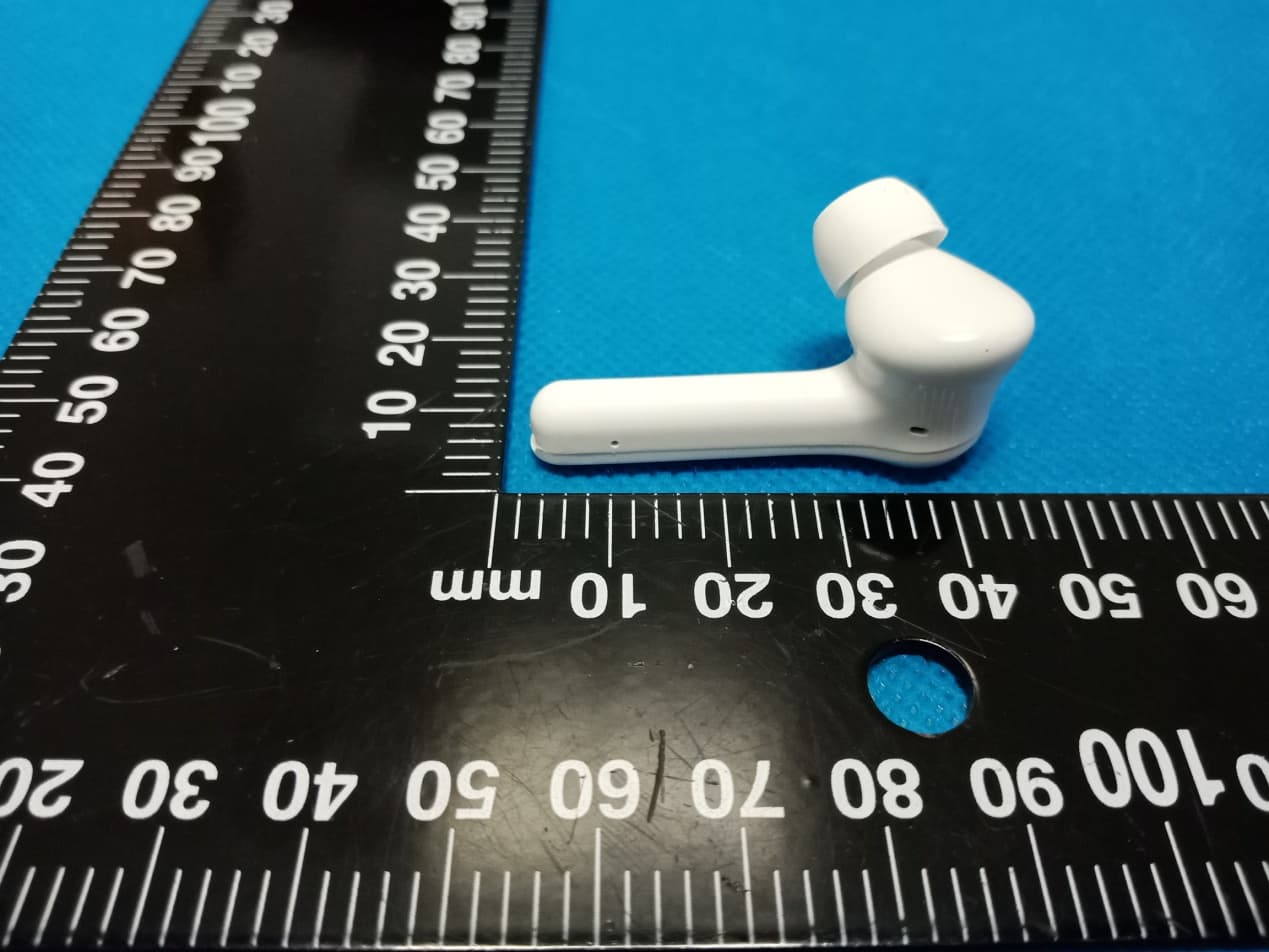

Annex A External Photos Report No.: HK2104020956‐E Page 1 of 4 Report No.: HK2104020956‐E Page 2 of 4 Report No.: HK2104020956‐E Page 3 of 4 Report No.: HK2104020956‐E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AP8A-2MNTW0398

Annex B Internal Photo Report No.:HK2104020956-E Page 1 of 4 Antenna Antenna Report No.:HK2104020956-E Page 2 of 4 Report No.:HK2104020956-E Page 3 of 4 Report No.:HK2104020956-E Page 4 of 4

FCC RF Exposure EUT Description: True Wireless earphones Model No.: 2MNTW0398 FCC ID: 2AP8A-2MNTW0398 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n EDR -0.138 -1±1(0) 1 5 0.315 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2104020956-E antenna gain=1dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.315 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 49 Report No.: HK2104020956-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen D-fast Technology Co.LTD For True Wireless earphones Model No.: 2MNTW0398, 2MNTW0398B0L2, 2MNTW0398W0L2 FCC ID: 2AP8A-2MNTW0398 Prepared for : Shenzhen D-fast Technology Co.LTD A301, Gangyi Factory, No.27, Baolong Road, Lianhe Industrial Zone, Nanyue Community, Baolong street, Longgang District, Shenzhen, 518116 China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen, China Date of Test: Apr. 02, 2021 ~ Apr. 09, 2021 Date of Report: Apr. 09, 2021 Report Number: HK2104020956-E Page 2 of 49 Report No.: HK2104020956-E TEST RESULT CERTIFICATION Applicant’s name ....... Shenzhen D-fast Technology Co.LTD Address ....................... . A301, Gangyi Factory, No.27, Baolong Road, Lianhe Industrial Zone, Nanyue Co mmunity, Baolong street, Longgang District, Shenzhen, 518116 China Manufacture's Name . . Shenzhen D-fast Technology Co.LTD Address ........................ A301, Gangyi Factory, No.27, Baolong Road, Lianhe Industrial Zone, Nany ue Co mmunity, Baolong street, Longgang District, Shenzhen, 518116 China Product description Trade Mark: Monster Product name ................ True Wireless earphones Model and/or type reference ................... . 2MNTW0398, 2MNTW0398B0L2, 2MNTW0398W0L2 Standards ................... . 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ................................. . Date (s) of performance of tests ... .Apr. 02, 2021 ~ Apr. 09, 2021 Date of Issue ................................ .Apr. 09, 2021 Test Result .................................... . Pass Prep ared by: Project Engineer Reviewed b y: Project Supervisor Approved b y: T echnica l Di rector Page 3 of 49 Report No.: HK2104020956-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ................................................................................................................................................... 5 1.3. TEST FACILITY ........................................................................................................................................................... 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ............................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ............................................................................................ 8 2.4. EQUIPMENTS USED DURING THE TEST .................................................................................................................... 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) ...................................................................................................................... 10 2.6. MODIFICATIONS .................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ............................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE ................................................................................................................ 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................................................... 25 3.4. 20DB BANDWIDTH ................................................................................................................................................ 27 3.5. FREQUENCY SEPARATION ...................................................................................................................................... 31 3.6. NUMBER OF HOPPING FREQUENCY ...................................................................................................................... 33 3.7. TIME OF OCCUPANCY (DWELL TIME) ..................................................................................................................... 35 3.8. OUT‐OF‐BAND EMISSIONS ..................................................................................................................................... 39 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................................... 45 3.10. ANTENNA…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
