2APAZ-WGW-L02-01Wifx L1 outdoor loT gateway (LoRa)

Label location

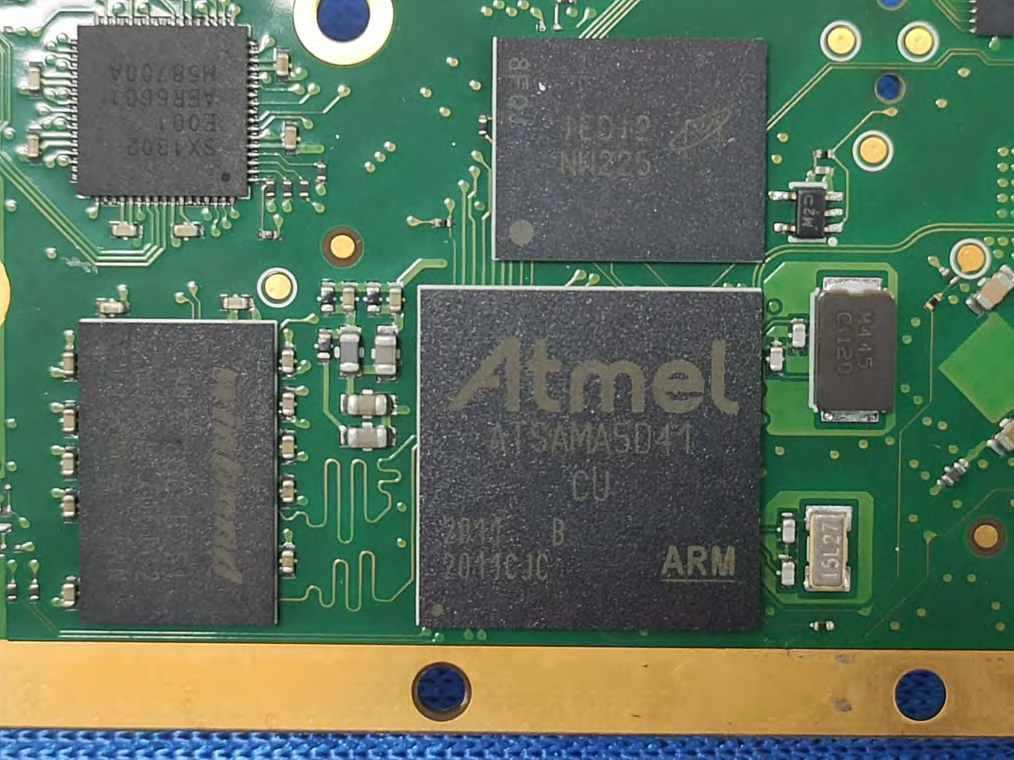

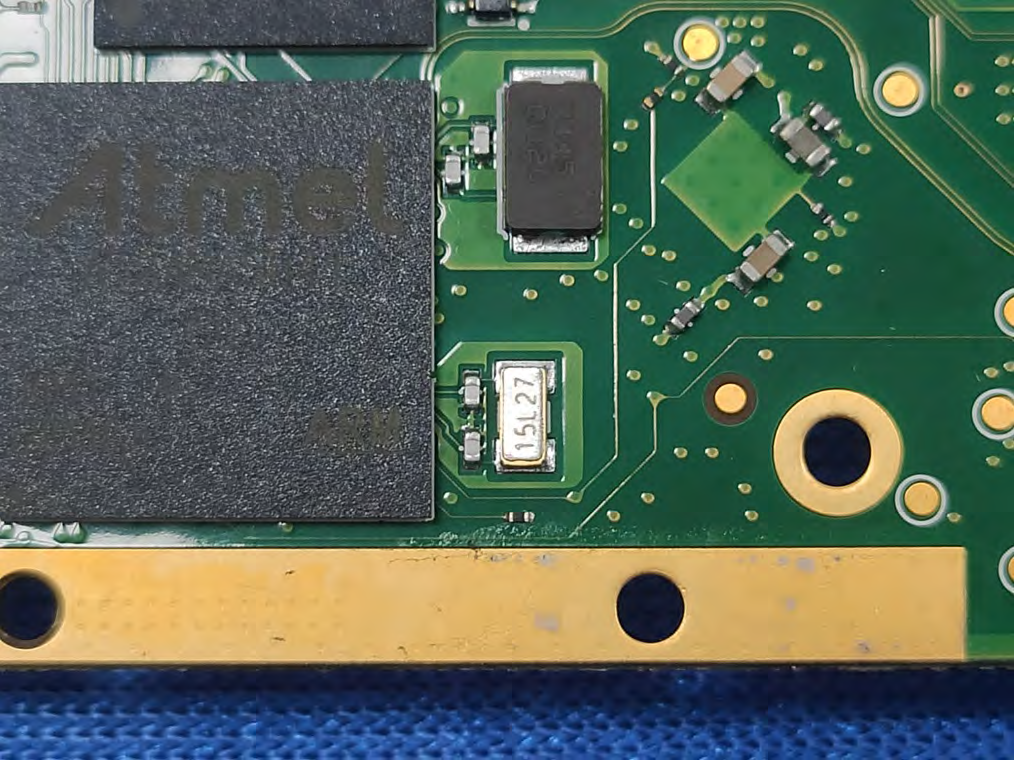

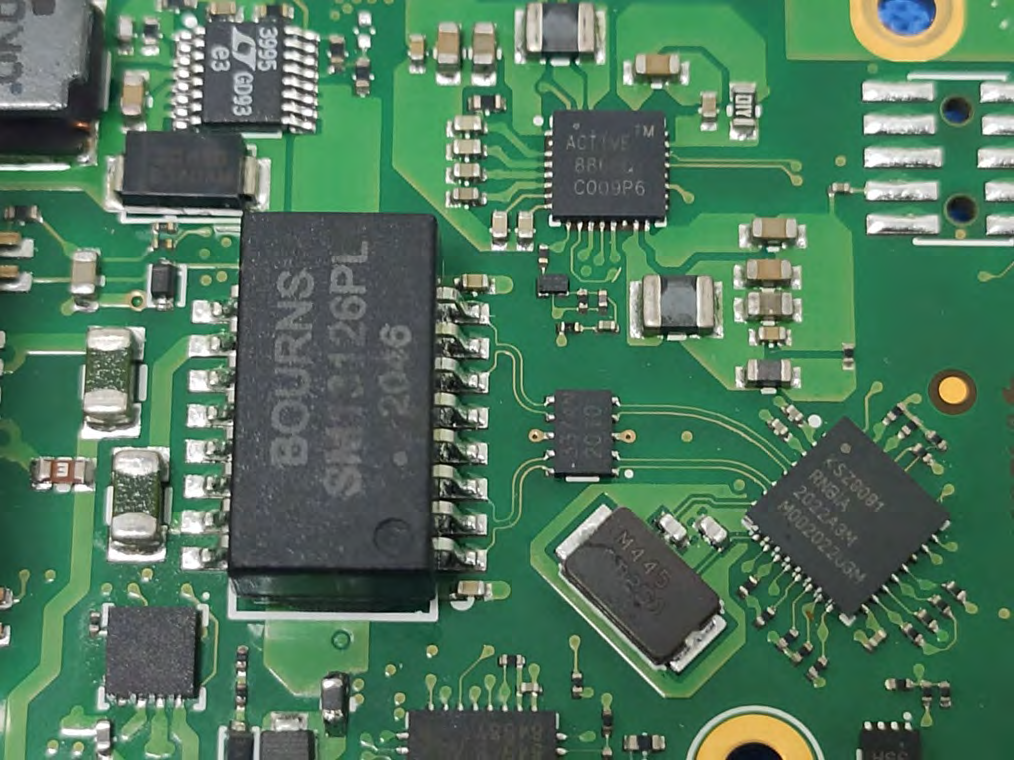

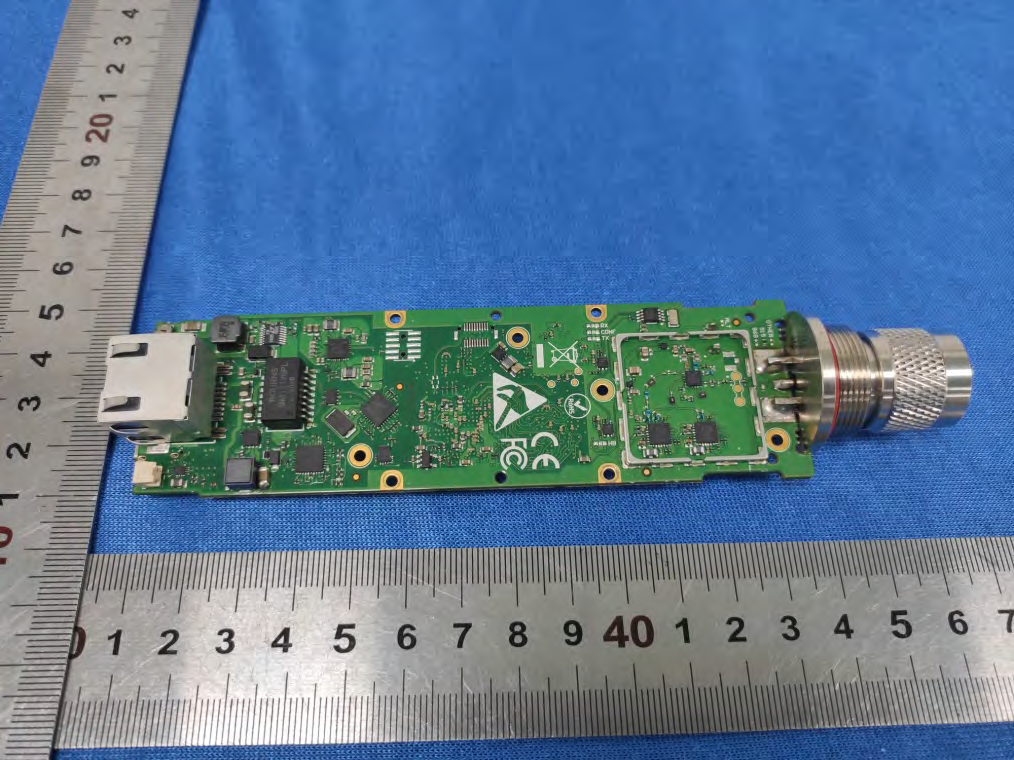

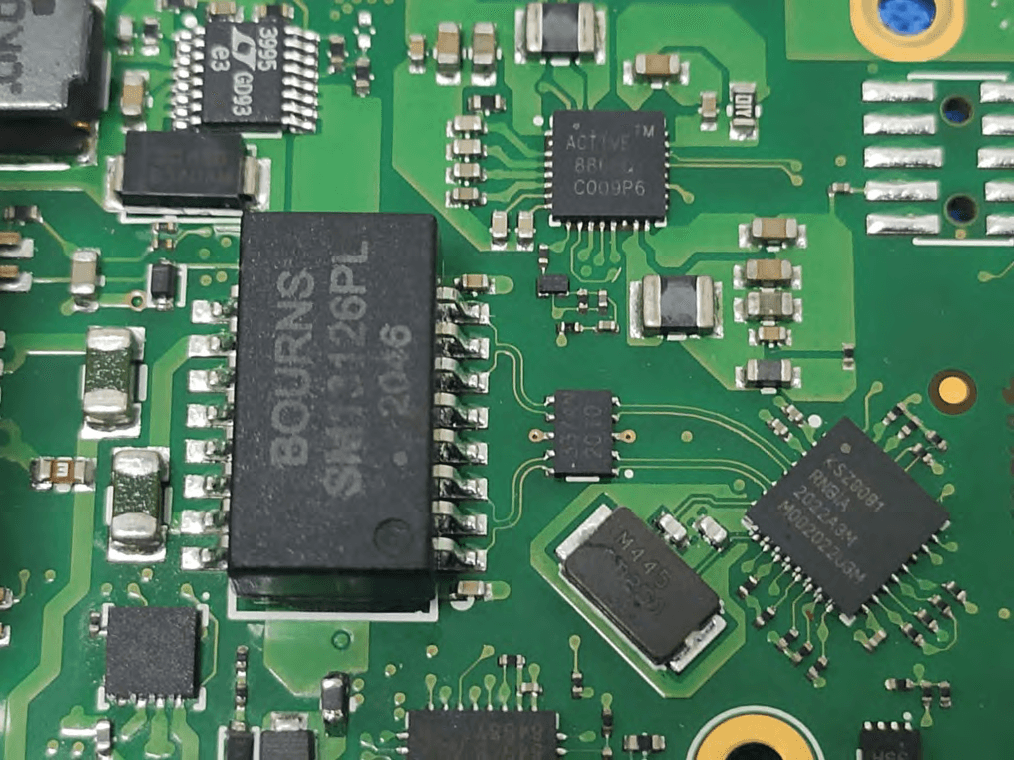

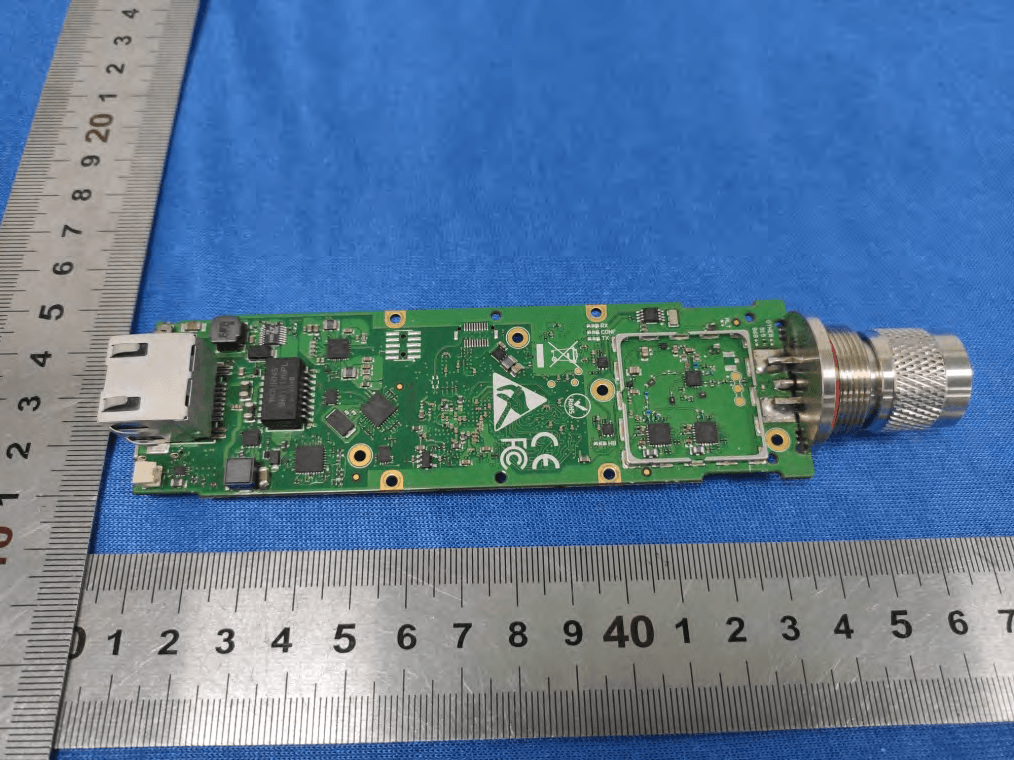

Internal Photos of EUT EUT-14 EUT-15 EUT-16 EUT-17 RFIC EUT-18 EUT-19 EUT-20 EUT-21 EUT-22 EUT-23 EUT-24 EUT-25 EUT-26 ----------- End of Report -----------

Page 1 of 9 Test Report Verified code: Report No.: E202110111758-3-G1 Customer: Wifx Sarl Address: Avenue des Sciences 2, 1400 Yverdon-les-Bains, Switzerland Sample Name: Wifx L1 Sample Model: Wifx L1 Receive Sample Date: Nov.12,2021 Test Date: Nov.13,2021 ~ Apr.27,2022 Reference Document: CFR 47, FCC Part 2.1091 Radio frequency radiation exposure evaluation: mobile devices Test Result: Pass Prepared by: Reviewed by: Approved by: GUANGZHOU GRG METROLOGY & TEST CO., LTD Issued Date: GUANGZHOU GRG METROLOGY & TEST CO., LTD. Address: No.163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, China Tel：（+86）400-602-0999 FAX：（+86）020-38698685 Web：http://www.grgtest.com 088326 2022-07-12 Report No.:E202110111758-3-G1 Page 2 of 9 Statement 1. The report is invalid without "special seal for inspection and testing"; some copies are invalid; The report is invalid if it is altered or missing; The report is invalid without the signature of the person who prepared, reviewed and approved it. 2. The sample information is provided by the client and responsible for its authenticity; The content of the report is only valid for the samples sent this time. 3. When there are reports in both Chinese and English, the Chinese version will prevail when the language problems are inconsistent. 4. If there is any objection concerning the report, please inform us within 15 days from the date of receiving the report. 5. Without the agreement of the laboratory, the client is not authorized to use the test results for unapproved propaganda. ------------ The following blanks ------------ Report No.:E202110111758-3-G1 Page 3 of 9 Table of Contents 1. GENERAL DESCRIPTION OF EUT............................................................................................................. 5 1.1 APPLICANT ................................................................................................................................... 5 1.2 MANUFACTURER ........................................................................................................................ 5 1.3 FACTORY ...................................................................................................................................... 5 1.4 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ........................................................... 5 2. LABORATORY AND ACCREDITATIONS ................................................................................................ 6 2.1 LABORATORY .............................................................................................................................. 6 2.2 ACCREDITATIONS ...................................................................................................................... 6 3. EVALUATION METHOD ............................................................................................................................. 7 4. LIMITS FOR GENERAL POPULATION/UNCONTROLLEDEXPOSURE ............................................... 7 5. CALCULATION METHOD .......................................................................................................................... 8 6. ESTIMATION RESULT ................................................................................................................................ 9 6.1 CONDUCTED POWER RESULTS ............................................................................................... 9 6.2 MANUFACTURING TOLERANCE ............................................................................................. 9 6.3 MEASUREMENT RESULTS ........................................................................................................ 9 6.4 CONCLUSION ............................................................................................................................... 9 ------------ The following blanks ------------ Report No.:E202110111758-3-G1 Page 4 of 9 REPORT ISSUED HISTORY Report Version Report No. Description Compile Date 1.0 E202110111758-3 Original Issue 2022/05/18 2.0 E202110111758-3-G1 Update 2022/07/11 Version 2.0: 1. Update antenna specification: External antenna with SMA connector, 5dBi(Max) to External antenna with N connector, 5dBi (Max). 2. This report instead the report E202110111758-3, and from the date of issuance of this report, the report which being replaced become invalid. ------------ The following blanks ------------ Report No.:E202110111758-3-G1 Page 5 of 9 1. GENERAL DESCRIPTION OF EUT 1.1 APPLICANT Name: Wifx Sarl Address: Avenue des Sciences 2, 1400 Yverdon-les-Bains, Switzerland 1.2 MANUFACTURER Name : Wifx Sarl Address: Avenue des Sciences 2, 1400 Yverdon-les-Bains, Switzerland 1.3 FACTORY Name: Gugler Elektronik AG Address: Rte de Chesalles 62, 1723 Marly 1, Switzerland 1.4 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST Equipment: Wifx L1 Model No.: Wifx L1 Adding Model: / Trade Name: Wifx Power supply: Input: DC 10V-48V 800mA-170mA (800mA max for DC 10V input, 350mA max for DC 24V input, 170mA for DC 48V input) Adapter: Model:HNP 121-240L6 Input:100-240V~50/60Hz 0.45A, Output:24.0V0.5A 12.0W Frequency Range: 923.3 ~ 927.5MHz Modulation type: LoRa Antenna Specification: External antenna with N connector, 5dBi (Max) Temperature Range: -30°C ~ +70°C Hardware Version: 1.0 Software Version: 1.4.0-certification.3 Sample No: E202110111758-0001 Note: The USB type-C connection should be used exclusively for service administration /configuration and should not be left connected during normal use. Report No.:E202110111758-3-G1 Page 6 of 9 2. LABORATORY AND ACCREDITATIONS 2.1 LABORATORY The tests & measurements refer to this report were performed by Shenzhen EMC Laboratory of Guangzhou GRG Metrology & Test Co., Ltd. Add.: No.1301 Guanguang Road Xinlan Community, Guanlan Street, Longhua District Shenzhen, 518110, People’s Republic of China. P.C.: 518110 Tel : 0755-61180008 Fax: 0755-61180008 2.2 ACCREDITATIONS Our laboratories are accredited and approved by the following approval a…
