2APB9-BSD11Wifi Smart Socket

Shenzhen Baishidun Technology CO.LTD. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 19, 2024 FCC ID: 2APB9-BSD11 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Shenzhen Baishidun Technology CO.LTD. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Shenzhen Baishidun Technology CO.LTD. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Shenzhen Baishidun Technology CO.LTD. Address: No.9, Changfa East Road, Bantian, Longgang District, Shenzhen, China Contact Person: Huang wanbiao Tel.: 86-13631588969 Email: [email protected] Sincerely, Signature:

Shenzhen Baishidun Technology CO.LTD. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: August 19, 2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID:2APB9-BSD11 Shenzhen Baishidun Technology CO.LTD.(“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Shenzhen Baishidun Technology CO.LTD. FRN: 0027376565 Address: No.9, Changfa East Road, Bantian, Longgang District, Shenzhen, China Signature: Contact Person: Huang wanbiao Tel: 86-13631588969 Email: [email protected]

Page 1 of 3 1. General Information 1.1 Antenna Information Manufacturer: Shenzhen Baishidun Technology CO.LTD. Address of Manufacturer: No.9, Changfa East Road, Bantian, Longgang District, Shenzhen, China Product Name: 2.4GHz Antenna Model Name: BSD11 Frequency Range: 2400MHz - 2500MHz Type of Antenna: PCB Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (1.5cm * 0.5cm) Page 2 of 3 2. Antenna Specification information 2.1 Gain Frequency Peak Gain (dBi) Polarity 2400MHz 0 Horizontal 2400MHz -2.2 Vertical 2450MHz -0.1 Horizontal 2450MHz -2 Vertical 2500MHz -0.2 Horizontal 2500MHz -2.1 Vertical Page 3 of 3 2.2 Radiation Pattern View

Shenzhen Baishidun Technology CO.LTD. Date: August 19, 2024 Product Model Number: BSD11, 10A, 16A FCC ID:2APB9-BSD11 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. By: Huang wanbiao Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 86-13631588969 On behalf of: Shenzhen Baishidun Technology CO.LTD.

Shenzhen Baishidun Technology CO.LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 19, 2024 Subject; Request for Confidentiality FCC ID:2APB9-BSD11 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Huang wanbiao Title: Manager

Shenzhen Baishidun Technology CO.LTD. Model Difference Statement Dear Sir/Madam, Added models 10A, 16A basis of the original product BSD11 The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Huang wanbiao Company name: No.9, Changfa East Road, Bantian, Longgang District, Shenzhen, China

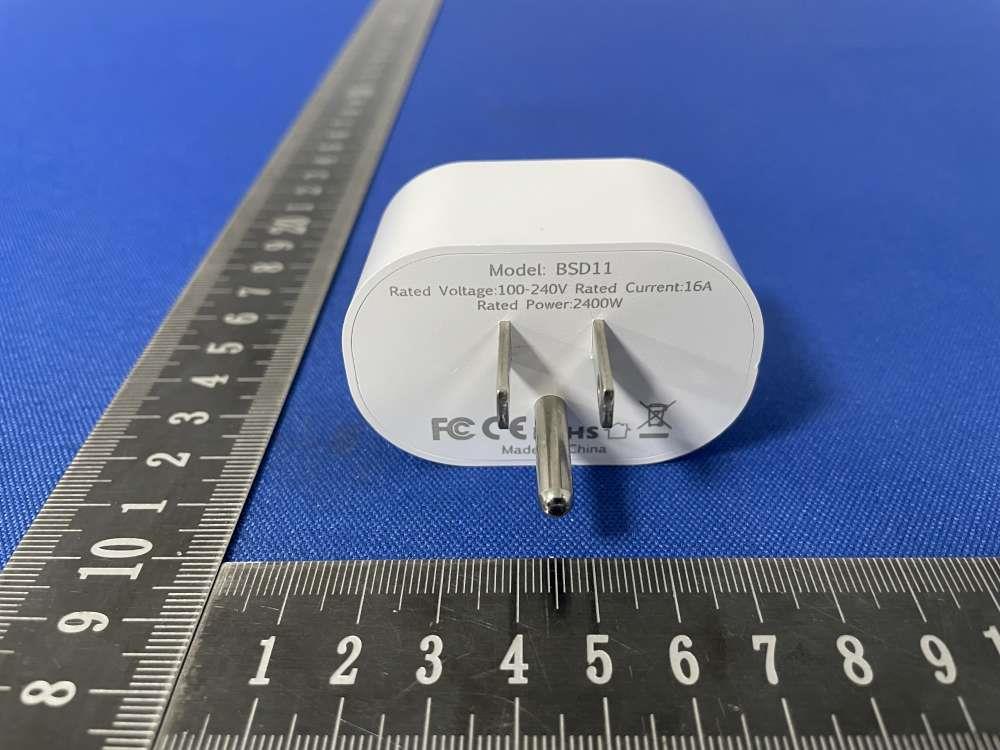

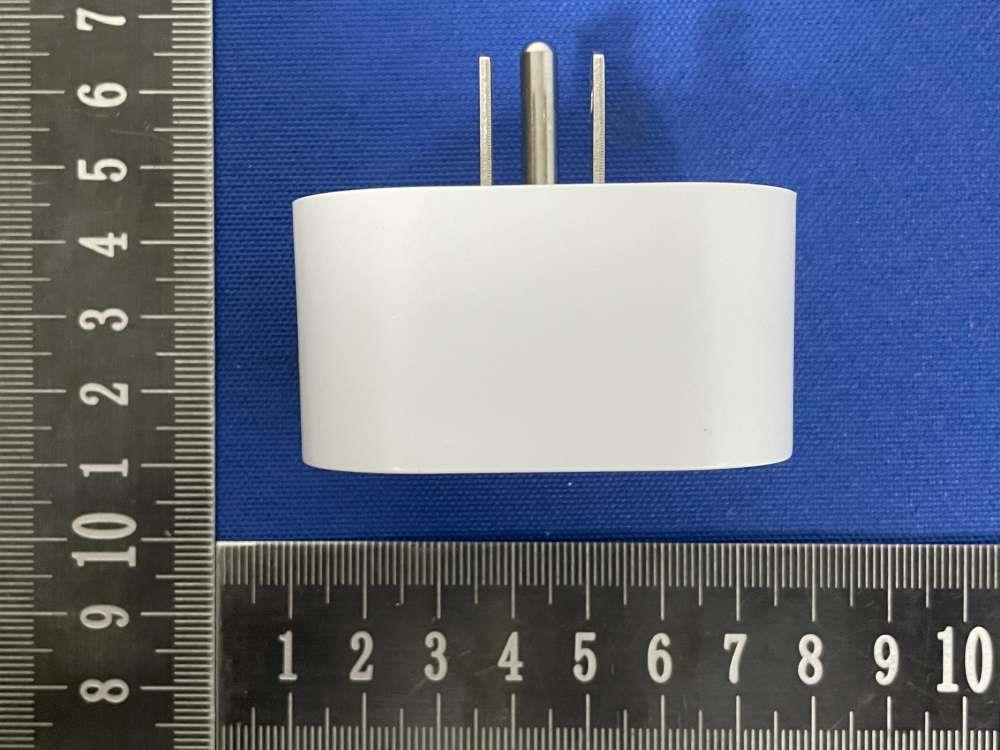

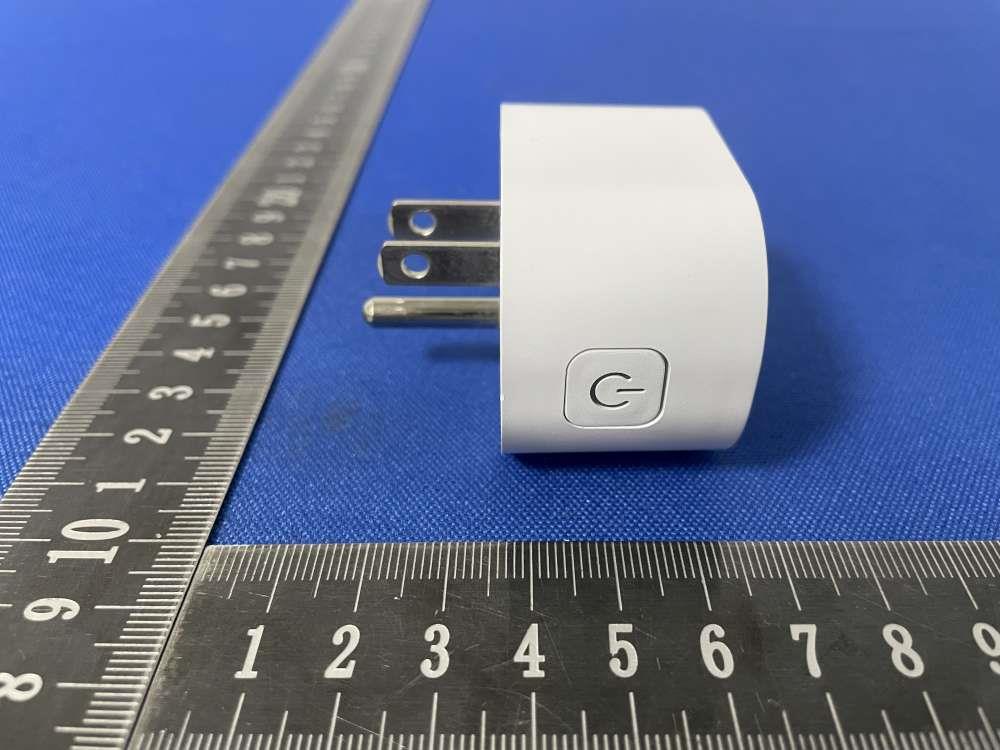

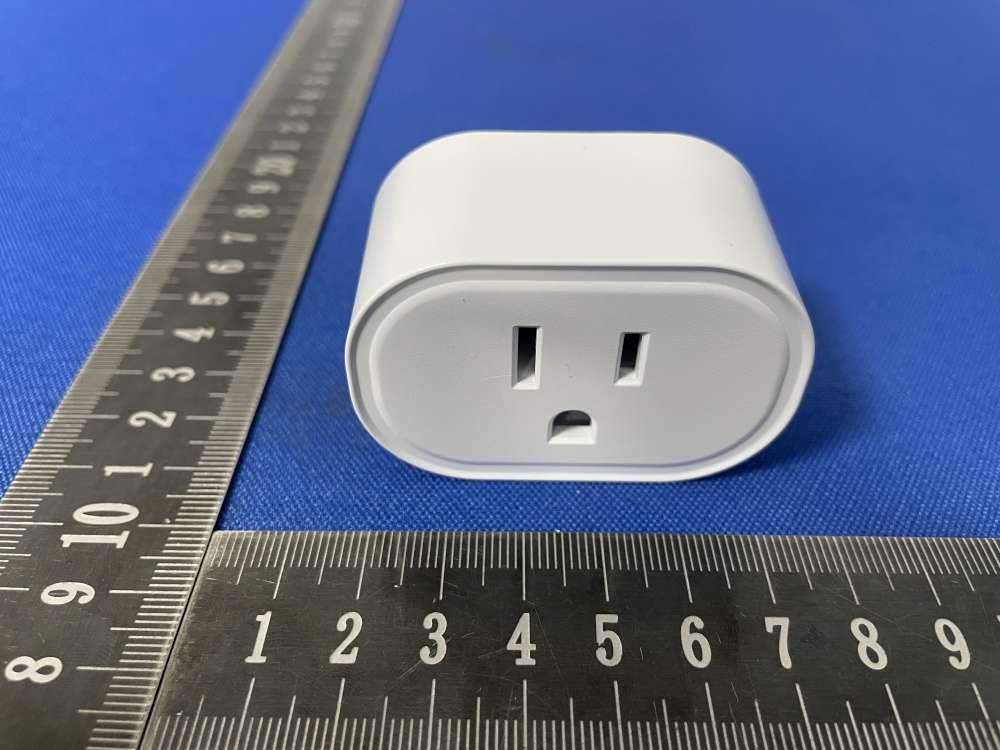

Report No: SSP24070225-1E FCC ID:2APB9-BSD11 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24070225-1E FCC ID:2APB9-BSD11 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24070225-1E FCC ID:2APB9-BSD11 Annex of Test Report EUT View 5 EUT View 6

Report No: SSP24070225-1E FCC ID:2APB9-BSD11 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

FCC ID:2APB9-BSD11 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f2) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f2) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation 2.4G Wi-Fi Mode Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 11.52 14.19 0.0028 1.0 PASS So a SAR test is not required

CCUT Testing & Certification Report No: SSP24070225-1E FCC Test Report Page 1 of 47 FCC TEST REPORT FCC ID:2APB9-BSD11 Report No. : SSP24070225-1E Applicant : Shenzhen Baishidun Technology CO.LTD. Product Name : Wifi Smart Socket Model Name : BSD11 Test Standard : FCC Part 15.247 Date of Issue : 2024-07-30 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24070225-1E FCC Test Report Page 2 of 47 Test Report Basic Information Applicant..................................: Shenzhen Baishidun Technology CO.LTD. Address of Applicant...............: No.9, Changfa East Road, Bantian, Longgang District, Shenzhen, China Manufacturer..........................: Shenzhen Baishidun Technology CO.LTD. Address of Manufacturer........: No.9, Changfa East Road, Bantian, Longgang District, Shenzhen, China Product Name.........................: Wifi Smart Socket Brand Name.............................: - Main Model..............................: BSD11 Series Models..........................: 10A, 16A Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-07-19 to 2024-07-30 Test Result...............................: PASS Tested By ................................: (Coke Huang) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24070225-1E FCC Test Report Page 3 of 47 CONTENTS 1. General Information ...................................................................................................................................................... 5 1.1 Product Information ............................................................................................................................................... 5 1.2 Test Setup Information ........................................................................................................................................... 6 1.3 Compliance Standards ............................................................................................................................................. 7 1.4 Test Facilities .......................................................................................................................................................... 7 1.5 List of Measurement Instruments ............................................................................................................................ 8 1.6 Measurement Uncertainty ....................................................................................................................................... 8 2. Summary of Test Results ............................................................................................................................................... 9 3. Antenna Requirement ................................................................................................................................................. 10 3.1 Standard and Limit................................................................................................................................................ 10 3.2 Test Result ............................................................................................................................................................ 10 4. Conducted Emissions................................................................................................................................................... 11 4.1 Standard and Limit................................................................................................................................................ 11 4.2 Test Procedure ...................................................................................................................................................... 11 4.3 Test Data and Results ............................................................................................................................................ 12 5. Radiated Emissions ..................................................................................................................................................... 15 5.1 Standard and Limit................................................................................................................................................ 15 5.2 Test Procedure ...................................................................................................................................................... 15 5.3 Test Data and Results ............................................................................................................................................ 17 6. Band-edge Emissions(Radiated)................................................................................................................................. 21 6.1 Standard and Limit................................................................................................................................................ 21 6.2 Test Procedure ...................................................................................................................................................... 21 6.3 Test Data and Results ..............................................…
