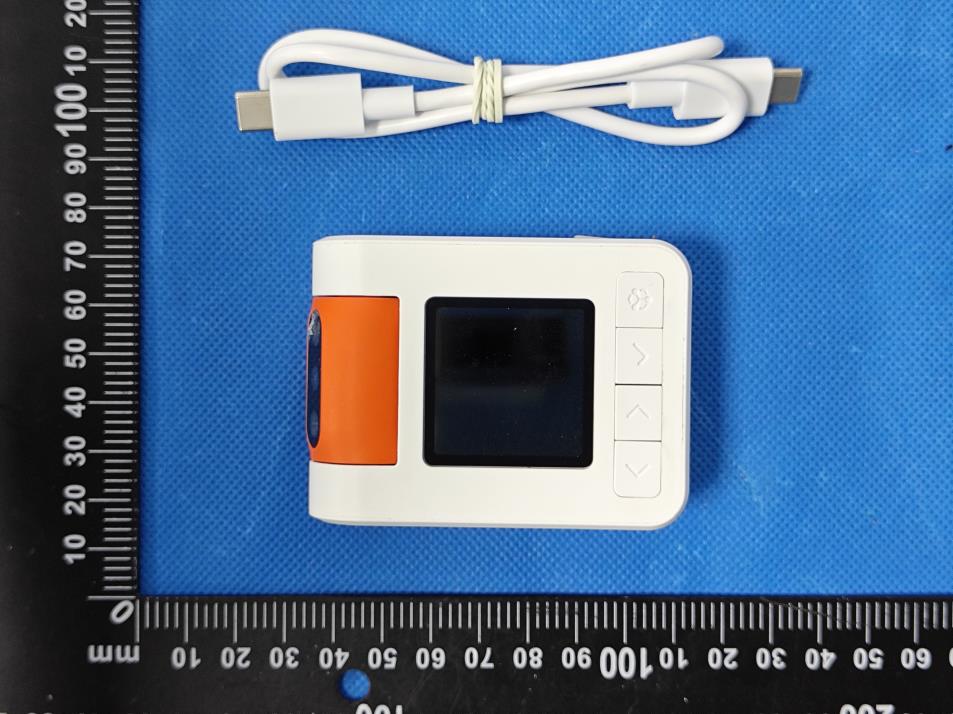

Report No.: BCTC2405348387E Appendix Photographs External Photos Report No.: BCTC2405348387E Report No.: BCTC2405348387E Report No.: BCTC2405348387E Report No.: BCTC2405348387E

Size:30*15mm AI Vision kit for vincibot FCC ID: 2APCM-VISION1 Label location

Report No.: BCTC2405348387E Internal Photos Report No.: BCTC2405348387E Report No.: BCTC2405348387E Antenna Report No.: BCTC2405348387E

RF EXPOSURE EVALUATION METHOD FCC ID: 2APCM-VISION1 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Test Mode Frequency(MHz) Maximum Conducted Output Power(PK) (dBm) Limit (dBm) 802.11b 2412 8.02 30 2437 7.56 30 2462 7.40 30 802.11g 2412 6.75 30 2437 6.88 30 2462 6.75 30 802.11n20 2412 5.34 30 2437 5.45 30 2462 5.36 30 802.11n40 2422 4.42 30 2437 4.47 30 2452 4.58 30 max possible output power (PK,conducted)：8±1dBm 9dBm=7.94mW 2412MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.412=2.466≤3.0 2437MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.437=2.479≤3.0 2462MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.462=2.492≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Report No.: BL-SZ2460080-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: MATATALAB CO., LTD. Address: NO. 504, Building B, Jianxing Technology Building, Nanshan District, Shenzhen, Guangdong, China Equipment Type: AI Vision kit for vincibot Model Name: AI VISION Brand Name: N/A Test Standard: IEEE Std 149-2021 Sample Arrival Date: Test Date: Date of Issue: Jun. 03, 2024 Jun. 04, 2024 Jun. 14, 2024 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Xia Long Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2460080-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Jun. 14, 2024 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Test Laboratory ..................................................................................................................... 3 1.2 Test Location ......................................................................................................................... 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ............................................................................................................ 4 2.2 Manufacturer Information ...................................................................................................... 4 2.3 General Description for Equipment under Test (EUT) .......................................................... 4 2.4 Ancillary Equipment .............................................................................................................. 4 3 SUMMARY OF TEST RESULTS ................................................................................................. 5 3.1 Test Standards ...................................................................................................................... 5 3.2 Test Verdict ........................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................... 5 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 6 4.1 Test Condition ....................................................................................................................... 6 4.2 Test Equipment List .............................................................................................................. 6 4.3 Test Setup ............................................................................................................................. 7 4.4 Test Frequencies .................................................................................................................. 7 ANNEX A TEST RESULTS ............................................................................................................. 8 A.1Gain and Efficiency ............................................................................................................... 8 A.2VSWR ................................................................................................................................... 8 ANNEX B RADIATION PATTERN .................................................................................................. 9 ANNEX C TEST SETUP PHOTOS ............................................................................................... 12 ANNEX D EUT PHOTO ................................................................................................................ 12 Report No.: BL-SZ2460080-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-SZ2460080-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant MATATALAB CO., LTD. Address NO. 504, Building B, Jianxing Technology Building, Nanshan District, Shenzhen, Guangdong, China 2.2 Manufacturer Information Manufacturer MATATALAB CO., LTD. Address NO. 504, Building B, Jianxing Technology Building, Nanshan District, Shenzhen, Guangdong, China 2.3 General Description for Equipment under Test (EUT) EUT Name AI Vision kit for vincibot Model Name Under Test AI VISION Antenna Type PCB Antenna Dimen…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2460080-AA 1 / 1 EUT PHOTO --BLANK BELOW-- Antenna

Report No.: BL-SZ2460080-AO 1 / 2 TEST SETUP PHOTOS Report No.: BL-SZ2460080-AO 2 / 2 --BLANK BELOW--

No.：BCTC/RF-EMC-005 Page: 1 of 77 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405348387E Applicant: MATATALAB CO.,LTD Product Name: AI Vision kit for vincibot Test Model: AI VISION Tested Date: 2024-05-30 to 2024-06-05 Issued Date: 2024-06-05 Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 2 of 77 Edition：B.2 FCC ID: 2APCM-VISION1 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: AI Vision kit for vincibot Trademark: N/A Model/Type Reference: AI VISION Prepared For: MATATALAB CO.,LTD Address: NO. 504, Building B, Jianxing Technology Building, Nanshan District, Shenzhen, Guangdong, China Manufacturer: MATATALAB CO.,LTD Address: NO. 504, Building B, Jianxing Technology Building, Nanshan District, Shenzhen, Guangdong, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-30 Sample Tested Date: 2024-05-30 to 2024-06-05 Issue Date: 2024-06-05 Report No.: BCTC2405348387E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 3 of 77 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Limit .................................................................................................................... 27 8.3 Test procedure .................................................................................................... 28 8.4 EUT Operating Conditions .................................................................................. 28 8.5 Test Result .......................................................................................................... 29 9. Power Spectral Density Test ............................................................................... 31 9.1 Block Diagram Of Test Setup .............................................................................. 31 9.2 Limit .................................................................................................................... 31 9.3 Test procedure .................................................................................................... 31 9.4 EUT Operating Conditions .................................................................................. 31 9.5 Test Result ......…

Text truncated - open the document above for the full version.

Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 59 of 77 Edition：B.2 Tx. Spurious NVNT b 2437MHz Ref Tx. Spurious NVNT b 2437MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 60 of 77 Edition：B.2 Tx. Spurious NVNT b 2462MHz Ref Tx. Spurious NVNT b 2462MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 61 of 77 Edition：B.2 Tx. Spurious NVNT g 2412MHz Ref Tx. Spurious NVNT g 2412MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 62 of 77 Edition：B.2 Tx. Spurious NVNT g 2437MHz Ref Tx. Spurious NVNT g 2437MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 63 of 77 Edition：B.2 Tx. Spurious NVNT g 2462MHz Ref Tx. Spurious NVNT g 2462MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 64 of 77 Edition：B.2 Tx. Spurious NVNT n20 2412MHz Ref Tx. Spurious NVNT n20 2412MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 65 of 77 Edition：B.2 Tx. Spurious NVNT n20 2437MHz Ref Tx. Spurious NVNT n20 2437MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 66 of 77 Edition：B.2 Tx. Spurious NVNT n20 2462MHz Ref Tx. Spurious NVNT n20 2462MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 67 of 77 Edition：B.2 Tx. Spurious NVNT n40 2422MHz Ref Tx. Spurious NVNT n40 2422MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 68 of 77 Edition：B.2 Tx. Spurious NVNT n40 2437MHz Ref Tx. Spurious NVNT n40 2437MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 69 of 77 Edition：B.2 Tx. Spurious NVNT n40 2452MHz Ref Tx. Spurious NVNT n40 2452MHz Emission Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 70 of 77 Edition：B.2 13. Duty Cycle Of Test Signal 13.1 Standard Requirement Pre-analysis Check: While conducting average power measurement, duty cycle of each mode shall be checked to ensure its duty cycle in order to compensate for the loss due to insufficient ratio of duty cycle. All duty cycle is pre-scanned, and result as obtained below shows only the most representative ones where duty cycle is conducted as the given transmission with given virtual operation that expresses the percentage. 13.2 Formula Duty Cycle = Ton / (Ton+Toff) 13.3 Test Procedure 1.Set span = Zero 2. RBW = 10MHz 3. VBW = 10MHz, 4. Detector = Peak 13.4 Test Result Test mode Frequency (MHz) Duty Cycle(%) Duty Fator(dB) 802.11b 2437 100 0 802.11g 2437 100 0 802.11n(HT20) 2437 100 0 802.11n(HT40) 2437 100 0 Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 71 of 77 Edition：B.2 Test Graphs Duty Cycle NVNT b 2437MHz Duty Cycle NVNT g 2437MHz Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 72 of 77 Edition：B.2 Duty Cycle NVNT n20 2437MHz Duty Cycle NVNT n40 2437MHz Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 73 of 77 Edition：B.2 14. Antenna Requirement 14.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 14.1 Test Result The EUT antenna is PCB antenna, fulfill the requirement of this section. Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 74 of 77 Edition：B.2 15. EUT Photographs EUT Photo 1 EUT Photo 2 NOTE: Appendix-Photographs Of EUT Constructional Details Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 75 of 77 Edition：B.2 16. EUT Test Setup Photographs Conducted emissions Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 76 of 77 Edition：B.2 Radiated Measurement Photos Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 77 of 77 Edition：B.2 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Test. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The quality system of our laboratory is in accordance with ISO/IEC17025. 8. If there is any objection to this test report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL: 400-788-9558 P. C.: 518103 FAX: 0755-33229357 Website: http://www.chnbctc.com Consultation E-mail: [email protected] Complaint/Advice E-mail: [email protected] ※※※※※ END ※※※※※

Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 75 of 77 Edition：B.2 16. EUT Test Setup Photographs Conducted emissions Report No.: BCTC2405348387E No.：BCTC/RF-EMC-005 Page: 76 of 77 Edition：B.2 Radiated Measurement Photos
