Last update: 13 th -July-2021 17.0” SXGA industrial Pcap. Touch Panel PC www.taicenn.com Version: 1.0 Features ● 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024; ● Intel 8 th -Gen. Whiskey Lake -U dual-core i3-8145U processor; ● Multi-points (Max. up to 10 points) Projective capacitive touch, EETI controller; ● Aluminum-magnesium alloy, Anodized treatment, Modular designed; ● Customized front bezel with customer logo; ● Wide voltage DC 9~36V, over-current, over-voltage and polarity protection; ● 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI; ● Intel PTT TPM2.0, support Windows 11 OS; ● Fan-less & Slim design, Panel mount and VESA, Front IP65 protection. Specification Hardware & System BIOS SPI AMI EEI BIOS CPU Core i3-8145U, Dual-core 2.1Ghz Memory SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB Storage 1* M.2 NGFF Key-M/B slot (PCIe x4, 2242/2280) + 1* 2.5” SATA slot Graphic Intel HD Graphics 620 Network 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional Wi-Fi) Audio On-board Realtek ACL 662 audio controller TPM Intel PTT TPM2.0 Watch dog 0~256 seconds programmable OS Win10, Win11, Linux IO interface COM 3*RS232 (Optional 1* RS485) Ethernet 2* RJ45, 10/100/1000 Mbps Audio Line-out (Optional) USB 4x USB3.0 Display 2x HDMI Speaker 2x 2w Power 1x 2 pins, phenix terminal LCD Display Size/Type 17.0” TFT LCD Resolution 1366 * 768 (WXGA) Brightness 350 nits Backlit & MTBF WLED backlit & 50 000hours Display area 344.23 * 193.54 View angle 85/85/80/80 Touchscreen Type Projective capacitive touchscreen Touch points Multi points touch, max. up to 10 points Durability >100 000 000 times Surface hardness Mohs 6H Special treatment Anti-fingerprint (AF) Structure Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment Mount method Panel mount, VESA 75/100 Cooling system Large area finned heat sink Overall dimension 386.5* 323.5 * 57.5 (mm) Cut-out dimension 376 * 313 (mm) Net weight 4.6 KG IP protection Front Panel IP65 Power & Environmental Operating temp. 0～+50°C Storage temp. -20～+60°C Relative Humidity 10 ~ 95% @ 10C (Non-condensation) Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak Shock 10G/Peak (11 ms) Power input Wide voltage DC 9~36V Power consumption Around 40W EMC CE/FCC Class A Panel PC INF-PPC-2-I3-17 INF-PPC-2-I3-17 The information in this specification is subject to change without notice. [email protected] 17.0” Industrial Touch Panel PC Dimension Ordering info. Part no. Description INF-PPC-2-I3-17 17.0”, SXGA 1280 * 1024, Intel Core i3-8145U, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 9~36V Memory SO-DIMM, DDR4,4GB/8GB/16GB Memory Storage M.2 SSD: 128GB/256GB/512GB/1TB 2.5” SATA SSD: 256GB/512GB 2.5“HDD: 2TB/4TB Wireless modules Wi-Fi module, with Antenna (M.2 interface) Packing List ◼1x Standard Product ◼1x 60W PSU (Power Supply) ◼1x Power cable & Plug ◼8x Panel mount metal clips INF-PPC-2-I3-17 The information in this specification is subject to change without notice. [email protected] 17.0” Industrial Touch Panel PC FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Ets GEORGES RENAULT ⑥ 38, rue Bobby Sands -ZAC de la Lorie - BP 10273 -44818 Saint h「blainCedex Telephone ++33 (0)2 40 80 20 00 Facsimile ++33 (0)2 40 33 27 07 豆豆豆4且♀♀旦 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2APE2-INFPPC To Whom It May Concern, Date: 2022/08/24 Pursuant to the provisions of the Commission ’ s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosu「eof these documents might be harmful to our company and would give competitors an unfair advantage in the market. 因 Schematic Diagram 囚Block Diagram 囚software security requirement 国Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual ma「ketingof newly authorized devices, we request Short Term Confidentiality of the following attachment(s); 因UserManual 因For45 days, pursuant to Public Notice DA 04-1705. OR 口For 180 days pursuant to KDB 726920 001. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincere l y, Name: Manuel BUTON 寻主 Signature: Title: Tools safety and certification o何icer Ets Georges Renault 38「ue Bobby Sands 44818 Saint He「blain- F「a「ice Tel: +33 (0)2 40 80 20 00 Fax: +33 (0)2 40 80 20 1 J S.A.S au ca阴talde 919 894 Euros-Siret856 80168300058-RC.S. Nantes-No TVA FR 24 856 801创3-Code NAF: 7219 Z BNP Nant国3000400283 00021147618 73 -IBAN : FR76 3000 4002 8300 0211 4761 873 1/1

⑥ Ets GEORGES RENAULT 38, rue Bobby Sands -ZAC de la Lorie-BP 10273 - 44818 Saint He巾lainCedex Telephone ++33 (0)2 40 80 20 00 Facsimile ++33 (0)2 40 33 27 07 立立宣县也且且 ETS GEORGES RENAULT Model Difference 2022/08/24 EUT NAME: Panel PC FCC ID: 2APE2-INFPPC MODEL: INF-PPC-2-13-17, INF-PPC-2-15-17, INF-PPC-2-17-17 The product is only different in appearance with or without logo and color, and the rest are t he same. The internal structure, circuit board design, PCB layout design, key components and materials used are completely the same. S incerely Client ’ s signature Client ’ s name/ title : Manuel BUTON / Safety and ce「tificationoffice「 Contact information/ address: 38, Rue Bobby Sands, 44818 SAINT HERBLAIN - FRANCE ，，‘ ’’ e ，J C 创 ； mhum n 出町的、。 冶m － 22 Fnsho o 引 88 QU νJLM M唁 协 咄叩 句 句 CMOL 民 22 rBtr） ） 、， ＋L nunu wt 宙门／ t ／ t eu 引 33 、 3 f 、川内 Jqu ，、 8 4 、＋ ＋ 538·· ’e dIJH 叶 VA 自伺EFM S.A.S au capital de 919 894 Euros - Si刚856801 683 00058-R.C.S. Nantes - No TVA FR 24 856 801邸3-CodeNAF: 7219 Z BNP Nant田3000400283 00021147618 73-IBAN: FR76 3000 4002 8300 0211 4761 873 1/1

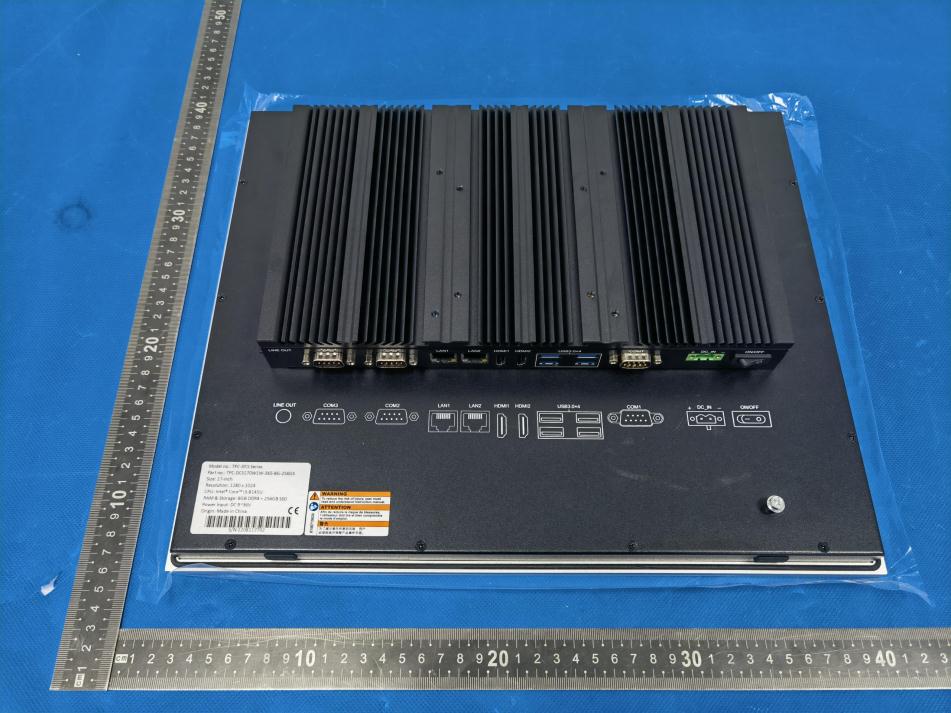

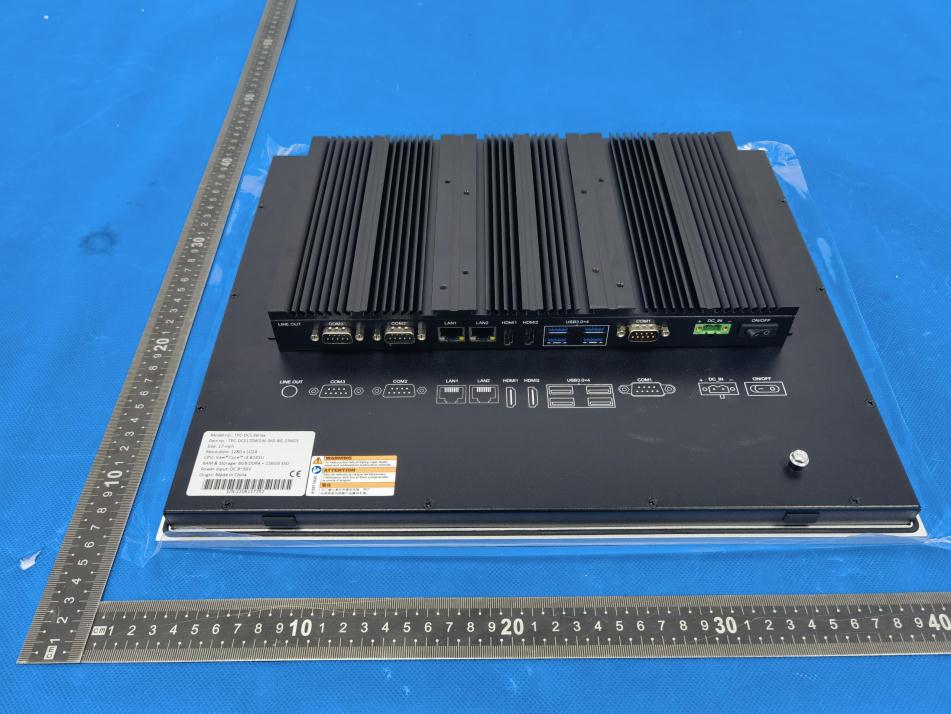

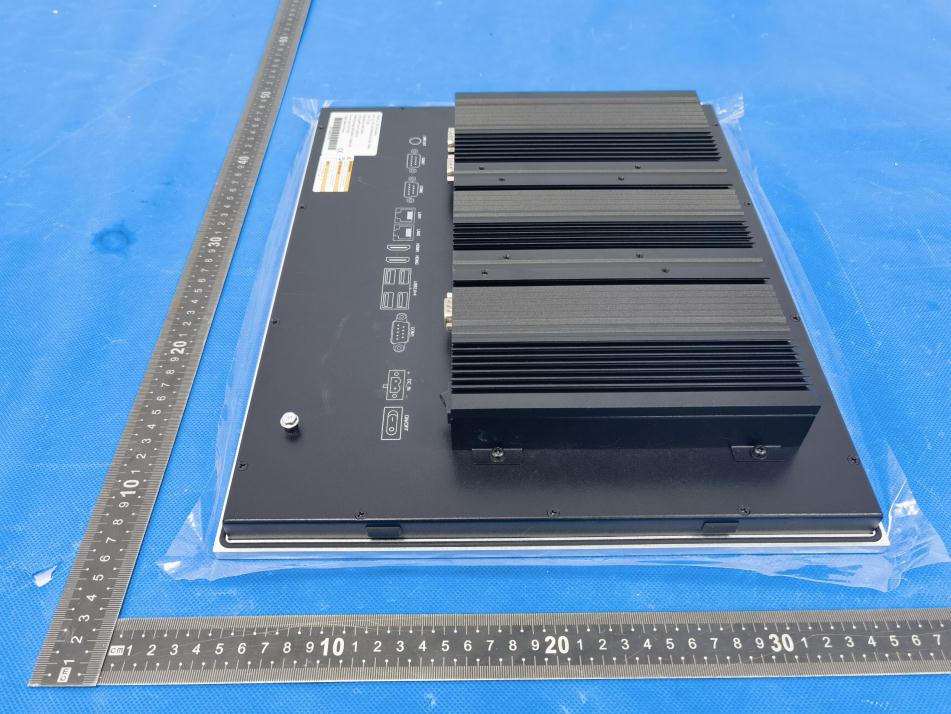

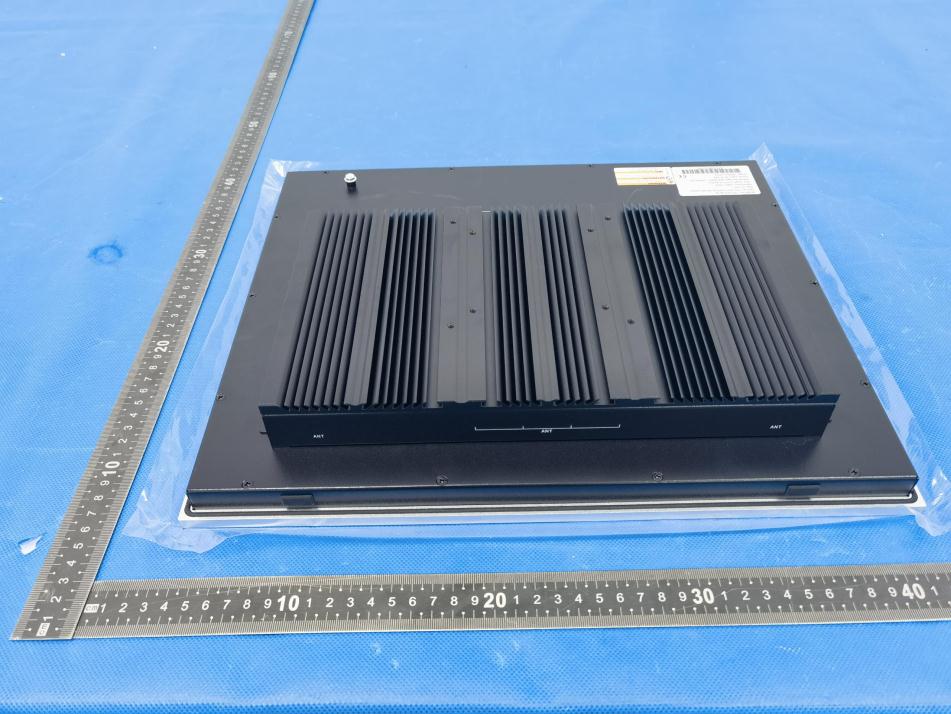

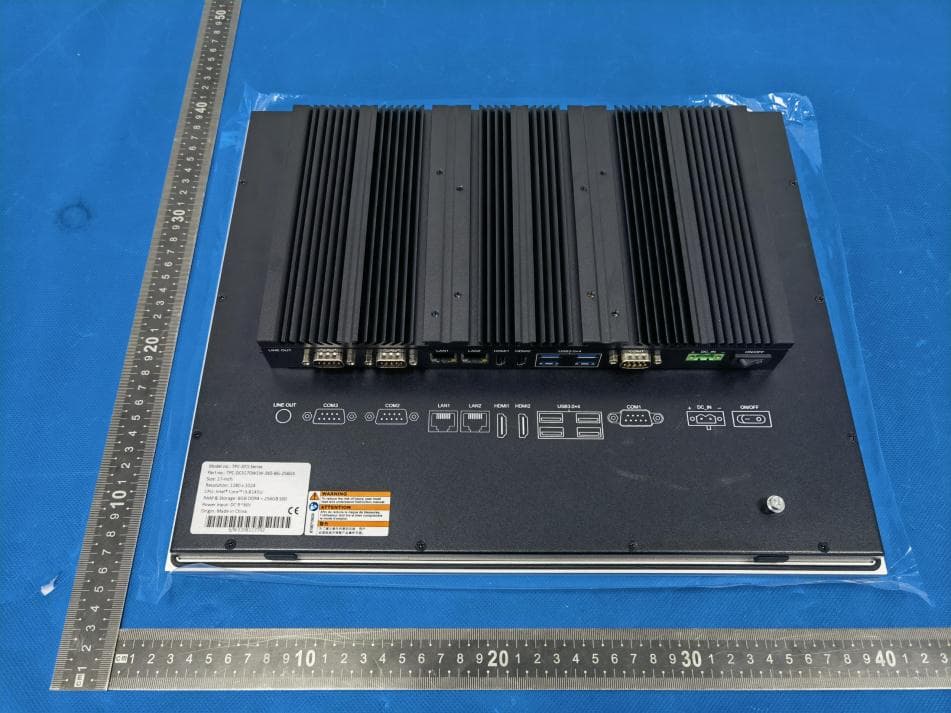

External Photos ANT A ANT B ANTB ANTA Difference Statement The product is only different in appearance with or without logo and color, and the rest are the same. The internal structure, circuit board design, PCB layout design, key components and materials used are completely the same.

Size:40*20mm M/N: INF-PPC-2-I3-17 TPC-DCS170W FCC ID: 2APE2-INFPPC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2APE2-INFPPC Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-30061.4 0.163 1.0 6 300-1500F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-30027.5 0.073 0.2 30 300-1500F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum Tune up power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result WIFI2.4G 13±1 14 25.12 3.01(4.79dBi)0.01501 Pass WIFI5.8G 12±1 13 19.95 3.01(4.79 dBi) 0.01191 Pass Note:Simultaneous launches are not supported.
