2APER-MV03LBVehicle intelligent terminal

Vehicle intelligent terminal MV03 User Manual 01 Disclaimer This manual is applicable to the onboard intelligent video terminal.This manual may contain technical inaccuracies or misprints.The contents of this manual will be updated irregularly without prior notice.The updated content will be added in the new version of this manual, we will improve or update at any time.The products or procedures described in this manual.If the description of the product in the manual is inconsistent with the real product, the real product shall prevail.Important safeguards and warnings: 1) Electrical safety All installations and operations shall comply with local electrical safety codes. 2) Transportantion In the process of transportation, storage and installation, heavy weight compression, violent vibration, impact and splash are not allowed. 3) Installation Install equipment as required and handle with care.Do not press hard before the on-board intelligent video terminal is installed. 4) Engineering and technical personnel requirements All inspection and maintenance work shall be carried out by qualified engineers.We are not responsible for any problems caused by unauthorized modifications. 5) Environmental requirement MV03 equipment and accessories shall be installed and stored in a cool, dry place;Avoid direct sunlight;A void storage with inflammable and explosive materials Product introduction This product is a cost-effective and extensible device specially developed for vehicle video surveillance. Built-in our company independently developed image intelligent processing core algorithm, real-time collection of driver fatigue status, driving calls, driving smoking, looking left and right, and other features using dedicated camera, while integrating a dedicated ADAS advanced auxiliary system, with the functions of forward collision warning, lane departure warning, etc.. the system uses high-speed processor and combines advanced H. 264 video compression and decompression technology and network technology in the field of IT with embedded operating system. It can realize video recording in HD, analog HD720P, and integrate wireless data upload in 4G, debug through Wi-Fi connect to Phone application, The product adopts modular design, which has the characteristics of high reliability, flexible installation and convenient maintenance. Working flow Local Video and Playback Function: Resolution 720P Network function: support real-time transmission of 4G network, remote alarm, parameter setting and over the air upgrade. Equipment Upgrade: Support local upgrade and OTA upgrades/remote upgrade. DSM Function: Fatigue warning, distraction warning, smoking warning, phone call warning, driver abnormal warning and other functions. ADAS Function: Forward collision warning (FCW), Lane departure warning (LDW) etc. 02 DSM camera Beidou/GPS Monitor ADAS camera 3/4G Transmission 03 Product Specification DSM module parameters Parameter TypesRequirementsRemarks Camera ResolutionAHD720pDefault Focal length3.6 mm Aperture numberF2.3 Perspective75° Working Distance60-120CM Working ConditionDay and night(all-weather adaptation) Detection of facial patterns All face types,including wearing glasses (sunglasses, myopia) Scope of detectionFace, eyes, head, gesture Fatigue accuracy99.2%(wearing glasses:97.4%), for more than 1.5 secondsAccuracy is based on actual measurement. Distraction Accuracy98.2% lasts more than 3 seconds Smoking Accuracy98% lasts more than 3 seconds Calling Accuracy98% lasts more than 3 seconds DVR Hardware Parameter ProjectParametersSpecification SystemOperating LanguageChinese/English Operating SystemAndroid Video Input/Output Video StandardISO14496-10,AHD Image Compression H.264 main profile Video Input2 CH Video Input Video Output1CH HDMI Output 04 DVR Hardware Parameter Video Input/OutputVideo DisplaySingle Screen,Double Screen Synchronize Channel display Video CompressionH.264 Main profile Audio Input/OutputAudio Input1 CH Audio Input Audio Bit Rate40Kbit/s Audio Output1 CH Audio Output Video Audio CodingVideo Coding Resolution Analog HD 720P Dual-Stream VideoMainstream video, sub-stream 4G network transmission VideotapeStorage MediumMain Memory : TF Card , Single card support max. 128G Slave Memory:USB External Video Recording Mode Boot/Alarm event recording Video playbackPC-side playback analysis software playback WIFIIEEE 802.11 Satellite PositioningGPS/BeidouGPS Positioning,GPS/Beidou Dual Module Cold StartLess than 42s Hot StartLess than 2S Location accuracyLess than 15m Acquisition sensitivity-144dBm 05 DVR Hardware Parameter Satellite PositioningTracking sensitivity-159dBm Communication 2G/3G/4Gall Netcom External interfaceCommunication interfaceUSB 2.0 x 2,RS232 x 1,RS48S x 1 Network interfaceWIFI,RJ45 Interfacex1,10M/100M Audio8Ω/1W Working ParametersPower inputDC:+9V ~ +36V Power Output+12V/1A Working CurrentLess than 12w StructureSize119.5*97*40.4mm TF cardSupports Class 4-10, FAT32 format and 128G single expenses. Software upgradeSupports local U disk upgrade and remote upgrade ADAS Parameters Parameter TypesRequirementsRemarks Camera ResolutionAHD720pDefault Focal length4.3 mm Detection rangeFront 100M,left and right 5M Working ConditionDay and night(all-weather adaptation) Forward Collision Warning 1.5-2s warning before collision, the accuracy rate is more than 99% Lane Departure Warning Accuracy of multiple road types and lane color is 99% 06 Environmental characteristics Applicable environmentDetailed ParametersRemarks Operating temperature-30 °C ~ +70 °C Storage temperature-40 °C ~ +85 °C Relative humidity5% ~ 95% ( no frost ) Interface definition 16 Pin Extension Cable Interface No.ColorFunctionRemarks 1RedBATPower Positive 2BlackPGNDPower negative 3OrangeACCACC switch cable 4PurpleIO_IN_Right DirectionHigh:Valid (9-28V) 5Brown and whiteIO_OUT1 6BrownIO_IN_Left DirectionHigh:Valid (9-28V) 7WhiteIO_OUT2 8Black and WhiteGND 9Sky Blue232_RX 10Blue232_TX 11PinkVCC_OUT 12Black and WhiteGND 13B…

Text truncated - open the document above for the full version.

ShenzhenTensorTechnologyCo.,LTD AgentAuthorization Company:ShenzhenTensorTechnologyCo.,LTD Address:5thFloor,ShunhengliBuilding,No.118Xin'an3rdRoad,Bao'an District,Shenzhen,GuangdongProvince,China ProductName:Vehicleintelligentterminal TradeMark:TENSORTEC ModelNumber(s):MV03,MV03LB,MV04,DS03,DS04,AD04,MV05,MV06 FCCID:2APER-MV03LB WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-02-24 Name:WenyiYang Title:QualityEngineer Company:ShenzhenTensorTechnologyCo.,LTD

ShenzhenTensorTechnologyCo.,LTD Address:5thFloor,ShunhengliBuilding,No.118Xin'an3rdRoad,Bao'an District,Shenzhen,GuangdongProvince,China OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA DearSir/Madam, We,ShenzhenTensorTechnologyCo.,LTDHerebydeclaresthefollowingstatement forMiCOMLabsInc,PCBboard,structureandinternalofthesemodel(s)arethesame, Onlymodelsnameisdifferentforthesemodels: ProductName:Vehicleintelligentterminal TradeMark:TENSORTEC ModelNumber(s):MV03,MV03LB,MV04,DS03,DS04,AD04,MV05,MV06 FCCID:2APER-MV03LB Signature:Date:2021-02-24 Name:WenyiYang Title:QualityEngineer Company:ShenzhenTensorTechnologyCo.,LTD

ShenzhenTensorTechnologyCo.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021-02-24 Subject;RequestforConfidentiality FCCID:2APER-MV03LB ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsForU-NIIDevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:WenyiYang Title:QualityEngineer

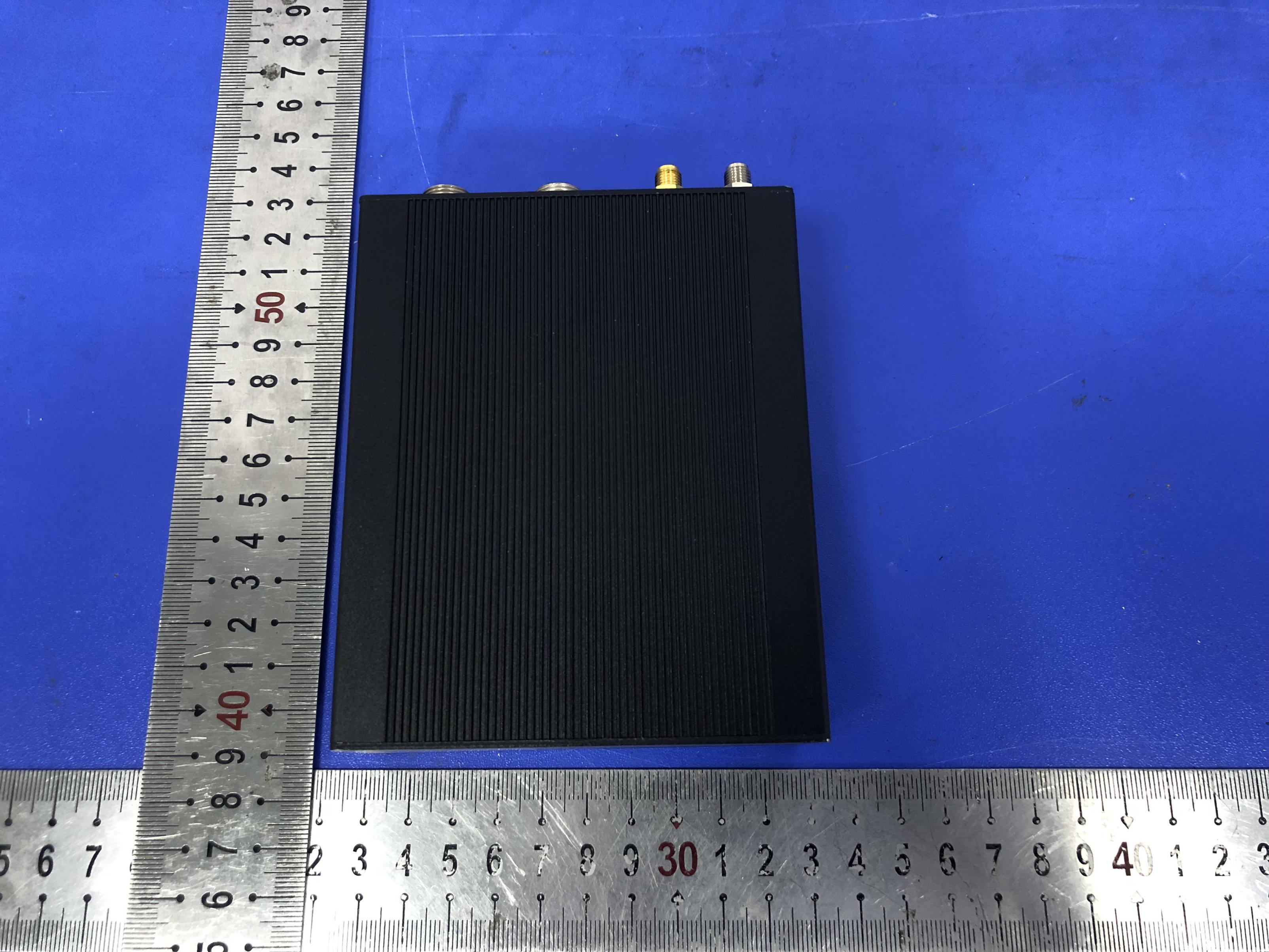

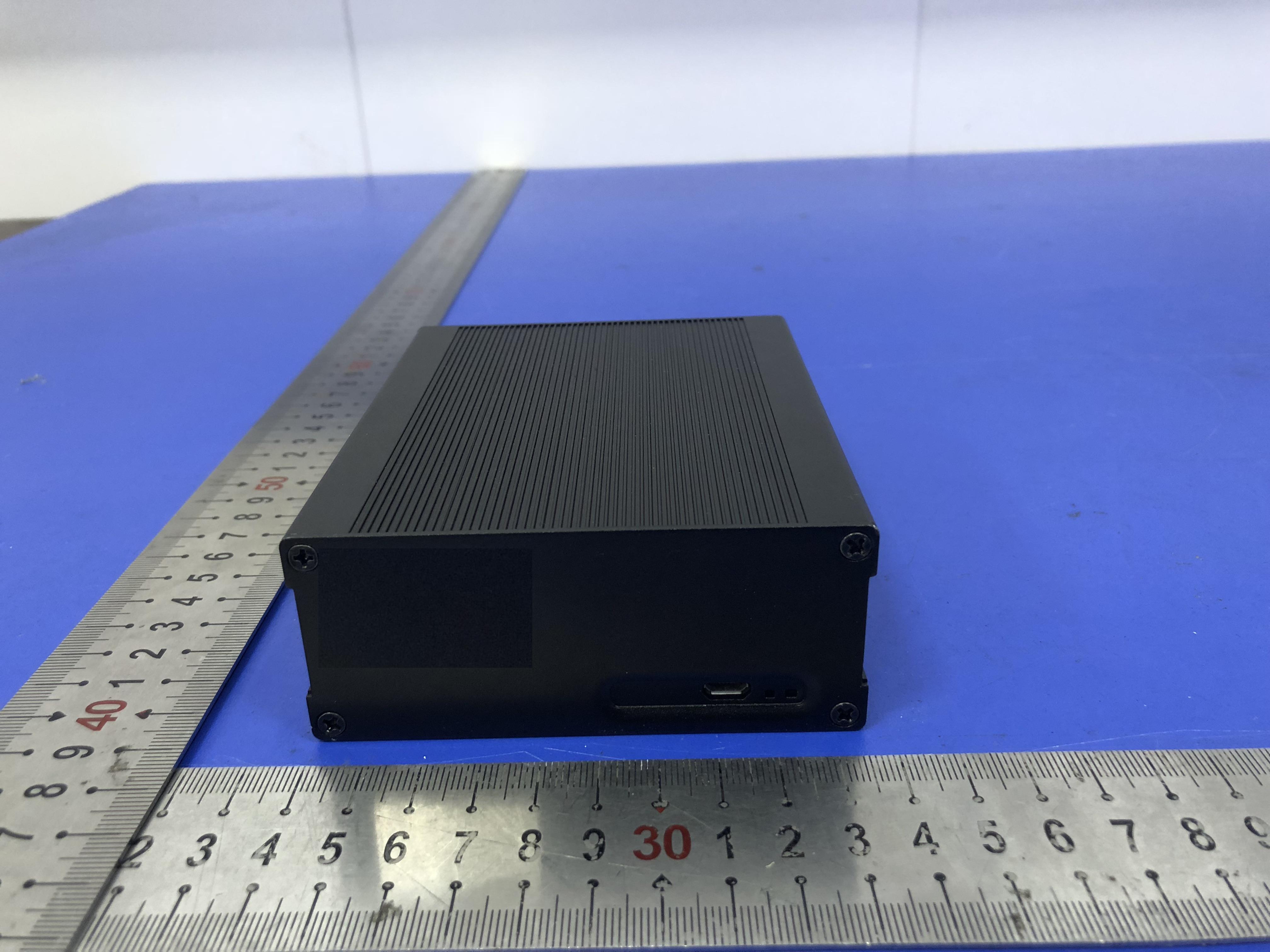

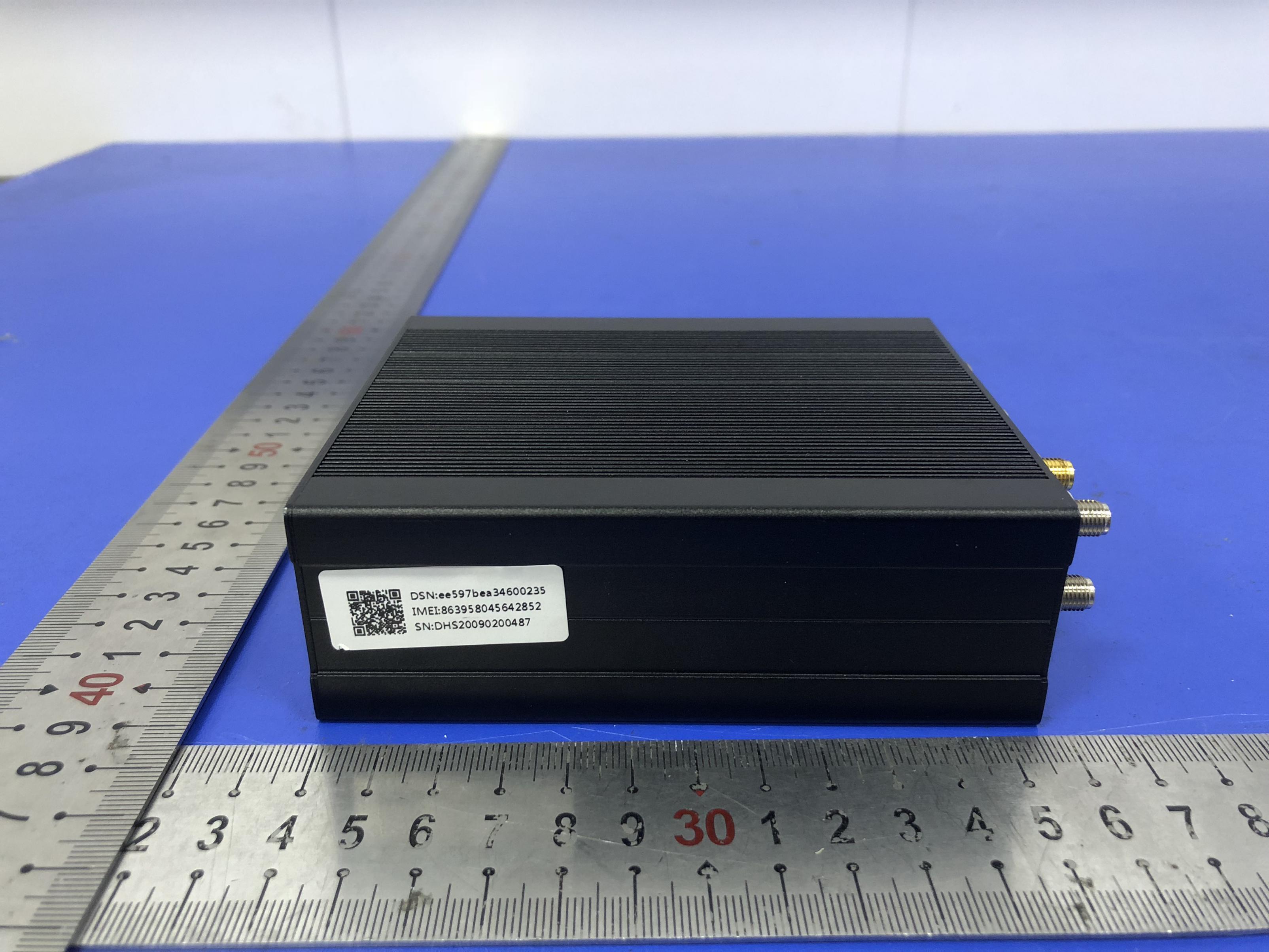

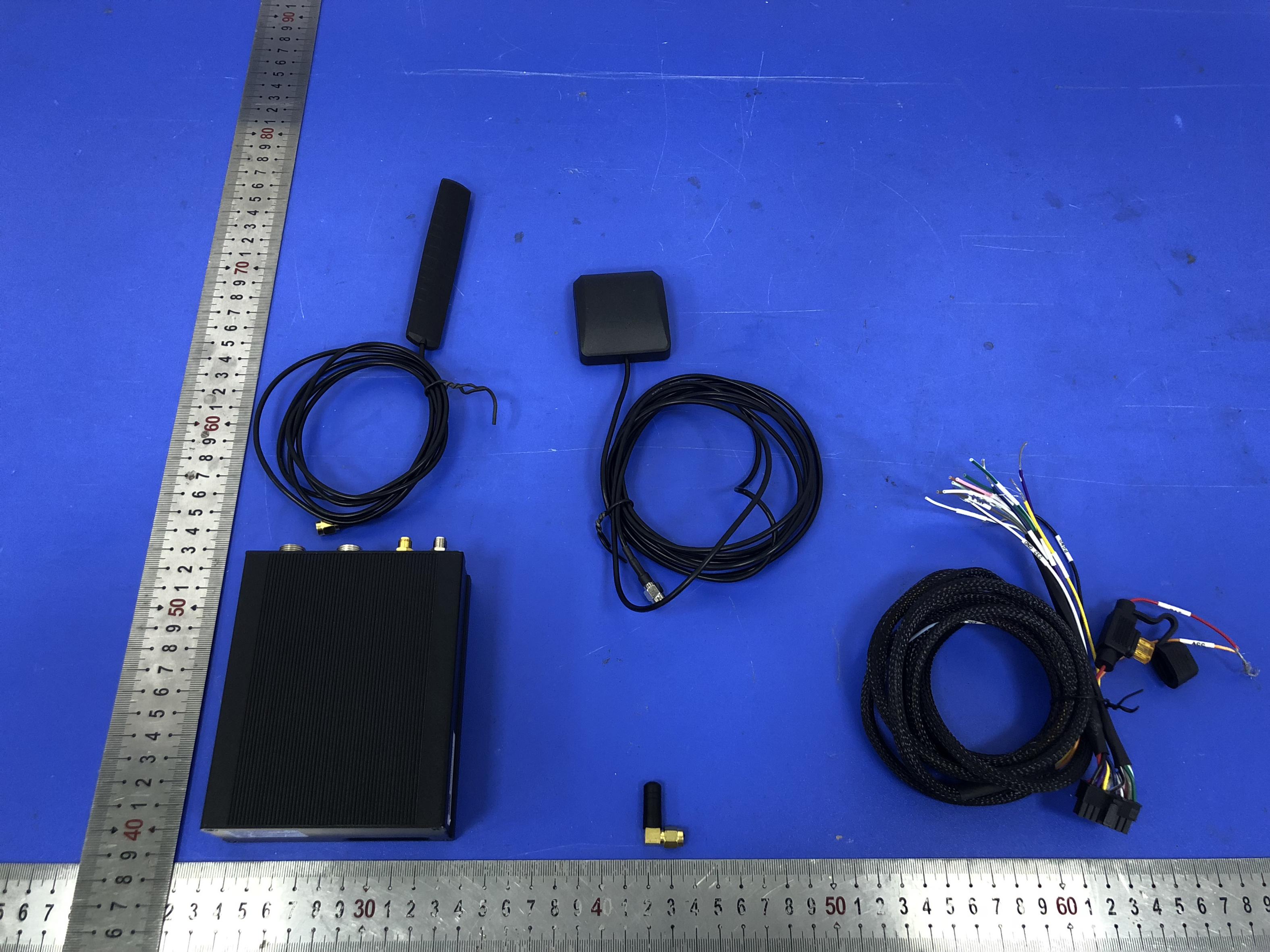

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB 1.EXTERIORPHOTOGRAPHS Fig.1 Fig.2 2G/3G/4GAnt GPSAnt 2.4GWIFIAnt SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Fig.7

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L:3.0cm*W:2.0cm LabelLocation Vehicleintelligentterminal ModelNo:MV03 FCCID:2APER-MV03LB

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Fig.7 Fig.8 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Fig.9

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 7 MaximumPermissibleExposureReport 1.ProductInformation FCCID:2APER-MV03LB EUT : Vehicleintelligentterminal TestModel : MV03 AdditionalModelNo:MV03LB,MV04,DS03,DS04,AD04,MV05,MV06 ModelDeclaration:PCBboard,structureandinternalofthesemodel(s)arethesame,S onoadditionalmodelsweretested. PowerSupply : Input:DC9V~36V,2A HardwareVersion: PCB-MV03-V13-20200617 SoftwareVersion: MV03_lb_19103_00_system_1.4.7_user 2.4GWLAN FrequencyRange : 2412MHz-2462MHz ChannelNumber : 11Channelsfor20MHzbandwidth(2412~2462MHz) 7Channelsfor40MHzbandwidth(2422~2452MHz) ChannelSpacing : 5MHz ModulationType : IEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaDescription : Externalantenna,1.1dBi(Max.) 2G: SupportBand:GSM900(EU-Band)DCS1800(EU-Band) GSM850(U.S.-Band)PCS1900(U.S.-Band) ReleaseVersion:R99 GPRSClass:Class12 EGPRSClass:Class12 TypeOfModulation:GMSKforGSM/GPRS;GMSK,8PSKforEGPRS AntennaDescription:ExternalAntenna; 0.9dBi(max.)ForGSM850; 0.9dBi(max.)ForPCS1900. 3G: SupportBand:WCDMABandII(U.S.-Band) WCDMABandV(U.S.-Band) WCDMABandIV(U.S.-Band) WCDMABandI(EU-Band) WCDMABandVIII(EU-Band) ReleaseVersion:R8 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 7 TypeOfModulation:WCDMA:QPSK,16QAM;HSDPA/HSUPA:QPSK,16QAM AntennaDescription:ExternalAntenna; 0.9dBi(max.)ForWCDMABandII; 0.9dBi(max.)ForWCDMABandV. LTE: SupportBand:E-UTRABand2(U.S.-Band) E-UTRABand3(NotU.S.-Band) E-UTRABand4(U.S.-Band) E-UTRABand5(U.S.-Band) E-UTRABand7(U.S.-Band) E-UTRABand28(NotU.S.-Band) LTEReleaseVersion:R13 TypeOfModulation:QPSK/16QAM AntennaDescription:ExternalAntenna; 0.9dBi(max.)ForE-UTRABand2; 1.0dBi(max.)ForE-UTRABand4; 0.9dBi(max.)ForE-UTRABand5; 0.8dBi(max.)ForE-UTRABand7; PowerClass:Class3 GPSReceiver: ReceiveFrequency:1575.42MHz ChannelNumber:1 Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:FixedDevice SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 7 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthepublic isnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevicewhereby adistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissibleExposure limitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumofthe MPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthecalculated/estimated, numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioofeachantennais determinedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsandexposureconditionsof thehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthetestfrequency.Eitherthe maximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulationsmaybeusedtodeterminethe MPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimplecalculationsbasedonfar-field plane-waveequivalentconditions.Theantennainstallationandoperatingrequirementsforthehostdevicemustmeetthe minimumtestseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmissionoperations, tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2APER-MV03LB Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 4 of 7 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation ShenzhenTensorTechnologyCo.,LTDcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Antennatypeand antennanumber Operatefrequencyband Maximumantenna gain Notes ExternalAntenna2400MHz–2500MHz1.1dBiWLANANT ExternalAntenna1850~1910MHz0.9dBi GSM/WCDMA/LTE MainANT ExternalAntenna1710~1755MHz1.0dBiLTEMainANT ExternalAntenna824~849MHz0.9dBi GSM/WCDMA/LTE MainANT ExternalAntenna2500~2570MHz0.8dBiLTEMainANT 6.ConductedPower [WIFIMaxPeakConductedPower] ModeChannelMeas.Level[dBm]Limit[dBm]Verdict 11B LCH16.1630PASS MCH16.0230PASS HCH16.3330PASS 11G LCH14.7530P…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 137 Appendix B: Test Data for E-UTRA Band 2 Product Name: Vehicle intelligent terminal Trade Mark: TENSORTEC Test Model: MV03 Environmental Conditions Temperature:24.6C Relative Humidity:53.1% ATM Pressure:100.0 kPa Test Engineer:Diamond Lu Supervised by:LI HUAN B.1 Conducted Output Power Conducted Output Power Test Result (Channel Bandwidth: 1.4 MHz) ModulationChannel RB ConfigurationAverage Power [dBm] QPSK Average Power [dBm] 16QAM Verdict SizeOffset QPSK / 16QAM LCH 1022.8021.42PASS 1322.6521.63PASS 1522.5121.54PASS 3022.2821.59PASS 3222.4021.68PASS 3322.3721.41PASS 6021.3420.45PASS MCH 1022.7422.11PASS 1322.8622.12PASS 1522.7722.01PASS 3022.8221.77PASS 3222.8221.54PASS 3322.7521.50PASS 6021.7520.66PASS HCH 1022.4221.58PASS 1322.9321.64PASS 1522.8521.48PASS 3022.7921.89PASS 3222.8621.44PASS 3322.8021.57PASS 6021.9221.06PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 137 Conducted Output Power Test Result (Channel Bandwidth: 3 MHz) ModulationChannel RB ConfigurationAverage Power [dBm] QPSK Average Power [dBm] 16QAM Verdict SizeOffset QPSK / 16QAM LCH 1022.3321.58PASS 1722.3421.48PASS 11422.6121.92PASS 8021.5120.52PASS 8421.5620.52PASS 8721.5920.69PASS 15021.4620.66PASS MCH 1022.5221.90PASS 1722.6522.18PASS 11422.8622.28PASS 8021.8220.97PASS 8421.7320.87PASS 8721.6620.90PASS 15021.6920.76PASS HCH 1022.6721.58PASS 1722.7321.75PASS 11423.1421.63PASS 8021.9420.74PASS 8421.8720.83PASS 8721.8820.87PASS 15021.8020.92PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 137 Conducted Output Power Test Result (Channel Bandwidth: 5 MHz) ModulationChannel RB ConfigurationAverage Power [dBm] QPSK Average Power [dBm] 16QAM Verdict SizeOffset QPSK / 16QAM LCH 1022.5021.27PASS 11222.8721.22PASS 12422.7321.23PASS 12021.6020.77PASS 12621.5420.63PASS 121321.7420.85PASS 25021.6320.86PASS MCH 1022.8121.33PASS 11223.0721.73PASS 12422.8321.69PASS 12021.8420.81PASS 12621.7220.78PASS 121321.8520.99PASS 25021.8220.78PASS HCH 1022.7821.65PASS 11222.6221.36PASS 12422.9721.51PASS 12021.8020.79PASS 12621.8520.76PASS 121321.9720.86PASS 25021.8720.86PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 137 Conducted Output Power Test Result (Channel Bandwidth: 10 MHz) ModulationChannel RB ConfigurationAverage Power [dBm] QPSK Average Power [dBm] 16QAM Verdict SizeOffset QPSK / 16QAM LCH 1022.4322.56PASS 12422.6822.30PASS 14922.9922.42PASS 25021.7220.77PASS 251221.7020.73PASS 252521.9121.05PASS 50021.7720.82PASS MCH 1022.8122.45PASS 12422.6922.37PASS 14922.9822.44PASS 25021.9621.11PASS 251221.8320.89PASS 252521.9121.08PASS 50021.9220.90PASS HCH 1022.7421.62PASS 12422.7921.81PASS 14923.0021.70PASS 25021.8421.02PASS 251221.9420.86PASS 252521.9520.89PASS 50021.8720.85PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 137 Conducted Output Power Test Result (Channel Bandwidth: 15 MHz) ModulationChannel RB ConfigurationAverage Power [dBm] QPSK Average Power [dBm] 16QAM Verdict SizeOffset QPSK / 16QAM LCH 1022.2821.76PASS 13722.8622.28PASS 17422.9322.27PASS 37021.6420.67PASS 371821.8620.90PASS 373821.9520.98PASS 75021.8020.83PASS MCH 1022.5822.52PASS 13722.7922.27PASS 17422.8022.45PASS 37021.8121.01PASS 371821.9120.78PASS 373821.7621.02PASS 75021.8620.90PASS HCH 1022.7521.87PASS 13722.9321.90PASS 17422.9721.81PASS 37021.8320.83PASS 371821.8720.85PASS 373821.8420.84PASS 75021.8720.91PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 137 Conducted Output Power Test Result (Channel Bandwidth: 20 MHz) ModulationChannel RB ConfigurationAverage Power [dBm] QPSK Average Power [dBm] 16QAM Verdict SizeOffset QPSK / 16QAM LCH 1022.4921.15PASS 14923.2021.34PASS 19922.9421.35PASS 50021.7820.94PASS 502521.9520.99PASS 505021.9521.11PASS 100021.7521.06PASS MCH 1022.8421.86PASS 14922.7621.72PASS 19922.9221.39PASS 50021.9021.00PASS 502521.8620.91PASS 505021.7720.80PASS 100021.9320.97PASS HCH 1022.7221.32PASS 14922.6421.55PASS 19922.6921.41PASS 50021.6920.55PASS 502521.9020.67PASS 505021.8220.79PASS 100021.8020.85PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 137 B.2 Peak-to-Average Ratio Peak-to Average Ratio Test Result (Channel Bandwidth: 1.4 MHz) ModulationChannel Peak-to-Average Ratio [dB] Limit [dB] Verdict QPSK LCH 3.78 <13PASS MCH 3.95 <13PASS HCH 4.61 <13PASS 16QAM LCH 4.65 <13PASS MCH 4.63 <13PASS HCH 5.42 <13PASS Peak-to Average Ratio Test Result (Channel Bandwidth: 3 MHz) ModulationChannel Peak-to-Average Ratio [dB] Limit [dB] Verdict QPSK LCH 4.02 <13PASS MCH 4.21 <13PASS HCH 4.71 <13PASS 16QAM LCH 4.86 <13PASS MCH 5.01 <13PASS HCH 5.54 <13PASS Peak-to Average Ratio Test Result (Channel Bandwidth: 5 MHz) ModulationChannel Peak-to-Average Ratio [dB] Limit [dB] Verdict QP…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 61 of 137 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_1RB#5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 62 of 137 Channel Bandwidth: 3 MHz (Channel Bandwidth: 3 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth: 3 MHz)_LCH_QPSK_1RB#7 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 63 of 137 (Channel Bandwidth: 3 MHz)_LCH_QPSK_1RB#14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 64 of 137 (Channel Bandwidth: 3 MHz)_MCH_QPSK_1RB#0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 65 of 137 (Channel Bandwidth: 3 MHz)_MCH_QPSK_1RB#7 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 66 of 137 (Channel Bandwidth: 3 MHz)_MCH_QPSK_1RB#14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 67 of 137 (Channel Bandwidth: 3 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth: 3 MHz)_HCH_QPSK_1RB#7 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 68 of 137 (Channel Bandwidth: 3 MHz)_HCH_QPSK_1RB#14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 69 of 137 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 70 of 137 (Channel Bandwidth: 3 MHz)_LCH_16QAM_1RB#0 (Channel Bandwidth: 3 MHz)_LCH_16QAM_1RB#7 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 71 of 137 (Channel Bandwidth: 3 MHz)_LCH_16QAM_1RB#14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 72 of 137 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 73 of 137 (Channel Bandwidth: 3 MHz)_MCH_16QAM_1RB#0 (Channel Bandwidth: 3 MHz)_MCH_16QAM_1RB#7 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 74 of 137 (Channel Bandwidth: 3 MHz)_MCH_16QAM_1RB#14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 75 of 137 (Channel Bandwidth: 3 MHz)_HCH_16QAM_1RB#0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 76 of 137 (Channel Bandwidth: 3 MHz)_HCH_16QAM_1RB#7 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 77 of 137 (Channel Bandwidth: 3 MHz)_HCH_16QAM_1RB#14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 78 of 137 Channel Bandwidth: 5 MHz (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 79 of 137 (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#24 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 80 of 137 (Channel Bandwidth: 5 MHz)_MCH_QPSK_1RB#0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be repr…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 137 Appendix C: Test Data for E-UTRA Band 4 Product Name: Vehicle intelligent terminal Trade Mark: TENSORTEC Test Model: MV03 Environmental Conditions Temperature:24.6C Relative Humidity:53.1% ATM Pressure:100.0 kPa Test Engineer:Diamond Lu Supervised by:LI HUAN C.1 Conducted Output Power Conducted Output Power Test Result (Channel Bandwidth: 1.4 MHz) ModulationChannel RB ConfigurationAverage Power [dBm] QPSK Average Power [dBm] 16QAM Verdict SizeOffset QPSK / 16QAM LCH 1022.0321.13PASS 1322.3321.24PASS 1522.2121.05PASS 3022.3321.54PASS 3222.3621.25PASS 3322.0721.20PASS 6021.1920.04PASS MCH 1023.4622.90PASS 1323.4722.95PASS 1523.3122.75PASS 3023.5722.62PASS 3223.5322.62PASS 3323.5322.50PASS 6022.3721.27PASS HCH 1023.2721.96PASS 1323.5222.20PASS 1523.5522.27PASS 3023.3921.91PASS 3223.5022.07PASS 3323.4922.60PASS 6022.5421.59PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.FCC ID: 2APER-MV03LBReport No.: LCS201030071AED This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 137 Conducted Output Power Test Result (Channel Bandwidth: 3 MHz) ModulationChannel RB ConfigurationAverage Power [dBm] QPSK Average Power [dBm] 16QAM Verdict SizeOffset QPSK / 16QAM LCH 1022.3821.04PASS 1722.2721.12PASS 11422.3621.50PASS 8021.1720.03PASS 8421.1920.19PASS 8721.1620.25PASS 15021.1820.15PASS MCH 1023.7022.96PASS 1723.2122.94PASS 11423.3122.66PASS 8022.4821.54PASS 8422.4421.38PASS 8722.3221.32PASS 15022.4321.38PASS HCH 1022.8221.57PASS 1723.3622.12PASS 11423.6622.40PASS 8022.0821.04PASS 8422.3121.30PASS 8722.4421.51PASS 15022.2721.28PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LT…
