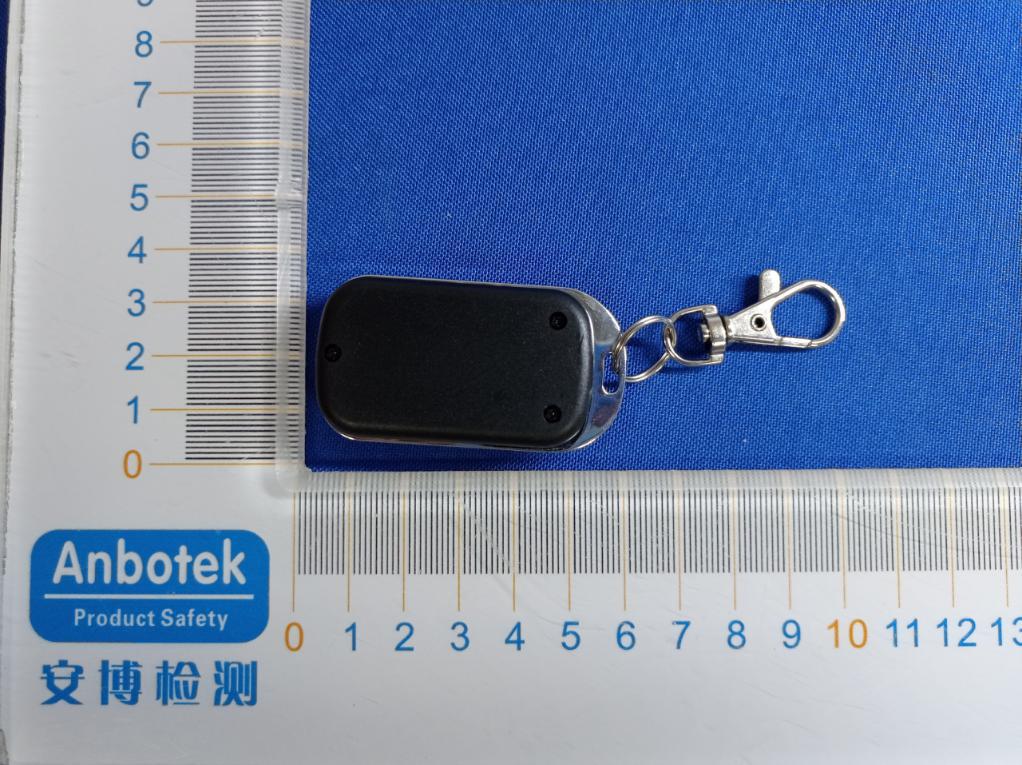

2APKA-WCR100WIRELESS CALL REMOCON

FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

FCCID:2APKA-WCR100

LabelLocationOnEUT Label FCCID:2APKA-WCR100

FCCID:2APKA-WCR100 ANT

version01 ABLETECH DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:WCR100 FCCID:2APKA-WCR100 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna:0dBi Frequencyrange:433.92MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname: ABLETECH Address:#818,C-dong,7,Beobwon-ro11-gil,Songpa-guSeoulSouthKorea City:Songpa-guSeoulSouth ZIP/Postalcode:N/A Country:China Place:TaiwanDate: 2020-11-18 Signature:

FCCID:2APKA-WCR100 RFEXPOSUREEVALUATION EUTSpecification EUTWIRELESSCALLREMOCON ModelNameWCR100 Frequencyband (Operating) WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.32GHz/5.50GHz~5.70GHz WLAN:5.745GHz~5825GHz Others(433.92MHz) DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpower79.94dBuV/m(-15.318dBm)(0.0294mW) Antennagain0dBi EvaluationappliedMPEEvaluation SAREvaluation StandardRequirement PortableDevice Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequency energylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01GeneralRF ExposureGuidanceV6,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR, 16 where ·f(GHz)istheRFchanneltransmitfrequencyinGHz ·PoweranddistanceareroundedtothenearestmWandmmbeforecalculation17 ·Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. FCCID:2APKA-WCR100 MeasurementResult Channel Frequency (MHz) MaxOutput power (dBm) Maxtune-up tolerance Outputpower (dBm) MaxOutput power(mW) Calculation Value (Note1) Threshold Value 433.92-15.318 -15.318 ± 1 0.02940.00493.0 EIRP=E-104.8+20logD=79.94-104.8+20log3=-15.318dbm Note1:CalculationValue=[(max.powerofchannel,mW)/(min. testseparationdistance,mm)]·[√f(GHz)]. Foxexample:0.0294/5*√0.43392=0.0049≤3.0 AccordingtoKDB447498D01V6,thresholdatwhichnoSARrequiredis≤3.0for1-gSAR, separationdistanceis5mm,andnosimultaneousSARmeasurementisrequired. StandardApplicable Accordingto2.1093thisisaportabledevice.AccordingtoKDB447498D01V6,AppendixA SARtestexclusionthresholdsforbelowtable,thepowerlevel22mWat5mm. MeasurementResult: ThisisaportabledeviceandtheMax.peakoutputpoweris-15.318dBm(0.0294mW)lower thanlowthreshold22mWat5mmingeneralpopulationcategory; TheSARmeasurementisnotnecessary.

ReportNo.:18220WC00150401FCCID:2APKA-WCR100Page1of23 Code:AB-RF-05-a FCCTestReport ClientName:ABLETECH Address: #818,C-dong,7,Beobwon-ro11-gil,Songpa-guSeoul SouthKorea ProductName:WIRELESSCALLREMOCON Date:Nov.18,2020 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC00150401FCCID:2APKA-WCR100Page2of23 Code:AB-RF-05-a Contents 1.GeneralInformation ............................................................................................................................................... 4 1.1.ClientInformation ....................................................................................................................................... 4 1.2.DescriptionofDevice(EUT) ..................................................................................................................... 4 1.3.AuxiliaryEquipmentUsedDuringTest ................................................................................................... 4 1.4.DescriptionofTestModes ........................................................................................................................ 5 1.5.Listofchannels ........................................................................................................................................... 5 1.6.DescriptionOfTestSetup ......................................................................................................................... 6 1.7.TestEquipmentList .................................................................................................................................... 7 1.8.MeasurementUncertainty ......................................................................................................................... 8 1.9.DescriptionofTestFacility ........................................................................................................................ 8 2.SummaryofTestResults ..................................................................................................................................... 9 3.ConductedEmissionTest ................................................................................................................................... 10 3.1.TestStandardandLimit .......................................................................................................................... 10 3.2.TestSetup .................................................................................................................................................. 10 3.3.TestProcedure .......................................................................................................................................... 10 3.4.TestData .................................................................................................................................................... 10 4.RadiationSpuriousEmissionandBandEdge ................................................................................................ 11 4.1.TestStandardandLimit .......................................................................................................................... 11 4.2.TestSetup .................................................................................................................................................. 12 4.3.TestProcedure .......................................................................................................................................... 13 4.4.TestData .................................................................................................................................................... 13 5.20DBOccupyBandwidthTest ........................................................................................................................... 19 5.1.TestStandardandLimit .......................................................................................................................... 19 5.2.TestSetup .................................................................................................................................................. 19 5.3.TestProcedure .......................................................................................................................................... 19 5.4.TestData .................................................................................................................................................... 19 6.DwellTimeTest .................................................................................................................................................... 21 6.1.TestStandardandLimit .......................................................................................................................... 21 6.2.TestSetup .................................................................................................................................................. 21 6.3.TestProcedure .......................................................................................................................................... 21 6.4.TestData .................................................................................................................................................... 21 7.AntennaRequirement ......................................................................................................................................... 23 7.1.TestStandardandRequirement ............................................................................................................ 23 7.2.AntennaConnectedConstruction .......................................................................................................... 23 ReportNo.:18220WC00150401FCCID:2APKA-WCR100Page3of23 Code:AB-RF-05-a TESTREPORT Applicant:ABLETECH Manufacturer:ABLETECH ProductName:WIRELESSCALLREMOCON ModelNo.:WCR100 TradeMark:N/A Rating(s):Input:DC12V TestStandard(s): FCCPart15SubpartC2019,Section15.231 TestMethod(s): ANSIC63.10:2013 ThedevicedescribedaboveistestedbyShenzhenAnbotek…

Text truncated - open the document above for the full version.

FCCID:2APKA-WCR100 PhotoofRadiationEmissionTest
