2APN5-ECAMWi-Fi Smart Security Camera

Shenzhen Sonoff Technologies Co.,Ltd. Covered Equipment Certification Attestation Letter 5/17/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2APN5-ECAM Shenzhen Sonoff Technologies Co.,Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Sonoff Technologies Co.,Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Stan Li Title: Manager Company Name: Shenzhen Sonoff Technologies Co.,Ltd. Date: 5/17/2024

Shenzhen Sonoff Technologies Co.,Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter July 19, 2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2APN5-ECAM Per section 2.911(d)(7) of the FCC rules, Shenzhen Sonoff Technologies Co.,Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: ITEAD,LLC Physical U.S. Company Address: 651 N Broad St, Suite 201 Middletown, DE 19709 United States Agent name: Felix Li Agent Email Address: [email protected] FRN: 0033682634 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Stan Li Printed name: Felix Li Title: Manager Title: Manager Company Name: Shenzhen Sonoff Technologies Co.,Ltd. Company Name: ITEAD,LLC Date: May 17, 2024 Date: May 17, 2024 FRN Code: 0027467786 FRN Code: 0033682634

Shenzhen Sonoff Technologies Co.,Ltd. Date: May 17, 2024 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__2APN5-ECAM____ Product Name:___Wi-Fi Smart Security Camera____ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block Diagram • Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Stan Li Company: Shenzhen Sonoff Technologies Co.,Ltd. Address: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Phone: 0755-27955416 Fax: 0755-27955416 Email: [email protected]

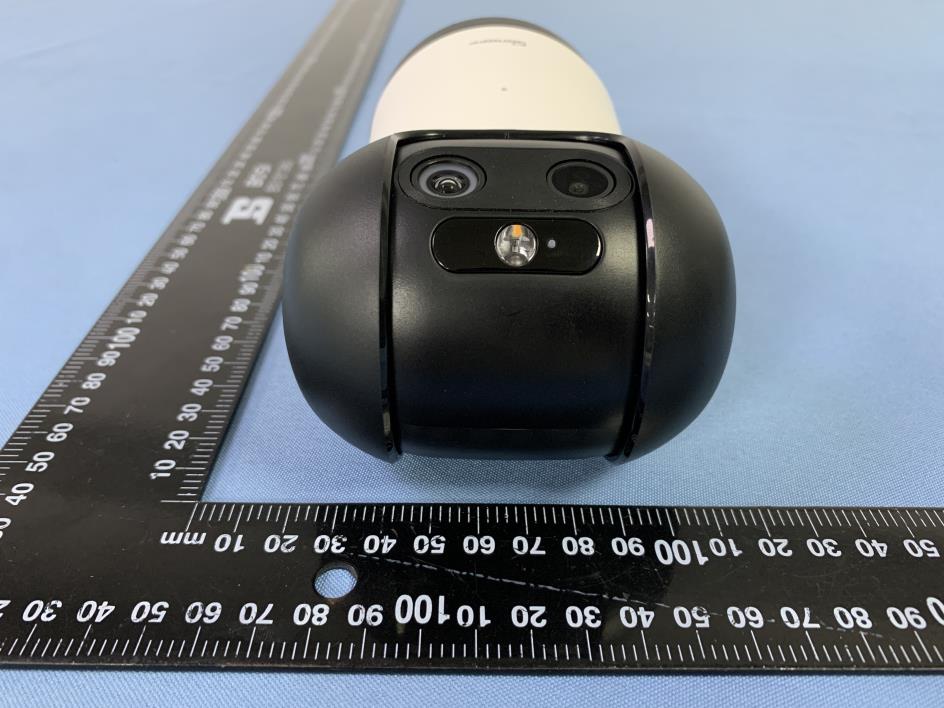

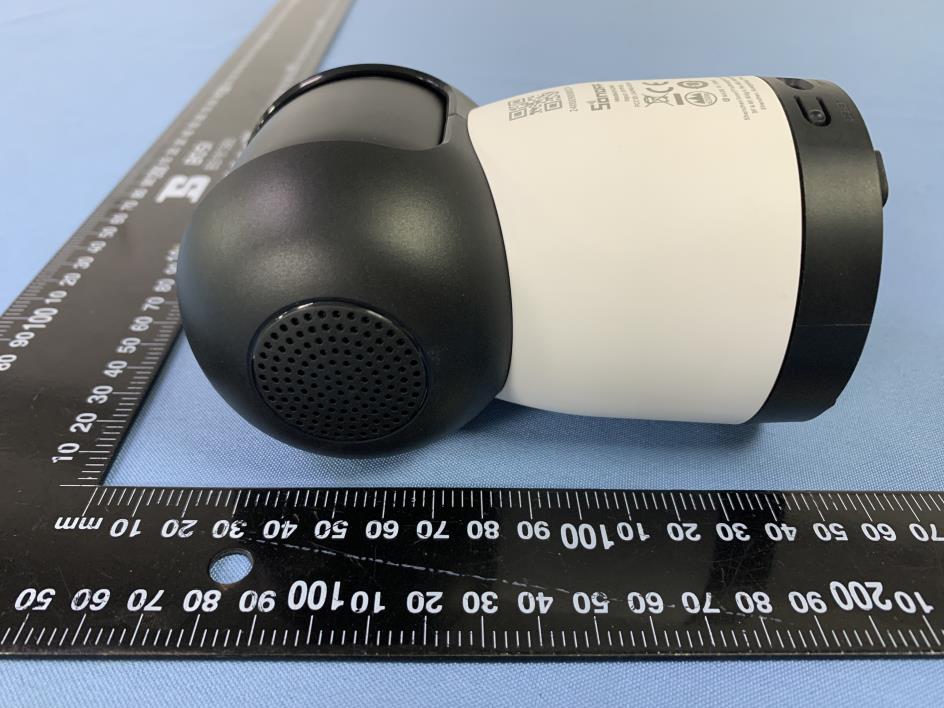

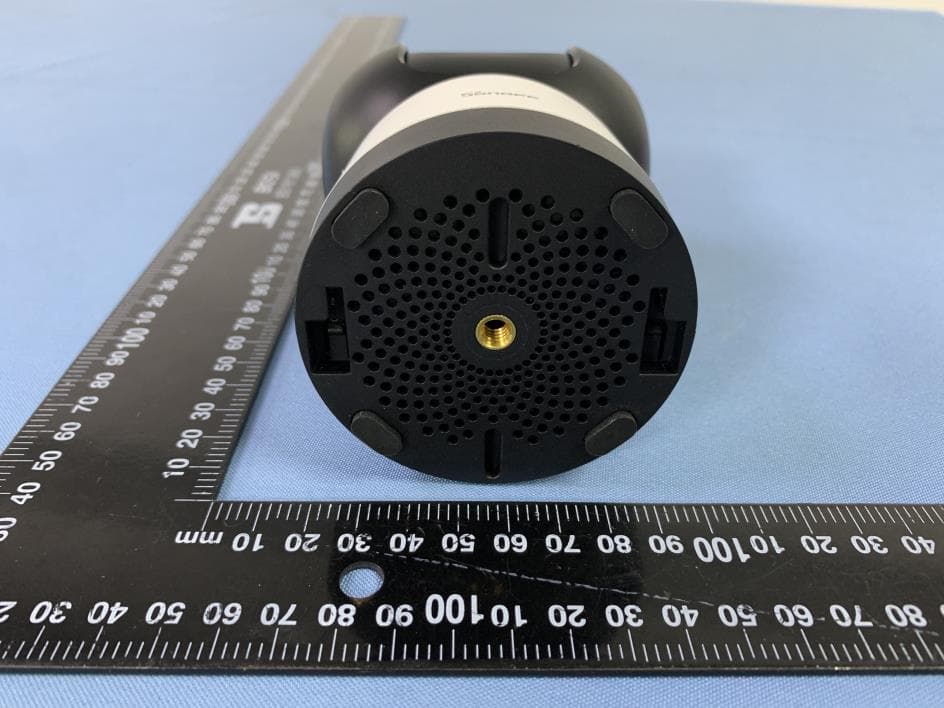

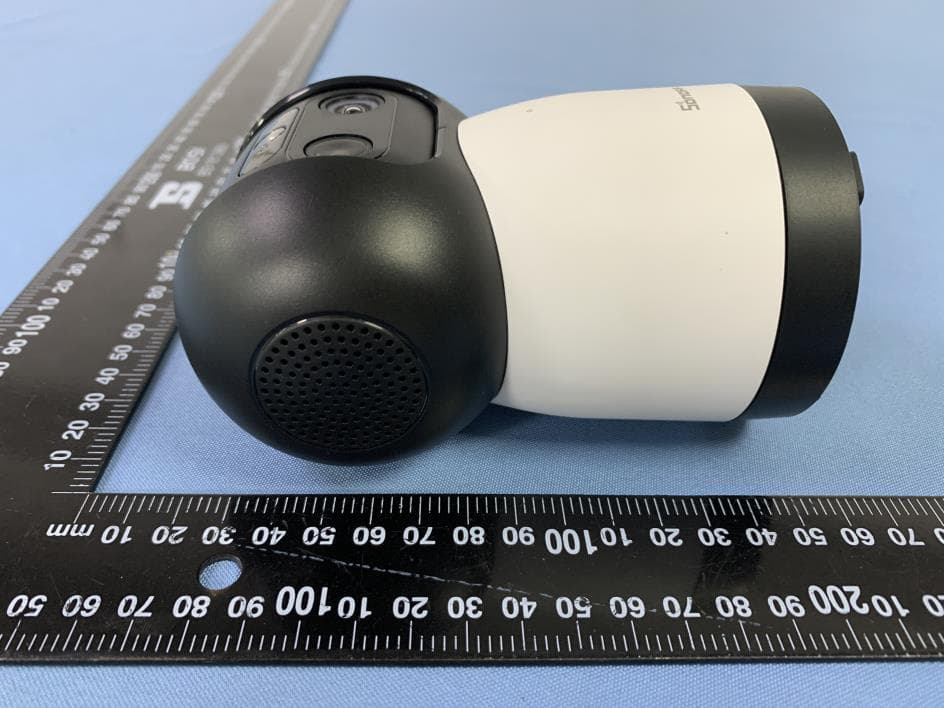

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 4 External Photographs Page 2 of 4 Page 3 of 4 Page 4 of 4

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 5 Internal Photographs Page 2 of 5 BT/WIFI Antenna Page 3 of 5 Page 4 of 5 Page 5 of 5

Antenna Specification 1. Antenna Describe Antenna Manufacturer Shenzhen Sonoff Technologies Co.,Ltd. Antenna Address 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Antenna Model JF8941 Antenna Type FPC Antenna Antenna 1 Gain 2.4G: 3.98dBi, 5G U-NII-1: 4.47dBi, 5G U-NII-3: 4.60dBi Antenna 2 Gain 2.4G: 3.47dBi, 5G U-NII-1: 4.94dBi, 5G U-NII-3: 4.08dBi Frequency Rang 2400-2500MHz, 5150-5250MHz, 5725-5850MHz VSWR ≤2 Input Impedance 50Ω 2. External View Drawing Unit: mm 3. Measurement Result 3.1 Test Setup 3.2 VSWR and Return Loss Antenna 1 Antenna 2 3.3 Antenna test data Antenna No. Frequency (MHz) Efficiency (%) Peak Gain (dBi) Antenna 1 2400 56.83 2.03 2410 67.94 2.71 2420 62.06 2.13 2430 61.43 2.65 2440 64.18 2.27 2450 62.33 2.91 2460 61.17 3.41 2470 62.69 3.48 2480 63.38 3.26 2490 70.09 3.98 2500 68.08 3.98 5150 72.27 4.47 5200 71.01 3.93 5250 70.21 3.48 5700 74.24 4.00 5750 74.94 4.34 5800 76.93 4.60 5850 62.95 3.61 Antenna 2 2400 64.26 3.21 2410 63.79 3.06 2420 62.79 3.07 2430 64.17 2.48 2440 66.90 2.56 2450 63.93 2.64 2460 52.36 3.47 2470 63.05 3.02 2480 65.44 2.98 2490 72.10 2.78 2500 69.68 3.21 5150 60.63 4.55 5200 67.14 4.94 5250 69.71 4.33 5700 61.44 3.47 5750 64.74 3.83 5800 67.45 4.08 5850 52.30 2.62 3.4 Antenna test diagram 3D Pattern Antenna 1 Antenna 2 2D Pattern Antenna 1 Antenna 2

CTC Laboratories, Inc. (FCC Designation Number: CN1208) Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: 2APN5-ECAM According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b). EUT Specification Applicant Shenzhen Sonoff Technologies Co.,Ltd. Address 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Product Name: Wi-Fi Smart Security Camera Trade Mark: Sonoff Model/Type Reference: E-CAM Listed Model(s): / Model Differences: / Frequency Band (Operating) BLE: 2402~2480MHz 2.4G WiFi: 2412-2462MHz 5G WiFi: 5150MHz~5250MHz, 5725MHz~5850MHz Device Category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Exposure Classification Occupational/Controlled exposure (S=5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Diversity Single antenna Multiple antennas TX diversity RX diversity TX/RX diversity Antenna Gain (Max) BLE ANT2: 3.47dBi 2.4G WiFi: ANT1: 3.98dBi, ANT2: 3.47dBi, Directional Gain: 6.74dBi 5G WiFi: ANT1 U-NII-1: 4.47dBi, ANT2 U-NII-1: 4.94dBi, Directional Gain: 7.72dBi ANT1 U-NII-3: 4.60dBi, ANT2 U-NII-3: 4.08dBi, Directional Gain: 7.35dBi Evaluation Applied MPE Evaluation SAR Evaluation Page 2 of 3 Report No.: CTC20240774E10 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposure 300-1500 -- -- F/300 <6 1500-100000 -- -- 5 <6 (B) Limits for General Population/Uncontrolled Exposure 300-1500 -- -- F/1500 <30 1500-100000 -- -- 1 <30 Calculation Method Friis transmission formula: Pd=(P out *G)/(4*Pi*R 2 ) Where: Pd= Power density in mW/cm 2 P out = output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd limit of MPE is 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Page 3 of 3 Report No.: CTC20240774E10 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Measurement Result Mode Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Tune Up Tolerance (dB) Max. Tune Up Power (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result BLE 2402 3.47 5.44 ±1 6.50 0.0020 1 Pass 802.11g 2462 3.47 21.27 ±1 22.00 0.0701 1 Pass 802.11a 5785 4.60 17.47 ±1 18.50 0.0406 1 Pass The BLE and WiFi can transmit simultaneously. Mode Frequency (MHz) Power Density at 20cm (mW/cm 2 ) Total Power density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result BLE 2402 0.0020 0.0721 1 Pass 802.11g 2462 0.0701 Note: 1. Calculate in the worst-case mode. 2. Max. Tune Up Power is declared by manufacturer, and used to calculate. 3. For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20240774E09 FCC ID.................................: 2APN5-ECAM Applicant····························: Shenzhen Sonoff Technologies Co.,Ltd. Address·······························: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Manufacturer························: Shenzhen Sonoff Technologies Co.,Ltd. Address·······························: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Product Name······················: Wi-Fi Smart Security Camera Trade Mark···························: , Sonoff Model/Type reference·············: E-CAM Listed Model(s) ····················: / Standard·····························: FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of receipt of test sample...: Mar. 15, 2024 Date of testing.......................: Mar. 15, 2024 to May 9, 2024 Date of issue.........................: Jul. 17, 2024 Result.................................: PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Eric Zhang Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION ......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 3 1.4. TEST FACILITY .............................................................................................................................................................. 4 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 4 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 2. GENERAL INFORMATION .......................................................................................................................................... 6 2.1. CLIENT INFORMATION ................................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 7 2.4. OPERATION STATE ........................................................................................................................................................ 7 2.5. MEASUREMENT INSTRUMENTS LIST ................................................................................................................................. 9 3. TEST ITEM AND RESULTS ........................................................................................................................................ 11 3.1. CONDUCTED EMISSION ................................................................................................................................................ 11 3.2. RADIATED EMISSION ................................................................................................................................................... 14 3.3. BAND EDGE EMISSIONS ............................................................................................................................................... 47 3.4. BANDWIDTH TEST ...................................................................................................................................................... 93 3.5. OUTPUT POWER TEST ............................................................................................................................................... 146 3.6. POWER SPECTRAL DENSITY TEST ................................................................................................................................. 149 3.7. FREQUENCY STABILITY MEASUREMENT .....................................................................................................…

Text truncated - open the document above for the full version.

Page 99 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11A_Ant1_5825 11A_Ant2_5825 11N20MIMO_Ant1_5180 Page 100 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11N20MIMO_Ant2_5180 11N20MIMO_Ant1_5200 11N20MIMO_Ant2_5200 Page 101 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11N20MIMO_Ant1_5240 11N20MIMO_Ant2_5240 11N20MIMO_Ant1_5745 Page 102 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11N20MIMO_Ant2_5745 11N20MIMO_Ant1_5785 11N20MIMO_Ant2_5785 Page 103 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11N20MIMO_Ant1_5825 11N20MIMO_Ant2_5825 11N40MIMO_Ant1_5190 Page 104 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11N40MIMO_Ant2_5190 11N40MIMO_Ant1_5230 11N40MIMO_Ant2_5230 Page 105 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11N40MIMO_Ant1_5755 11N40MIMO_Ant2_5755 11N40MIMO_Ant1_5795 Page 106 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11N40MIMO_Ant2_5795 11AC20MIMO_Ant1_5180 11AC20MIMO_Ant2_5180 Page 107 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11AC20MIMO_Ant1_5200 11AC20MIMO_Ant2_5200 11AC20MIMO_Ant1_5240 Page 108 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11AC20MIMO_Ant2_5240 11AC20MIMO_Ant1_5745 11AC20MIMO_Ant2_5745 Page 109 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11AC20MIMO_Ant1_5785 11AC20MIMO_Ant2_5785 11AC20MIMO_Ant1_5825 Page 110 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11AC20MIMO_Ant2_5825 11AC40MIMO_Ant1_5190 11AC40MIMO_Ant2_5190 Page 111 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059…

Text truncated - open the document above for the full version.

Page 121 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11AC20MIMO_Ant1_5745 11AC20MIMO_Ant2_5745 11AC20MIMO_Ant1_5785 Page 122 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11AC20MIMO_Ant2_5785 11AC20MIMO_Ant1_5825 11AC20MIMO_Ant2_5825 Page 123 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11AC40MIMO_Ant1_5755 11AC40MIMO_Ant2_5755 11AC40MIMO_Ant1_5795 Page 124 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn 11AC40MIMO_Ant2_5795 11AC80MIMO_Ant1_5775 11AC80MIMO_Ant2_5775 Page 125 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Page 126 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Occupied Channel Bandwidth Test Mode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.459 5171.7515 5188.2105 --- --- Ant2 5180 16.434 5171.7449 5188.1789 --- --- Ant1 5200 16.481 5191.7392 5208.2202 --- --- Ant2 5200 16.404 5191.7721 5208.1761 --- --- Ant1 5240 16.456 5231.7684 5248.2244 --- --- Ant2 5240 16.470 5231.7429 5248.2129 --- --- Ant1 5745 16.609 5736.7396 5753.3486 --- --- Ant2 5745 16.828 5736.5482 5753.3762 --- --- Ant1 5785 16.520 5776.7429 5793.2629 --- --- Ant2 5785 16.771 5776.5439 5793.3149 --- --- Ant1 5825 16.533 5816.7419 5833.2749 --- --- Ant2 5825 16.587 5816.6944 5833.2814 --- --- 11N20MIMO Ant1 5180 17.531 5171.2141 5188.7451 --- --- Ant2 5180 17.656 5171.1476 5188.8036 --- --- Ant1 5200 17.543 5191.1930 5208.7360 --- --- Ant2 5200 17.574 5191.2235 5208.7975 --- --- Ant1 5240 17.537 5231.2075 5248.7445 --- --- Ant2 5240 17.518 5231.2868 5248.8048 --- --- Ant1 5745 17.547 5736.1847 5753.7317 --- --- Ant2 5745 17.636 5736.1542 5753.7902 --- --- Ant1 5785 17.591 5776.1540 5793.7450 --- --- Ant2 5785 17.557 5776.1874 5793.7444 --- --- Ant1 5825 17.584 5816.1814 5833.7654 --- --- Ant2 5825 17.572 5816.1836 5833.7556 --- --- 11N40MIMO Ant1 5190 35.931 5172.0713 5208.0023 --- --- Ant2 5190 35.908 5172.0441 5207.9521 --- --- Ant1 5230 35.891 5212.0608 5247.9518 --- --- Ant2 5230 35.892 5211.9922 5247.8842 --- --- Ant1 5755 35.951 5737.0324 5772.9834 --- --- Ant2 5755 36.016 5736.9838 5772.9998 --- --- Ant1 5795 36.016 5777.0157 5813.0317 --- --- Ant2 5795 36.059 5776.9568 5813.0158 --- --- 11AC20MIMO Ant1 5180 17.540 5171.2194 5188.7594 --- --- Ant2 5180 17.520 5171.2016 5188.7216 --- --- Ant1 5200 17.553 5191.1993 5208.7523 --- --- Ant2 5200 17.518 5191.2102 5208.7282 --- --- Ant1 5240 17.545 5231.2090 5248.7540 --- --- Ant2 5240 17.540 5231.2013 5248.7413 --- --- Ant1 5745 17.563 5736.1824 5753.7454 --- --- Ant2 5745 17.564 5736.1633 5753.7273 --- --- Ant1 5785 17.552 5776.1937 5793.7457 --- --- Ant2 5785 17.617 5776.1626 5793.7796 --- --- Ant1 5825 17.577 5816.1958 5833.7728 --- --- Ant2 5825 17.562 5816.1844 5833.7464 --- --- 11AC40MIMO Ant1 5190 35.891 5172.0597 5207.9507 --- --- Ant2 5190 35.847 5172.0574 5207.9044 --- --- Ant1 5230 35.955 5212.0217 5247.9767 --- --- Ant2 5230 35.915 5211.9698 5247.8848 --- --- Ant1 5755 35.976 5737.0410 5773.0170 --- --- Ant2 5755 35.958 5736.9816 5772.9396 --- --- Ant1 5795 35.961 5777.0112 5812.9722 --- --- Ant2 5795 35.959 5777.0008 5812.9598 --- --- 11AC80MIMO Ant1 5210 75.067 5172.6754 5247.7424 --- --- Ant2 5210 74.800 5172.6158 5247.4158 --- --- Ant1 5775 75.307 5737.3820 5812.6890 --- --- Ant2 5775 75.239 5737.4040 5812.6430 --- --- Page 127 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 11A_Ant2_5200 Page 128 of 164 Report No.: CTC20240774E09 CTC La…

Text truncated - open the document above for the full version.

Page 151 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Test Result Test Mode Antenna Freq(MHz) Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5180 7.05 ≤9.28 PASS Ant2 5180 7.12 ≤9.28 PASS Ant1 5200 7.37 ≤9.28 PASS Ant2 5200 7.00 ≤9.28 PASS Ant1 5240 6.62 ≤9.28 PASS Ant2 5240 6.89 ≤9.28 PASS Ant1 5745 3.98 ≤28.65 PASS Ant2 5745 4.29 ≤28.65 PASS Ant1 5785 4.01 ≤28.65 PASS Ant2 5785 4.03 ≤28.65 PASS Ant1 5825 4.50 ≤28.65 PASS Ant2 5825 4.48 ≤28.65 PASS 11N20MIMO Ant1 5180 3.85 ≤9.28 PASS Ant2 5180 1.51 ≤9.28 PASS total 5180 5.85 ≤9.28 PASS Ant1 5200 4.23 ≤9.28 PASS Ant2 5200 1.79 ≤9.28 PASS total 5200 6.19 ≤9.28 PASS Ant1 5240 3.13 ≤9.28 PASS Ant2 5240 1.83 ≤9.28 PASS total 5240 5.54 ≤9.28 PASS Ant1 5745 0.59 ≤28.65 PASS Ant2 5745 1.07 ≤28.65 PASS total 5745 3.85 ≤28.65 PASS Ant1 5785 0.64 ≤28.65 PASS Ant2 5785 0.56 ≤28.65 PASS total 5785 3.61 ≤28.65 PASS Ant1 5825 -0.18 ≤28.65 PASS Ant2 5825 0.18 ≤28.65 PASS total 5825 3.01 ≤28.65 PASS 11N40MIMO Ant1 5190 0.86 ≤9.28 PASS Ant2 5190 -0.62 ≤9.28 PASS total 5190 3.19 ≤9.28 PASS Ant1 5230 0.50 ≤9.28 PASS Ant2 5230 -0.27 ≤9.28 PASS total 5230 3.14 ≤9.28 PASS Ant1 5755 -3.16 ≤28.65 PASS Ant2 5755 -2.75 ≤28.65 PASS total 5755 0.06 ≤28.65 PASS Ant1 5795 -3.35 ≤28.65 PASS Ant2 5795 -2.15 ≤28.65 PASS total 5795 0.30 ≤28.65 PASS 11AC20MIMO Ant1 5180 3.27 ≤9.28 PASS Ant2 5180 2.19 ≤9.28 PASS total 5180 5.77 ≤9.28 PASS Ant1 5200 3.85 ≤9.28 PASS Ant2 5200 2.55 ≤9.28 PASS total 5200 6.26 ≤9.28 PASS Ant1 5240 3.30 ≤9.28 PASS Ant2 5240 2.70 ≤9.28 PASS total 5240 6.02 ≤9.28 PASS Ant1 5745 -0.36 ≤28.65 PASS Ant2 5745 1.13 ≤28.65 PASS total 5745 3.46 ≤28.65 PASS Ant1 5785 -0.40 ≤28.65 PASS Ant2 5785 1.45 ≤28.65 PASS Page 152 of 164 Report No.: CTC20240774E09 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua Distri…
