2APN54CHPROR34-gang Wi-Fi Smart Switch with RF Control

U s e r m a n u a l V 1 . 1 4-gang Wi-Fi Smart Switch with RF Control 中文---------------- 1-4 Deutsch-----------9-12 Français----------17-20 Русский язык----25-28 English--------------5-8 Español----------- 13-16 Italiano------------21-24 SONOFF TECHNOLOGIES CO., LTD. 中 文 产品参数 产品型号 DC输入 4CHPROR3 9-23V AC输入 100-240V 50/60Hz 10A/通道 40A/总负载： IEEE 802.11 b/g/n 2.4GHz 最大负载 Wi-Fi 支持平台 产品材料 产品规格 (Android 4.1 & iOS 9.0) 或者更高版本 PC 145x90x34mm 指示灯状态说明 指示灯状态 状态描述 蓝灯两短一长闪烁 配网模式 蓝灯常亮 设备已连接 蓝灯快闪一下 蓝灯快闪两下 蓝灯快闪三下 红灯亮/灭 找不到路由 连接上路由，但没连上外网 升级中 设备开/关 1 SONOFF TECHNOLOGIES CO., LTD. 中 文 产品介绍 （R1/R2/R3/R4） （R1/R2/R3/R4） 开关指示灯(红色) 手动开关/配置按钮 Wi-Fi信号指示灯(蓝色) DC 输入 AC 输入 NO COM NC 公共 常开 常闭 产品特点 4CHPROR3是一款支持互锁/自锁/点动3种工作模式相互切换的四通 道智能开关。可随时随地通过手机远程打开或关闭家里的设备，设置 定时开关、分享给您的家人一起控制等等。 远程控制 智能定时 场景联动 语音控制 分享控制 上电状态设置 添加摄像头 自锁模式 互锁模式 点动模式 局域网模式 2 SONOFF TECHNOLOGIES CO., LTD. 中 文 RF(遥控)配对 学习配对遥控器方法： 长按将要配对的通道开关键3秒直到对应的红色开关指示灯“快闪一 下”, 松开，然后短按遥控器上要配对的按键，红色开关指示灯“快 闪一下”则表示配对成功。其它按键按照此方法重复学习配对即可。 清除遥控器配对方法： 长按将要清除配对的通道开关键5秒直到对应的红色开关指示灯“快 闪两下”, 松开，然后短按遥控器上对应所需清除配对的按键，红色 开关指示灯“快闪一下”则表示清码完成。其它按键按照此方法清码 即可。 3 SONOFF TECHNOLOGIES CO., LTD. 中 文 恢复出厂设置 长按任意配置按钮5秒直到Wi-Fi指示灯呈“两短一长闪烁”再松开， 此时设备重置成功，默认进入快速配网模式(Touch)。 更换新的网络环境使用时，需要恢复出厂设置，再重新进行网络连接。 常见问题 在“eWeLink”app端，点击“ ”，选择“ FAQ”查看。 FAQ Pairing failed... 4 SONOFF TECHNOLOGIES CO., LTD. English Specifications Model 4CHPROR3 DC Input AC Input 9-23V 100-240V 50/60Hz 10A/gang 40A/Total IEEE 802.11 b/g/n 2.4GHz Max. Load Wi-Fi Operating systems (Android 4.1 & iOS 9.0)or higher Material PC Dimension 145x90x34mm LED indicator status instruction LED indicator status Status instruction B l u e L E D fla s h e s ( o n e long and t w o s h o r t ) Quick pairing mode Blue LED keeps on Device is connected successfully Blue LED flashes quickly once Unable to discover the router Blue LED flashes quickly twice Connect to the router but fail to connect to Wi-Fi Blue LED flashes quickly three times Upgrading Red LED is on/off Device is on/off 5 SONOFF TECHNOLOGIES CO., LTD. English Product Introduction （R1/R2/R3/R4） Pairing button/Manual switch （R1/R2/R3/R4） On/Off LE D indicator(Red) Wi-Fi LED indicator(Blue) DC input AC input Features 4CHPROR3 is a 4-gang Wi-Fi smart switch with self-locking, interlock and inching that allow you to remotely turn on/off connected devices via your smartphone, schedule on or off, share to your family to control together. Remote Control Single/Countdown Timing Voice Control Share Control Smart Scene Power-on State Camera Feature LAN Control Self-locking Interlock Inching 6 SONOFF TECHNOLOGIES CO., LTD. English RF Remote Controller Pairing Pairing Method: Long press the channel switch that you want to pair for 3s until the L E D “flashes q u i c k l y once” and r e l e a s e , t h e n s h o r t p r e s s t h e remote controller button that your want to pair. The red channel switch button LED “flashes quickly once” indicates that the pairing is s u c c e s s f u l . O t h e r r e m o t e c o n t r o l l e r b u t t o n s c a n be p a i r e d according to this method. Clearing Method: Long press the channel switch that you want to clear for 5s until the LED “flashes quickly twice” and release, then short press the remote controller button that your want to clear. The red channel switch button LED “flashes quickly once” indicates that the clearing is succ essfu l. Other rem ote co ntro ll er butt ons c an be cl ea re d according to this method. 7 SONOFF TECHNOLOGIES CO., LTD. English Factory Reset Lo ng p ress t he pa iri ng butt on fo r ab out 5s u nti l the Wi-Fi LED in dic ator ch an ges in a cycl e of t wo sh ort a nd on e lo ng flas h a nd rel eas e, th en th e res et is s ucce ssfu l. The dev ic e ent ers q u ick pa iri ng mo de (Touch). Please reset the switch to factory defaults if you want to change Wi-Fi the network, then reconnect the new network. Common Problems Tap “ ” on eWeLink APP and select “FAQ” to check. FAQ Pairing failed... 8 SONOFF TECHNOLOGIES CO., LTD. Deutsch Technische Daten Modell 4CHPROR3 DC Eingang AC Eingang 9-23V 100-240V 50/60Hz Max. Belastung 10A/Einzelschalter 40A/Alle Schalter WLAN-Standard Betriebssysteme IEEE 802.11 b/g/n 2.4GHz (Android 4.1 und iOS 9.0) oder höher Materialien PC Abmessungen 145x90x34mm LED-Anzeige Statusanzeige Anweisung LED-Anzeige Status Status-Anweisung Blaue LED blinkt (einmal lang und zweimal kurz) Schnellkopplungsmodus Gerät ist erfolgreich verbunden Blaues LED ist immer an Blaues LED blinkt einmal Der Router konnte nicht gefunden w erden schnell Blaues LED blinkt zweimal schnell Erfolgreiche Verbindung zum Router, aber Wi-Fi ist nicht verbunden Blaues LED blinkt dreimal schnell Aktualisierung Rotes LED ist an/aus Das Gerät ist ein-/ausgeschaltet 9 SONOFF TECHNOLOGIES CO., LTD. Deutsch Produktvorstellung （R1/R2/R3/R4） E in/A us-LED-Anzei ge(rote) （R1/R2/R3/R4） K oppl ungs taste/ M anuell er Sc hal ter W LA N-LE D-Anzei ge(bl auen) DC Eingang AC Eingang Merkmale 4CHPROR3 ist ein 4fach Wi-Fi-Smart-Switch mit Selbstverriegelung, V e r r i e g e lu n g und T i p p b et r i e b, m i t dem S i e a n g e s c h l o s s e n e Geräte über Ihr Smartphone ferngesteuert ein- und ausschalten, zeitgesteuert ein- und ausschalten, an Ihre Familie weitergeben und gemeinsam steuern können. App Fernbedienug Zeitpläne Sprachsteuerung Freigabesteuerung Kamera hinzufügen Funkfernbedienung Intelligente Szenarien Einschaltstatus Selbstverriegelung Verriegelung Tippbetrieb LAN-Steuerung 10 SONOFF TECHNOLOGIES CO., LTD. Deutsch Kopplung der Funkfernbedienung Kopplungsmethoden: Halten Sie den Kanalschalter, den Sie für 3 Sekunden koppeln möchten, solange gedrückt, bis die LED „blinkt einmal schnell“ und dann wieder loslassen, und drücken Sie dann kurz die Taste der Fer nb ed ie nu ng, d ie S ie k op pe ln möchten. Die r ote Kanalumschalttaste LED „blinkt einmal schnell“ und zeigt an, dass die Kopplung erfolgreich ist. Andere Tasten der Fernbedienung können nach diesem Verfahren gekoppelt werden. Löschmethoden: Drücken Sie den Kanalschalter, d…

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 Letter of Authorization Shenzhen Sonoff Technologies Co.,Ltd. Company: Shenzhen Sonoff Technologies Co.,Ltd. Address: Room 1001, 10F, Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District, Shenzhen, GD, China, Shenzhen Product Name: 4-gang Wi-Fi Smart Switch with RF Control Model Number: 4CHPROR3 FCC Identifier: 2APN54CHPROR3 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Date: January 08, 2020 Title: Managing Signature of applicant: Jerry Shi

C5266091_X10_Ed.1 1/1 Shenzhen Sonoff Technologies Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: January 08, 2020 Subject: Request for Confidentiality FCC ID: 2APN54CHPROR3 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jerry Shi Title: Managing

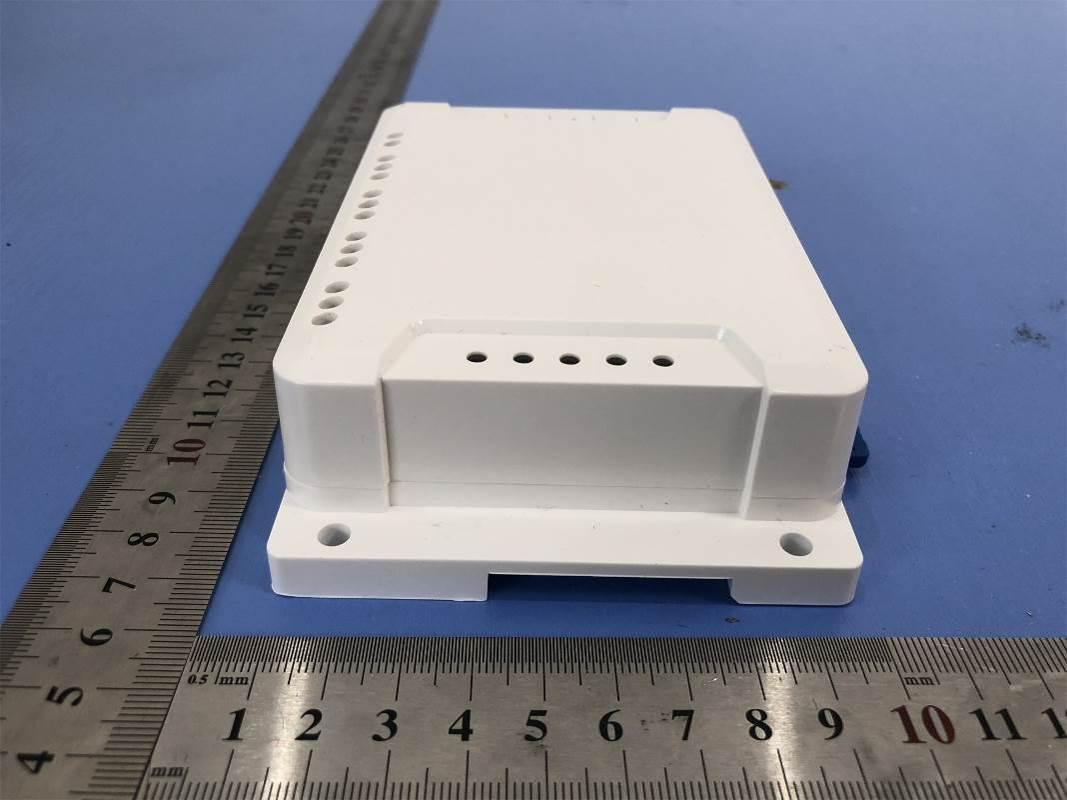

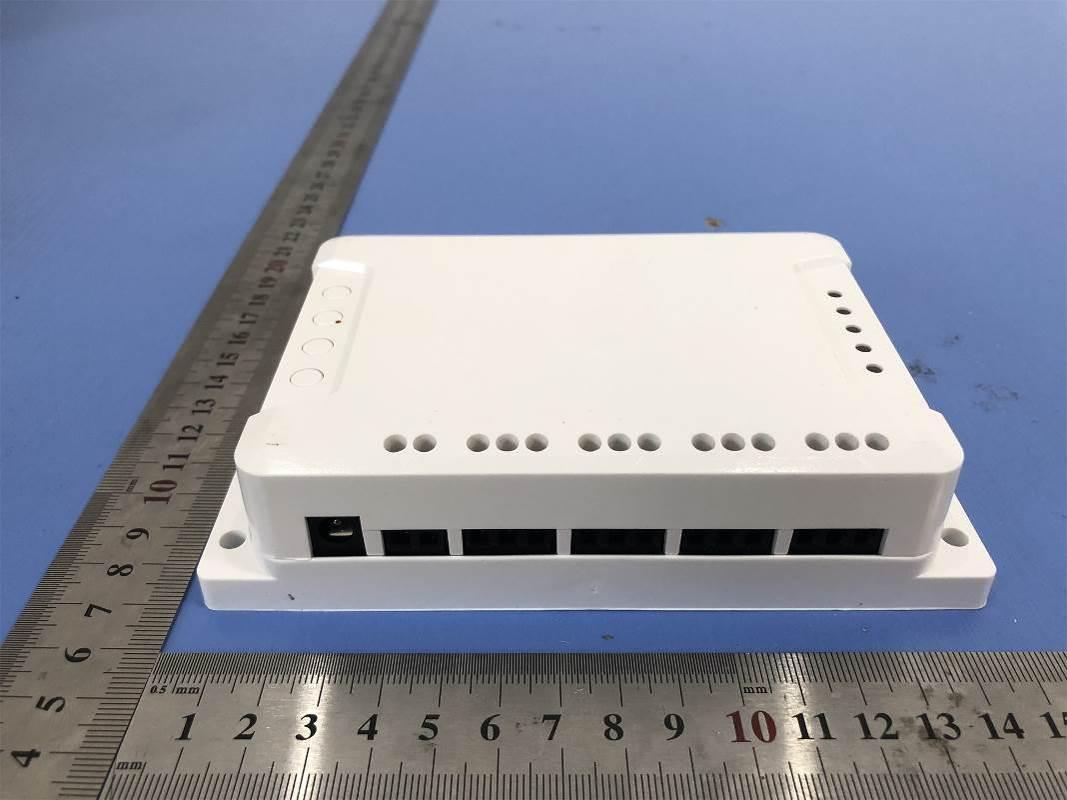

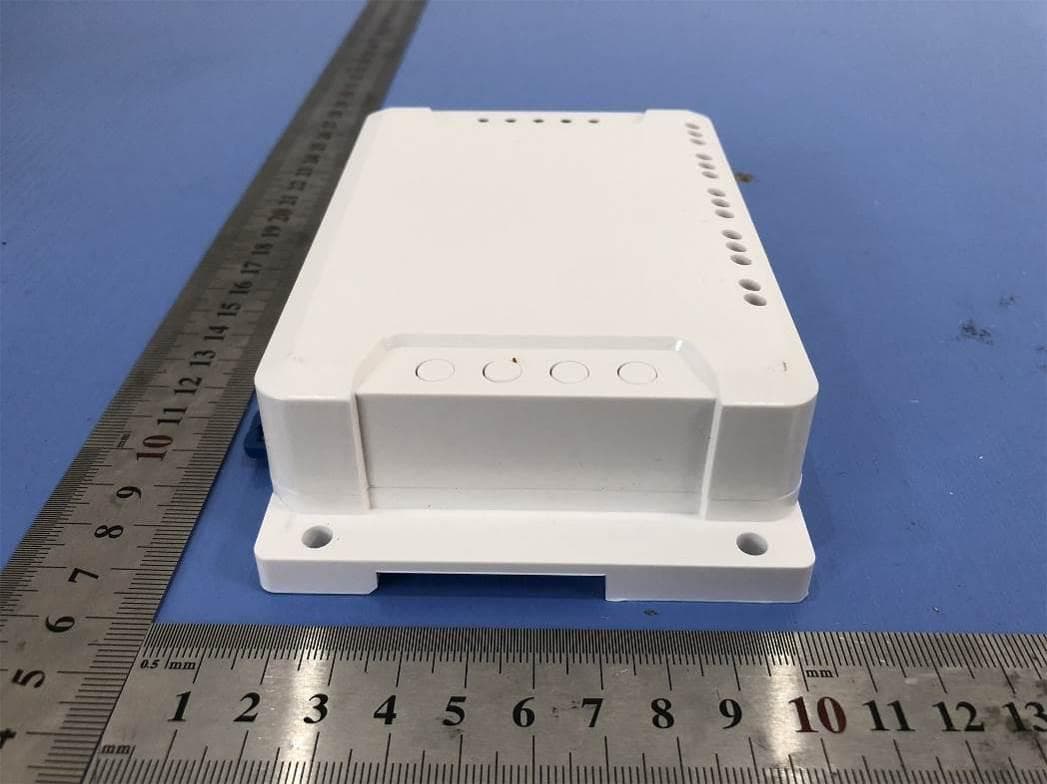

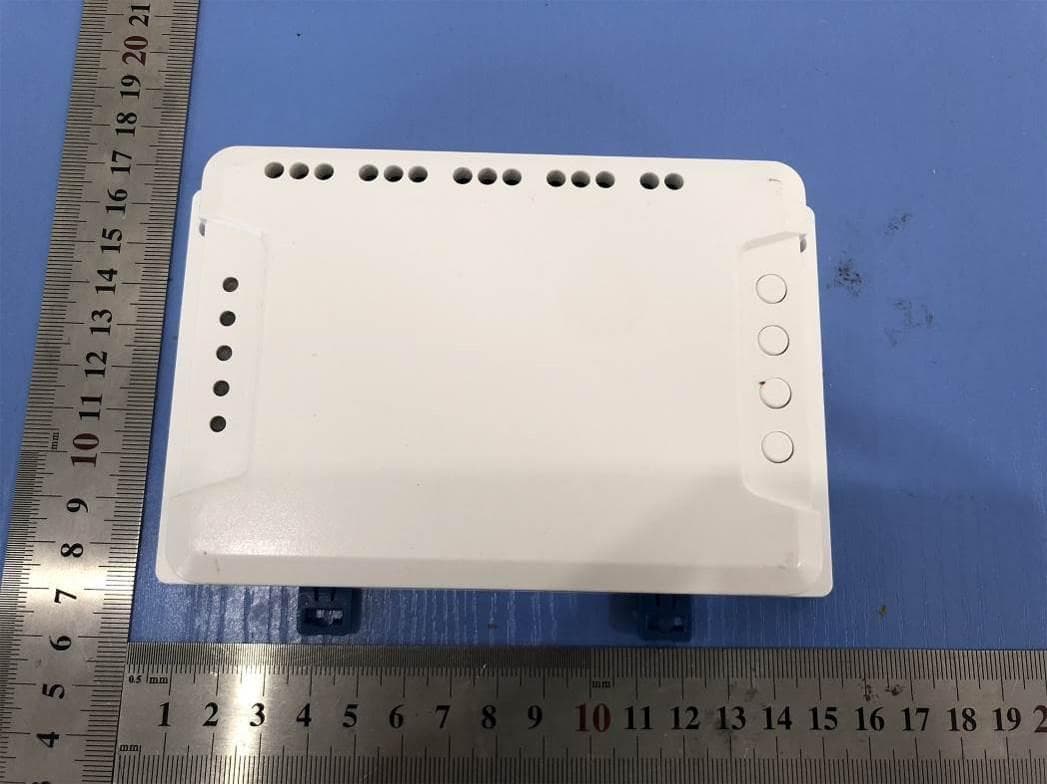

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Fig.5 Fig.6

R 1 R 2 R 3 R 4 R 1 R 2 R 3 R 4 L N AC Input: 100-240V DC Input: 9-23V NO COMNC R1R2R3R4 4-gang Wi-Fi Smart Switch with RF Control Model: 4CHPROR3 FCC ID: 2APN54CHPROR3 RF: 433.92MHz Wi-Fi: IEEE 802.11 b/g/n 2.4GHz DC Input: 9-23V AC Input : 100-240V 50/60Hz Operating temps: 10T40 Max. load: 10A/Gang 40A/Total https://sonoff.tech MADE IN CHINA 4CHPRO 名称：4CHPROR3 工艺：丝印 NO COMNC NO COMNC NO COMNC 丝印内容 R 1 R 2 R 3 R 4 R 1 R 2 R 3 R 4 L N AC Input: 100-240V DC Input: 9-23V NO COMNC R1R2R3R4 4-gang Wi-Fi Smart Switch with RF Control Model: 4CHPROR3 FCC ID: 2APN54CHPROR3 RF: 433.92MHz Wi-Fi: IEEE 802.11 b/g/n 2.4GHz DC Input: 9-23V AC Input : 100-240V 50/60Hz Operating temps: 10T40 Max. load: 10A/Gang 40A/Total https://sonoff.tech MADE IN CHINA 4CHPRO NO COMNC NO COMNC NO COMNC 注意：丝印颜色 灰色 跟样品 125.00 mm 8 9 . 3 2 m m

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2APN54CHPROR3 Product name 4-gang Wi-Fi Smart Switch with RF Control Model number 4CHPROR3 Model Declaration / Test Model 4CHPROR3 Power supply Input: AC 100-240V Operation frequency IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz Antenna Type PCB Antenna Antenna Gain 1dBi (maximum) Hardware version Sonoff_4CH_PRO_R3 V1.0 Software version FWSWES-0485-SWITCHES-8285-DOUT-v3.3.0 Channel Number 11 Channels for 20MHz bandwidth(2412~2462MHz) Channel Spacing 5MHz for IEEE 802.11b/g/n Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information ES-D4 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna 0 Internal Antenna 2000 MHz – 2500 MHz 1 dBi WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Conducted Power [BT Max Conducted Power] Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 16.23 6 2437 16.15 11 2462 15.61 IEEE 802.11g 1 2412 17.31 6 2437 16.12 11 2462 17.23 IEEE 802.11n HT20 1 2412 17.11 6 2437 17.83 11 2462 18.37 8. Measurement Results IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16 16 16 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17 17 17 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 18 18 18 Tolerance ±(dB) 1.0 1.0 1.0 8.1 Standalone MPE Evaluation As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. [Antenna 0] Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW IEEE 802.11b 17 50.1187 1 1.2589 0.0126 1.0000 IEEE 802.11g 18 63.0957 1 1…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2APN54CHPROR3 Report No.: LCS191106004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT For Shenzhen Sonoff Technologies Co.,Ltd. 4-gang Wi-Fi Smart Switch with RF Control Test Model: 4CHPROR3 Additional Model No.: / Prepared for : Shenzhen Sonoff Technologies Co.,Ltd. Address : Room 1001, 10F, Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District, Shenzhen, GD, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Building A and 301 Building C, Juji Industrial Park, Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 26, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : October 26, 2019 ~ November 07 2019 Date of Report : November 11, 2019 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2APN54CHPROR3 Report No.: LCS191106004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS191106004AEA Date of Issue ................................... : November 11, 2019 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Building A and 301 Building C, Juji Industrial Park, Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Sonoff Technologies Co.,Ltd. Address ........................................... : Room 1001, 10F, Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District, Shenzhen, GD, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................. : 4-gang Wi-Fi Smart Switch with RF Control Trade Mark ...................................... : Model/ Type reference .................... : 4CHPROR Ratings ............................................ : AC Input: 100~240V 50/60Hz DC Input: 9-23V Result ............................................ : Positive Compiled by: Supervised by: Approved by: Ray Yang/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2APN54CHPROR3 Report No.: LCS191106004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT EUT........................................ : 4-gang Wi-Fi Smart Switch with RF Control Type / Model........................... : 4CHPROR3 Applicant............................... : Shenzhen Sonoff Technologies Co.,Ltd. Address.................................. : Room 1001, 10F, Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District, Shenzhen, GD, China Telephone.............................. : / Fax......................................... : / Manufacturer........................ : Shenzhen Sonoff Technologies Co.,Ltd. Address................................... : Room 1001, 10F, Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District, Shenzhen, GD, China Telephone.............................. : / Fax......................................... : / Factory.................................. : / Address.................................. : / Telephone.............................. : / Fax......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191106004AEA November 11, 2019 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2APN54CHPROR3 Report No.: LCS191106004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 November 11, 2019 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2APN54CHPROR3 Report No.: LCS191106004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 1 of 27 Appendix C RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: 4-gang Wi-Fi Smart Switch with RF Control Trade Mark: Test Model: 4CHPROR3 Environmental Conditions Temperature: 23.4  C Relative Humidity: 53.7% ATM Pressure: 100.0 kPa Test Engineer: Diamond.Lu Supervised by: Wang.Chuang C.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 2 of 27 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 3 of 27 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 4 of 27 C.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 16.23 30 PASS MCH 16.15 30 PASS HCH 15.61 30 PASS 11G LCH 17.31 30 PASS MCH 16.12 30 PASS HCH 17.23 30 PASS 11N20SISO LCH 17.11 30 PASS MCH 17.83 30 PASS HCH 18.37 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 5 of 27 C.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/30KHz] Limit [dBm/3KHz] Verdict 11B LCH 4.106 8 PASS MCH 0.250 8 PASS HCH 0.408 8 PASS 11G LCH -5.710 8 PASS MCH -3.707 8 PASS HCH -3.443 8 PASS 11N20SISO LCH -4.711 8 PASS MCH -3.513 8 PASS HCH -3.232 8 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 6 of 27 C.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.076 ≥0.5 PASS MCH 10.09 ≥0.5 PASS HCH 8.610 ≥0.5 PASS 11G LCH 15.12 ≥0.5 PASS MCH 15.68 ≥0.5 PASS HCH 13.86 ≥0.5 PASS 11N20SISO LCH 15.12 ≥0.5 PASS MCH 16.30 ≥0.5 PASS HCH 13.83 ≥0.5 PASS C.5 RF Conducted Spurious Emissions SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 7 of 27 Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 8.233 -37.276 -11.767 PASS MCH 4.572 -37.644 -15.428 PASS HCH 4.615 -36.962 -15.385 PASS 11G LCH 0.002 -36.816 -19.998 PASS MCH 1.306 -36.634 -18.694 PASS HCH 1.983 -37.198 -18.017 PASS 11N20 SISO LCH -0.209 -37.126 -20.209 PASS MCH 0.999 -37.443 -19.001 PASS HCH 1.968 -36.588 -18.032 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 8 of 27 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 9 of 27 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 10 of 27 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 11 of 27 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 12 of 27 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 13 of 27 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 14 of 27 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 15 of 27 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 16 of 27 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 17 of 27 C.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict 11B LCH 7.771 -49.140 -12.23 PASS HCH 4.397 -47.838 -15.6 PASS 11G LCH -0.781 -48.782 -20.78 PASS HCH 1.136 -46.802 -18.86 PASS 11N20SISO LCH -0.569 -48.171 -20.57 PASS HCH 0.892 -44.974 -19.11 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 18 of 27 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 19 of 27 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 20 of 27 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 Report No.: LCS191106004AEA Page 21 of 27 C.7 Restrict-band band-edge measurements Test Mode Test Channel Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBu V/m] Verdict 11B 2412 Ant1 2310.0 -43.65 1.0 0 51.61 PEAK 74 PASS 2412 Ant1 2310.0 -53.33 1.0 0 41.93 AV 54 PASS 2412 Ant1 2390.0 -41.54 1.0 0 53.72 PEAK 74 PASS 2412 Ant1 2390.0 -52.88 1.0 0 42.38 AV 54 PASS 2462 Ant1 2483.5 -42.44 1.0 0 52.81 PEAK 74 PASS 2462 Ant1 2483.5 -52.53 1.0 0 42.73 AV 54 PASS 2462 Ant1 2500.0 -41.42 1.0 0 53.84 PEAK 74 PASS 2462 Ant1 2500.0 -52.27 1.0 0 42.99 AV 54 PASS 11G 2412 Ant1 2310.0 -42.35 1.0 0 52.91 PEAK 74 PASS 2412 Ant1 2310.0 -53.28 1.0 0 41.98 AV 54 PASS 2412 Ant1 2390.0 -42.33 1.0 0 52.93 PEAK 74 PASS 2412 Ant1 2390.0 -52.87 1.0 0 42.39 AV 54 PASS 2462 Ant1 2483.5 -42.55 1.0 0 52.71 PEAK 74 PASS 2462 Ant1 2483.5 -52.56 1.0 0 42.70 AV 54 PASS 2462 Ant1 2500.0 -41.51 1.0 0 53.75 PEAK 74 PASS 2462 Ant1 2500.0 -52.34 1.0 0 42.92 AV 54 PASS 11N20 SISO 2412 Ant1 2310.0 -42.82 1.0 0 52.44 PEAK 74 PASS 2412 Ant1 2310.0 -53.33 1.0 0 41.93 AV 54 PASS 2412 Ant1 2390.0 -43.25 1.0 0 52.01 PEAK 74 PASS 2412 Ant1 2390.0 -52.92 1.0 0 42.34 AV 54 P…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN54CHPROR3 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement
