2APN5DW2-RFRF Wireless Door/Window Sensor

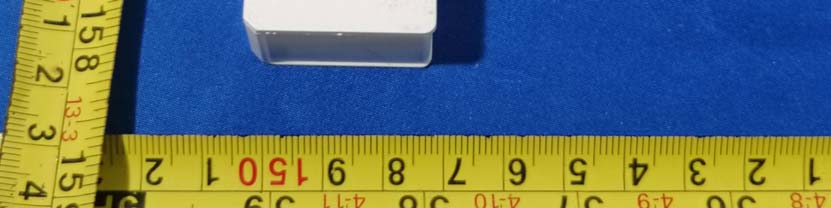

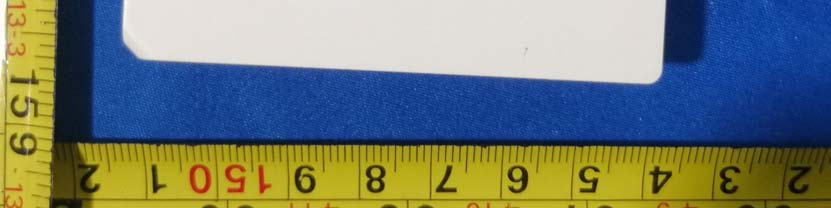

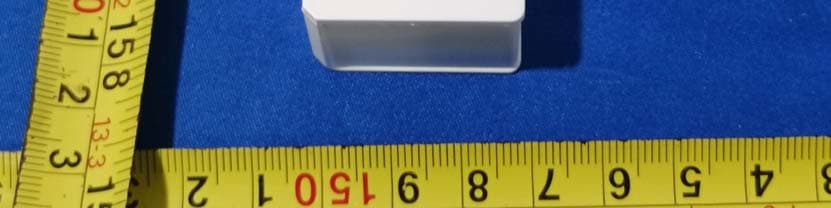

DW2-RF User manual V1.0 RF无线门窗传感器 RF Wireless Door/Window Sensor 中文----------------1-7 English--------------8-13 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 本设备需要连接SONOFF 433MHz RF网关进行智能操作，可与 其他产品互联互通。 设备支持其他无线协议为433MHz的网关，具体以实际产品为准。 使用说明 eWeLink 1. 下载“易微联”APP 1 eWeLink works with everything > 电池需另行购买。 > 2-2. 根据正负极标识，装上电池。 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 2 2. 安装电池 2-1. 打开发射器后盖。 2-3. 合上后盖。 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 3 打开eWeLink APP，选择要连接的网关，点击 "添加" 选择报警器， 听到“滴”网关进入配对模式，然后将“发射器”和“磁铁”分离 大于20mm直到LED指示灯长亮1-2秒，听到网关发出“滴滴”两声， 即添加完成。 > ZBBridge 已添加遥控器:0 暂无遥控器，请添加 添加 如添加失败，请将设备移近网关后再重新添加。 3. 添加子设备 添加子设备前，请先连接网关。 >20mm 安装设备 1. 撕下3M胶保护膜。 2. 安装时发射器和磁铁上的安装对位标识尽量对齐。 3. 分别粘贴在所需开合区域。 <5mm 发射器和磁铁安装间隙门窗在闭合状态下小于5mm。 设备重量＜1Kg，建议安装高度＜2米。 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 4 产品参数 产品型号 DW2-RF 工作电压 DC12V(型号：27A 12V) 静态电流 发射电流 安装距离 <5mm 工作温度 -10°C~40°C 材料 产品尺寸 ≤1.5uA ≤20mA RF 433.92MHz PC 发射器: 70x31x19mm 磁铁: 42x14x16mm Shenzhen Sonoff Technologies Co.,Ltd. 中 文 产品介绍 LED指示灯 安装对位标识 发射器 磁铁 5 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 产品特点 低功耗 报警记录查询 场景联动 DW2-RF是一款低功耗的无线门窗传感器，通过发射器与磁铁的靠 近与分开感知门窗开/合状态，通过添加场景联动设置控制其它设备。 请勿安装在户外容易被破坏的位置； 请勿安装在基础不牢固或有雨淋的位置； 请勿安装在线路旁或磁性物体附近； 使用场景 注意事项： 门窗户 6 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 更换电池 拆下外壳 取出电池 7 eWeLink works with everything > Shenzhen Sonoff Technologies Co.,Ltd. English The device can be operated intelligently via working with the SONOFF433MHz RFBridgetocommunicatewithotherdevices. The device can work with other gateways supporting 433MHz wireless protocol. Detailed information is in accordance with the final product. eWeLink eWeLink Operation instruction 1. Download APP 8 The battery is not included, please purchase it separately. > 2-2. Insert batteries into the battery compartment based on identifiers of positive and negative poles. 2-1. Remove the back cover of the transmitter. 2-3. Close the back cover. 2.Install batteries Shenzhen Sonoff Technologies Co.,Ltd. English 9 > ZBBridge 已添加遥控器:0 暂无遥控器，请添加 添加 >20mm 3. Add sub-devices Connect the Bridge before adding the sub-device. If the addition failed, move the sub-device closer to the Bridge and try again. Access the eWeLink APP and select the Bridge, tap "Add" to select the alarm, and a "Beep" means the Bridge enters the pairing mode. Then seperate the magnet for more than 20 mm from the transmitter until the LED indicator stays on for 1 to 2s, and the pairing is complete when you hear "Beep Beep". Install the device 1. Tear off the protective film of the 3M adhesive. Shenzhen Sonoff Technologies Co.,Ltd. English 10 2. Try to align the mark line on the magnet with that on the transmitter during installation. 3. Install them in the opening and closing area separately. <5mm Make sure the installation gap is less than 5mm when the door or the window is closed. The device weight is less than 1 kg. The installation height of less than 2 m is recommended. Shenzhen Sonoff Technologies Co.,Ltd. English 11 DW2-RF DC12V(Model: 27A 12V) <5mm -10°C~40°C ≤1.5uA ≤20mA RF 433.92MHz PC Specifications Model Material Dimension Working temperature Working voltage Quiescent current Emission current Installation gap Transmitter: 70x31x19mm Magnet: 42x14x16mm Product Introduction LED indicator Align the mark lines Transmitter Magnet Shenzhen Sonoff Technologies Co.,Ltd. English 12 Alarm recordings check DW2-RF is a ZigBee low-energy wireless door/window sensor that makes you know the opening/closing status of door and window by separating the magnet from the transmitter. Connect it with the Bridge and you can create a smart scene to trigger other devices. Features Low-energy Smart scene Application Note: ● Do not install outside the door/window. ● Do not install in the unstable position or in the place exposed to rain or moisture. ● Do not install near wiring or magnetic object. DoorWindow Shenzhen Sonoff Technologies Co.,Ltd. English 13 Replace batteries Take the batteries outRemove the back cover Shenzhen Sonoff Technologies Co.,Ltd. English 14 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Shenzhen Sonoff Technologies Co., Ltd. Room 1001, 10F, Building 8, Lianhua Industrial Park,Longyuan Road, Longhua District, Shenzhen,GD, China ZIP code: 518000 Website: sonoff.tech MADE IN CHINA Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide re a so n a b l e p ro te c ti o n a g a i n s t h a rmfu l interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
