2APN5DW2-WIFIWi-Fi Wireless Door/Window Sensor

User manual V1.1 · FCC Warning---------------36 · 中 文 ----------------------1-5 · Deutsch ---------------- 11-15 · Français-----------------21-25 · Русский язык----------31-35 · English--------------------6-10 · Español-----------------16-20 · Italiano----------------26-30 Wi-Fi Wireless Door/Window Sensor DW2-Wi-Fi SONOFF TECHNOLOGIES CO., LTD. 中 文 1.
下载“易微联”APP 使用说明 电池需另行购买。 2-2.
根据正负极标识，装上电池 > 2.
安装电池 2-1.
打开发射器后盖 2-3.
合上后盖 易微联 eWeLink Android™ & iOS 1 SONOFF TECHNOLOGIES CO., LTD. 中 文 3.
进入配网模式 ⻓按发射器配对按钮5秒直到LED指示灯闪烁”状态，设备进入配网模式。 4.
添加设备 添加设备 扫码添加 GSM 类设备和附带二维码的设备， 可使用该模式添加 点击“+”，选择“蓝牙配网”，再根据app提示进行操作。 快速添加 适用于大部分易微联生态设备 蓝牙配网 适用于蓝牙配网 安装设备 1.
撕下3M胶保护膜。 2 2.
安装时发射器和磁铁上的安装对位标识尽量对⻬。 3.
分别粘贴在所需开合区域。 <5mm 发射器和磁铁安装间隙⻔窗在闭合状态下小于5mm。 SONOFF TECHNOLOGIES CO., LTD. 中 文 产品参数 产品型号 工作电压 静态电流 发射电流 安装距离 <5mm 工作温度 -10°C~40°C 材料 产品尺寸 PC 发射器:
70x31x19mm




磁铁:
42x14x16mm DW2-Wi-Fi DC3V(2节1.5V电池) ≤40uA ≤15mA IEEE 802.11 b 2.4GHz Android & iOS 支持平台 Wi-Fi 电池型号 AAA（7号

1.5V） 3 产品介绍 LED指示灯 安装对位标识 发射器 磁铁 设备重量＜1Kg，建议安装高度＜2米。 配对按钮 SONOFF TECHNOLOGIES CO., LTD. 中 文 LED指示灯状态说明 闪烁 蓝牙配对模式 快闪1下 连不上路由器 快闪2下 连不上服务器 产品特点 分享功能 消息推送 操作历史记录 电量显示 DW2-Wi-Fi是一线⻔传，过铁和发离超过20mm发发，发射器 发出触发消息，及时推送至APP。您也可分享给家人一起查看家里的⻔和窗开/关的状态。 4 请勿安装在戶外容易被破坏的位置； 请勿安装在基础不牢固或有雨淋的位置； 请勿安装在线路旁或磁性物体附近； 使用场景 注意事项： ⻔窗戶 更换电池 SONOFF TECHNOLOGIES CO., LTD. 中 文 5 SONOFF TECHNOLOGIES CO., LTD. English 6 > Operation instruction 1. Download the “eWeLink”APP eWeLink eWeLink Android™ & iOS 2. Install batteries 2-1. Remove the back cover of the transmitter. 2-2. Insert batteries into the battery compartment based on identifiers of positive and negative poles. 2-3. Close the back cover. The battery is not included, please purchase it separately. 3.
Enter pairing mode 4.
Add the device SONOFF TECHNOLOGIES CO., LTD. English 7 Long press the pairing button on the transmitter for 5s with the eject pin until the LED indicator flashes, then the device enters the pairing mode. Tap “+” and select “Bluetooth connect”, then operate following the prompt on the APP. Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode. Available for bluetooth connection. Bluetooth Pairing Add Device Install the device 1. Tear off the protective film of the 3M adhesive. <5mm <5mm -10°C~40°C PC DW2-Wi-Fi ≤40uA ≤15mA IEEE 802.11 b 2.4GHz Android & iOS AAA
1.5V SONOFF TECHNOLOGIES CO., LTD. English 8 2. Try to align the mark line on the magnet with that on the transmitter during installation. 3. Install them in the opening and closing area separately. Make sure the installation gap is less than 5mm when the door or the window is closed. Transmitter: 70x31x19mm Magnet: 42x14x16mm DC3V (2 x 1.5V battery) Specifications Wi-Fi Model Operating systems Material Dimension Working temperature Working voltage Battery model Quiescent current Emission current Installation gap SONOFF TECHNOLOGIES CO., LTD. English 9 Product Introduction The device weight is less than 1 kg. The installation height of less than 2 m is recommended. LED indicator Align the mark lines Transmitter Magnet Pairing button Bluetooth Pairing Mode Unable to discover the router Connect to the router but fail to connect to Wi-Fi Flashes Flashes quickly once Flashes quickly twice Historical operation records Alarm push notification Battery level Share Control DW2-Wi-Fi is a Wi-Fi wireless door/window transmitter which triggers the transmitter by separating the magnet for more than 20mm from the transmitter, then the transmitter will send an alarm message and pushes it to APP. You can share the device with your family to check the door/window status together. LED indicator status instruction Features Door Window Note: ● Do not install outside the door/window. ● Do not install in the unstable position or in the place exposed to rain or moisture. ● Do not install near wiring or magnetic object. Application Replace batteries SONOFF TECHNOLOGIES CO., LTD. English 10 SONOFF TECHNOLOGIES CO., LTD. > eWeLink eWeLink Android™ & iOS 1. APP herunterladen 2-2. Batterien in das Batteriefach einlegen anhand der Kennzeichnung der Plus- und Minuspole. Betriebsanweisung 2. Batterien einbauen 2-1. Entfernen Sie die Rückwand des Senders. 2-3. Schließen Sie die Rückabdeckung. Die Batterie ist nicht im Lieferumfang enthalten, bitte kaufen Sie sie separat. 11 SONOFF TECHNOLOGIES CO., LTD. 12 3.
Kopplungsmodus eingeben 4. Gerät hinzufügen Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Scan QR code GSM devices and devices with QR co de can be added in this mode. Available for bluetooth connection. Bluetooth Pairing Add Device Drücken Sie die Kopplungstaste am Sender 5 Sekunden lang mit dem Auswurfstift, bis die LED-Anzeige blinkt, dann geht das Gerät in den Kopplungsmodu. Tippen Sie auf „+“, wählen Sie „Bluetooth verbinden“ und arbeiten Sie dann gemäß der Aufforderung auf der APP. 1. Die Schutzfolie des 3M-Klebstoffs abreißen. Installieren Sie das Gerät <5mm <5mm -10°C~40°C PC DW2-Wi-Fi ≤40uA ≤15mA IEEE 802.11 b 2.4GHz Android & iOS SONOFF TECHNOLOGIES CO., LTD. 13 2. Versuchen Sie die Markierungslinie auf dem Magneten bei der Montage mit der auf dem Sender auszurichten. 3. Installieren Sie sie im Öffnungs- und Schließbereich getrennt. Achten Sie darauf, dass der Einbauspalt bei geschlossener Tür oder geschlossenem Fenster weniger als 5 mm beträgt. Technische Daten Sender: 70x31x19mm Magnet: 42x14x16mm DC 3 V (2 x 1,5 V-Batterie) AAA 1,5 V WLAN Betriebssysteme Abmessungen Modell Materialien Arbeitstemperatur Batterie Modell Arbeitsspannung Ruhestrom Emissionsstrom Einbauspalt Sender Magnet LED-Anzeige Ausrichten der Markierungslinien Kopplungstaste Das Gerätegewicht beträgt weniger als 1 kg. Es wird eine Installationshöhe von weniger als 2 m empfohlen. Produktvorstellung SONOFF TECHNOLOGIES CO., LTD. 14 Bluetooth-Paarungsmodus Der Router konnte nicht gefunden werden Verbindung zu…

Text truncated - open the document above for the full version.

Shenzhen Sonoff Technologies Co., Ltd. Add: 1001, BLDG8, Lianhua Industrial Park, Shenzhen, GD, China Tel: 0755-27955416 Fax: 0755-27955416 Email: [email protected] Date: 2021-03-25 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Shenzhen Sonoff Technologies Co., Ltd., hereby authorize Bay Area Compliance Laboratories Corp. to act as a laboratory for testing and test report generation for the following project(s): (Product name: Wi-Fi Wireless Door/Window Sensor, FCC ID:2APN5DW2-WIFI, Model name: DW2-Wi-Fi) The chipset OPL1000 supports BT, BLE and Wi-Fi mode, but for this device, only BLE 1M and 802.11b were active, the others were disabled by software. Sincerely Yours, Client’s signature Printed Name: Jerry Shi Title: Manager

QA-FR-171-A Shenzhen Sonoff Technologies Co., Ltd. Add: 1001, BLDG8, Lianhua Industrial Park, Shenzhen, GD, China Fax: 0755-27955416 FCC Confidential Authorization Tel: 0755-27955416 Email: [email protected] Date: 2021-03-25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding ap plication for certification of FCC ID:2APN5DW2-WIFI In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Sonoff Technologies Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Jerry Shi Title: Manager

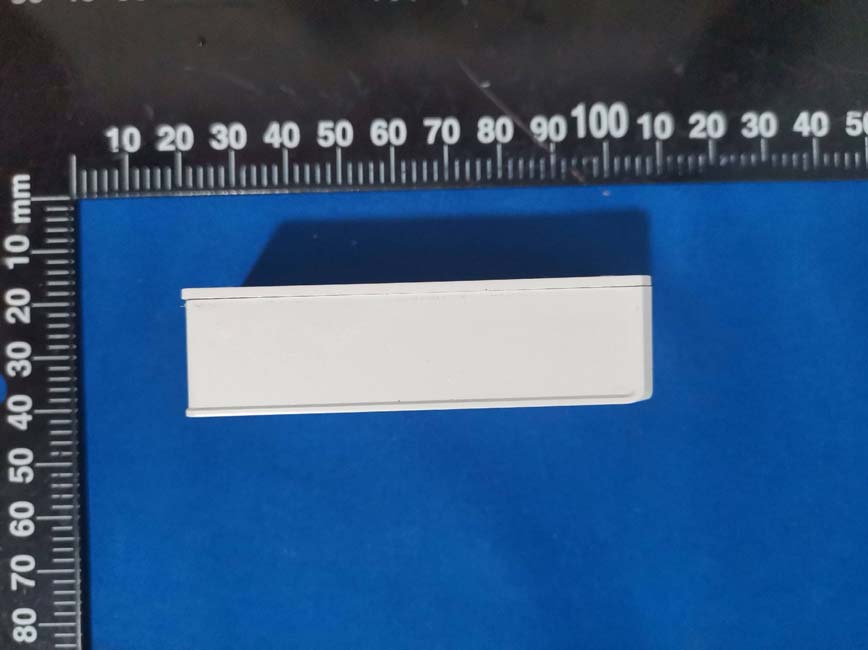

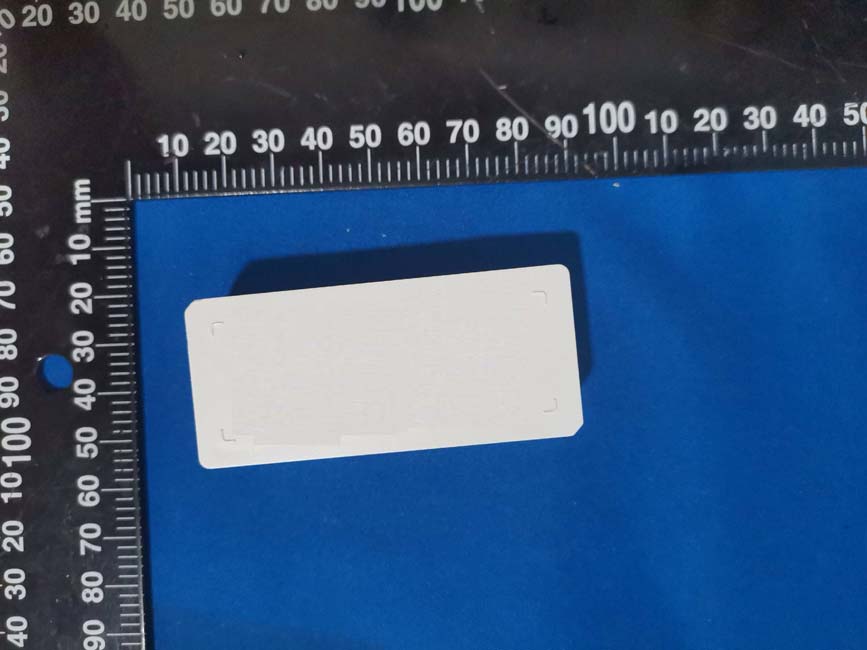

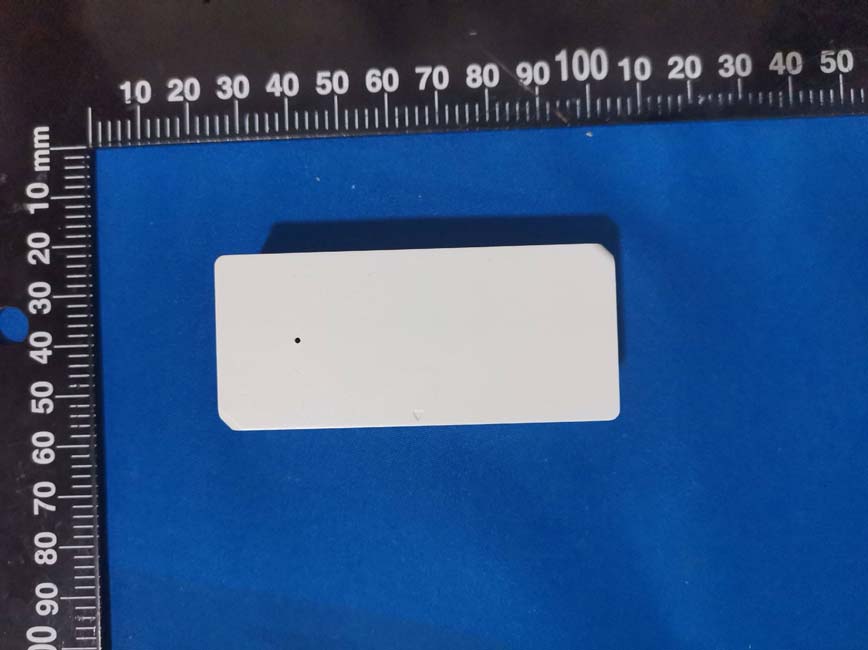

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

label

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS ANT

FCC PART 15.247 TEST REPORT For Shenzhen Sonoff Technologies Co.,Ltd. 1001, BLDG8, Lianhua Industrial Park, Shenzhen, GD, China Report Type: Original Report Product Name: Wi-Fi Wireless Door/Window Sensor Re port Number: RDG210308009-00A Report Date: 2021-04-09 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:2APN5DW2-WIFI Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG210308009-00A Page 2 of 35 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.247(a) (2)–6 dB EMISSION BANDWIDTH .............................................................................................. 21 APPLICABLE STANDARD ............................................................................................................................................ 21 TEST PROCEDURE ...................................................................................................................................................... 21 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 21 TEST DATA ................................................................................................................................................................ 21 FCC §15.247(b) (3) - MAXIMUM PEAK CONDUCTED OUTPUT POWER ...................................................... 26 APPLICABLE STANDARD ............................................................................................................................................ 26 TEST PROCEDURE ...................................................................................................................................................... 26 TEST EQUIPMENT LIST AND DET…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz front View Radiated Emission Above 1GHz View Radiated Emission Above 1GHz View
