2APN5RFBRIDGE433MHz RF Bridge

RF Bridge User Manual V1.0 433MHz RF Bridge 中 文 ---------1-6 English --------------- 7- 12 433MHz RF Bridge 2 Operating Instruction 1. Download APP 2. Power on After powering on, the device will enter the quick pairing mode ( Touch) during the first use. The Wi- Fi LED indicator changes in a cycle of two short and one long flash. eWeLink eWeLink 3 The device will exit the quick pairing mode (Touch) if not paired within 3mins. If you want to enter this mode, please long press the pairing button for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release. 3. Add Bridge Tap “+” and select “Quick Pairing”, then operate following the prompt on the APP. Add Device Quick Pairing WIFI devices can be added in this mo de(make sure the device is in pairing mode). Sc an QR c o de GSM devices and devices with QR co de can be added in this mode. So u nd Pa i ri ng Add device in this mode if your devic e support this feature. 4 4. Add Remote Tap "+" select the corresponding device type on APP, then proceed to "Conform". RF Bridge can add up to16 sub-devices. Add Remote 1-button 2-button 3-button 4-button Curtain Alarm Cancel Confirm RF Bridge No re m ote TAP here to add a Remote 5 5. Add sub-device Set the added remote controller to pairing mode: long press for 2s on "My Remote" until you hear a “Beep”, then operate the sub-device to pair with the device. Please refer to the user manual of sub-devices for pairing with sub-devices. RF Bridge My Re mote Bu t ton 1 6 Specifications Model RF Bridge Input 5V 1A RF 433.92MHz Wi-Fi IEEE 802.11 b/g/n 2.4GHz Operating systems (Android 4.1 & iOS 9.0) or higher Working temperature -10°C~40°C Material ABS Dimension 62x62x20mm Product Introduction RF LED indicator(Red) Wi-Fi LED indicator(Blue) Input Pairing button 7 LED indicator status instruction Blue LED flashes (one long and two short) Quick Pairing Mode Blue LED flashes quickly Compatible Pairing Mode (AP) Blue LED keeps on Device is connected successfully Blue LED flashes quickly once Unable to discover the router Blue LED flashes quickly twice Connect to the router but fail to connect to Wi-Fi Blue LED flashes quickly three times Upgrading Factory Reset Long press the pairing button for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release, then the reset is successful. The device enters quick pairing mode (Touch). Please reset the device to factory defaults if you want to change the Wi-Fi network, then reconnect the new network. FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. 7 8 Shenzhen Sonoff Technologies Co., Ltd. 1001, BLDG8, Lianhua Industrial Park, shenzhen, GD, China ZIP code: 518000 Website: sono ff.tech MADE IN CHINA Radiation Exposure Statement To comply with FCC RF exposure compliance requirements, this grant is applicable to only mobile configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Shenzhen Sonoff Technologies Co., Ltd. Room 1001,10F,Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District,Shenzhen, GD, China Date: June.01, 2020 FCC ID: 2APN5RFBRIDGE Model Number: RF Bridge To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Sonoff Technologies Co., Ltd. declare that this EUT (FCC ID: 2APN5RFBRIDGE) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name: Jerry Shi Title: Manager Company: Shenzhen Sonoff Technologies Co., Ltd. Address: Room 1001,10F,Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District,Shenzhen, GD, China Phone: 0755-27955416 Fax : 0755-27955416 Email: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-06-01> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2APN5RFBRIDGE RF Bridge For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Jerry Shi / Manager Company: Shenzhen Sonoff Technologies Co., Ltd. Address: Room 1001,10F,Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District,Shenzhen, GD, China Phone: 0755-27955416 Fax: 0755-27955416 E-Mail: [email protected]

Shenzhen Sonoff Technologies Co., Ltd. Room 1001,10F,Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District,Shenzhen, GD, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/01/2020 To whom it may concern: We, Shenzhen Sonoff Technologies Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2APN5RFBRIDGE including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Jerry Shi / Manager Company: Shenzhen Sonoff Technologies Co., Ltd. Address: Room 1001,10F,Building 8, Lianhua Industrial Park, Longyuan Road, Longhua District,Shenzhen, GD, China Phone: 0755-27955416 Fax: 0755-27955416 E-Mail: [email protected]

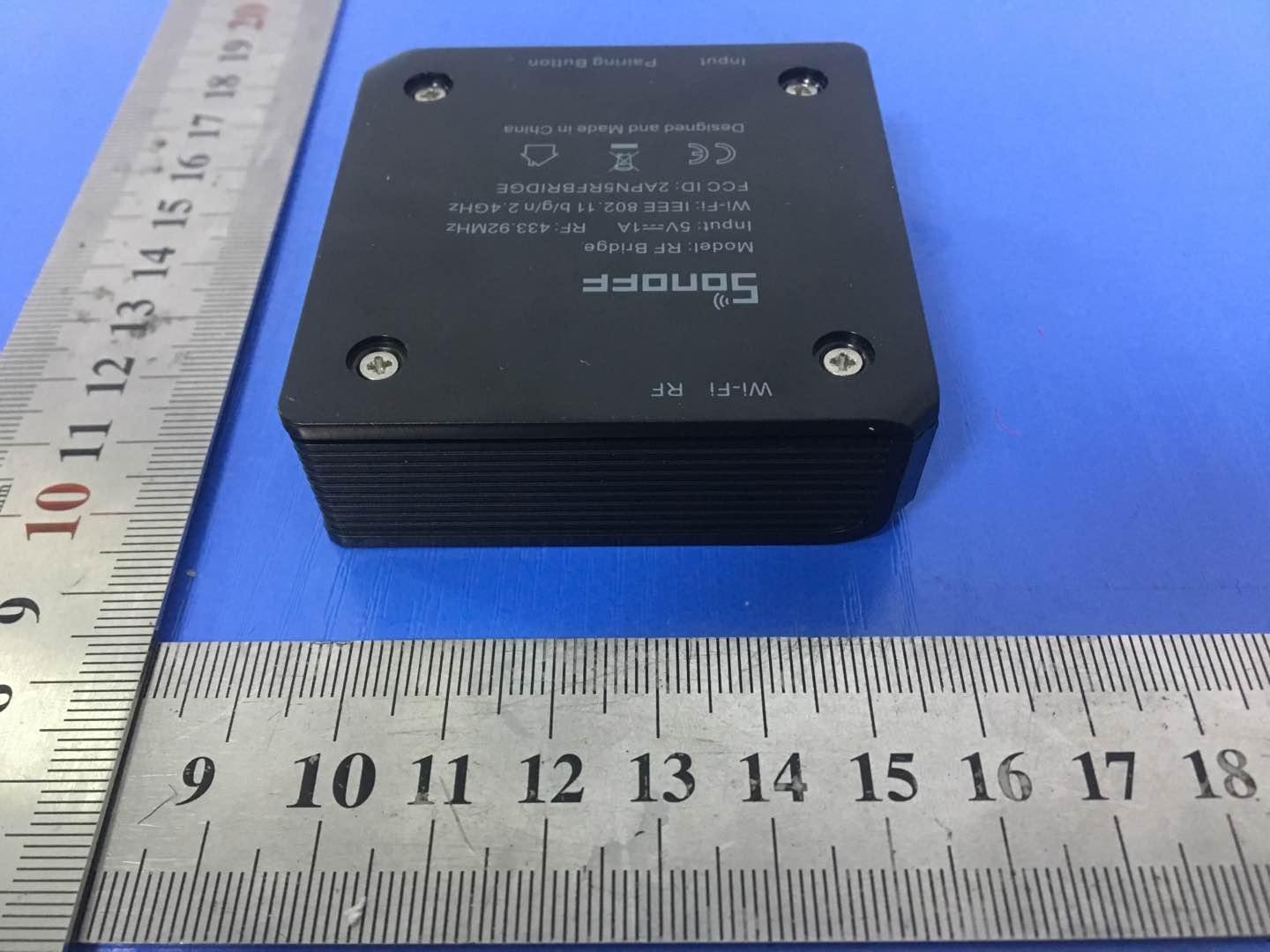

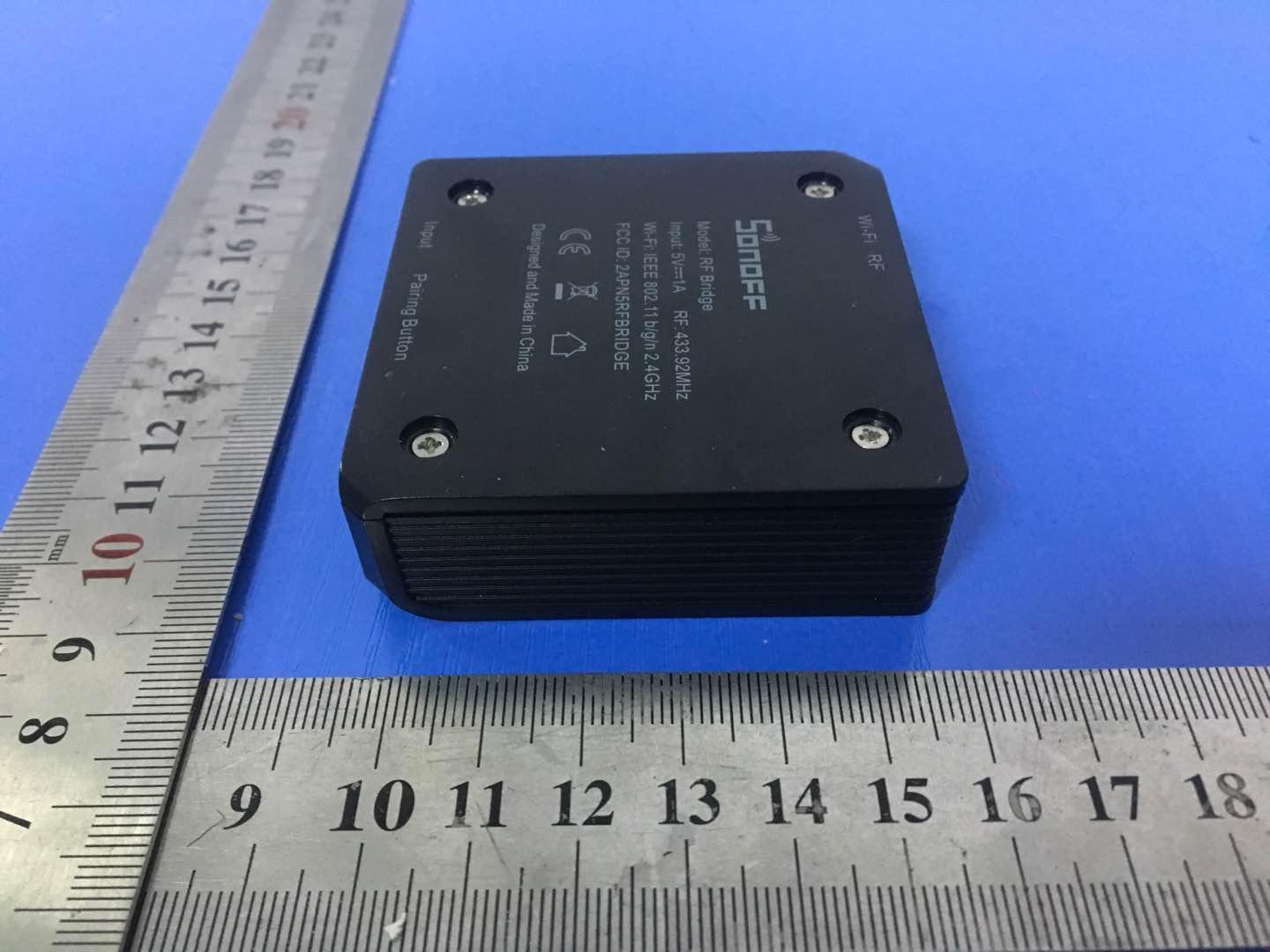

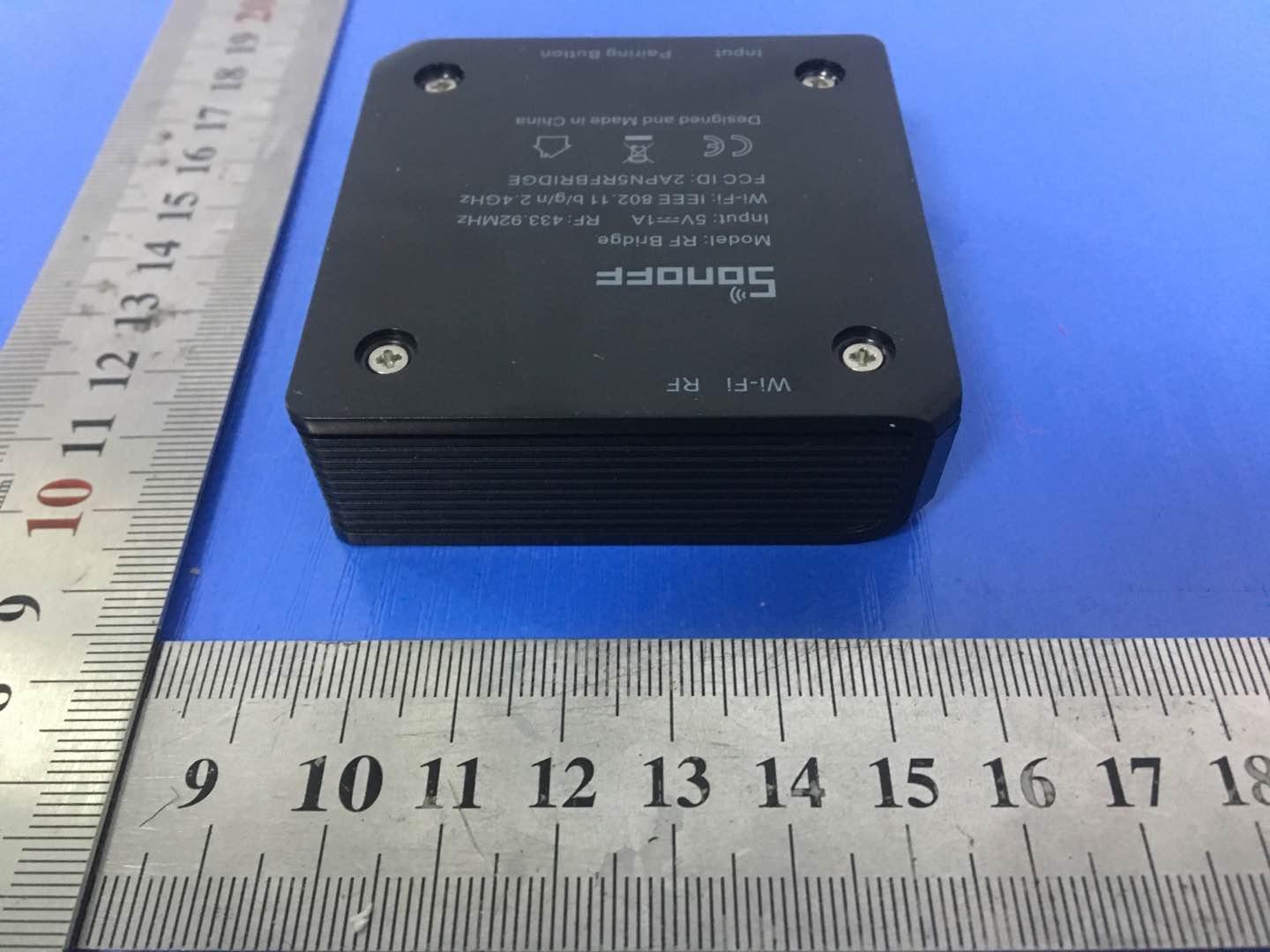

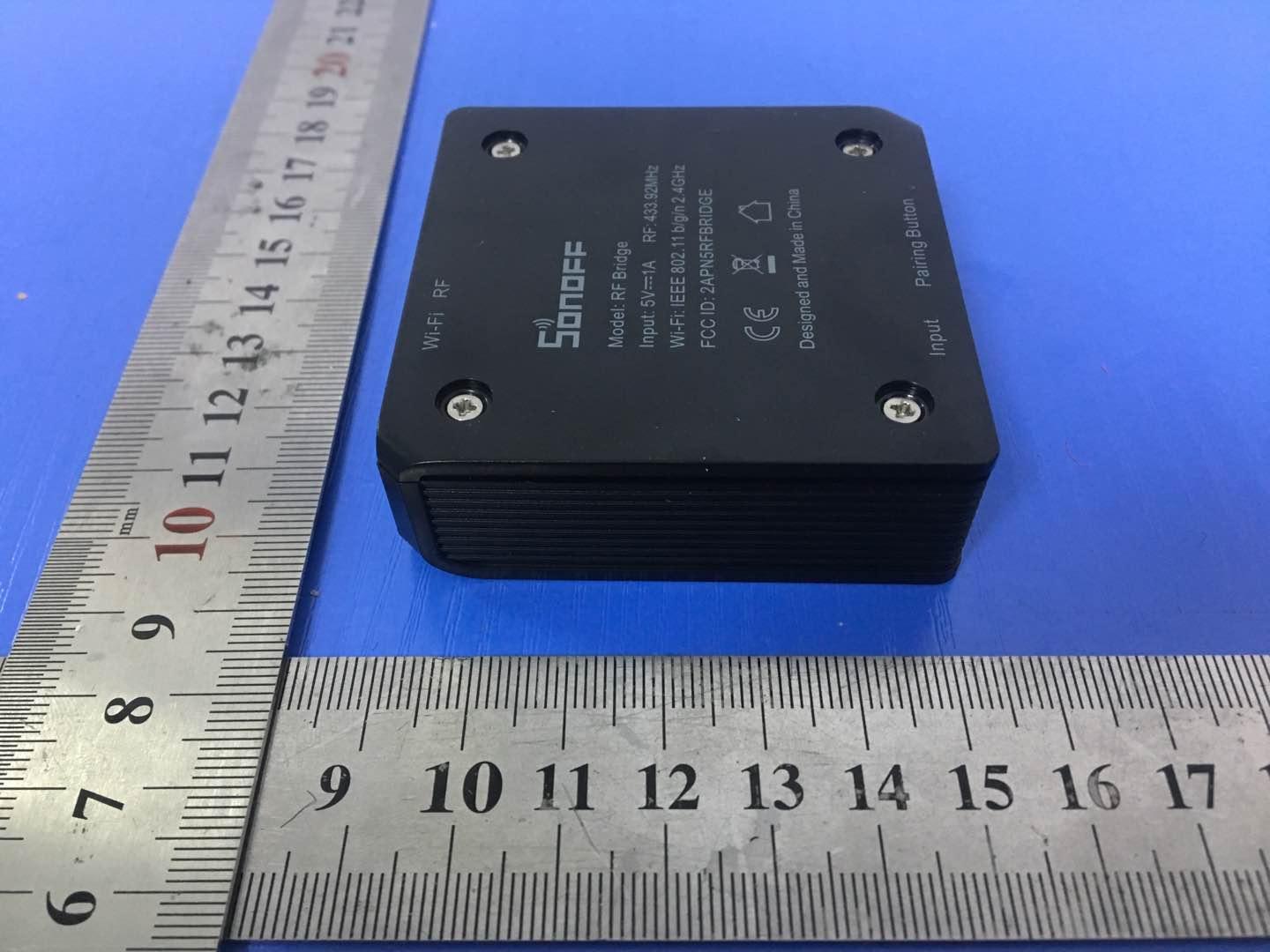

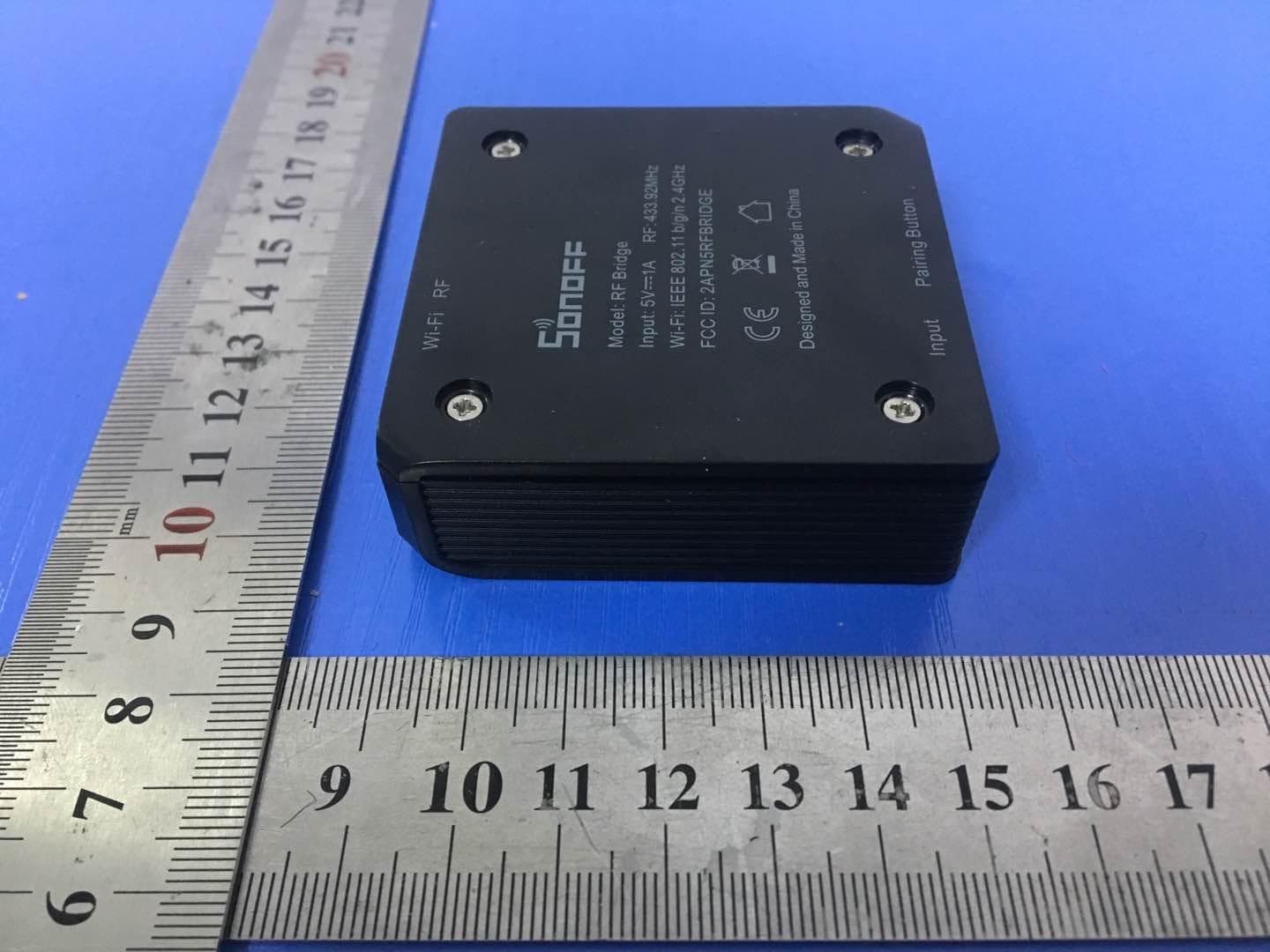

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 Internal Photos of the EUT Fig.1 Fig.2 WIFI Antenna SRD Antenna Transmit SRD Antenna Receive SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2APN5RFBRIDGE Product name 433MHz RF Bridge Test Model RF Bridge Power supply Input: 5V1A Operation frequency 2.412-2.462GHz for 2.4G WIFI 433MHz for SRD Antenna Gain PCB Antenna, 1.0dBi for 2.4G WIFI Internal Antenna, 2.0dBi(Max.) for SRD Hardware version 433RFBRIGE R2 V1.0 Software version FWRF-BG85-BRIDGE-8285-V2.7.0 Channel Number 11 channels for 20MHz bandwidth (2412~2462MHz) 1 channel for SRD Channel Spacing 5MHz for 2.4G WIFI Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information ES-D4 can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes PCB Antenna 2000 MHz – 2500 MHz 1.0 dBi WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) IEEE 802.11b 1 2412 10.98 6 2437 11.12 11 2462 11.15 IEEE 802.11g 1 2412 11.01 6 2437 11.24 11 2462 11.23 IEEE 802.11n HT20 1 2412 10.88 6 2437 10.79 11 2462 11.06 7. Measurement Results 2.4GWIFI IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 10.0 11.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 11.0 11.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 10.0 10.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APN5RFBRIDGE This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Evaluation Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Band/Mode f (GHz) RF output power Antenna Gain (dBi) Duty Cycle MPE (mW/cm2) MPE Li…
