2APN5SGCSmart Garage Door Controller

Shenzhen Sonoff Technologies Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 17, 2024
Application Purpose: Original Equipment
Date of Application: Jul 17, 2024
Equipment Note: Smart Garage Door Controller
Frequency Range: 2412.00000000 - 2462.00000000
Company: Shenzhen Sonoff Technologies Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

Shenzhen Sonoff Technologies Co.,Ltd. Covered Equipment Certification Attestation Letter 6/5/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2APN5SGC Shenzhen Sonoff Technologies Co.,Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Sonoff Technologies Co.,Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Stan Li Title: Manager Company Name: Shenzhen Sonoff Technologies Co.,Ltd. Date: 6/5/2024

Attestation Statements

Shenzhen Sonoff Technologies Co.,Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter July 10, 2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2APN5SGC Per section 2.911(d)(7) of the FCC rules, Shenzhen Sonoff Technologies Co.,Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: ITEAD,LLC Physical U.S. Company Address: 651 N Broad St, Suite 201 Middletown, DE 19709 United States Agent name: Felix Li Agent Email Address: [email protected] FRN: 0033682634 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Stan Li Printed name: Felix Li Title: Manager Title: Manager Company Name: Shenzhen Sonoff Technologies Co.,Ltd. Company Name: ITEAD,LLC Date: June 5, 2024 Date: June 5, 2024 FRN Code: 0027467786 FRN Code: 0033682634

Cover Letter(s)

Shenzhen Sonoff Technologies Co.,Ltd. Differences Declaration Date: Jun. 5, 2024 To whom concern, We company Shenzhen Sonoff Technologies Co.,Ltd. Here by declares: The product model(s) SGC300, SGC200, SGC100 (All these models are identical in the same PCB, layout, electrical circuit and material. The difference is controlling the number of channels. The SGC300 controls three channels. The SGC200 controls two channels. SGC100 controls one channel.) Sincerely yours, Signature: Name: Stan Li Company: Shenzhen Sonoff Technologies Co.,Ltd. Address: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Phone: 0755-27955416 Fax: 0755-27955416 Email: [email protected]

Cover Letter(s)

Shenzhen Sonoff Technologies Co.,Ltd. Date: Jun. 5, 2024 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__2APN5SGC____ Product Name:___Smart Garage Door Controller____ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block Diagram • Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Stan Li Company: Shenzhen Sonoff Technologies Co.,Ltd. Address: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Phone: 0755-27955416 Fax: 0755-27955416 Email: [email protected]

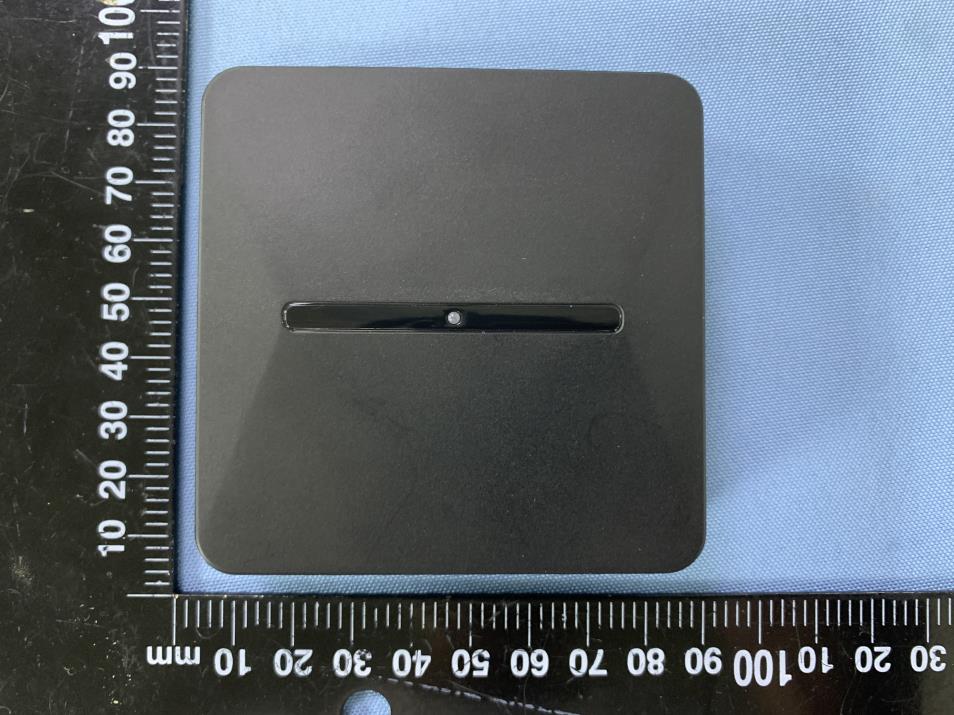

External Photos

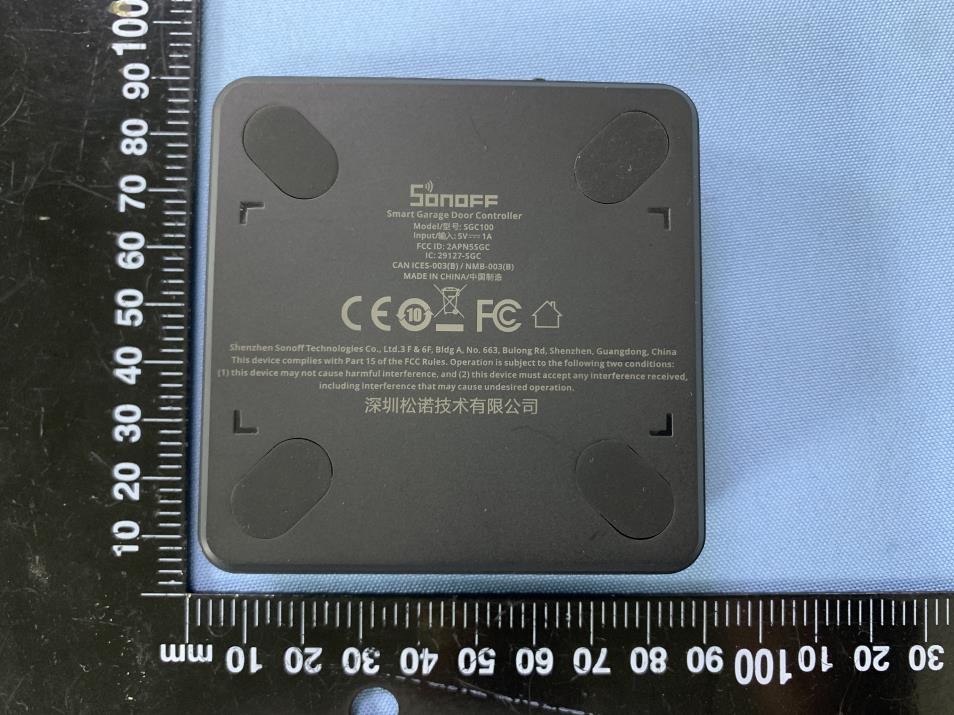

ID Label/Location Info

Internal Photos

Operational Description

ANTENNA SPECIFICATION Product description: 2.4G PCB Antenna Uni Link’s part number: ANTENNA-2400 Issue Date: 2024.02.26 Note: 2400-2500MHZ Manufacturer: Shenzhen Guandetong Electronic Co., Ltd Address: 3rd floor, Building D, South Maoyuan Industrial Park, Guanhu Street, Longhua District, Shenzhen 1、（PRODUCT TECHNICAL SPECIFICATION） Electrical Specifications Frequency Range (MHz) 2400-2500 Input Impendence (Ω) 50 V.S.W.R ≤2 Gain (dBi) 2.82 Polarization Type Vertical Power Capacity (w) 2 Mechanical Specifications Antenna Length (mm) 14mm Radiator / Connect Type / Working Temp( °C) -10~40 Storage Temperature(°C) -40~85 antenna size 14.5*5mm Weight (g) / 2、PRODUCT PICTURE 3、PRODUCT SPECIFICATION CHART 4、Image of antenna field shape test

RF Exposure Info

CTC Laboratories, Inc. (FCC Designation Number: CN1208) Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: 2APN5SGC According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b). EUT Specification Applicant Shenzhen Sonoff Technologies Co.,Ltd. Address 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Product Name: Smart Garage Door Controller Trade Mark: Sonoff Model/Type Reference: SGC300 Listed Model(s): SGC200, SGC100 Model Differences: All these models are identical in the same PCB, layout, electrical circuit. The difference is controlling the number of channels. The SGC300 controls three channels. The SGC200 controls two channels. SGC100 controls one channel. Frequency Band (Operating) BT: 2402~2480MHz WiFi: 2412-2462MHz Device Category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Exposure Classification Occupational/Controlled exposure (S=5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Diversity Single antenna Multiple antennas TX diversity RX diversity TX/RX diversity Antenna Gain (Max) 2.82dBi Evaluation Applied MPE Evaluation SAR Evaluation Page 2 of 2 Report No.: CTC2024082012 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposure 300-1500 -- -- F/300 <6 1500-100000 -- -- 5 <6 (B) Limits for General Population/Uncontrolled Exposure 300-1500 -- -- F/1500 <30 1500-100000 -- -- 1 <30 Calculation Method Friis transmission formula: Pd=(P out *G)/(4*Pi*R 2 ) Where: Pd= Power density in mW/cm 2 P out = output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd limit of MPE is 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Mode Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Tune Up Tolerance (dB) Max. Tune Up Power (dBm) Power Density at 20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result BT 2480 2.82 1.81 ±1 3.00 0.0008 1 Pass 802.11n(HT20) 2462 2.82 21.17 ±1 22.00 0.0604 1 Pass The BT and WiFi can transmit simultaneously. Mode Frequency (MHz) Antenna Gain (dBi) Power Density at 20cm (mW/cm 2 ) Total Power density at 20cm (mW/cm2 ) Limit (mW/cm 2 ) Result BT 2480 2.82 0.0008 0.0612 1 Pass 802.11n(HT20) 2462 2.82 0.0604 Note: 1. Calculate in the worst-case mode. 2. Max. Tune Up Power is declared by manufacturer, and used to calculate. 3. For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

Test Report

CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn TEST REPORT Report No. .................................... : CTC2024082010 FCC ID ........................................... : 2APN5SGC IC ................................................... : 29127-SGC Applicant ...................................... : Shenzhen Sonoff Technologies Co.,Ltd. Address .......................................... : 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Manufacturer..................................: Shenzhen Sonoff Technologies Co.,Ltd. Address..........................................: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Product Name .............................. : Smart Garage Door Controller Trade Mark .................................... : , Sonoff Model/Type reference .................... : SGC300 Listed Model(s) .............................. : SGC200, SGC100 Standard ....................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 RSS-247 Issue 3 Date of receipt of test sample........: Apr. 15, 2024 Date of testing..............................: Apr. 15, 2024 to May 30, 2024 Date of issue................................: Jul. 10, 2024 Result............................................: PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Eric Zhang Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The Test Result in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely corresponds to the test sample. Page 2 of 40 Report No.: CTC2024082010 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION ......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 3 1.4. TEST FACILITY .............................................................................................................................................................. 4 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 2. GENERAL INFORMATION .......................................................................................................................................... 6 2.1. CLIENT INFORMATION ................................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 7 2.4. OPERATION STATE ........................................................................................................................................................ 8 2.5. MEASUREMENT INSTRUMENTS LIST ................................................................................................................................. 9 3. TEST ITEM AND RESULTS ........................................................................................................................................ 11 3.1. CONDUCTED EMISSION................................................................................................................................................ 11 3.2. RADIATED EMISSION ................................................................................................................................................... 14 3.3. BAND EDGE EMISSIONS (RADIATED) .............................................................................................................................. 22 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ...................................................................................................... 27 3.5. DTS BANDWIDTH ....................................................................................................................................................... 32 3.6. PEAK OUTPUT POWER ...................................................…

Text truncated - open the document above for the full version.

Test Report

CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn TEST REPORT Report No. .................................... : CTC2024082011 FCC ID ........................................... : 2APN5SGC IC ................................................... : 29127-SGC Applicant ...................................... : Shenzhen Sonoff Technologies Co.,Ltd. Address .......................................... : 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Manufacturer..................................: Shenzhen Sonoff Technologies Co.,Ltd. Address..........................................: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Product Name .............................. : Smart Garage Door Controller Trade Mark .................................... : , Sonoff Model/Type reference .................... : SGC300 Listed Model(s) .............................. : SGC200, SGC100 Standard ....................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 RSS-247 Issue 3 Date of receipt of test sample........: Apr. 15, 2024 Date of testing..............................: Apr. 15, 2024 to May 30, 2024 Date of issue................................: Jul. 10, 2024 Result............................................: PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Eric Zhang Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The Test Result in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely corresponds to the test sample. Page 2 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION ......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 3 1.4. TEST FACILITY .............................................................................................................................................................. 4 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 2. GENERAL INFORMATION .......................................................................................................................................... 6 2.1. CLIENT INFORMATION ................................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 7 2.4. OPERATION STATE ........................................................................................................................................................ 8 2.5. MEASUREMENT INSTRUMENTS LIST ............................................................................................................................... 10 3. TEST ITEM AND RESULTS ........................................................................................................................................ 12 3.1. CONDUCTED EMISSION................................................................................................................................................ 12 3.2. RADIATED EMISSION ................................................................................................................................................... 15 3.3. BAND EDGE EMISSIONS (RADIATED) .............................................................................................................................. 32 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ...................................................................................................... 49 3.5. DTS BANDWIDTH ....................................................................................................................................................... 66 3.6. PEAK OUTPUT POWER ....................................................…

Text truncated - open the document above for the full version.

Test Report

Page 63 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Conducted Band Edge Test Mode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.91 -46.53 ≤-15.09 PASS High 2462 5.23 -53.53 ≤-14.77 PASS 11G Ant1 Low 2412 -0.56 -31.26 ≤-20.56 PASS High 2462 -0.22 -43.76 ≤-20.22 PASS 11N20SISO Ant1 Low 2412 -0.38 -33.98 ≤-20.38 PASS High 2462 0.09 -40.27 ≤-19.91 PASS 11N40SISO Ant1 Low 2422 -3.02 -36.18 ≤-23.02 PASS High 2452 -3.24 -35.36 ≤-23.24 PASS Test Graphs: 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 Page 64 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Page 65 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Page 66 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 3.5. DTS Bandwidth Limit FCC CFR Title 47 Part 15 Subpart C Section 15.247 (a)(2) / RSS-247 5.2 a Test Item Limit Frequency Range (MHz) DTS Bandwidth ≥500 kHz (6dB bandwidth) 2400~2483.5 Test Configuration Test Procedure 1. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 2. DTS Spectrum Setting: (1) Set RBW = 100 kHz. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. OCB Spectrum Setting: (1) Set RBW = 1% ~ 5% occupied bandwidth. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. NOTE: The EUT was set to continuously transmitting in each mode and low, Middle and high channel for the test. Test Mode Please refer to the clause 2.4. Page 67 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Test Result Test Mode Antenna Channel OCB [MHz] DTS BW [MHz] Limit[MHz] Verdict 11B Ant1 2412 13.048 9.080 0.5 PASS 2437 13.042 8.840 0.5 PASS 2462 13.074 9.960 0.5 PASS 11G Ant1 2412 16.753 16.520 0.5 PASS 2437 16.806 16.520 0.5 PASS 2462 16.801 16.480 0.5 PASS 11N20SISO Ant1 2412 17.610 17.560 0.5 PASS 2437 17.615 17.560 0.5 PASS 2462 17.632 17.600 0.5 PASS 11N40SISO Ant1 2422 35.314 34.400 0.5 PASS 2437 35.345 34.480 0.5 PASS 2452 35.309 34.480 0.5 PASS Page 68 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn Occupied Bandwidth: 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Page 69 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Page 70 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Page 71 of 90 Report No.: CTC2024082011 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : http://yz.cnca.cn 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Page 72 of 90 Report No.:…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Stan Li(Manager)

[email protected]0755-29610458Fax: 0755-27955416

Test Firm

CTC Laboratories, Inc.Totti Zhao

[email protected]+8675527521059

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	130.90 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This device has a 20 MHz and 40 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter , except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
