2APN5SNZB01PZigbee Wireless Switch

·中 文 ----------1 - 7· English ----------8 - 12· Warning ----------13 - 16 SNZB-01P Zigbee Wireless Switch 产品介绍 设备重量＜1Kg，该设备只适合安装在≤2m 的高度。 1 信号指示灯 配网按键 开关按键 信号指示灯状态说明 慢闪 常亮3s后常灭 退出慢闪，常灭 快闪一下 快闪一下 快闪两下 配对状态 配对成功 配网失败 触发上报“单击””“ 双击”“ 长按” （入Zigbee网后，才有此指示） 未添加至网关，短按配网按键 已添加至网关，短按配网按键 指示灯状态状态说明 功能特点 一款小巧甚至能装在口袋里的无线按键，只需预设单击、双击、长按对应的执行操作，即可控制多 种设备。安装在任何你想要的地方，即贴即用。还能和其他智能设备联动，构建你自动化的家。 下载易微联App并添加SONOFF Zigbee网关 以上功能特点取决于Zigbee网关的功能 2 智能场景 低电量推送多种按键动作触发 可更换电池 设备通电 1、 拔出电池绝缘片完成设备通电。 2、 设备后通电后首次使用，默认进入配网状态，设备指示灯呈“慢闪状态”。 1、 3分钟内没进行和网关配对，设备将退出配网状态；如需再次配网，请长按设备配网按键5秒直 到设备指示灯呈“慢闪状态”即可； 2、 如设备为不带电池版本，请安装电池（CR2477）给设备通电。 3 5s 有效距离验证 将设备添加至Zigbee网关 在选定的设备安装位置，短按设备的配网按键，设备指示灯双闪，表明该设备和Zigbee网络下的设 备（路由设备或网关）处于有效通讯距离。 在eWeLink App Zigbee网关主界面，点击 "添加" 子设备，等待添加。 如添加失败，请将设备移近网关后再重新添加。 4 ZB Bridge 已添加设备:0 暂无子设备，请 添加 添加 添加设备 正在连接 请让设备尽量靠近网关 135s 找到设备 1个 设备 已找到 > 设备安装 安装好铁片，再把设备磁吸到铁片上。 产品参数 产品型号 输入 无线连接 电池型号 工作温度 工作湿度 产品颜色 外壳材料 产品规格 SNZB-01P Zigbee3.0 CR2477 -10°C-60°C 5%-95%RH,无冷凝 白色 PC 45x45x17.7mm 5 3M adhesive tape Metal plate 12 3 3.0V 6 在 eWeLink App 端“删除设备”，设备即恢复出厂设置。 恢复出厂设置 微功率设备使用说明 1、 本产品使用的 Zigbee 技术符合“微功率短距离无线电发射设备目录和技术要求” 中通用微功 率设备F类设备的技术要求，用于数据传输应用。采用一体化天线，控制、调整及开关等使用方法请 参考产品说明书中相关内容； 2、不得擅自改变使用场景或使用条件、扩大发射频率范围、加大发射功率（包括额外加装射频功率 放大器），不得擅自更改发射天线； 3、 不得对其他合法的无线电台（站）产生有害干扰，也不得提出免受有害干扰保护； 4、 应当承受辐射射频能量的工业、科学及医疗（ISM）应用设备的干扰或其他合法的无线电台（站） 干扰； 5、 如对其他合法的无线电台（站）产生有害干扰时，应立即停止使用，并采取措施消除干扰后方可 继续使用； 6、 在航空器内和依据法律法规、国家有关规定、标准划设的射电天文台、气象雷达站、卫星地球站 （含测控、测距、接收、导航站）等军民用无线电台（站）、机场等的电磁环境保护区域内使用微功率 设备，应当遵守电磁环境保护及相关行业主管部门的规定； 7、 禁止在以机场跑道中心点为圆心、半径5000米的区域内使用各类模型遥控器； 8、 微功率设备使用温度为-10°C-60°C，供电为3VDC 注意： ① 本产品含纽扣电池 ② 不要吞咽电池，否则会有化学灼伤危险 ③ 本产品包含纽扣电池。如果吞食纽扣电池，在2小时内就可能导致严重的内部灼伤并可能导致 死亡。 执行标准：GB 4943.1-2022 产品中有害物质的名称及含量 部件名称 塑料件 本表格依据SJ/T 11364 的规定编制： o：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下； x：表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 oooooo xooooo oooooo oooooo 电子元器件 包装盒 铅 (Pb) 汞 (Hg) 镉 (Cd) 六价铭 (Cr｛VI｝ 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 有害物质 PCB板 ④ 让儿童远离新的和使用过的电池 ⑤ 如果电池仓未安全闭合，停止使用该产品并使之远离儿童 ⑥ 如果你认为电池可能已被吞食或放置在身体的任何部位内，立即寻求医疗救助 ⑦ 如果使用错误型号的电池替换会有着火或者爆炸等安全失效的危险 ⑧ 将电池投入火中或者加热炉中，或对电池进行机械挤压或切割处理可能导致爆炸 ⑨ 电池放置在极高温度环境中，可能导致爆炸或泄漏可燃液体或气体 ⑩ 电池放置在极低气压，可能导致爆炸或泄漏可燃液体或气体 7 English Product introduction 8 Instruction of LED indicator status The device weight is less than 1kg, and The equipment is only suitable for mounting at heights ≤ 2 m LED indicator Pairing button ON/OFF button Flash slowly Keep on for 3s and then keep off Exit flashing slowly and keep off Flash once quickly Flash once quickly Flash twice quickly Pairing mode Paired successfully Pairing failed Click, Double click, Long press ( After accessing Zigbee network ) Not added to the gateway, short press the Pairing button Added to the gateway, short press the Pairing button LED indicator statusStatus instruction English Features 9 A small wireless button that can even fit in your pocket, with preset actions for click, double-click, and long-press to control multiple devices. Install it anywhere you want, stick and use it immediately. It can also be used in smart scenes with other smart devices to build your automated home. The above features depend on the function of Zigbee gateway. Smart Scene Low Battery NotificationMultiple Button Actions to Trigger Download the eWeLink APP & Add SONOFF Zigbee gateway. Replaceable Battery English 10 Power on the device 1Take out the battery insulation sheet to power on the device. 2After powering on the device for the first time, it will enter the pairing mode by default and the LED indicator "flashes slowly". 1The device will exit the pairing mode when it doesn't be paired to Zigbee gateway successfully within 3mins. If you want to access the pairing mode again, press and hold the device pairing button for 5s until the LED indicator "flashes slowly". 2If the device is the No battery version, please install the battery (CR2450) to power on the device. 5s English 11 Effective Communication Distance Verification Add the device to Zigbee Bridge Install the device in the desired place, then press the Pairing button on the device. The LED indicator flashes twice mean the device and the device under the same Zigbee network (the router device or hub) are in the effective communication distance. On the Zigbee gateway main page of the eWeLink App, click "Add" sub-devices and wait for the addition process to complete. If the device is failed to be added, please move the device closer to the Bridge and add it again. > ZB Bridge Added:0 No child device,please add. Add Connecting Keep the device close enough to the hub. Add Device 1 device Found Looking for device 135s English 12 Installation Fix the metal plate in a desired location, and then magnetically attach the device to the plate. Specifications Model Input Wireless connection Battery model Working temperature Working humidity Color Casing material Dimension SNZB-01P Zigbee3.0 CR2477 -10-60 5%-95% RH, non-condensing White PC 45x45x17.7mm 3M adhesive tape Metal plate 12 3 3.0V Warning FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to rad…

Text truncated - open the document above for the full version.

ShenzhenSonoffTechnologiesCo.,Ltd. * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 6/19/2023 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2APN5SNZB01P Persection2.911(d)(7)oftheFCCrules,ShenzhenSonoffTechnologiesCo.,Ltd.(“the applicant”)certifiesthattheequipmentforwhichauthorizationissoughtisdesignatedtothe followingU.S.agent*forserviceofprocess: FederalRegistrationNumber(FRN):0033682634 CompanyName:ITEAD,LLC PhysicalU.S.CompanyAddress:651NBroadSt,Suite201Middletown,DE19709United States Agentname:FelixLi AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferenttoApplicant): Signed:Signed: Printedname:FreddieDuanPrintedname:FelixLi Title:ManagerTitle:Manager CompanyName:ShenzhenSonoffTechnologiesCo.,Ltd.CompanyName:ITEAD,LLC Date:6/19/2023Date:6/19/2023

ShenzhenSonoffTechnologiesCo.,Ltd. CoveredEquipmentCertificationAttestationLetter 6/19/2023 NemkoNorthAmerica,Inc. 303RiverRoad Ottawa K1V1H2 Canada ATTN.:ReviewingEngineer FCCID:2APN5SNZB01P ShenzhenSonoffTechnologiesCo.,Ltd.(“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. ShenzhenSonoffTechnologiesCo.,Ltd.(“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasanentity producing“covered”equipment. Signed: Printedname:FreddieDuan Title:Manager CompanyName:ShenzhenSonoffTechnologiesCo.,Ltd. Date:6/19/2023

ShenzhenSonoffTechnologiesCo.,Ltd. Date:Jun.19,2023 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:__2APN5SNZB01P____ ProductName:___ZigbeeWirelessSwitch____ RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics BlockDiagram OperationDescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. Signature: Name:FreddieDuan Company:ShenzhenSonoffTechnologiesCo.,Ltd. Address:3F&6F,BldgA,No.663,BulongRd,Shenzhen,Guangdong,China Phone:0755-29610458 Fax:0755-27955416 Email:[email protected]

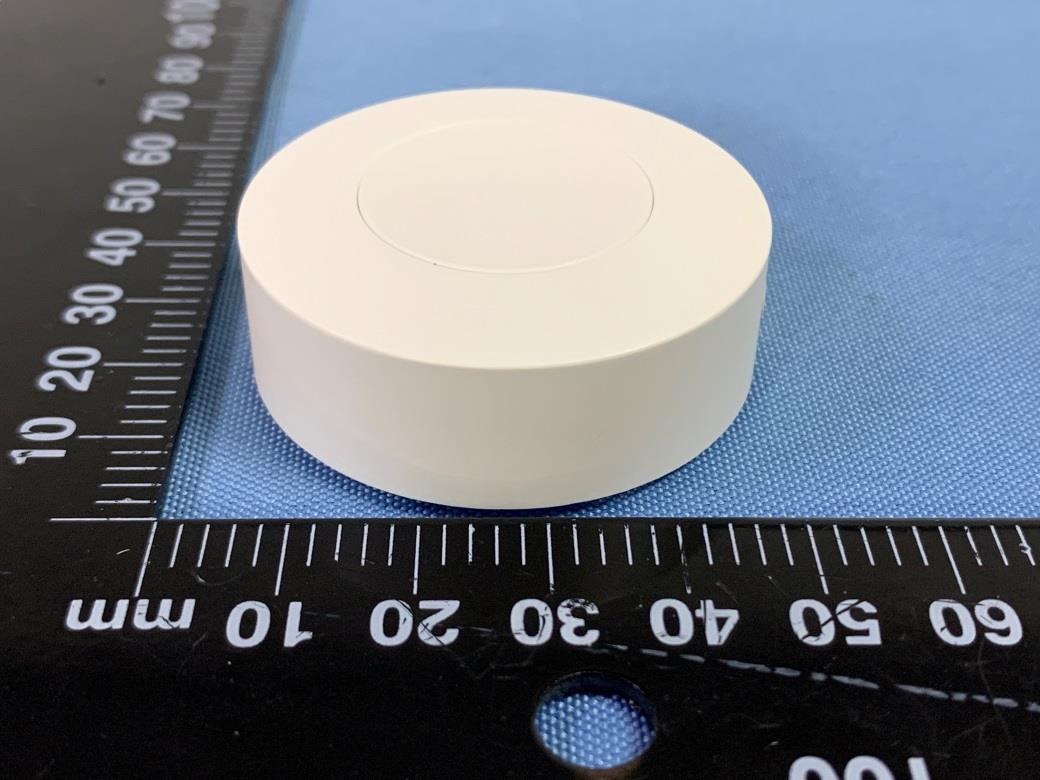

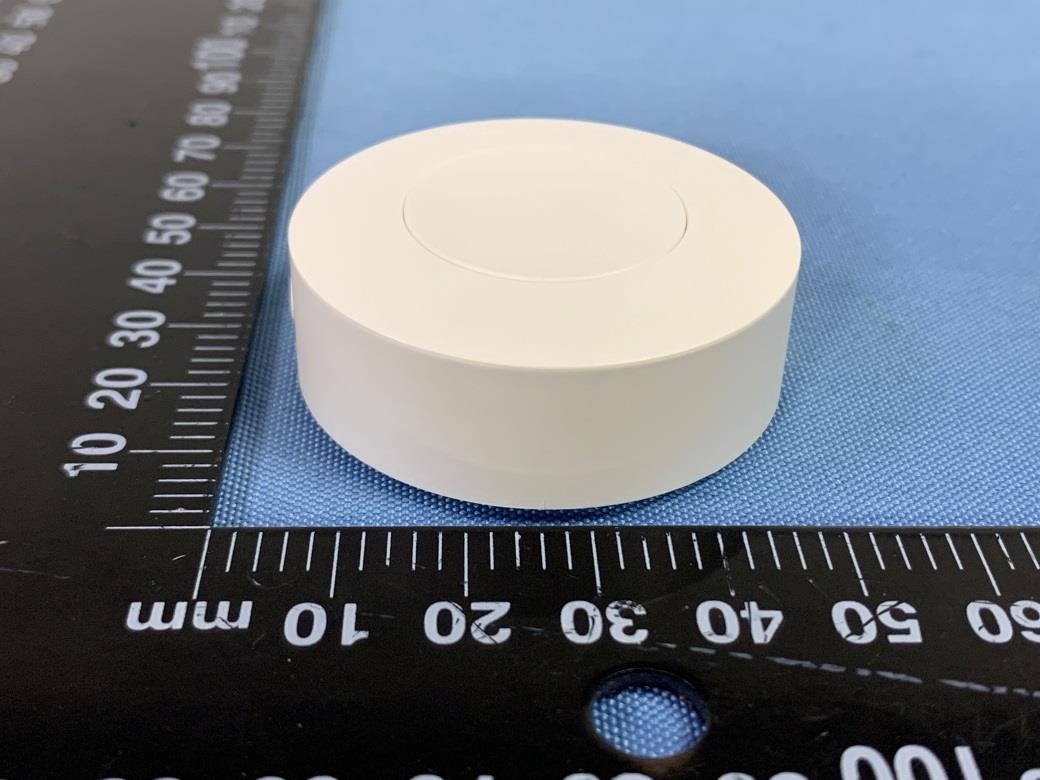

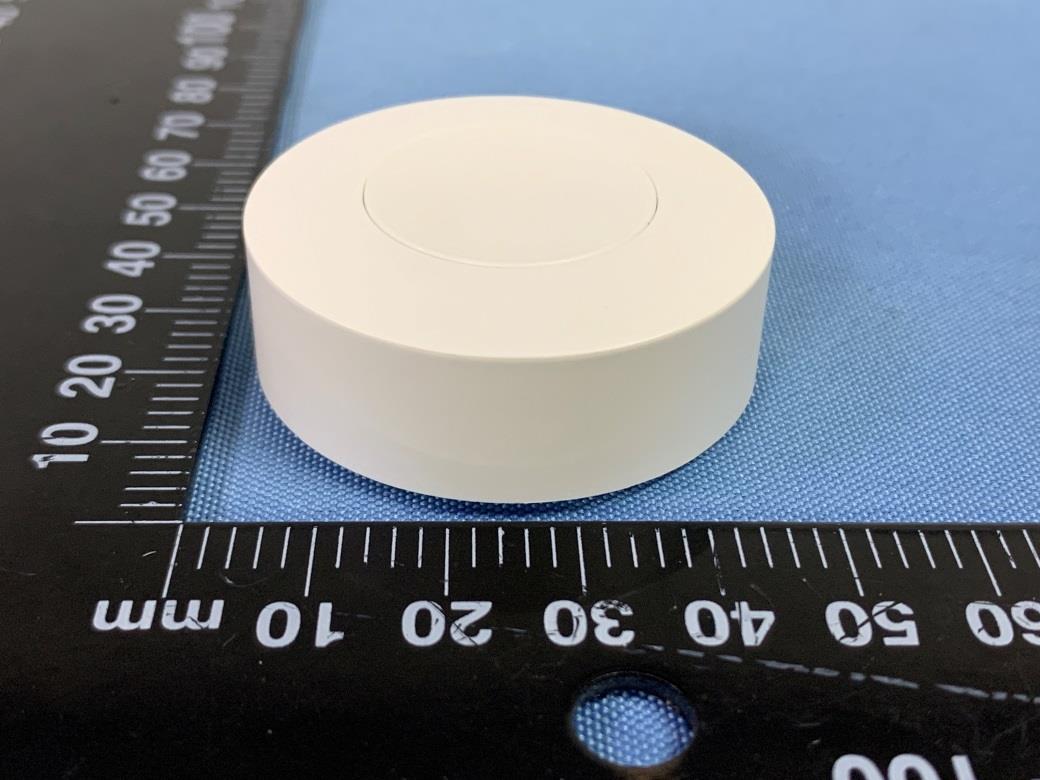

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 3 External Photos Page 2 of 3 Page 3 of 3

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 3 Internal Photos Page 2 of 3 Page 3 of 3 Antenna

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: 2APN5SNZB01P According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) EUT Specification Product Name: Zigbee Wireless Switch Trade Mark: Sonoff Model/Type reference: SNZB-01P Listed Model(s): / Frequency band (Operating) Zigbee: 2.405GHz ~ 2.480GHz Device category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S=5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antenna TX diversity RX diversity TX/RX diversity Antenna gain (Max) 2.07dBi Evaluation applied MPE Evaluation SAR Evaluation Page 2 of 2 Report No.: CTC20231245E05 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout= output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Zigbee - Worst case Type Frequency (MHz) Max. Measured Power (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/cm 2 ) Power density Limit (mW/cm 2 ) OQPSK 2405 3.436 4.00 2.07 0.0008 1 Note: 1. Calculate by Worst-case mode. 2. Max. Tune Up Power by Manufacturer's Declaration, and Max. Tune Up Power is used to calculate. 3. For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. $CNAS$ 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20231245E04 FCC ID.................................: 2APN5SNZB01P IC........................................: 29127-SNZB01P Applicant····························: Shenzhen Sonoff Technologies Co.,Ltd. Address·······························: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Manufacturer························: Shenzhen Sonoff Technologies Co.,Ltd. Address·······························: 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Product Name······················: Zigbee Wireless Switch Trade Mark···························: Sonoff Model/Type reference·············: SNZB-01P Listed Model(s) ·····················: / Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 RSS-247 Issue 2 Date of receipt of test sample...: May 30, 2023 Date of testing.......................: May 30, 2023 to Jun. 19, 2023 Date of issue.........................: Jun. 19, 2023 Result.................................: PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Eric Zhang Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 38 Report No.: CTC20231245E04 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ..........................................................................................................................................................3 1.1. TEST STANDARDS .............................................................................................................................................................3 1.2. REPORT VERSION ............................................................................................................................................................3 1.3. TEST DESCRIPTION ...........................................................................................................................................................3 1.4. TEST FACILITY .................................................................................................................................................................4 1.5. MEASUREMENT UNCERTAINTY ...........................................................................................................................................4 1.6. ENVIRONMENTAL CONDITIONS ...........................................................................................................................................5 2. GENERAL INFORMATION .............................................................................................................................................6 2.1. CLIENT INFORMATION ......................................................................................................................................................6 2.2. GENERAL DESCRIPTION OF EUT .........................................................................................................................................6 2.3. ACCESSORY EQUIPMENT INFORMATION ...............................................................................................................................7 2.4. OPERATION STATE ...........................................................................................................................................................8 2.5. MEASUREMENT INSTRUMENTS LIST ....................................................................................................................................9 3. TEST ITEM AND RESULTS ........................................................................................................................................... 11 3.1. CONDUCTED EMISSION ...................................................................................................................................................11 3.2. RADIATED EMISSION ......................................................................................................................................................13 3.3. BAND EDGE EMISSIONS (RADIATED) .................................................................................................................................21 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) .........................................................................................................26 3.5. DTS BANDWIDTH ..........................................................................................................................................................30 3.6. PEAK OUTPUT POWER ...................................................................................................................................................33 3.7. POWER SPECTRAL DENSITY ...................................................................................…

Text truncated - open the document above for the full version.

Antenna Specification 1. Antenna Describe Antenna Manufacturer Shenzhen Sonoff Technologies Co.,Ltd. Antenna Address 3F & 6F, Bldg A, No. 663, Bulong Rd, Shenzhen, Guangdong, China Antenna Model ANTENNA-2400-2500A Antenna Type PCB Antenna Antenna Gain 2.07dBi Max Frequency Rang 2400-2500MHz VSWR ≤1.5 Input Impedance 50Ω 2. External View Drawing Unit: mm 3. Measurement Result 3.1 Test Setup 3.2 S11 Diagram 3.3 Antenna test data Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 0.85 31.6 2410 1.04 32.1 2420 1.53 34.3 2430 2.07 38.1 2440 1.79 36.7 2450 1.79 37.9 2460 1.85 40.1 2470 1.75 41.5 2480 1.37 41.6 2490 1.21 40.2 2500 1.36 41.9 3.4 Antenna test diagram 3D Diagram 2400MHz 2450MHz 2500MHz

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn Page 1 of 1 Radiated Measurement 30-1000MHz Above 1GHz
