2APN9JC-SE-R-001Film core drum

User Manual for Film core drum 1. Introduction Model: JC-SE-R-001 FCC ID:2APN9JC-SE-R-001 This system is a unit that acquires the type of wrapping paper. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. -Model: JC-SE-R-001 -This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -Takazono America Address: 3555 Voyager St. Suite 102 Torrance, CA 90503 U.S.A. Phone : +1-310-542-8850 2. System Description This system equipped with an RFID reader / writer and determines the type of packaging paper based on the contents of the set “RFID tag” (mounted on “film core). The type of “RFID tag” corresponds to the international standard ISO15693, and the conformity tags are YTBP01-129 (by YRSC). The packaging paper wrapped around the film core is packaged at the sealing temperature according to the type of “RFID tag”. For the “Power supply”, DC5V are required. It operates by sending a command form the “Host device” via RS232C. 3. Connection ・”Power and Communication connector” ・・・（HIROSE：DF-11-4DS-2C） 1pin:TOUT、2pin:GND、3pin:RIN、4pin:5V ＊1：Each GND is not connected, so connect it to the ”Power Supply” side. (JC-SE-R-001) RFID Reader /Writer Film core RFID tag RS232C Transceiver Power Supply Host device RS232C Power and Communication connector TOUT/RIN 5V Host device RS232C (JC-SE-R-001) TOUT RIN RS232C Transceiver RxD TxD Power Supply 5V DC 5V (UART TX) (UART RX) RFID Reader/Writer GND 5V GND GND ＊1 ＊1 4. Operating ・Supply to “Power and Communication connector” DC5V. ・Send the following commands from the “Host device”. 5. Command List The behavior is determined by a state machine capable to perform a certain set of commands. By writing a command-code to the command register the command is executed. Arguments and/or data necessary to process a command, are exchanged via the FIFO buffer. ・Each command that needs a certain number of arguments will start processing only when it has received the correct number of arguments via the FIFO buffer. ・The FIFO buffer is not cleared automatically at command start. It is recommended to command afterwards. ・Each command may be stopped by the host by writing a new command code into the command register e.g.: the Idle-Command. ・Command set Command No. Parameter Short description Idle 00h - no action, cancels current command execution LPCD 01h - low-power card detection AckReq 04h - performs a query, an Ack and a Req-Rn for ISO/IEC 18000-3 mode 3/ EPC Class-1 HF Receive 05h - activates the receive circuit Transmit 06h bytes to send: byte1, byte2,.... transmit data from the FIFO buffer Transceive 07h bytes to send: byte1, byte2,.... transmits data form the FIFO buffer and automatically activates the receiver after transmission finished WriteE2 08h address H, address L, data; gets one byte form FIFO buffer and writes it to the internal EEPROM WriteE2Page 09h (page Address), data0, [data1 ..data63]; gets up to 64 bytes (one EEPROM page) form the FIFO buffer and writes it to the EEPROM ReadE2 0Ah address H, address L, length; Reads data from the EEPROM and copies it into the FIFO buffer LoadReg 0Ch (EEPROM address H), (EEPROM address L), RegAdr, (number of Re gister to be copied); reads data from the internal EEPROM and initializes the SLRC610 registers. EEPROM address needs to be within EEPROM sector 2 LoadProtocol 0Dh (Protocol number RX), (Protocol Number TX); reads data from the internal EEPROM and initializes the SLRC610 registers needed for a Protocol change ReadPNR 1Ch - copies bytes form the Random Number generator into the FIFO until the FIFO is full Soft Reset 1Fh - reset the SLRC610 This film core drum reader/writer uses SLRC61003HN. Refer to the SLRC61003HN data sheet for more details.

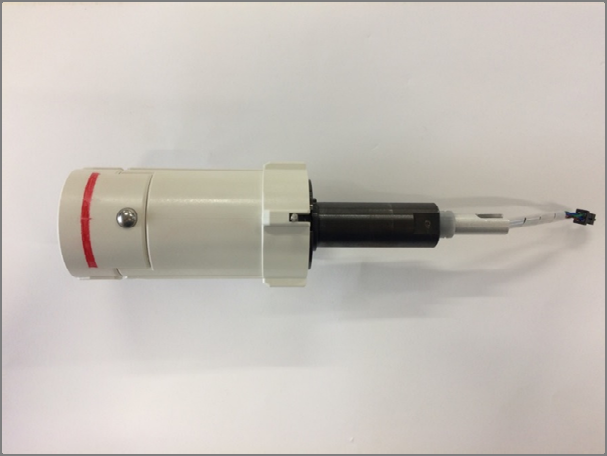

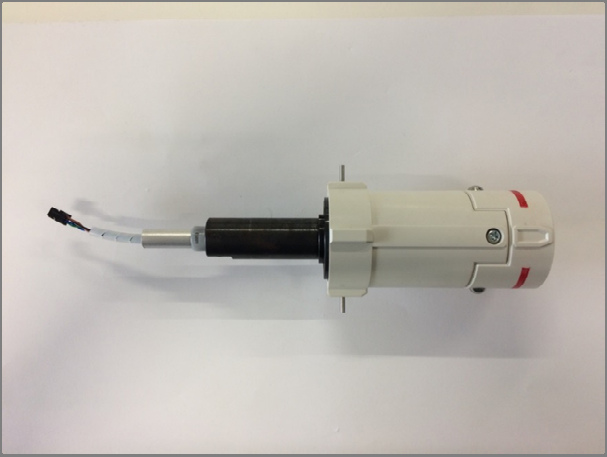

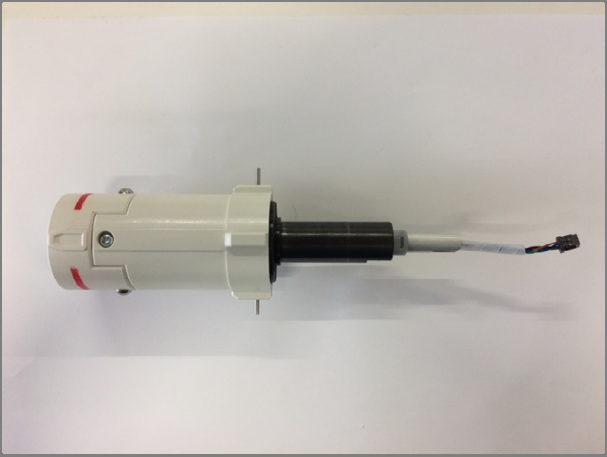

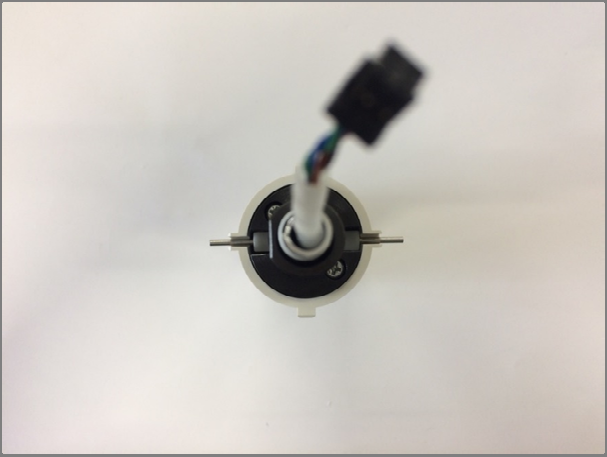

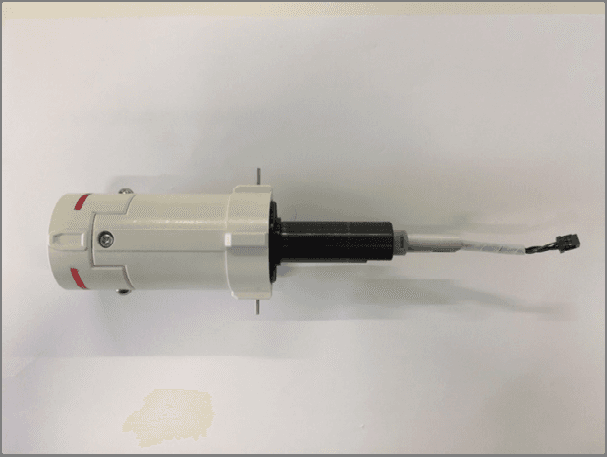

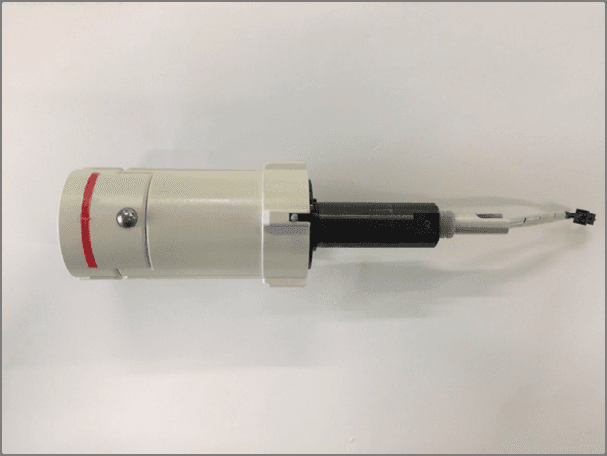

Model: JC-SE-R-001 FCC ID: 2APN9JC-SE-R-001 －Page 1 / 6－ External Photos Top Note: about color and material of cover Cover of JC-SE-R-001 for mass production has different colors and materials from the production prototype. The production prototype used for EMI test is black color and ABS. The mass production is white color and Polycarbonate. This difference has no effect on EMC. unit : mm Model: JC-SE-R-001 FCC ID: 2APN9JC-SE-R-001 －Page 2 / 6－ Bottom Model: JC-SE-R-001 FCC ID: 2APN9JC-SE-R-001 －Page 3 / 6－ Right Model: JC-SE-R-001 FCC ID: 2APN9JC-SE-R-001 －Page 4 / 6－ Left Model: JC-SE-R-001 FCC ID: 2APN9JC-SE-R-001 －Page 5 / 6－ Front Model: JC-SE-R-001 FCC ID: 2APN9JC-SE-R-001 －Page 6 / 6－ Back

Model:JC-SE-R-001 FCC ID:2APN9JC-SE-R-001 －Page 1 / 1－ Label Design and Location unit : mm

Model: JC-SE-R-001 FCC ID: 2APN9JC-SE-R-001 －Page 1 / 1－ Internal Photos Top Bottom Antenna Antenna RF IC <RFID_RW Board：JCESE-001> Note: about color and material of cover Cover of JC-SE-R-001 for mass production has different colors and materials from the production prototype. The production prototype used for EMI test is black color and ABS. The mass production is white color and Polycarbonate. This difference has no effect on EMC.

Test report No. : 13320239M-R1 Page : 1 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Report Cover Page - 13-EM-F0429 Issue # 17.0 CERTIFICATE 1266.01 EMI TEST REPORT Test Report No. : 13320239M-R1 Applicant : Takazono Technology Incorporated Type of EUT : Film core drum Model Number of EUT : JC-SE-R-001 Test regulation : FCC Part 15 Subpart C:2020 FCC ID : 2APN9JC-SE-R-001 Test Result : Complied (Refer to SECTION 3.2) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report appl y only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. The all test items in this test report are conducted b y UL Japan, Inc. Kashima EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provided from the customer for this report is identified in Section 1. 10. This report is a revised version of 13320239M. 13320239M is replaced with this report. Date of test: June 1 to 5, 2020 Representative test engineer: Kazuhiro Ando Engineer Consumer Technology Division Approved by: Tomoyuki Yamashita Leader Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13320239M-R1 Page : 2 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 REVISION HISTORY Original Test Report No.: 13320239M Revision Test report No. Date Page revised Contents - (Original) 13320239M June 30, 2020 - - 1 13320239M-R1 July 13, 2020 P.10 Modify the RFID Tag from an EUT to a supported equipment (Confi guration and Table) Test report No. : 13320239M-R1 Page : 3 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13320239M-R1 Page : 4 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test specification, procedures & results ......................…

Text truncated - open the document above for the full version.

Test report No. : 13320239M-R1 Page : 27 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 13320239M-R1 Page : 28 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Radiated Emission Photo 1 Photo 2 Test report No. : 13320239M-R1 Page : 29 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Radiated Emission Photo 1 Photo 2 Test report No. : 13320239M-R1 Page : 30 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Worst Case Position (X-axis) X-axis Y-axis Z-axis Test report No. : 13320239M-R1 Page : 31 of 31 Issued date : July 13, 2020 FCC ID : 2APN9JC-SE-R-001 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 With/Without Tag With Tag Without Tag End of Report
