2APO5-STOREEYEShelfcam

CAPTANA GMBH Address: Bundesstrasse 16, Ettenheim, Germany, 77955 Tel: 0049 07822-86199612 Email: [email protected] Date: 2024-05-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attestation letter Dear Sir or Madam, Our product Shelfcam, model: StoreEye , FCC ID: 2APO5-STOREEYE , for marketing purpose, this product only supports 2.4G Wi-Fi(2412-2462MHz, 802.11b/g/n20/n40 modes), 5G Wi-Fi(5250-5350MHz; 5470-5725MHz; 5725-5850MHz, 802.11a/n20/n40 modes), NFC(only has RX functions).The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature Thomas Schwarz Managing Director

CAPTANA GMBH Address: Bundesstrasse 16, Ettenheim, Germany, 77955 Tel: 0049 07822-86199612 Email: [email protected] ATTESTATION STATEMENT Date: 2024-05-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD21046 Ref: Attestation Statements Part 2.911(d)(5)(i), (ii)Filing FCC ID: 2APO5-STOREEYE CAPTANA GMBH certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section2.903 of the FCC rules. And CAPTANA GMBH certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Thomas Schwarz Managing Director

U.S. AGENT LETTER OF ATTESTATION Date: 2024-05-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2APO5-STOREEYE CAPTANA GMBH certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. CAPTANA GMBH accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: CAPTANA GMBH Address: Bundesstrasse 16, Ettenheim, Germany, 77955 FRN: 0027478791 Tel: 0049 07822-86199612 Email: [email protected] Signed by (printed name): Thomas Schwarz Signature:

CAPTANA GMBH Address: Bundesstrasse 16, Ettenheim, Germany, 77955 Tel: 0049 07822-86199612 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-05-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, CAPTANA GMBH , the undersigned, hereby authorizes Bay Area Compliance Laboratories Corp.(shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp.(shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Thomas Schwarz Managing Director

CAPTANA GMBH Address: Bundesstrasse 16, Ettenheim, Germany, 77955 Tel: 0049 07822-86199612 Email: [email protected] FCC Confidential Authorization Date: 2024-05-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2APO5-STOREEYE In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, CAPTANA GMBH hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Parts List • Software Security Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Thomas Schwarz Managing Director

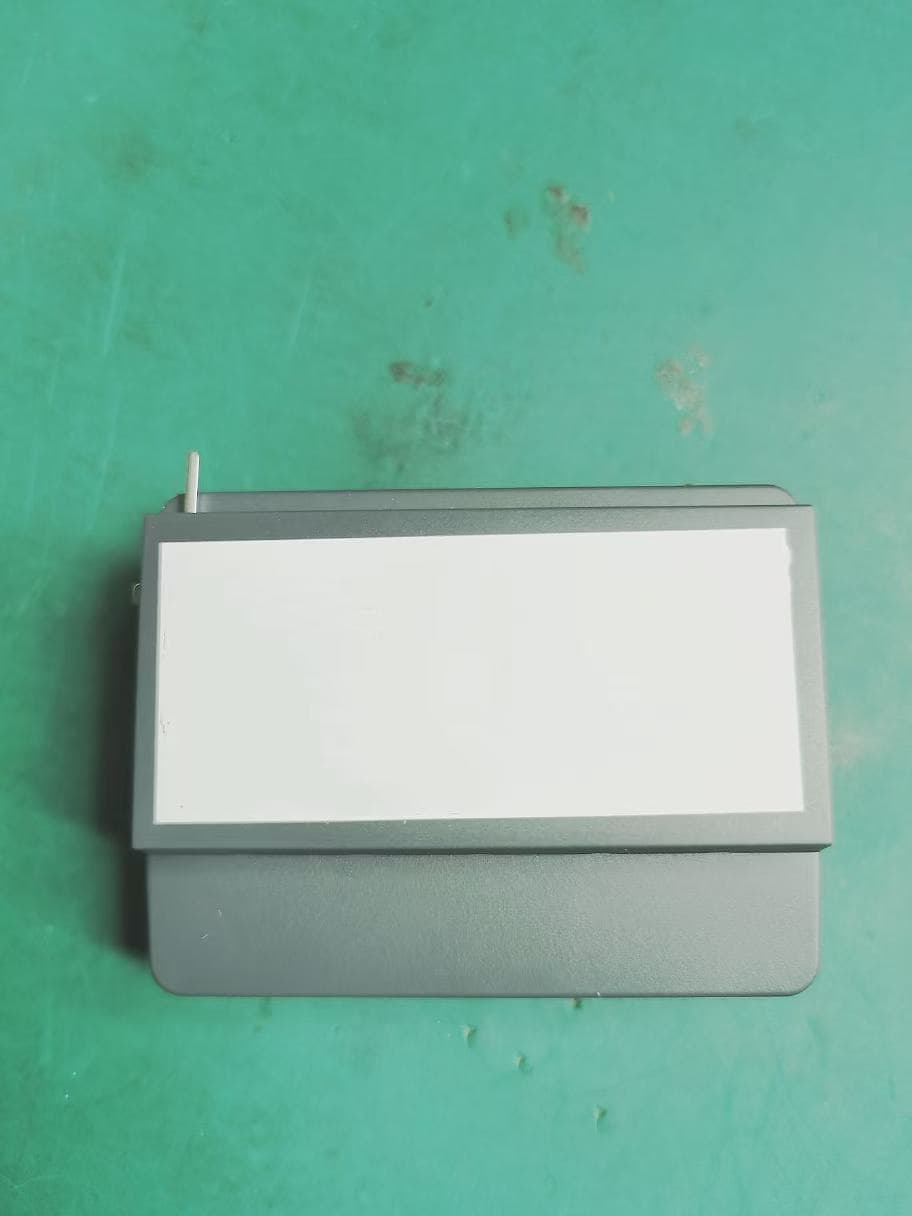

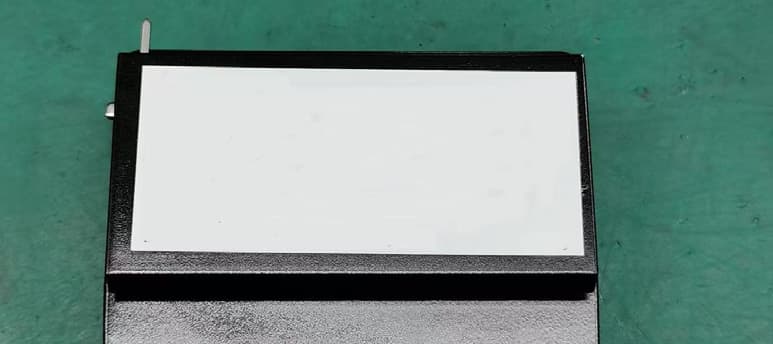

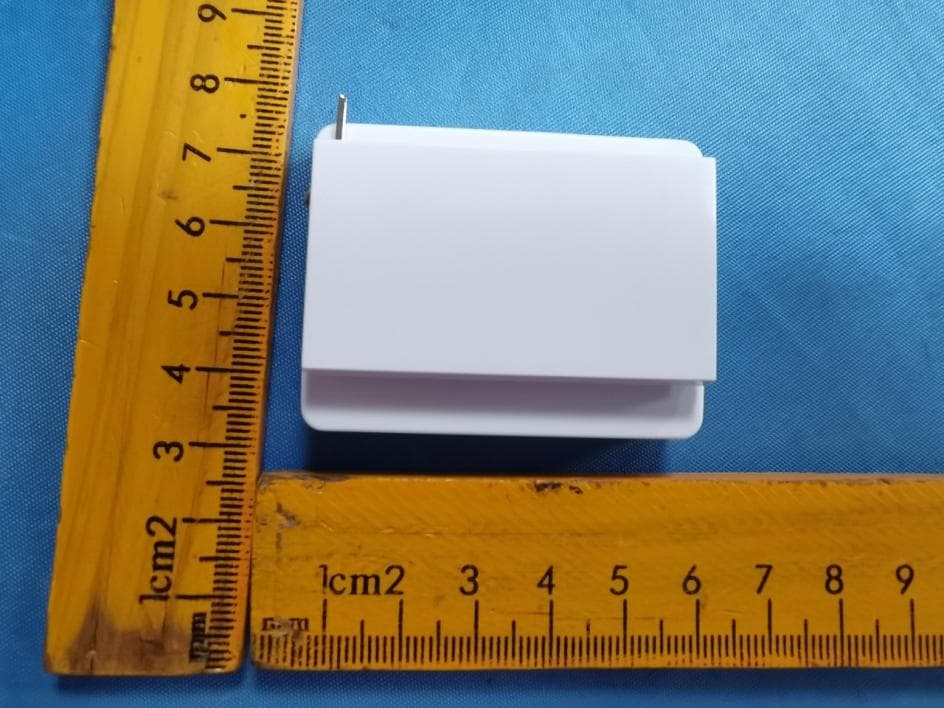

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 1 of 9 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Signalwhite StoreEye, StoreEye 120, StoreEye 80, StoreEye 60, StoreEye 50 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 2 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 3 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 4 of 9 Black StoreEye, StoreEye 120, StoreEye 80, StoreEye 60, StoreEye 50 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 5 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 6 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 7 of 9 Anthracite StoreEye, StoreEye 120, StoreEye 80, StoreEye 60, StoreEye 50 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 8 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 9 of 9

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 1 of 9 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 2 of 9 NFC ANT(RX only) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 3 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 4 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 5 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 6 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 7 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 8 of 9 WiFi ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZXX1240117-03999E-RF Page 9 of 9

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZXX1240117-03999E-RF-00A TR-EM-RF004 Page 13 of 110 Version 1.0 (2023/10/07) FCC §15.247 (I) & §1.1307 (B) & §2.1091- MPE-BASED EXEMPTION Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power (ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] to support an exemptionfrom further evaluation from 300 kHz through 100 GHz. Ris the minimum separation distance in meters f = frequency in MHz Result Mode Frequency (MHz) Tune up conducted power # Antenna Gain # ERP Evaluation Distance (m) ERP Limit (mW) (dBm) (dBi)(dBd)(dBm)(mW) Wi-Fi 2412-2462 25.0 2.23 0.08 25.08 322 0.2 768 Note: The tune up conducted power and antenna gain was declared by the applicant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant

LLC ™ ABRACON IS ISO9001-2015 CERTIFIED 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 12.21.2020 Dual band (2.4 GHz & 5.5 GHz) WiFi/Bluetooth Chip Antenna ACAG0301-24505500-T MSL = 3 Pb RoHS/RoHS II Compliant 3.2 x 1.6 x 1.2mm ELECTRICAL CHARACTERISTICS FEATURESAPPLICATIONS ItemSpecification Frequency Range2400 MHz~2500 MHz5150 MHz~5850 MHz Frequency After Matching2450 MHz5500 MHz Bandwidth100 MHz (typ.)800 MHz (typ.) Return Loss-7 dB (max.)-7 dB (max.) Gain2.23 dBi4.05 dBi Impedance50 Ω AzimuthOmni-directional Operating Temperature range-40°C ~+ 85°C MECHANICAL DIMENSIONS (mm) Antenna DimensionLayout Dimension • IoT and wearable • WiFi • Bluetooth • ISM applications • Dual band chip antenna • Gain of 2.23dBi | 4.05dBi • Made using LTCC (low temperature co-fired ceramic) technology • Small form factor 3.2 x 1.6 x 1.2mm • Omni-directional SymbolLWTaBc Dimensons3.2±0.21.6±0.21.2±0.10.5±0.10.7±0.11.0±0.1 LLC ™ ABRACON IS ISO9001-2015 CERTIFIED 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 12.21.2020 Dual band (2.4 GHz & 5.5 GHz) WiFi/Bluetooth Chip Antenna ACAG0301-24505500-T MSL = 3 Pb RoHS/RoHS II Compliant 3.2 x 1.6 x 1.2mm EVALUATION BOARD AND MATCHING CIRCUITS 90 50 Unit : mm 0.8pF ANTENNA RESPONSE – SMITH CHART AND RETURN LOSS S11 LLC ™ ABRACON IS ISO9001-2015 CERTIFIED 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 12.21.2020 Dual band (2.4 GHz & 5.5 GHz) WiFi/Bluetooth Chip Antenna ACAG0301-24505500-T MSL = 3 Pb RoHS/RoHS II Compliant 3.2 x 1.6 x 1.2mm RADIATION PATTERNS Coordinates 2.4 GHz X-Z Plane2.4 GHz Y-Z Plane 2.4 GHz X-Y Plane 5 GHz X-Z Plane LLC ™ ABRACON IS ISO9001-2015 CERTIFIED 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 12.21.2020 Dual band (2.4 GHz & 5.5 GHz) WiFi/Bluetooth Chip Antenna ACAG0301-24505500-T MSL = 3 Pb RoHS/RoHS II Compliant 3.2 x 1.6 x 1.2mm RADIATION PATTERNS 5 GHz X-Y Plane 3D RADIATION PATTERNS Frequency (MHz)240024502500 Avg. Gain (dBi)-4.75-1.61-1.36 Peak Gain (dBi)1.952.232.07 Efficiency (%)4266.550 Frequency (MHz)515055005850 Avg. Gain (dBi)-4.75-1.61-1.36 Peak Gain (dBi)3.874.053.92 Efficiency (%)7076.864 2450 MHz 5 GHz Y-Z Plane 5500 MHz LLC ™ ABRACON IS ISO9001-2015 CERTIFIED 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 12.21.2020 Dual band (2.4 GHz & 5.5 GHz) WiFi/Bluetooth Chip Antenna ACAG0301-24505500-T MSL = 3 Pb RoHS/RoHS II Compliant 3.2 x 1.6 x 1.2mm REFLOW SOLDERING STANDARD CONDITION Storage Temperature Range : <30 degree C, Humidity : <60%RH MSL - 3 Oxidizable, 12 months in a vacuum sealed bag. Once opened, please repack the unused items within 168 hours by re-seal package treatment. PACKAGING Dimensions: mm Reel (3000 pcs/Reel) Size of the carton: 330 x 210 x 210 mm LLC ™ ABRACON IS ISO9001-2015 CERTIFIED 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 12.21.2020 Dual band (2.4 GHz & 5.5 GHz) WiFi/Bluetooth Chip Antenna ACAG0301-24505500-T MSL = 3 Pb RoHS/RoHS II Compliant 3.2 x 1.6 x 1.2mm CAUTIONS 1. Static voltage Static voltage between signal & ground may cause deterioration & destruction of the component. Please avoid static voltage. 2. Ultrasonic cleaning Ultrasonic vibration may cause deterioration & destruction of the component. Please avoid ultrasonic cleaning. 3. Soldering Only leads of the component may be soldered. Please avoid soldering to any other part of the component, such as on the patterns as this will change the performance of the antenna.

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF004 Page 1 of 110 Version 1.0 (2023/10/07) TEST REPORT Applicant Name: CAPTANA GMBH Address: Bundesstrasse 16,Ettenheim,Germany 77955 Report Number: SZXX1240117-03999E-RF-00A FCC ID: 2APO5-STOREEYE Test Standard (s) FCC PART 15.247 Sample Description Product Type: Shelfcam Model No.: StoreEye Multiple Model(s) No.: StoreEye 120, StoreEye 80, StoreEye 60, StoreEye 50 Trade Mark: N/A Date Received: 2024/01/17 Issue Date: 2024/11/28 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Andy Yu Nancy Wang RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZXX1240117-03999E-RF-00A TR-EM-RF004 Page 2 of 110 Version 1.0 (2023/10/07) TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 11 FCC §15.247 (I) & §1.1307 (B) & §2.1091- MPE-BASED EXEMPTION .............................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 RESULT ...................................................................................................................................................................... 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS .................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDUR…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZXX1240117-03999E-RFA Page 1 of 3 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZXX1240117-03999E-RFA Page 2 of 3 Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZXX1240117-03999E-RFA Page 3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)
