2APP6AG-10NElectric Guitar Amp

This amplifier features a practical built-in drum machine function to enhance your music creation and practice experience. Main Features 1. Support for Improvised Practice Provides convenient impromptu practice support, capturing musical inspiration at any time. 2. Rich Rhythm Selection Offers 20 different rhythm patterns covering various styles to meet your diverse musical needs. 3. Tap Speed Control Unique Tap button allows precise control of drum machine speed by button press, enhancing flexibility and playability in your performance. Drum Machine Module Operation 1.“ ”Buttons Short Press: Select the previous or next rhythm pattern. Long Press: Adjust the drum machine volume. 2 .“DRUM” Button Turns the drum machine function on or off. 3.“TAP” Button Directly controls the drum machine speed by button press speed. This amplifier has 20 kinds different drum rhythm (please refer below chart) Whether you are a professional musician or a music enthusiast, the drum machine function of this amplifier will add excitement to your musical journey. AG-10N说明书 文件编号设计师审核人 AROMA-RD-BZ-02 核准人 2026 4 10 D E L A Y R E V E R B 重要安全说明 避免放置的地方 ● 直射阳光处 ● 高温或潮湿的环境 ● 灰尘过多的地方 ● 强烈震动的环境 ● 靠近磁场的区域 电源 本产品内置可充电锂离子电池，即使长时间不使用，建议每三个月充电一次，以确保电池性能。为 获得最佳电池寿命，请在-10至45度的环境下使用。 远离其他电器设备 将本产品远离手机或无线发射设备，以避免使用时受到干扰。 小心操作 避免用力按压按钮或操作部件，以防损坏设备。 清洁 如设备表面变脏，请用干燥的软布擦拭。不要使用含有易燃化学成分的清洁剂，如苯或稀释剂。 防止异物进入 请勿将液体容器放置在产品旁边。如果液体进入设备，可能会导致设备故障、火灾或电击。请特别 注意不要让金属物品进入设备内部。 便携随身：小巧设计，轻松携带，随时随地享受音乐。 强劲供电：内置大容量锂电池，配备Type-C充电口，随时保持“满能量”。 功率出色：10瓦输出，为您的演奏提供足够动力。 数字先锋：采用先进的DSP处理技术，带来卓越音效。 丰富音色：提供3种高品质音色，满足各种音乐风格需求，还包含延迟（Delay）和混响（Reverb） 两种基础空间效果。 自带鼓机：内置鼓机功能，增加演奏的节奏感。 智能连接：具备蓝牙和OTG功能，轻松直播和录制，设备互联无障碍。 主要特征 连接音箱 1. 将音箱的主音量旋钮（MASTER）调至最小位置，避免开机时音量过大。 2. 将吉他连接线插入音箱面板上的输入接口（INPUT），完成吉他与音箱的连接。 3. 长按电源开关键（POWER），开启音箱。 4. 调节音量旋钮至合适音量，短按模式按键（MODE）切换想要的音色，并根据需要调整音色，达到 理想的声音效果。 5. 如需使用鼓机、蓝牙，根据鼓机，蓝牙说明进行操作。 按照以上步骤操作，您即可顺利开始演奏！ 面板介绍 Overdrive过载音色 OD. CL. Clean清音音色 DIST. Distortion失真音色 ❶ INPUT：电吉他6.35mm输入口 ❷ 鼓机模块：参见“鼓机功能、二” ❸ 电源/蓝牙指示灯：开机后指示灯常亮，如果电池电量低，指示灯短暂闪烁，并发出提示音警告您需要 充电。开启蓝牙后，将会有提示音且持续闪烁，手机连接蓝牙后，指示灯常亮 ❹ 蓝牙/POWER：长按开启/关闭电源，短按开启/关闭蓝牙 ❺ OTG：OTG USB 数字音频信号输入/输出口 ❻ 耳机接口：3.5mm耳机接口 ❼ MODE：音色切换按钮，短按切换不同音色，与LED指示灯同步 ❽ GAIN：增益旋钮，控制乐器输入的增益值 ❾ TONE：音色旋钮，控制乐器的音色 ❿ MASTER：总音量旋钮，控制乐器信号总音量 ⓫ DELAY/REVERB：延迟/混响旋钮，调节延迟/混响总量 ⓬ USB 5V：Type-C电源充电口，5V ⎓ 2A；参见“产品充电” ⓭ 充电指示灯：充电时指示灯红色常亮，充满后指示灯绿色常亮。 本音箱配备了强大且实用的内置鼓机功能，丰富您的音乐创作和练习体验。 一、主要特点 1. 即兴练习支持 提供随时随地的即兴练习支持，让您捕捉音乐灵感。 2. 丰富的节奏型选择 提供20种不同节奏型，涵盖多种风格，满足您的多样化需求。 3. TAP 速度控制 独特的Tap按键，通过按键速度控制鼓机节奏，增强演奏的灵活性和趣味性。 二、鼓机模块操作 1.“ ”按键 短按：选择上一首或下一首节奏型。 长按：调节鼓机音量。 2.“DRUM”按键 开启或关闭鼓机功能。 3.“TAP”按键 通过按键速度直接控制鼓机速度。 三、本音箱共有20条鼓机节奏（参见下图鼓机节奏表） 无论您是专业音乐人士还是音乐爱好者，这款音箱的鼓机功能将为您的音乐旅程增添色彩。 鼓机功能 ❷❶❸ ❹ ❺ ❻ ❼❽ ❾❿⓫ AG-10N 用 户 手 册 CN 多功能电吉他音箱 非常感谢您购买AROMA品牌音箱AG-10N。 本手册详述了AG-10N的安装和操作信息，为了帮助您充分了解、使用您的新设备，请仔细阅读，并 将其保存以供日后参考。 ⓬ 省电模式 本音箱具备智能的省电功能。当音箱在10分钟内未检测到任何信号输入时，将自动进入关机状态。此设 计避免了因疏忽关机导致的电量浪费，同时也有助于节能环保。 产品规格 电池拆卸及安装 喇叭峰值功率 音箱预存效果种类 效果种类 鼓机节奏型 蓝牙版本 输入/输出接口 采样率 电源 充电 充电时长 满电使用时长 喇叭 尺寸 净重 包装清单 10W 3种（清音/过载/失真） 2种（混响/延迟） 20种 5.3 1个吉他输入接口，1个耳机输出接口，1个OTG接口，1个Type-C充电接口 44100hz/16bit 3.7V/3000mAh 聚合物锂电池 5V ⎓ 2A Type-C 约2.5小时 约6.5小时 单只3寸全频喇叭，4Ω 166 ×92×117mm 675g 主机×1，USB Type-C充电线×1，说明书×1，合格证×1 产品充电 当音箱蓝牙指示灯短暂闪烁一次并伴随“滴滴”的提示音时，表示电量低，需要充电。 1. 请使用随附的Type-C充电线，并选择具有正规安全标志、输出5V ⎓ 2A的充电头或移动电源。 2. 充电过程中，充电提示灯会亮红色，当提示灯常亮绿色时表示充电完成。 注意: 使用不合规的充电头可能会导致产品损坏，并在充电 及使用过程中产生噪音 蓝牙功能 1. 短按蓝牙开机按键（POWER），蓝色LED灯闪烁两次并伴随提示音“叮咚”， 表示蓝牙启动，此时若未有设备链接时，指示灯会保持慢速闪烁。 2. 手机开启蓝牙功能，自动搜索设备名称“AG-10N”，点击连接。当连接成功时， 设备将发出提示音“滴”。 AG-10N 1. 使用螺丝刀拧开电池后盖，小心取出旧电池，注意 卡口和电源接口位置，如图①所示。 2. 将新电池按照红线向上、白线中间、黑线向下的 方向插入卡座，确保其稳固，如图②所示。 3. 确认设备能正常开机，装上电池后盖，并拧紧螺 丝，如图③所示。 图① 图② 图③ 注意 ●更换电池时，确保电池安装牢固且方向正确。 ●本音箱只能使用原装电池AB-30（需另行购买）。 ●请根据当地法规回收或处理废旧电池，避免儿童 接触，不要将电池丢弃在家庭垃圾中或焚烧。 红线红线 黑线黑线 白线白线 AB-30 OTG USB AUDIO This equipment contains specified radio equipment that has been certified to the Technical Regulation Conformity Certification under the Radio Law. ⓭ 文字商标和徽标为蓝牙技术联盟的注册商标，深圳市阿诺玛乐器有限公司对此类商标的任何使用均 已获得许可。其他商标和商品名称为其各自所有者所有。 001002003004005006007008 009 010 Pop1 Pop2Pop3 Shuffle1 Rock1Metal1Metal2 Shuffle2 Funk1 Jazz 011012013014015016017018019020 Funk2Rock2Rock3Metal3Rock4Metal4 Latin Samba Fusion1Fusion2 ❶ INPUT：6.35mm input jack for electric guitar ❷ Drum Machine Module：See "Built-in Drum Machine Function, Section Two" ❸ Power/Bluetooth indicator：after power-on the indicator light remains on constantly. If low battery, the indicator light will flash rapidly and a warning tone is emitted to alert you that charging is required. After turning on Bluetooth, there will be a notification sound and light will flash, after connected the light will remains on ❹ Bluetooth/POWER：long press to turn power on/off,Short press to turn Bluetooth on/off ❺ OTG：OTG USB digital audio signal input/output port ❻ Headphone Jack：3.5mm headphone jack ❼ MODE：Tone selection button, short press to switch between different tones, synchronized with the LED light ❽ GAIN：Gain knob, controls the gain value of the instrument input ❾ TONE：Tone knob, controls the tone of the instrument ❿ MASTER：Master volume knob, controls the overall instrument signal volume ⓫ DELAY/REVERB：Delay/Reverb knob, adjusts the overall delay/reverb amount ⓬ USB 5V：Type-C power charging port, 5V ⎓ 2A, see "Product Charging" ⓭ Charging indicator: The indicator light remains red when charging, and turn green after fully charged. D E L A Y R E V E R B Important Safety Instructions 主要特征 Connecting the Amplifier Panel Introduction Drum Machine Function ❷❶❸ ❹ ❺ ❻ ❼❽ ❾❿⓫ CL. Clean DIST. Distortion Overdrive OD. AG-10N User Manual EN Thank you for purchasing AROMA AG-10N. Please read the user guide before using the device and keep it for reference. ⓬ Power Saving Mode Product Specifications Battery Removal and Installation Product Charging When the Bluetooth light flash rapidly and with the “didi’ alarm sound, it indicates that the battery is low and needs charging. 1. Use the included Type-C charging cable, and choose a certified charger or power bank with an output of 5V ⎓ 2A. 2. Durin…

Text truncated - open the document above for the full version.

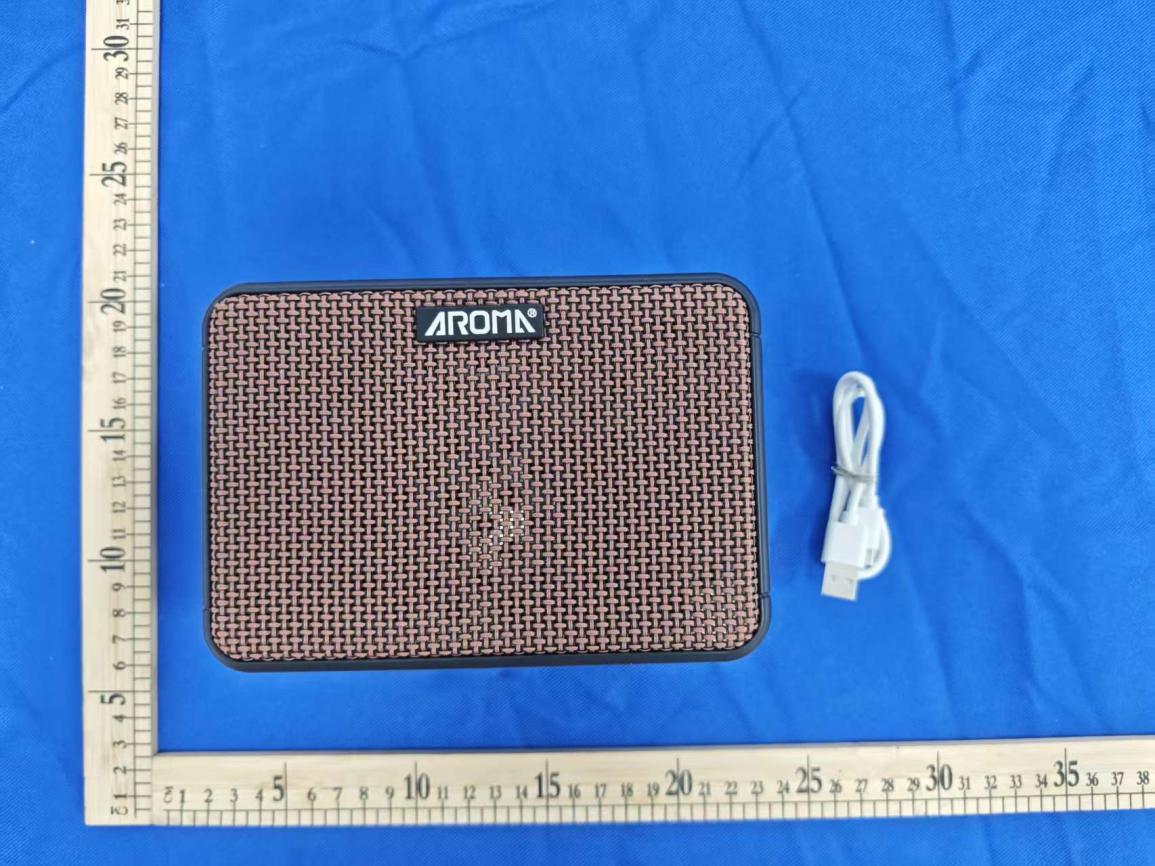

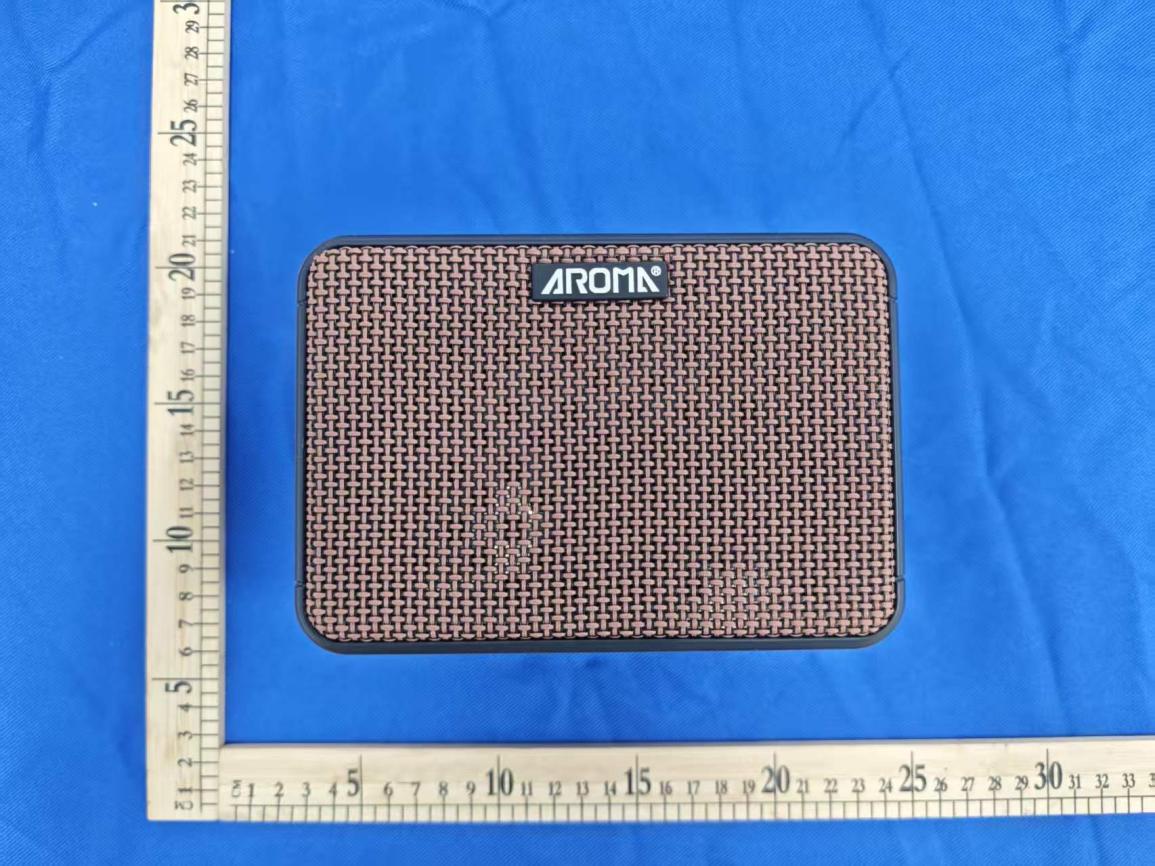

DNT2604141496R02853-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2APP6AG-10N ExternalPhotos ExternalPhotos DNT2604141496R02853-P01Page: 2 of 4 ExternalPhotos ExternalPhotos DNT2604141496R02853-P01Page: 3 of 4 ExternalPhotos ExternalPhotos DNT2604141496R02853-P01Page: 4 of 4 ExternalPhotos --END--

FCCID:2APP6AG-10N

DNT2604141496R02853-P01Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2APP6AG-10N InternalPhotos InternalPhotos DNT2604141496R02853-P01Page: 2 of 4 InternalPhotos InternalPhotos DNT2604141496R02853-P01Page: 3 of 4 InternalPhotos InternalPhotos DNT2604141496R02853-P01Page: 4 of 4 InternalPhotos --END--

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2604141496R02853-03294 Applicant: AromaMusicCo.,Ltd. AddressofApplicant: Room901,BuildingNo.1,LangjunPlaza,No.28TizaiRoad,Gongle Community,XixiangStreet,BaoanDistrict,ShenzhenCity,China EUTDescription: ElectricGuitarAmp ModelNo.: AG-10N AdditionalModel(s): / FCCID: 2APP6AG-10N Powersupply: InputDC5V;DC7.4Vfromrechargeablelithium-ionbattery TradeMark: / Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/04/14 DateofTest: 2026/04/14to2026/04/22 DateofIssue: 2026/04/22 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2604141496R02853-03294Date：April22,2026Page： 2 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/April22,2026ValidOriginalReport ReportNo.:DNT2604141496R02853-03294Date：April22,2026Page： 3 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2604141496R02853-03294Date：April22,2026Page： 4 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer: AromaTechnologyCo.,Limited AddressofManufacturer: BuildingA,AromaPark,GuwuVillage,DanshuiTown,HuiyangDistrict,Huizhou, Guangdong516200China Factory: AromaTechnologyCo.,Limited AddressofFactory: BuildingA,AromaPark,GuwuVillage,DanshuiTown,HuiyangDistrict,Huizhou, Guangdong516200China EUTDescription: ElectricGuitarAmp ModelNo.: AG-10N AdditionalModel(s): / PowerSupply: InputDC5V;DC3.7Vfromrechargeablelithium-ionbattery TradeMark:/ HardwareVersion:V1.0 SoftwareVersion:V1.0 ChipType: E003566-66B4 Serialnumber PR2604141496R02853 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 0dBi Note: *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrity andresultsofthedataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2604141496R02853-03294Date：April22,2026Page： 5 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) DONGGUANDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada DONGGUANDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.328dB No.ItemMeasurementUncertainty 1ConductionEmission±3.0dB(150kHzto30MHz) 2RadiatedEmission ±4.8dB(Below1GHz) ±4.8dB(1GHzto6…

Text truncated - open the document above for the full version.

ANTENNASPECIFICATION Summary ITEM ANT SPEC ModelName2.4GANT Antennaplate PCB antenna Center Frequency HorizontalVertical 2400MHz2450MHz2500MHz2400MHz2450MHz2500MHz -1.66-0.840-6.16-3.65-2.21 MAX.Gain0dBi PolarizationHorizontaland Vertical Impedance50 Ohm Manufacturer: AromaTechnologyCo.,Limited Addressof Manufacturer: BuildingA,AromaPark,GuwuVillage,DanshuiTown,HuiyangDistrict, Huizhou,Guangdong516200China AntennaPhoto Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency Gain(dBi) (MHz) Max. Min Avg. 2400-1.66179-30.2813-8.78713 2450-0.847811-38.7595-7.87812 2500-0.000000-23.6329-6.99139 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency Gain(dBi) (MHz) Max. Min Avg. 2400-6.1623-23.1425-12.5295 2450-3.6534-26.2866-10.6699 2500-2.21101-29.4381-9.58526

Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2604141496R02853-03291 Applicant: Aroma Music Co., Ltd. Address of Applicant: Room 901, Building No. 1, Langjun Plaza, No. 28 Tizai Road, Gongle Community, Xixiang Street, Baoan District, Shenzhen City, China EUT Description: Electric Guitar Amp Model No.: AG-10N Additional Model(s): / FCC ID: 2APP6AG-10N Power Supply: Input DC 5V; DC 3.7V from rechargeable lithium-ion battery Trade Mark: / Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/04/14 Date of Test: 2026/04/14 to 2026/04/22 Date of Issue: 2026/04/22 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 2 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/April 22, 2026ValidOriginal Report Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 3 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement15.203/247(b/c)--Clause 3.1PASS 20dB Emission Bandwidth15.247 (a)(1)ANSI C63.10: 2020Clause 3.2PASS Conducted Peak Output Power 15.247 (b)(1)ANSI C63.10: 2020Clause 3.3PASS Carrier Frequencies Separation 15.247 (a)(1)ANSI C63.10: 2020Clause 3.4PASS Dwell Time15.247 (a)(1)ANSI C63.10: 2020Clause 3.5PASS Hopping Channel Number15.247 (a)(1)ANSI C63.10: 2020Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.8PASS Radiated Spurious emissions 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.10PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.11PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 4 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 20dB Emission Bandwidth................................................................................................................................... 12 3.3 Conducted Output Power..…

Text truncated - open the document above for the full version.

Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 50 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix F: Band edge measurements Test Result TestModeAntennaChNameFreq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-0.29-49.99≤-20.29PASS High24801.36-44.85≤-18.64PASS LowHop_2402-1.24-49.05≤-21.24PASS HighHop_24800.59-47.97≤-19.41PASS 2DH5Ant1 Low2402-0.07-47.26≤-20.07PASS High24801.22-48.71≤-18.78PASS LowHop_2402-9.48-48.68≤-29.48PASS HighHop_2480-2.35-48.28≤-22.35PASS 3DH5Ant1 Low24020.19-46.75≤-19.81PASS High2480-4.44-50.86≤-24.44PASS LowHop_2402-5.87-48.07≤-25.87PASS HighHop_2480-2.31-48.04≤-22.31PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 51 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 52 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 53 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 54 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 55 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix G: Conducted Spurious Emission Test Result TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant124020~Reference2.052.05---PASS DH5Ant1240230~10002.05-58.25≤-17.95PASS DH5Ant124021000~265002.05-25.88≤-17.95PASS DH5Ant124410~Reference2.262.26---PASS DH5Ant1244130~10002.26-59.36≤-17.74PASS DH5Ant124411000~265002.26-45.84≤-17.74PASS DH5Ant124800~Reference2.662.66---PASS DH5Ant1248030~10002.66-59.3≤-17.34PASS DH5Ant124801000~265002.66-47.73≤-17.34PASS 2DH5Ant124020~Reference1.611.61---PASS 2DH5Ant1240230~10001.61-59.41≤-18.39PASS 2DH5Ant124021000~265001.61-48.93≤-18.39PASS 2DH5Ant124410~Reference2.442.44---PASS 2DH5Ant1244130~10002.44-58.72≤-17.56PASS 2DH5Ant124411000~265002.44-48.54≤-17.56PASS 2DH5Ant124800~Reference2.532.53---PASS 2DH5Ant1248030~10002.53-58.53≤-17.47PASS 2DH5Ant124801000~265002.53-48.43≤-17.47PASS 3DH5Ant124020~Reference2.142.14---PASS 3DH5Ant1240230~10002.14-58.85≤-17.86PASS 3DH5Ant124021000~265002.14-48.49≤-17.86PASS 3DH5Ant124410~Reference2.702.70---PASS 3DH5Ant1244130~10002.70-59.44≤-17.3PASS 3DH5Ant124411000~265002.70-48.49≤-17.3PASS 3DH5Ant124800~Reference2.822.82---PASS 3DH5Ant1248030~10002.82-58.77≤-17.18PASS 3DH5Ant124801000~265002.82-48.99≤-17.18PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 56 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5-Ant1-2402-0~Reference-PASS DH5-Ant1-2402-30~1000-PASS DH5-Ant1-2402-1000~26500-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 57 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5-Ant1-2441-0~Reference-PASS DH5-Ant1-2441-30~1000-PASS DH5-Ant1-2441-1000~26500-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 58 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5-Ant1-2480-0~Reference-PASS DH5-Ant1-2480-30~1000-PASS DH5-Ant1-2480-1000~26500-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 59 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5-Ant1-2402-0~Reference-PASS 2DH5-Ant1-2402-30~1000-PASS 2DH5-Ant1-2402-1000~26500-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 60 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5-Ant1-2441-0~Reference-PASS 2DH5-Ant1-2441-30~1000-PASS 2DH5-Ant1-2441-1000~26500-PASS Report No.: DNT2604141496R02853-03291Date：April 22, 2026Page： 61 / 64 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087…

Text truncated - open the document above for the full version.

DNT2604141496R02853-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2APP6AG-10N AntennaTerminalTestView . DNT2604141496R02853-P01Page: 2 of 3 ConductedEmissionTestView RadiatedEmissionTestView|(Below1G) DNT2604141496R02853-P01Page: 3 of 3 RadiatedEmissionTestView|(Above1G) RadiatedEmissionTestView|(Above1G) --END--
